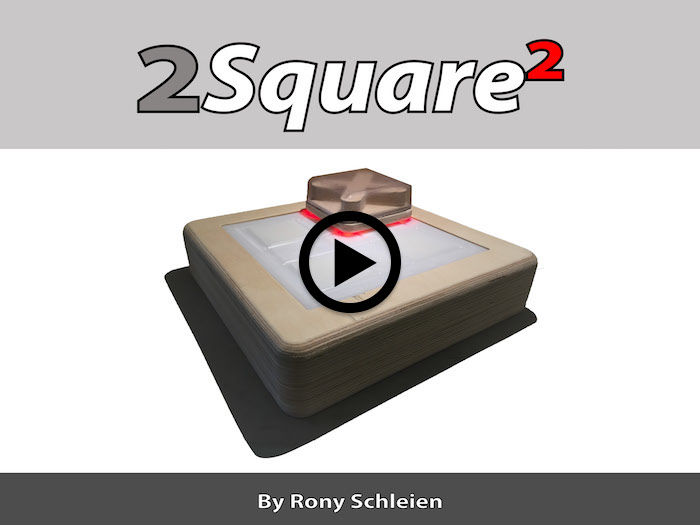

My summary slide & video clip
About the 2Square2 game
My project is an interactive board game and a uniquely and pleasantly design product. It suits both kids and adult. It is computer aided design and the fabrication can be made in every average fablab.The first development prototype model is a panel of four squares. This is the proof of concept for my final project. The game’s board is lighted with leds. A hall effect sensor reading an analog voltage is changed by the relation to a magnet. The distance of the magnet defines whether the leds are on or off.
For the 2Square2 model:
The prototype model measurement is about 30*30*10cm there for I reused materials of the fablab. All the electronic components were available from the fablab stock with the exception of the led’s strip.
- 8mm Polyethylene
- 2 layers of 8mm plywood
- 1 layer of 3mm plywood
- 4 hall effect sensors
- 1 strip of 20 WS2812 Leds
Materials and components of the board:
- 2 layers of 18mm birch plywood
- 4 disk made from 3mm plywood
- 4 ball wheels
- 2mm PVC
- 1 industrial magnet 15mm diameter 3mm thickness
Materials of the game’s unit:
- 4 layers of 18mm birch plywood
Materials of the frame:
- 1x ATtiny44
- 2x 2x3 pin header
- 1x 20MHz resonator
- 1x 10kΩ resistor
- 1x 100kΩ resistor
- 1x 1uf capacitor
Electronics BOM:
Weeks that I warked on my final project
- Week 1: Final Project Proposal
- Week 2: Computer-Aided Design
- Week 5: 3D Scanning and Printing
- Week 10: Output Devices
- Week 12: Molding and Casting
- Week 13: Input Devices
- Week 14: Composites
- Week 16: Interface and Application Programming
- Week 17: Applications and Implications
- Week 18: Invention, Intellectual Property, and Income
- Week 19: Project Development
Files:
Electronics:
download sch.file download brd.file download sch.file download brd. filePrograming:
download c.file download make.file3D Modeling:
download 3dm.file2D For Fabrication:
- Layout for milling the bottom (2 layers of 18mm birch plywood) and top’s mold (4 layers of 22mm MDF) of the game’s unit download dxf.file
- Layout for laser cutting parts of the game’s unit (3mm plywood) download dxf.file
- Layout for milling the top of the game’s board (8mm Polyethylene) download dxf.file
- Layout for laser cutting the game’s board bottom layers (2 layers of 8mm plywood, 1 layer of 3mm plywood) download dxf.file
- Layout for milling the board’s frame (4 layers of 18mm birch plywood) download dxf.file
The licence I chose
I chose the Attribution-NonCommercial-ShareAlike 4.0 International. I do believe in sharing the knowledge and wouldn’t want other to make it commercial. Also developing ideas is blessing and if my project will be an inspiration for other it will be a great honor. Compatible licence will insure a decent future development.
Who's done what beforehand?
- board games project:
- Hall effect sensor project:
