Idea

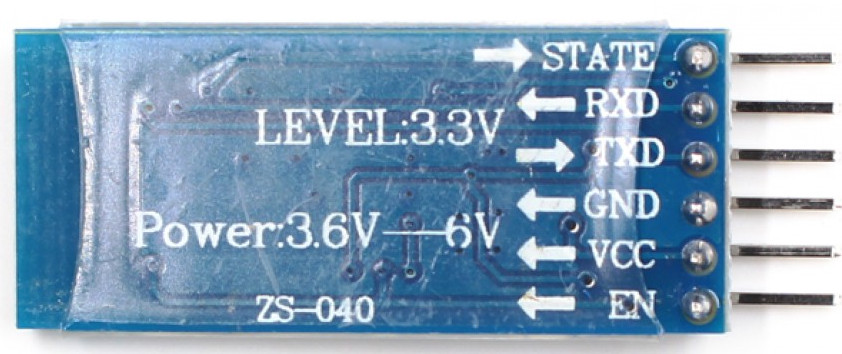

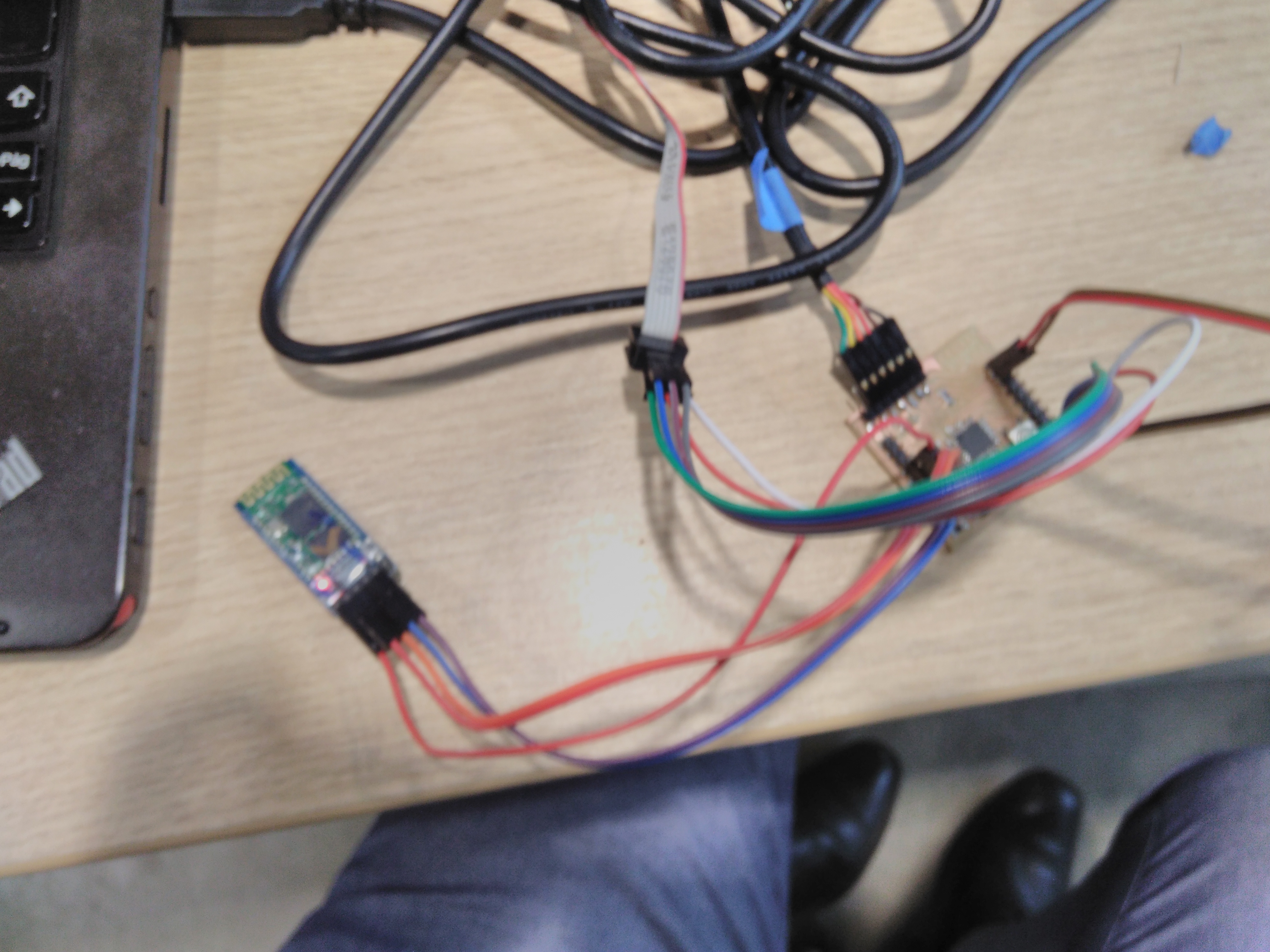

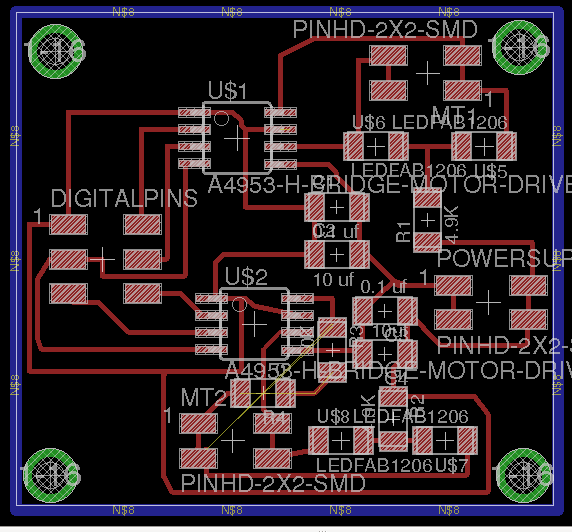

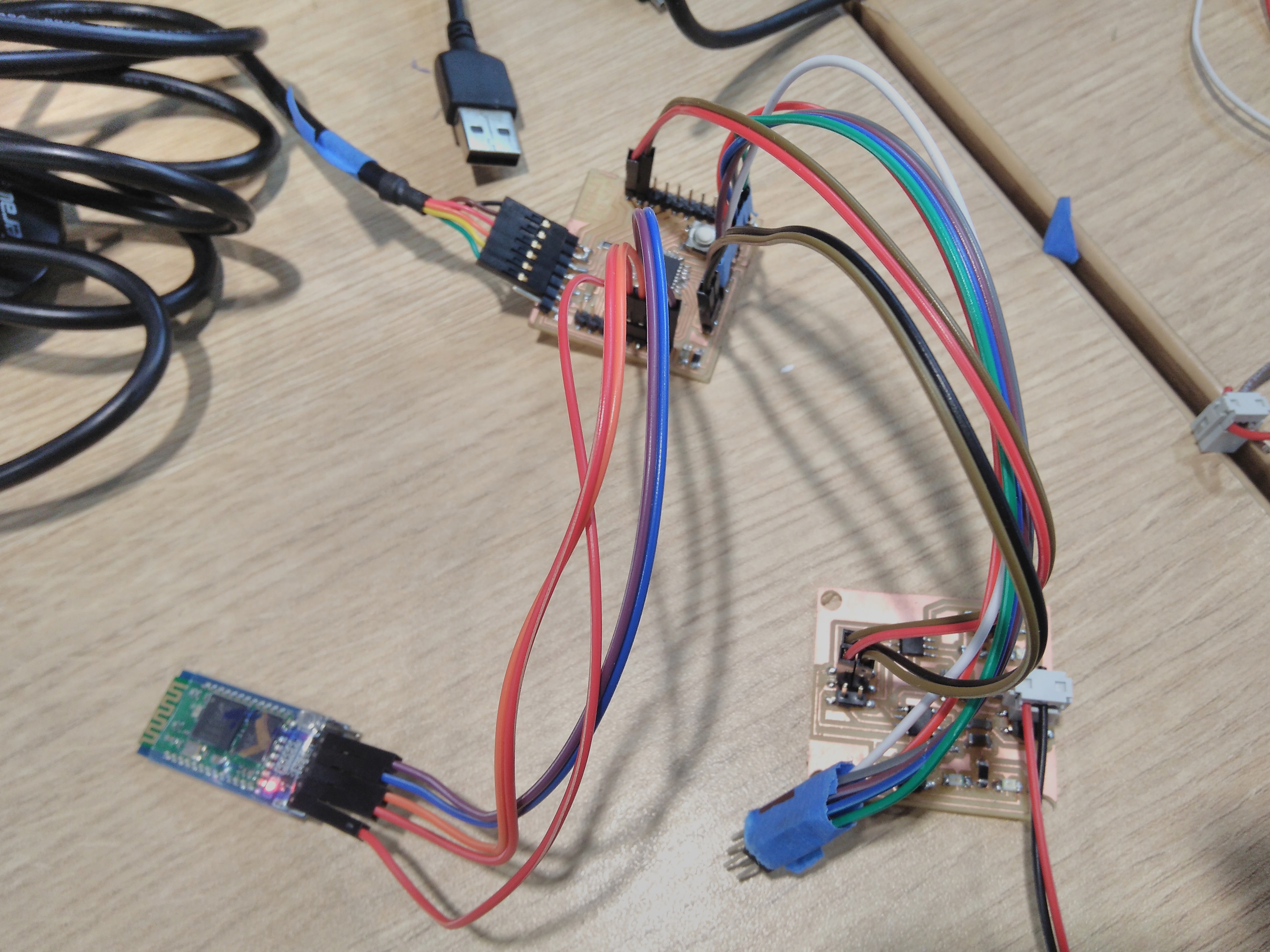

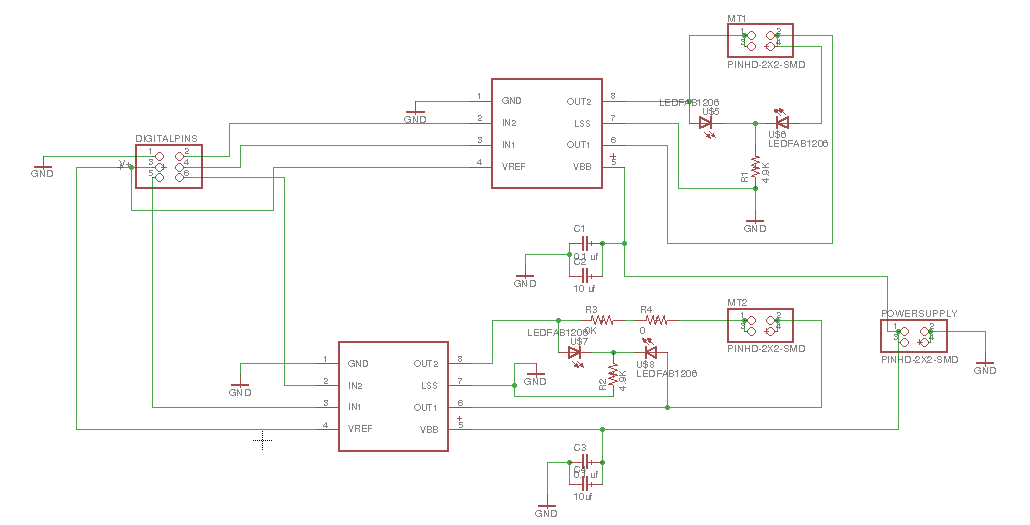

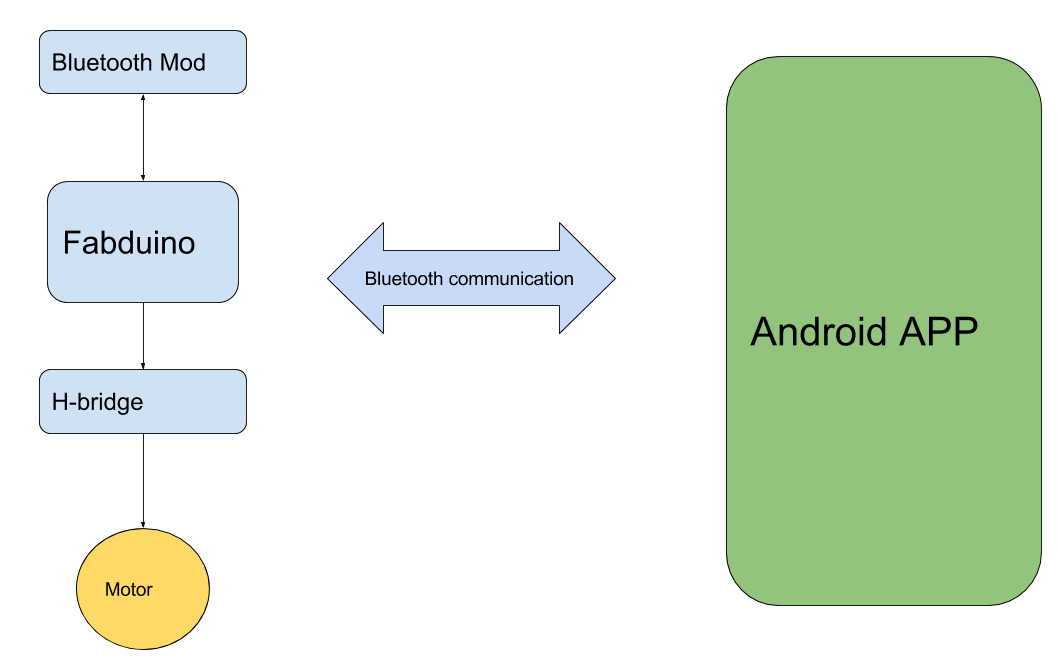

I have decided to make an app to control motor dc. The idea is to develop a control remote via bluetooth. So the hardware implementation requires a fabduino, bluetooth module HC-05, H-bridge and motor DC. The android app will connect to HC-05, so when we press the button, it sent a message which is listened by fabduino. The H-brdige is able and not able when the correct message.

Arduino source code

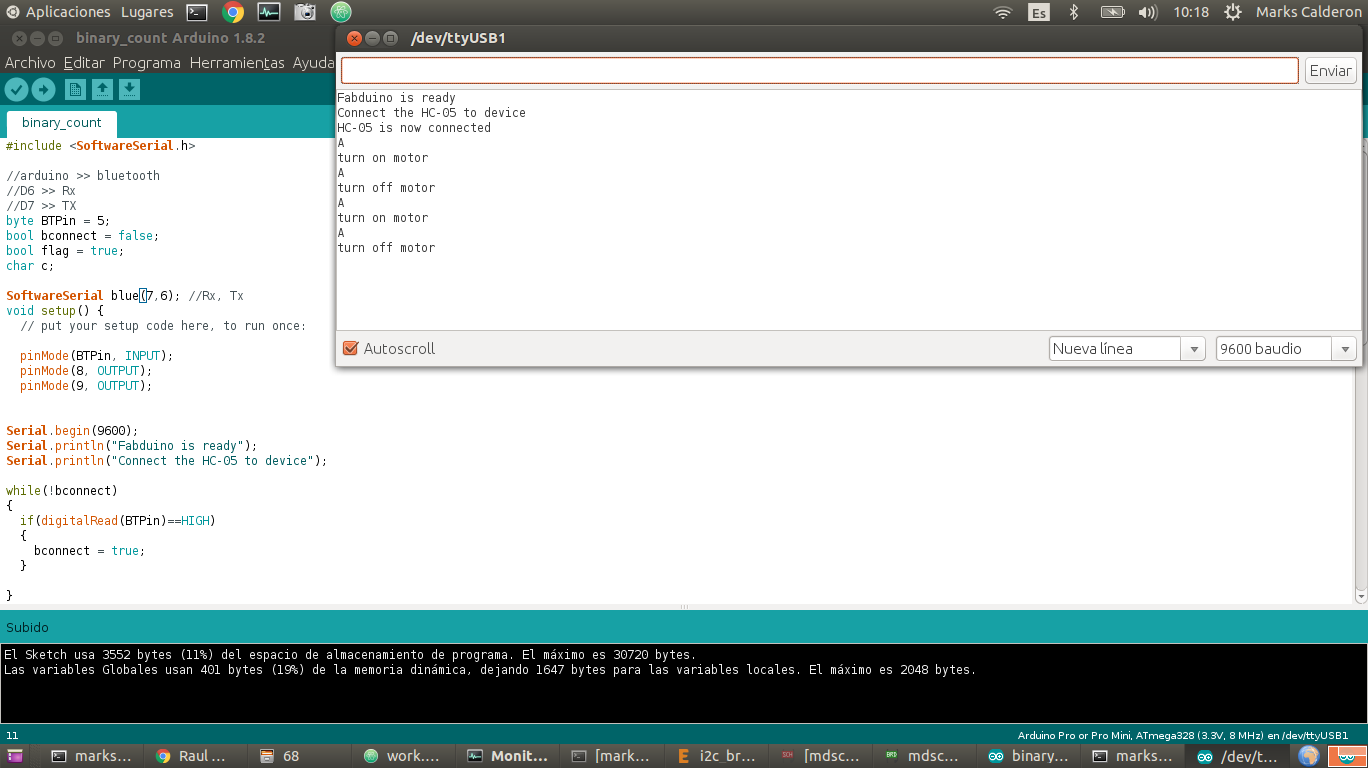

This souce code has the program to upload in fabduino. We used the library SoftwareSerial to simulate serial communication because the original serial ports were using by the Arduino program. Status bluetooth pin and H-bridge pins were setting as INPUT and OUTPUT. In setup function details configuration for each pin and connection between fabduino and bluetooth. The baup rate for each Serial communication were 9600.

#include <SoftwareSerial.h>
//arduino >> bluetooth
//D2 >> Rx
//D3 >> TX
byte BTPin = 7;
bool bconnect = false;
bool flag = true;
char c;

SoftwareSerial blue(2,3); //Rx, Tx
void setup() {
  // put your setup code here, to run once:
  pinMode(BTPin, INPUT);
  pinMode(5, OUTPUT);
  pinMode(6, OUTPUT);

Serial.begin(9600);
Serial.println("Fabduino is ready");
Serial.println("Connect the HC-05 to device");

while(!bconnect)
{
  if(digitalRead(BTPin)==HIGH)
  {
    bconnect = true;
  }
}
Serial.println("HC-05 is now connected");
blue.begin(9600);

}

void loop() {
  // put your main code here, to run repeatedly:
  if(blue.available()){
    c = blue.read();
    if(c == 'A')
    {
      if(flag)
      	{
	Serial.println("turn on motor");
	digitalWrite(5, HIGH);
	digitalWrite(6, LOW);
	flag = !flag;
	}
      else{

	Serial.println("turn off motor");
	digitalWrite(5, LOW);
	digitalWrite(6, LOW);
	flag = !flag;
	}
    }

  }
  if(Serial.available())
  {
    c = Serial.read();
    blue.write(c);
  }

}

Android source code

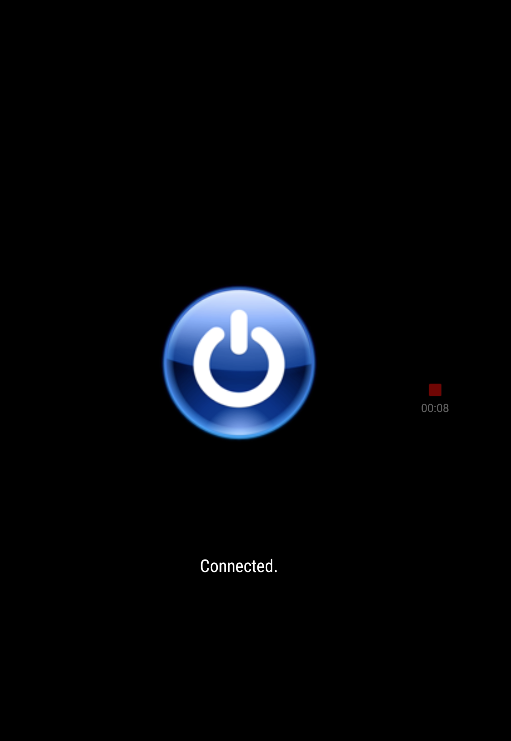

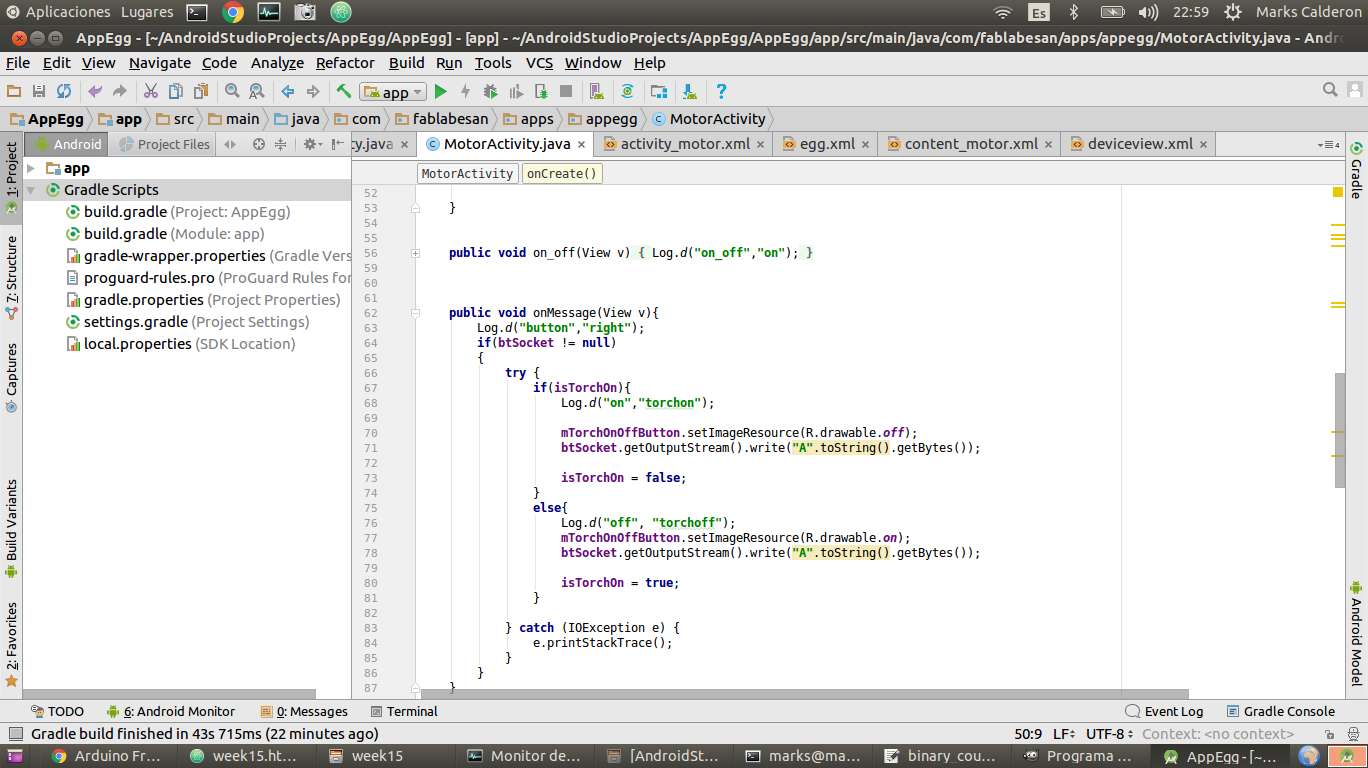

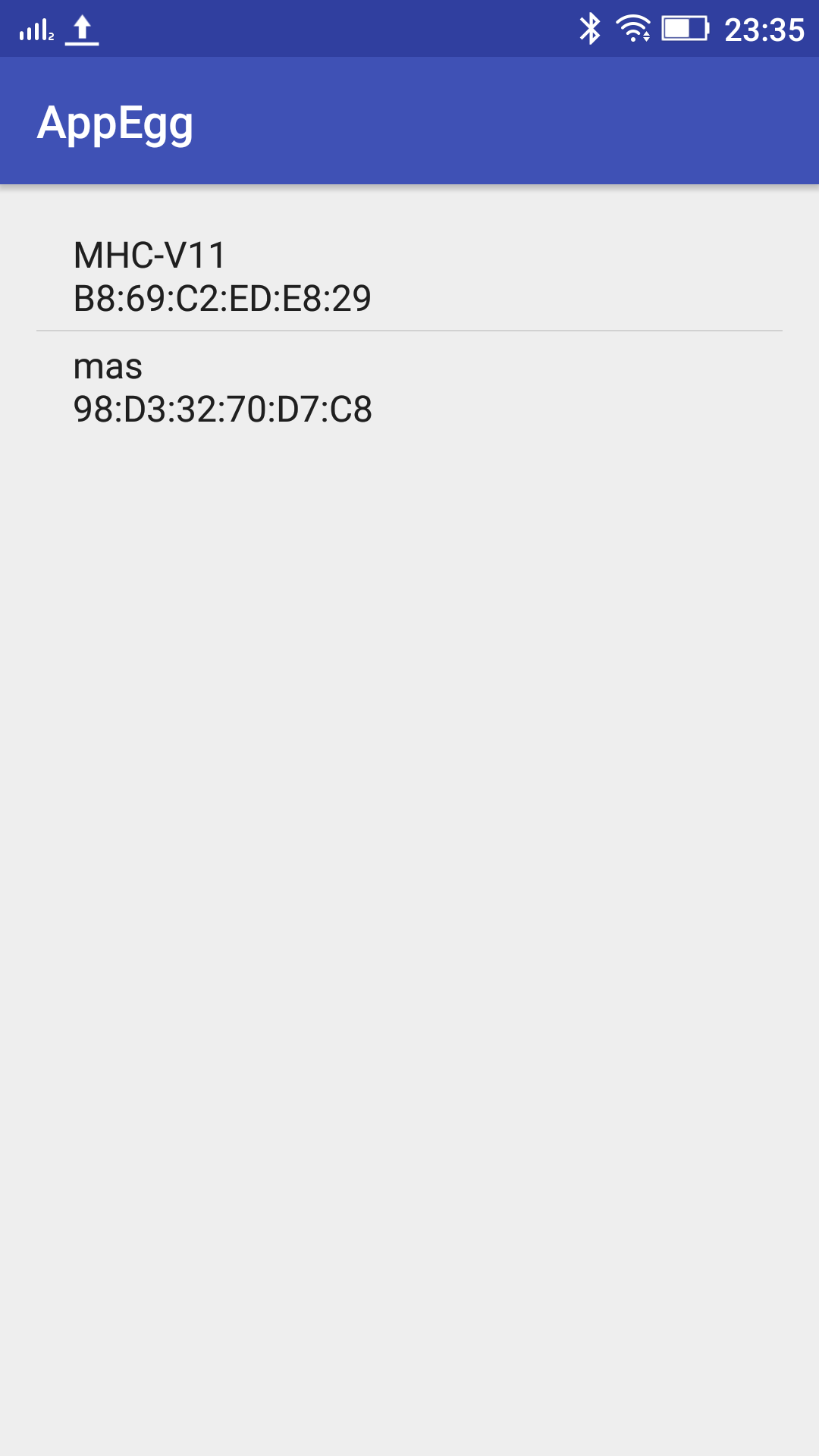

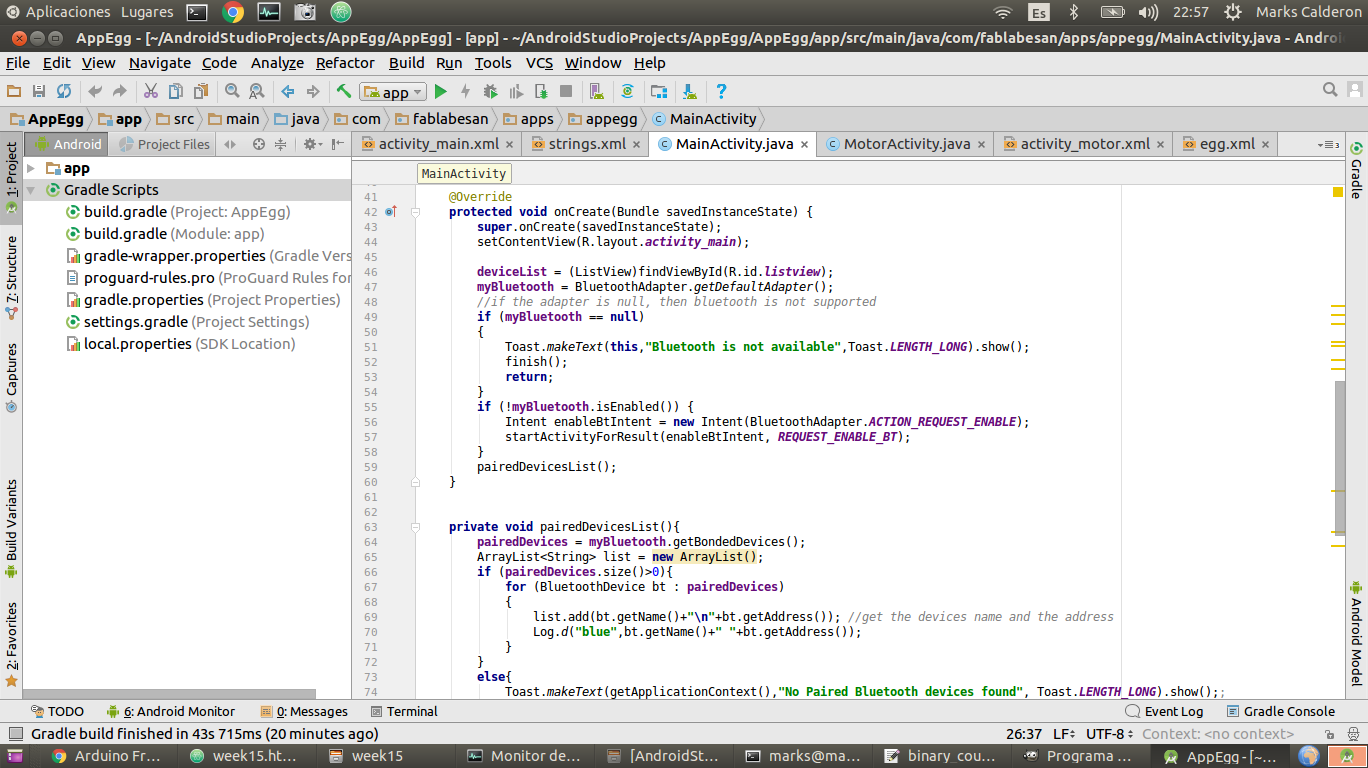

We follow the tutorial to create android app with HC-05. This tutorial has some importants keys as UUID to connect without pass, list favorite devices and an activity lunch after selecting the correct device. We add a function and our GUI which has image button. When you press it changes the icon to on or off, and send a message through bluetooth. The app has two activities, the first one connects with the correct device and other activity to operate via bluetooth. You can donwload source code here

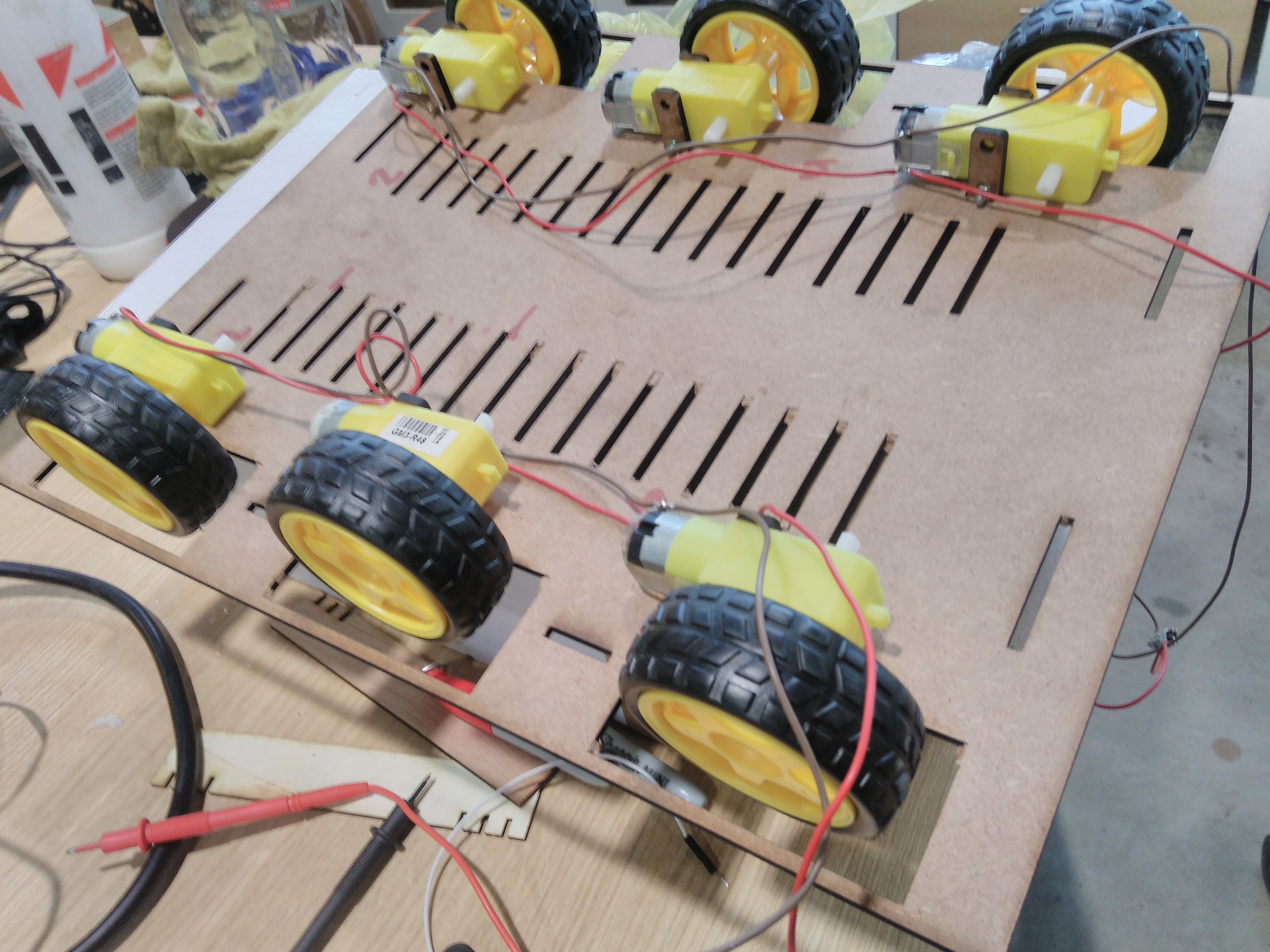

Finally, we did it!!!
