Assignment: Mechanical Design

The task of our team is to make a "Laser Draw Machine", you can see our machine here.
In our team, I do my job following four step:
  • Step1: Schedule
  • Step2: Frame design and fabrication
  • Step3: Hardware Circuit
  • Step4: Software Control

    • Laser Draw Machine

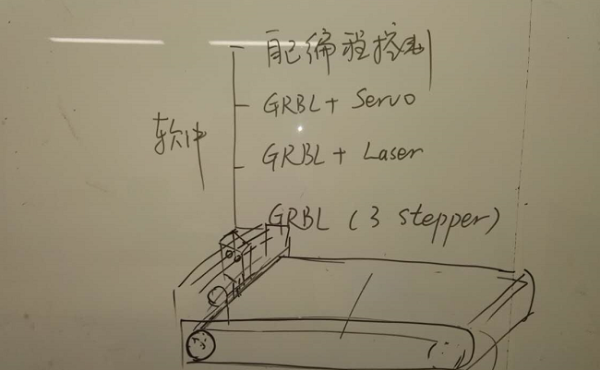

    We want to make a laser machine, which can draw pictures by laser, and the picture is continuous in the length direction. At first,our scheme shows below:


    Home

    Frame design

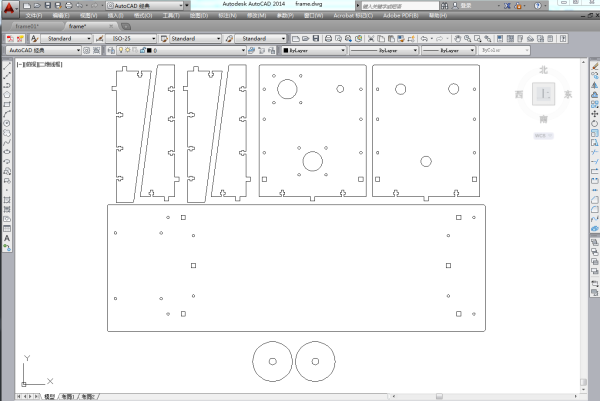

    I design the frame of the laser machine by AutoCAD, we use the Acrylic material.

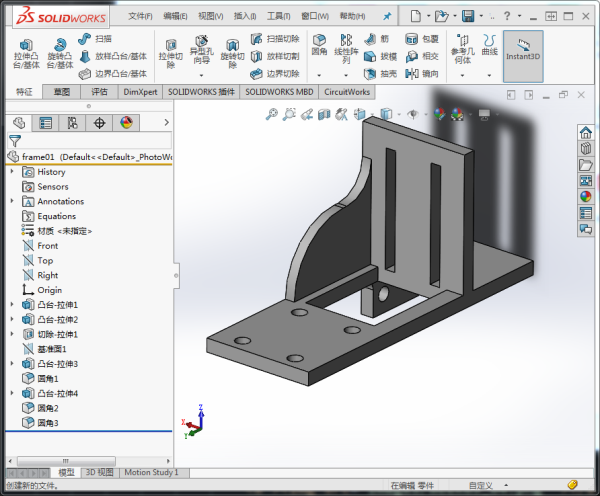

    I design the Laser support panel in Solidworks, and use 3D printer to print it.


    Fabrication

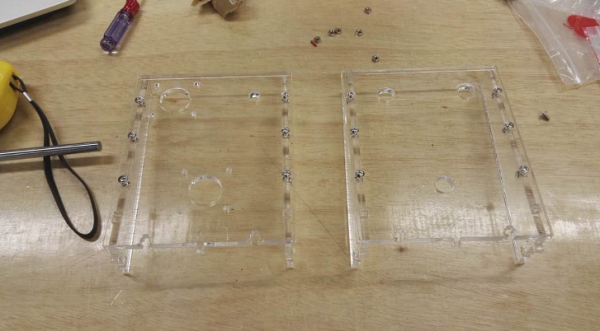

    The following is the a part of the machine.


    Home

    Hardware List

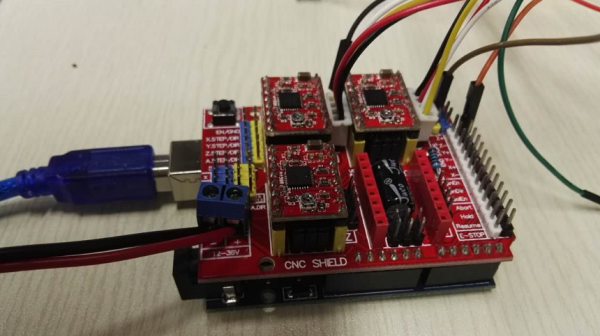

    The whole machine used the following hardware:

  • Arduino UNO
  • V3 CNC sheild
  • two step motors
  • Laser cutter


    • Circuit

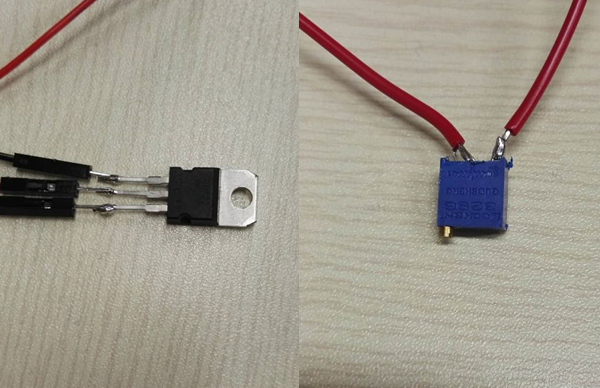

    The Laser power in controlled by the Arduino Pin11, in order to control the on/off of the laser, we use a transistor. And in order to control the strength power of the laser, we connect serial connect a resistor to the circuit.


    Home

    GRBL Configuration

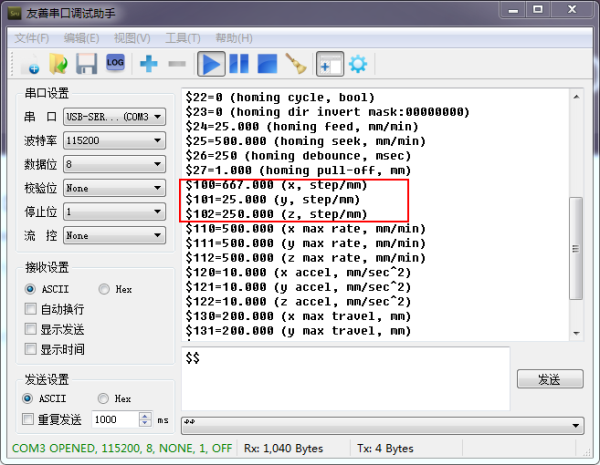

    We use the GRBL as the control firmware. I config the parameter by the Serial Port Utility. Set the X and Y axis speed to 667 and 25.

    Laser Control Software

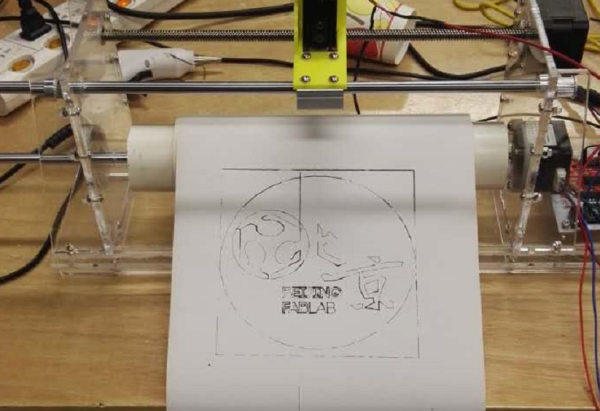

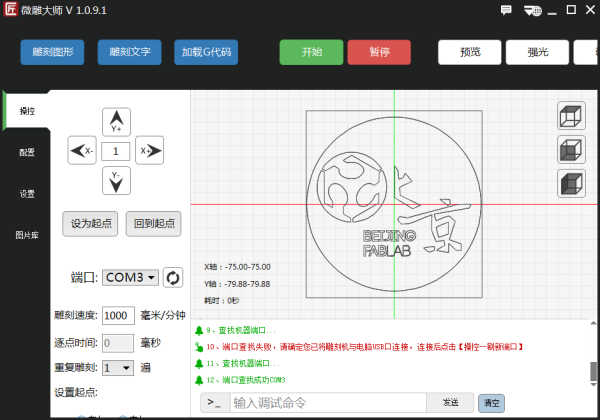

    We use Laser Master software to import pictrues and export to our machine.
