WEEK 10 / Mar 29
Output devices
The assignment
This week's assignment was to add an output device to a micro-controller board I've designed and program it to do something.
LED blink embedded in designed circuit board
I decided to write a program that blinks an LED that is embedded in the circuit board
The process
Using the board I designed previously, I made a program to blink an led that is on the board.

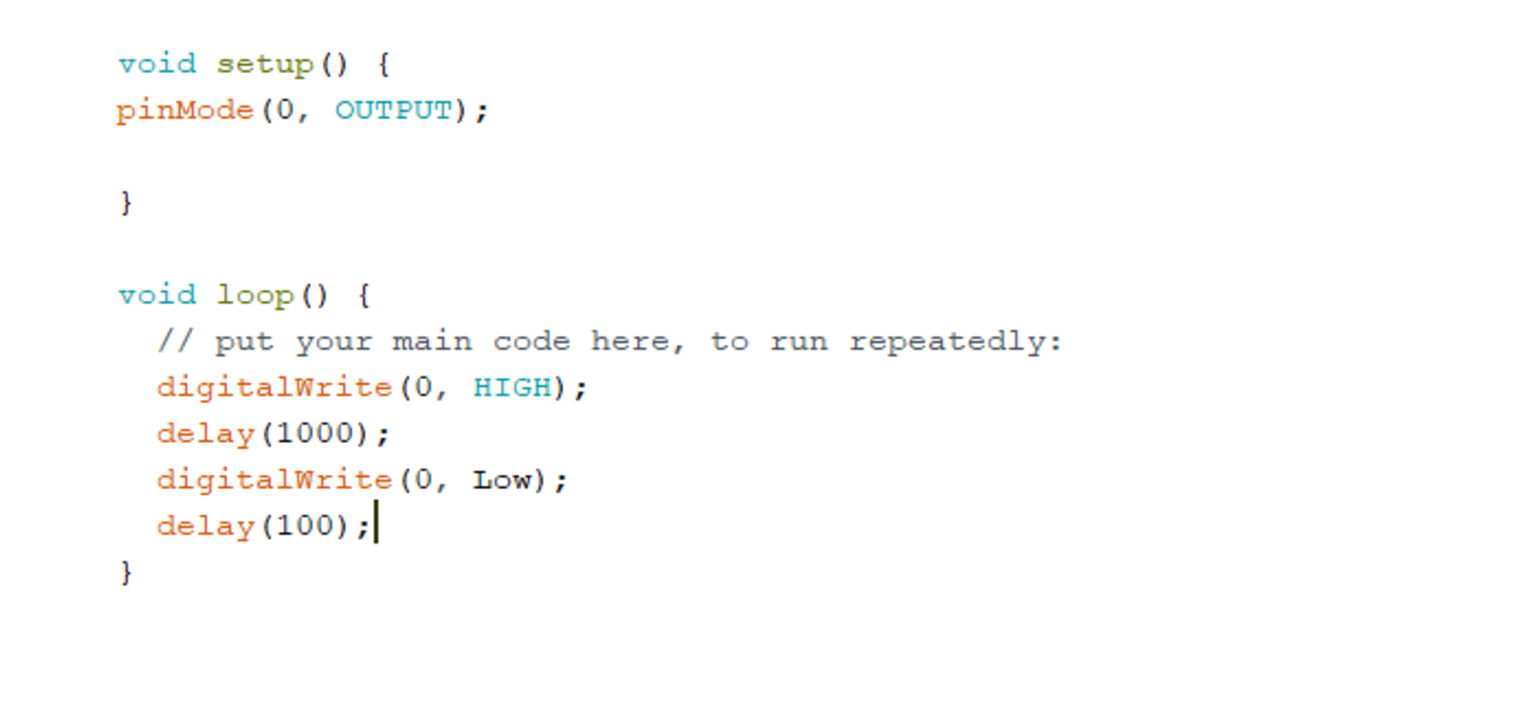

The program
%20075555.jpg?crc=71122943)

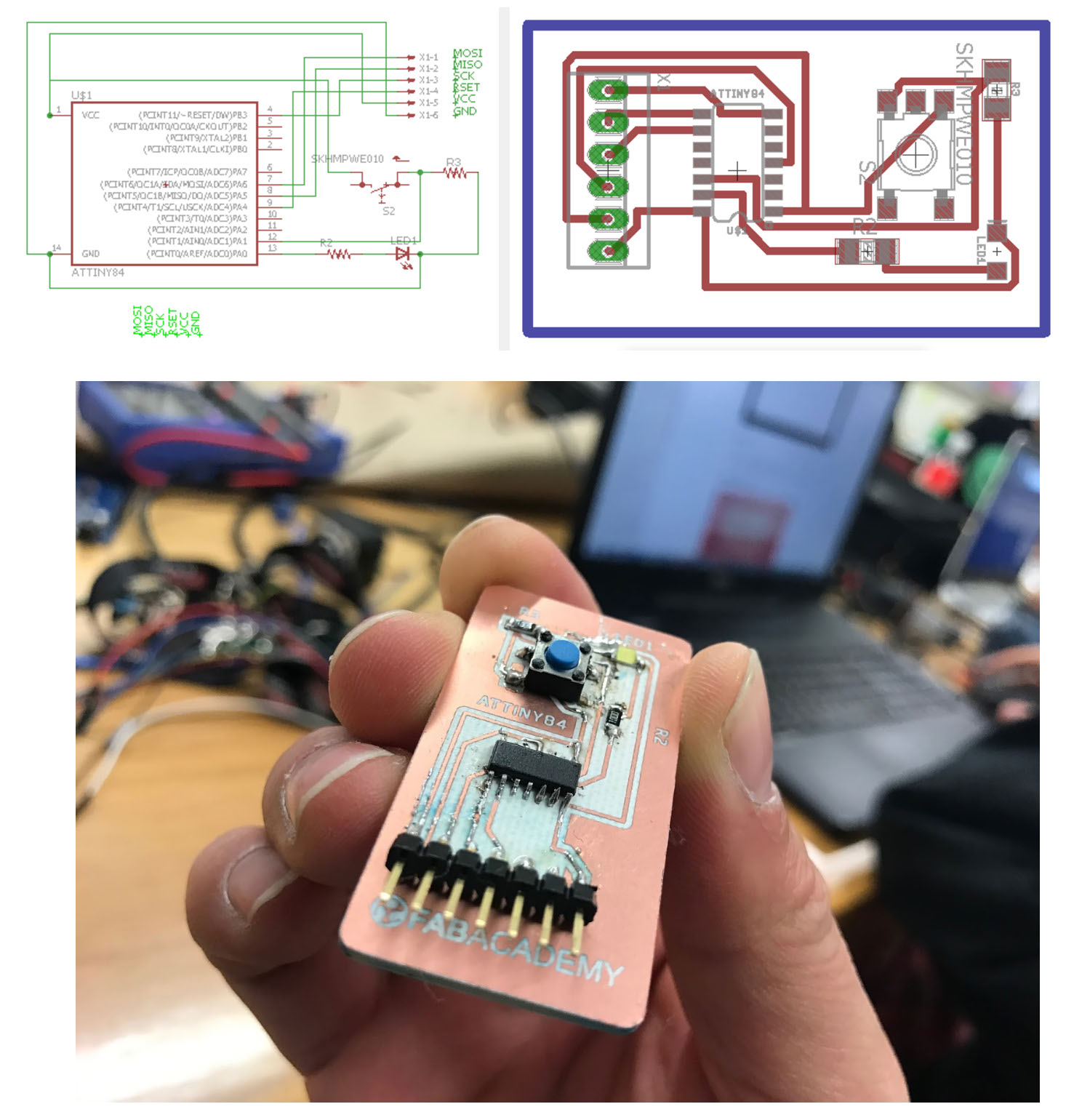

The board
%20075624.jpg?crc=4121435829)
Final project output test

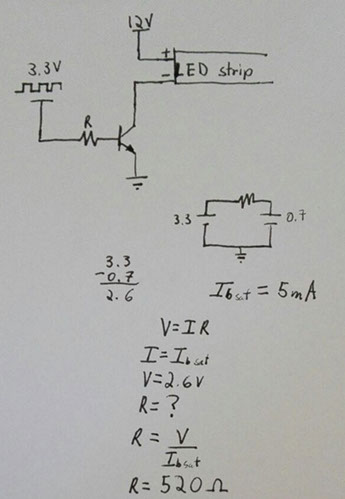

Using the sensor described previously I decided to test an LED strip output, for that purpose a 2N6039G transistor was needed calculations are shown below.
%20075725.jpg?crc=4284671893)

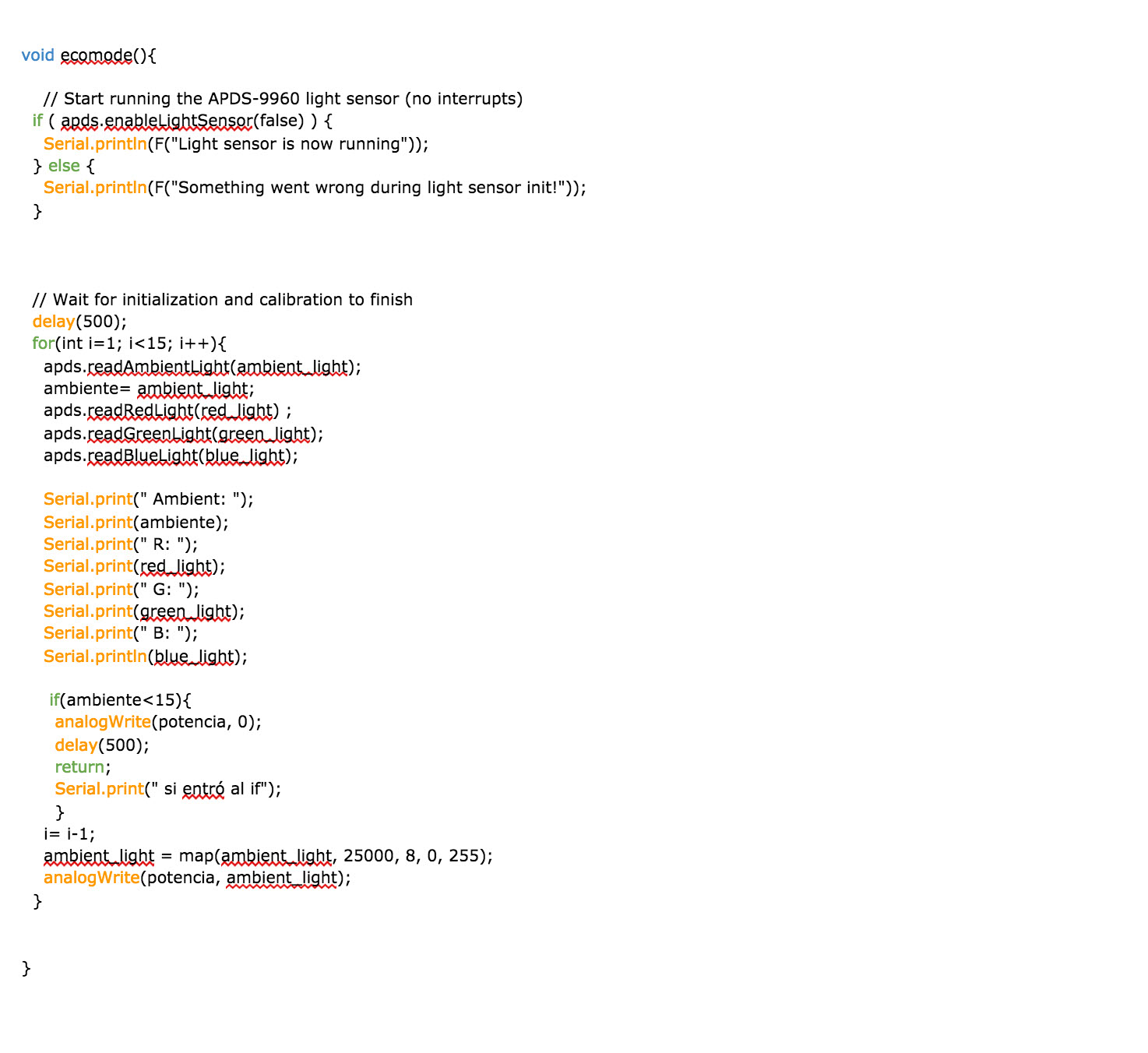

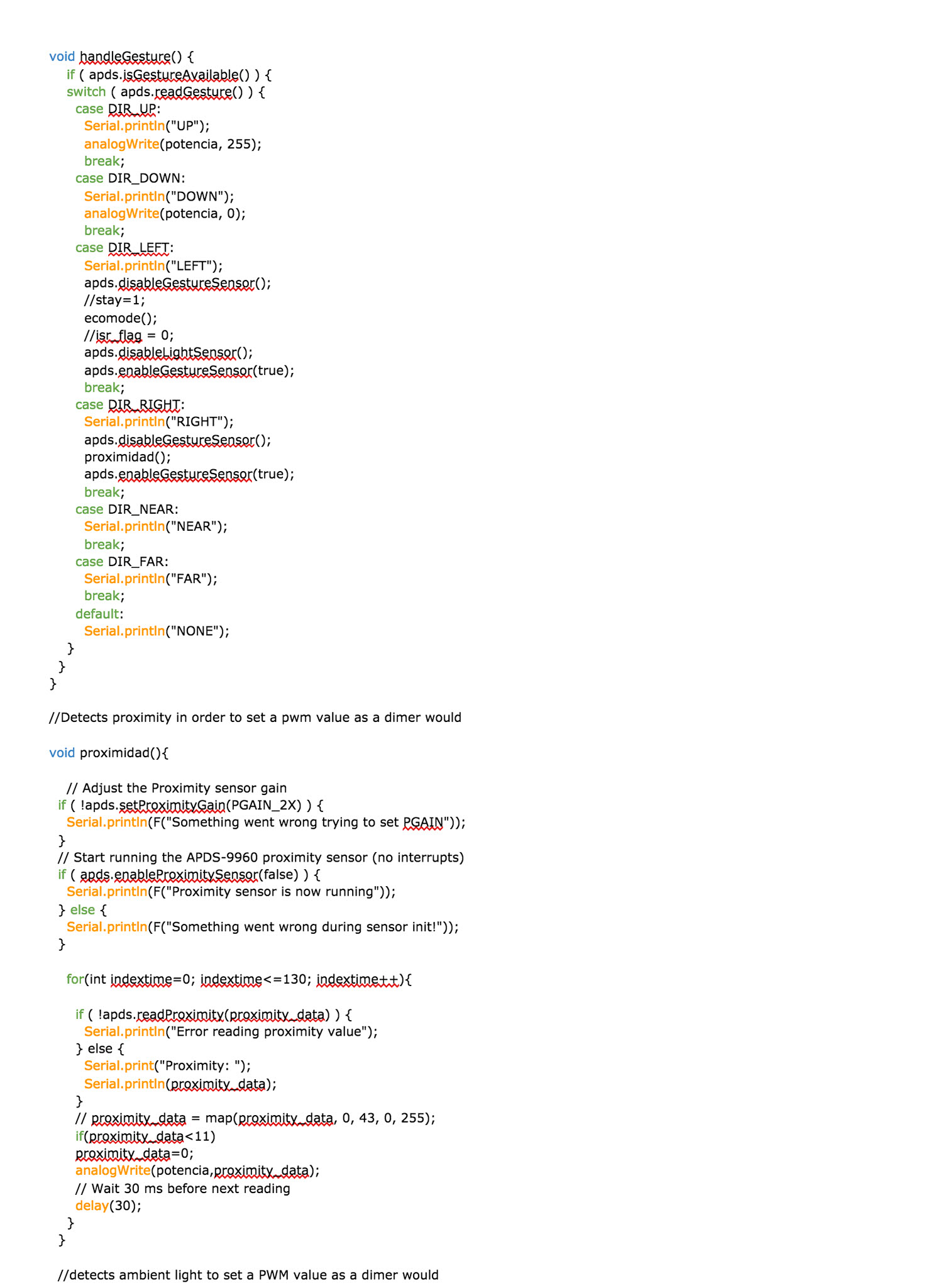

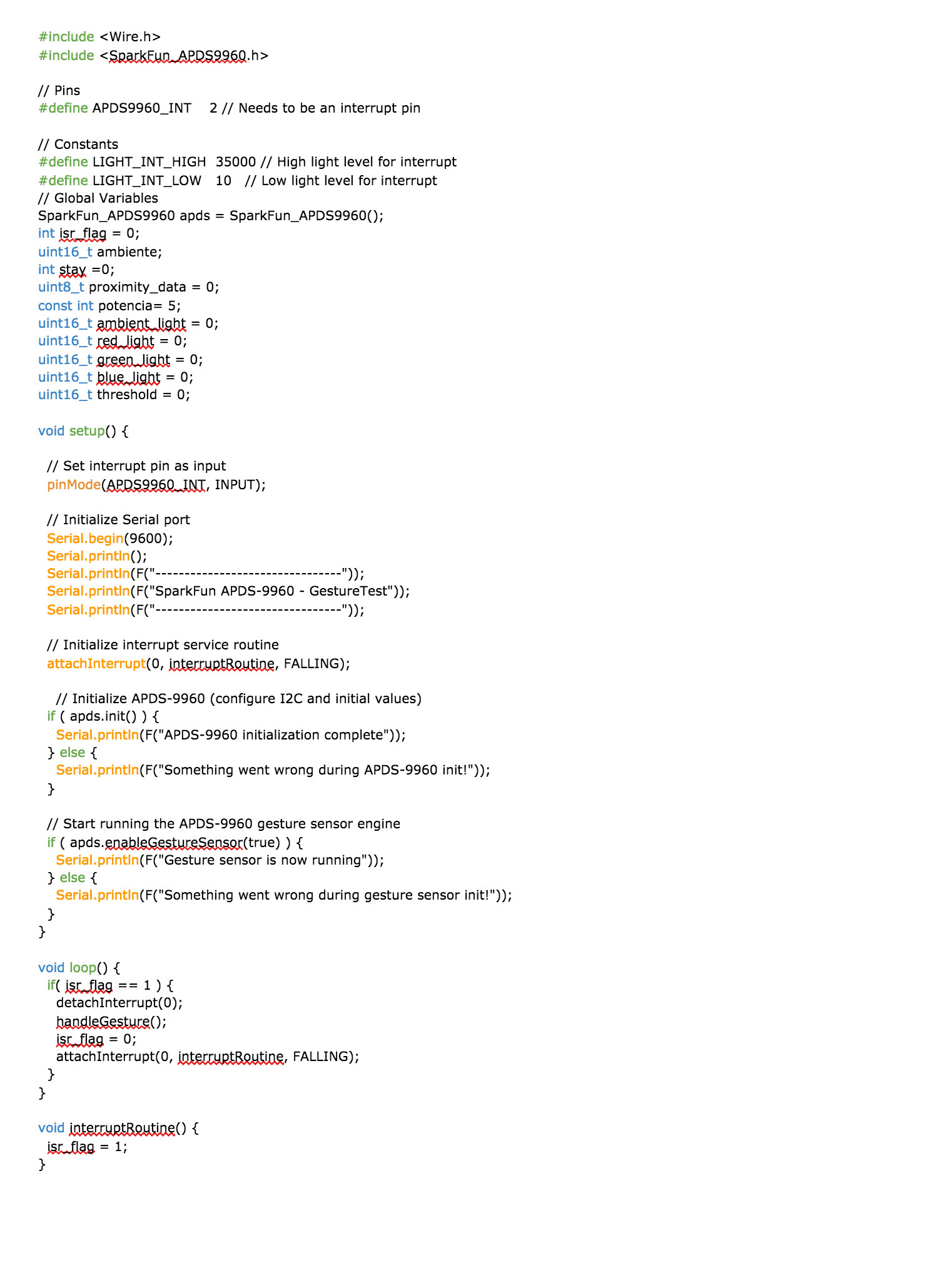

The program for the Open Smart Light test
%20075826.jpg?crc=66888843)
%20080053.jpg?crc=460321426)
%20080101.jpg?crc=4079181246)
