Joystick construction was the most complex part being almost completely realized from scratch.

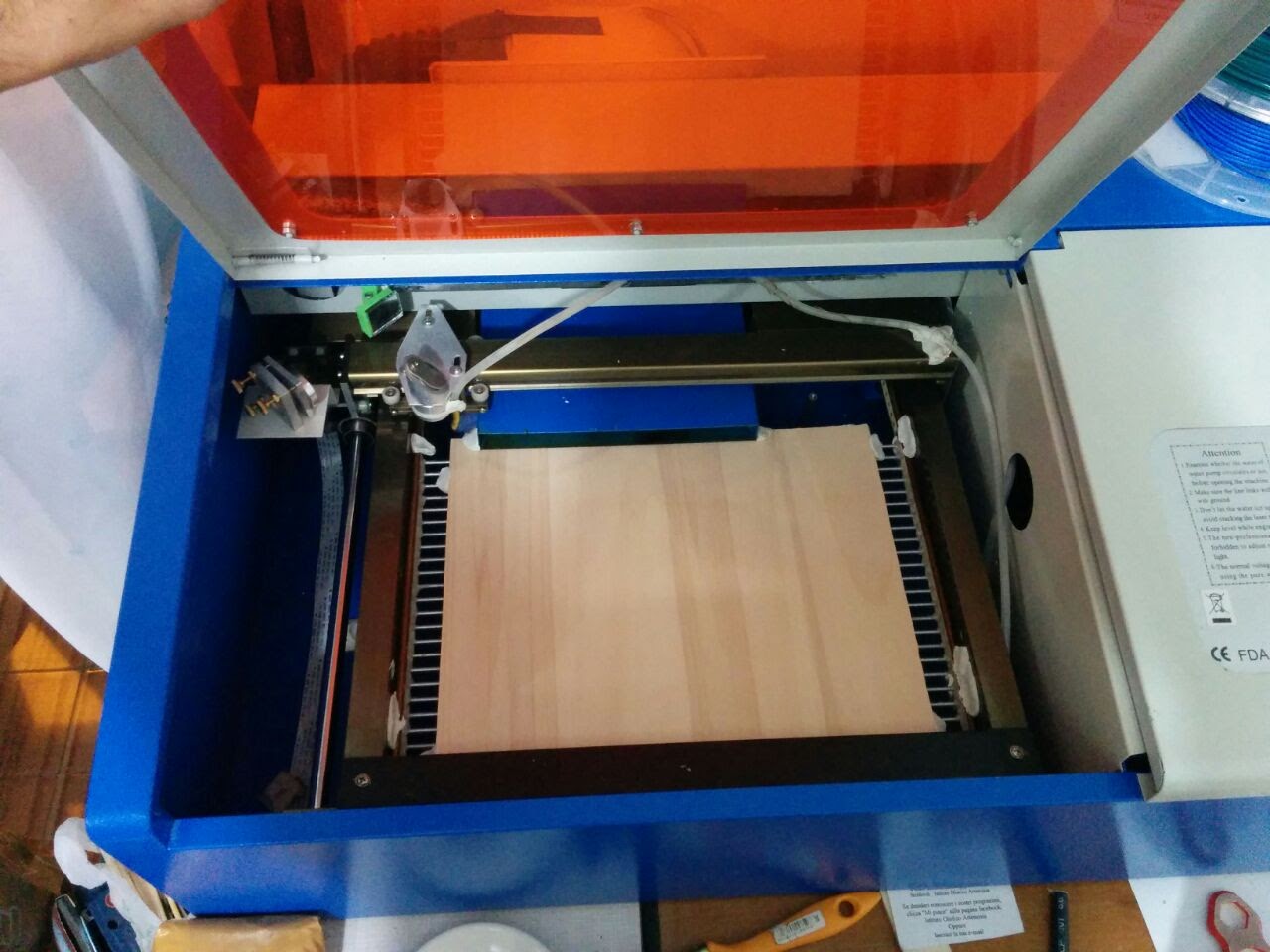

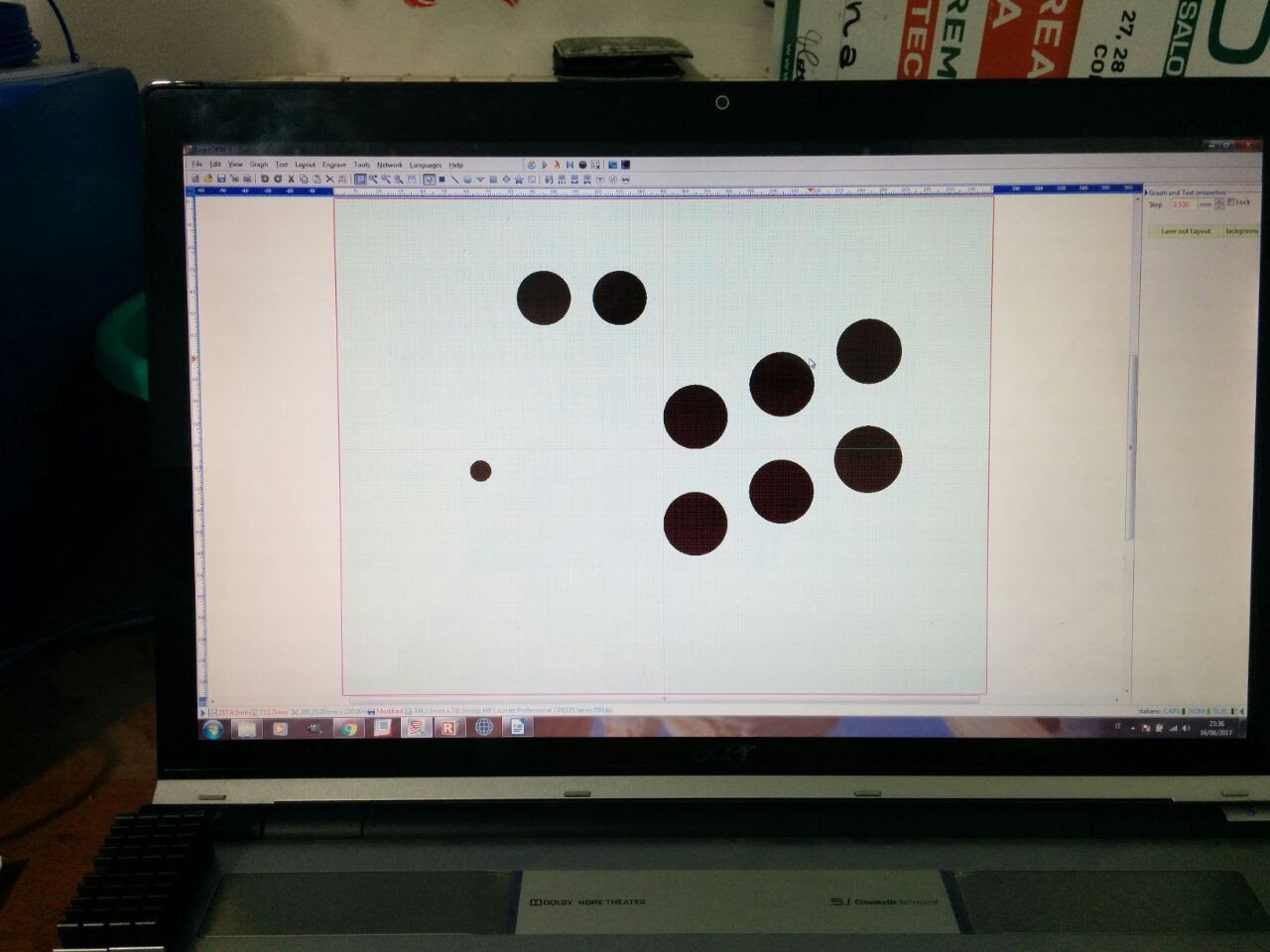

The chassis was cut with laser cutting using the files created during the Computer-aided design lesson.

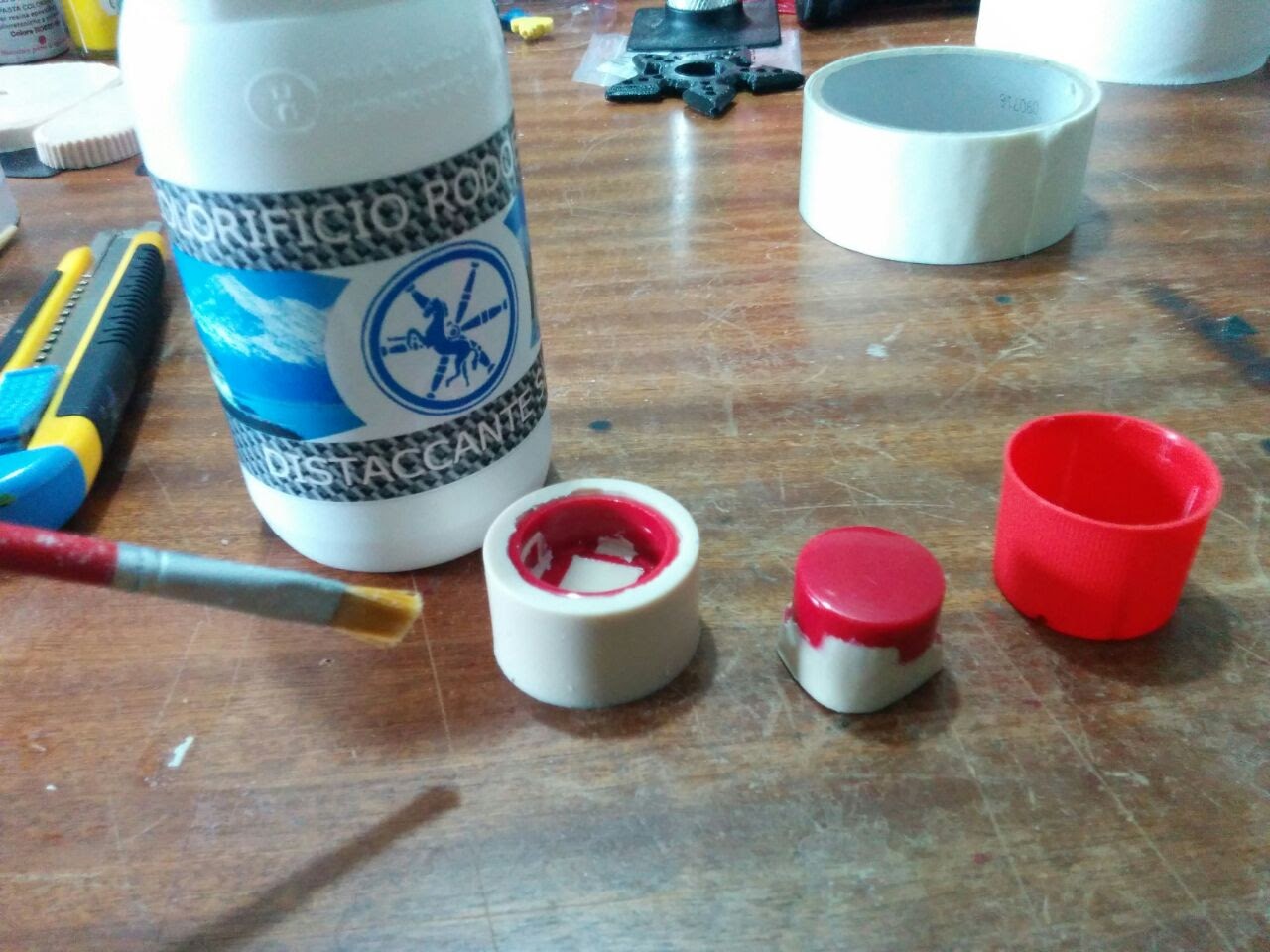

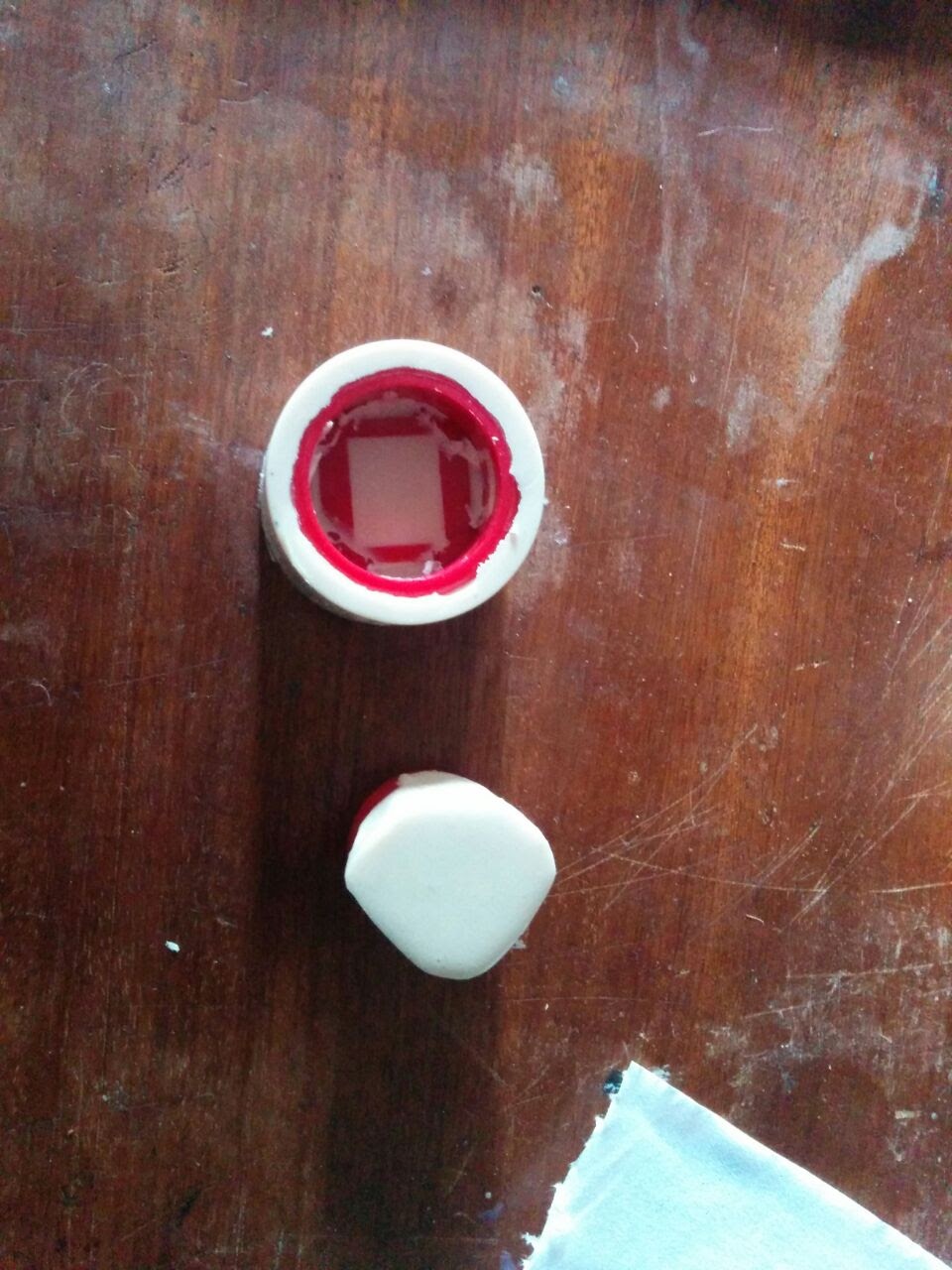

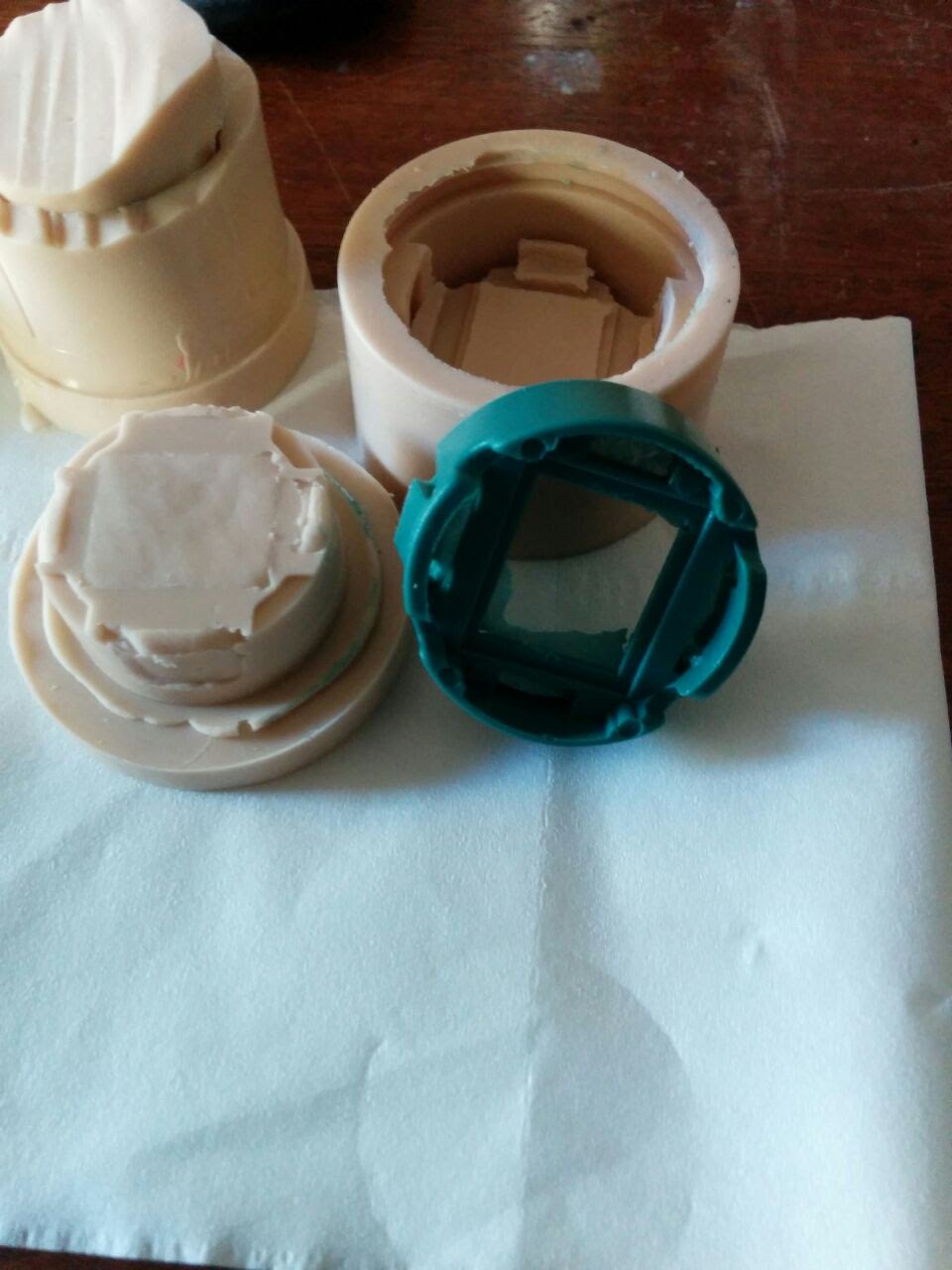

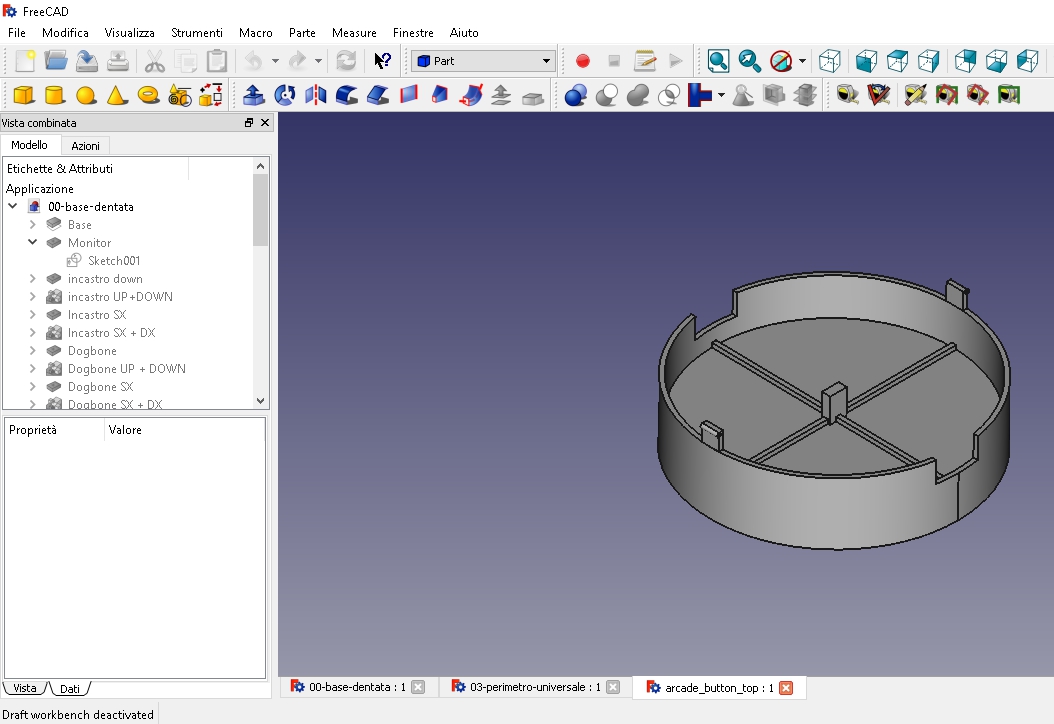

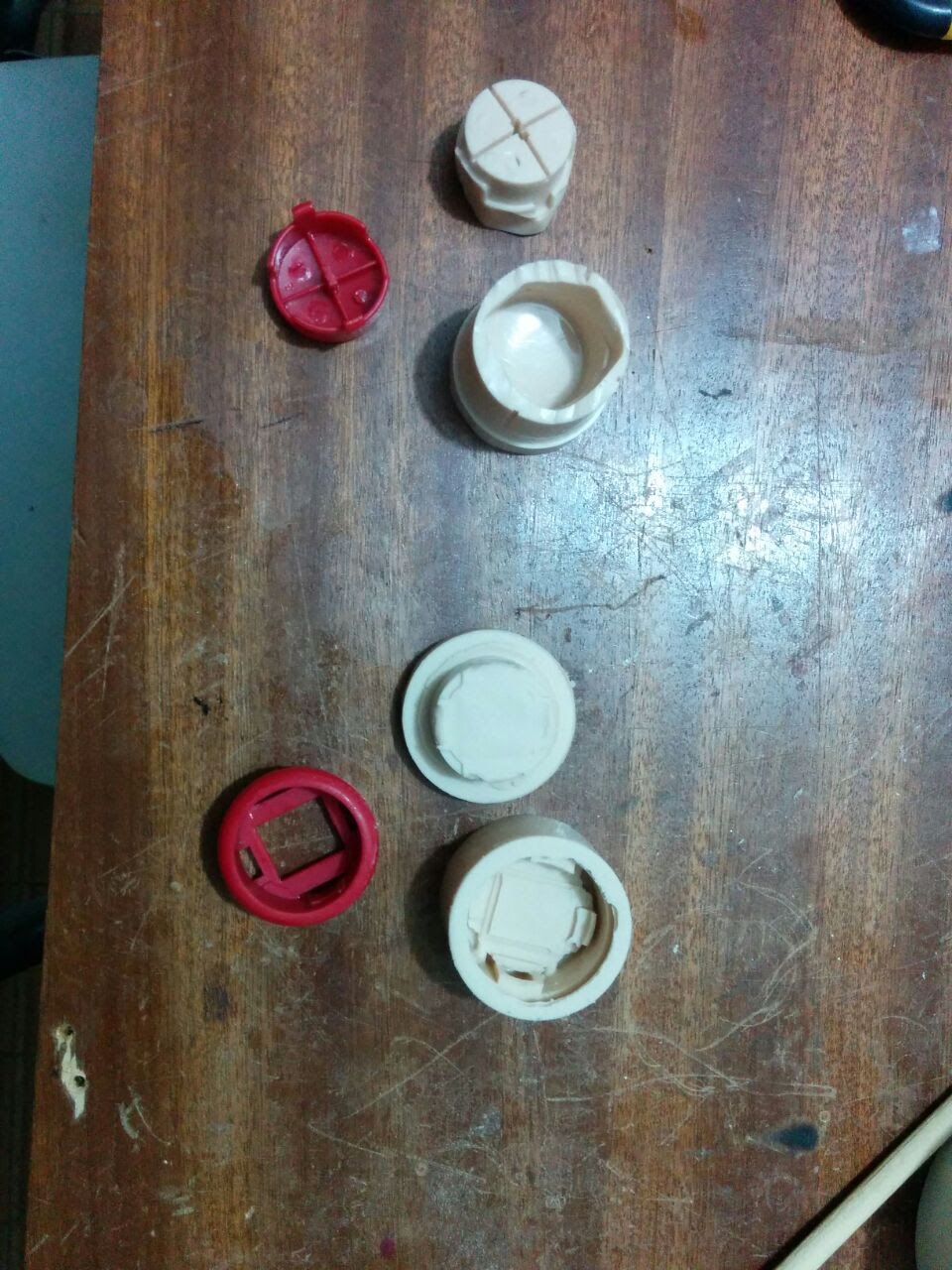

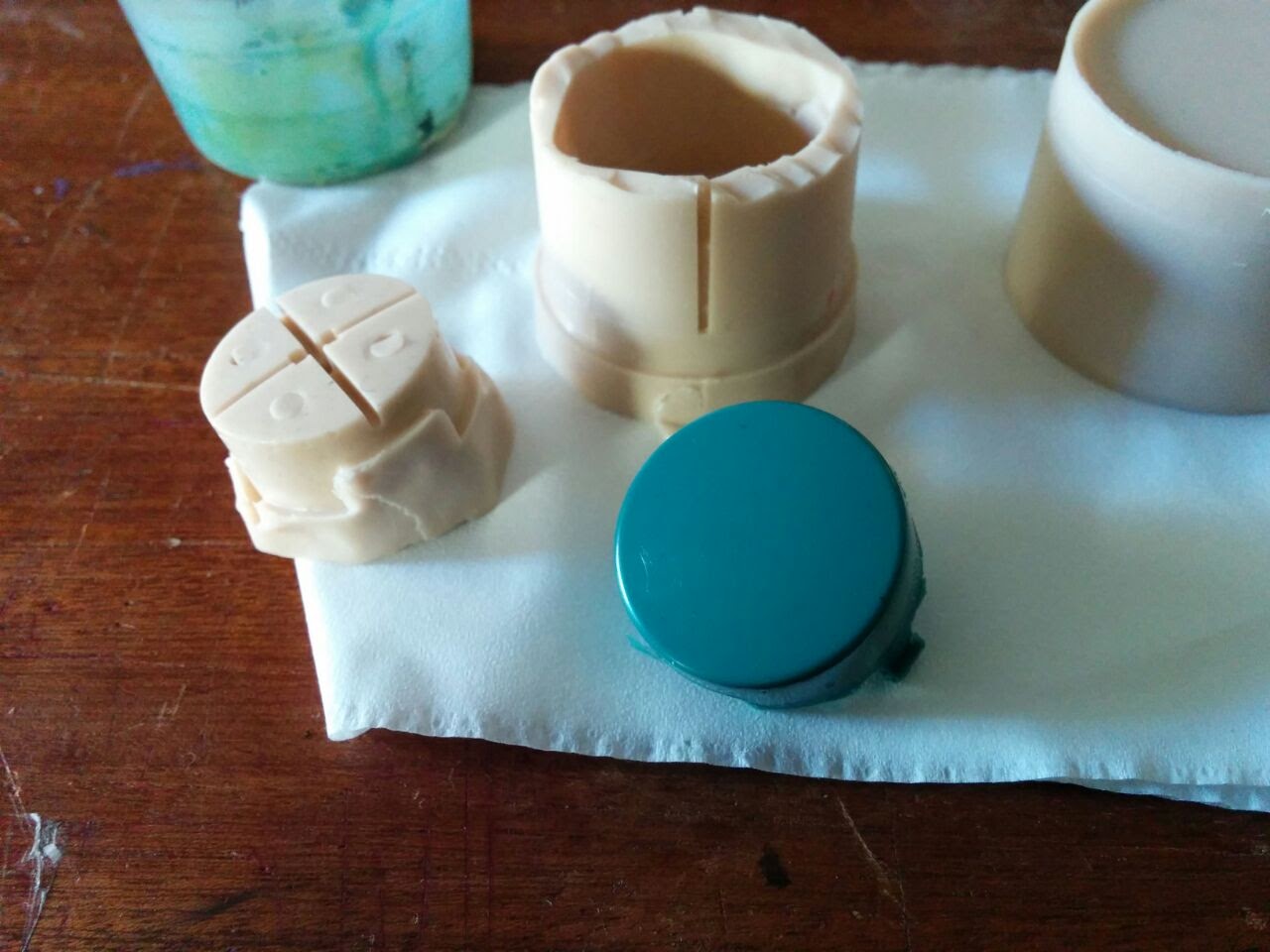

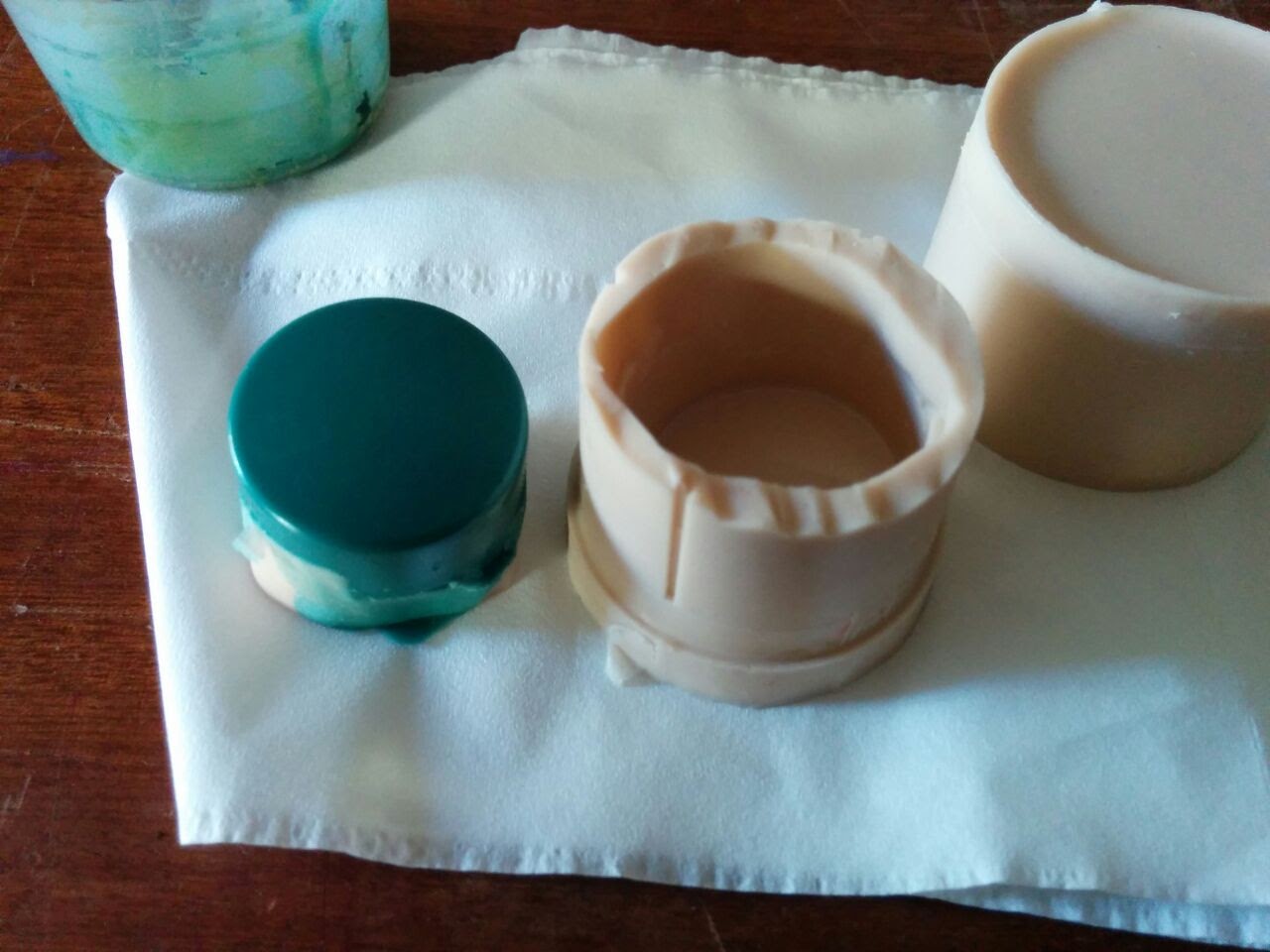

The buttons instead were made during the Molding and Casting lesson.

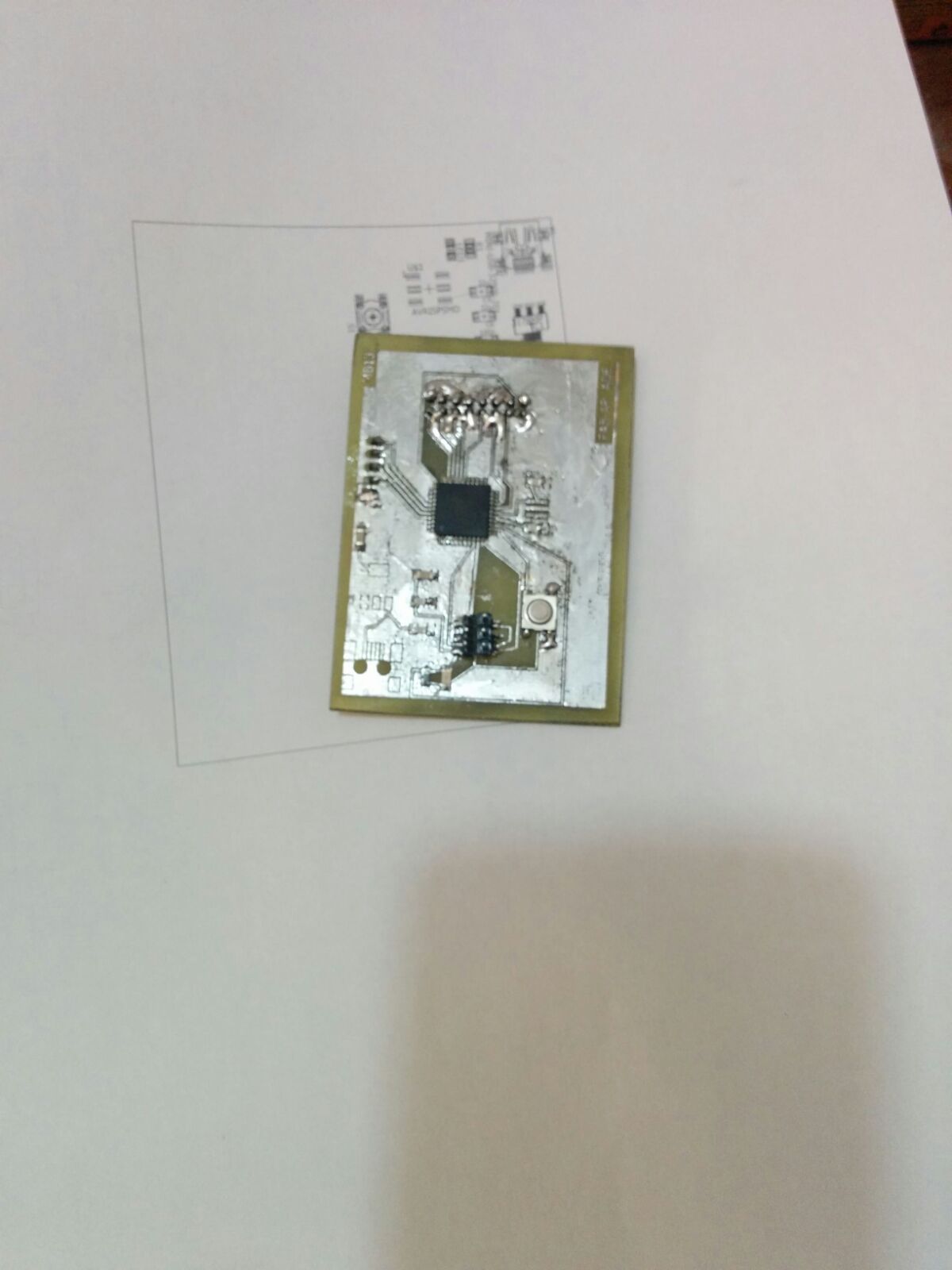

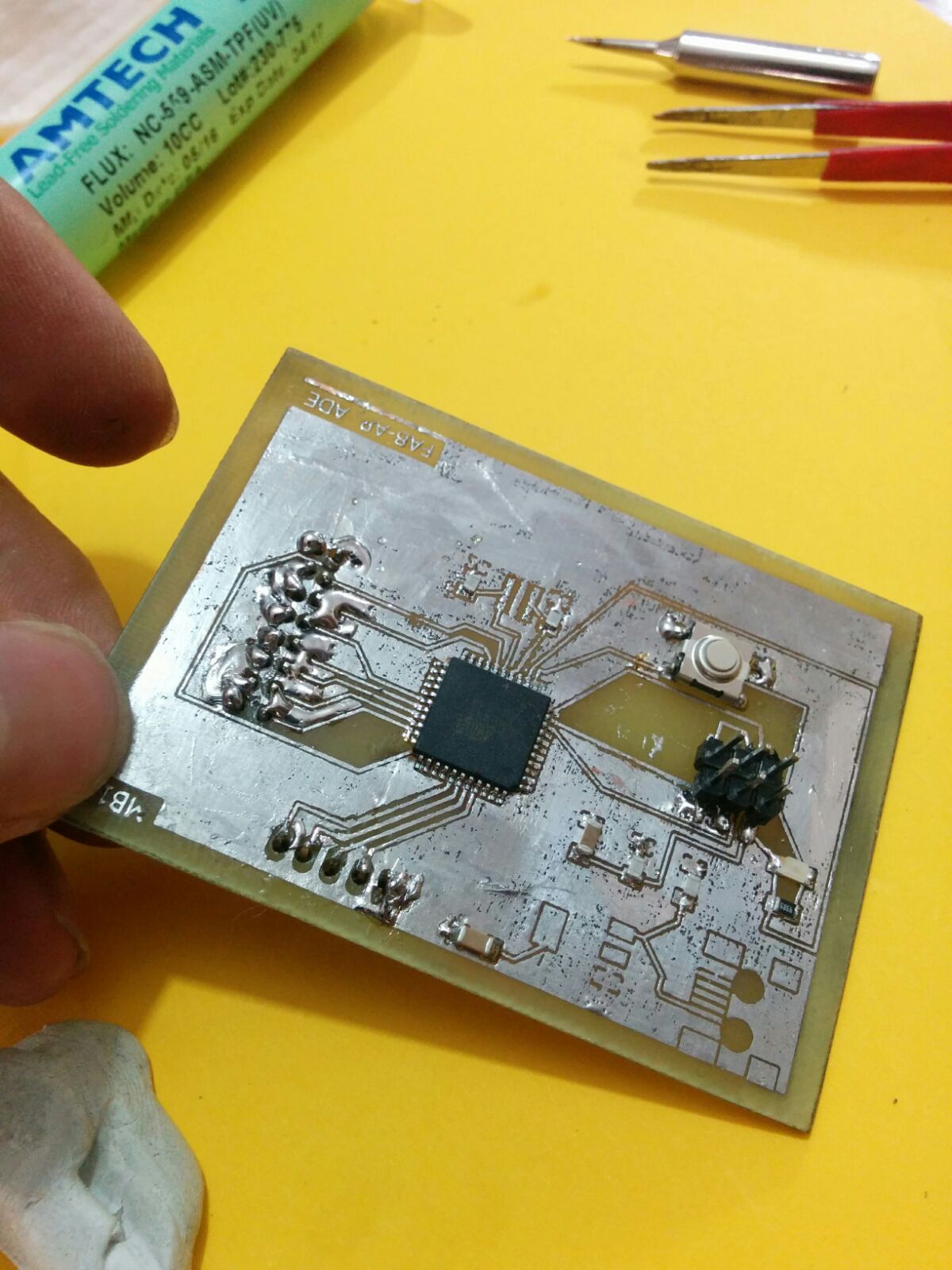

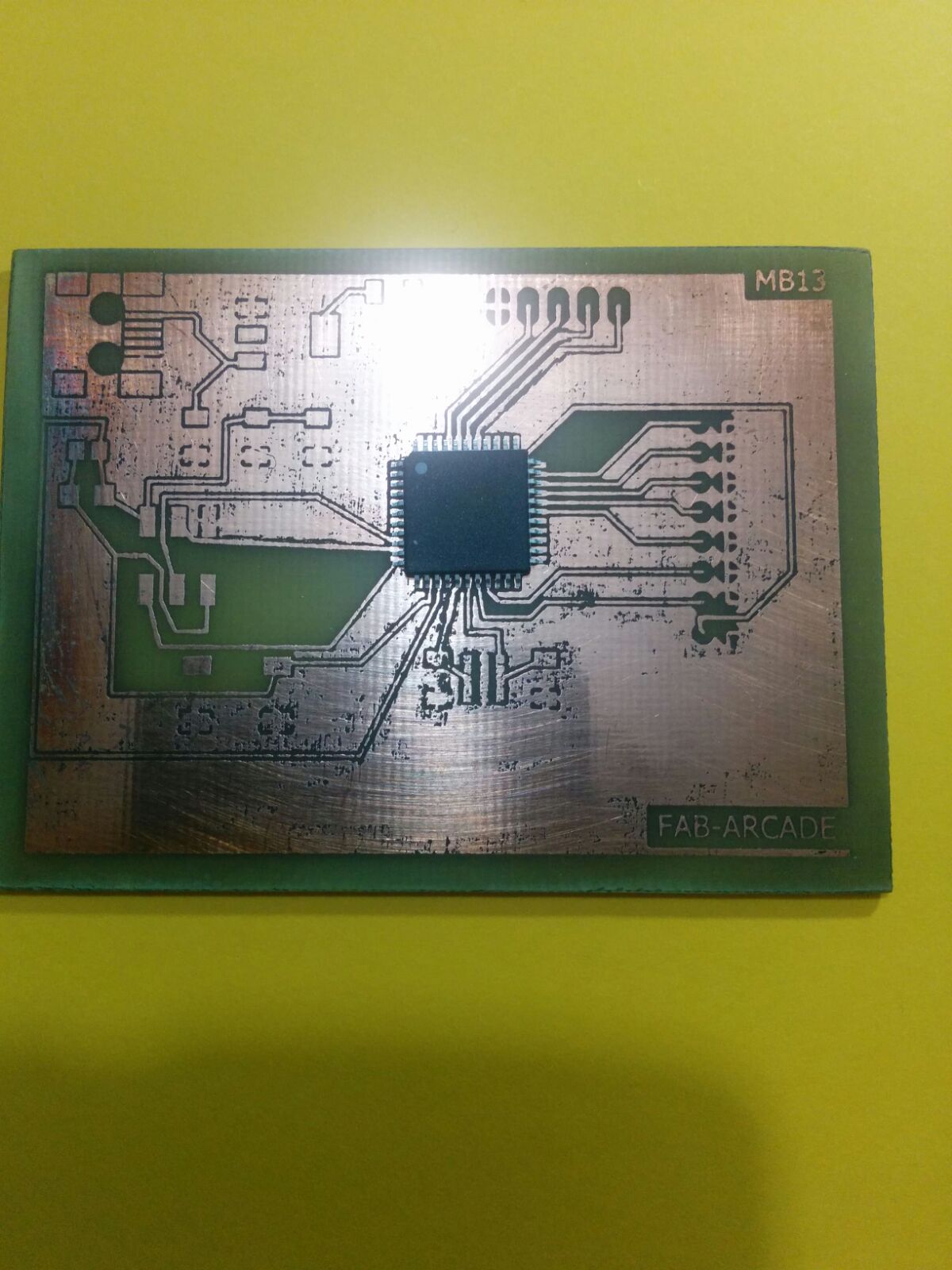

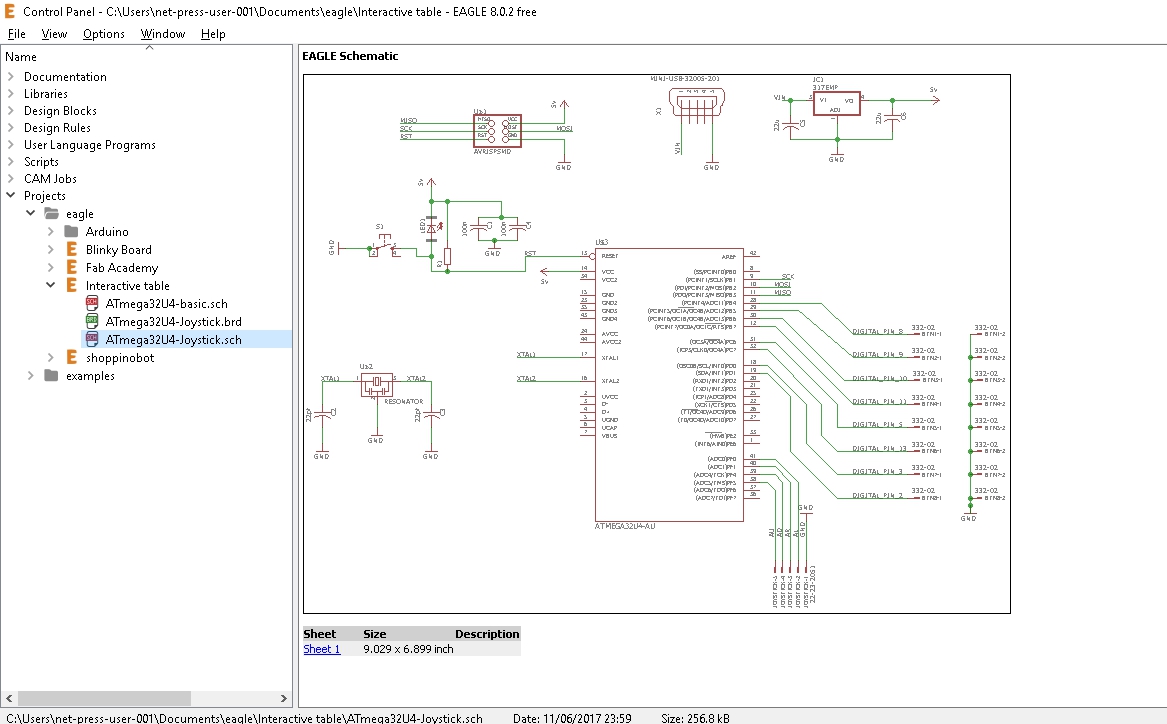

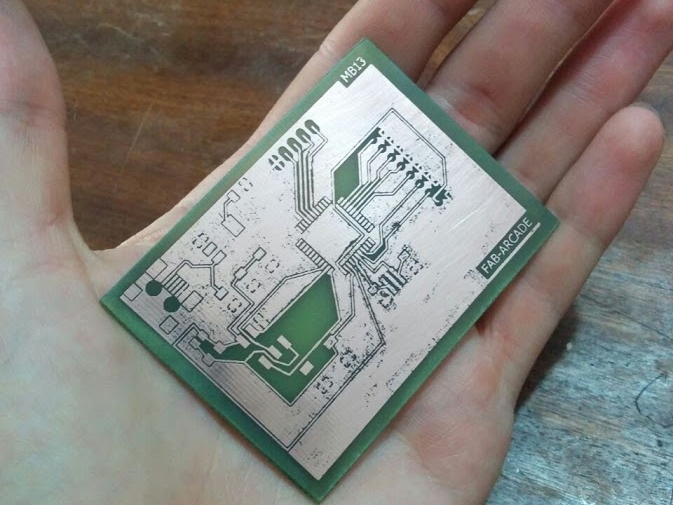

The electronic part was drawn with Eagle and then milled and welded.

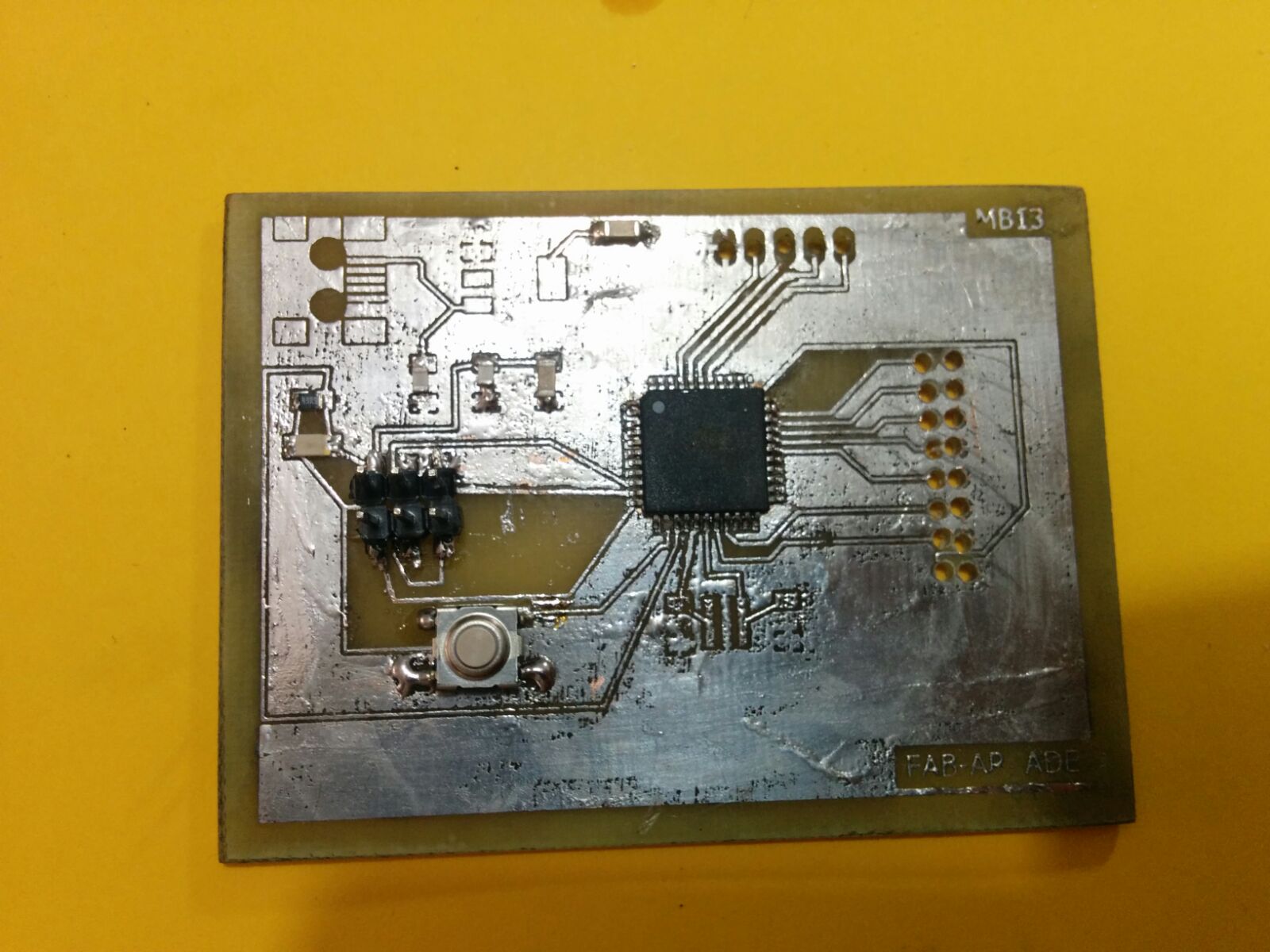

The card uses an ATmega 32u4 as a microcontroller to allow us to use a Library to emulate keyboards or gamepads.
The only thing I did not manage to create alone was the joystick I had to buy.

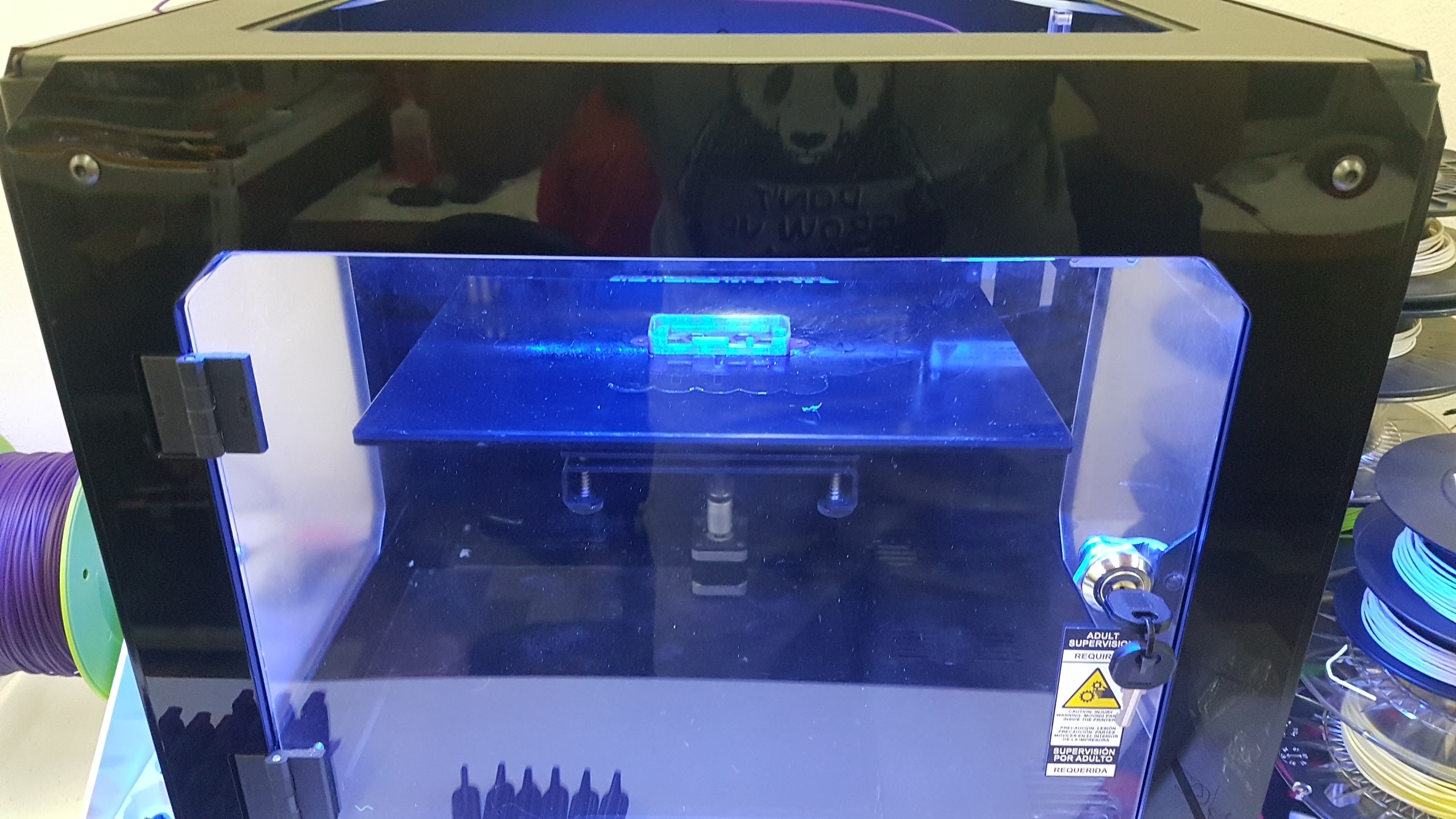

To customize the joystick I bought a new knob and then I printed it in TPU with a FFF printer.

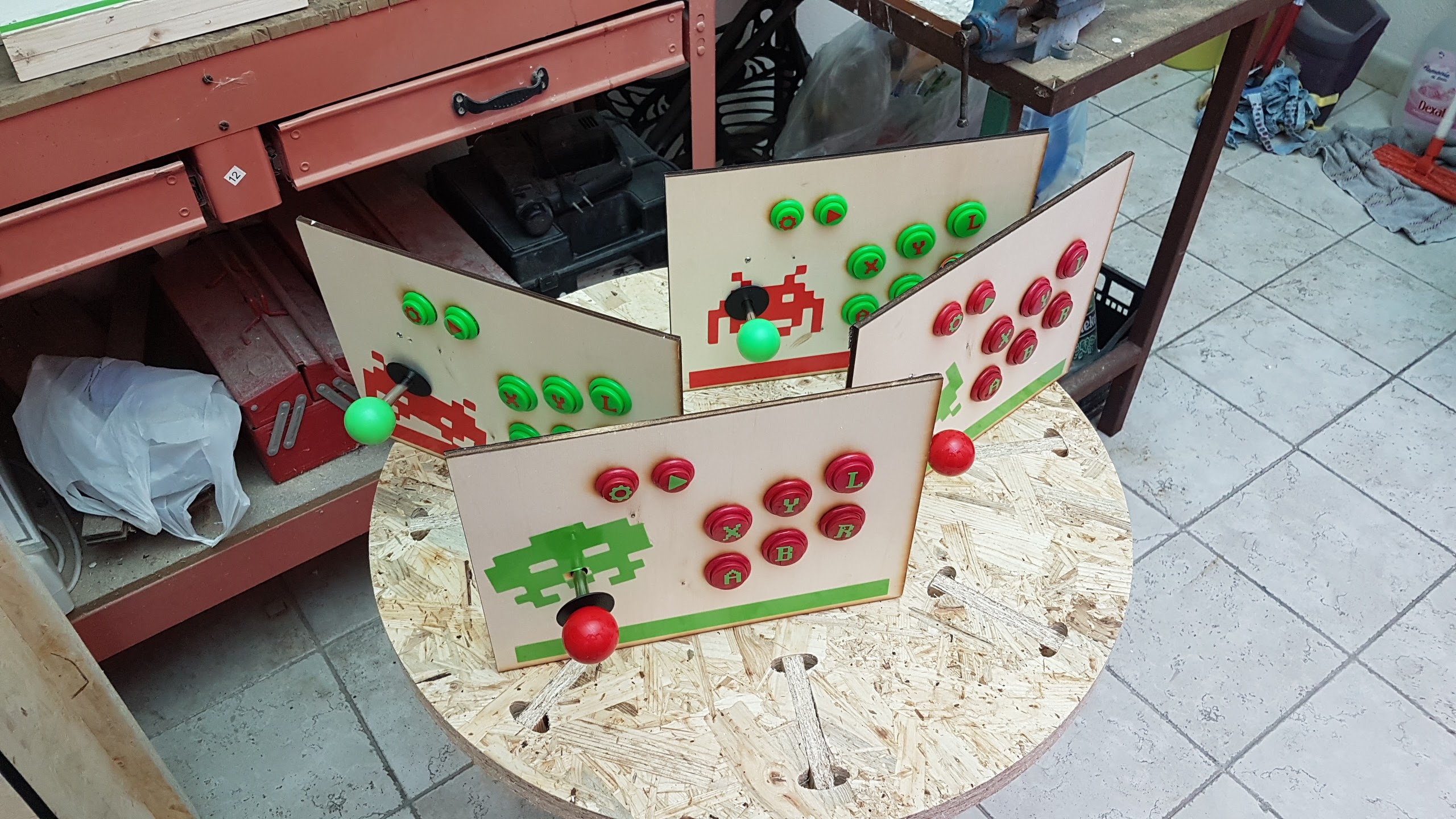

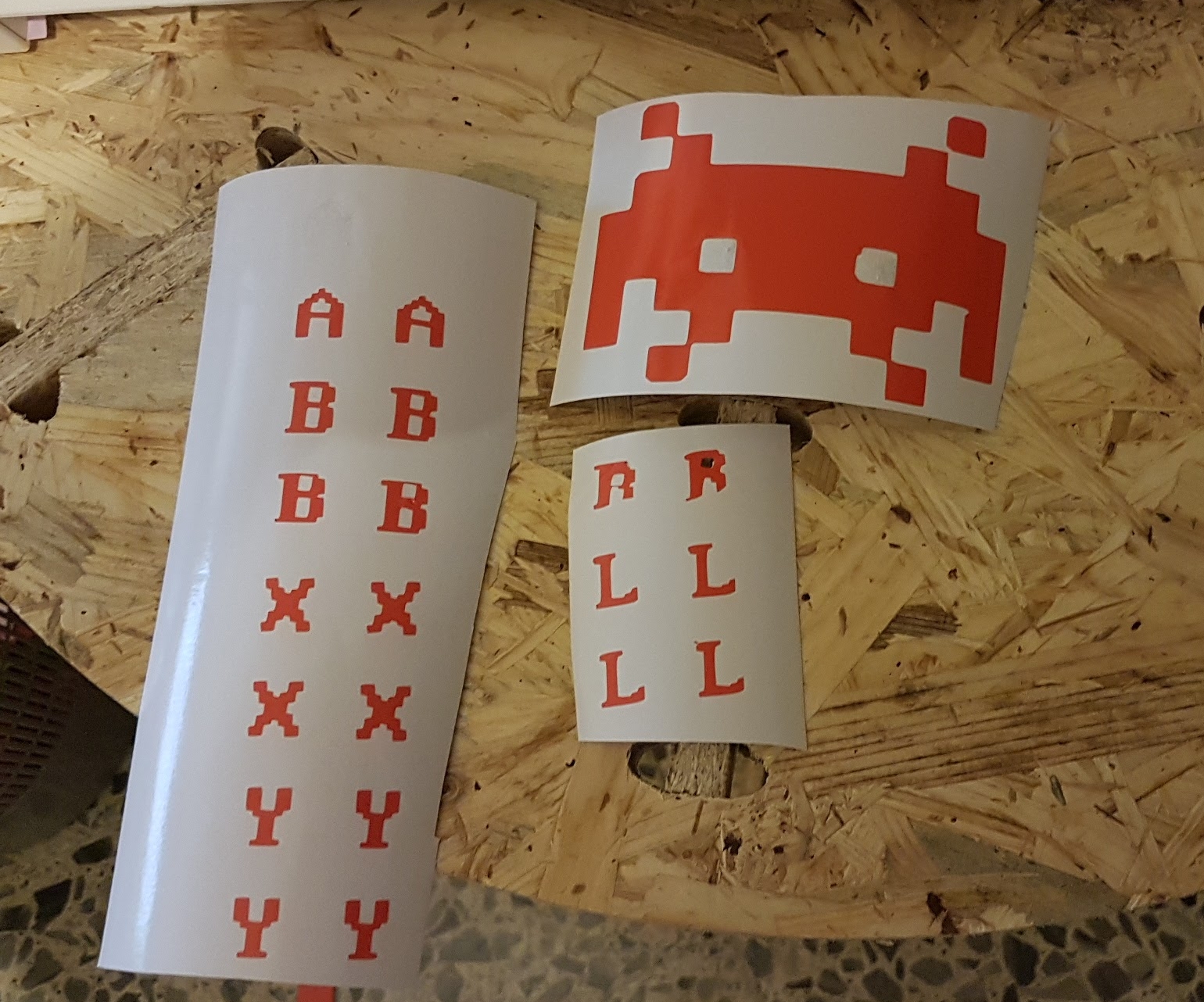

The decoration are designed wit Inkscape and cutted with a Vynil Cutter

Lasercut

Electronic Design

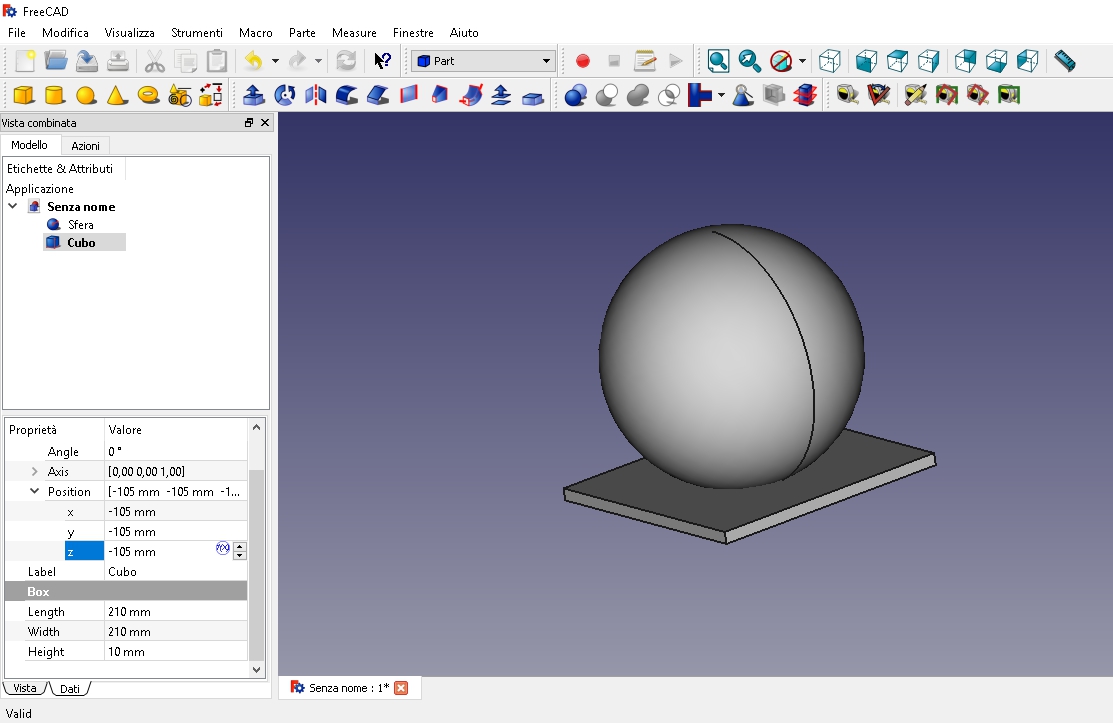

3D Print

Casting and molding

Vynil Cutter
