This week's job is to create a mold and get an object using fiber composites.
I decided to create a boomerang using a cutter to create 3D mold and fiberglass as material for the final object

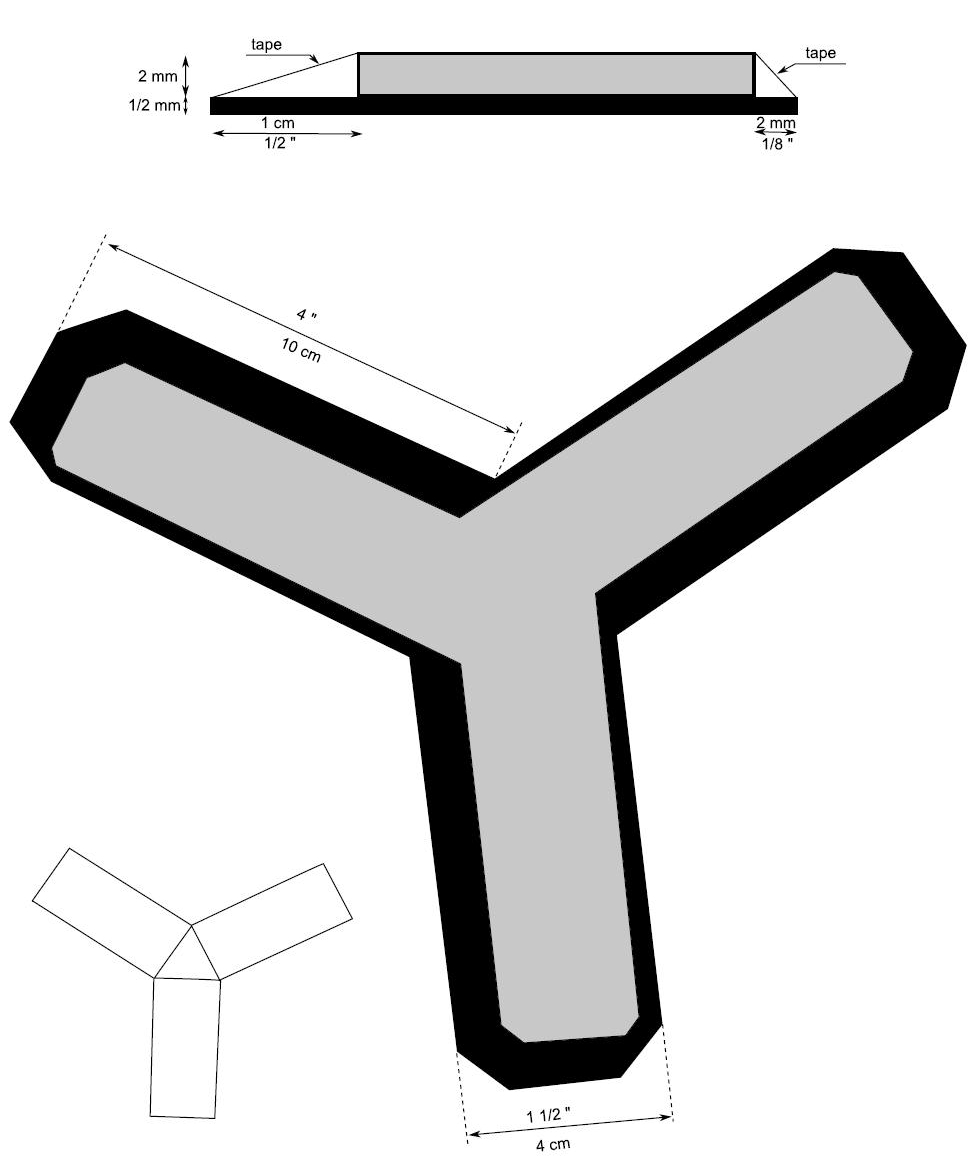

Design the Mold

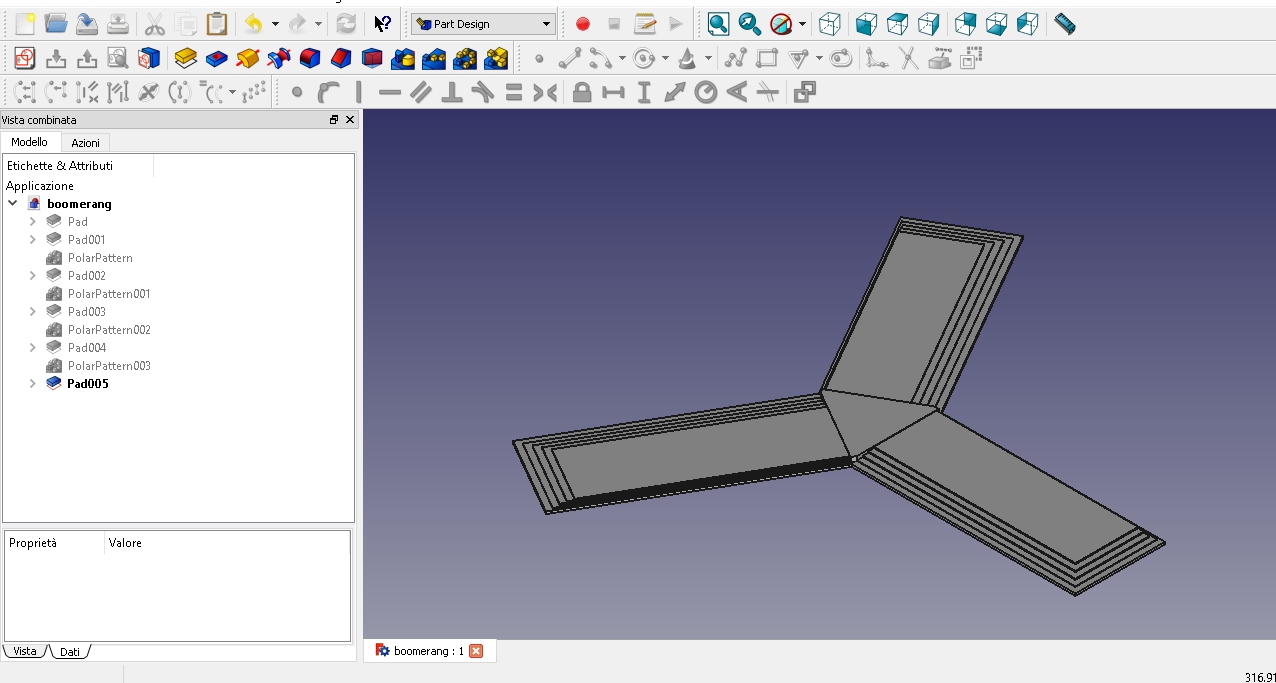

To draw the mold I used freecad.

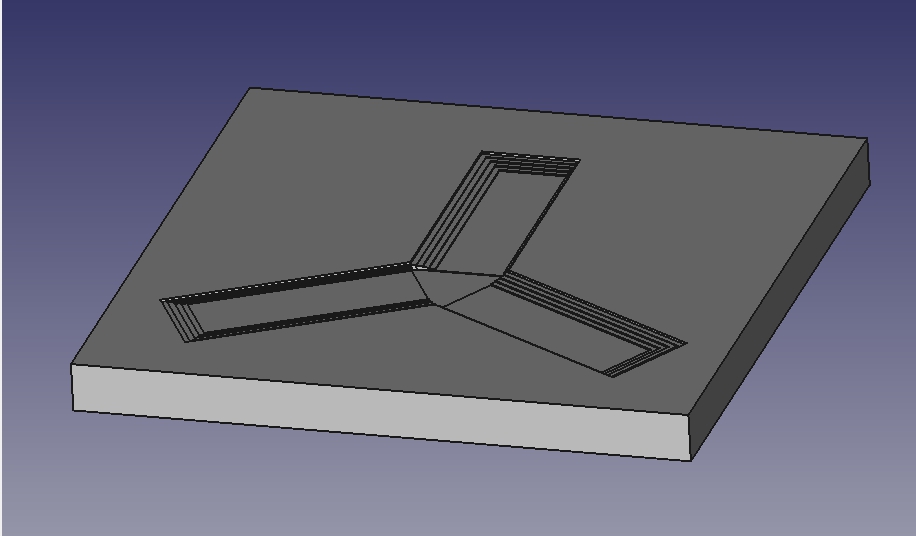

First I drew the figure using the "part design" interface, then I got the mold thanks to a Boolean operation between a cube and the object using the "part" interface.

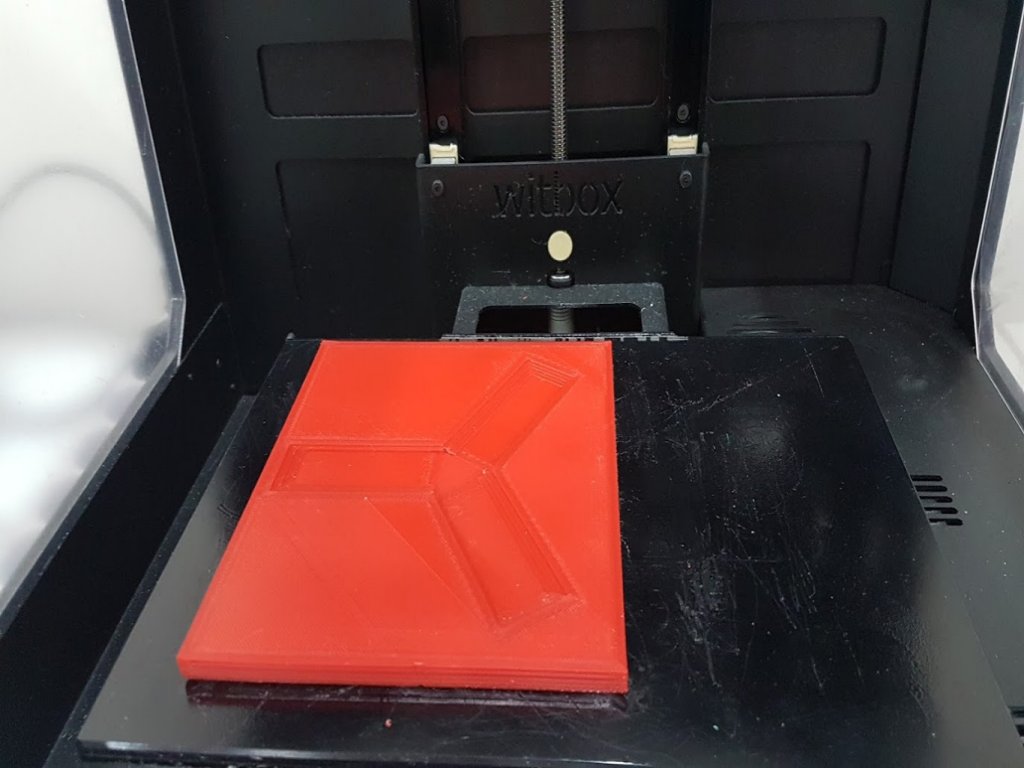

Printing the Mold

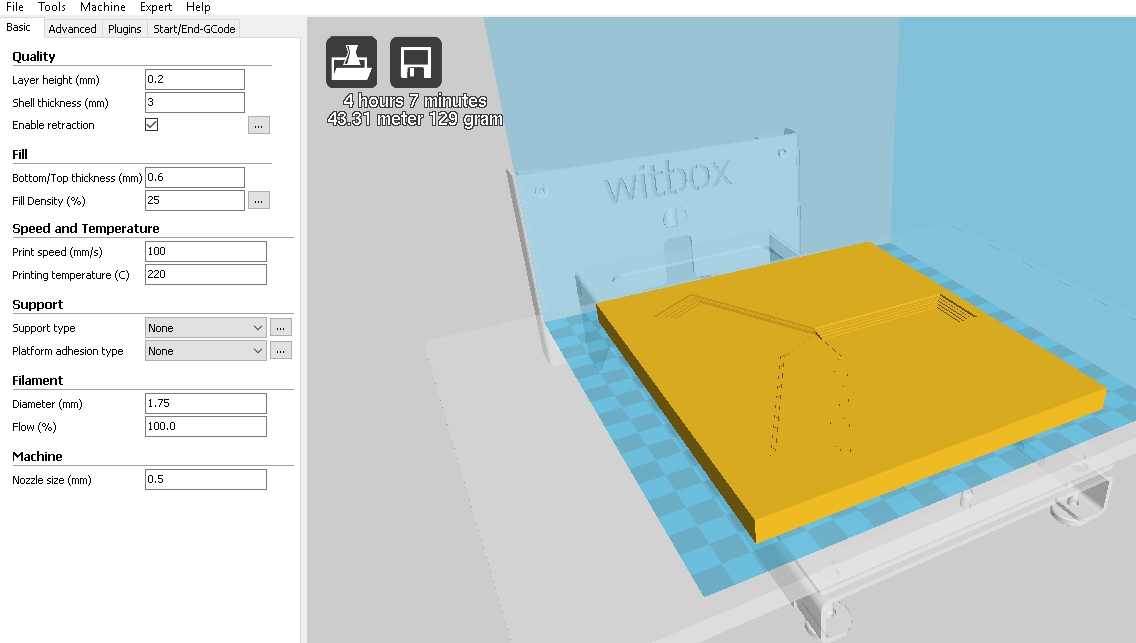

Once the mold design is finished I have printed the mold with a Witbox.

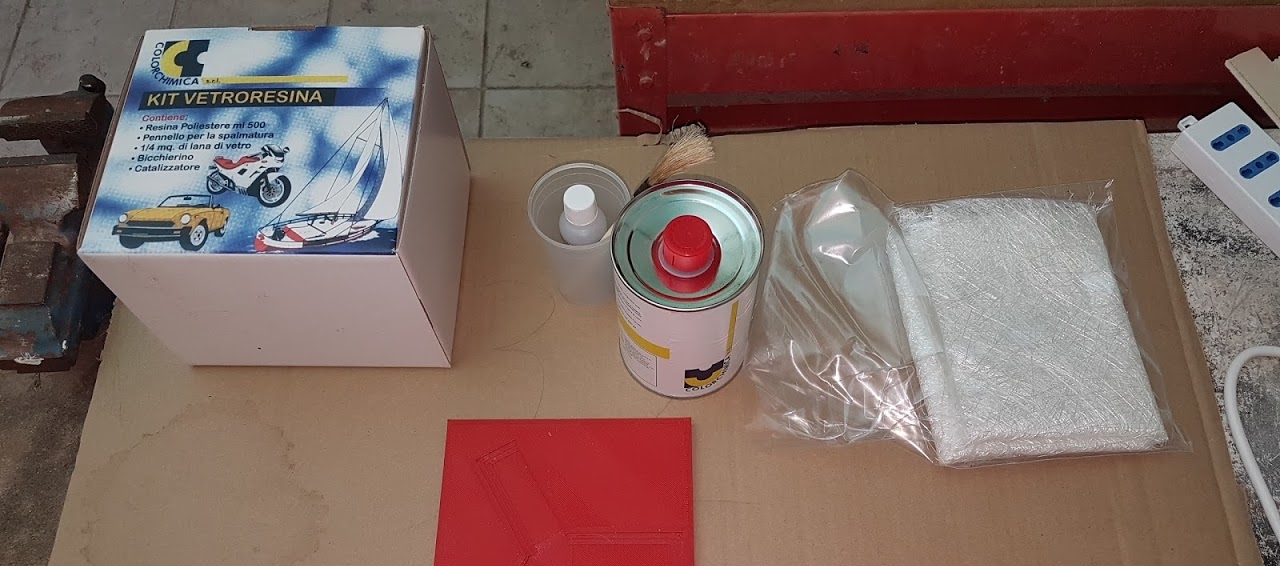

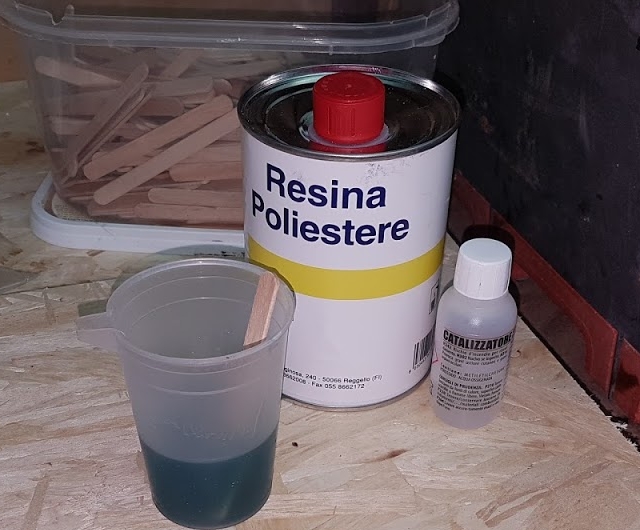

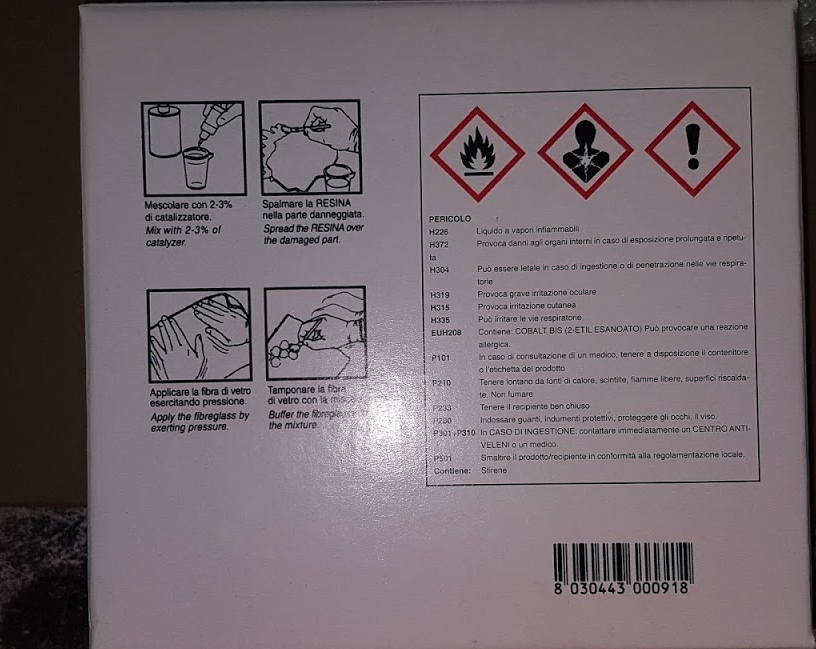

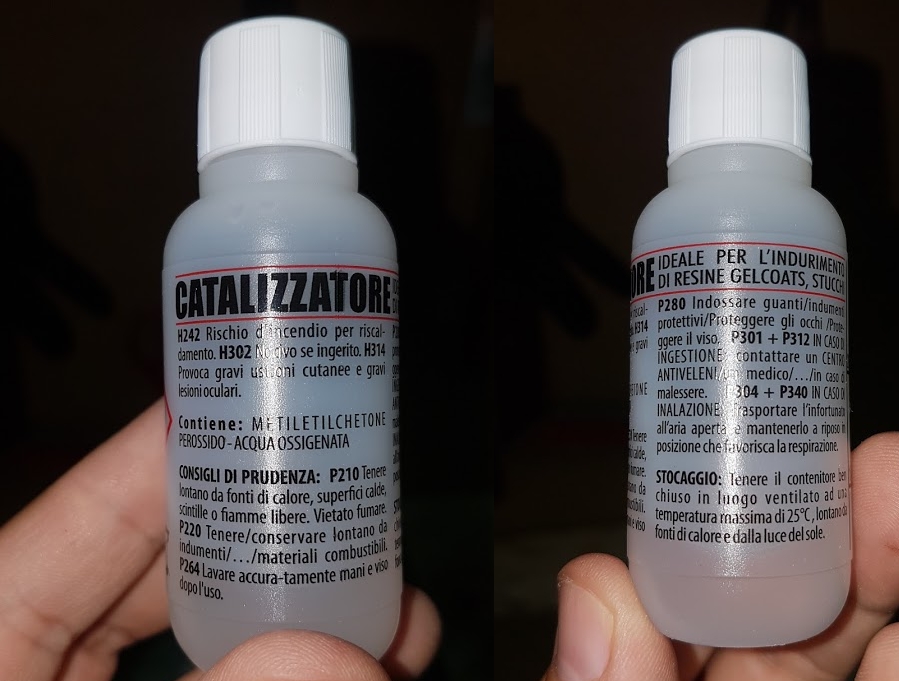

Fiberglass

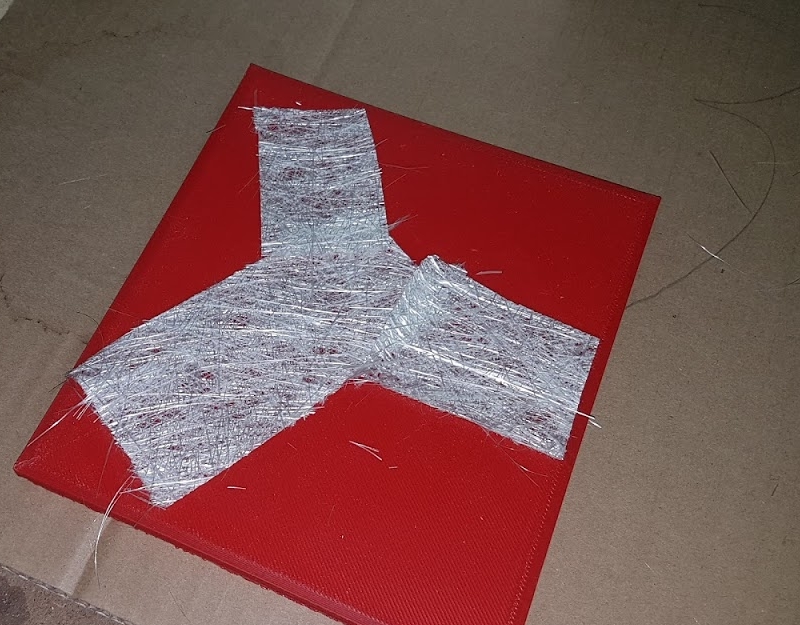

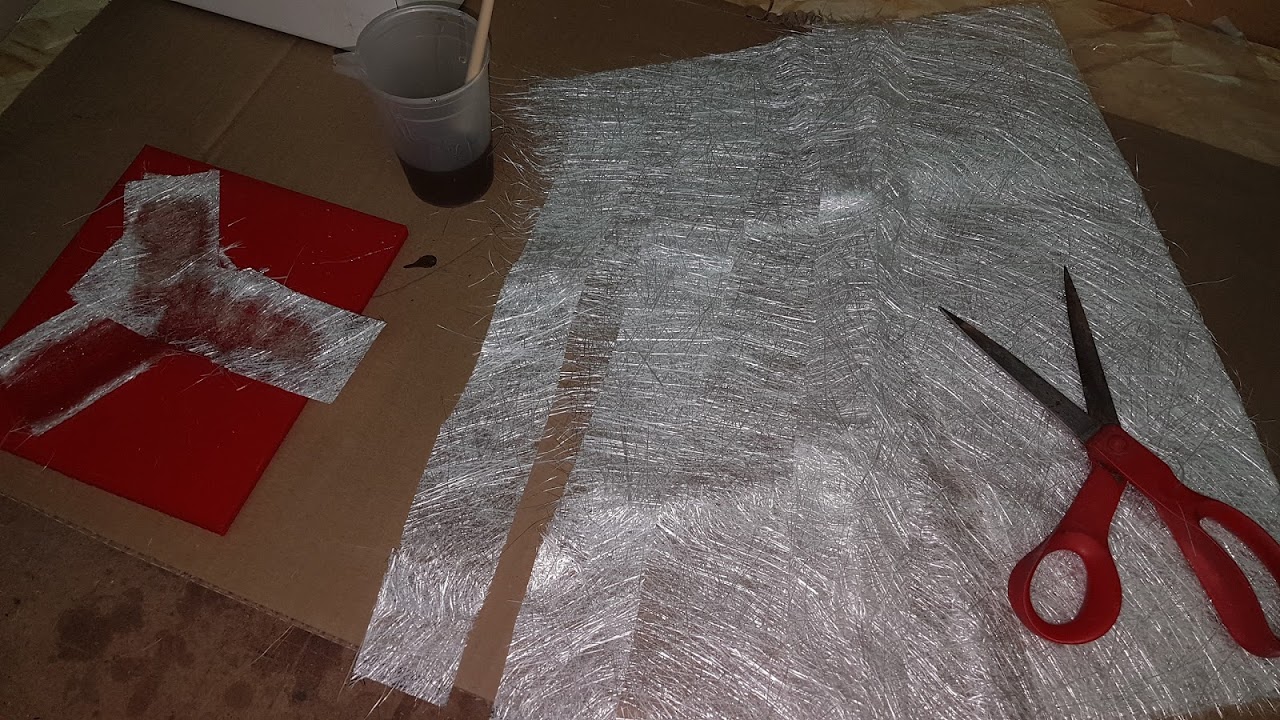

Obtained the mold just to apply the fiberglass to the mold and wait for it to dry.
Update
05-20-2017

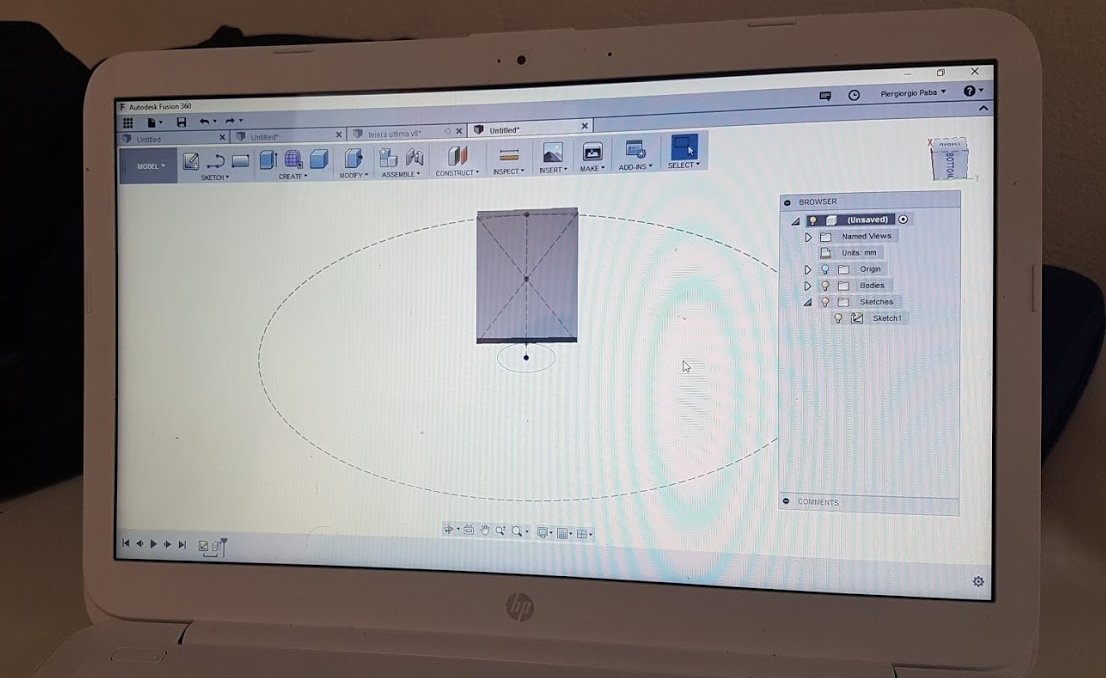

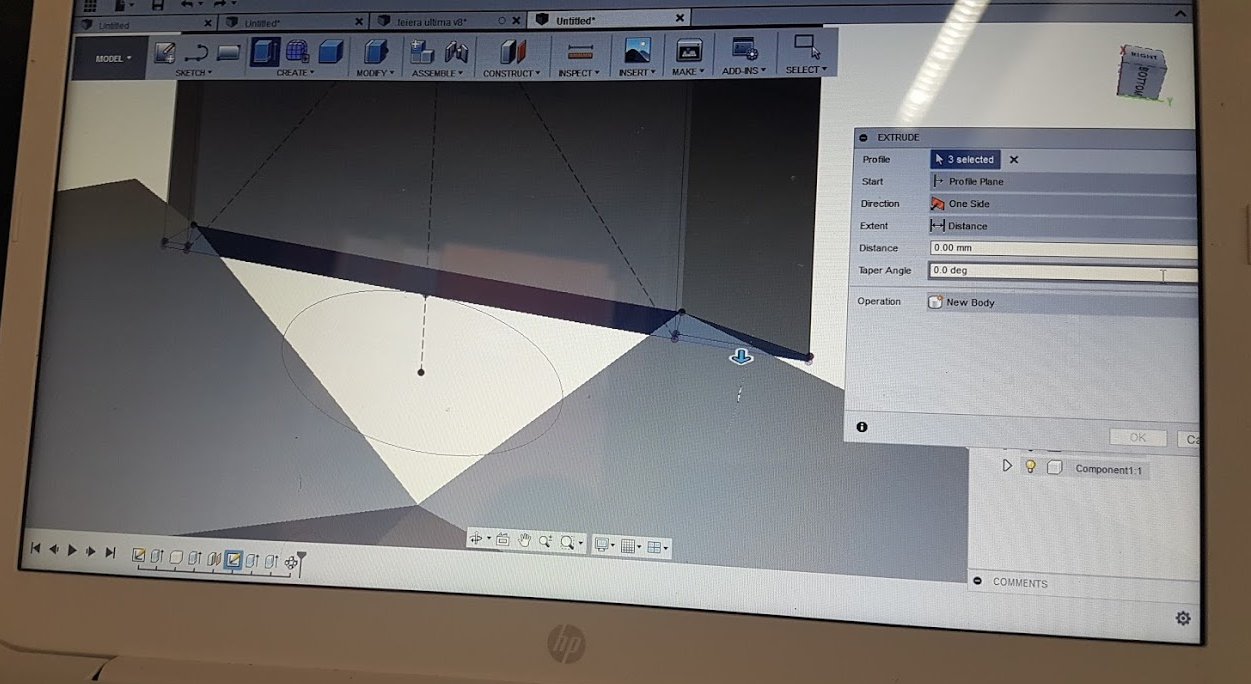

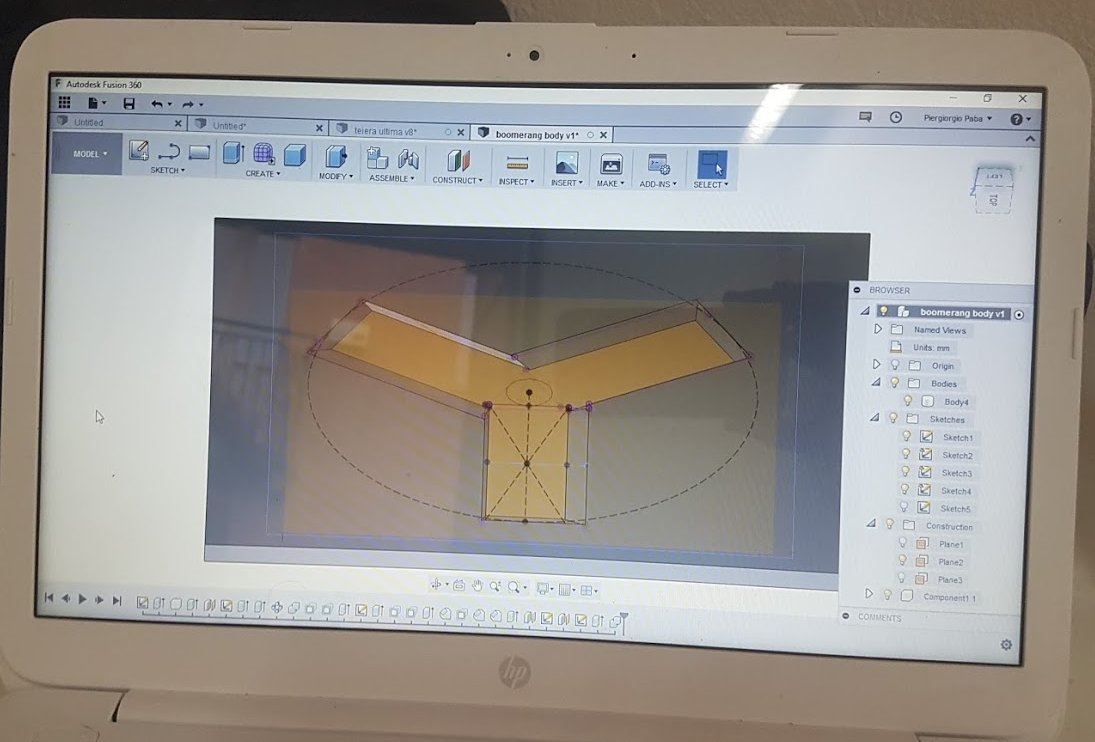

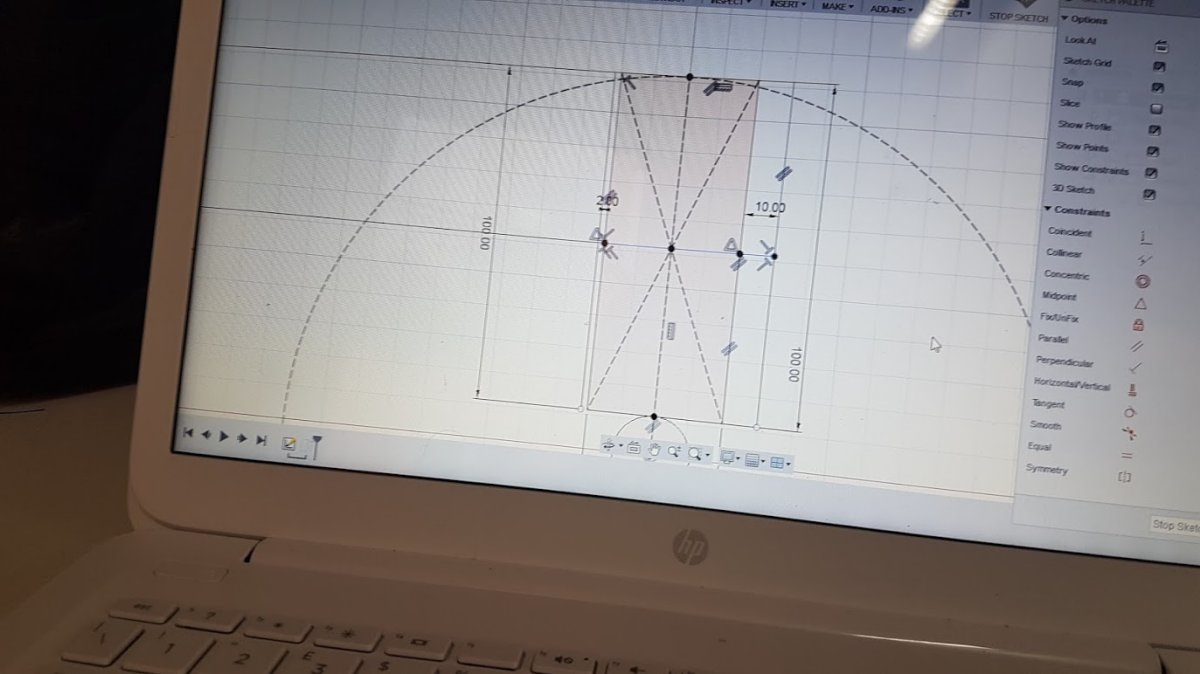

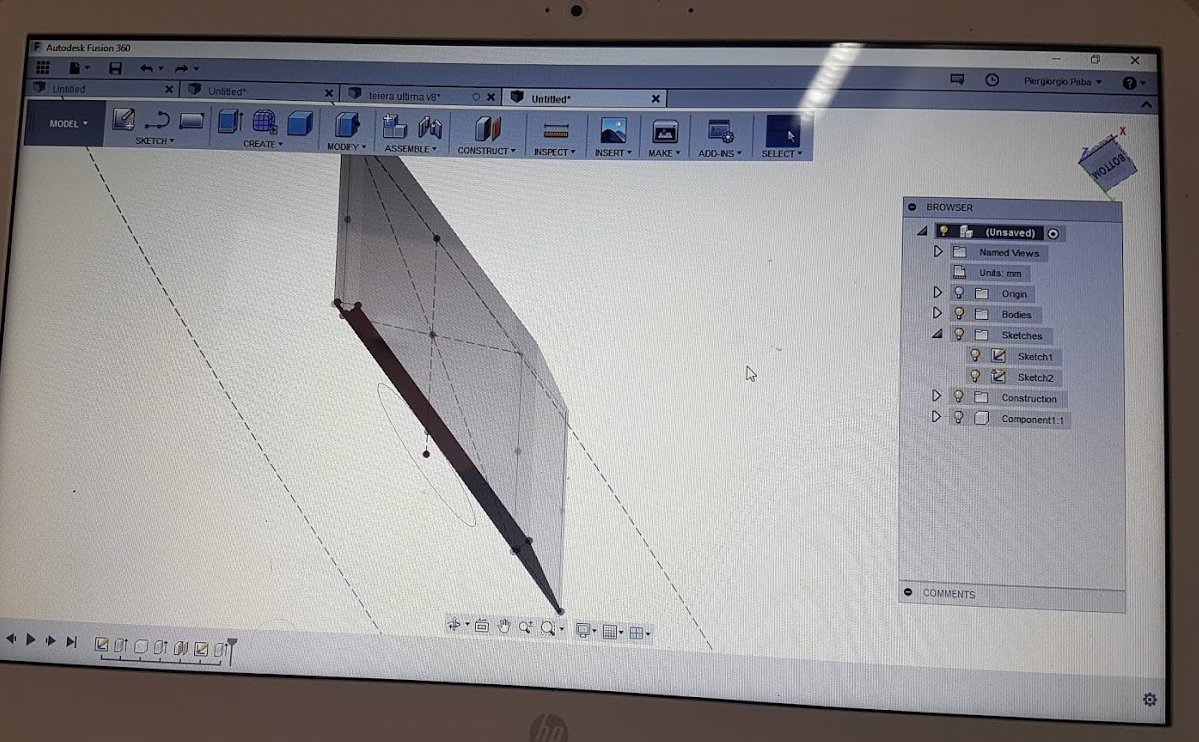

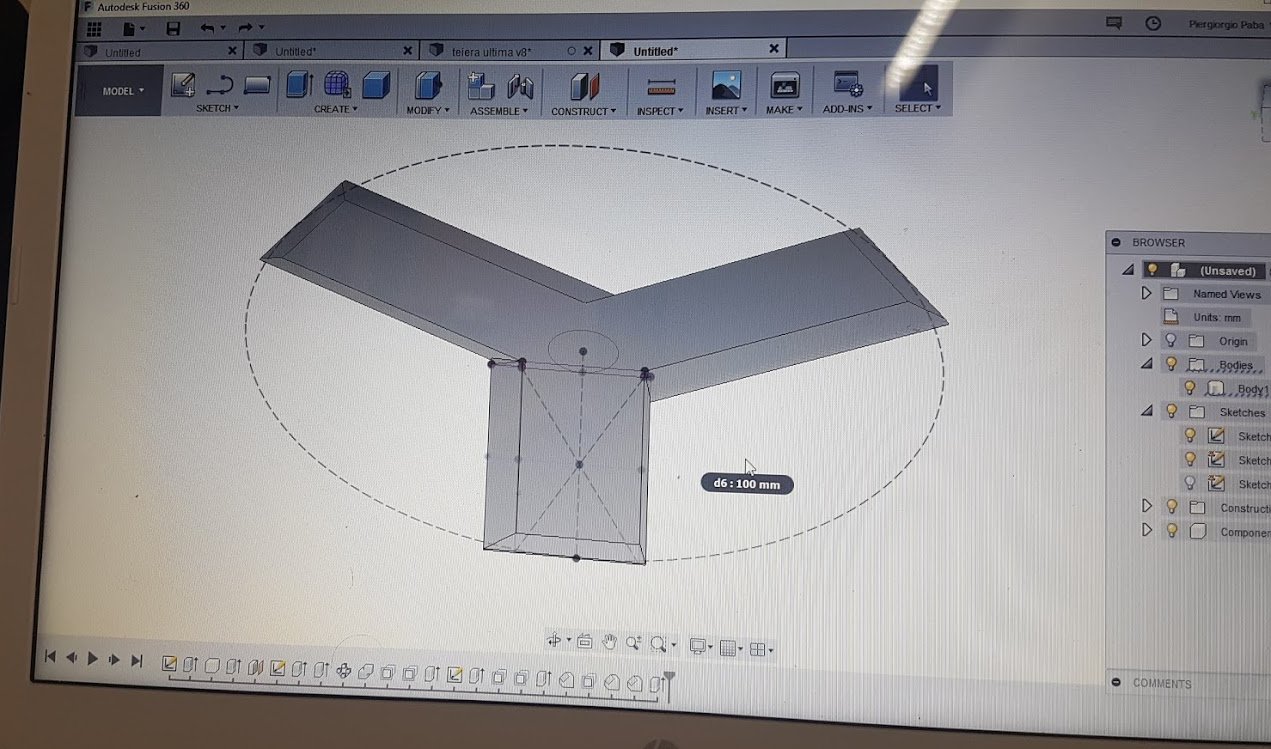

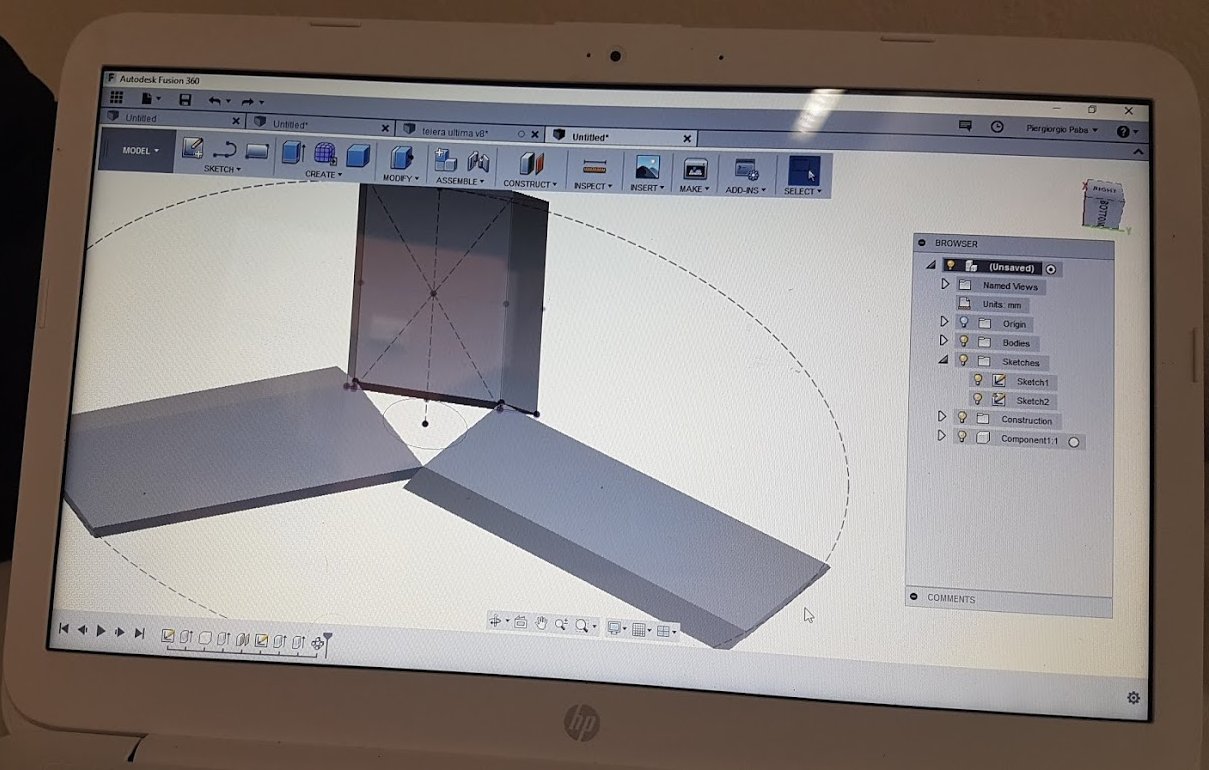

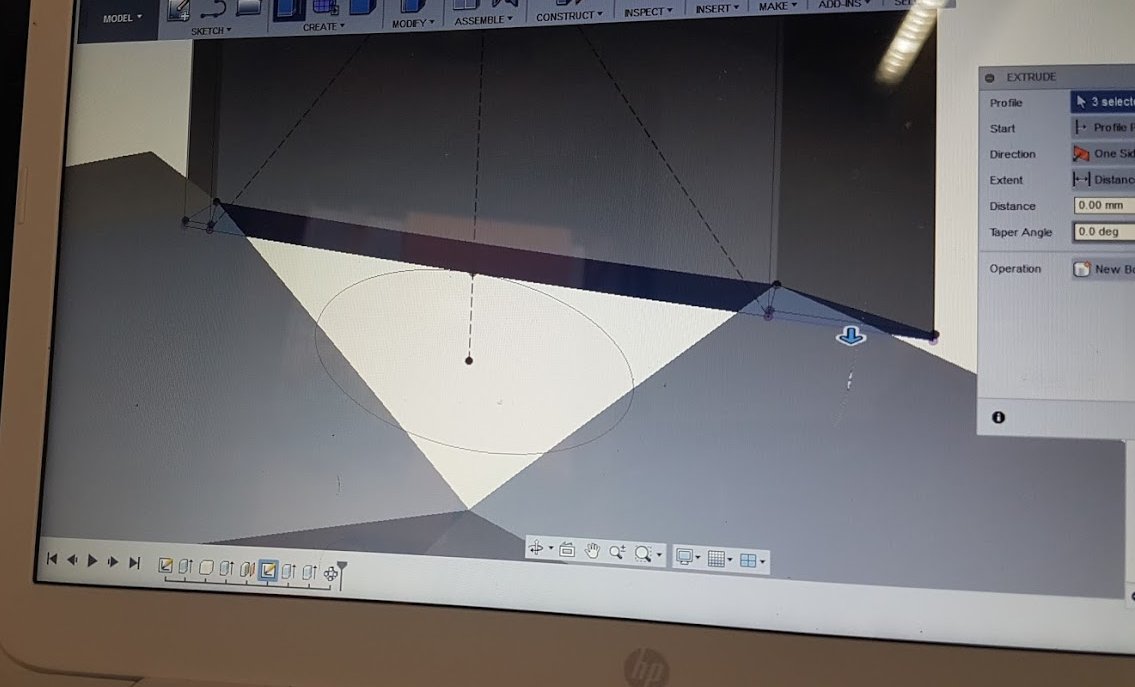

I had the chance to try Fusion 360, so I decided to redesign the boomerang
