Week 16

Interface and Application Programming

Write an application that interfaces with an input &/or output device that you made, comparing as many tool options as possible

In this section, we use Processing SOftware and Arduino to display the sensor values

Processing connects to Arduino via Serial, the Arduino reads the sensor values and sends it back to prossesing.

Requirements

    Potentiameter
    Arduino UNO
    Connecting Wires
    Arduino Software
    Processing
parts

Procedure

    Connect the Analog Sensor (potentiameter) to the Arduino Pin Analog A0

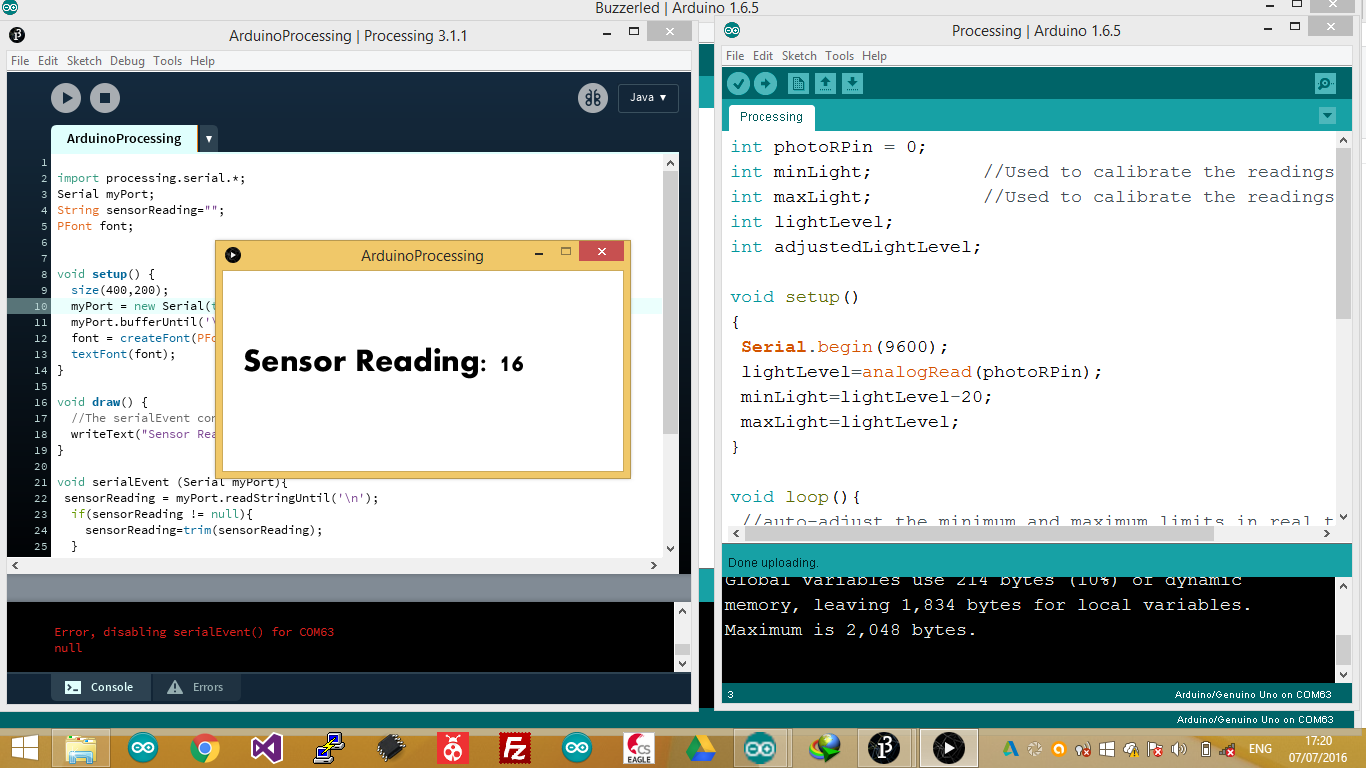

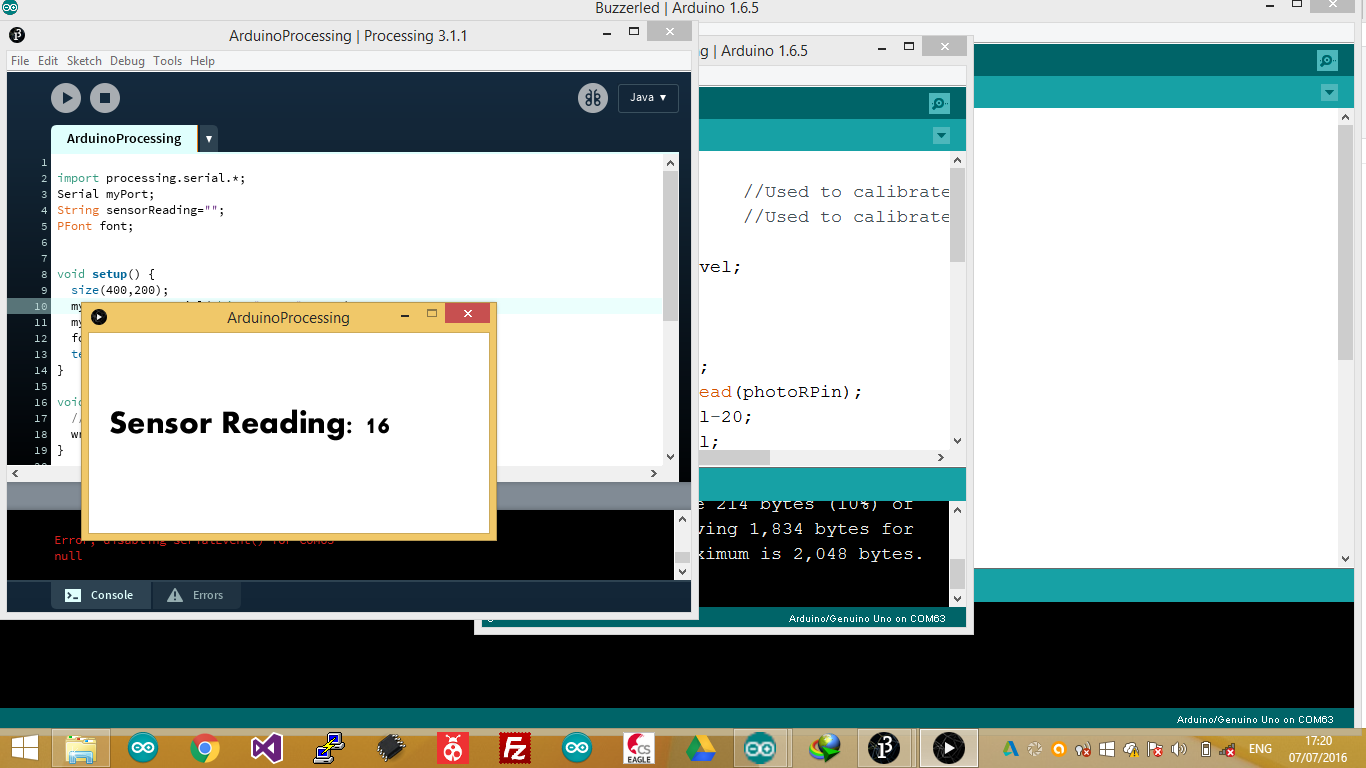

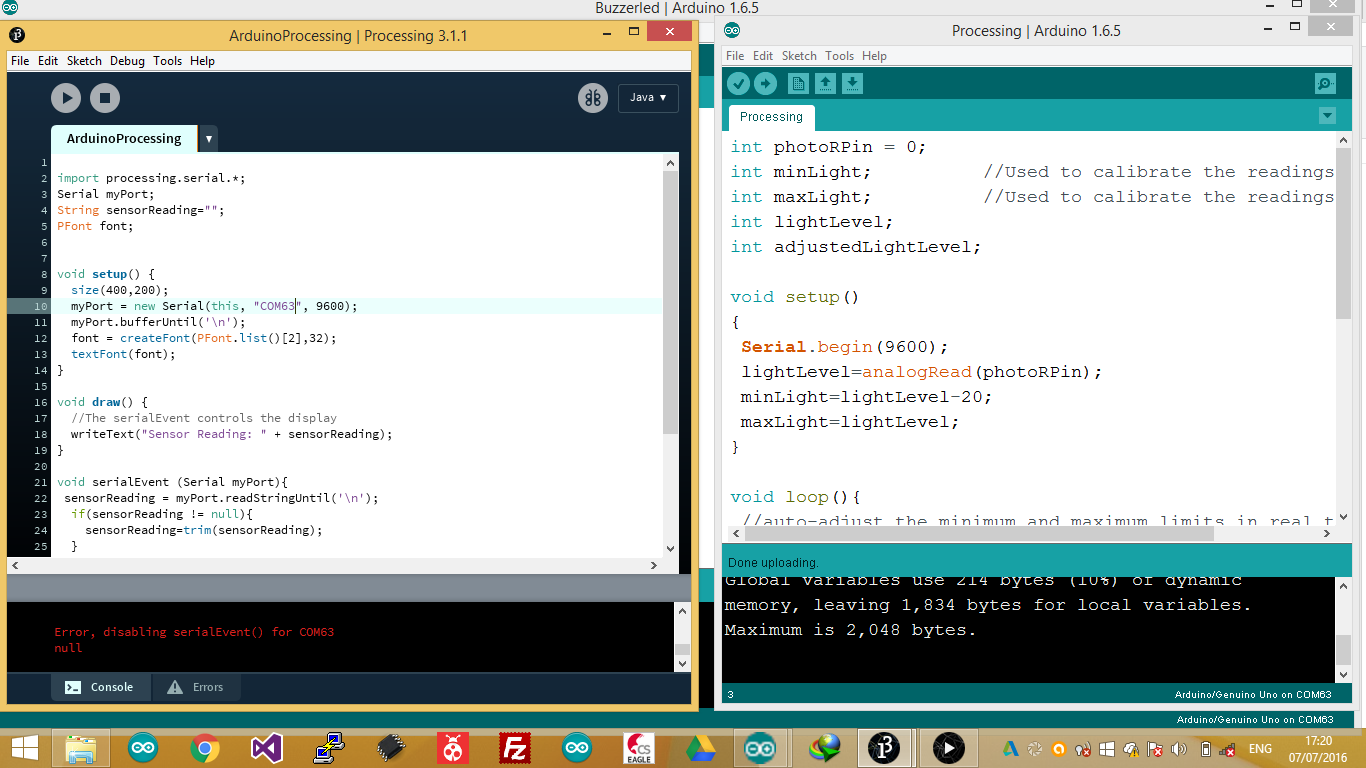

    Run the following code in the Arduino and processing
parts
    ============================================================
Processing Version: 2.2.1
Project: Display Sensor data on computer screen
Author:  ScottC
Created: 25th June 2011
Description: This Processing sketch will allow you to display
             sensor data received from the Arduino via the
             serial COM port (or USB cable).
=============================================================== */
import processing.serial.*;
Serial myPort;
String sensorReading="";
PFont font;


void setup() {
  size(400,200);
  myPort = new Serial(this, "COM5", 9600);
  myPort.bufferUntil('\n');
  font = createFont(PFont.list()[2],32);
  textFont(font);
}

void draw() {
  //The serialEvent controls the display
}

void serialEvent (Serial myPort){
 sensorReading = myPort.readStringUntil('\n');
  if(sensorReading != null){
    sensorReading=trim(sensorReading);
  }

  writeText("Sensor Reading: " + sensorReading);
}


void writeText(String textToWrite){
  background(255);
  fill(0);
  text(textToWrite, width/20, height/2);
}

parts

Now that my boards did not have serial IC interface, I used Arduino and programmed as below


int photoRPin = 0;
int minLight;          //Used to calibrate the readings
int maxLight;          //Used to calibrate the readings
int lightLevel;
int adjustedLightLevel;

void setup() {
 Serial.begin(9600);

 //Setup the starting light level limits
 lightLevel=analogRead(photoRPin);
 minLight=lightLevel-20;
 maxLight=lightLevel;
}

void loop(){
 //auto-adjust the minimum and maximum limits in real time
 lightLevel=analogRead(photoRPin);
 if(minLight>lightLevel){
 minLight=lightLevel;
 }
 if(maxLight

 maxLight=lightLevel;
 }

 //Adjust the light level to produce a result between 0 and 100.
 adjustedLightLevel = map(lightLevel, minLight, maxLight, 0, 100);

 //Send the adjusted Light level result to Serial port (processing)
 Serial.println(adjustedLightLevel);

 //slow down the transmission for effective Serial communication.
 delay(50);
 }
