Computer-controlled cutting

Version 1.0 / Version 2.0

This is the second version of my computer-aided cutting exercices. For that one I keep the same principle of the V1 but I made it stronger and smaller and I add some pieces of support

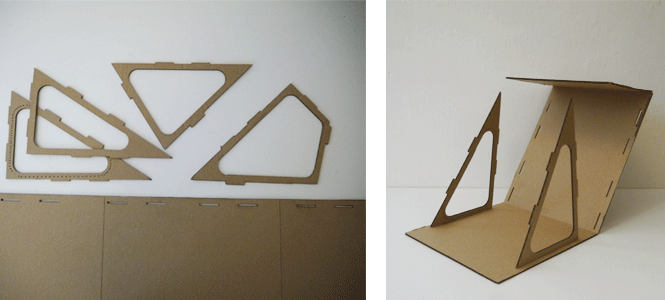

The cardboard is wrapping around pieces wich will maintain the right angle.

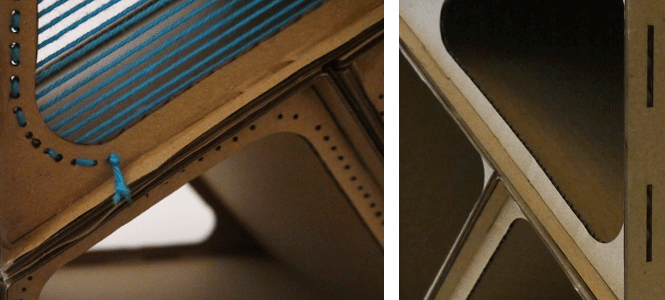

Everything is strenght by notch and taps going through the polygons, and some holes allows to put wool to give a texture to the back.

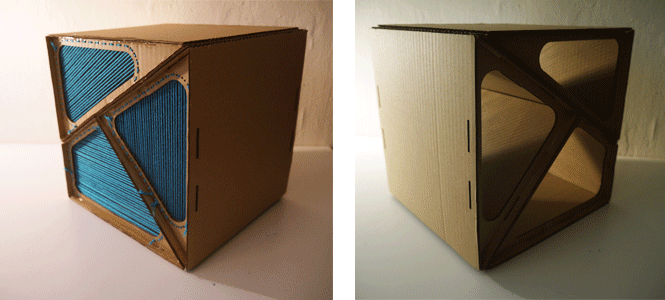

The cube can be use himself as a drawer on a desk.

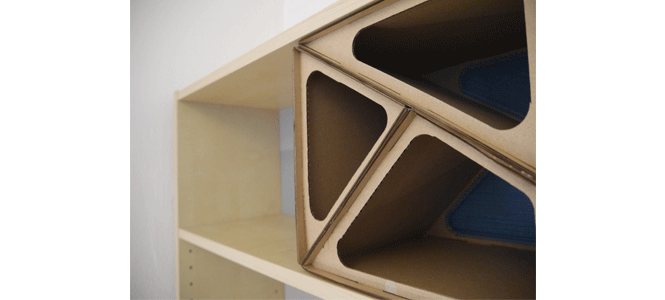

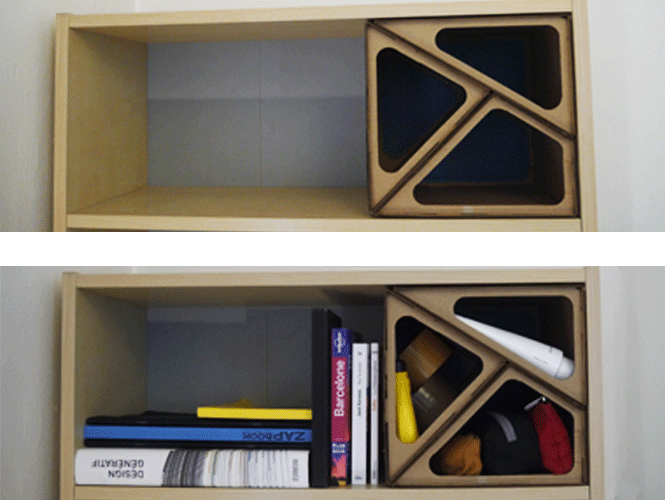

Or it could be used in a shelf to partitionate the space.



In this way it's easier to sort out stuffs.

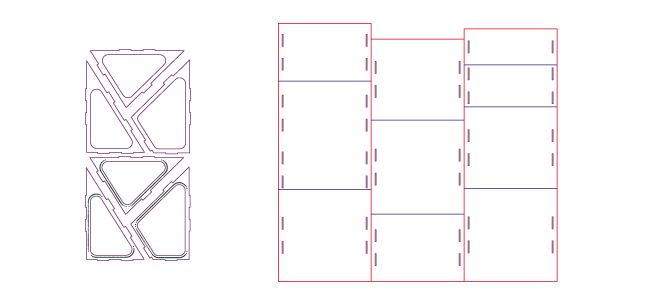

You can find the files for that box here : Rhino files .
