Sensors and motor

• DHT11 basic temperature-humidity sensor
• 1 servo motor SG-5010
• 1 potentiometer
• 1 blue led

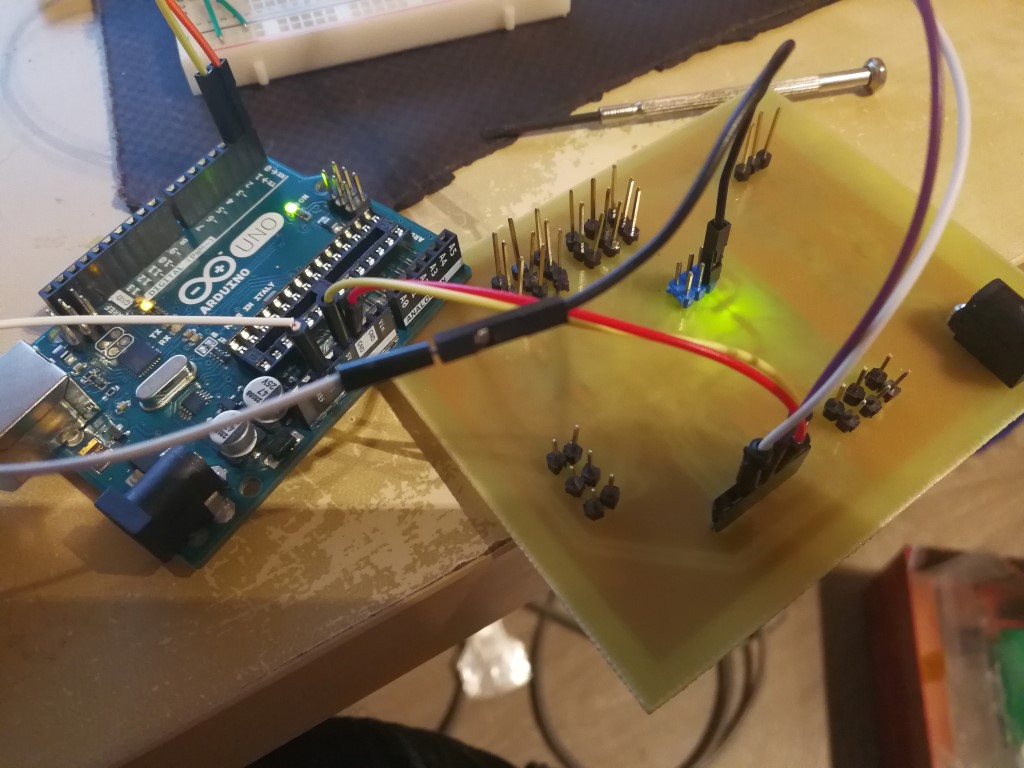

Preparing of the boards

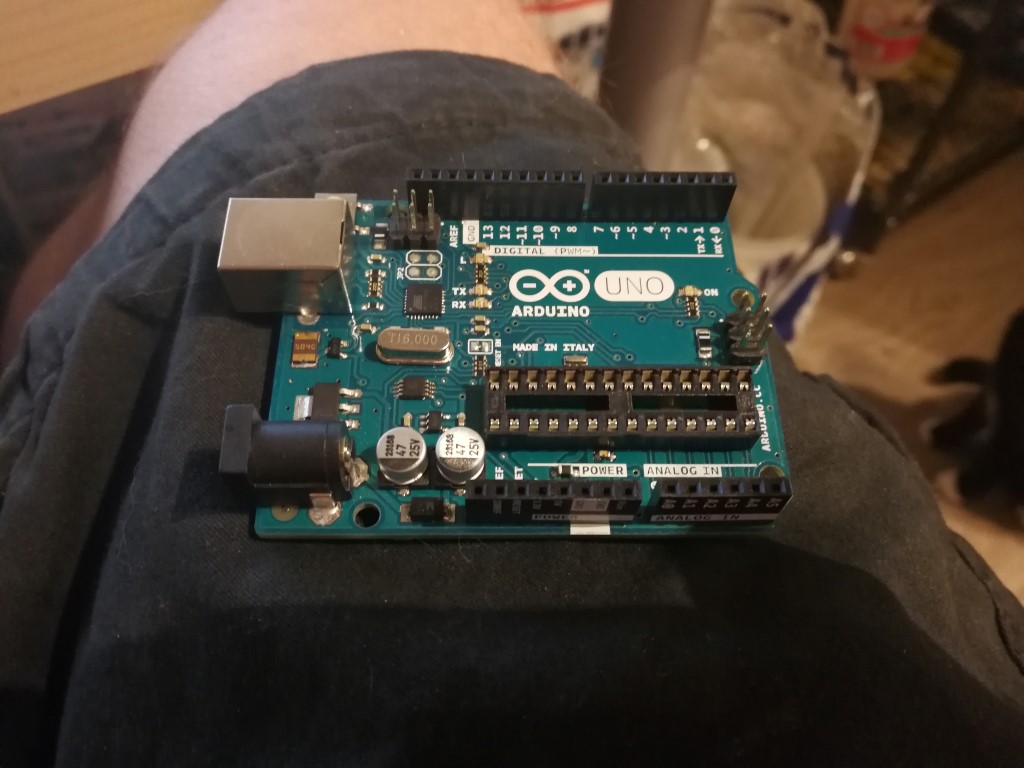

• Board = arduino uno as my greenhouse board is based on this design
• Processor = ATmega 328

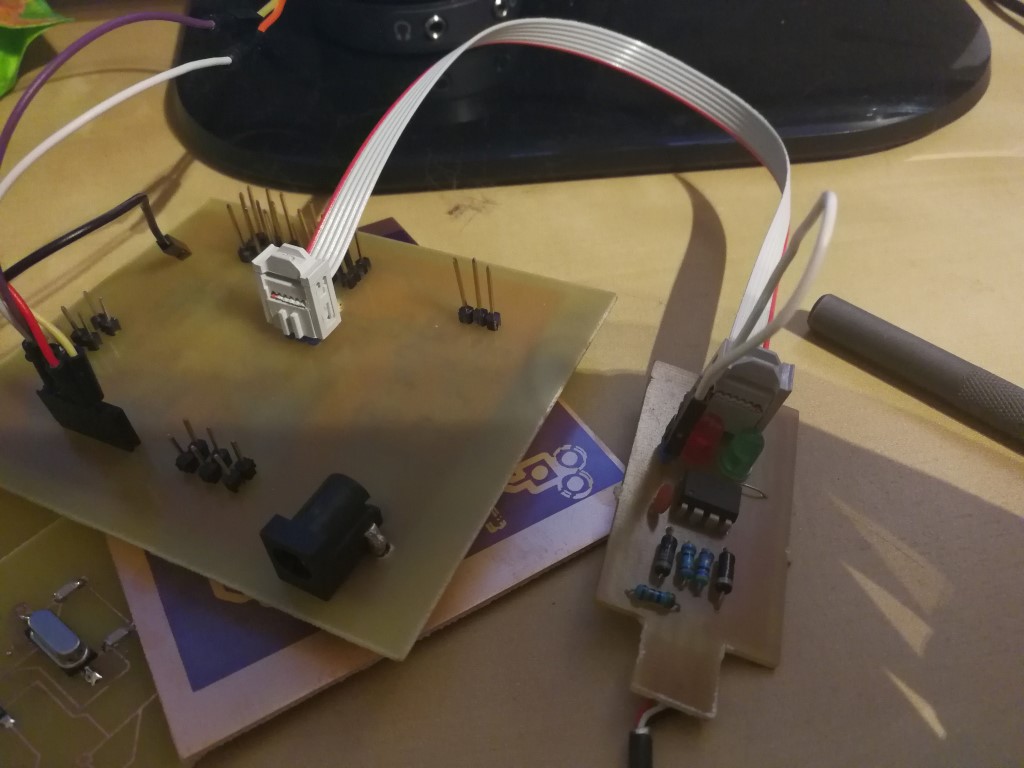

• Programmer = USBTinyISP

• RX (as I'm using a bluetooth connectivity in my final project, the TX and RX are reversed here!)
• TX (as I'm using a bluetooth connectivity in my final project, the TX and RX are reversed here!)
• +5v
• ground

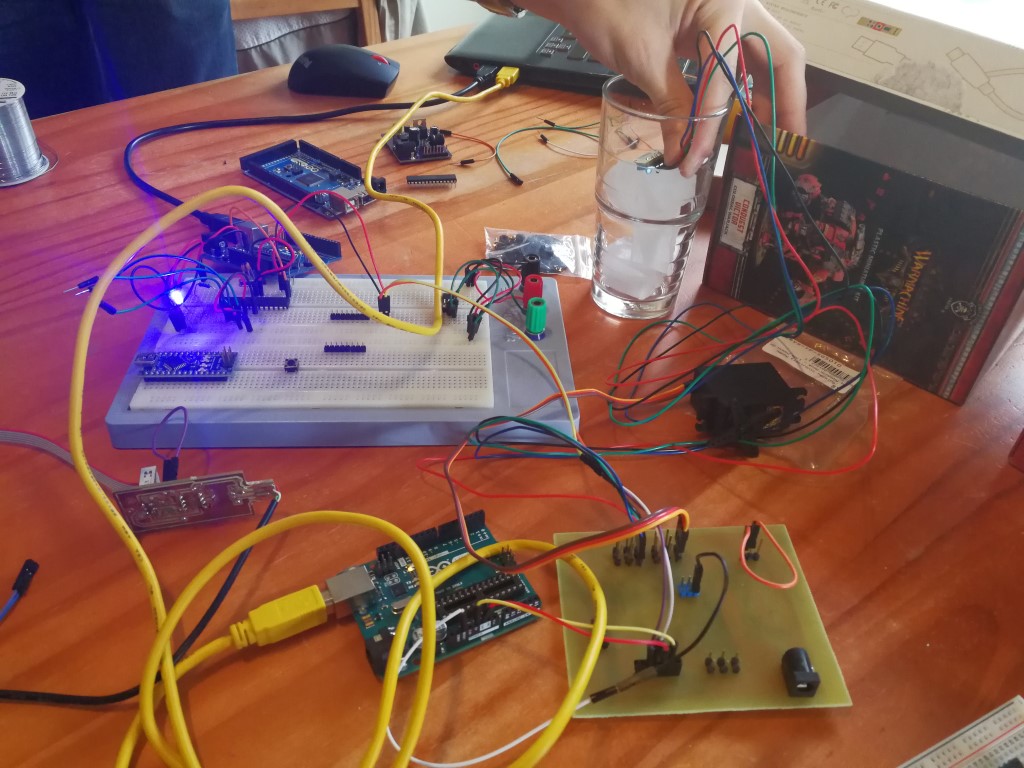

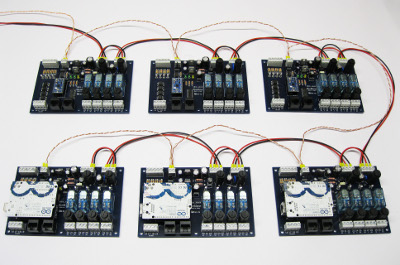

The networking itself (UPDATED, see at the end of the exercise, It was done with my final project and 2 boards)

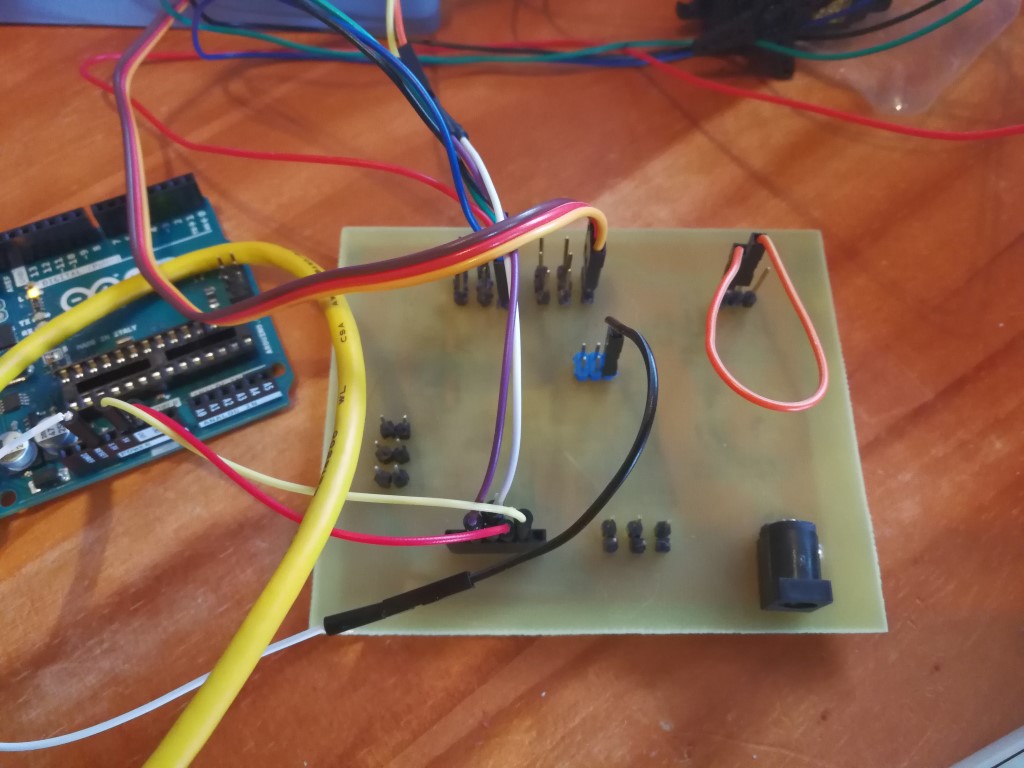

• The Greenhouse board will have the DTH11 and the servo motor. It will send to the breadboard the value from the DTH11 and receive a value for the motor
• The breadboard will receive the value from the DTH11 and send value for the servo motor via the potentiometer

Greenhouse board code



#include  <DHT.h>
#include <DHT_U.h>
#include <Servo.h>

#define DHTTYPE DHT11
#define DHT0PIN 5
#define DHT1PIN 6
#define DHT2PIN 7

#define SERVO0PIN 10
#define SERVO1PIN 9
#define SERVO2PIN 8

#define PHOTO0PIN A0
#define PHOTO1PIN A1
#define PHOTO2PIN A2

#define BUTTON0PIN 2
#define BUTTON1PIN 3
#define BUTTON2PIN 4

Servo mservo;
DHT dht2(DHT2PIN, DHTTYPE);

String inputString = "";         // a string to hold incoming data
boolean stringComplete = false;  // whether the string is complete

void setup() {
  // initialize serial:
  Serial.begin(9600);
  mservo.attach(SERVO0PIN);
  dht2.begin();
  // reserve 200 bytes for the inputString:
  inputString.reserve(200);
}

void loop() {
  if (stringComplete) {
    switch (inputString.charAt(0)) {
      case 'S':
      setServo(inputString);
      break;
      default:
      break;
    }
    inputString = "";
    stringComplete = false;
  }

}

void setServo(String command) {
  int pos = command.substring(1).toInt();
  mservo.write(pos);
  delay(1000);
}

float oldH;
float oldT;

void readDHT() {
  float h = dht2.readHumidity();
  float t = dht2.readTemperature();
  if (isnan(h) || isnan(t)) {
  }
  else {
    if (h != oldH) {
      Serial.print("H");
      Serial.println(h);
      oldH = h;
    }
    if (t != oldT) {
      Serial.print("T");
      Serial.println(t);
      oldT = t;
    }
  }
}

void serialEvent() {
  while (Serial.available()) {
    // get the new byte:
    char inChar = (char)Serial.read();
    // add it to the inputString:
    inputString += inChar;
    // if the incoming character is a newline, set a flag
    // so the main loop can do something about it:
    if (inChar == '\n') {
      stringComplete = true;
    }
  }
}





The Breadboard code



#define GPIN 2
#define RPIN 11


String inputString = "";         // a string to hold incoming data
boolean stringComplete = false;  // whether the string is complete

int prevVal;

void setup() {
  // initialize serial:
  Serial.begin(9600);
  // reserve 200 bytes for the inputString:
  inputString.reserve(1);

  pinMode(GPIN, OUTPUT);
  pinMode(RPIN, OUTPUT);
  digitalWrite(RPIN, LOW);
  digitalWrite(GPIN, LOW);
  prevVal = 0;
}

void loop() {
  // print the string when a newline arrives:
  //Serial.println("test");
  if (stringComplete) {
    Serial.println(inputString);
    switch(inputString.charAt(0)){
      case 'H':

      break;
      case 'T':
      ledTemp(inputString);
      break;
    }
    // clear the string:
    inputString = "";
    stringComplete = false;
  }
  int val;
  val = analogRead(A0);
  if(val != prevVal) {
    prevVal = val;
    val = map(val, 0, 1023, 0, 180);
    Serial.print("S");
    Serial.println(val);
  }
}

void ledTemp(String s) {
  int temp = s.substring(1).toInt();
  analogWrite(RPIN, map(temp, 20, 40, 0, 1023));
}

void serialEvent() {
  while (Serial.available()) {
    // get the new byte:
    char inChar = (char)Serial.read();
    inputString += inChar;
    if (inChar == '\n') {
      stringComplete = true;
    }
  }
}



Proof in videos

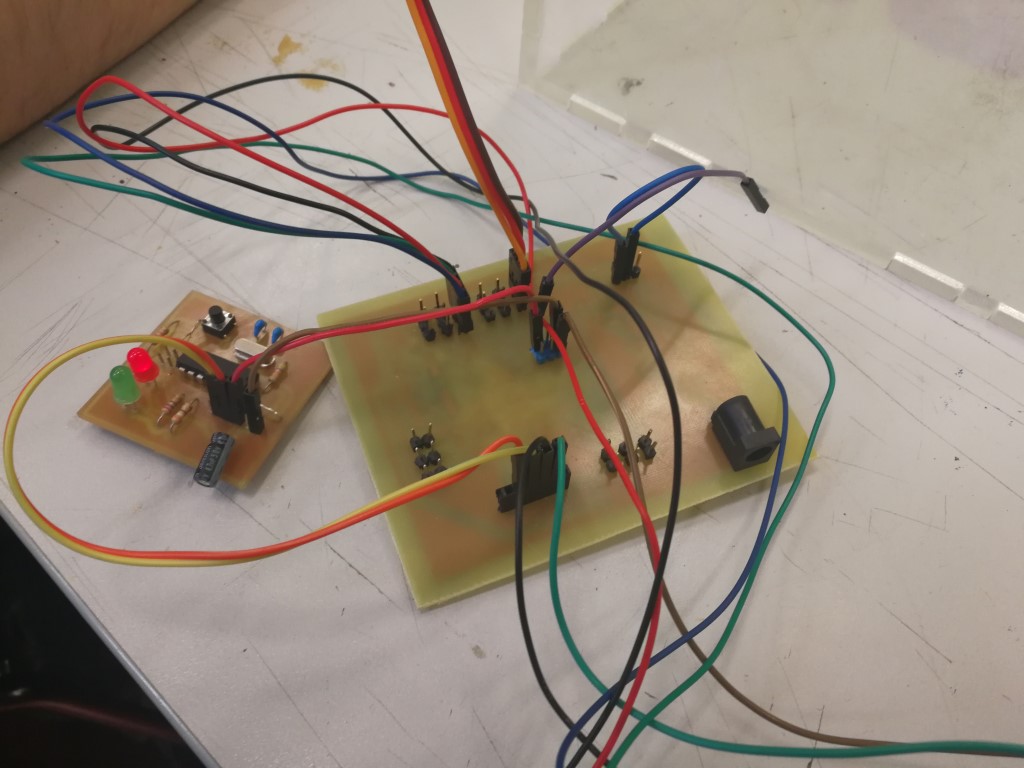

UPDATED, Networking with 2 homemade boards

Greenhouse board improved code



#include  <DHT.h>
#include <Servo.h>

#define DHTTYPE DHT11
#define DHT0PIN 7
#define DHT1PIN 6
#define DHT2PIN 5

#define SERVO0PIN 10
#define SERVO1PIN 9
#define SERVO2PIN 8

#define PHOTO0PIN A0
#define PHOTO1PIN A1
#define PHOTO2PIN A2

#define BUTTON0PIN 2
#define BUTTON1PIN 3
#define BUTTON2PIN 4

#define TIMER_PERIOD 200

#define SERVOANGLEOPEN 10
#define SERVOANGLECLOSE 160
#define SERVOANGLEDEFAULT 90

int Temp = 30;
int Hyst = 1;

DHT dht0(DHT0PIN, DHTTYPE);
DHT dht1(DHT1PIN, DHTTYPE);
DHT dht2(DHT2PIN, DHTTYPE);
DHT dht[] = {dht0, dht1, dht2};

Servo s0;
Servo s1;
Servo s2;
Servo s[] = {s0, s1, s2};
int sPin[] = {SERVO0PIN, SERVO1PIN, SERVO2PIN};
int sValues[] = {SERVOANGLEDEFAULT, SERVOANGLEDEFAULT, SERVOANGLEDEFAULT};

float te[] = {0, 0, 0};
float hu[] = {0, 0, 0};

char photoPin[] = {PHOTO0PIN, PHOTO1PIN, PHOTO2PIN};
char buttonPin[] = {BUTTON0PIN, BUTTON1PIN, BUTTON2PIN};

int interruptCounter = 0;

String inputString = "";
boolean stringComplete = false;

void setup() {
  setupDHT();
  //setupServo();
  setupButton();

  inputString.reserve(200);
  Serial.begin(9600);
}

void setupDHT() {
  dht0.begin();
  dht1.begin();
  dht2.begin();
}

/* void setupServo() {
  s0.attach(SERVO0PIN);
  s1.attach(SERVO1PIN);
  s2.attach(SERVO2PIN);
}*/

void setupButton() {
  pinMode(BUTTON0PIN, INPUT);
  pinMode(BUTTON1PIN, INPUT);
  pinMode(BUTTON2PIN, INPUT);
}

void loop() {
  delay(10);
  // put your main code here, to run repeatedly:
  if (stringComplete) {
    processSerial(inputString);
    inputString = "";
    stringComplete = false;
  }

  interruptCounter++;
  if (interruptCounter > TIMER_PERIOD) {
    interruptCounter = 0;
    for(int i = 0; i < 3 ; i++ ) {
      float t = readTemp(i);
      float h = readHumid(i);
      if (!isnan(h) && !isnan(t)) {
        hu[i] = h;
        te[i] = t;
      }
    }
  }

 /* for(int z = 0; z < 3; z++) {
    checkTemp(z);
  }*/
}

//Hysteresis. At 31° => Open door. At 29° => Close door
void checkTemp(int moduleNumber) {
  if(te[moduleNumber] >= Temp + Hyst) { // Changer signe
    if(readServoAngle(moduleNumber) != SERVOANGLEOPEN) {
      moveServo(moduleNumber, SERVOANGLEOPEN);
    }
  }
  else {
    if(te[moduleNumber] <= Temp - Hyst) {
      if(readServoAngle(moduleNumber) != SERVOANGLECLOSE) {
        moveServo(moduleNumber, SERVOANGLECLOSE);
      }
    }
  }
}


void processSerial(String serialString) {
  switch (serialString.charAt(0)) {
    case 'M':
      processModuleCommand(serialString);
      break;
    default:
      break;
  }
}

void processModuleCommand(String serialString) {
  int moduleNumber = serialString.substring(1).toInt();
  String command = getNextPart(serialString,':');
  switch (command.charAt(0)) {
    case 'S':
      sendModuleStatus(moduleNumber);
      break;
    case 'D':
      handleDoor(moduleNumber, command);
      break;
    case 'P':
      moveServoCommand(moduleNumber, command);
      break;
    default:
      break;
  }
}

/*
 * M0: => Selection Module (M : Module; 0,1,2 : Module 0,1,2)

 *
 * S => Status : M0>D1/T20/H90/L95/S120/B1 (D : Door 1Open/0Closed, T : Temp, H: Humidity, L: Luminosity, S: Servo °, B : Button 1Open/0Closed)
 * D1 => Open Door
 * D0 => Close Door
 */

void sendModuleStatus(int moduleNumber) {
  int l = readLuminosity(moduleNumber);
  int sa =  readServoAngle(moduleNumber);
  int b = readButton(moduleNumber);

  Serial.print("M");
  Serial.print(moduleNumber);
  Serial.print(">T");
  Serial.print(te[moduleNumber]);
  Serial.print("/H");
  Serial.print(hu[moduleNumber]);
  Serial.print("/L");
  Serial.print(l);
  Serial.print("/S");
  Serial.print(sa);
  Serial.print("/B");
  Serial.println(b);

}

float readTemp(int moduleNumber) {
  return dht[moduleNumber].readTemperature();
}

float readHumid(int moduleNumber) {
  return dht[moduleNumber].readHumidity();
}

int readLuminosity(int moduleNumber) {
  int sVal = analogRead(photoPin[moduleNumber]);
  int percent = sVal * (100 / 1023);
  return sVal;
}

int readServoAngle(int moduleNumber) {
  return sValues[moduleNumber];
}

int readButton(int moduleNumber) {
  return digitalRead(buttonPin[moduleNumber]);
}

void handleDoor(int moduleNumber, String command) {
  int oc = command.substring(1).toInt();
  if(oc < 1) {
    moveServo(moduleNumber, SERVOANGLECLOSE);
  }
  else {
    moveServo(moduleNumber, SERVOANGLEOPEN);
  }
}

void moveServoCommand(int moduleNumber, String command) {
  int angle = command.substring(1).toInt();
  moveServo(moduleNumber, angle);
}

void moveServo(int moduleNumber, int angle) {
  sValues[moduleNumber] = angle;
  s[moduleNumber].attach(sPin[moduleNumber]);
  s[moduleNumber].write(angle);
  delay(1000);
  s[moduleNumber].detach();
}

//Cut the string at the specified length and return the right side.
String getNextPart(String s, char separator) {
  for(int i = 0; i < s.length(); i++) {
    if(s[i] == separator) {
      return s.substring(i+1);
    }
  }
  return "";
}

void serialEvent() {
  while (Serial.available()) {
    // get the new byte:
    char inChar = (char)Serial.read();
    // add it to the inputString:
    inputString += inChar;
    // if the incoming character is a newline, set a flag
    // so the main loop can do something about it:
    if (inChar == '\n') {
      Serial.println(inputString);
      stringComplete = true;
    }
  }
}

The Hello Board code



    #include <SoftwareSerial.h>
#define BUTTONPIN 8
#define LEDPIN 2
SoftwareSerial mySerial(0, 1); // RX, TX

boolean openclose = true;
int buttonState;
int lastButtonState = LOW;
unsigned long lastDebounceTime = 0;
unsigned long debounceDelay = 50;

void setup() {
  // set the data rate for the SoftwareSerial port
  mySerial.begin(9600);
  pinMode(BUTTONPIN, INPUT);
  pinMode(LEDPIN, OUTPUT);
  digitalWrite(LEDPIN, LOW);
}

void loop() { // run over and over
  int reading = digitalRead(BUTTONPIN);
  if (reading != lastButtonState) {
    lastDebounceTime = millis();
  }
  if ((millis() - lastDebounceTime) > debounceDelay) {
    if (reading != buttonState) {
      buttonState = reading;
      if (buttonState == HIGH) {
        setDoor();
      }
    }
  }
  lastButtonState = reading;
}

void setDoor() {
  if(openclose) {
    digitalWrite(LEDPIN, HIGH);
    mySerial.write("M0:D0\n");
    openclose = false;
  }
  else {
    if(!openclose) {
      digitalWrite(LEDPIN, LOW);
      mySerial.write("M0:D1\n");
      openclose = true;
    }
  }
}


Summary :
This assignment was really nice and was a huge chunk of the electronic work I will have to make for my final project
