Cosmino

This is the board I made for input device assignment and I will use it for the others assignments. It is a fabKit wich is larger to be easier to sold, with a 6 pin connector to plug the FabISP, a different wiring for the wires to be well stuck to the board and some more LEDs to check if the board is powered. Files and more informations are comming ...

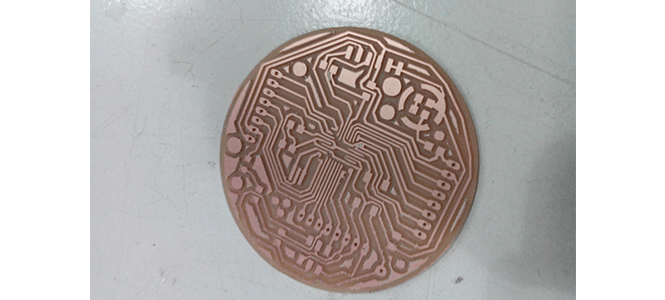

This is the way it looks after milling the cupper board :

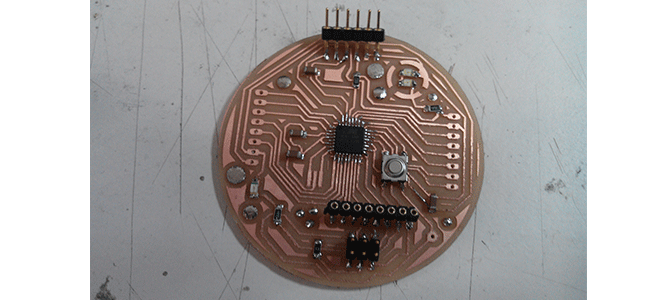

And after the soldering :



Files :
Eagle files
