WEEK 13 – INPUT DEVICE

Weekly assignment

Add a sensor to a microcontroller board that you have designed and read it

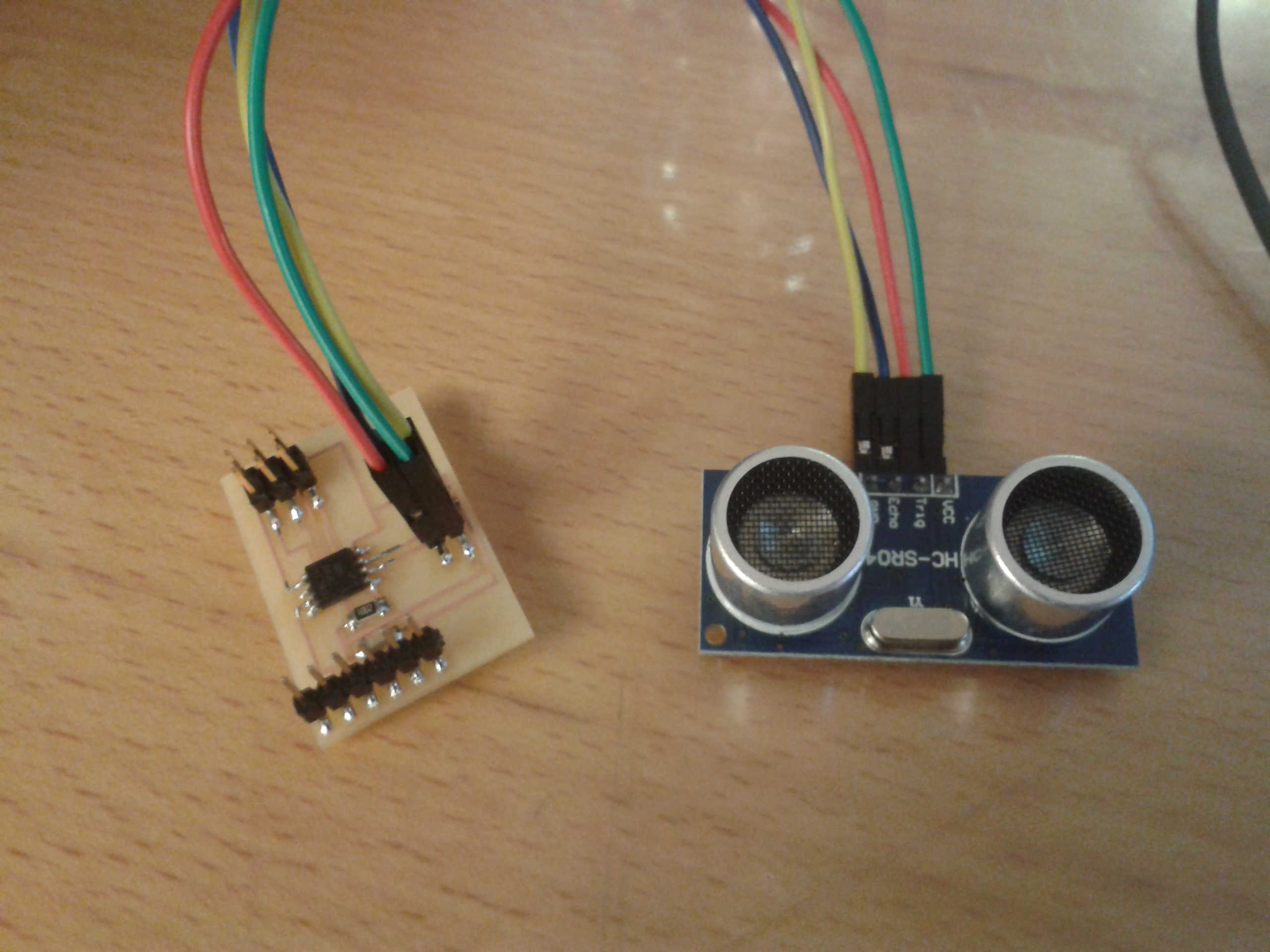

For this week's assignment I made the hello.HC-SR04 board

BOM

• ATtiny45 microcontroller

• 1uF capacitor

• 10K resistor

• 6-pin ISP header

• FTDI header

• 2x2 pin header

Designing the board

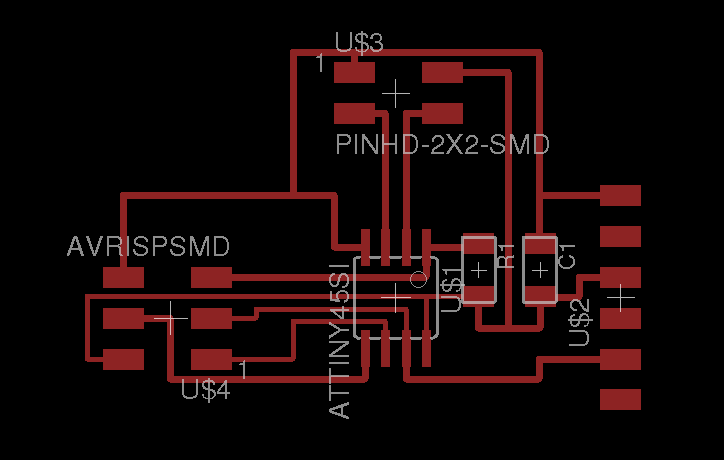

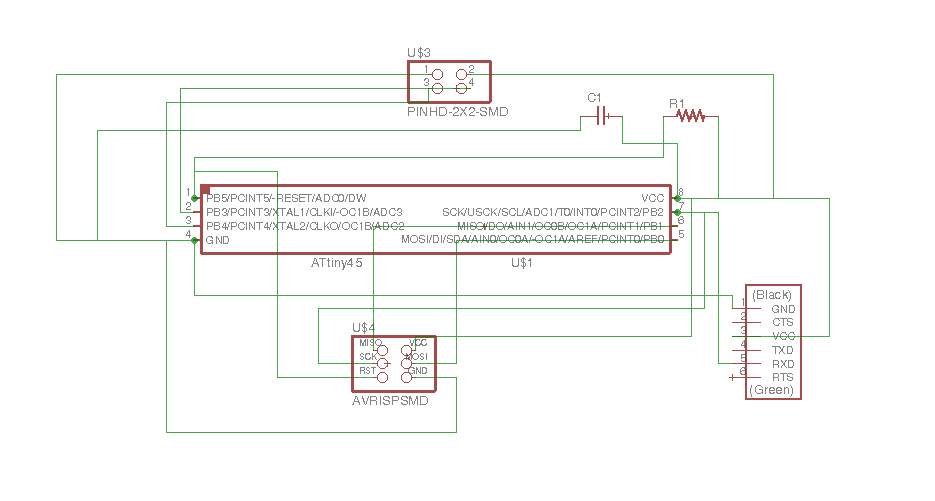

As usual I started designing it on Eagle

I only changed the pin header using a 2x2 to connect the sensor (HC-SR04 V1.0)

Programming the board

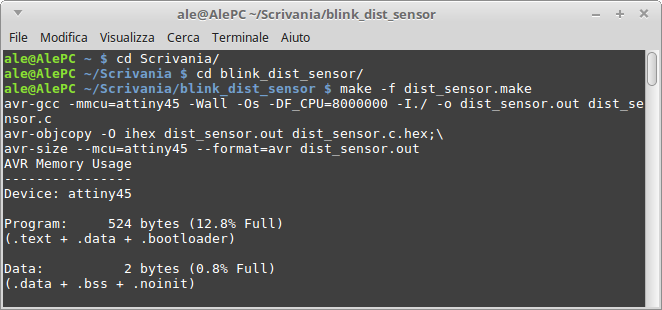

After soldered and connected the board to my FabISP I started to program. Before to do this I downloaded Neil's C code and .make file adjusting it to my project

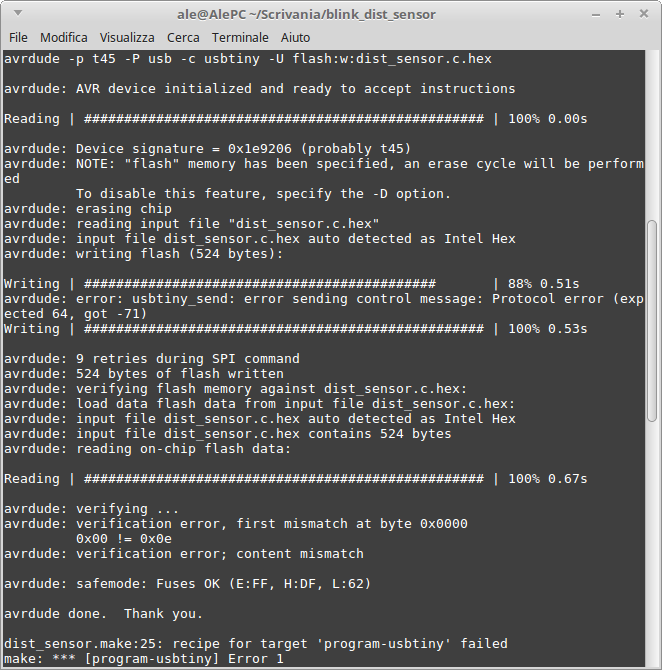

When I moved to type the make-program I recieved an error

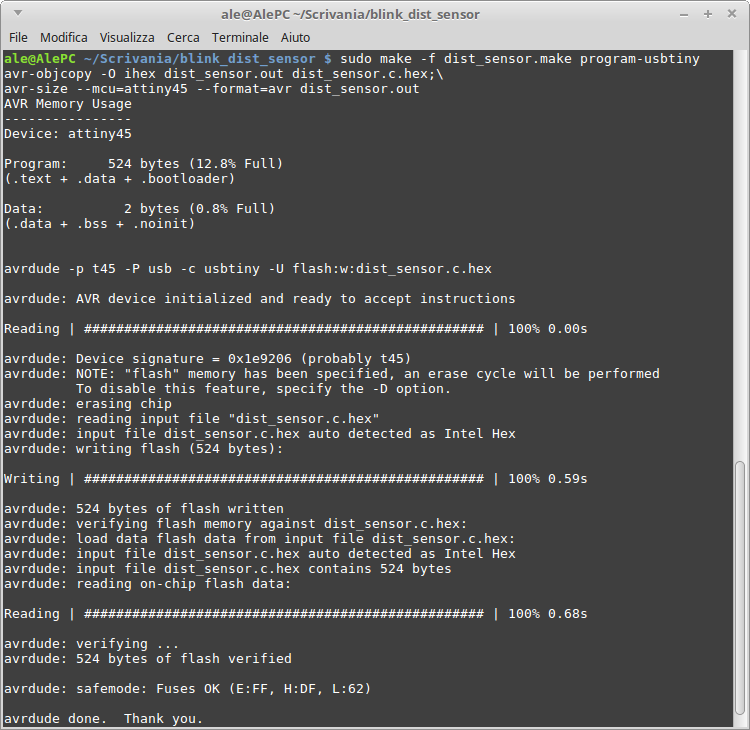

But I only had to repeat the command and it worked

I didn't set the fuses because this time I didn't use an external clock as I did in my previous boards, but the ATtiny45 internal clock (8MHz)

Programming With Python

Before this week I didn't know what Python was, so I needed to read something about it

My instructor suggested me this tutorial wich was foundamental. And with a big help of my classmate Simone I've been able to get the job done

First thing I downloaded Neil's python file and I made it executable by typing the command in my terminal

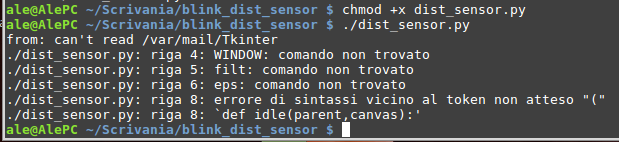

But when I moved to launch it I recieved an error...

The command is not found because I typed "./" as a link to the current folder, but in the .py file there wasn't the line wich defines that file as a python

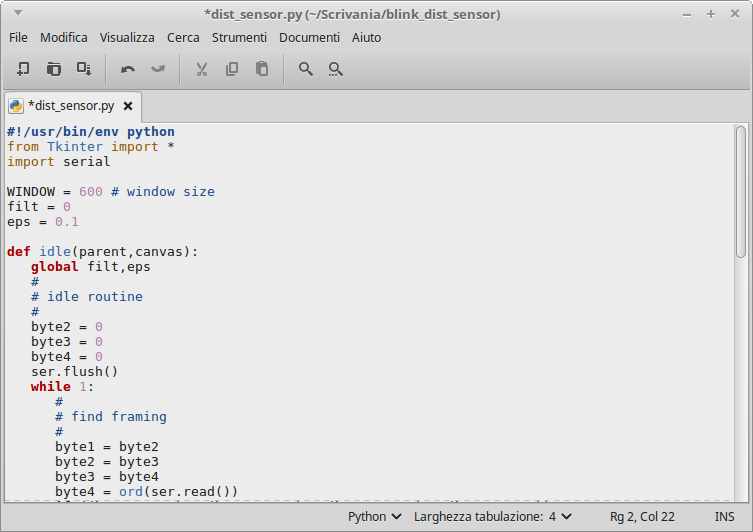

Then I added that line on the top (the first blu line in the document)

Otherwise I could type the command "python dist_sensor.py" without that line and it would work well

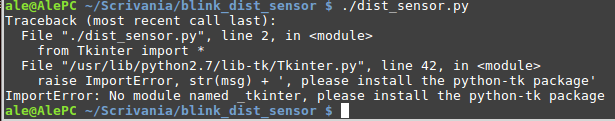

But when I repeated the command I recieved another error...

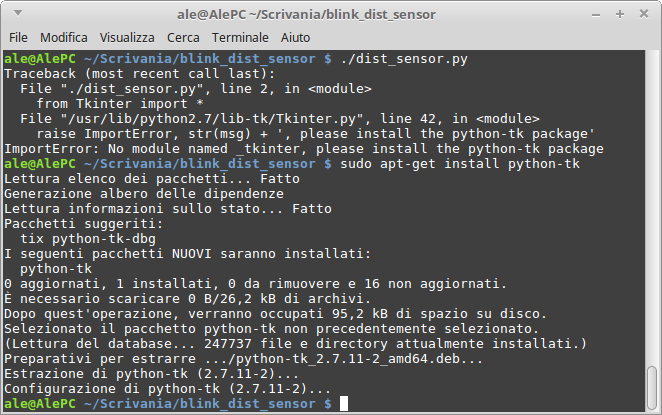

The message ask to install the python-tk package. So I did it

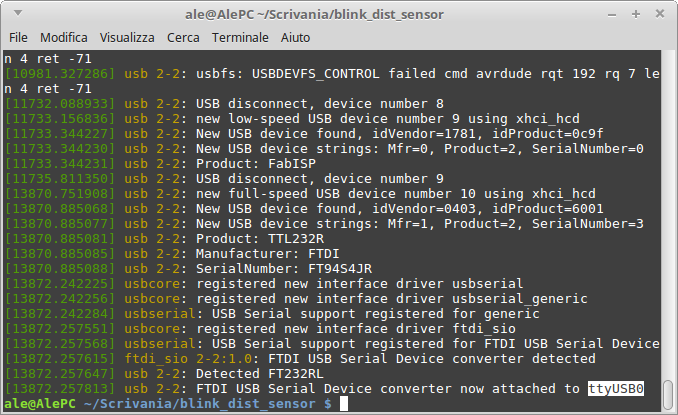

Then I had to find the serial port wich the FTDI was connected...

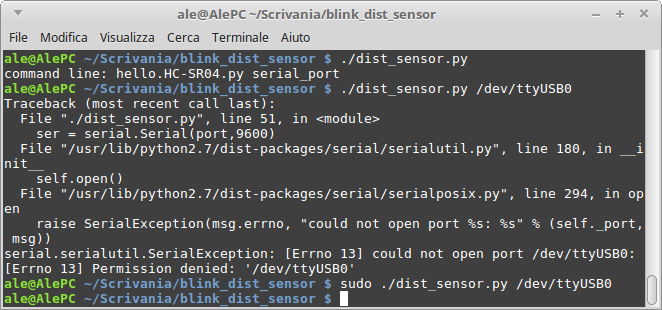

...because when I tried to launch the python file I recieved a notification that told me that the right command to type includes the serial port

And also another one that asked for superior permission

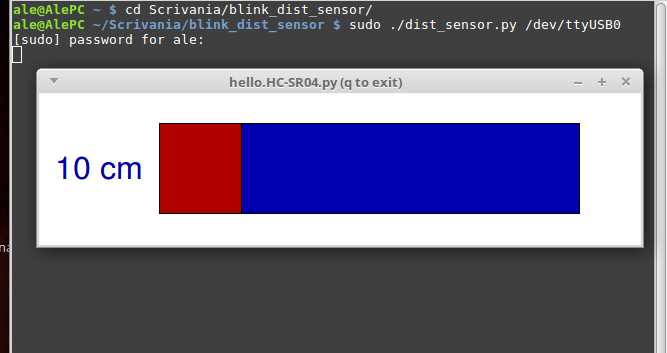

Finally I was able to launch the python file and then to recieve a visual feedback of the device working

Eagle and programming files here
