Project - Virtual Guide of FabLabs using Holograms and Smart Objects
Project Development
You can found everything about the parts, processes, challenges, strength feats, baby cries and shouts of desperation of a broken soul in the week 19 page.
Project Presentation
You can found slide and presentation video in the Project presentation web.
Review of the project
Download Files
In week 19 you can download all the files of the project. You can also download the most important here.
- You can download the Adobe Illustrator Truncated octahedron parts here
- You can download the Rhinoceros v4.0 Truncated icosahedron parts here
- You can download the Rhinoceros 4.0 file of the structure of box of electronics and little parts for fix the Fab Kits inside here
- Here you can download the unity C# scripts
The Unity project you can download it here. It's 5.4 version at June 2016. - You can download the OpenFrameworks App code here.
- You can download here the OpenFrameworks Project.It has been testes with OF 0.93
Bill of Materials
- Plank of MDF material of 2x1m for CNC = 25 euros
- Sheet of 1x1m of Acrylic 2mm for Laser Cutting = 20 euros (20 euros meter square)
- Sheet of cardboard 1x1m for laser cutting for polygons = 5 Euros
- 100 gr of PLA material for 3d Printing = 3 Euros
- 2 special Fabkits with ATmega 328p 20Mhz resonator = 12 euros per unit - 24 euros
- Reused monitor screen of 17 inches = 60 euros
- RFID Module Mifare SM130 - 27 Euros (29.95$)
- SparkFun RFID Evaluation Shield - 13.56MHz - 18 Euros (19.95$)
- NFC Tags - 3 x 0.5 euros = 1.5 euros
- DMX Led Can = 25 euros
- The Total Price is Approximately around near 210 euros.
- You can add for valuing the process 1 hour of laser cutting, 3 hours of CNC work, 1,5h of Modela milling pcbs and 20h working + 40 h designing + 20 h programming.
Copyleft
The following project, all content and resources that are made by myself and mostly of FabLab León links are licensed by Creative Commons
Any other resources of any other FabAcademy Students, FabAcademy.org and external links will be based by the own different licensed, by the authors of that resources.
Virtual Guide System for Fablabs by Borja Javier Lanza Lopez is licensed under a Creative Commons Reconocimiento-NoComercial 4.0 Internacional License.
Creado a partir de la obra en http://archive.fabacademy.org/archives/2016/fablableon/students/140/project_proposal.html.
Project Proposal
You can see the first project proposal of week 1 below inside this page.
Principles and practices, project management
Plan and sketch a potential semester project
One of the most pleasant things to view is how Fab lab managers introduce new people into the big possibilities that a fab lab brings. But doing this tours each time can be time consuming and repetitive even they do it with a smile in their faces.
So why don’t use the infinite possibilities of a Fab lab for improve this recurring situation and immerse new people in an interactive tour of the fab lab. Allowing people to choose their own route to the Fab Lab.

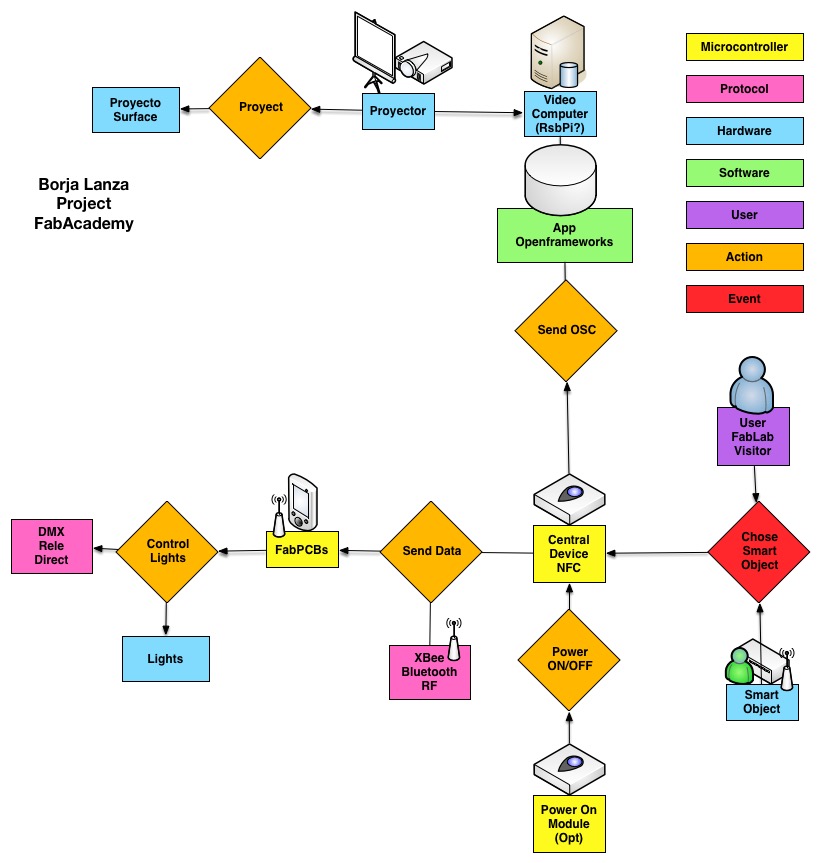

The proposal is create a device that with contactless technologies read the information within smart objects, created with the machines and fab lab techniques, triggering the display of audio, video and lights in each of the fab lab machines. briefing the users with valuable information.
