Assignment for week 12 Molding & Casting


For this project I really wanted to use the opportunity to learn new ways of making molds and find new materials to work with.

I was eagerly waiting for this week because I feel this assignment cover the most important part of my final project.Because, While working on prosthesis I came up with a bigest problem.

After a lot of efforts I was able to get some movement of the fingers but , now the task was to fit the hand to the amputee. I tried several ways to fix the hand but was getting some difficulty in fixing the hand.So, I decided to make a socket fitting for this I took the amputee and did 3D scannig of his hand but was getting several problems while scanning every single part.

So, I decided to make a mold of the amputee hand and from this mold I can make a socket fitting which can best fit to the amputee.

So this is how I made a Mold:

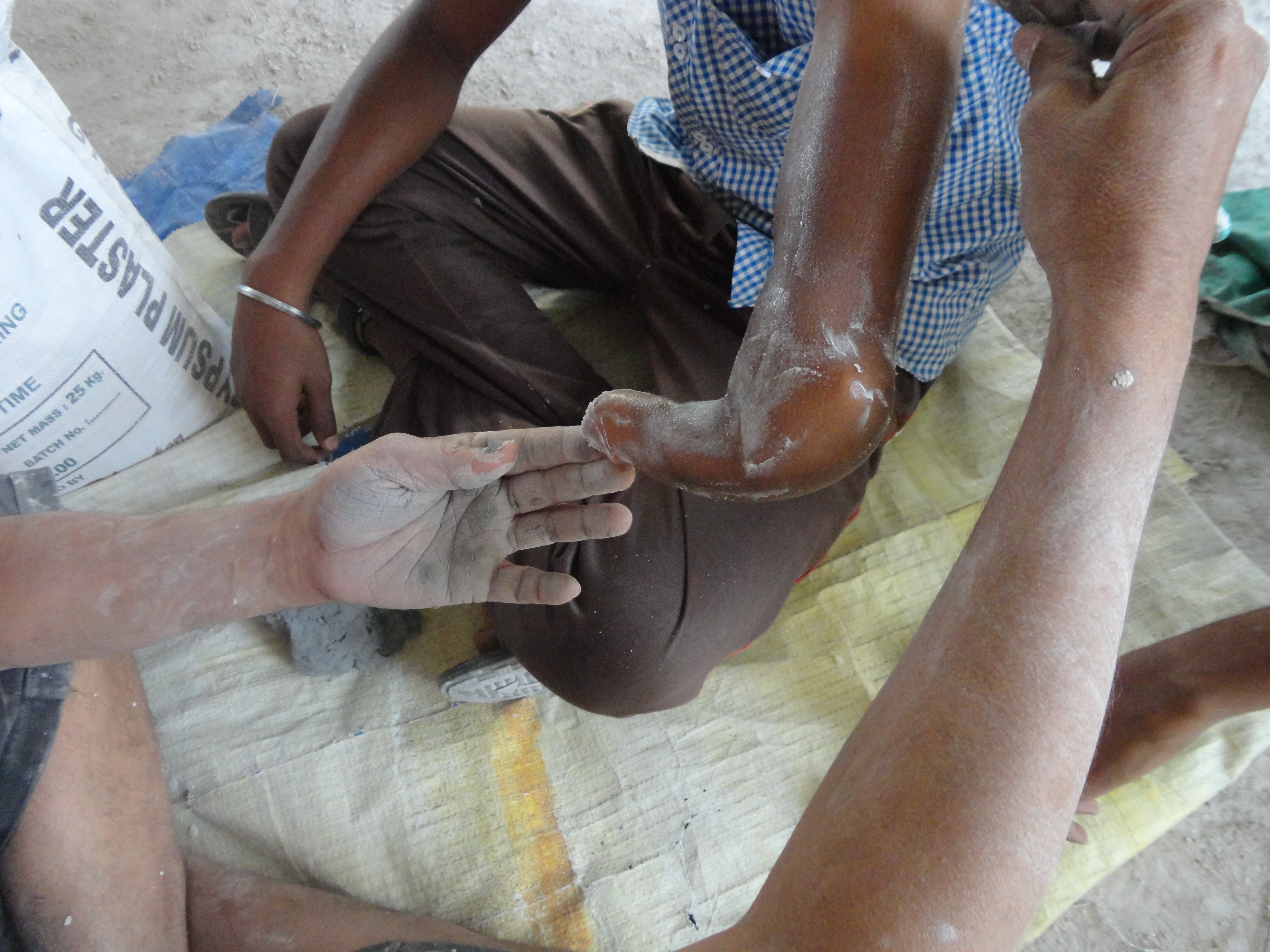

Step 1 : First I took some butter and applied it on the part of the amputee hand of which I want to make a Mold

Screenshot

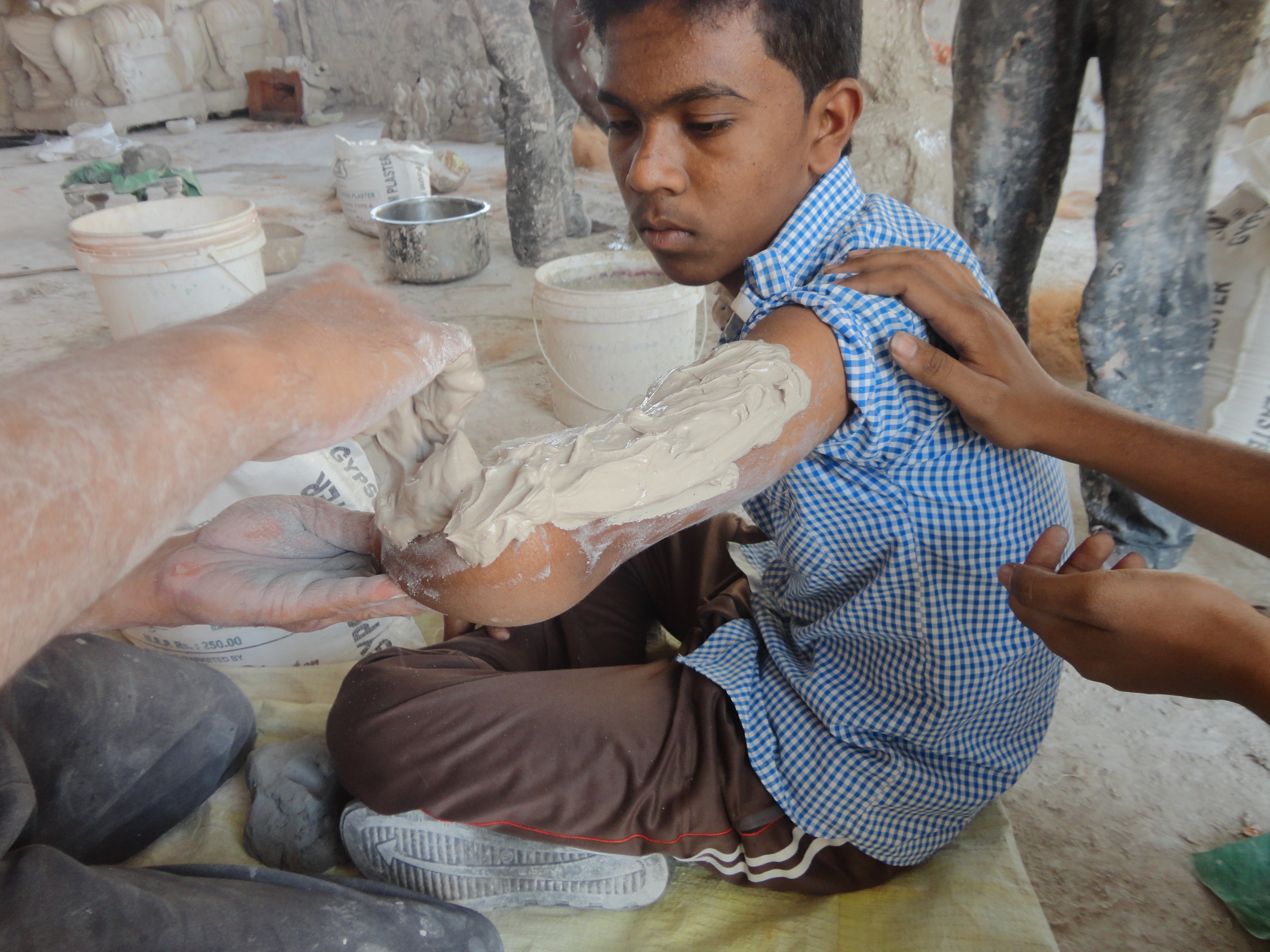

Step 2 : Second, made the mixture of Plaster of paris and water and start applying on the amputee hand.

Screenshot

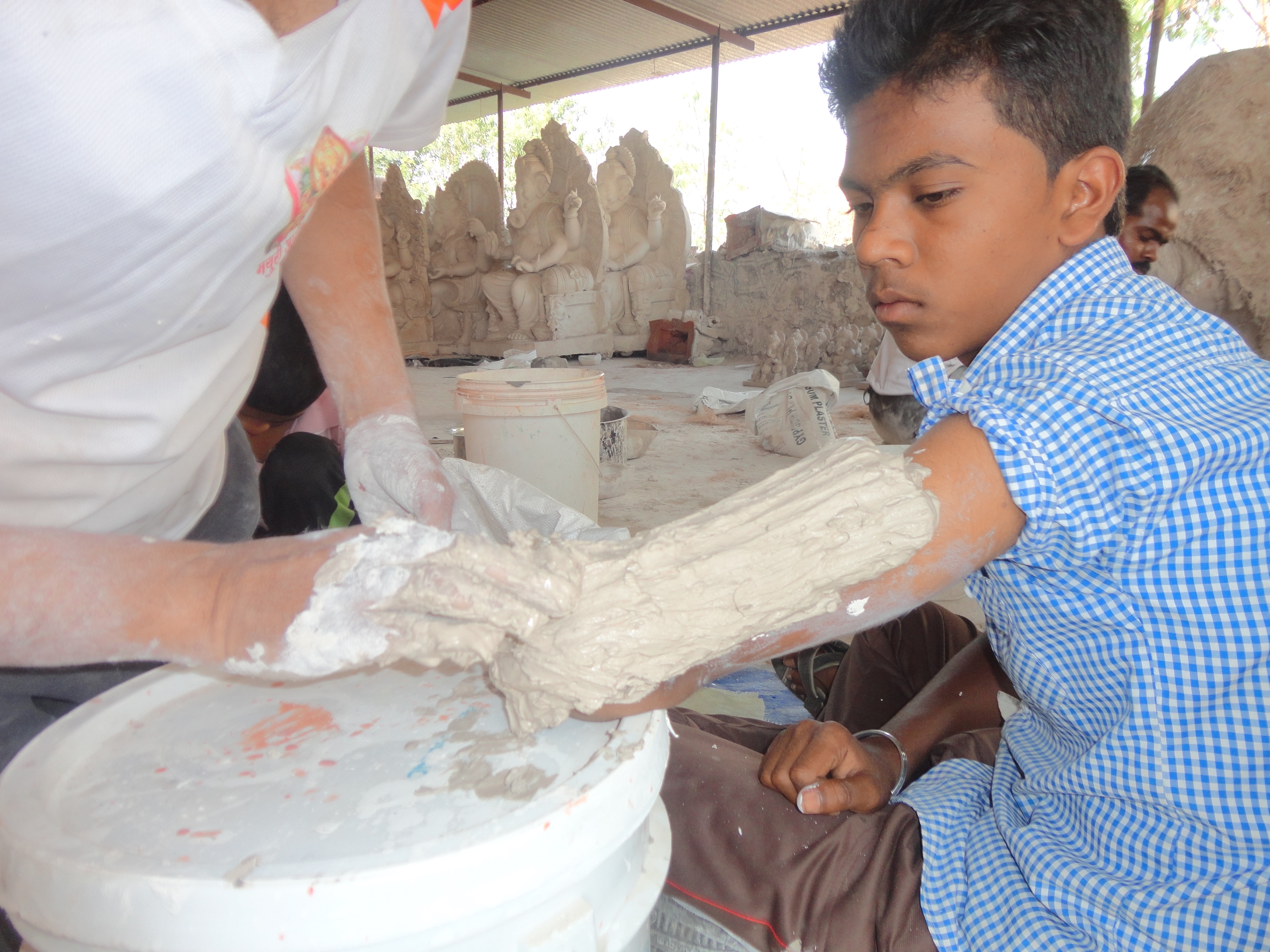

Step 3 : Third, made some more layers of the paste on his hand.

Screenshot

Step 4 : Now to make the paste more strong I used coconut hairs and made one layer of it and then again added the POP paste on it.

Screenshot

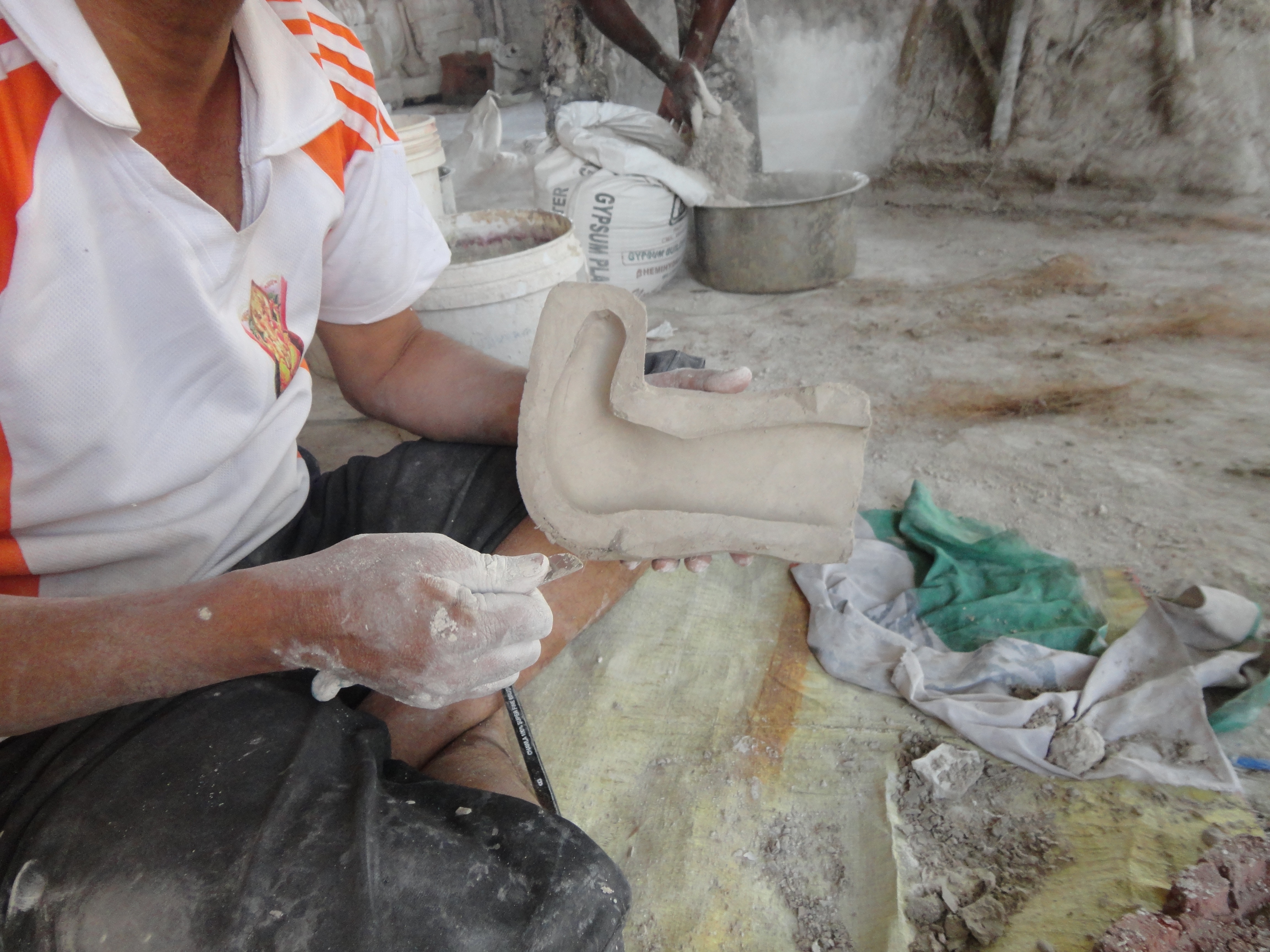

This is how I made one side of his hand and with the exact shape

Screenshot

Step 5 : Now again I followed the above step to make the mold of another side.

Screenshot

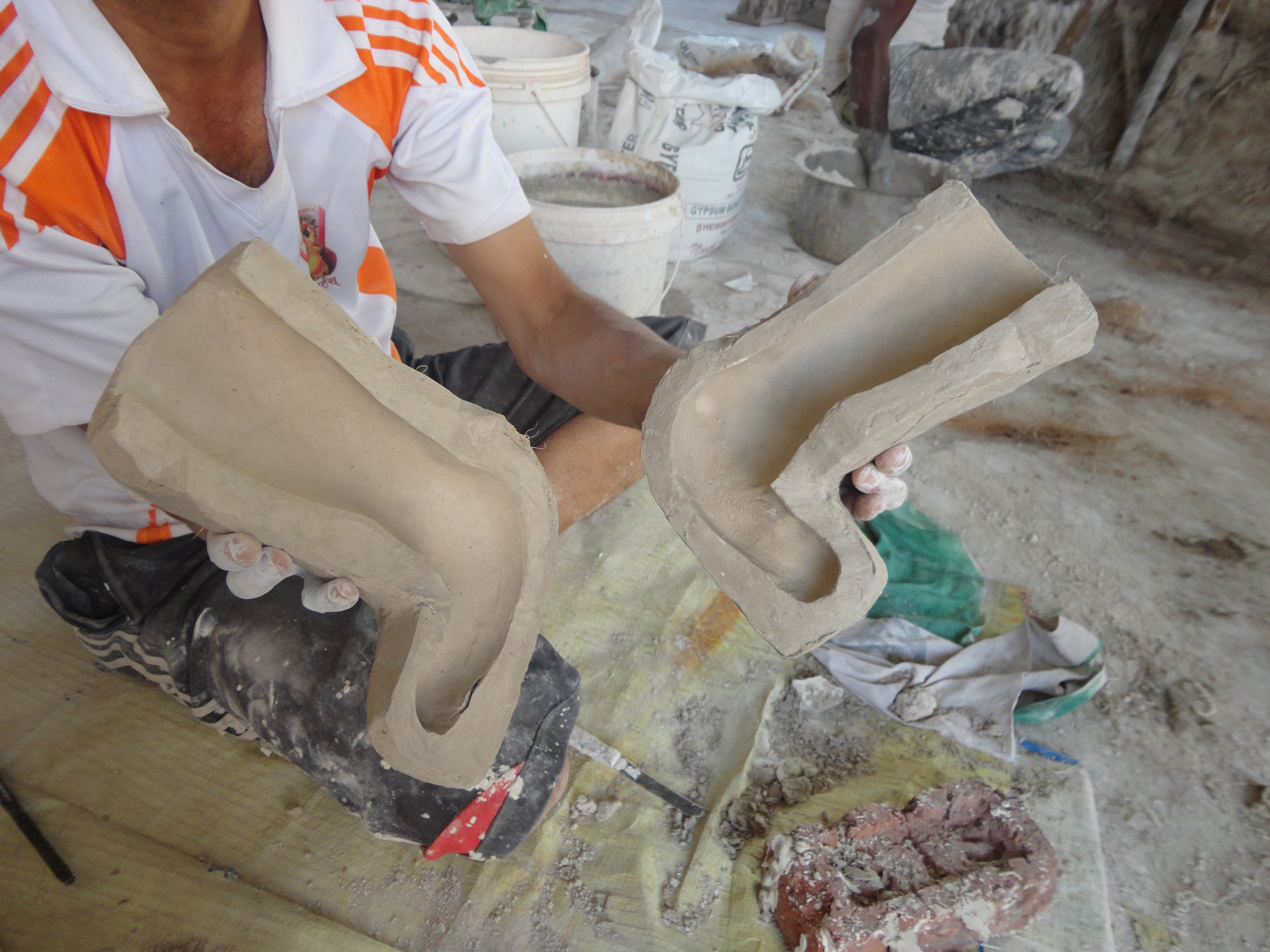

Step 6 : At last I cut down them into two piece and this is how I got the mold of the hand. Now using this mold I can make the socket fitting for the amputee
