- design something in 2D vector and get it processed on the vinyl cutter
- design, make, and document a parametric press-fit construction kit
- accounting for the laser cutter kerf, wich can be assembled in multiple ways
- make laser cutter test parts / varying cutting settings and slot dimensions (characterizing)
this weeks assignment is about cutting with computer controlled machines. There are certain machines that can cut through different materials. Just to name a few: vinyl cutter, laser cutter, a plasma cutter, water jet cutter, cnc machine with oscillating blade and I guess a few more.
But for this weeks task we will focus on vinyl cutter and laser cutter machines. Here at our FabLab in Kamp-Lintfort we have a small vinyl cutter from Silhouette for up to 8 inches wide and 10 feet long material and a bigger one from Summa the S2 D120 for 48 inches/ 120 cm wide materials.
As they are both vinyl cutters the basic workflow is the same. The main differences are quality of the cuts, speed, capacity and material range. For the laser cutter we have access to an Epilog CO2 Fusion 60w laser cutter with a working area of ca. 100 x 70 cm / ca. 40 x 28 inches.
Vinyl cutters can only process vector data, because the definition of the path is needed for the blade to travel from a starting point to an endpoint. The same applies to the laser cutter if the material has to be cut, but with those machines also raster files can be processed for engraving jobs for example.
As described in the 2nd week assignment, there is a difference of quality between raster and vector. This difference plays a big role only for the laser cutters as for vinyl cutters those usually process only vector.
With a vinyl cutter we can cut certain materials not only vinyl, also paper, adhesives, copper. And this is now where the first tasks of this week gets into the game - I have to design something in 2D vector and to it with a vinyl cutter. I liked the idea of a notebook sticker - so i designed a sticker using Affinity designer.
First I made up my mind
Then I layout the design in Affinity, to do so I downloaded the original FabLab Logo as SVG to my computer. Then I separated the logo from the text and place the new text into it. I sized the text and aligned it to the logo as I thought it should be. After checking with the split-screen-view in Affinity - a very handy feature I must say - I prepared the export as an pdf/eps file for the vinyl cutter.

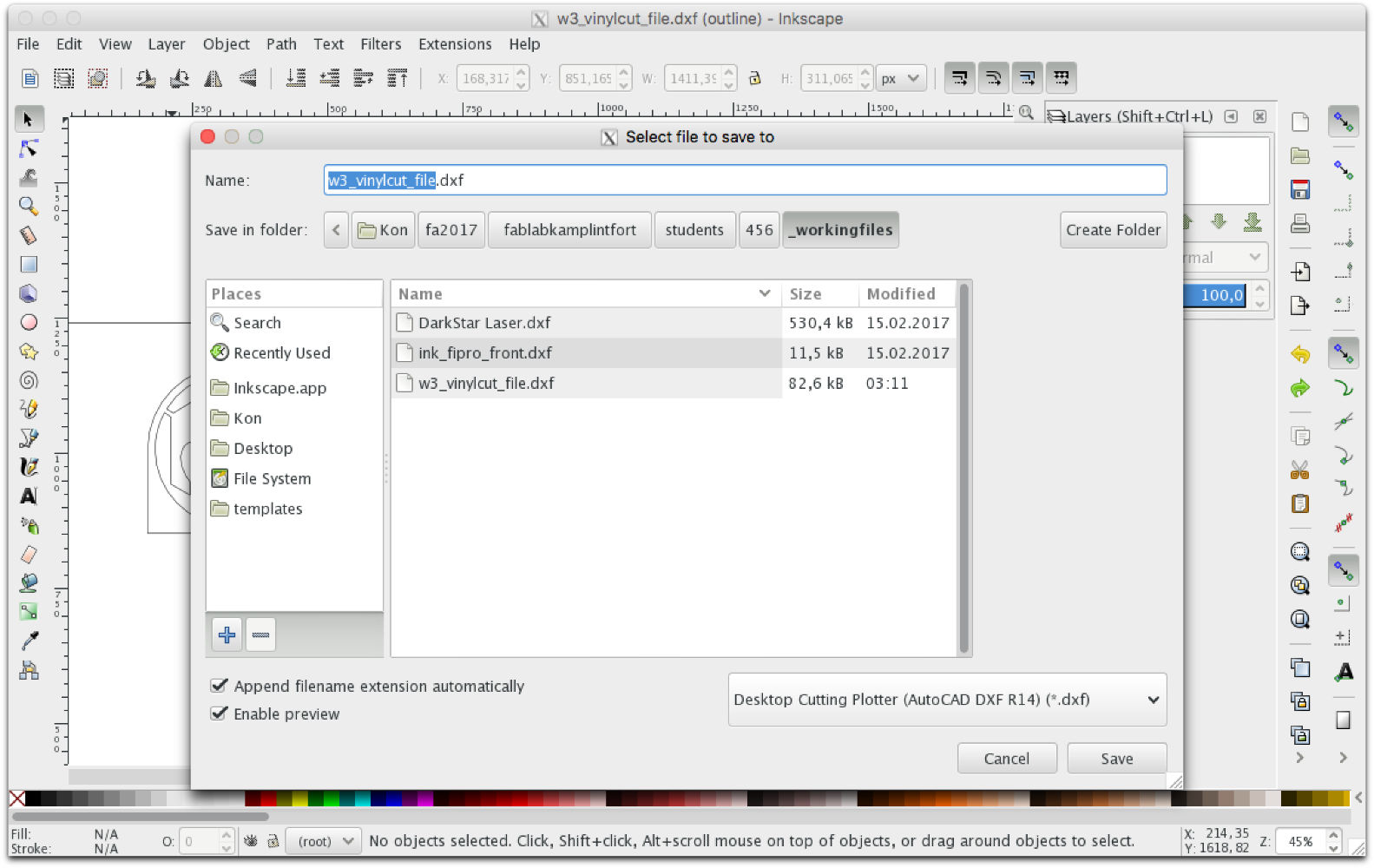

Eventually exported the file as pdf/eps, but here I run into a problem. The Software for the Silhouette Cutter didn't support any PDF or eps for import. But this shouldn't be a problem, as Neil told us that there isn't just one tool/software for any task but a couple. So I loaded the ready made files into Inkscape and exported/safed them as dxf files (screen shots)
But than the next weird thing happend - the file looked akward after opening it in the cutter application. It had paths through the objects where it shouldn't have any...
Luckily I had some experience with dxf-files - so I went back to Inkscape to check what other options I had. I knew that from Rhino, I can choose different dxf-formats and for this kind of sketches the one in Rhino is the 'Autocad Natural' version. And the corresponding format in Inkscape is this one - the ROBOMASTER type...
Finally I loaded the file into the Cutters Software and after that I aligned a sheet of self adhesive vinyl in the cutter. I checked the position of the blade but as I was not the only one who had to cut vinyl the height of the blade was correct - so I started the job.
After cutting I had to manually get rid of the material that I didn't need. For this I used a tweezers and mainly a sharp 60 degree blade cutter with those tools it was easy to clean up my sticker.
Then I had to apply application tape to get the sticker of the backing and with a squeegee I applied firmly the sticker onto my notebook. I waited then for a minute to let it adhere on the surface properly and the I removed the application paper gently by pulling it by a very flat angle. Always watching not to tear a tiny part of it by mistake.
...and this is how it's lookalike in the end.
To work with a laser cutter we have to follow some safety rules. Because a laser cutter works with power and heat and unvisible light an operater should always be by the machine during cutting. "A laser is not a teleporter" Prof. Neil Gershland said to us. Meaning that all material what gets in contact with the laser doesn't just disappear - no - it burns, it evaporates, it just takes tiny bits of the processed material which then is in the air all over the place.
Therefore a very important addon to the laser cutter is the ventilation box that keeps sucking all the air from inside the box through a filter section to the outside.
After a brief introduction to the Epilog Laser I had to make a sample. So I created first a circle in Rhino, than I added a eight-pointed star smaller than the circle. I aligned them both verticaly and horizontaly. My next step then was to create an polar array of 8 smaller circles at the edge of the main circle. Rhino has a function that gives me the possibility to trim curves and lines that are somehow intersecting with other geometries and after the trimming I connected the lines that were touching eachother to a close curve again. So I created an curve object consisting of 2 closed curves. As a final preparation for the laser cutter, I assigned a different color to each curve so that they can easily be differentiated. Also this is neccessary for some important settings within the Laser cutter.
Especially the setting section of the Laser cutter is a very important part - the right or the wrong settings decide over success or failure. - For each material that can be used in the laser the settigns have to set up in the manner of the job. Cutting or engraving or maybe both - than also the order of the actions is important for the timing. Sensitive materials need to be setup very präzise and carefully to avoid any damage to them. Sometimes it is better to do a job in two or more runs.>br>
At least the settings for Power, Speed & Frequency have to be setup. Below there is a table where some factory settings are listed and these are a good point to orient and to find own maybe better settings based on them.
Here some basic information about the Raster Mode: the RM is used for engraving or marking materials. Typical uses include engraving clipart, scanned images, photos, text and graphic images. Of course Vector lines too can be engraved rather than cut, but then the line thickness should be set 0.006” (0.152 mm) or greater.
Vector Mode: this should be selected when only cut lines are prepared or for use with the Red Dot Pointer for previewing the job processing area. In this Mode a line is only recognized as a line to be cut based on the line width (or stroke). Important!!! These lines can also be affected by resolution. Please test before you start the whole job or look in the manual of the laser cutter. To make things easy, set any cut lines to a line width of 0.001”, or hairline width in your illustration/vector app.
Combined Mode: Used when both modi - engraving and cutting have to be processed within the same job. The laser will always engrave first, and when this is daone it will continue with the cutting in vector modus.
As an extra task I set up a lettering and prepared it to be engraved not cut in the laser. To achieve this I had to convert the curves from the letters with the |hatch| command and their own color.

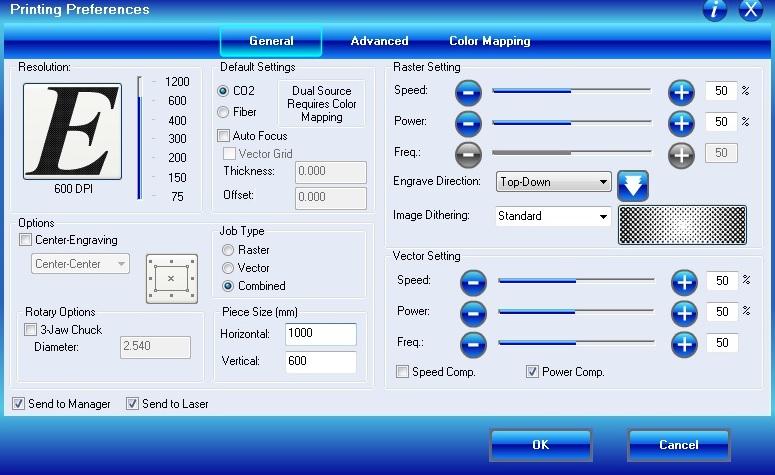

In the Laser preferences I had to adjust a view settings to my needs to get the job done, like job type, piece size, resolution and of course the settings for raster and vector job types.

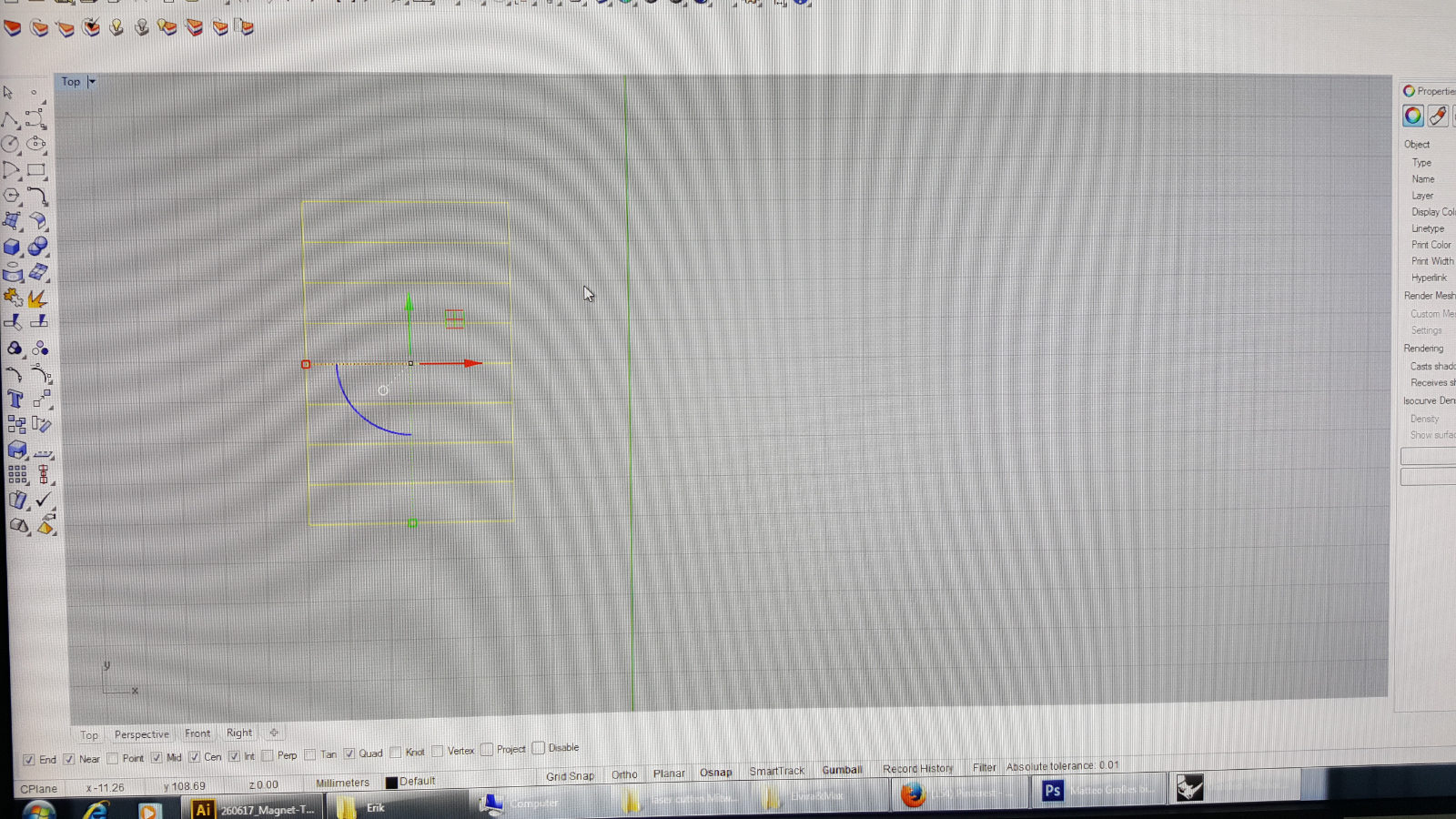

And in the tab 'color mapping' I had the possibility to make individual settings and assign thme to each object with corresponding color. Now for the Kerf test I designed a simple object within Rhino just a square with the measurement 50 x 80 mm and some cross sections of 10mm distnace each. I laser cut them in 3mm MDF for measurement....
...and the result...

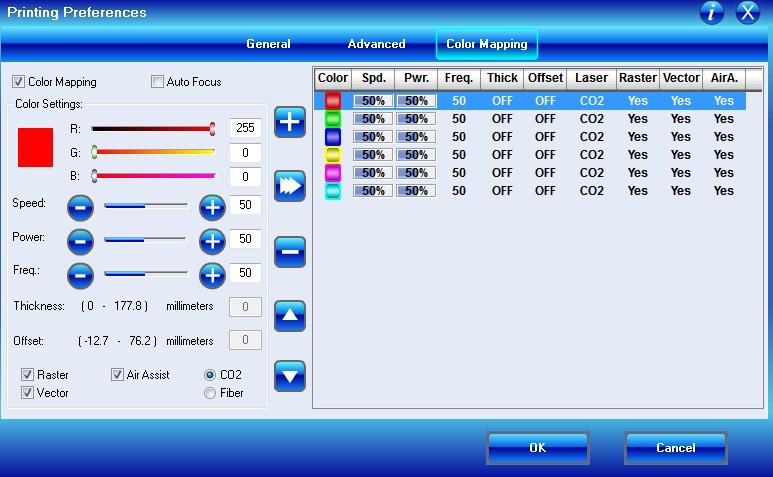

..the settings for colormapping

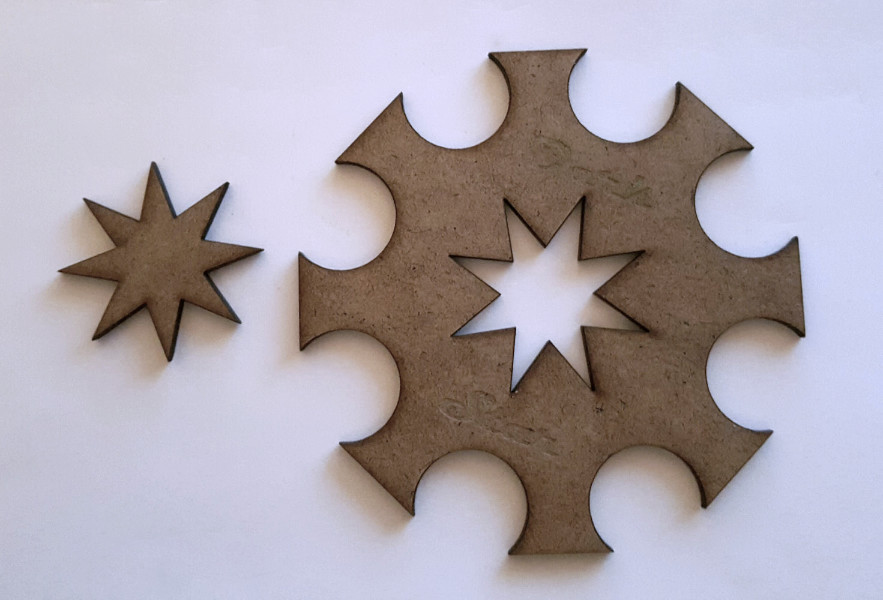

my first laser cut..
designing a simple reference object in Rhino to test the laser
these are the settings I used
really a clean cut..
I measured the total width of the cut out and the inner frame
...also the single stripes just to check the sizes,
...as assumed they differ sligthly
Then I measured the inner distance from the frame and the total distance of the the cut outs, see following image
Then I divided the difference from the measured & original length by the numbers of cuts...this is the value I had to add or subtract in total
For the second task in this weeks assignment, I designed a pressfit board system for my son's lego figure collection. The shape is a somehow round - elipsoid form and for having it open for different materials and thickness the slots have to be parametric so that it can be changed in a "second" to be ready for processing. In Rhino the plugin 'Grasshopper' has to be used - it's a powerful and full featured plugin and can extended even more by adding other corresponding extensions/plugins. But for this time I used Fusion 360, fot it is a quite simple design and structure. To make someting in Fusion parametric the specific value has to be defined as a variable before in the 'Change parameters' option.
the CAD design for the pressfit assignment

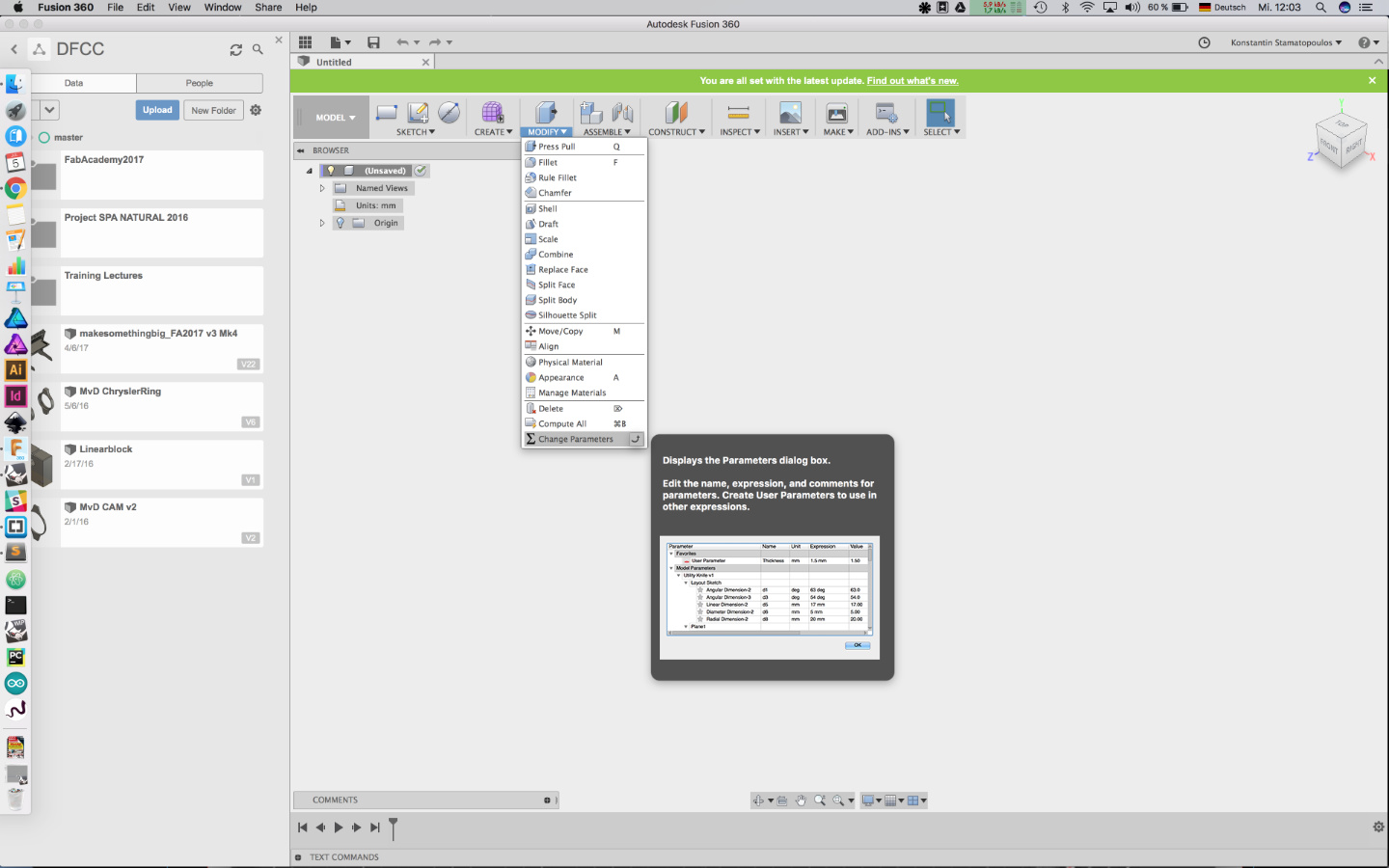

...in this option box the parameters/ variables have to be defined for parametric usage

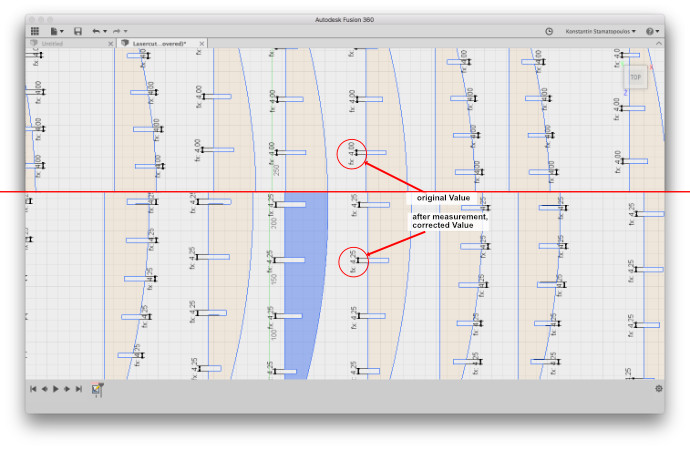

Also in the same box, changes to the values can or have to be made..
It can take some time for the changes to take action, depending on complexity an amount of variables that have to recalculated
...the single parts are layout flat ready for the laser cutter,

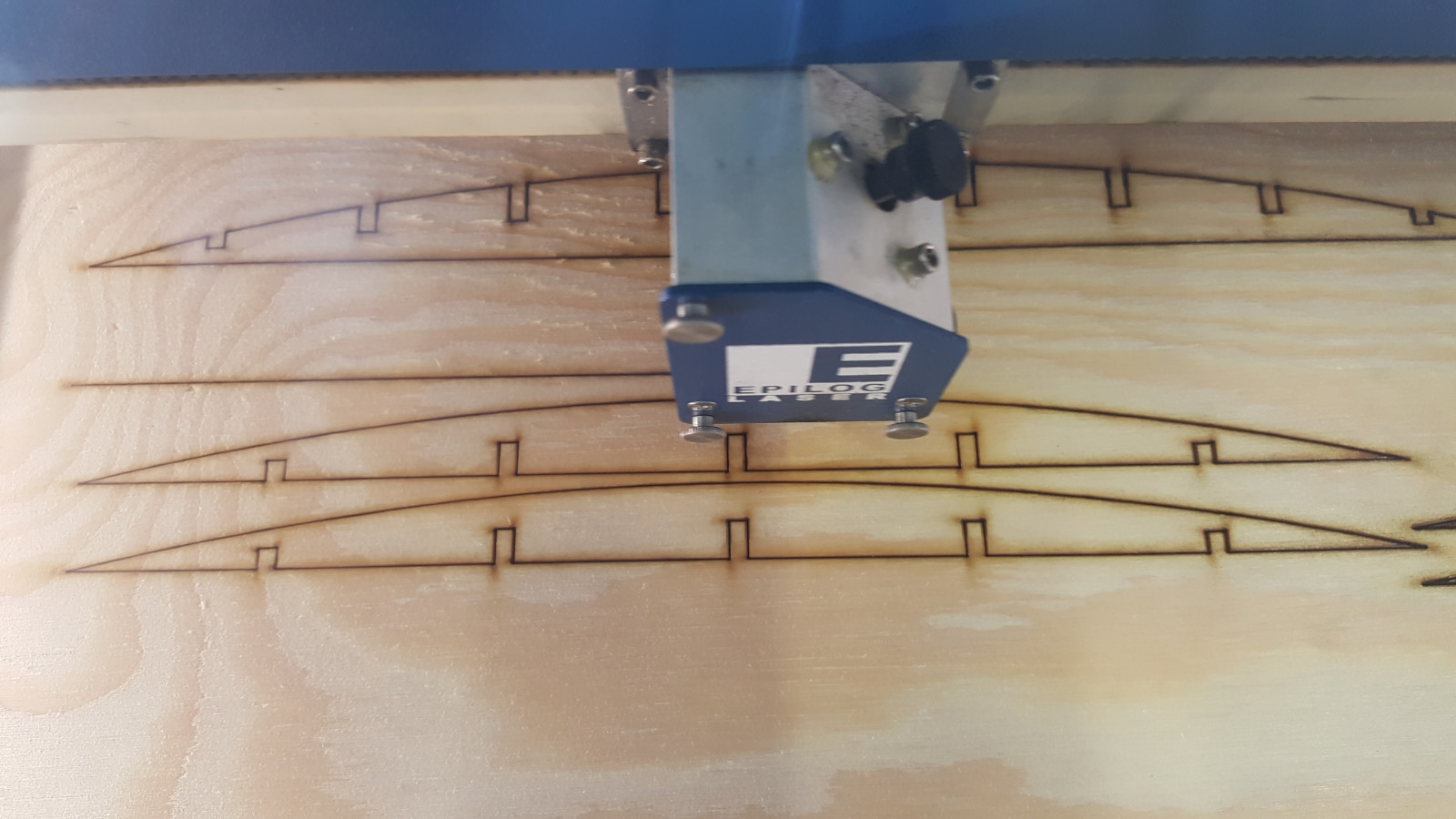

...after all changes are done, its time for the laser cutter
...unfortunately the sheet of wood wasn't totally flat - so I had to go for a second run
But it worked out just fine and the first habitant already jumped in..
