### Designing the first prototype

As we decided to go for a drawing machine and after several discussions within the team, we wanted to design a really quick first prototype with Michele. The idea was to have a first prototype on which we could improve and also develop the code.

On several occasions, we discussed in group about the design of our drawing machine. We liked the idea of having two stepper motors on the floor and just some very light spools that we could hold on any wall, or glass window. The idea being that we could draw anything on any surface of any size...

### Building the prototype

I discussed with Michele on how we should program our drawing machine. We looked how machine and graphic card were working. We ended on Bresenham's line algorithm. So if we give to points, it is possible to interpolate a line in between the two points.

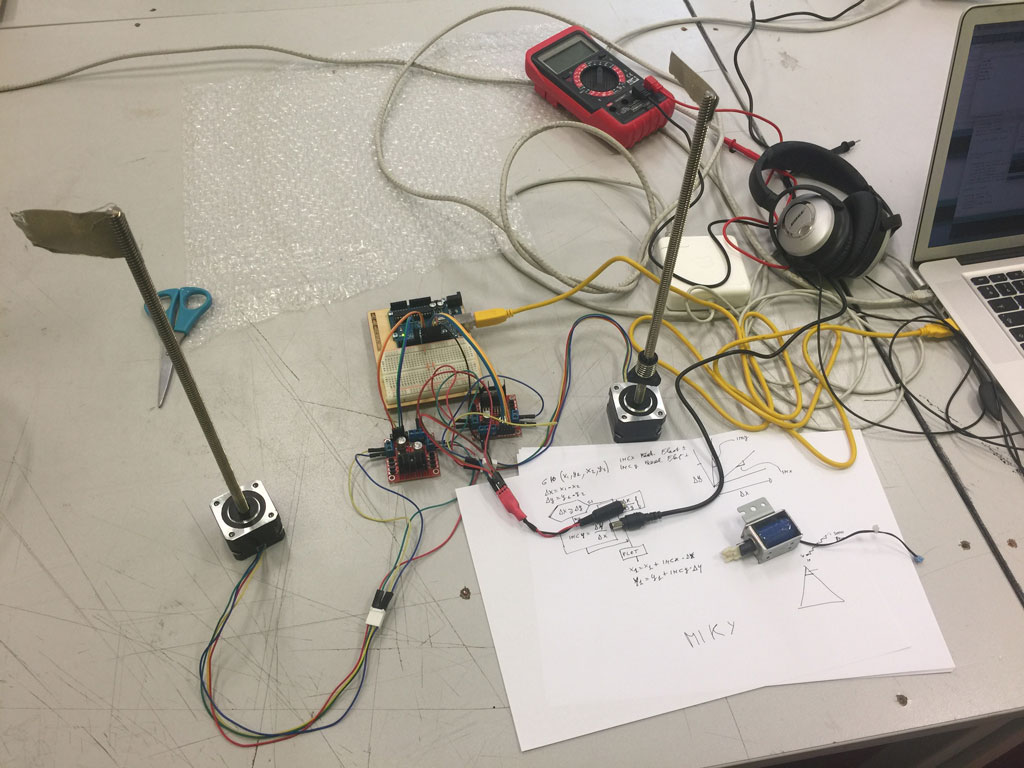

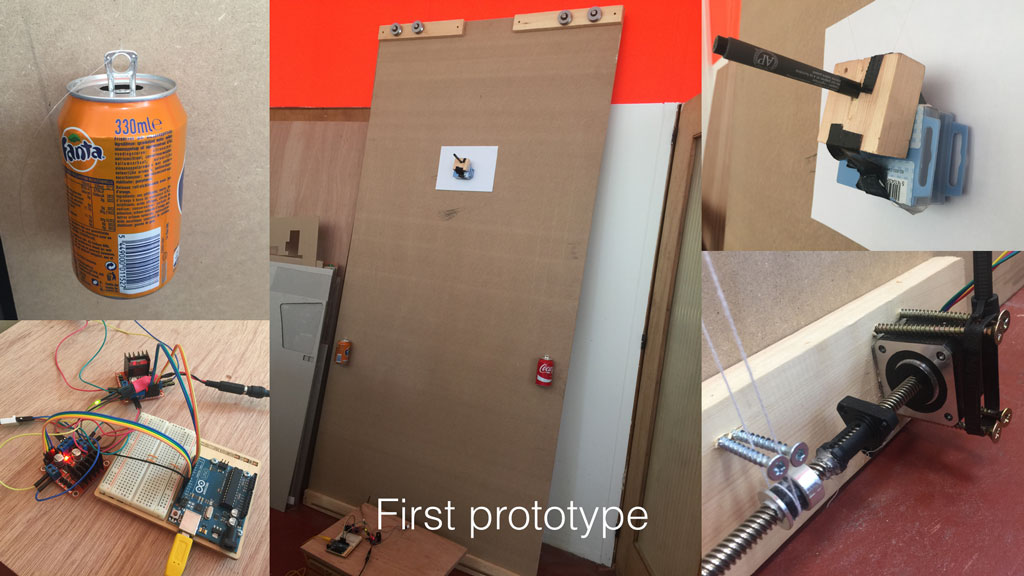

Michele built the prototype we designed at the speed of light. We are now able to test the code and improve each part of the machine.

### Developing the drawing program

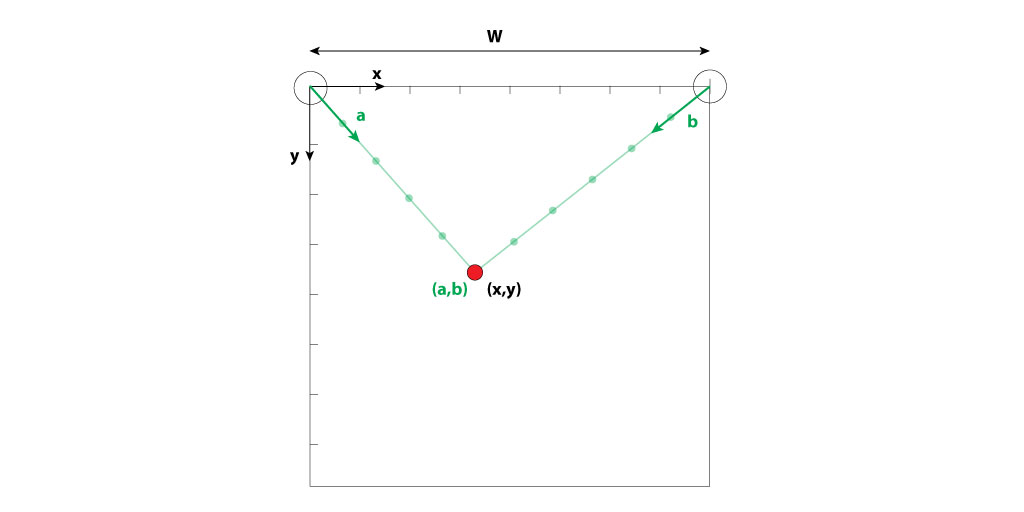

Based on the morning discussion with Michele, I set the problem. On the figure here below, the two upper spools are separated by a distance of W. The position of a point (red point) can be expressed in two different sets of coordinates: in cartesian coordinates (x,y) and in the two wires/belts coordinates (a,b). When we control the stepper motors, we control the number of steps which corresponds to the length of the wires a and b. The relation in between the tow sets of coordinates are:

a=\sqrt{(x^2+y^2)}
b=\sqrt{(W-x)^2+y^2}

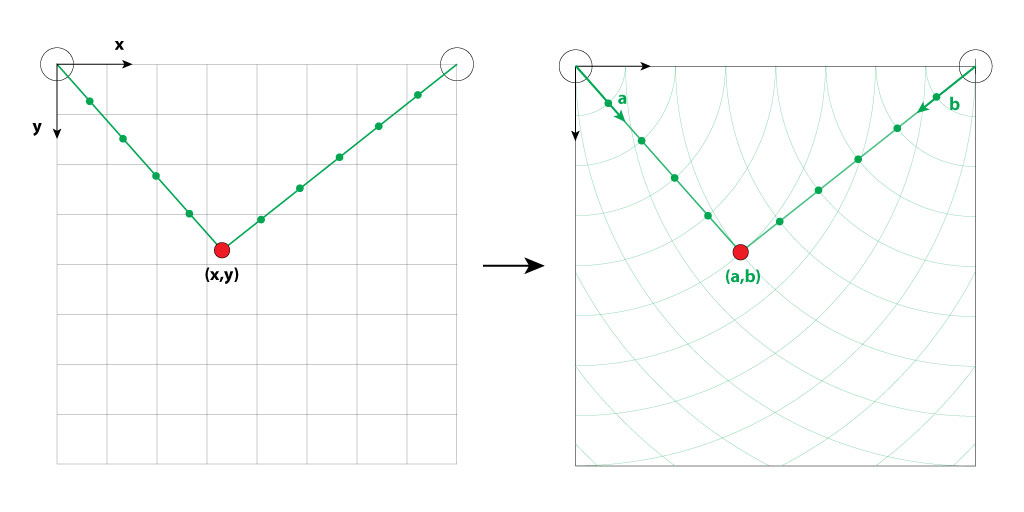

Here is an illustration of a point represented in the 2 sets of coordinates:

#### Interpolation of a line in between two points

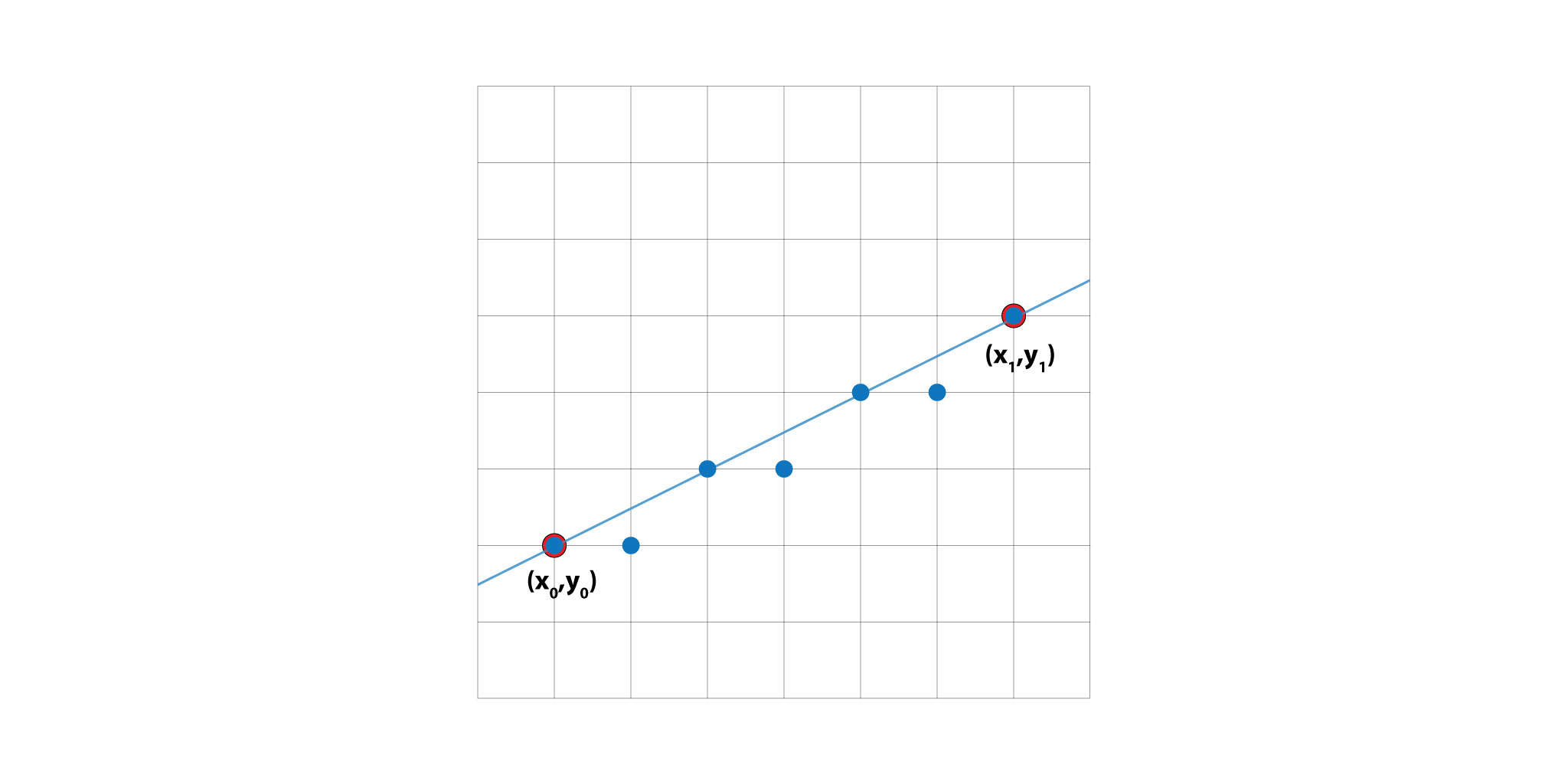

Here is an illustration of the Bresenham's line algorithm. The algorithm finds the closest path to the theoretical lines connecting two points (x_0,y_0) and (x_1,y_1).

#### Program development - First tests

The stepper motors always move one after the other. So if we want to move form one point to the another, the end effector will produce a drawing that looks like half a rectangle (see the figure exercise 1 down here). If we want to draw an approximately straight line in between the 2 points, we can use the Bresenham algorithm to calculate the series of steps that each motor as to make. Each motor will move one after the other depending on how far the end effector is from the theoretical line.

#### Exercise 1 - From one point to another

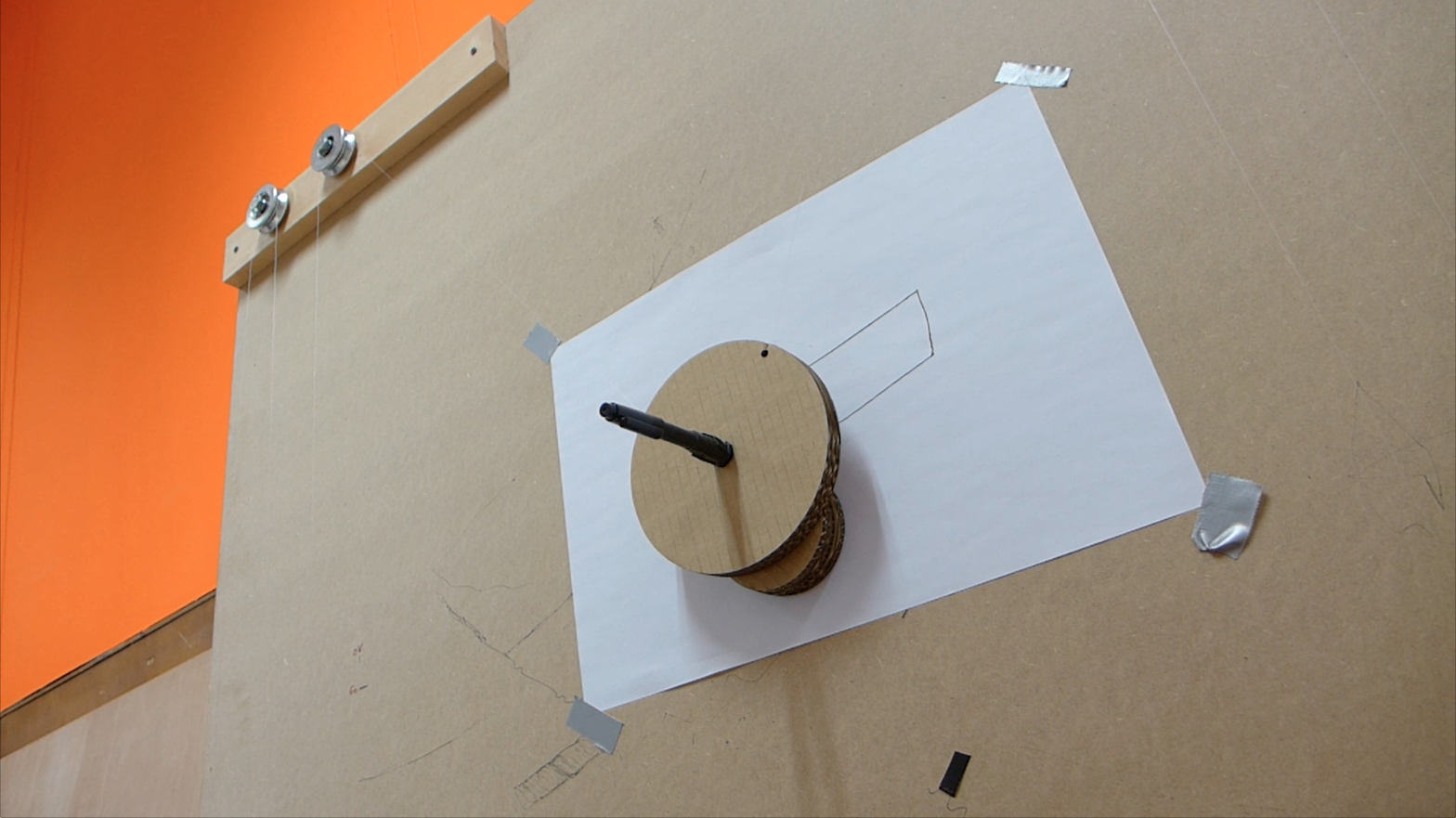

Moving between two points back and forth produce something close to a rectangle.






#### Exercise 2 - Interpolating a line in between two points

For this exercise, we asked the machine to draw straight lines in a zig-zag fashion using the Bresenham algorithm. Zigzags are on purpose !






#### Exercice 3 - Drawing a square

For this exercice, we asked the machine to draw a square, still using the Bresenham algorithm. Yeah, its working ! We just need to give the absolute cartesian coordinates of the 4 square nodes.

I must admit that this part needed some debugging on my side and perseverance on Michele's and David's side to make the machine do its job !






#### Exercice 4 - Towards drawing letters

Yes ! The code is working ! The code is able to interpolate in between points and draw the shortest path in between two points. To draw a square, we need 4 points. To draw letters we need more points but with that basis, we should be able to make it.

There was another improvement to make on the code. The lines of the square looked curved. It is because I developed the Bresenham algorithm to work in the belt coordinates. So we would just have to modify the code and let the code make the interpolation in the cartesian coordinates and that should do the trick (and indeed it did).

### Presentation video of the making of our drawing machine

I also made the final video and presentation board for the group in keynote and imovie with the assistance of Victor.
