Electronics Design

As I've said before I'm a complete novice when it comes to electronics and circuitboards.When we eventually started out building the board using the Eagle software it wasn't long before I was completely lost. I had to ask my fellow students and multiple times they were there to save me out of the trouble. I was doing wrong now! Eventually I got the hang of it and my first PCB design was just a copy of Lambert's original board...

I designed my PCB using Eagle software

Generating outlines

Exporting png files from eagle

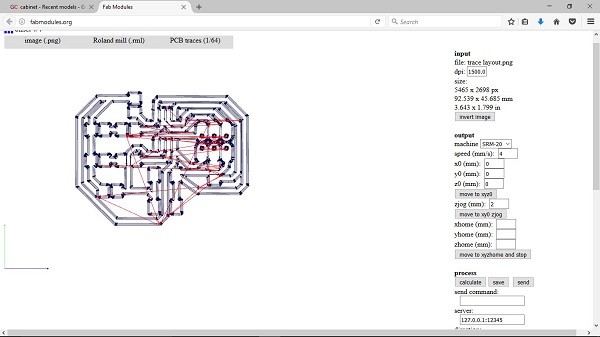

I generated the rml file using fabmodules

Setting the cutting parameters by first zeroing x and y

Milling process

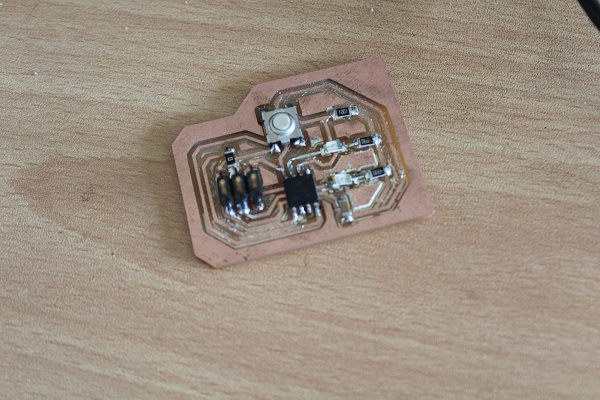

After milling it i solded it
