Machine design

Week 10's assignment

These two next weeks will be all about teamwork ! The goal is to imagine, design, fabricate and operate a machine, using the kit that will be provided to us. This group project is a perfect occasion to put in common all the techniques and principles we've been learning so for during the Fab Academy. The project will be devided in two parts : the mechanical design (design, structure, mechanism) and the machine design (the program, the interface, etc.).

The assignment :

Make a machine, including the end effector,
build the passive parts and operate it manually,
document the group project and your individual contribution.

The idea

First thing we had to do as a group was of course to all agree on an idea for the machine. We decided to individually think of one idea and then to share them and decide which one would be selected. So here is an overview of the sketches that where proposed by the group :

Guillaume's electronic music maker :

Guillaume's idea was to create a rotative perforated-card reader that would use LEDs and sensors as inputs and a piezzo as an output. A bit like an electronic barrel organ.

My idea : a drawing machine :

This idea was inspired by this machine.

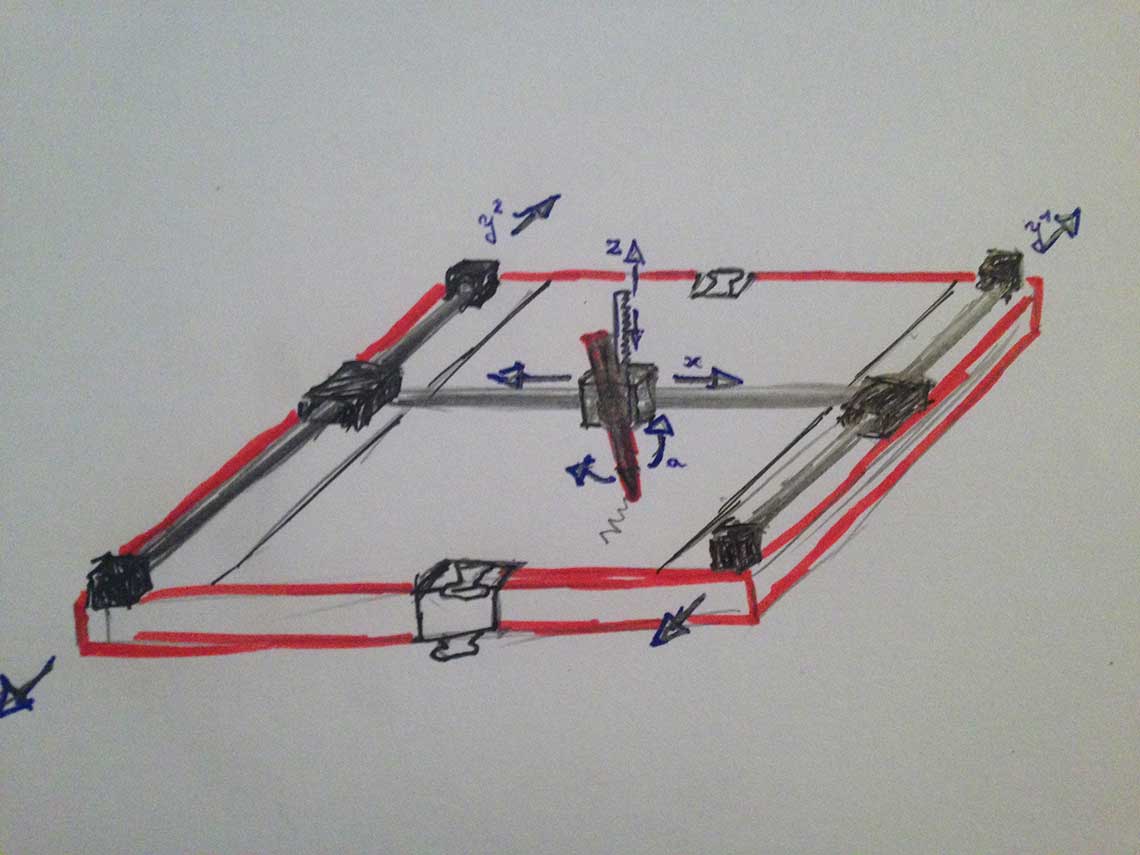

Ludovic's cocktail maker :

This machine mixes cocktails from several liquid ingredients and pours them into glasses placed on the bed. In Ludovic's idea, the liquid would be pumped out of the bottles stored vertically.

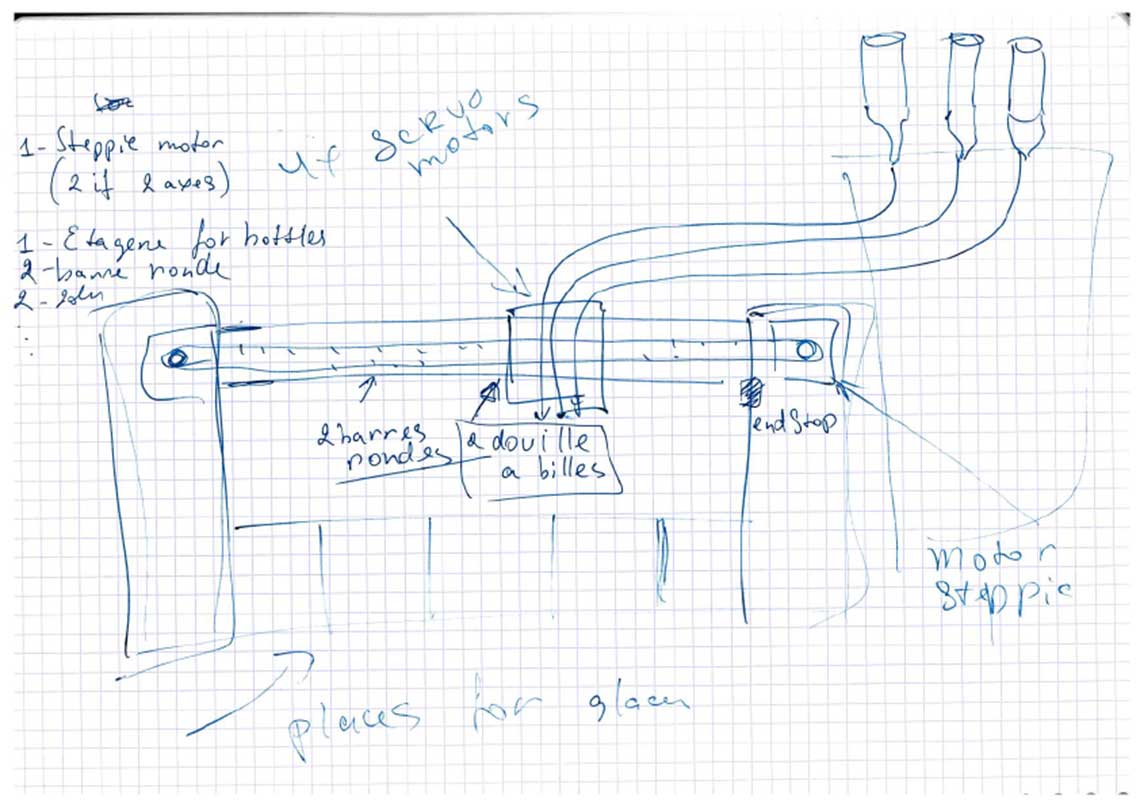

Roman's version of the cocktail maker :

In Roman's version, the bottles are positionned with the head down and the idea is to use servo-motors to open and close the circulation of the fluids in the hoses.

Frederic's version of the cocktail maker :

Frederic proposed a version where there would be only on glass placed on a rotative bed. A variable rotation would be applied to act as a shaker.

And so without any surprise and after a very short concertation, the winner is : The Cocktail Maker.
It will be a machine that prepares shooters, just like your favourite barman does !

We will still have to find a proper name for it, but it will come later.

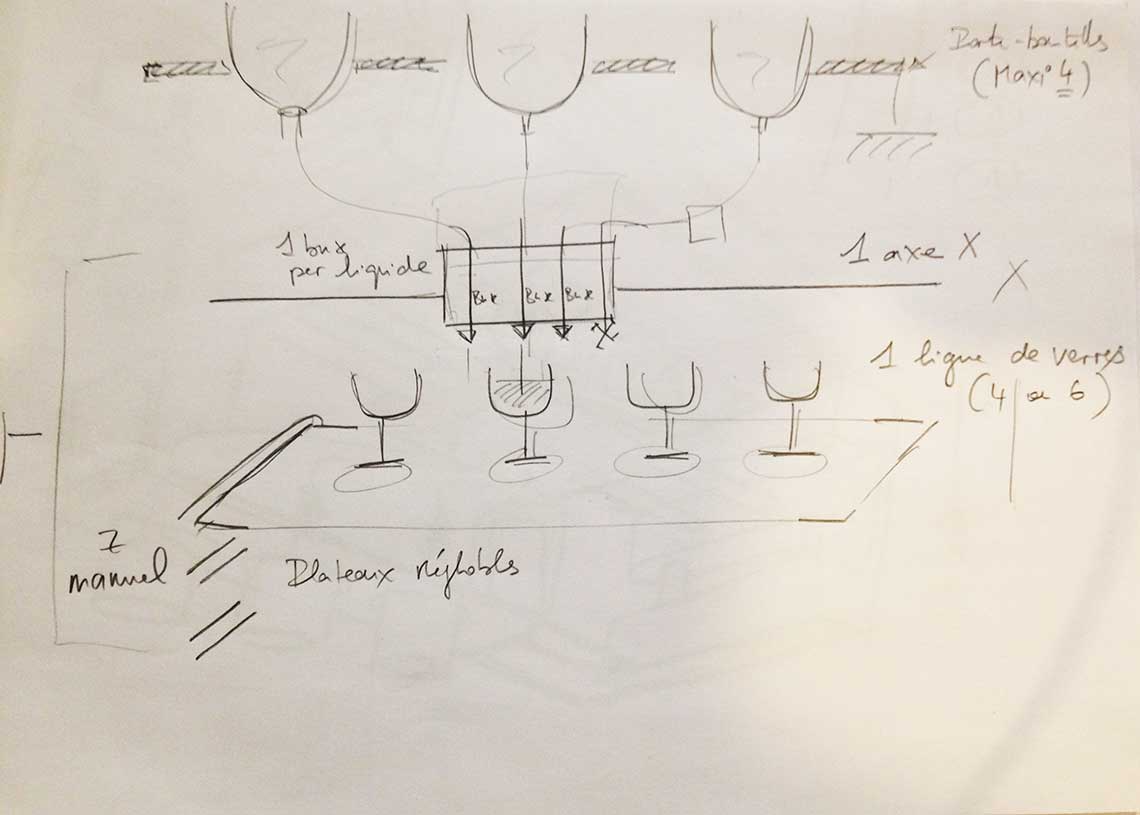

Here is the final sketch that we did together to agree on the general structure and mechanism :

Main notes about the machine :
- The machine serves shooters, mixing different beverages directly into shot glasses
- Each bottle is connected to the head (lets say there are 4 of them) and has its own extruder
- The bottle will be disposed with the head down like in Roman's design and we will use solenoid valves for the distribution of liquids
- For the moment we will only use one axis, X, to move the nozzle horizontaly (and we will add an other one later I we have time)
- The glasses we be disposed in one raw (or several raws if we decide to use a Y axis)
- The glasses will be placed on a removable bed standing on a multi-level rack. This way we will be able to manually modify the Z. Also, the bed can act directly as a tray for serving the shooters.

Now that we agreed on the idea, we had to work on the design of the machine. To do that, it was important to decide what would be the task of each team member for the whole project (not only the 1st part). We noted 6 different tasks to do :

1. Make the model of the machine
2. Build the prototype
3. Design the electropnics
4. Write the code
5. Create the interface
6. Document the project for the group


Each of these topics we be subdived in different tasks that we have to determine. For this, we will be setting up a Trello board to organize our work efficiently. According to the skills and expertise of each member of the team, we will then be able to complete this table :

Student	Task
Frédéric	Fluid mechanics
Guillaume	Prototyping and programmation
Ludovic	3D model of the machine
Roman	Programmation, electronics
Me	Documentation, 3D model of the machine
Vincent	Documentation, prototyping

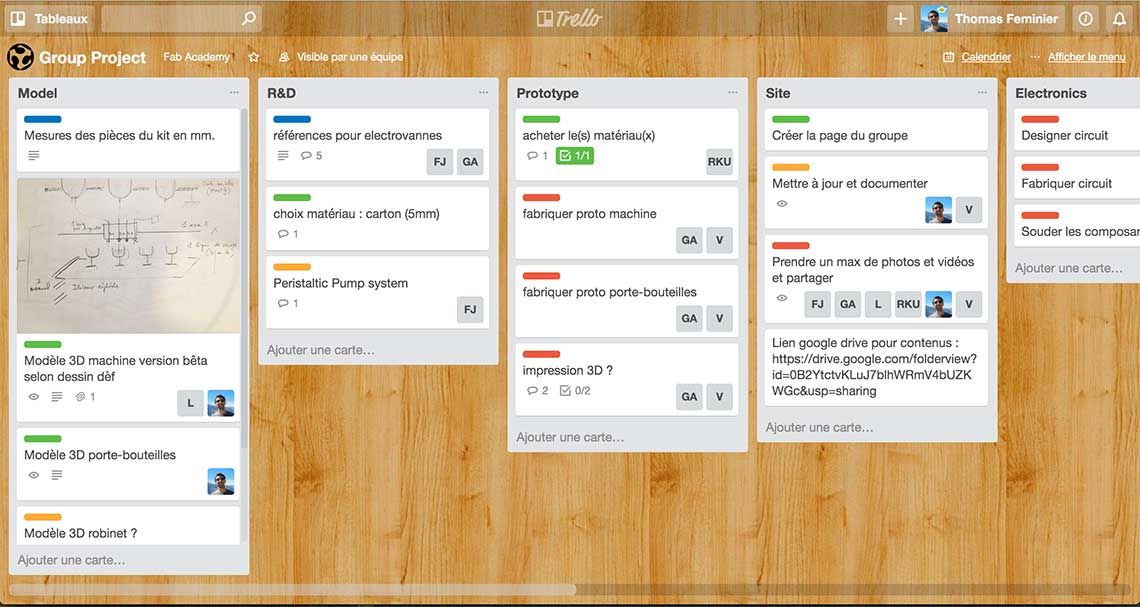

So my task for this week would be to work on the design of the machine, along with Ludovic, and to document all our team work. I also took the initiative to set up a Trello board to make it easier for us to follow our work :

The entire group project is detailed here. This is the page I was in charge of.

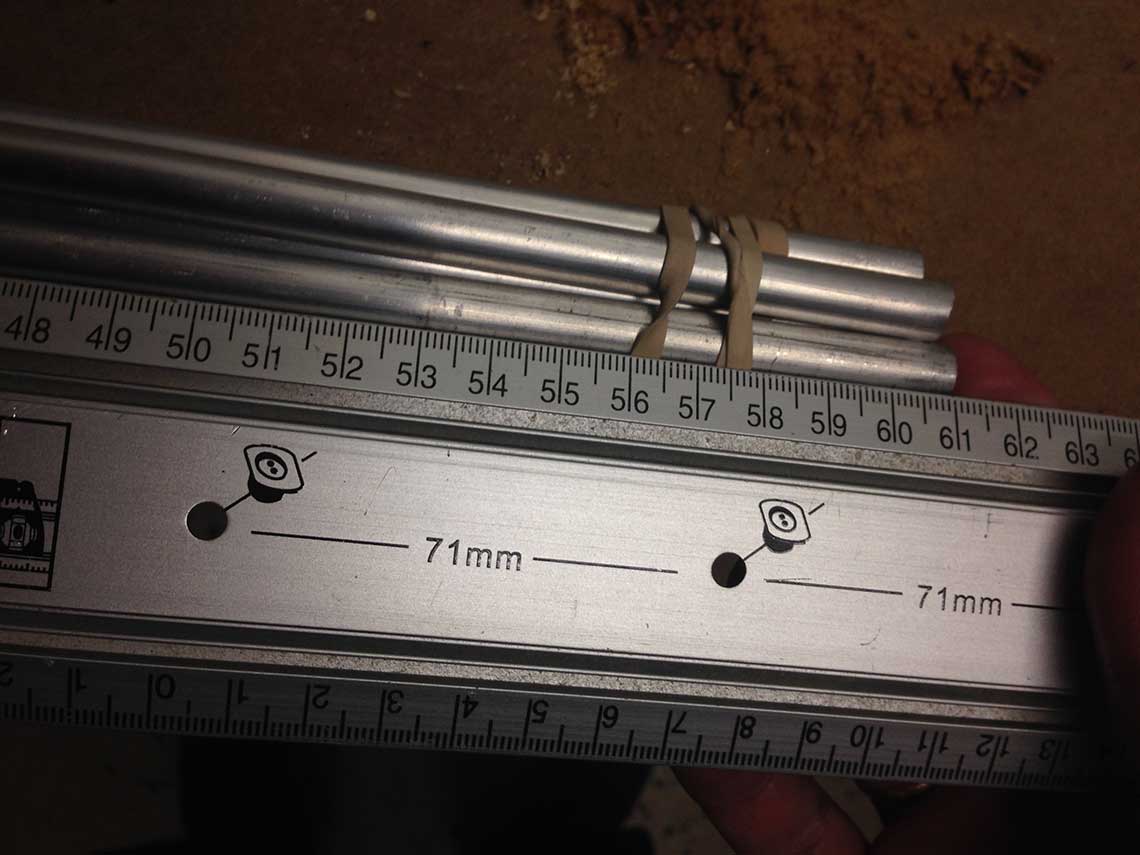

Before beginning the design, we took the time to measure each element included in the kit that we have received, which was essentiel to design a suitable structure.

It was especially important because we realized that the shafts were by 10cm larger than they were in the model file provided for the assignement. So we would also have to redising the whole wrapping structure for the motor and the nozzle.

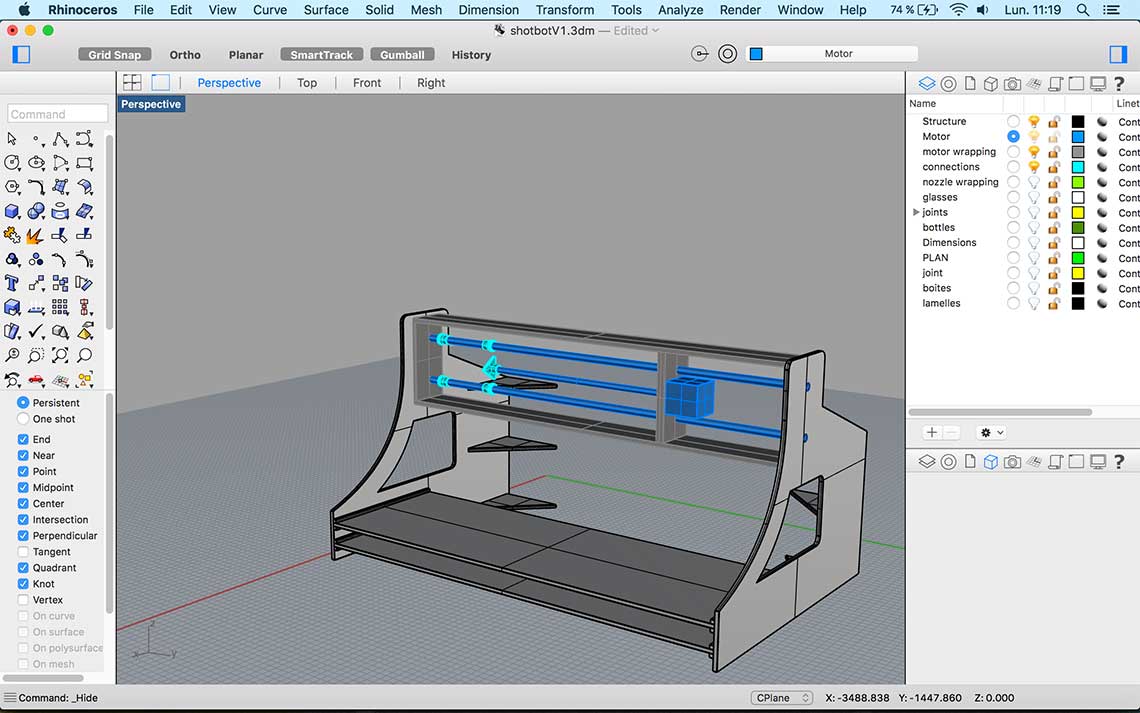

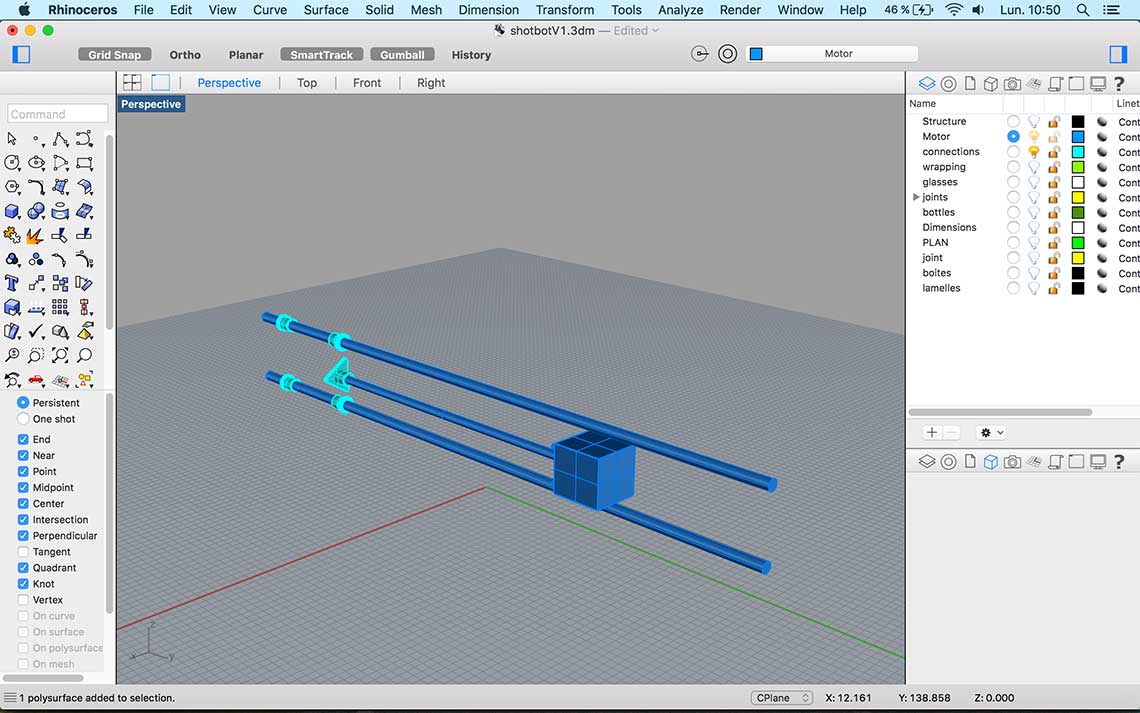

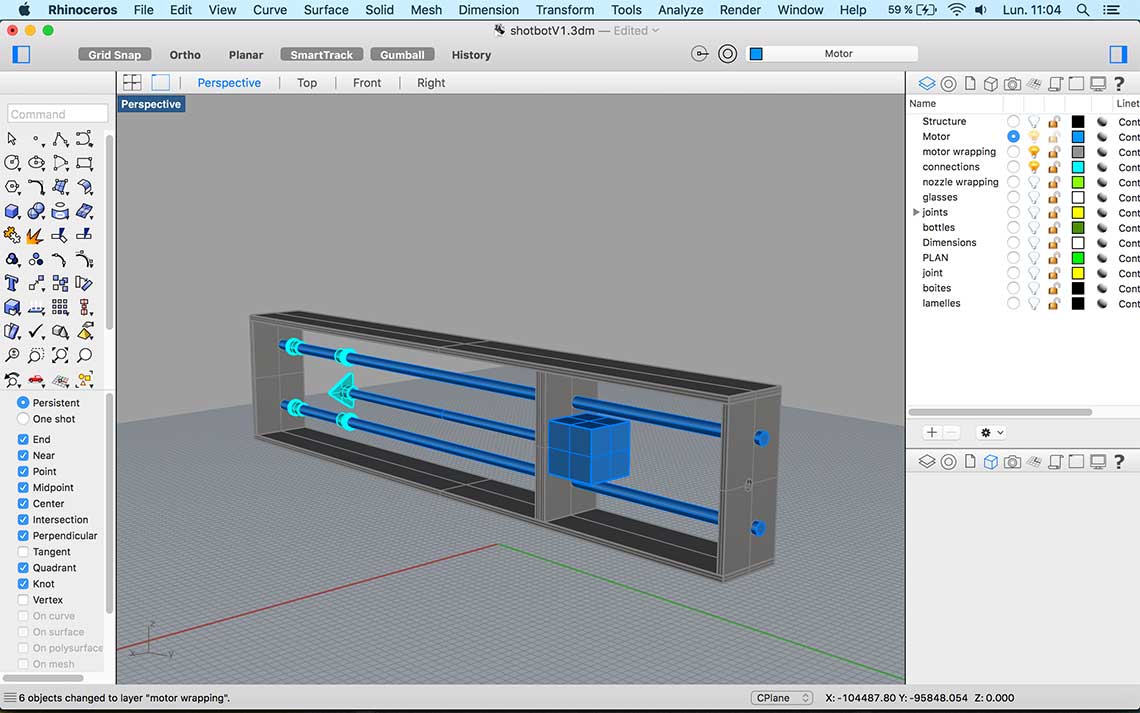

I began with this part because the motor and the shafts were the elements that would determine the dimensions of the whole structure :

Then I was able to build the structure, making it as stable as possible. Note that we chose to begin by designing a 3D model first, to have a good overview, and we picked a 5mm thickness because we wanted to work with cardboard, plywood or MDF that we would laser cut, rather than using the CNC mill which not available very often at the lab these days. Once the main structure was made, I could continue with the bottle stand...

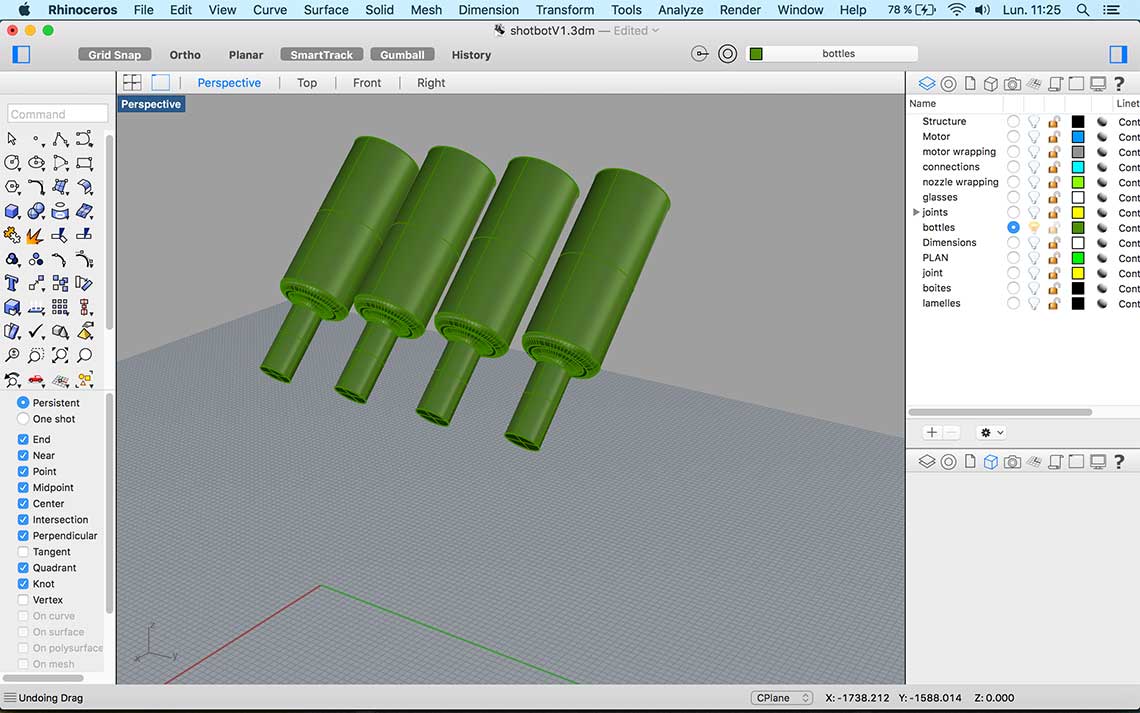

The best way to do it was for me to model the bottles from measures I took on real liquor bottles :

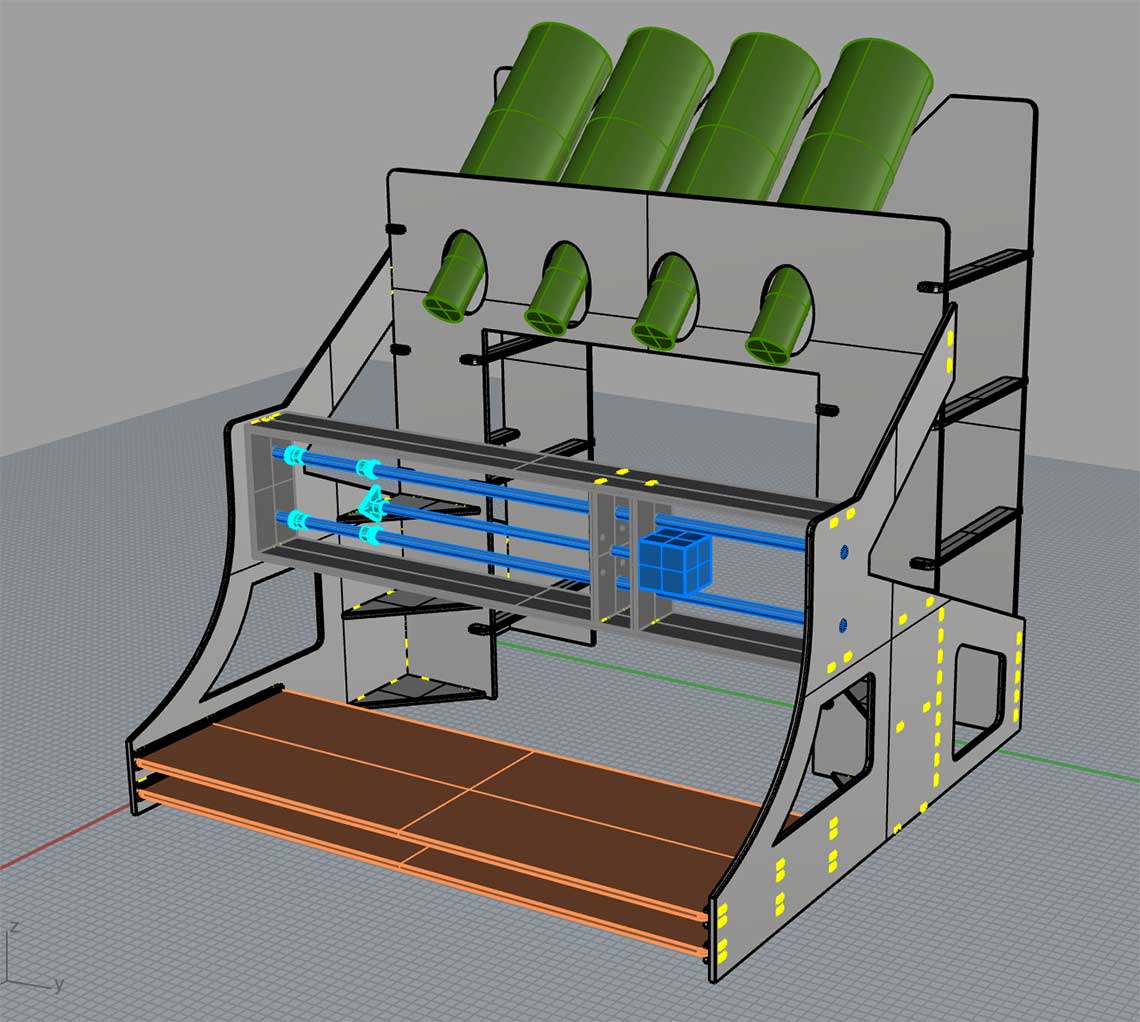

From this it was easy to design a stand for the bottles, attached to the main structure for more stability :

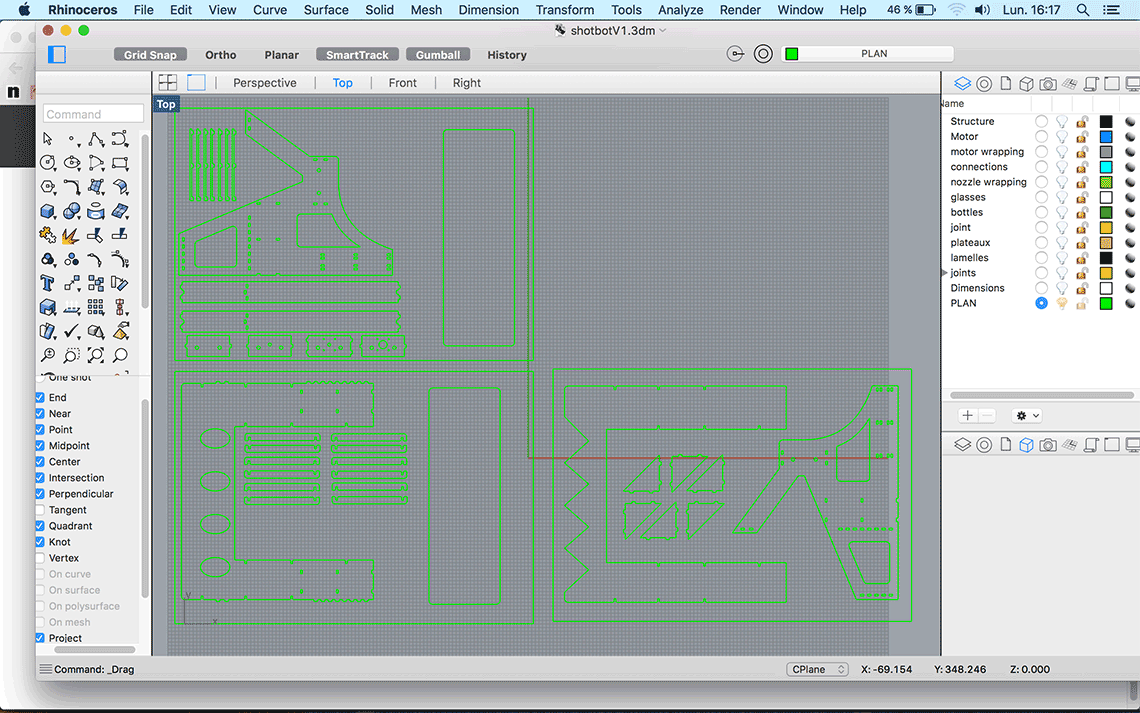

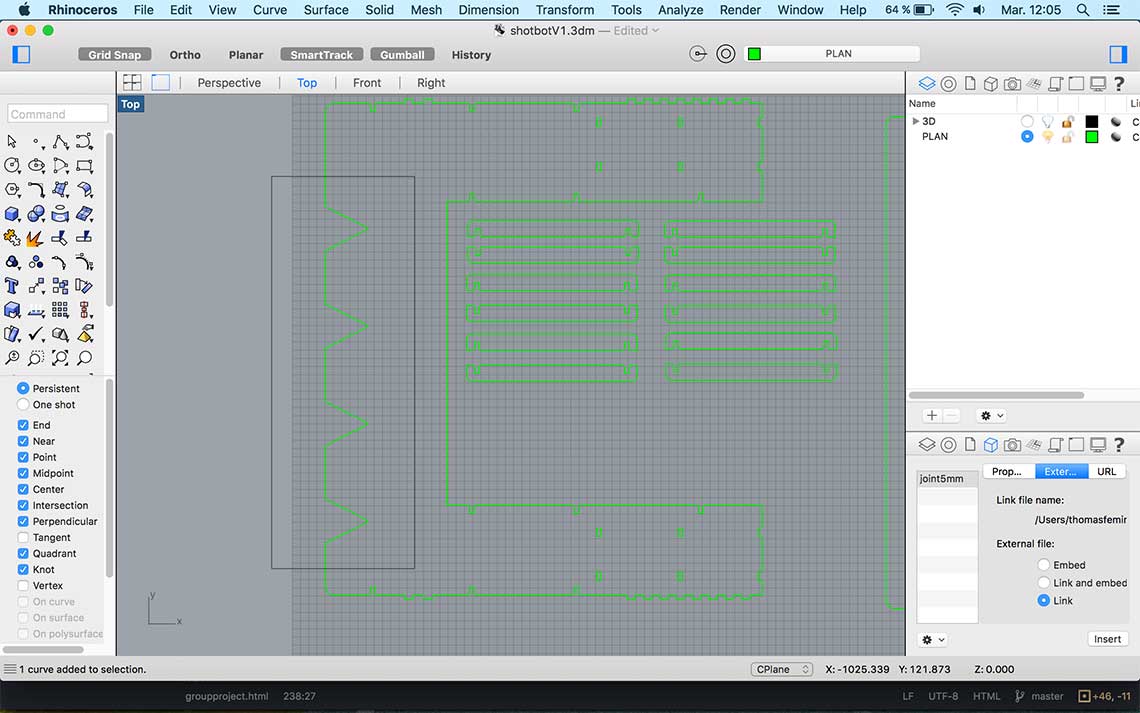

The design phase being completed, I prepared the file for the cut. All the parts fit on 3 700x990mm sheets :

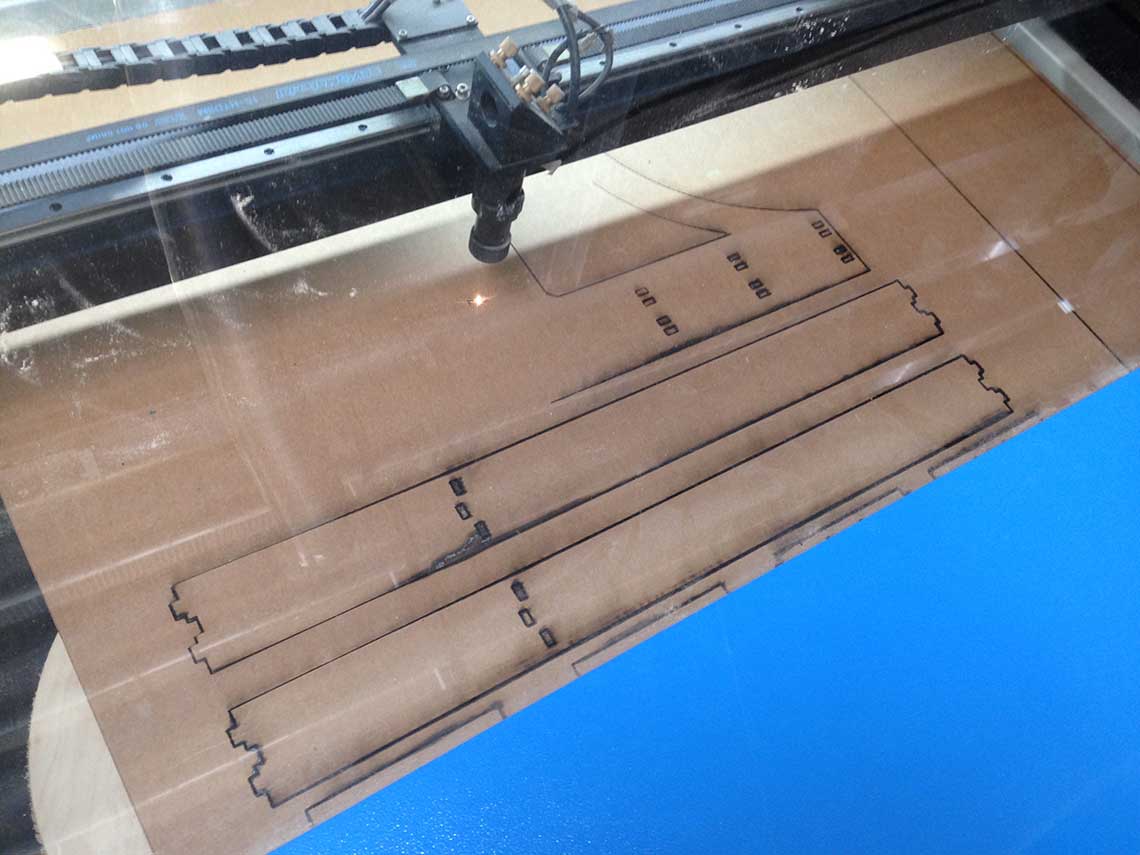

Then we laser cut the parts. Unfortunately the laser cutter at Woma was not available due to maintenance so we had to go to Vincent's Lab. But it turns out that their laser cutter was acting quite strange so we spent a lot of time trying to get the right configuration and did not really succeed. It turned out that the bad was not completely flat and also that the lens seemed quite unfocused so the cut was not clean and the cardboard was burned in some parts.

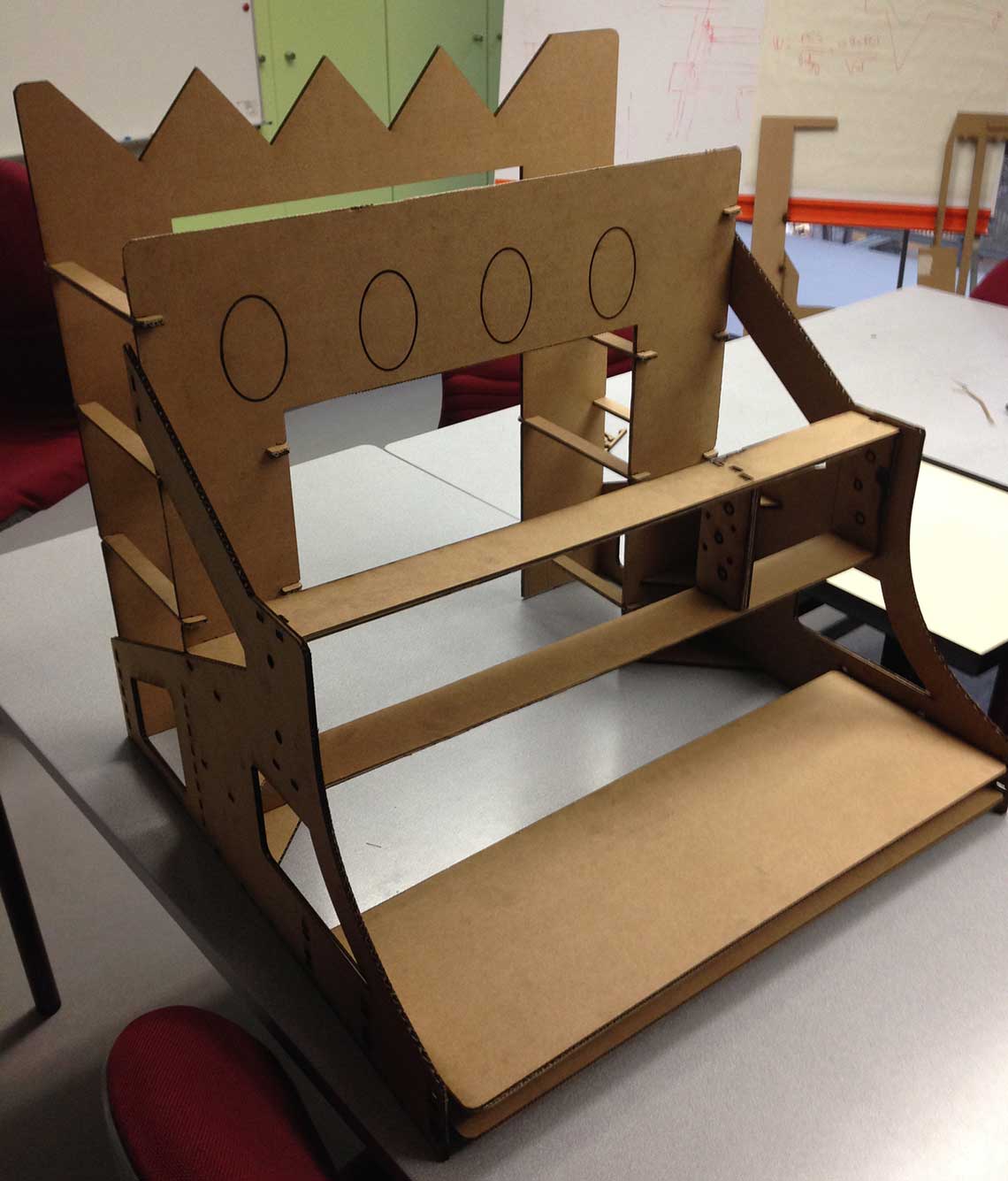

We managed to get all the parts cut anyway but we had to do a lot of hand cut (using a cutting knife). Then we assembled the parts together and voilà ! :

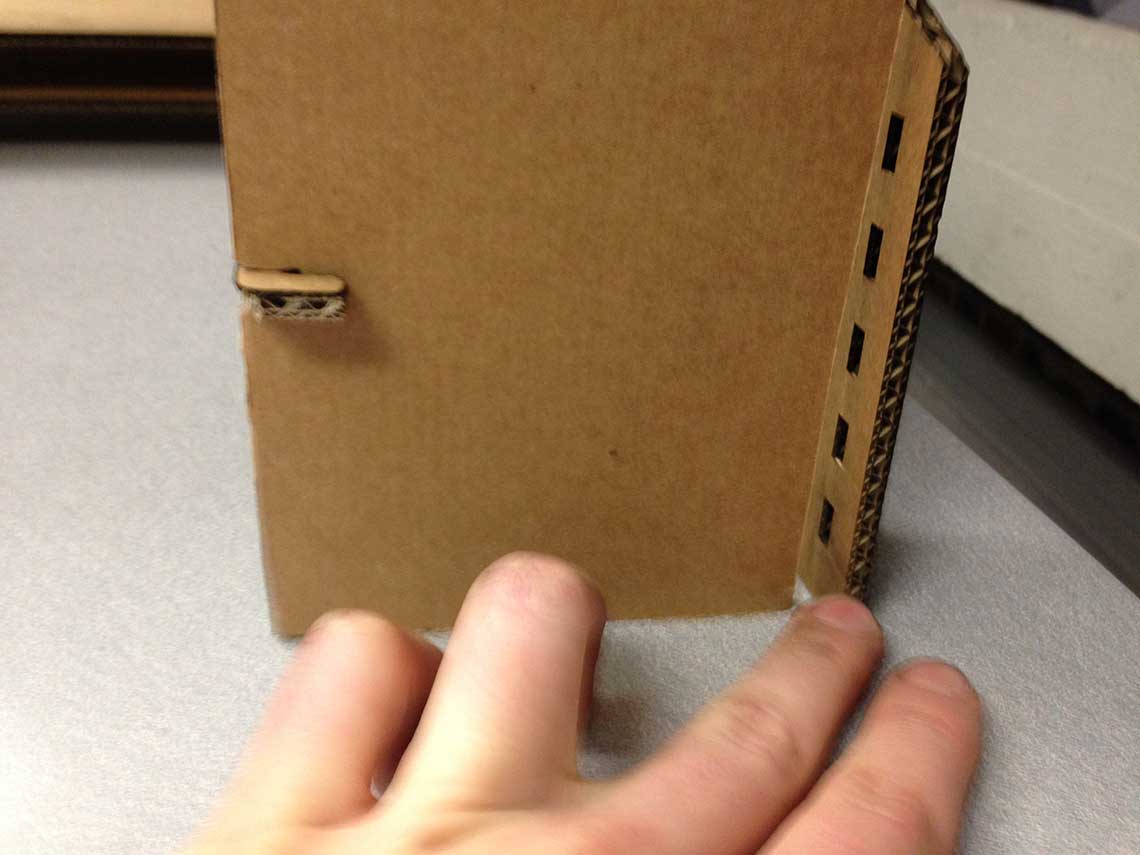

Generally the structure was OK and pretty stable but I decided the next version would have to be made of a stronger material such as plywood. I also noticed a few things that could be improved. Here the connecting teeth were missing in the cut file:

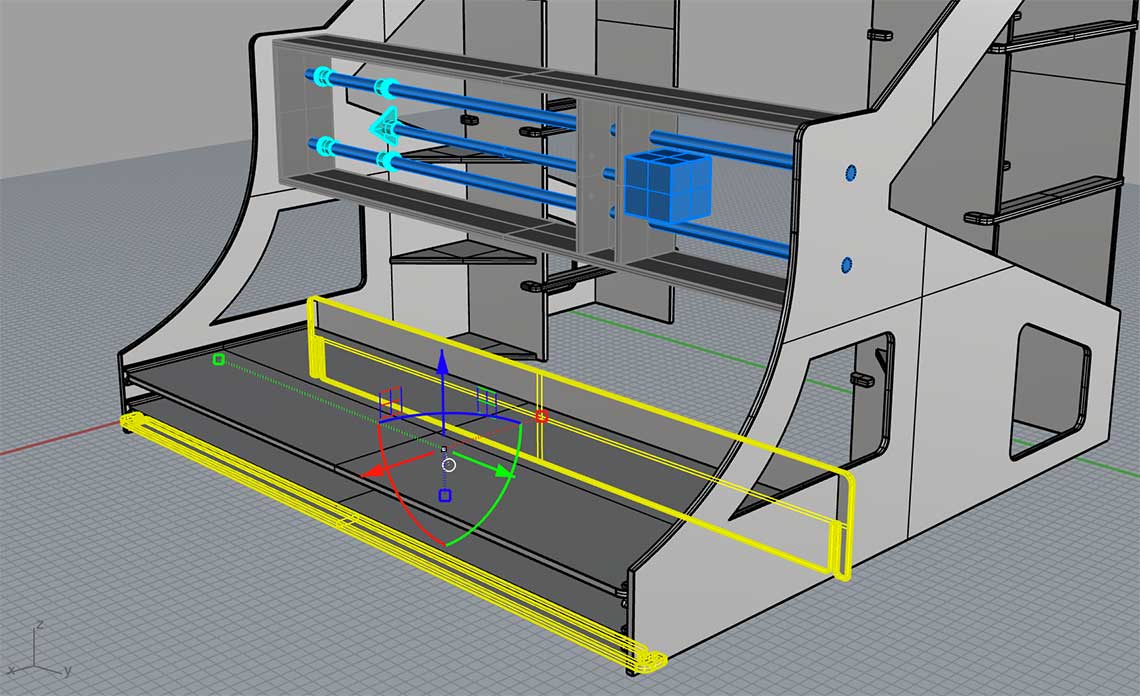

Here I decided to add to "bridges" (in yellow) to reinforce the front of the structure : One bellow the trays, and one behind them.

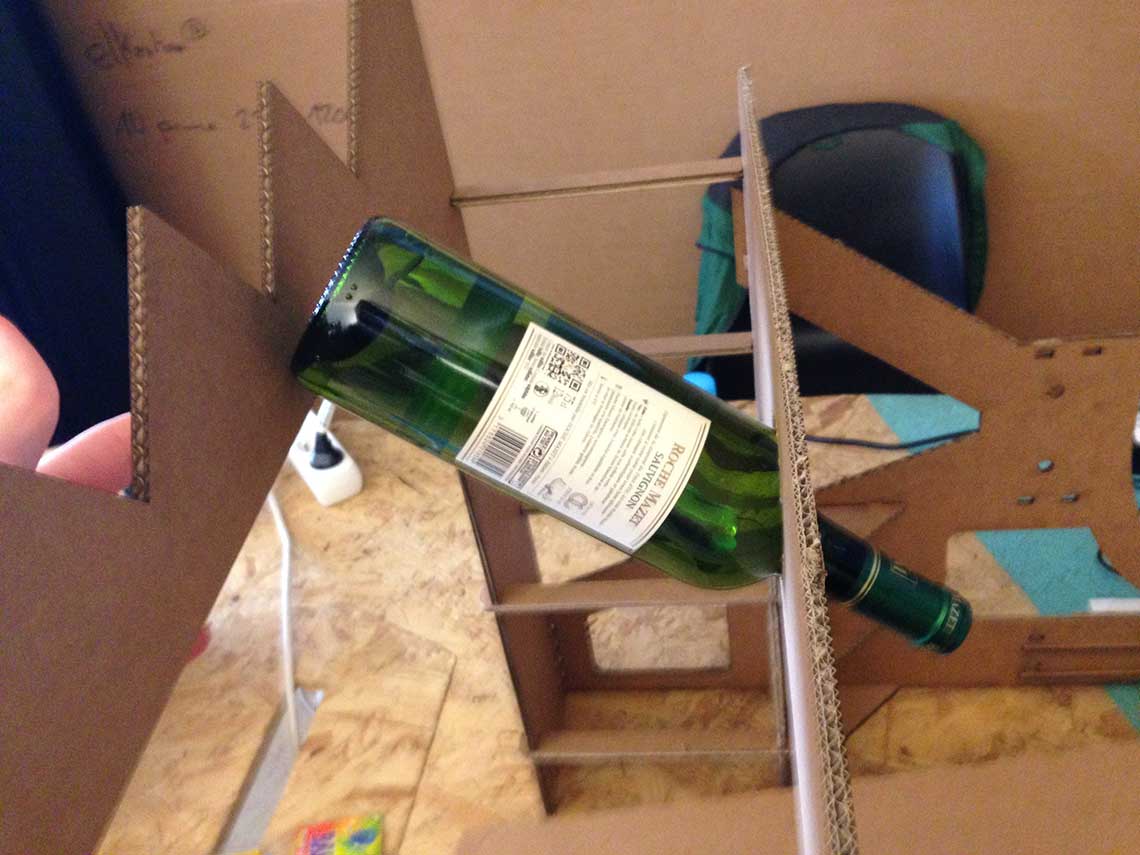

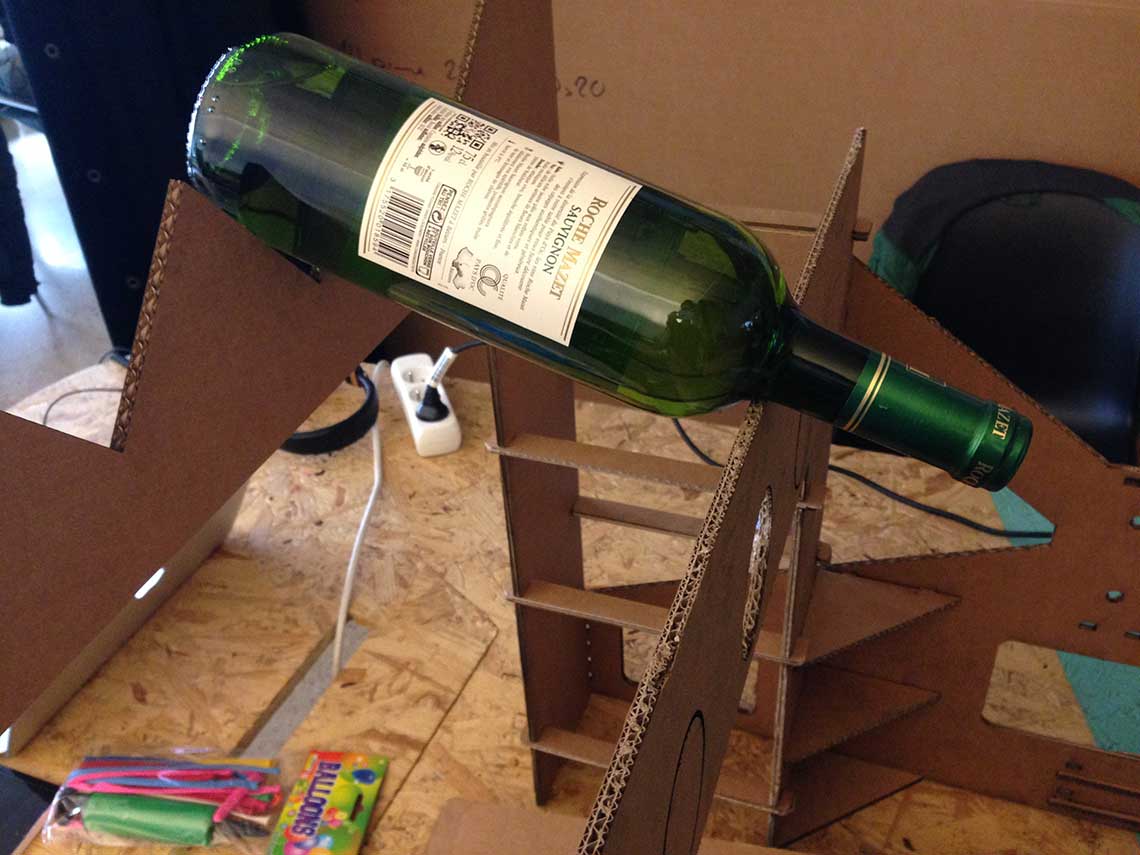

Finally I re-designed the bottle stand because we did a rapid test with a whine bottle and realised the front holes where too large and too low :

So instead of holes, I reproduced the same triangular shape on the front part of the stand, like this (did it directly on the cut paths) :

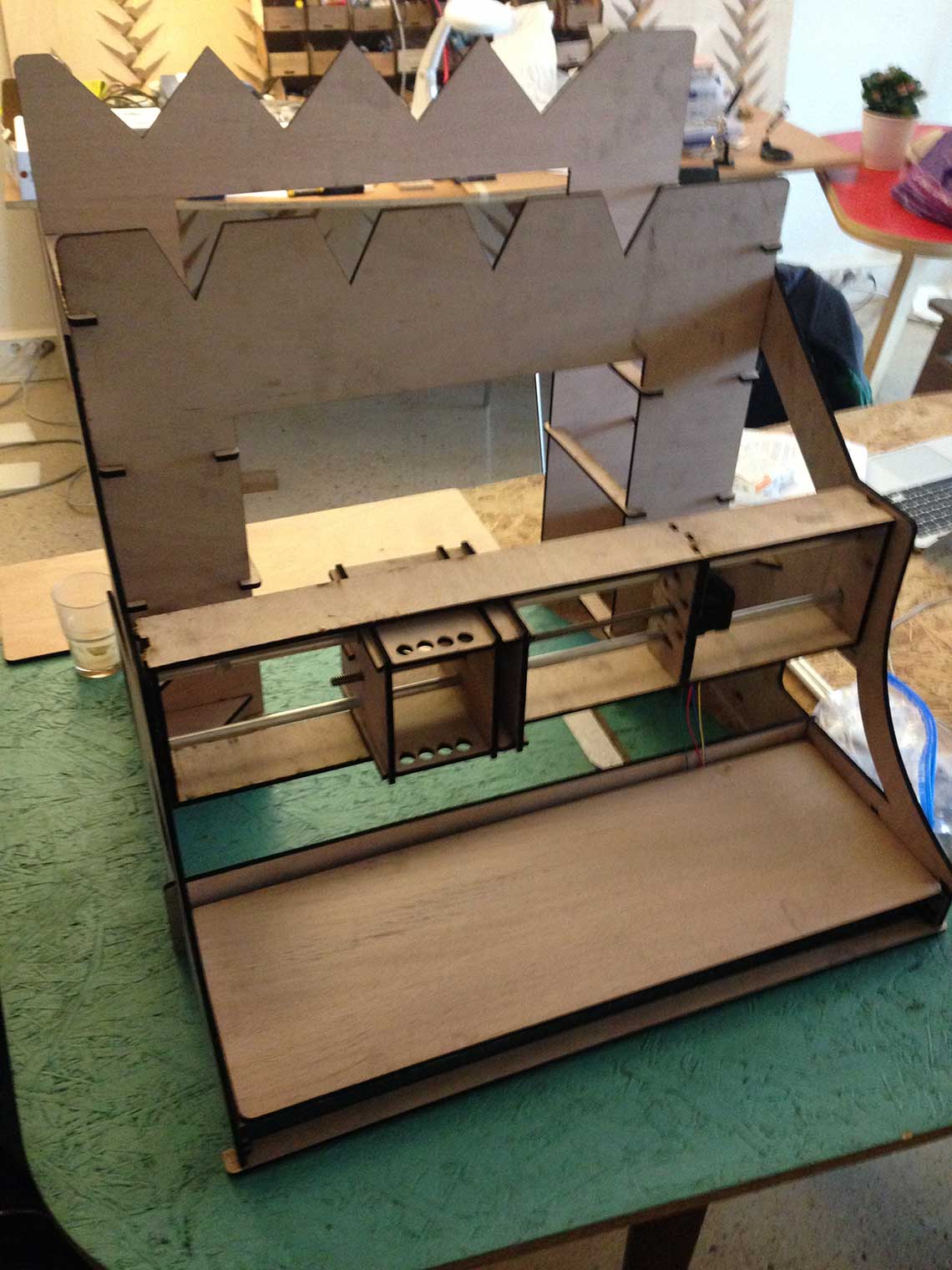

Then I recut all the parts using this time 5mm plywood, to have a stronger structure. All the part fitted on 3 1000x800mm boards. For the first board I used 90% for the power, 80% for the corners and 1200 mm/sec speed, but the laser did not completely cut through the wool so again I had to do some hand cut to completemy separate the parts from the board. For the two next ones I changed the speed to 800 mm/sec. and this time it was OK ! Here is the result once the whole structure assembled :

And here is a little video of the assembly step !


And a video showing how the machine will operate :


I also worked along with Ludovic on the creation of a logo for our machine that we decided to call the "ShotBot":

We also had the time to cut and engrave it with the laser cutter :


My work stops there for this week. See Machine Design week or the Group Page for the next steps...
