This week I had a problem following the assignment but I'm considering it incomplete. This is because I didn't get the 1/64" mill bit in time. On the other hand, I consider my soldering assignment complete since I've soldered quite a few times, including SMD, cables and connectors, boards... I'm not such proficient with the air gun, but getting better every time.

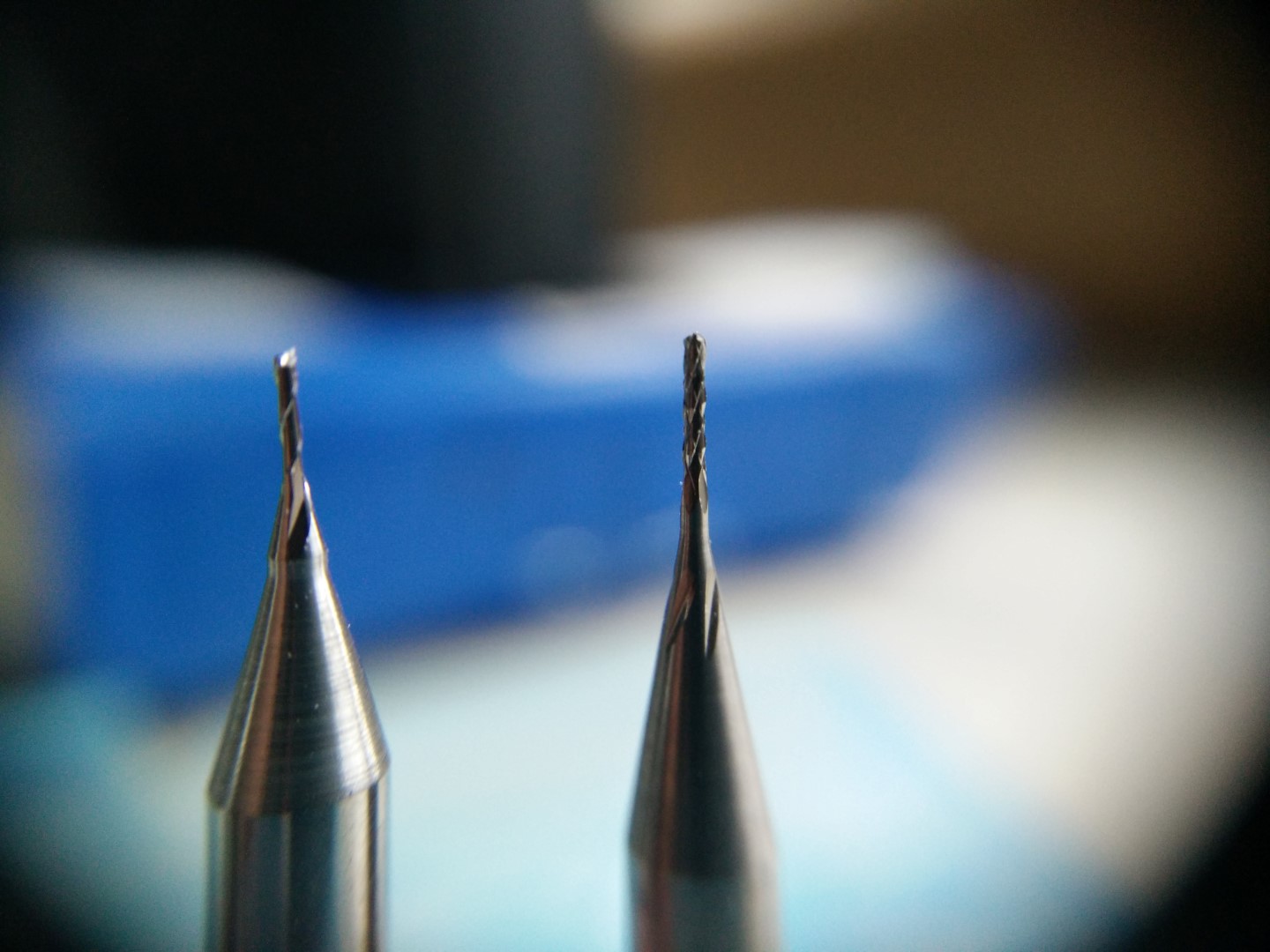

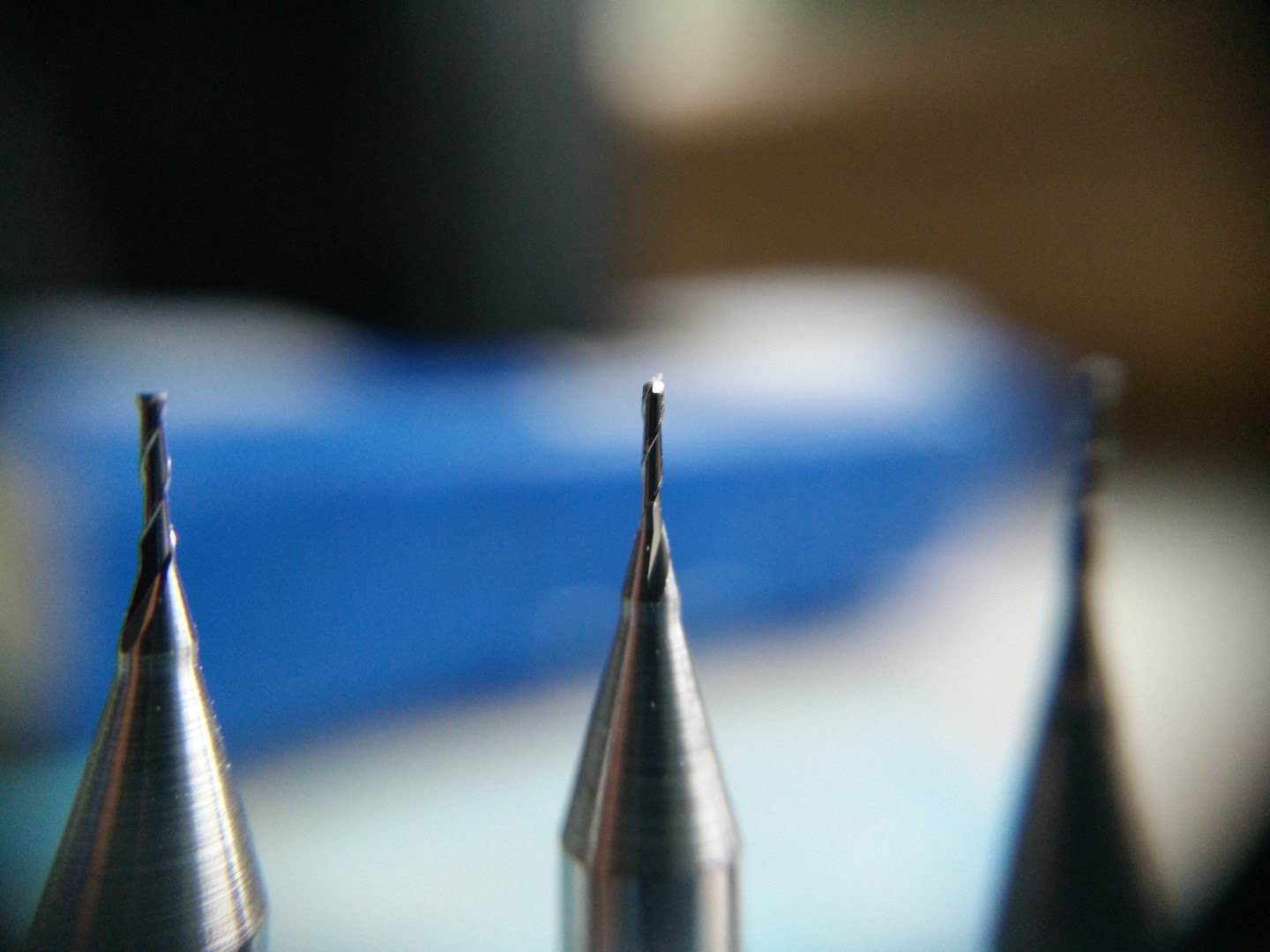

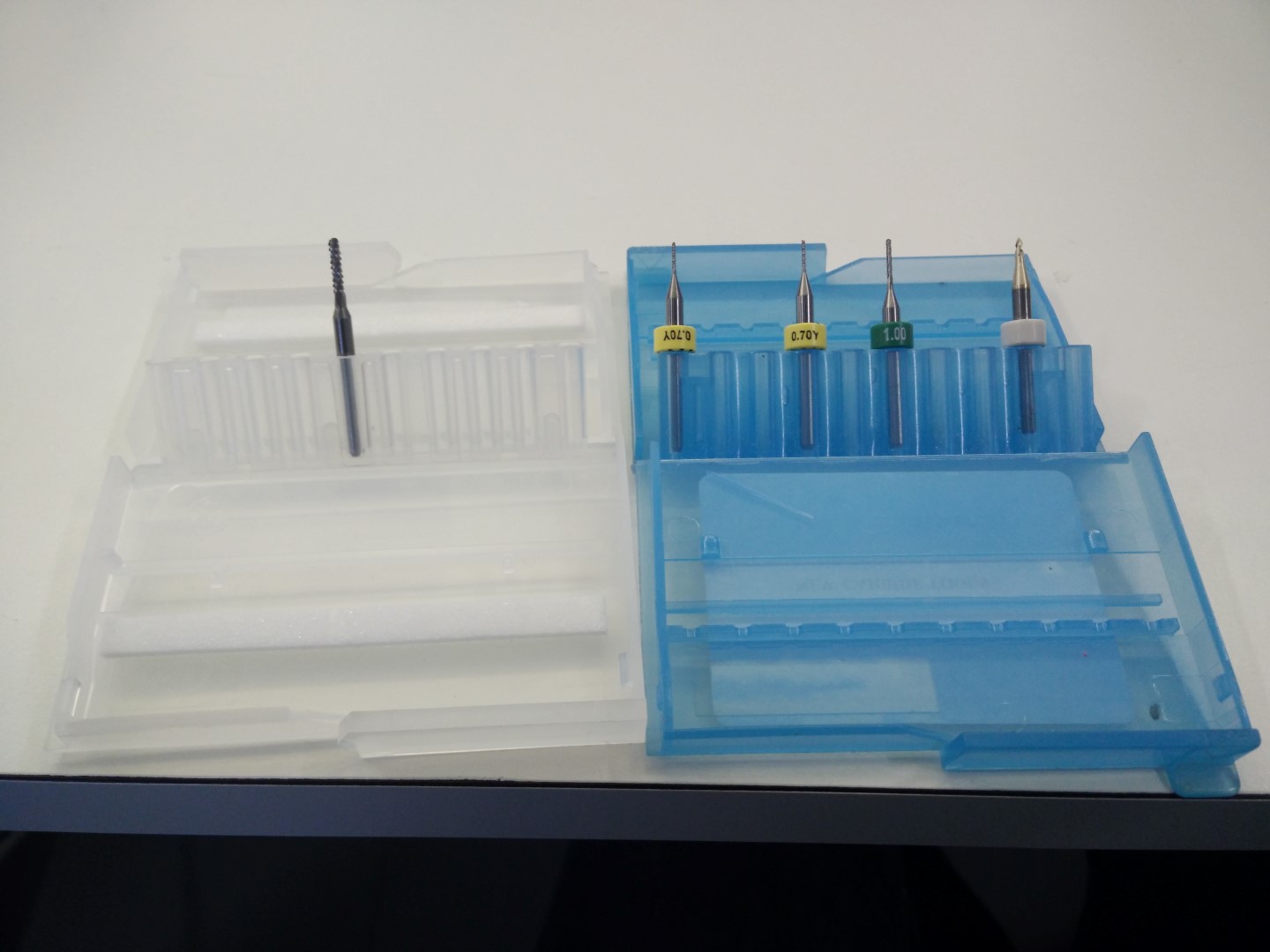

But I didn't really lack mill bits, I had access to some, a v-bit of unknown angle, a couple of 0.7mm and a 2.0 mm routing bits. And the MDX-40 isn't really used at the fablab because we use the big one (2000x1000mm) for everything we mill and we always use acid for making PCBs.

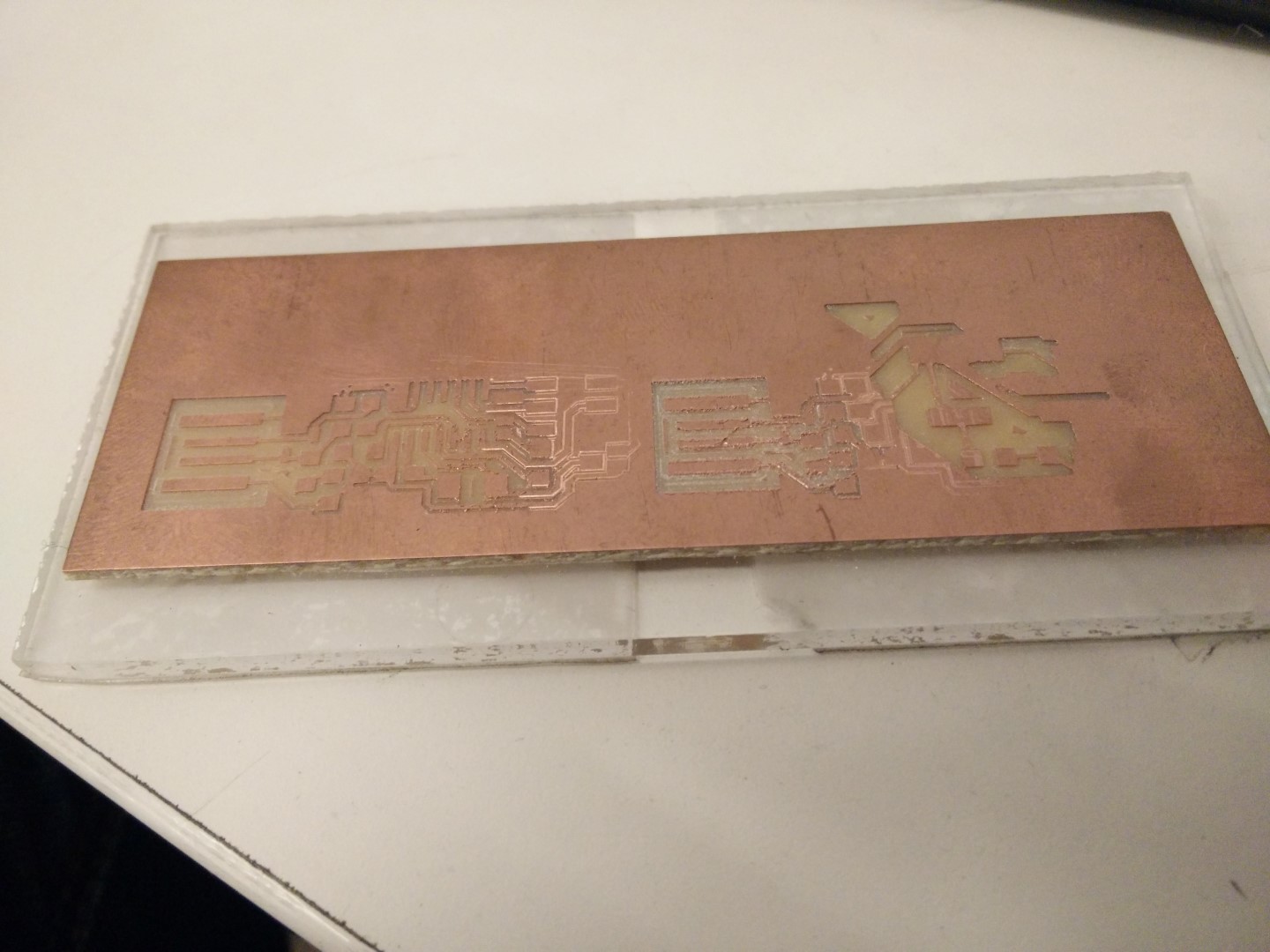

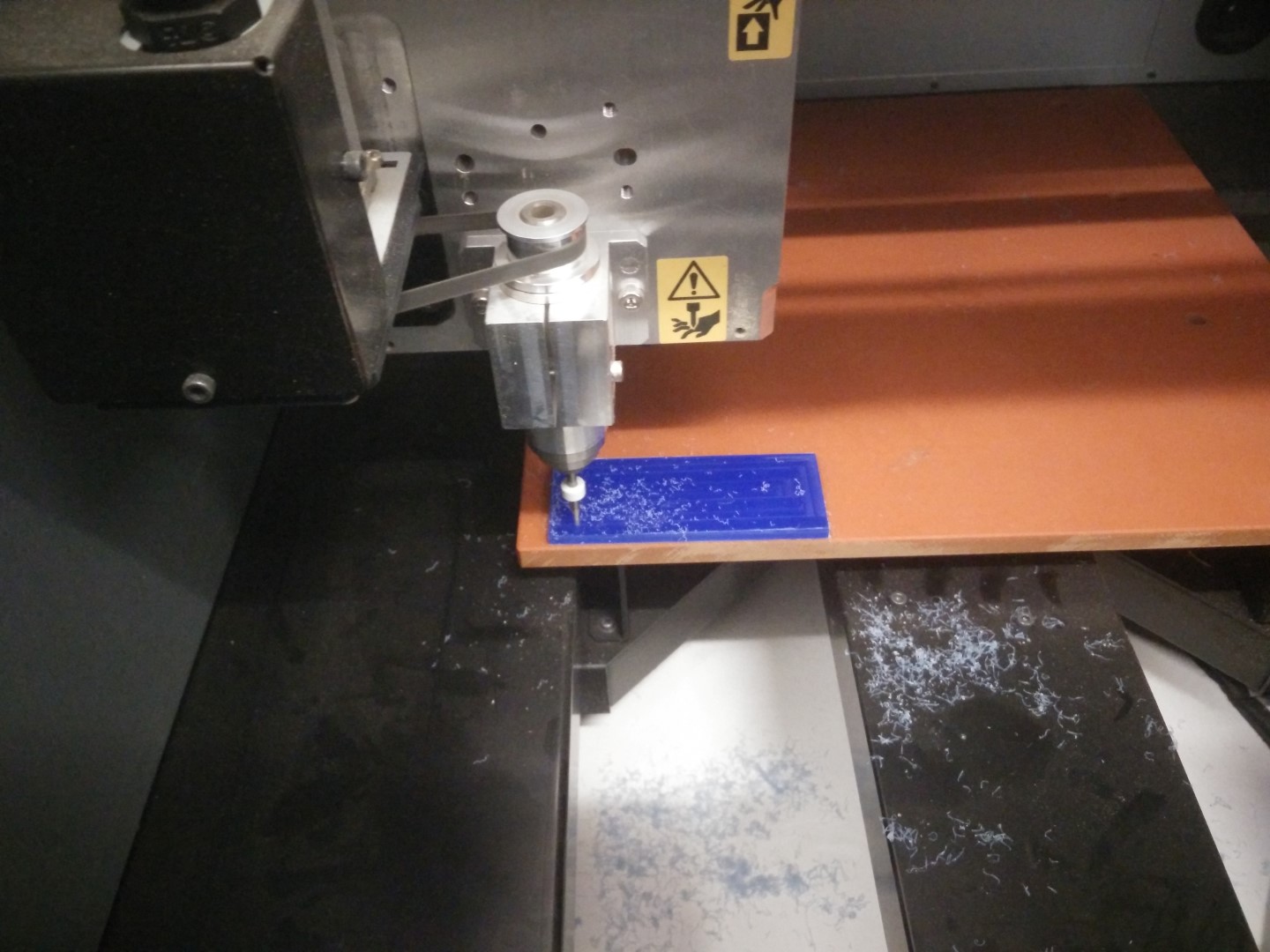

Most of the process is explained in the pictures, even when I didn't come with an ISP, I've learned a lot this week and I'll definitely use the MDX this year for PCBs and with the artists in residency at the fabLAB.

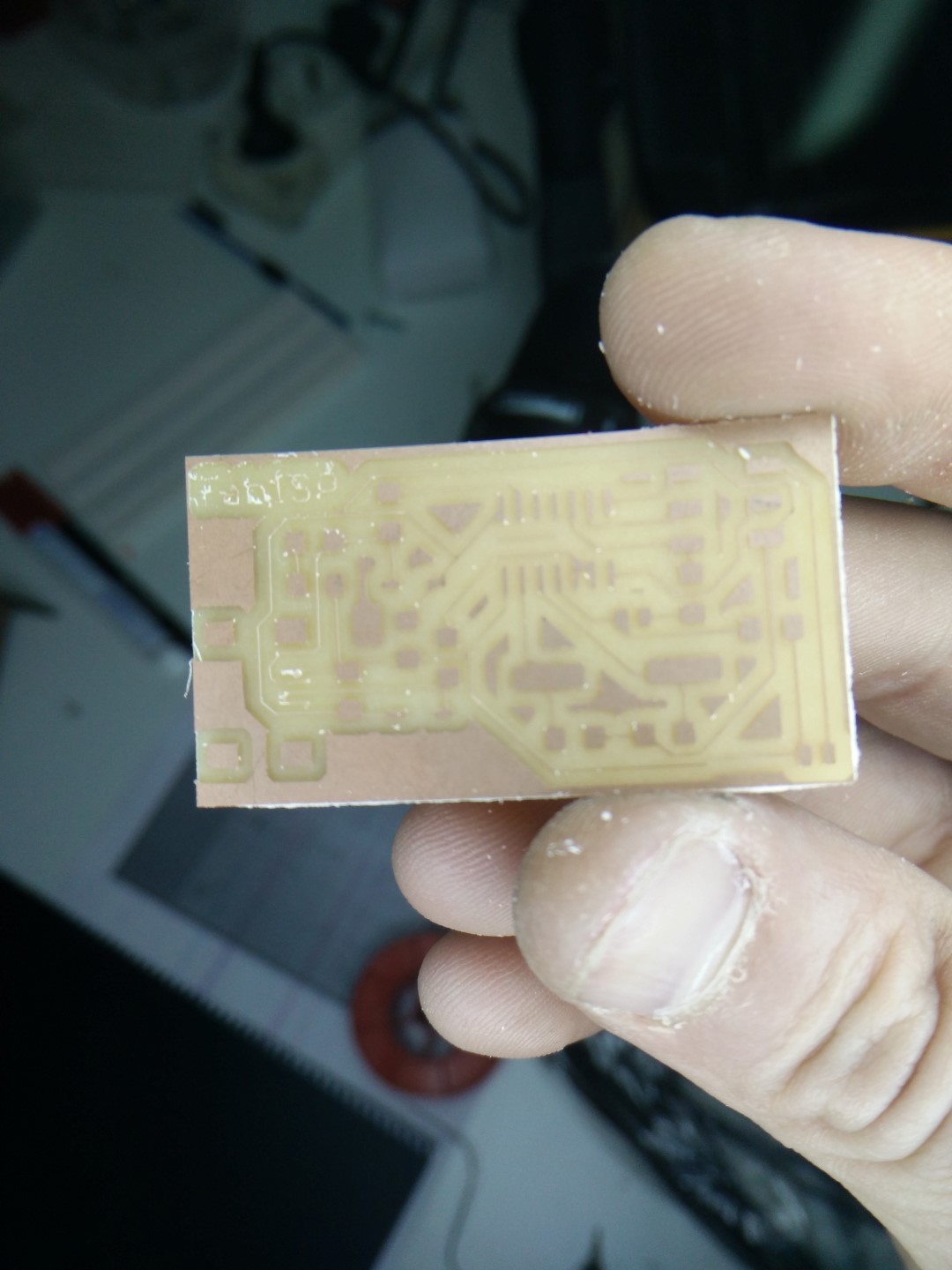

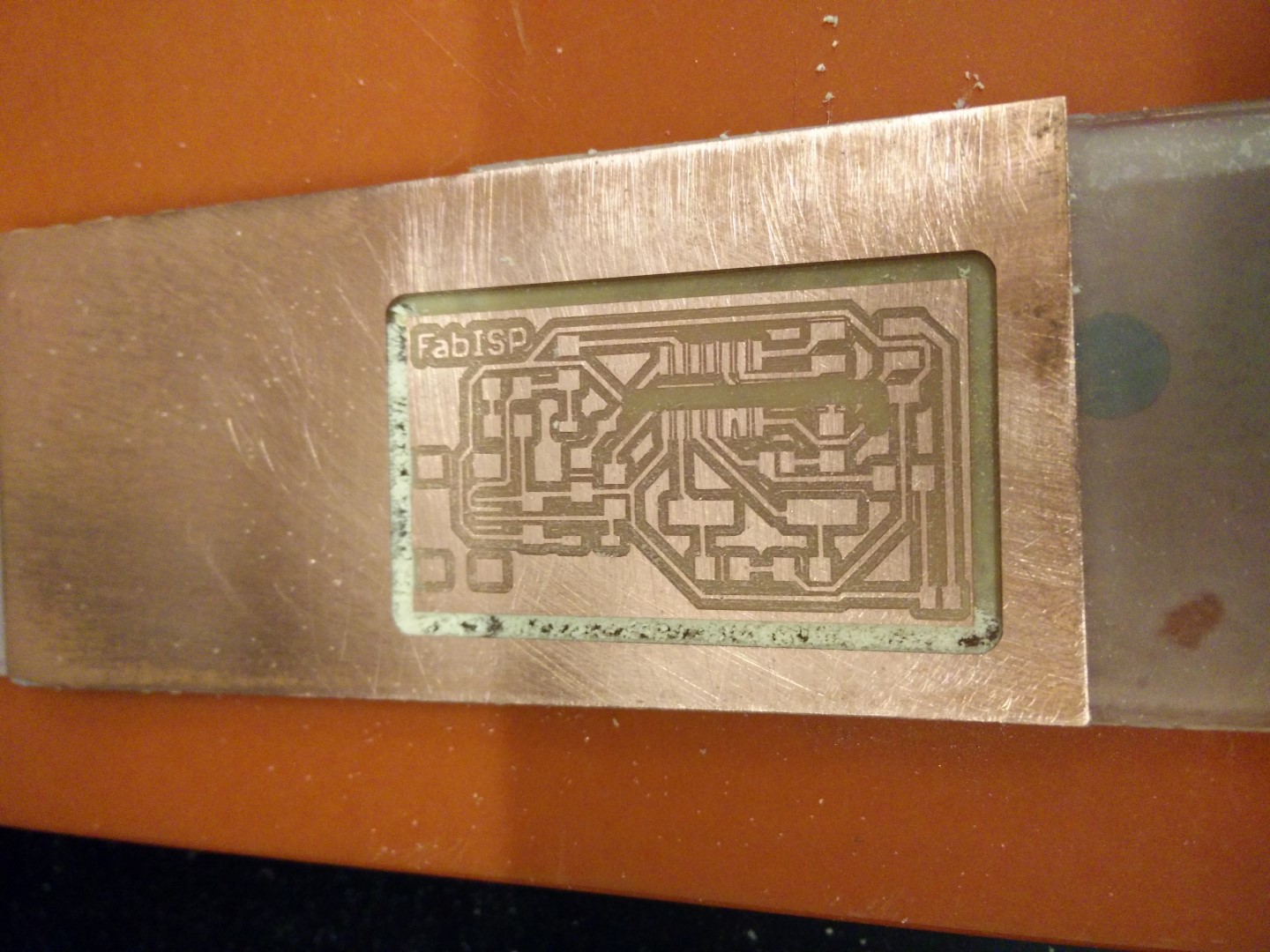

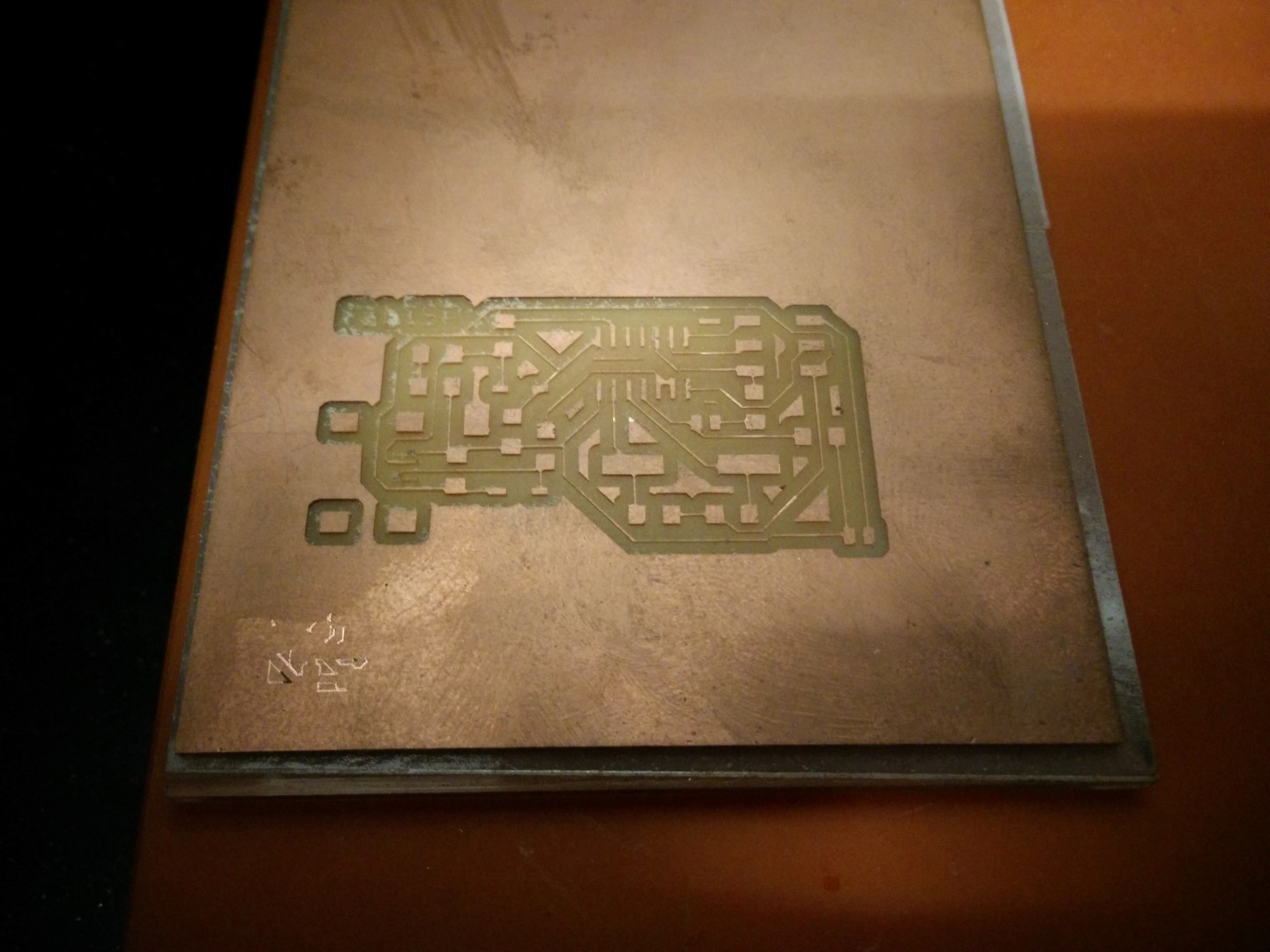

Well, yesterday was able to finally make a board using 0.4mm mills. Also, David updated the MDX40 firmware after seeing at the MDX support page that Firmware version 1.50 for the MDX-40A. Fixes bugs with thickness of Z0 sensor settings and ability to read H command in 3rd party CAM programs.

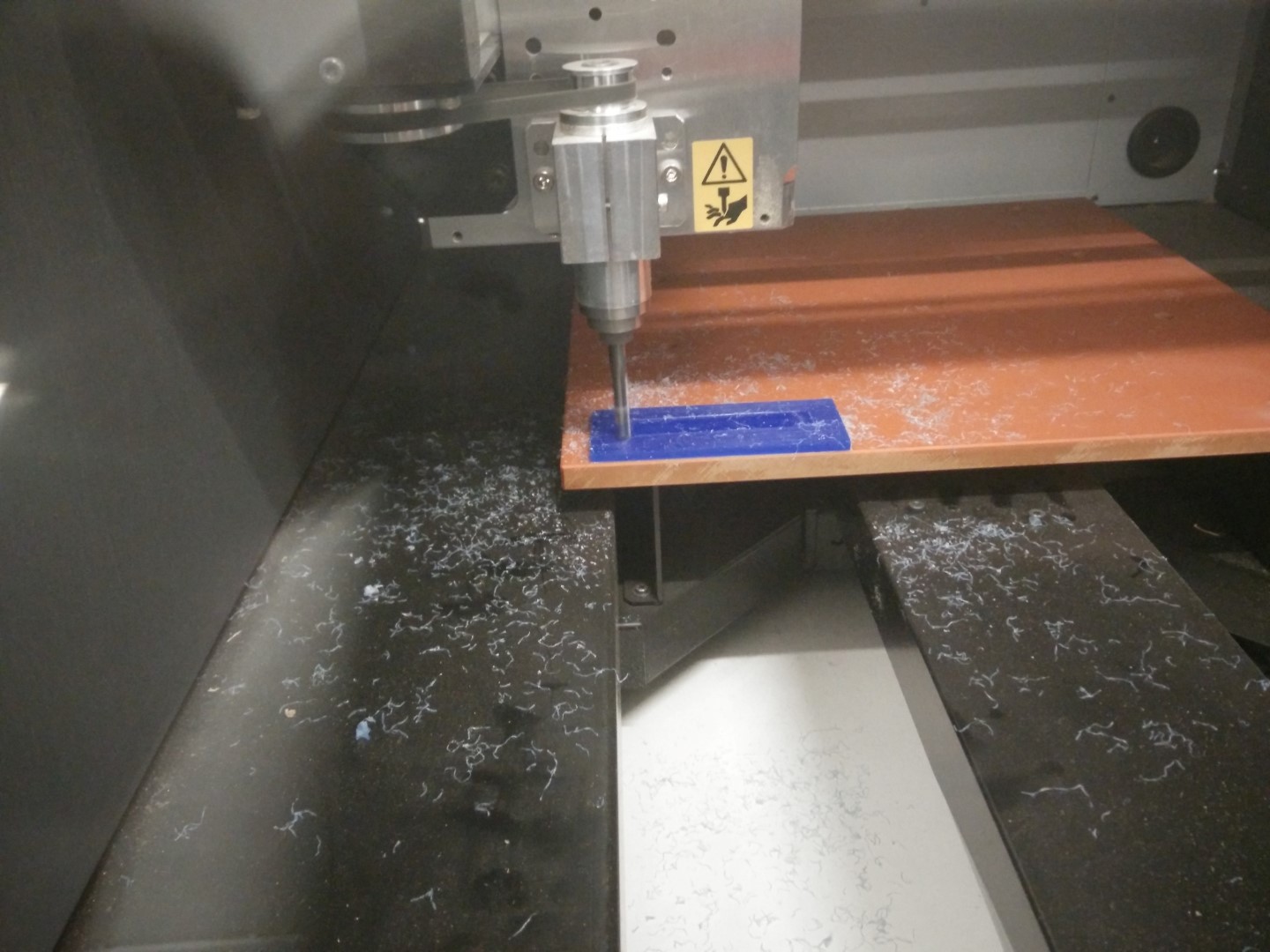

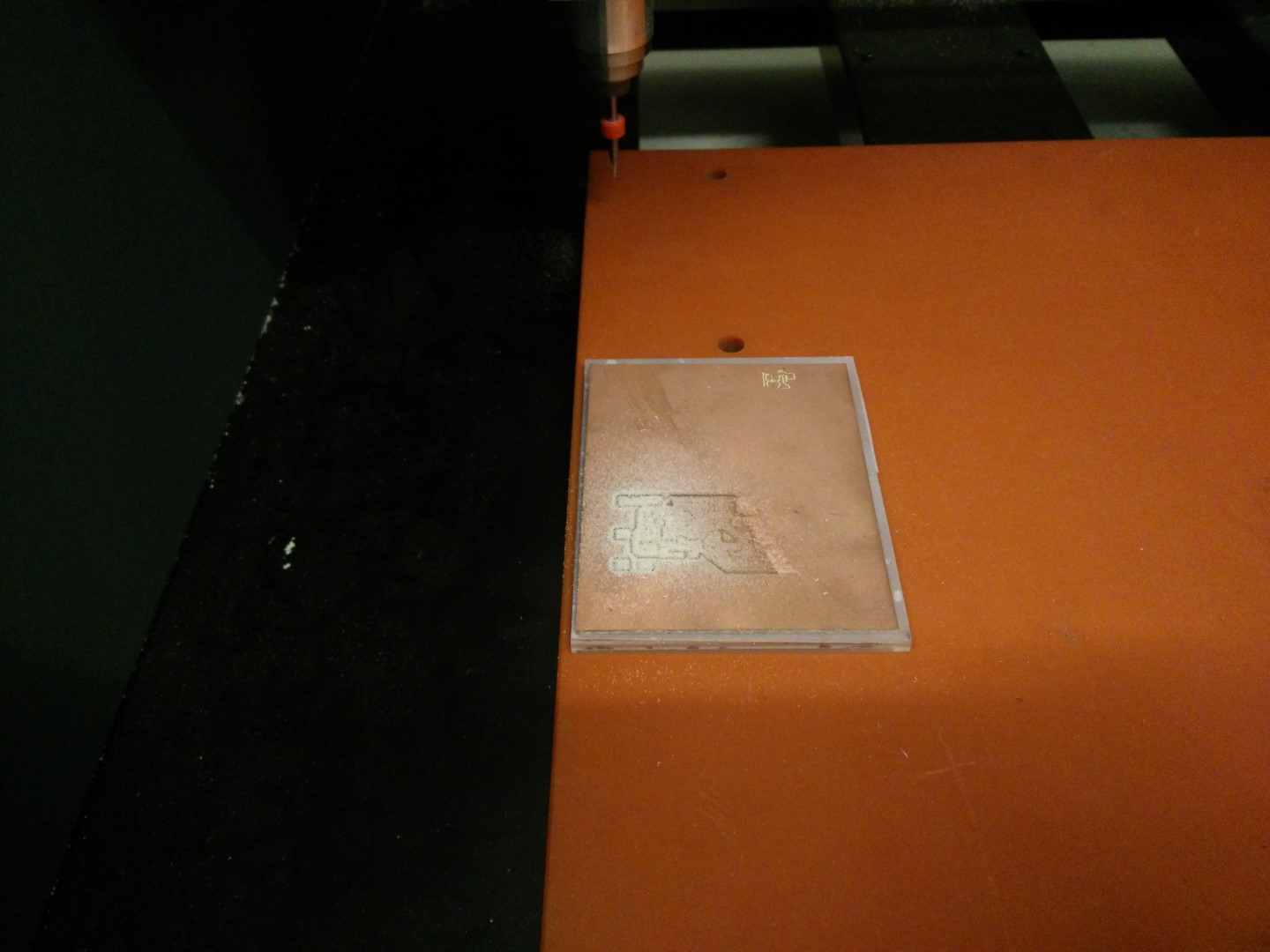

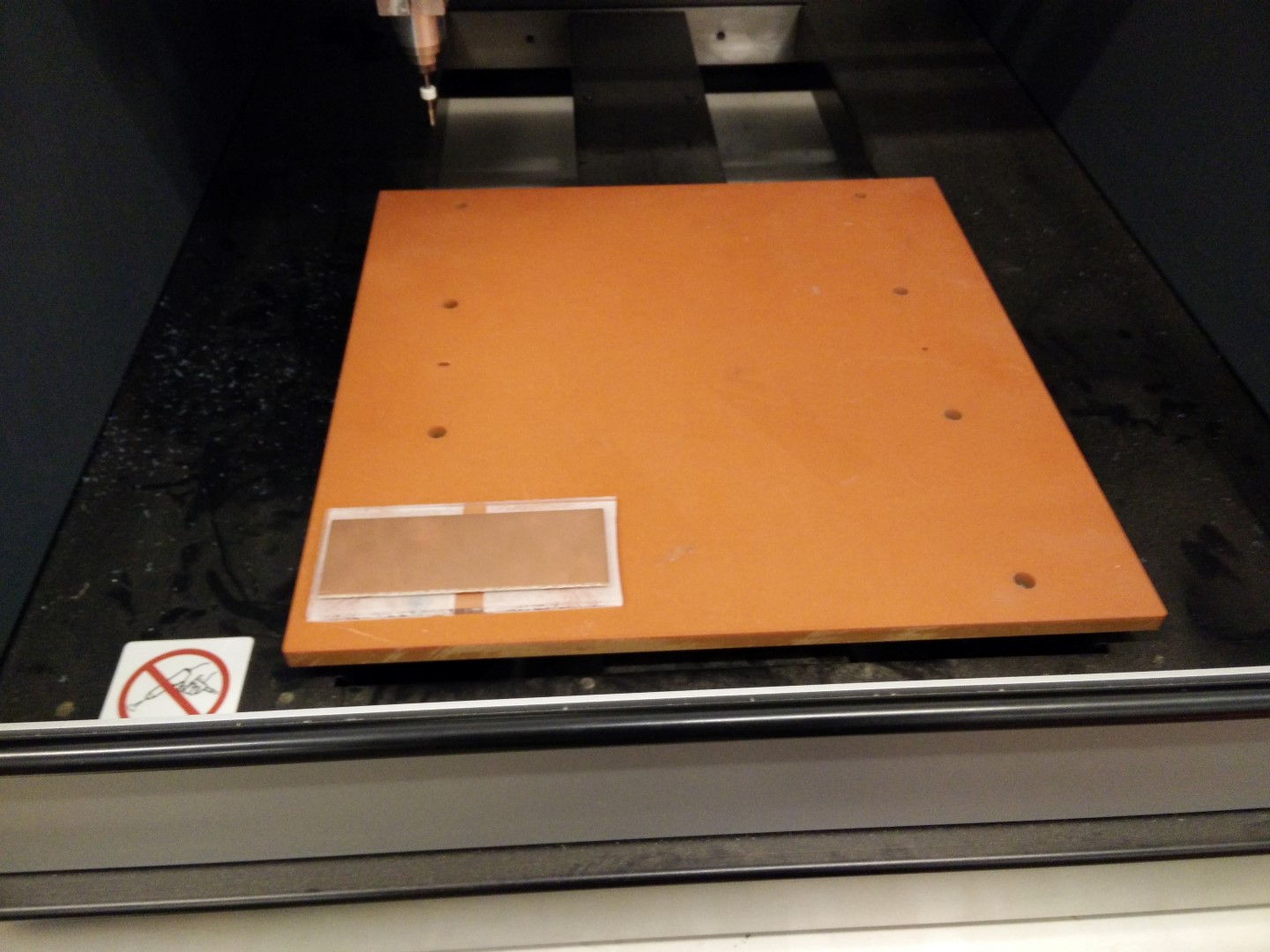

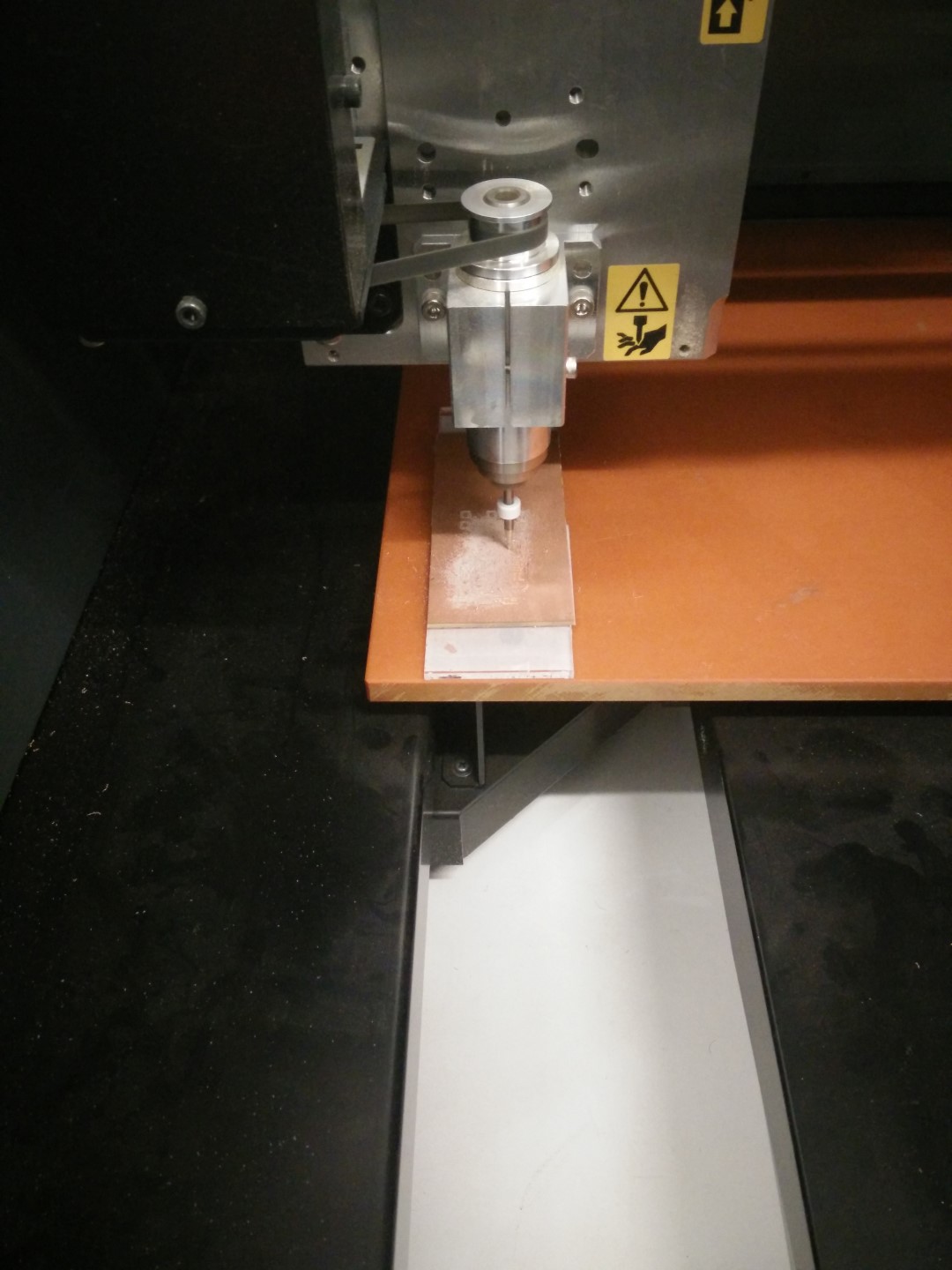

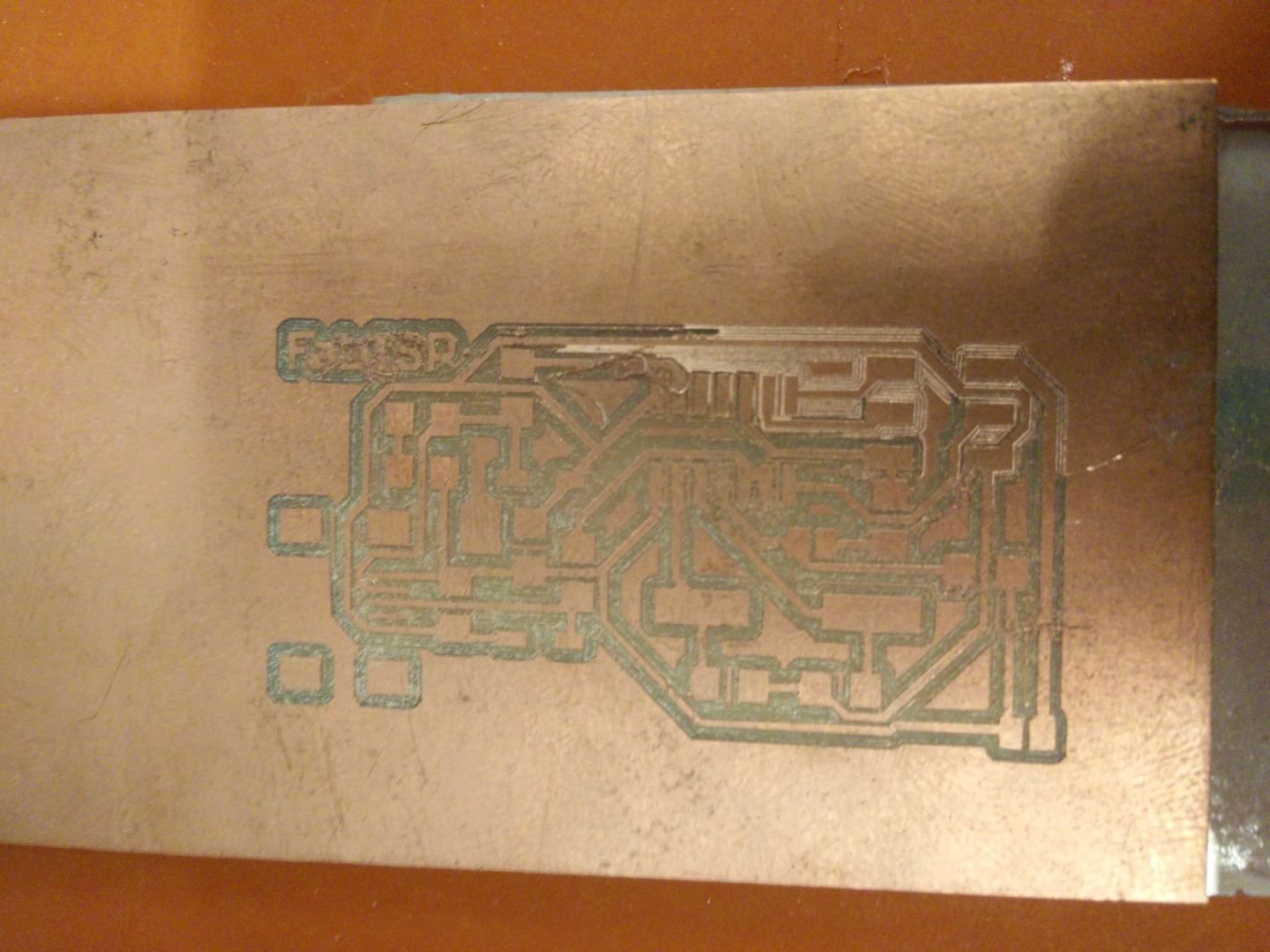

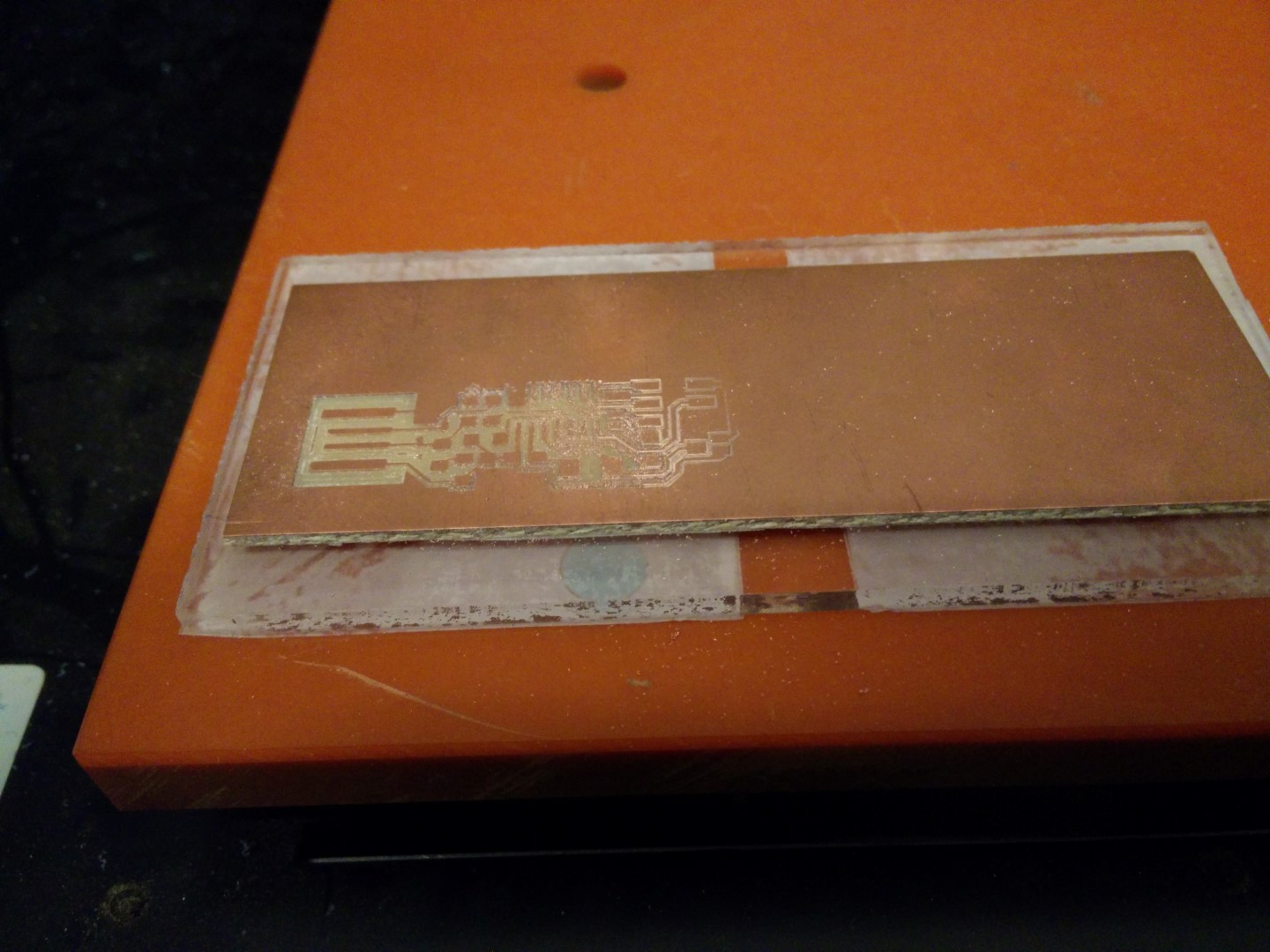

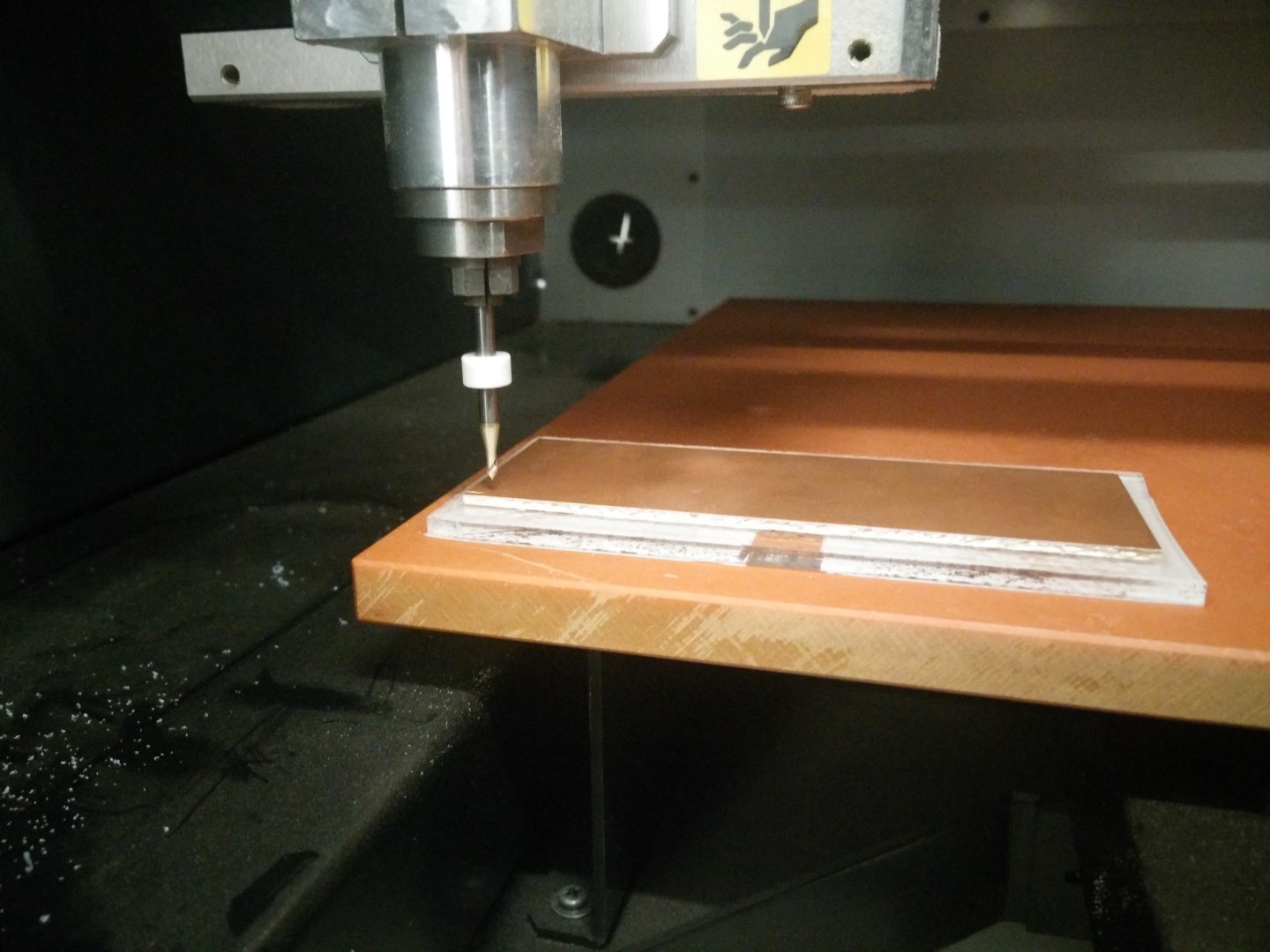

So I've started with the fabISP with a 0.1mm depth cut. But the surface it is not leveled at all. But what I was able to do is to use the calibrated Z0 sensor from our big CNC FRH210 with the Roland MDX40. It's a 12mm sensor, but the Vpanel only lets you enter a number between 14mm and 16mm. The solution obviously is to put 14mm, detect Z0 with the sensor, then remove the sensor and move the head so its 2mm. Then manually set Z0. Also, the length of the cable was not enough to reach modela's back panel, so I grabbed a stereo cable I had in hand, and I was mistake-proof enough to grab a broken bit to test the extension, being a stereo cable. I was right and wrong because it failed and had to change the tip and ring because modela reads the tip of the jack. I'll get parts to make an extension cord.

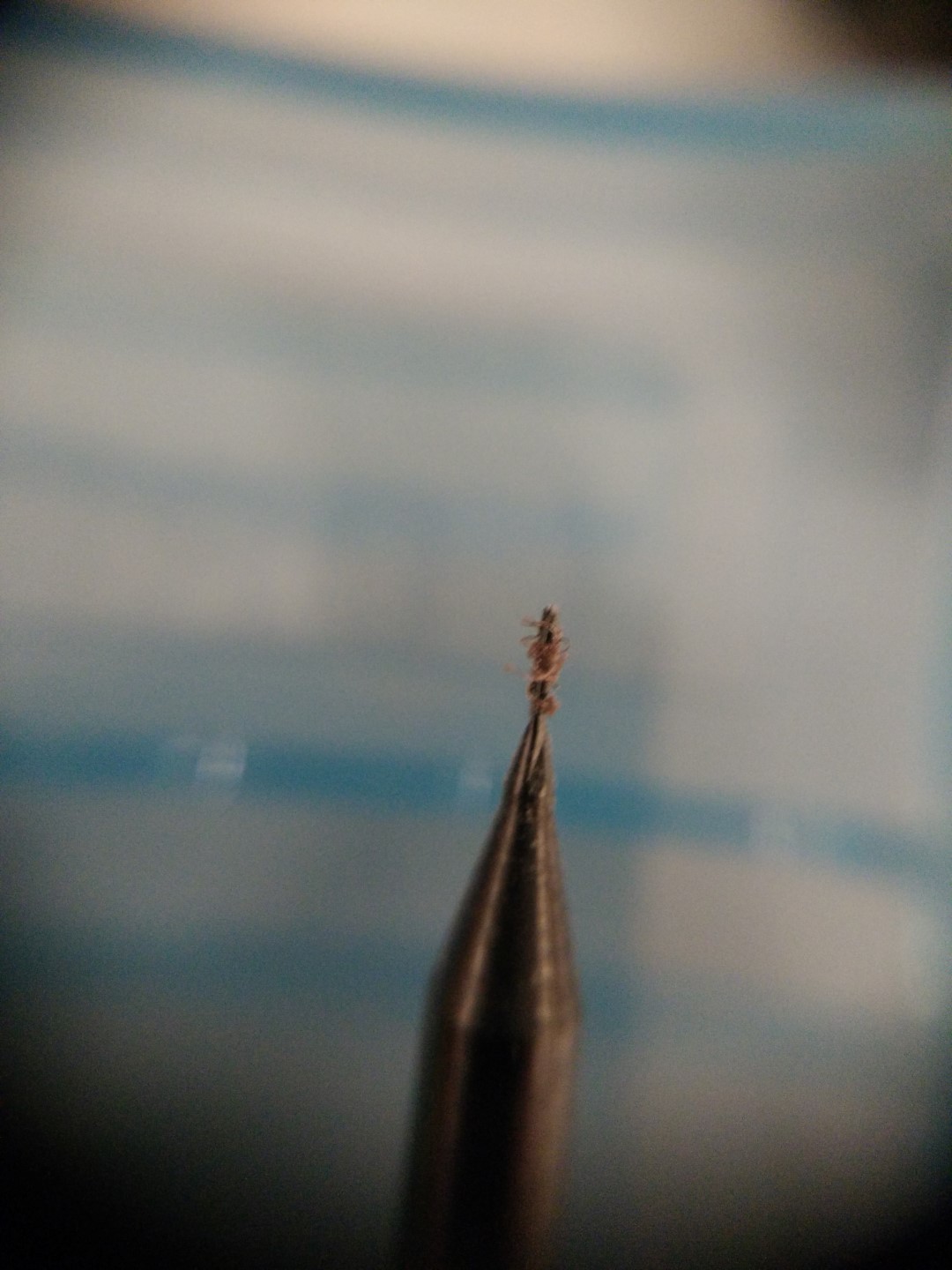

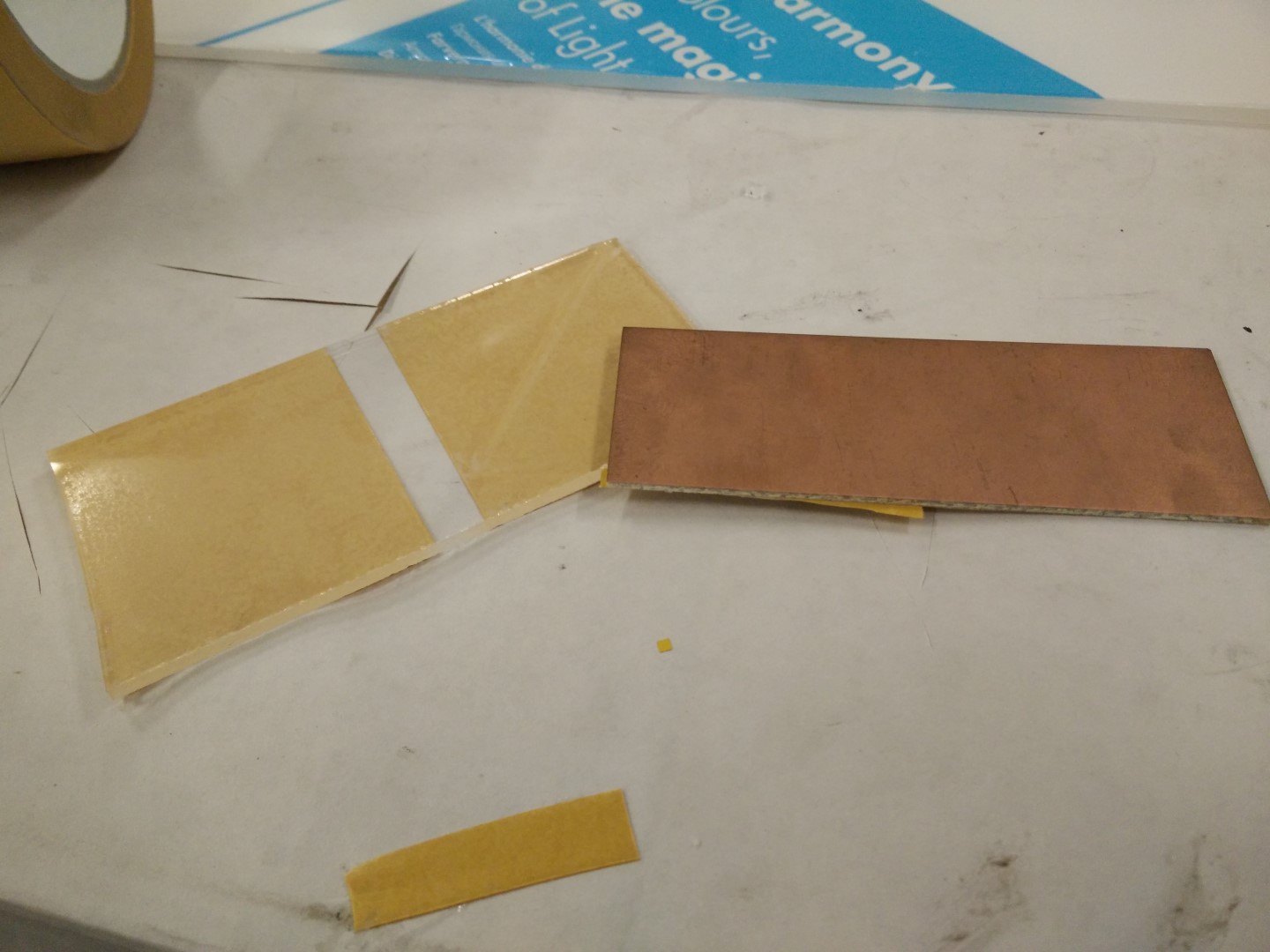

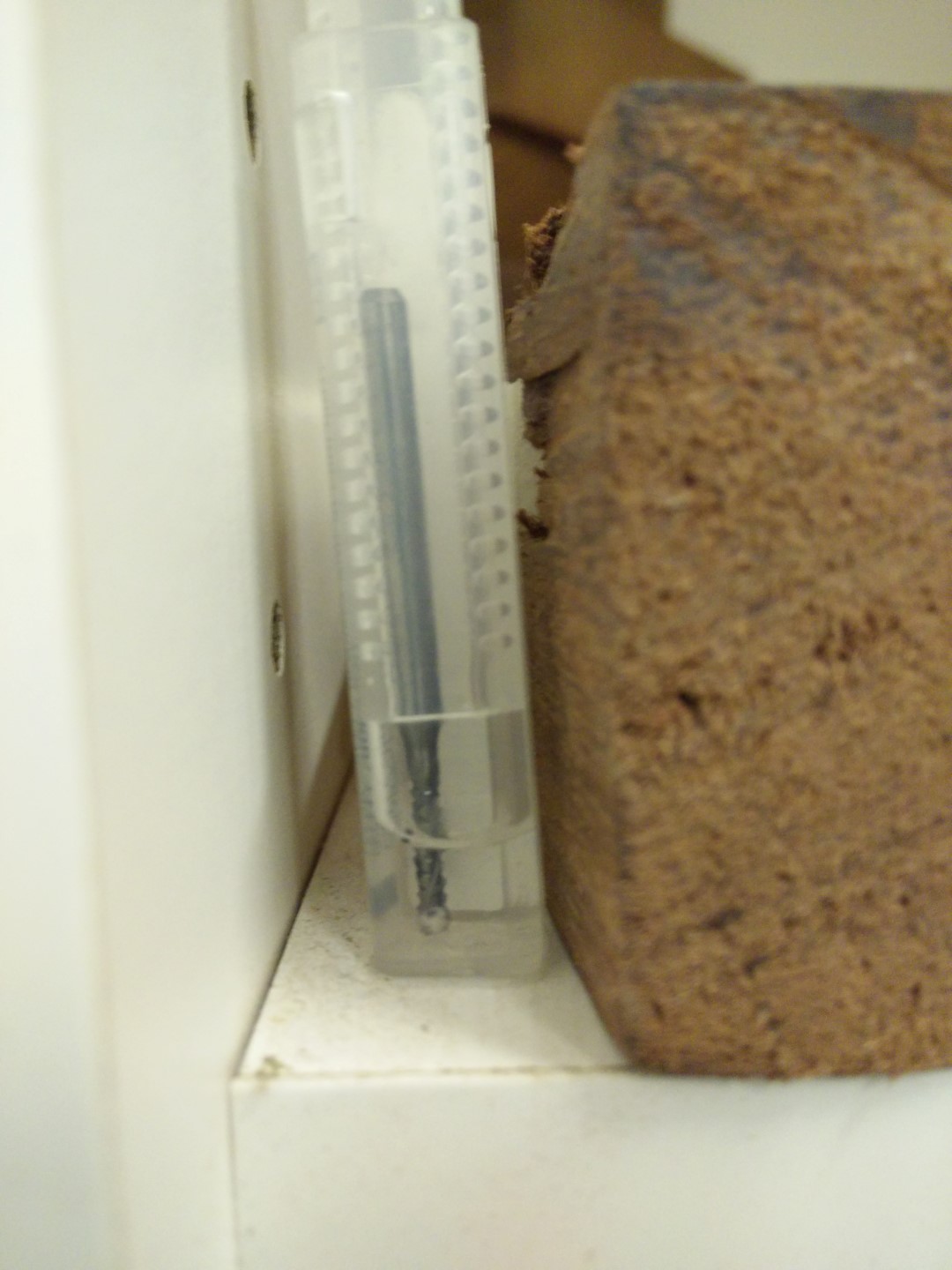

When I finished cutting out the PCB, there was a lot of residue from the double sided tape on the tip of the mill. So I picked up a mill box and poured a little bit of acetone just to cover the tip of the mill. Today in the morning I just shook it a little bit and it came like new.

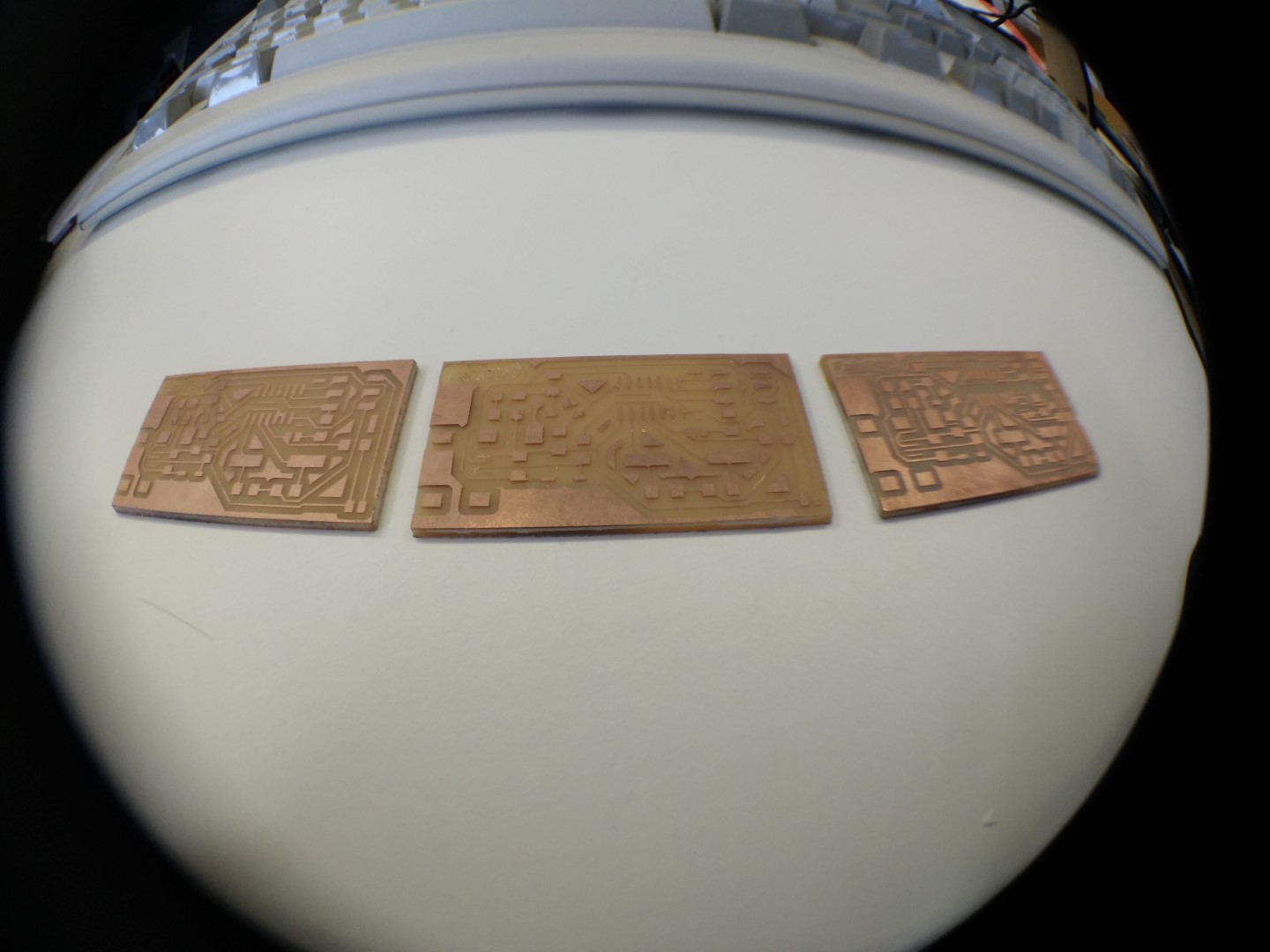

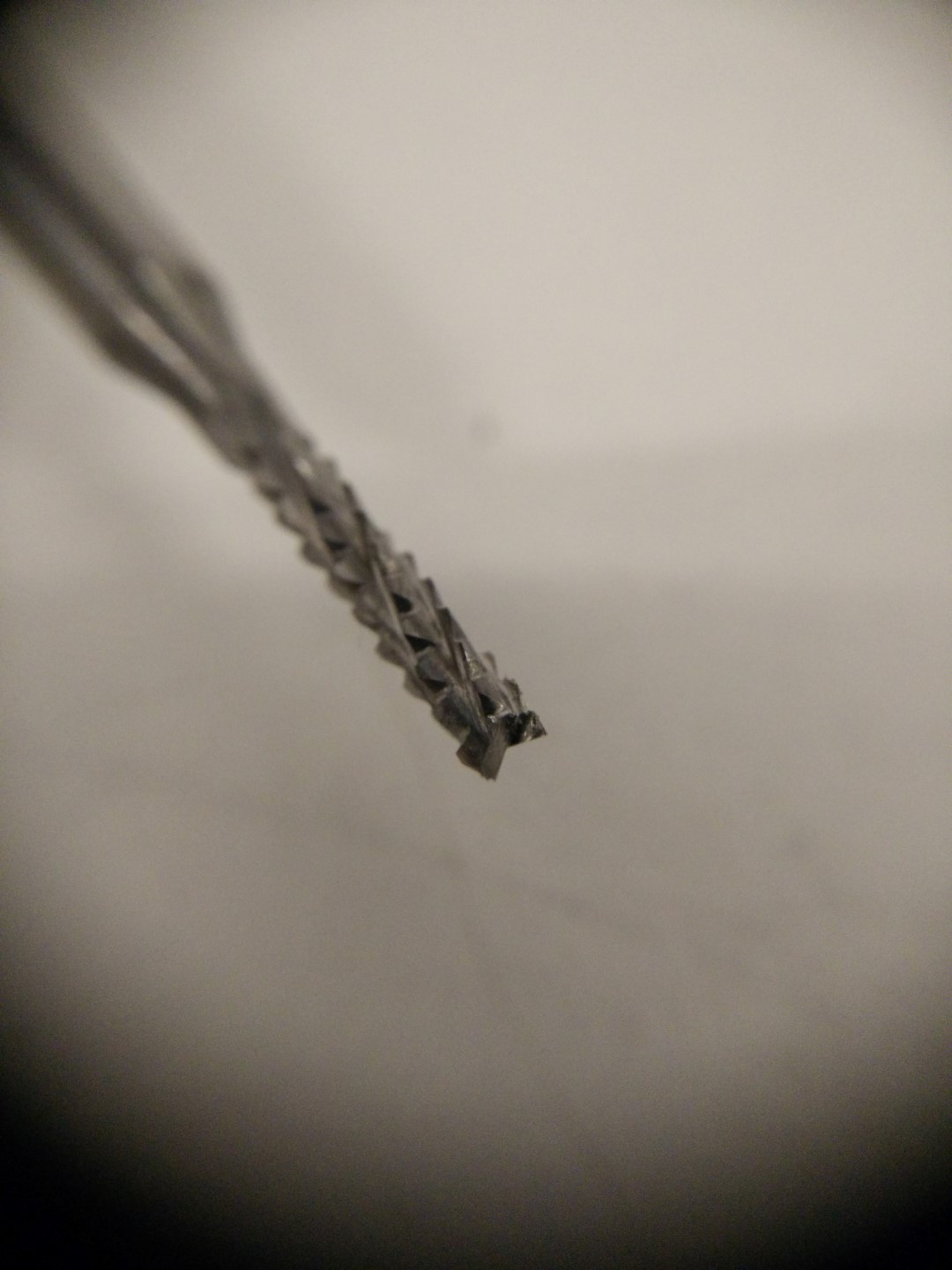

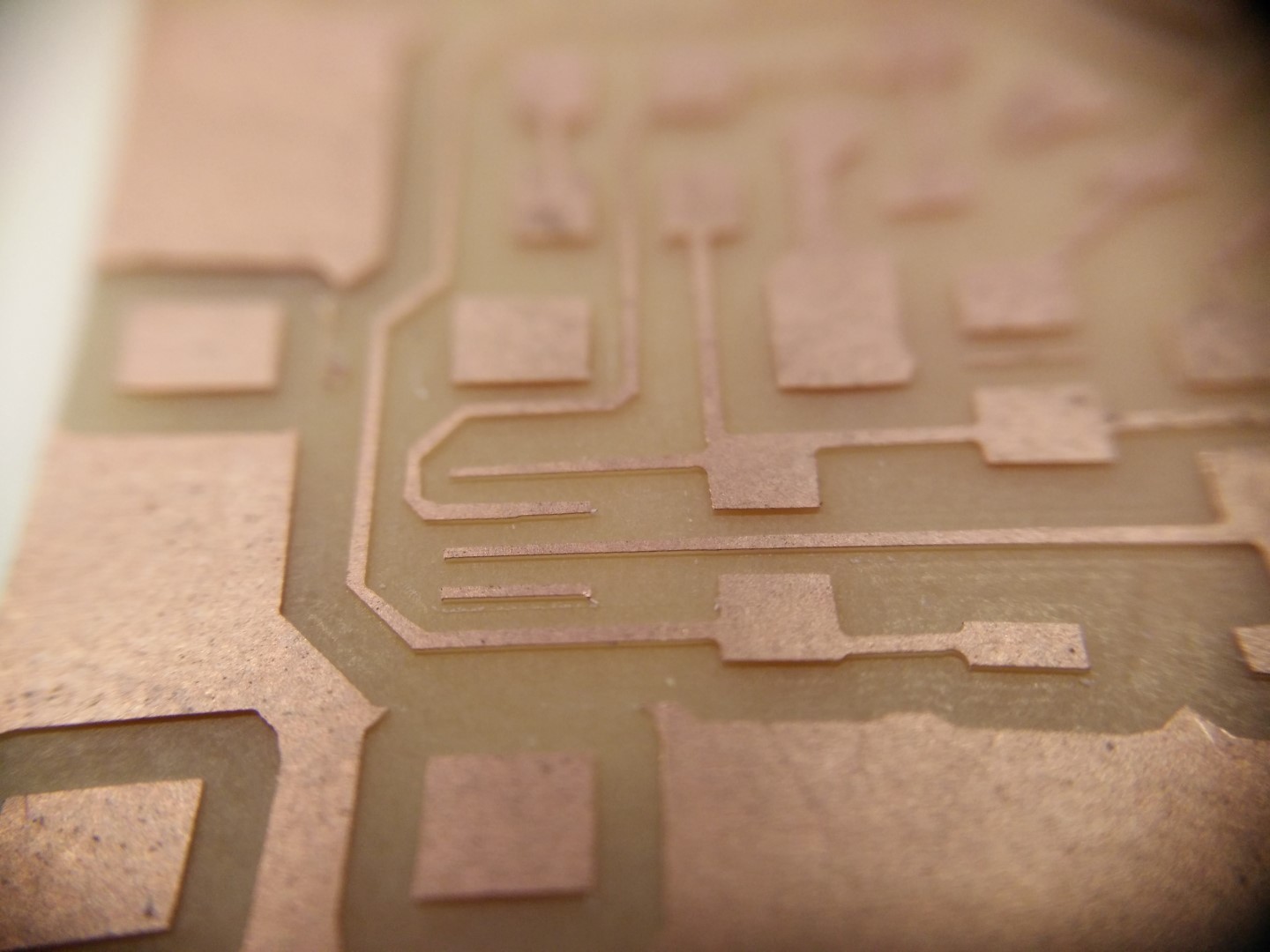

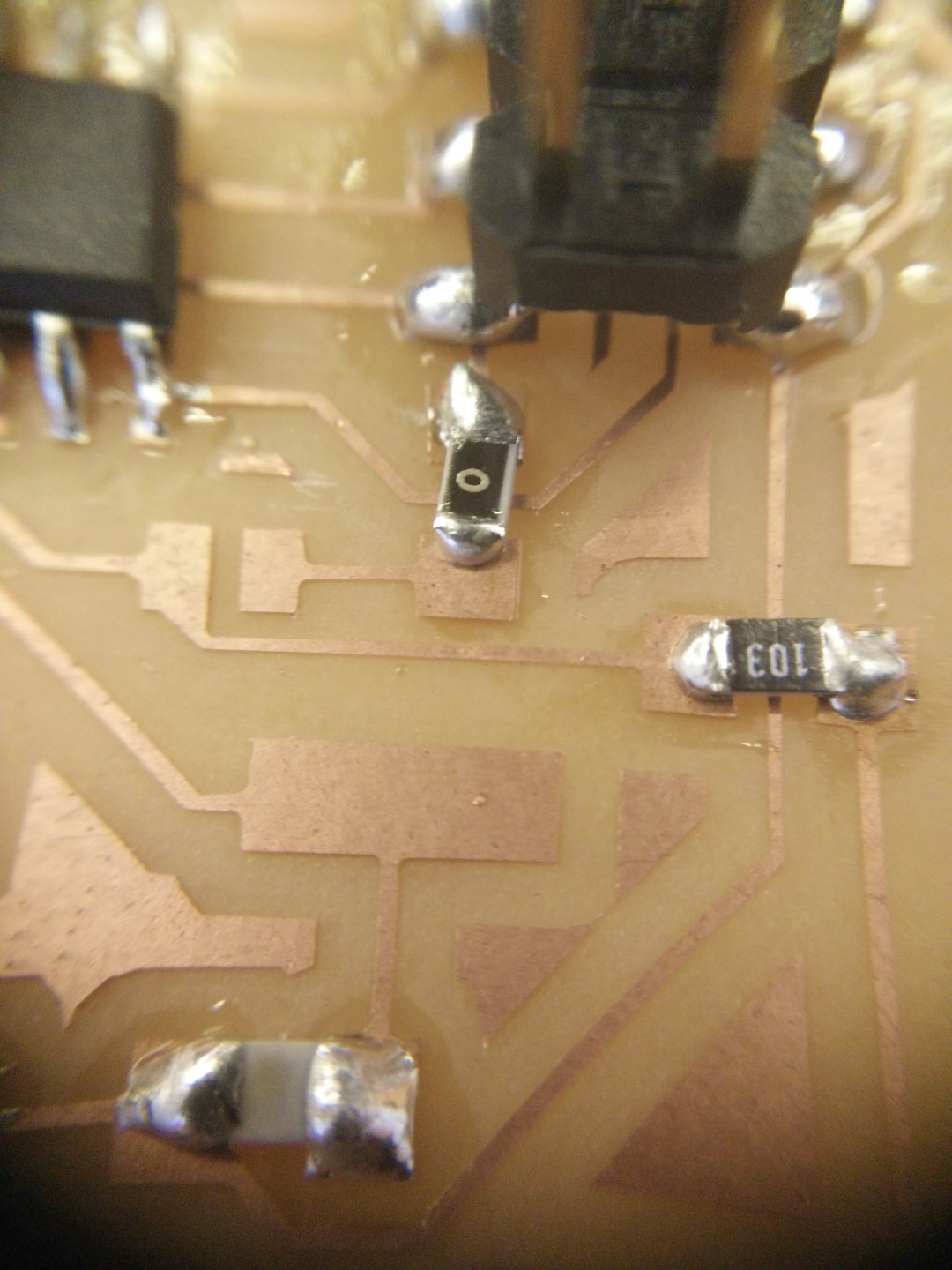

By the way! I don't have a good phone camera, but this was made with those cheap clip-on lenses selling on bazaars (online bazaars I mean) I got a 3 pack for about 4 or 5 EUR and it includes fish-eye, wide angle, and macro lenses. Fish-eye is funny, but macro is really cool to show Neil your solder skills and other fine details
Update: I've been a bit behind with electronics production because I was having difficulties to get some SMD components. But this week finally completed my fabISP board and programmed it. I've used a USBasp programmer, wrote the fuses then the .hex and now I have to check if I can program other boards with it, but that and other problems with the workflow comes in the updates on week 6.
Once the board was ready, I needed another programmer to flash the fabISP firmware into the µC. For this I've used a USBASP programmer by Thomas Fischl. Though my programmer is a Chinese version that you can get for as low as 1.35€. This programmer has a 10 pin connector and usually ships ship a 10 pin ribbon cable, but you can use just your breadboard cables (aka dupont cables) to connect them to your ISP connector. You can also get an adapter for a few cents more (or you can just make your board).
Also, not mentioned, I've installed AVRdude a program to talk via serial and program multiple ATmel's AVR µControllers. Once installed, I went to my terminal, which in my case is Cygwin, but can be the command prompt/system symbol but I strongly recommend using Cygwin. And then check for the installation on the PATH by just typing
avrdude
To check also that there is communication with the µC I add a couple of parameters to tell avrdude what to look for and I input:
avrdude -P usb -p t44 -c usbasp
This is also valid:
avrdude -Pusb -pt44 -cusbasp
For most cases, default fuses should be ok. Fuses are a set of flags on the microcontroller relating the inner working of the chip, like if the internal oscillator is enabled, if its pre-scaled. One easy way to get your fuses right is to use a calculator like engbedded.com You can just check what you want, and get the hex values for those fuses. That are new parameters to our avrdude call, including previous ones about the programmer, and the µC. -U is a memory operation then comes the fuse name, then :w: for writing, then the value, then the format, being "m" for inmediate
(from avrdude docs)-m immediate mode; actual byte values specified on the command line, separated by commas or spaces in place of the filename field of the ‘-U’ option. This is useful for programming fuse bytes without having to create a single-byte file or enter terminal mode. If the number specified begins with 0x, it is treated as a hex value. If the number otherwise begins with a leading zero (0) it is treated as octal. Otherwise, the value is treated as decimal.
avrdude -Pusb -pt44 -cusbasp -U lfuse:w:0x6a:m -U hfuse:w:0xdf:m -U efuse:w:0xff:m
Last thing is to get the .hex file, that is the program in hexadecimal that can be found here along the source code. For that, we can go to the directory where it is and call avrdude again
avrdude -Pusb -pt44 -cusbasp -U flash:w:filename.hex
That should upload the program and start executing it. If you have problems at first check connections then triple check connections (not only correct connection but also no shorts between the ISP lines). Also sometimes a bit of electromagnetic noise or a bad connection can be interfering, it is safe to get 3 "check connections" in a row before getting really to check connections although 99% it is a bad connection.
This video demonstrates the fabISP working. I'm using the already programmed helloKiCad board from week 6 and I'm not programming it, just calling avrdude on the parameters needed and getting the device signature, which is the "Hello World!" of the process of programming a board with an ISP, just to see if it detects the target and gets a correct signature.
