Mechanical design, Machine design
Assignment for 2 weeks
- Group assignment:
- Make a machine
- Including the end effector
- Build the passive parts and operate it manually
- Automate your machine
- Document the group project and your individual contribution
- Link to this week’s homeworkpages: Mechanical Design and Machine Design
This page focusses mainly on my contribution. See the group page for a more global vision of the group work.
Designing the machine
After discussion, we decided to build a laser engraver with a maximum power of 2W for the laser.MTM

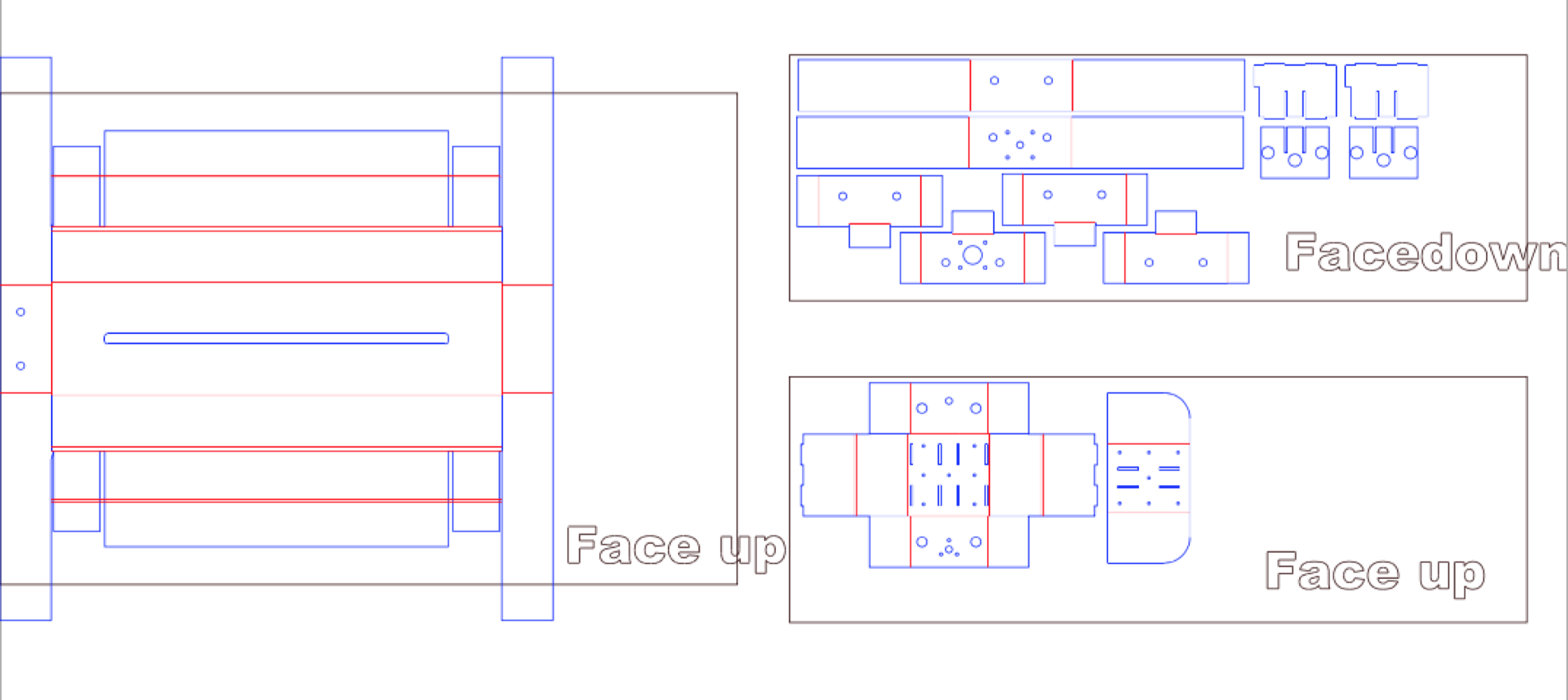

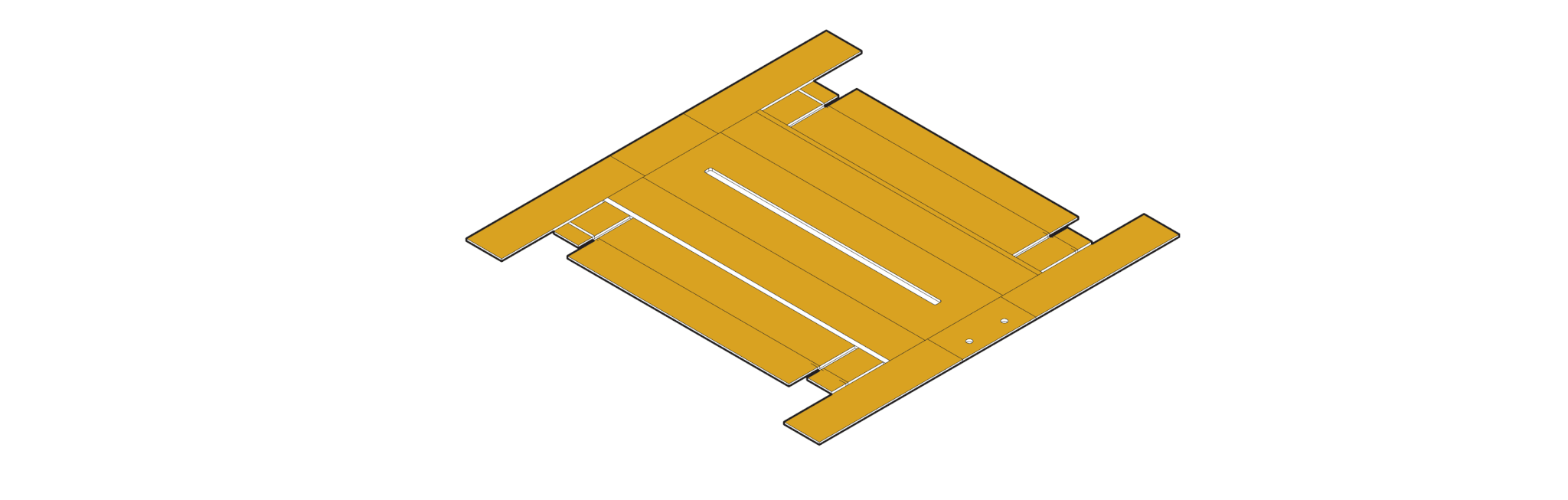

While Patchi and Mathieu who are our experts in mechanical design started to think of a design for the machine, I decided with Christian to spend some time on the cardboard stages presented for the Machines That Make (another interesting page on the reconfigurable stages can be found here. On the page one can download a file CRDBRD_STAGE.dxf that can be converted in other formats using an DXF online converver.
The problem with this design is that it was two big to be cut with our Trotec laser cutter (600 mm x 300 mm).
In parallel, I assisted Andreas with the test of the laser.

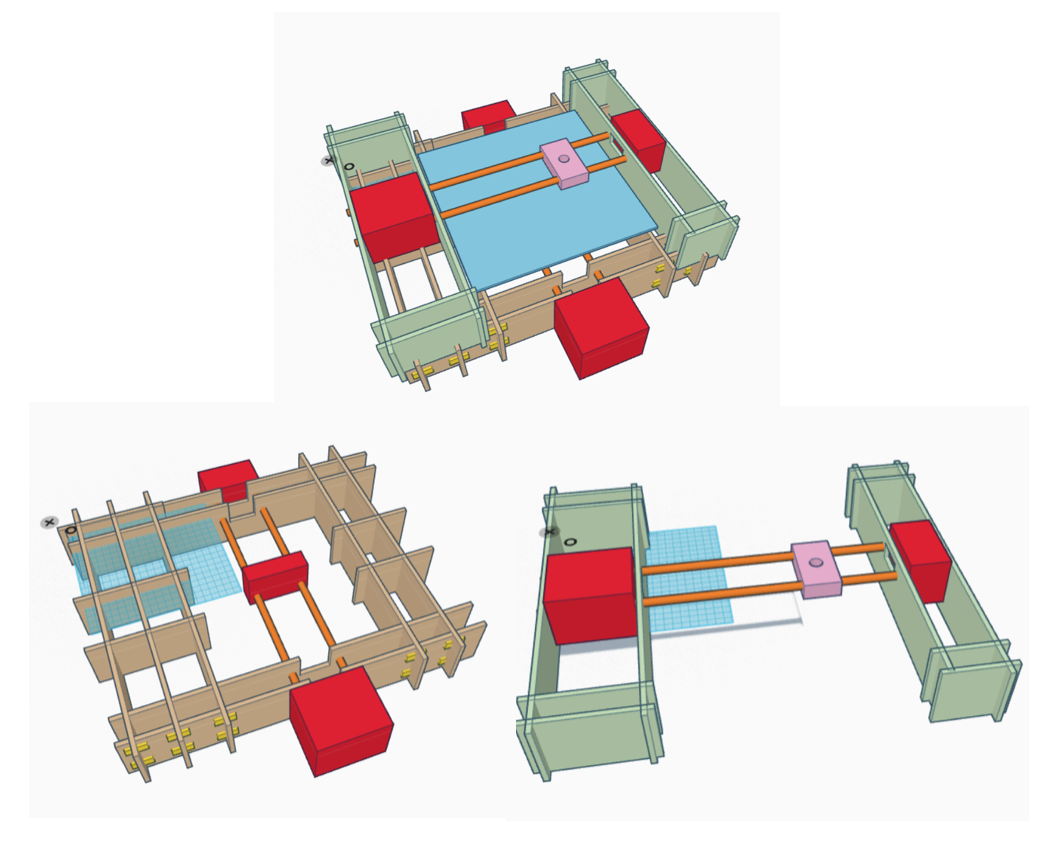

In the mean time, Patxi made a real design for the machine and started producing design files for the laser cutter.
More on this part on the group page.
