Week 15 / Networking and Communication

Step 1

I built the Serial, for a reason of timing i had to mill the boards before to redraw them

The boards on the pictures are not the boards in the final tests below

Eagle Node and Bridge

Source

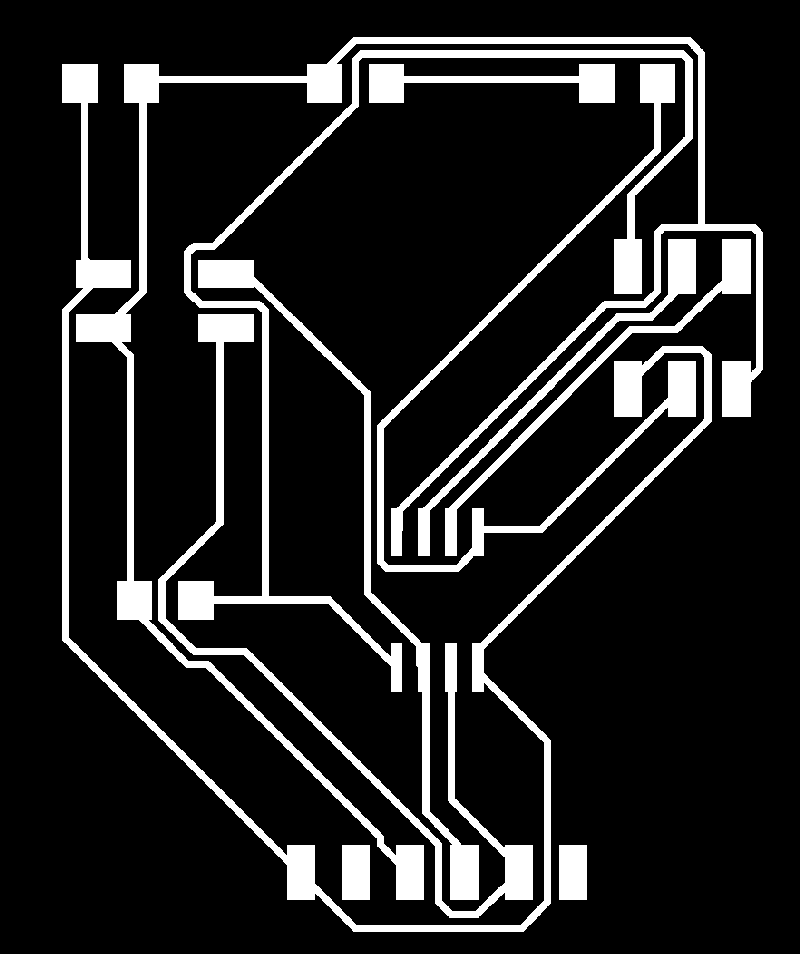

Bridge

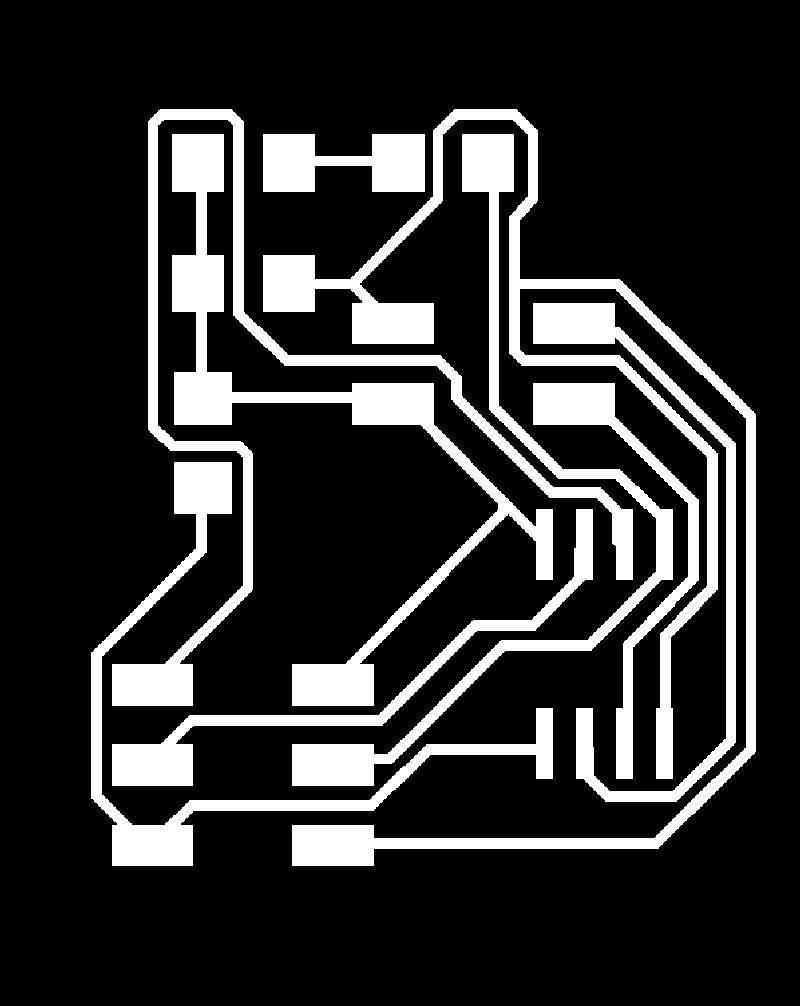

Node

Step 2

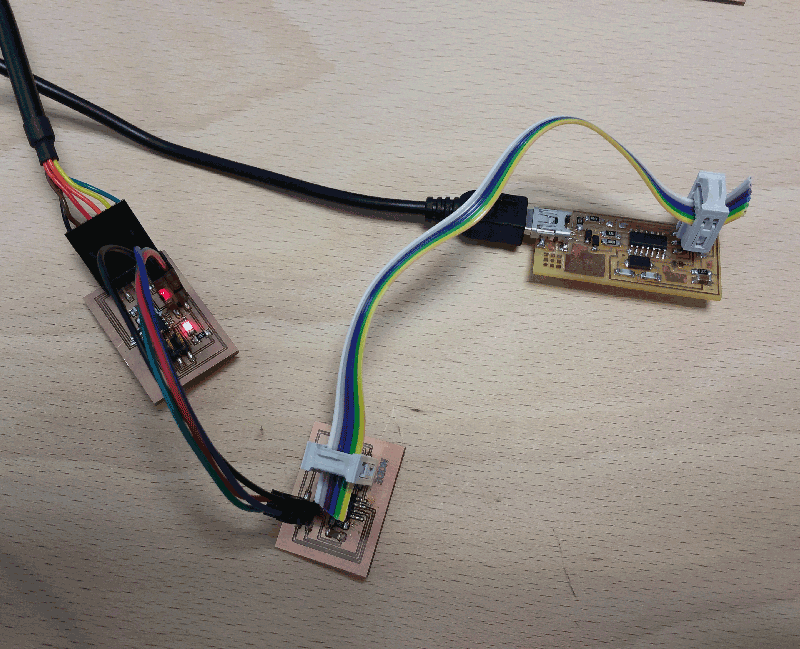

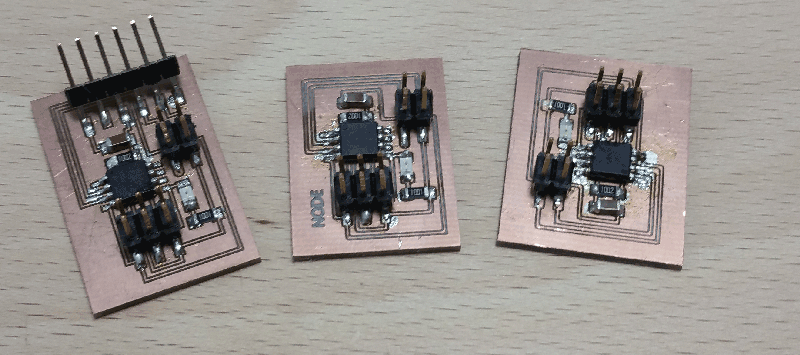

I milled and stuffed the boards

Then i programmed them with IDE arduino

Don't forget to look after ATtiny librairies, watch your settings in the tools of the IDE

See here

Copy the C code on the nodes, make sure you have given a different number to every one of them (#define line_id'nb')

Step 3

Test
