Jhon Irwin Lozano Meza
Fab Academy 2017 | Hosted by FabLab Tecsup | Lima, Perú

Final Project

"FABA CLUB v.0.1"

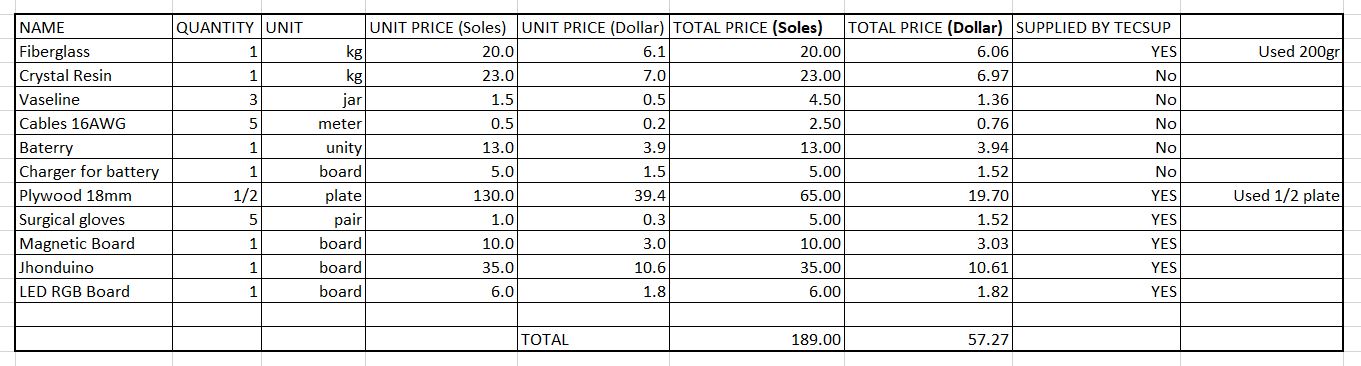

WHAT MATERIALS AND COMPONENTS WILL BE REQUIRED?


Hardware:

-Fiberglass

-Crystal resin (part A / part B)

-Plywood 18mm

-Vaseline

-Surgical gloves

-Acrylic 5mm

Electronics:

-Hall effect sensor board

-Jhonduino (version of fabduino designed for my project)

-Cables 16AWG

-LEDs RGB board

-Battery

-Charger for battery




CHAPTERS WORKED ON THIS PROJECT


>> Computer-Aided Design:Used this chapter to do my 2D and 3D design.

>> Electronics Design:I designed my electronics boards. JhonDuino, sensor boards.

>> Electronics Production:I manufacture my electronics boards.

>> Computer-Controlled Machining:I use a router CNC to make molds.

>> Embedded Programming:Did my own code according to the sequence I needed.

>> Input Devices:Use a magnet sensor.

>> Output Devices:Used LED RGB

>> Composites:Using this topic the chassis was manufactured.


PRESENTATION



SLIDE


VIDEO


LICENSE AND FILES


FabaClub v.0.1 by Jhon Lozano is under [OSHW License] allowing it to be reproduced and improved anywhere in the world, the files to manufacture are found in each chapter of this Diploma. My main goal is to bring joy to people, especially children.


ACKNOWLEDGED WORK DONE BY OTHERS


I research the internet looking for ideas. I found many tutorials, people, videos where show how to make clubs using plastic bottles, wood stick and different recycled materials. It help me to understand how is assembled. I could not find something similar to what I want to do.

Here, a video.


My first idea, a project for future > It is a promise!


Huancayo is a place where one of the main commercial activities is agriculture. Most of people around Huancayo downtown are farmers. People cultivate land to have foods to eat. Also to have money for anothers needs when they market.

There is a well-known and higher-production tuber, the potato. Huancayo and Concepcion, another farmer place, have 800 varieties of potato of the 3000 existing in Peru. A great pride for the inhabitants of the area.

In the whole process to obtain this food "Peruvian potato", recognized worldwide, the last stage where the earth is removed to obtain it is necessary to have enough staff whose work is hard and arduous. In addition, the inclemencies of the climate make it harder sometimes.

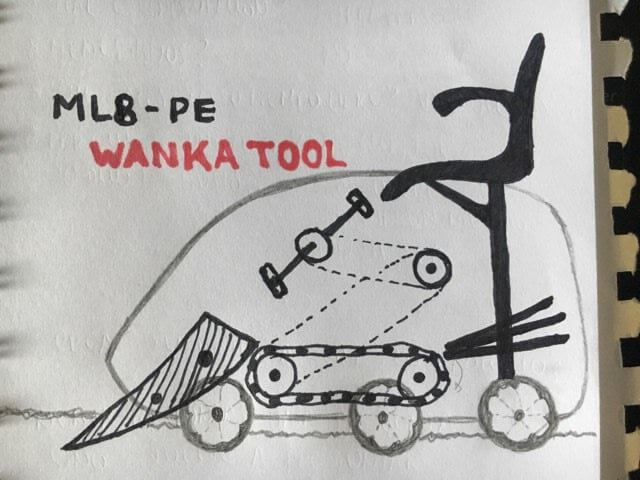

This is where born the idea of my final project, the ML8-PE "Wanka tool". A machine which can help farmers giving them facilities to improve their quality lifestyle. This will work with mechanical energy from the pedaling of a person sitting on the machine.
