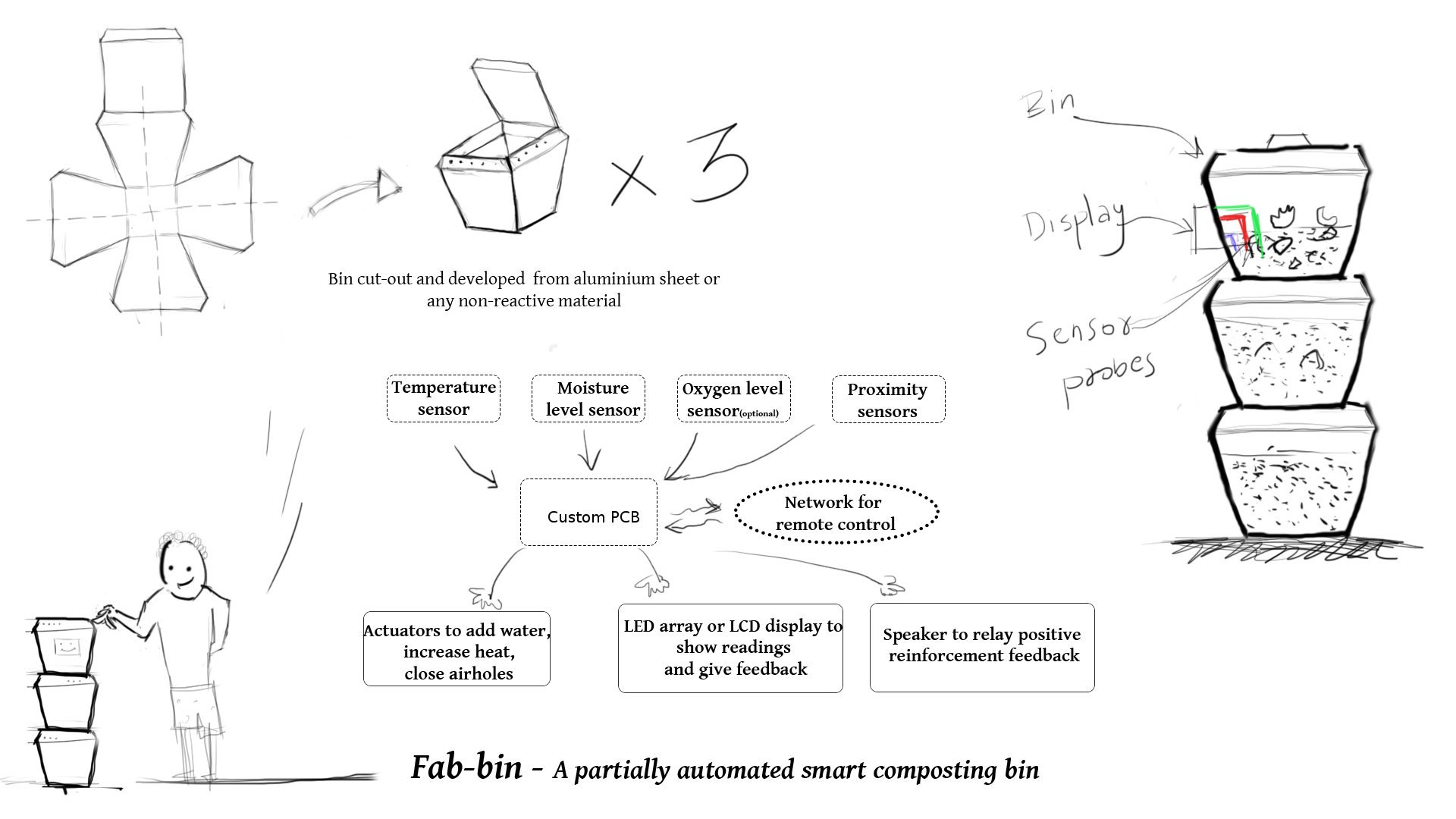

My final proposed project is a Compostiing bin which automates the process of agitatiting the compost for aeration, moisture control for odour-reduction, pH control and strives to gather as much data as possible to be interactive, insightful and entertaining.
Projects augmenting a WetGarbage Bin such as an automatic sorter? with spectral analysis capabilities perhaps (0_o) would be potential collaboration projects.
During the global lecture of week 9 (output devices) Fábio Pelicano borges vieira a student from FabLab Insper presented his final project which was a waste sorter! exactly what I presumed might be a potential collaboration. So, I decided to contact Fabio, but unable to find his contact details, I decided to email one of his classmates at random and emailed Victor Macul and never tell me the odds but Victor happens to be doing a very similar project as mine and we decided to help each other out with design issues and such.
Projects/Inventions augmenting a WetGarbage Bin such as an automatic sorter? with spectral analysis capabilities perhaps (0_o) would be potential collaboration projects.
NatureMill - Shortcomings identified
In-built agitator gets tangled with strandy and long items like a banana peel (a signature garbage item)
Low capacity
Expensive
requires manual pH-control and moisture control
Doesn't gather data
Not networked

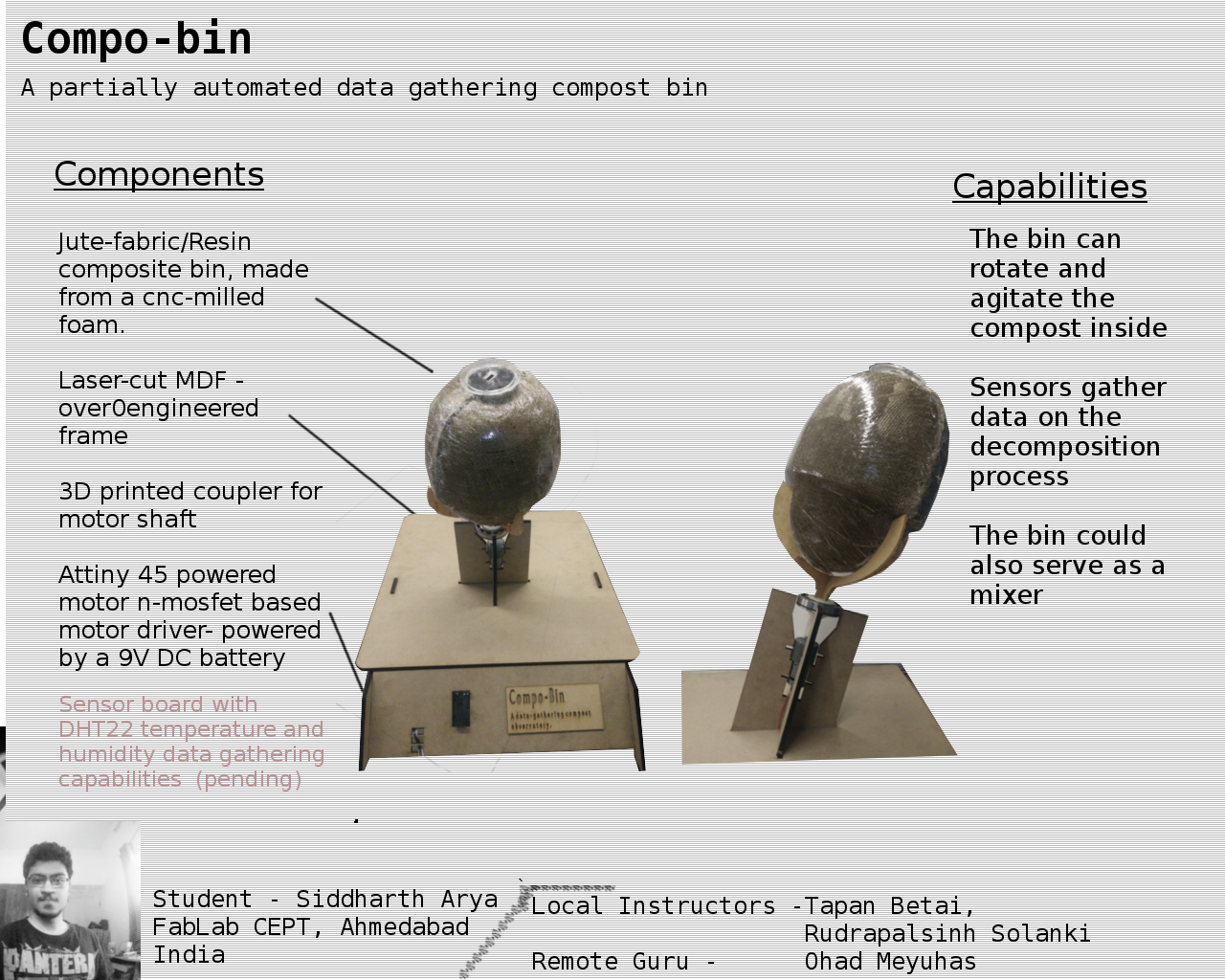

In the first spiral of developing a robust composter, I've decided to complete the following simple components

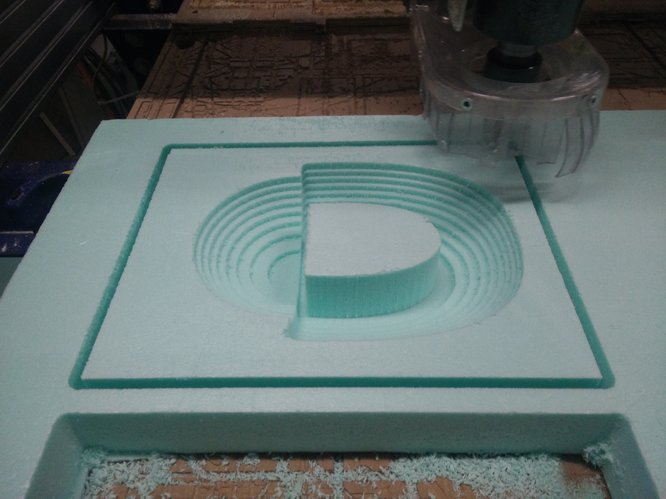

The design for the mold was milled in OnShape and milled out of XPS insulation foam, detailed workflow is documented in Composites week

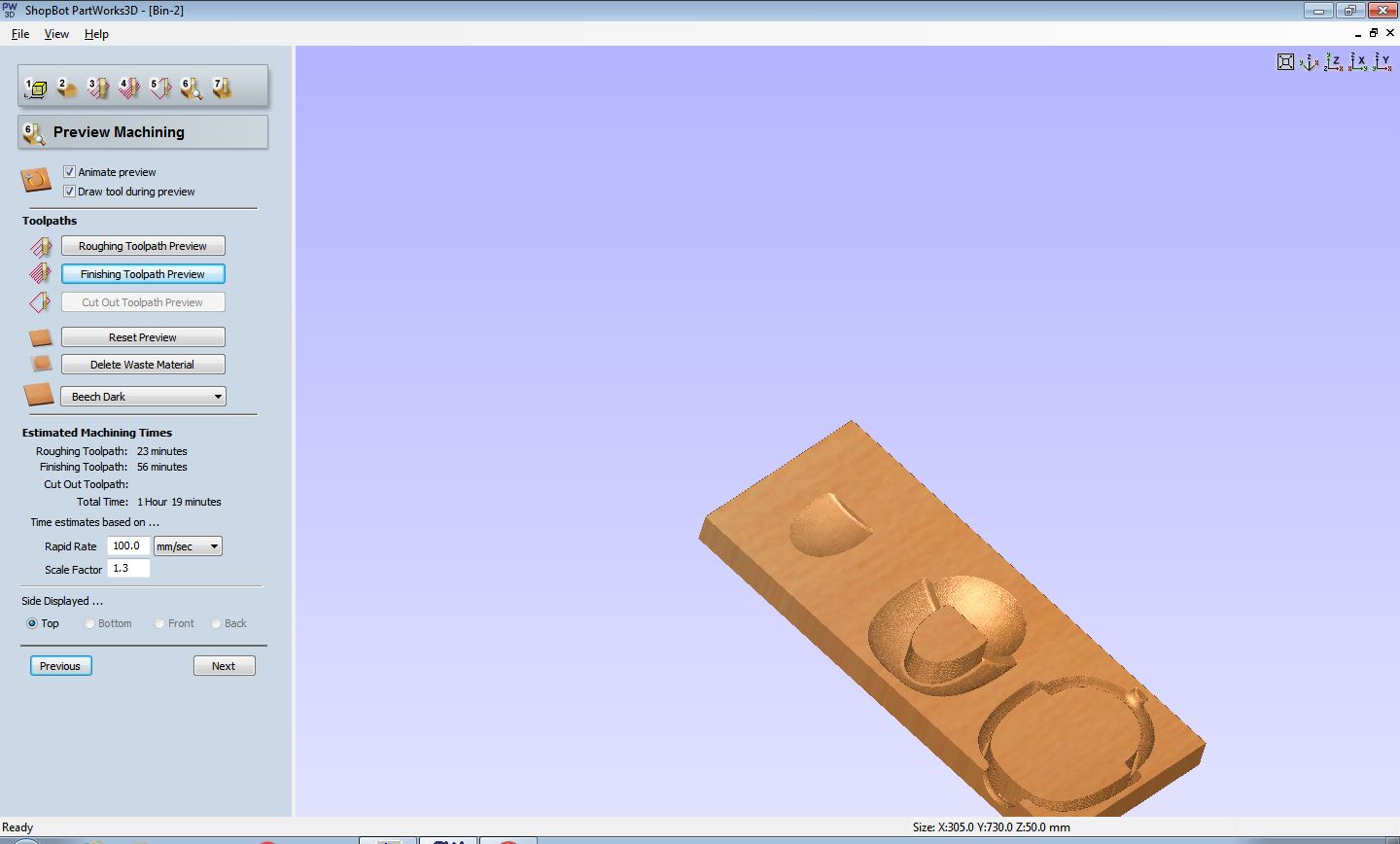

The toolpath was generated in 'Partworks 3D' - more step by step documentation is in Composites week

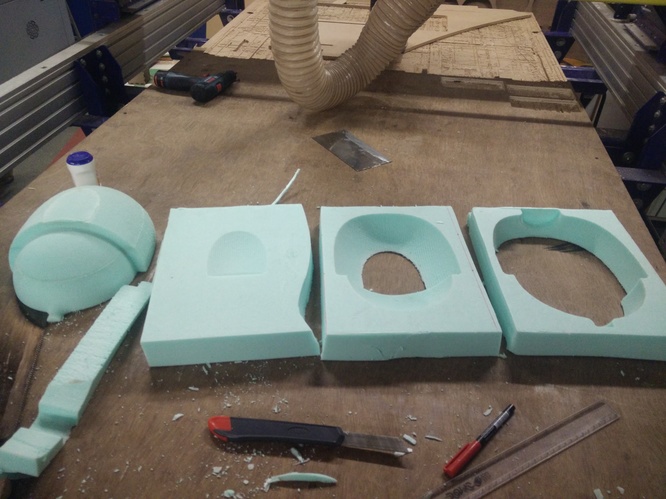

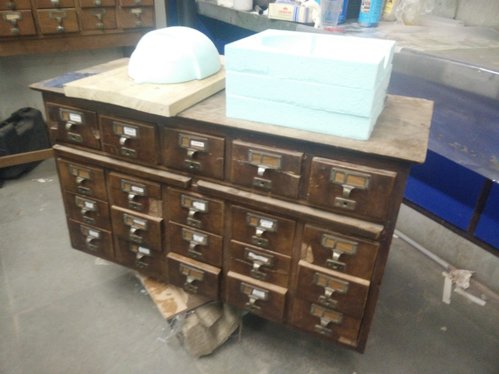

After milling the layers of the mold, I used synthetic rubber based adhesives (Fevicol SH) to combine all the layers

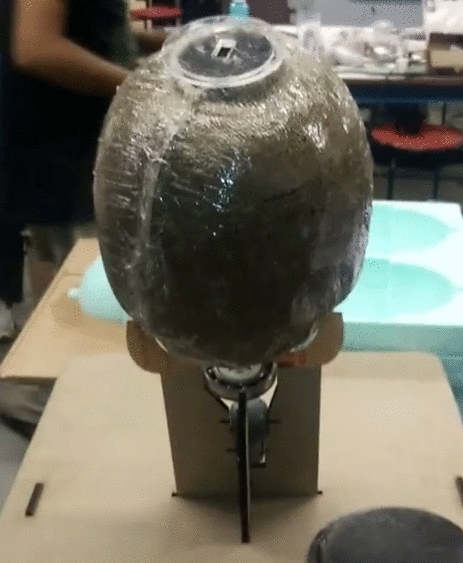

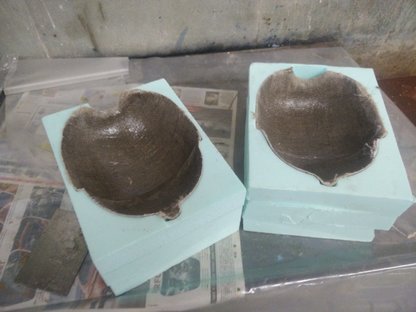

Next steps were laying resin-soaked fabric pieces to form the composite part and applying pressure on the fabric layers using 2-part mold and clamps
the 2 parts are here temporarily joined by glue-gun magic, but a permanent fix would be laying strips of resin soaked fabric (the same kind used in the bin)

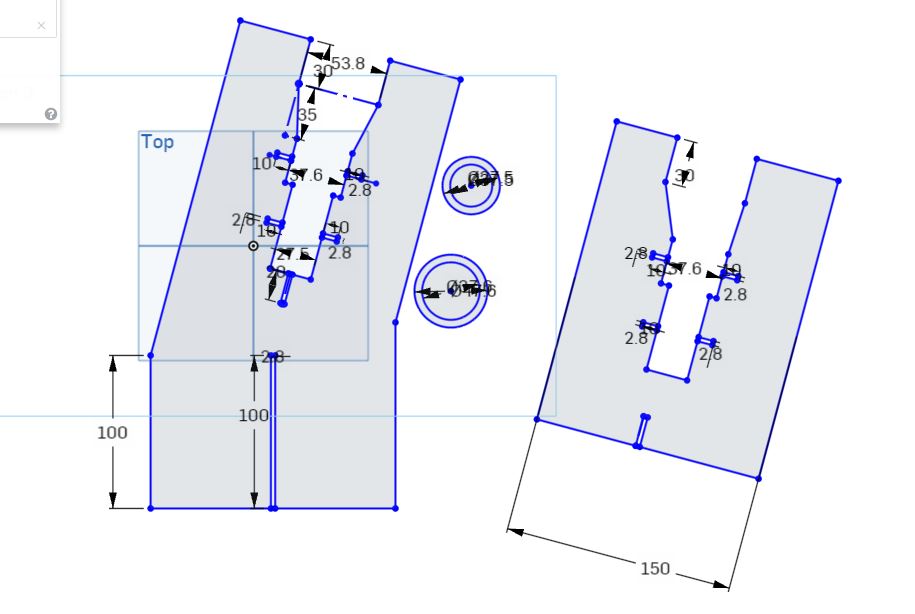

The coupler is intended to hold the acrylic brackets and couple it to the motor's shaft

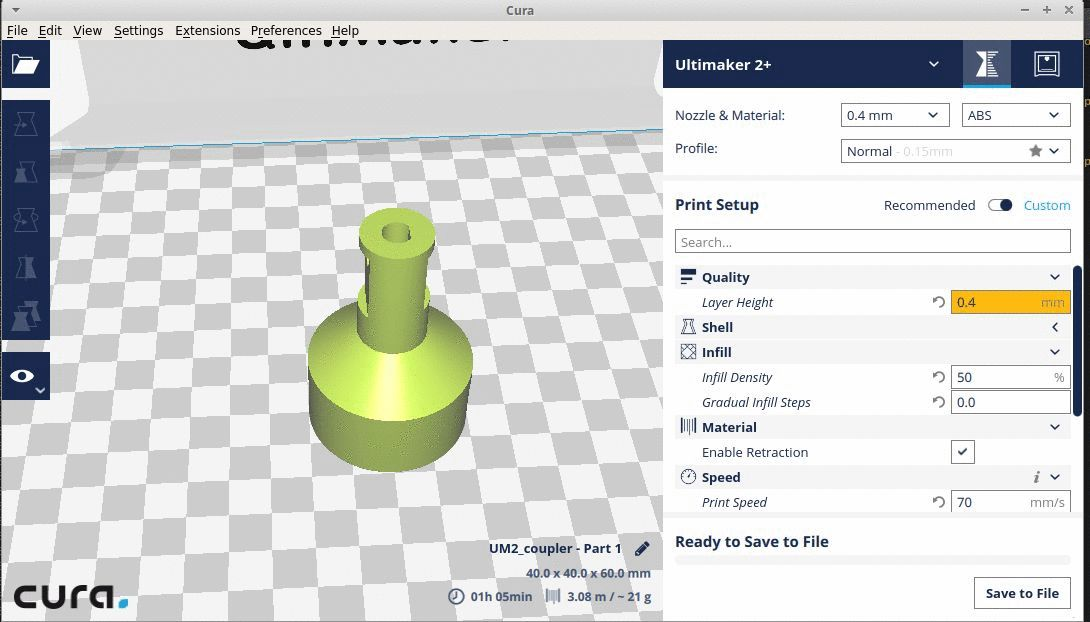

It was designed in OnShape >> Exported to STl >> Imported in CURA >> exported as gcode and then printed in ABS material in an Ultimaker 2+
Input sensor - driven by attiny45
View post on imgur.com
Settings for MDF
Speed | Power |
30 mm/s | 90 % |
Settings for 3mm acrylic
Speed | Power |
20 mm/s | 70 % |

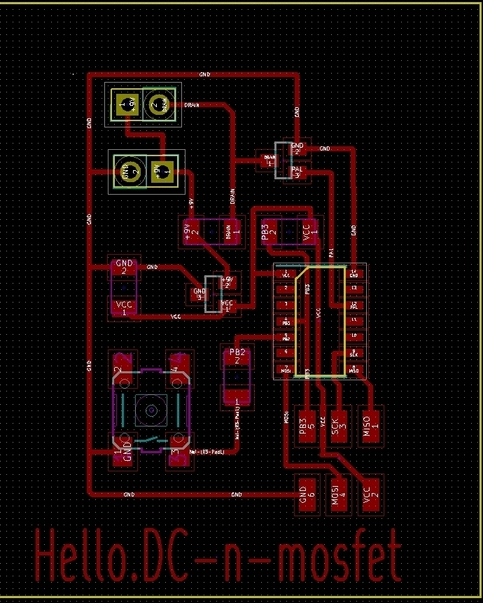

The motor board and the sensor board are not connected to each other, as I did not need to network them, the motor has to run in periodic intervals, and I'll be collecting the sensor data at odd intervals when I determine the need for it. The overall schematic of electronics is as follows.

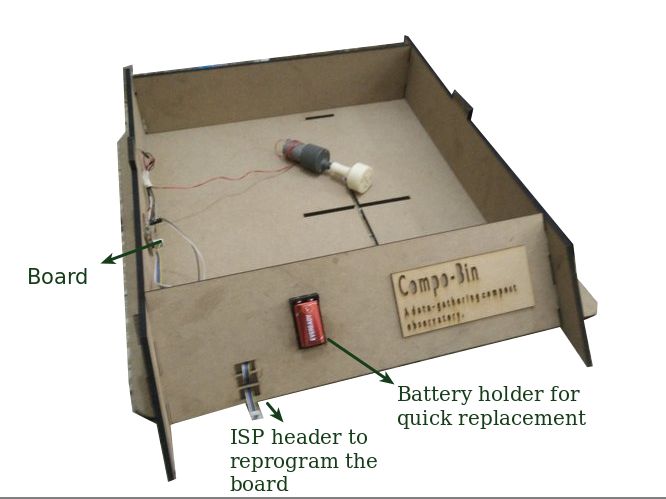

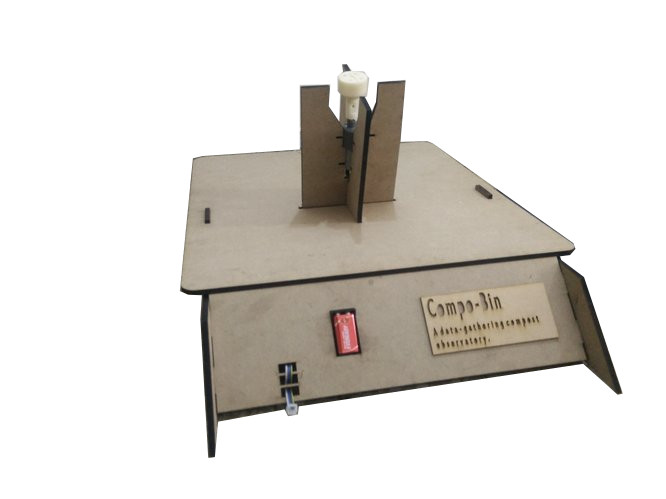

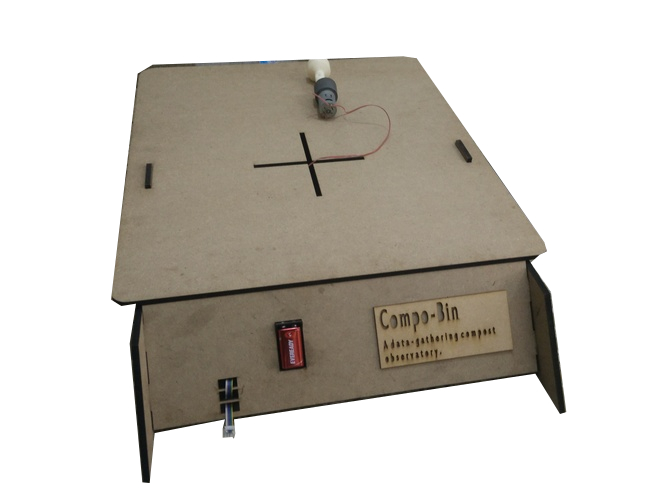

The DC motor control board is embedded inside the bin-frame and the battery is located outside for easy replacement
void setup() {
// initialize digital pin 13 as an output.
pinMode(8, OUTPUT);
}
// the loop function runs over and over again forever
void loop() {
digitalWrite(8, HIGH); // turn the MOSFET-GATE on (HIGH is the voltage level)
delay(10000); // wait for 10 secondS
digitalWrite(8, LOW); // turn the MOSFET-GATE off by making the voltage LOW
delay(300000); // wait for 5 MINUTES

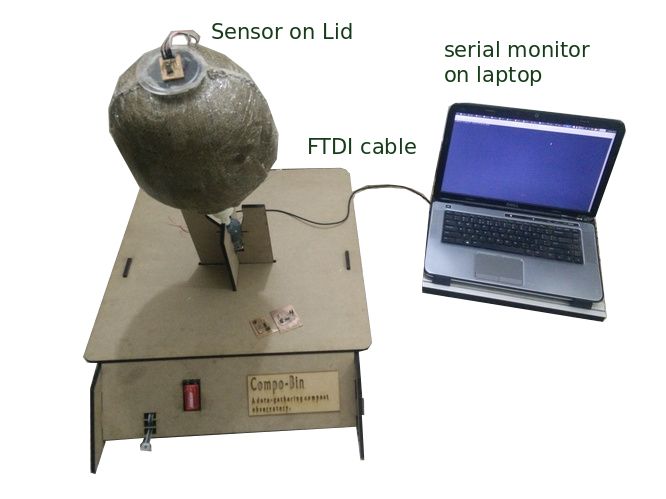

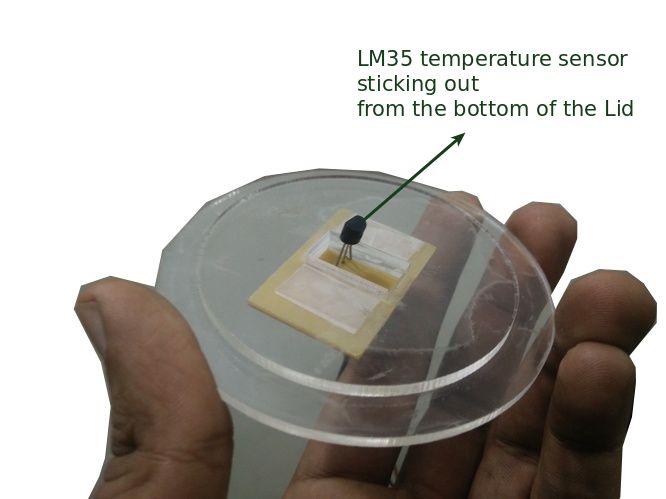

The temperature sensor board is attached to the lid of the bin, the idea is to have multiple sensor boards in further development, so another gas sensor board etc. When I have to take a reading, I insert the particular Lid i want.
#include //library to replace hardware serial
SoftwareSerial myserial(3, 4); // TX and RX pins (transmit and recieve)
#define tempPin A1 //Defining the pin A1 as the data pin
int val;
void setup()
{
myserial.begin(9600); //serial begins at 9600 baud rate
pinMode(A1, INPUT); //pin A1 becomes an input now
}
void loop()
{
val = analogRead(tempPin);
float mv = ( val / 1024.0) * 5000; //mapping analog values to relevant temperature readings
float cel = mv / 10;
float farh = (cel * 9) / 5 + 32;
myserial.print((char)cel);
delay(10);
}
Reasons for choosing the 'LM35' sensor over the one in the Lab-inventory
Senor integrated in the project - intent - is to use the project as a desktop composter (data collector) and have multiple lids - each lid with a different sensor but same FTDI RS 232 protocol communication.
final-project.zip
OnShape document holding all design files
Output-motor-controller board code
LM35 code input board
