_Final Project_DIS/ORDER

_Introduction

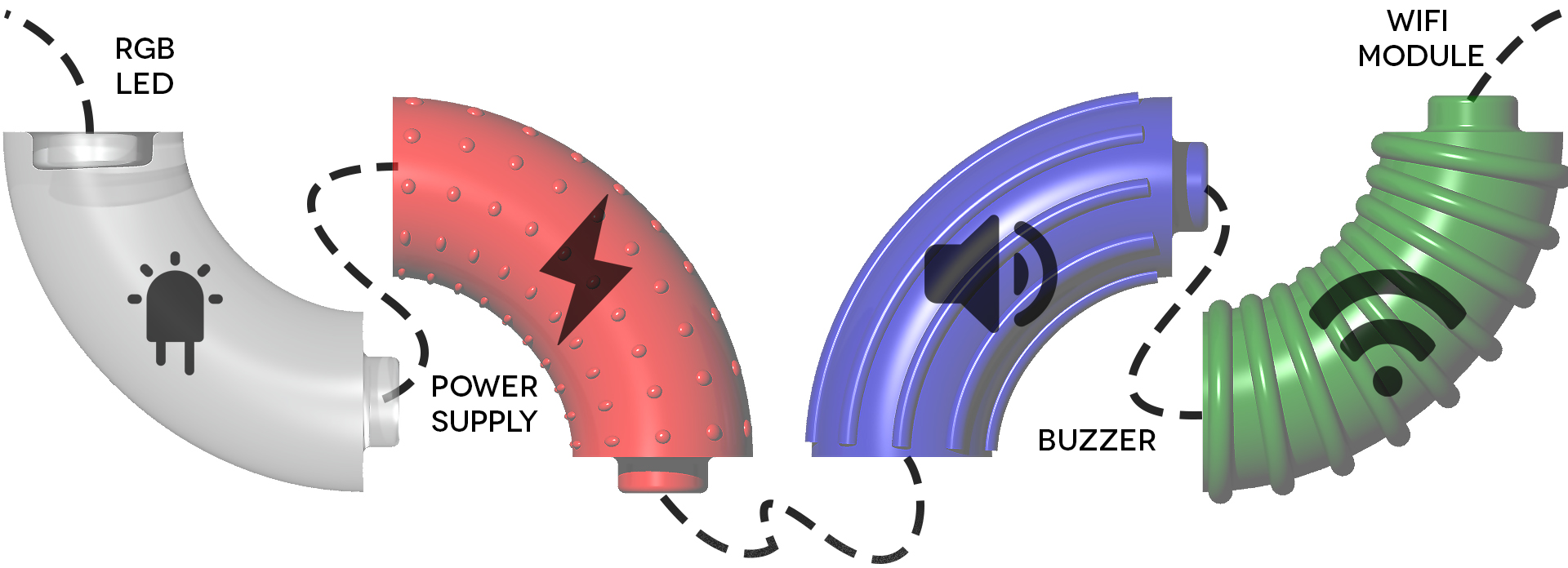

DIS/ORDER is an innovative tool based in digital fabrication, parametric design and ADHD education to make circuits in a funny way keeping focus the kids while providing funds of electronics, robotics, IoT, programming, 3D printing and 3D design. Putting together the four modules will create a circuit which can be control from the digital platform.

_Background

The idea of the project began with an application for a scholarship that comes from the FabLat Kids Network to have the opportunity to study the FabAcademy and develop the project that will continue to promote the work of the Fab Lat Kids network, enhance the value of multiculturalism through technology and contribute to the formation of the emerging generation of leaders of a society with collective, human and shared values. The project must be aligned with the vision of FabLat and for the benefit of the Fab Kids initiative to reproduce it in each local fab lab.

I am also working together with a friend who specializes in children with special needs on how to start generating inclusive workshops for the network but mainly on those children who do not have a "special need" but who for some reason are not considered within the average.

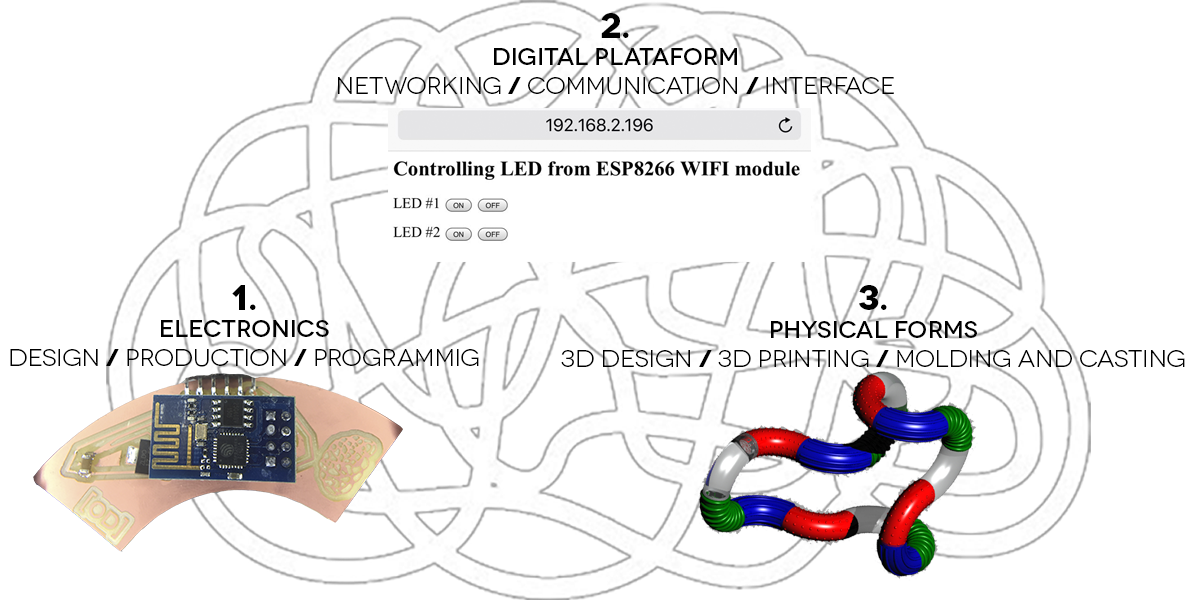

_Workflow /Step by Step

What is the deadline? How much time do I have left?

  • June 16th for the final presentation is the deadline for the first iteration of the project.
  • What tasks have been completed, and what tasks remain?

  • Have been completed all the electronics design and production and also the first part of coding the interface for communication that is create my own hotspot without wifi network. As well, all the 3D files for the molds and pieces.
  • Remain tasks like make the properly conections between each board without the jumpers and use the spring loaded pins (pogos), making the molding and casting of each pieces and control the amount of current for the circuits (WIFI module consumes al lot!).
  • How will I complete the remaining tasks in time?

  • Most of all the electronics and the coding have been made, I have to schedule the 3D printers for the molds and then cast the cases but im not sure if the castings will have the definition for using the pogos for connecting.
  • What has worked? What hasn't?

  • All the boards and the communications between everyone, the web interface for controlling the outputs and the size of the 3D design for the cases.
  • The 360° connections with the pogos because they are to small to managing and making the corrects connection and the current enough of the 4 coin cells batteries
  • What have you learned?

  • Adapt each microcontroller to the personalized board that i need, making communication each board between and controlling from a web interface sending and receiving data from each microcontroller.
  • Bill of materials

  • Full list of components and prices
  • This list present how much it cost each module with their electronic components and the extra materials present all the others materials (this have asterisk because you can cast more than 4 modules with that amount of material).

    License

  • This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.

    Creative Commons License

  • _Project Development

    _Electronics

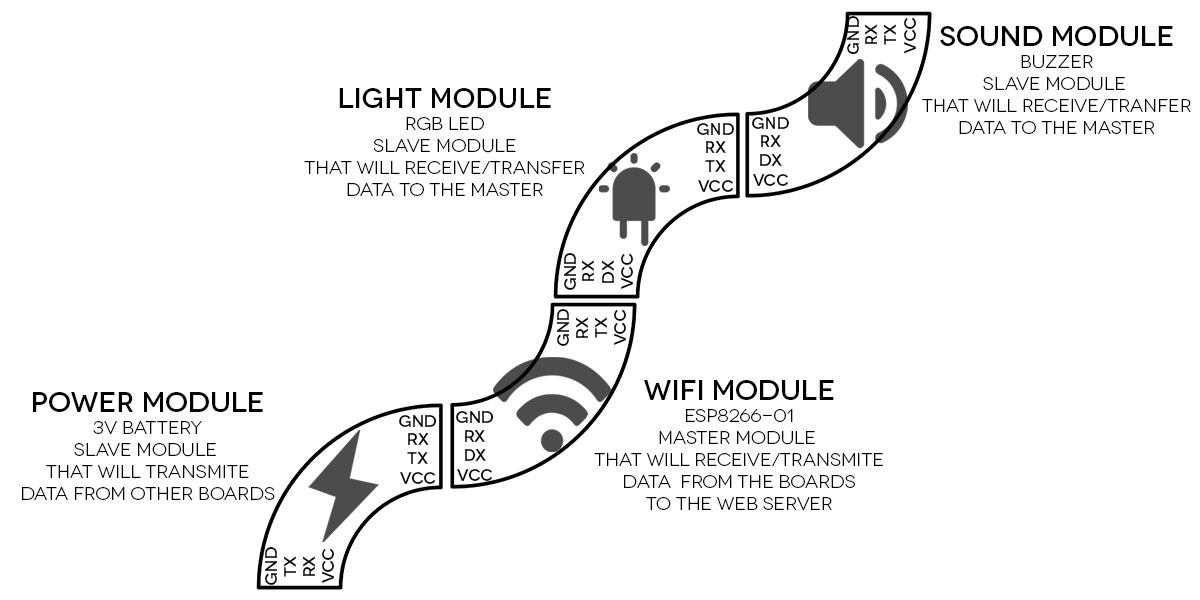

    DIS/ORDER prototype contains 4 first modules that snaps together to create a basic circuit, each one contains specific components for make it work independently but communicate each other by serial communication.

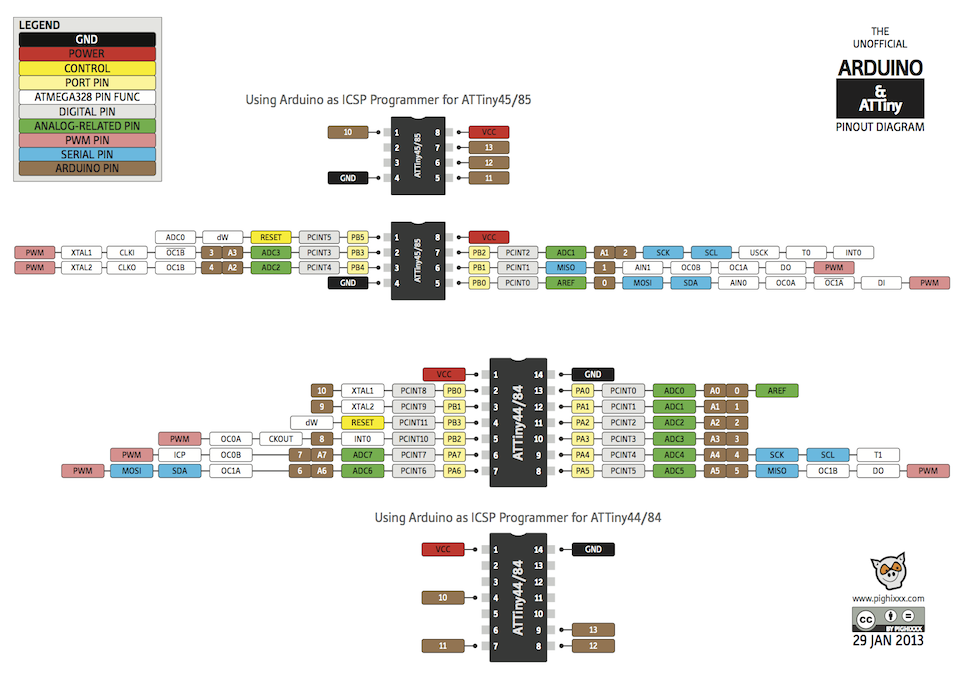

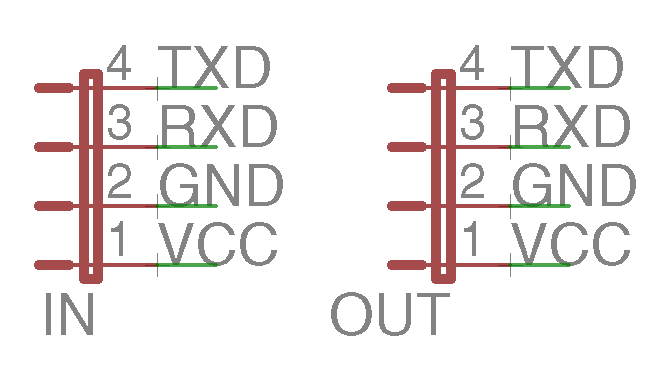

    Then to obtain the serial communication, the plates that are using an ATtiny 45 will define the pins 2 (PB3) and 3 (PB4) as TX and RX consequently in all the boards.

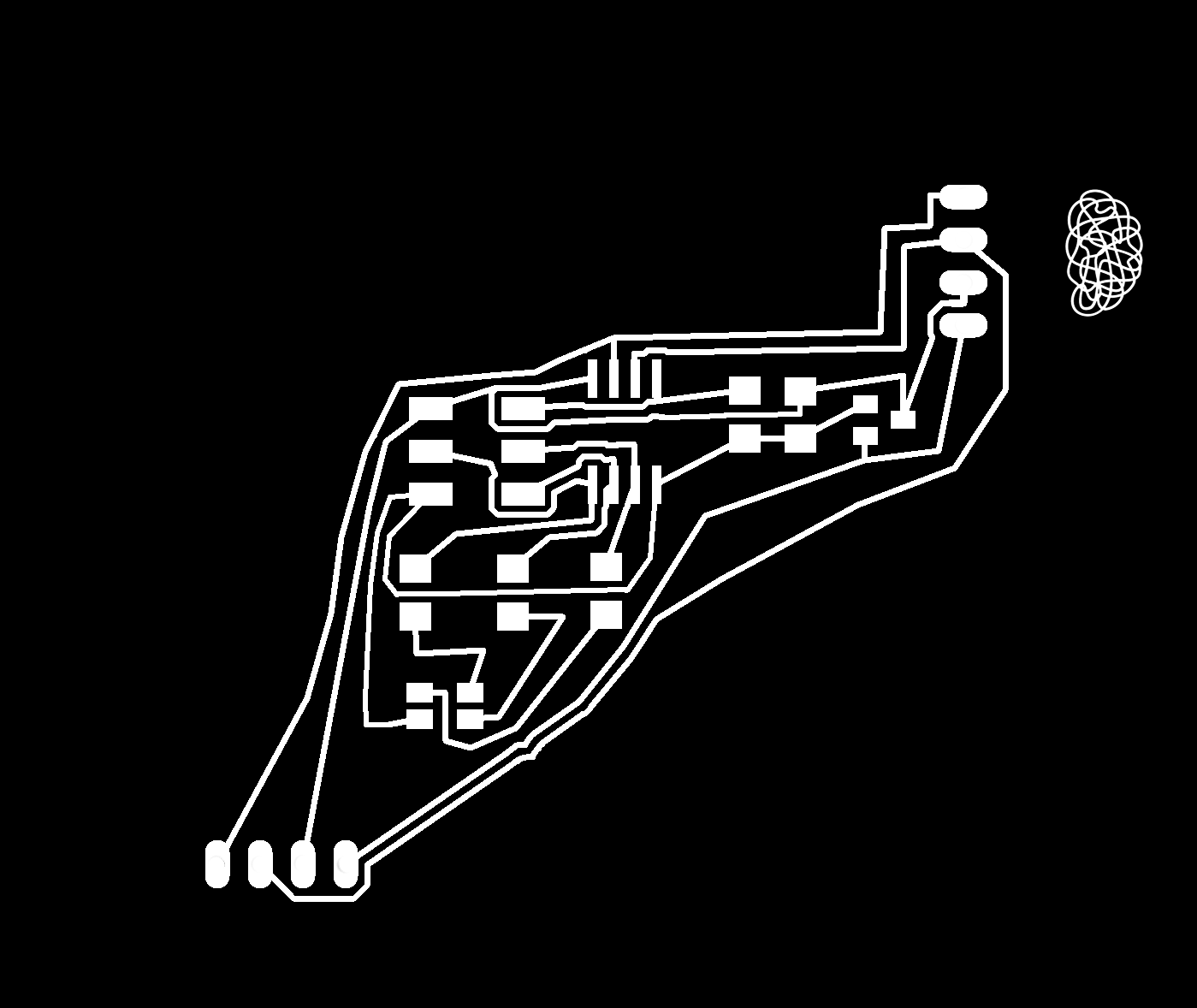

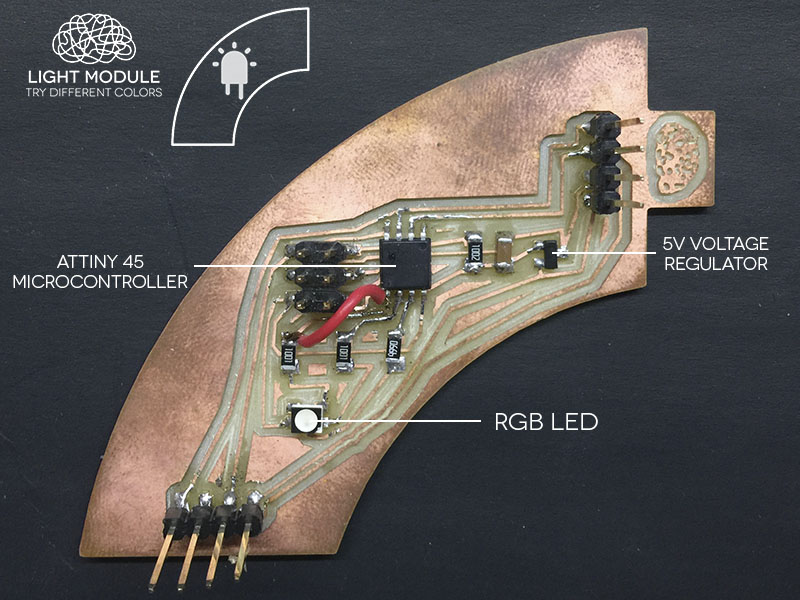

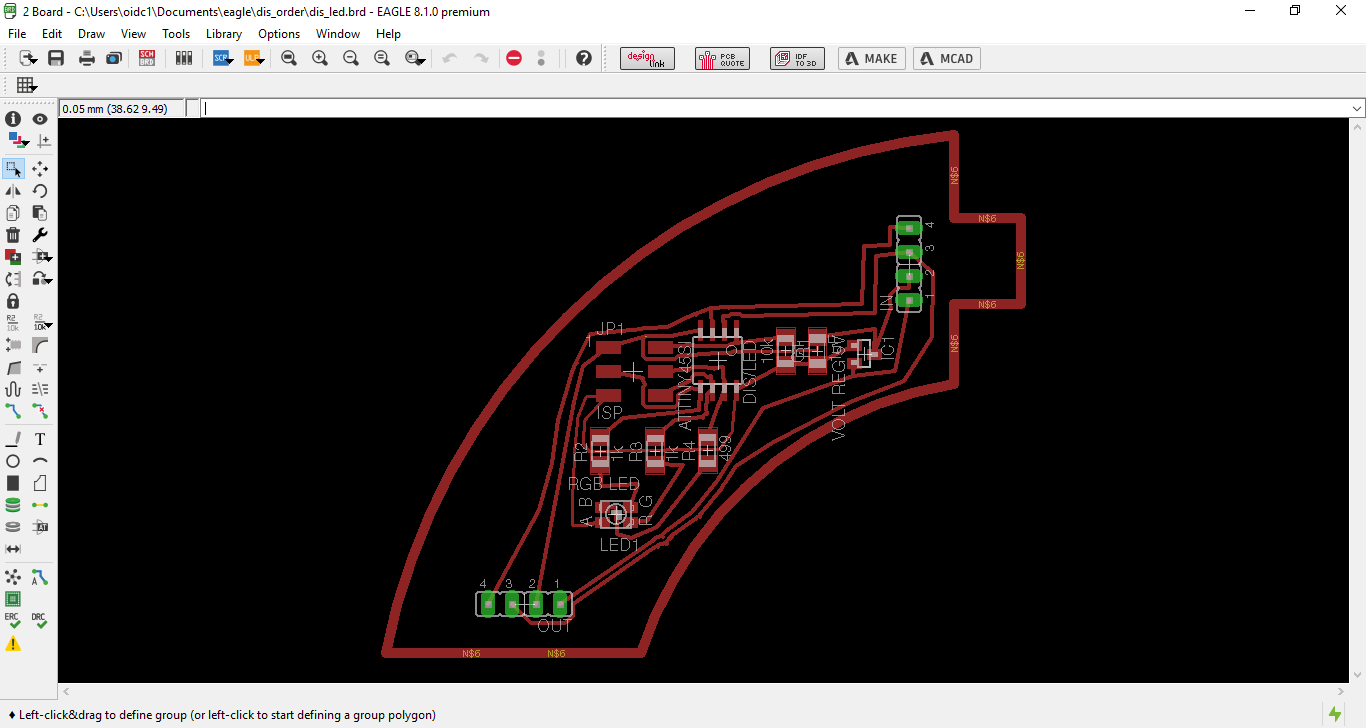

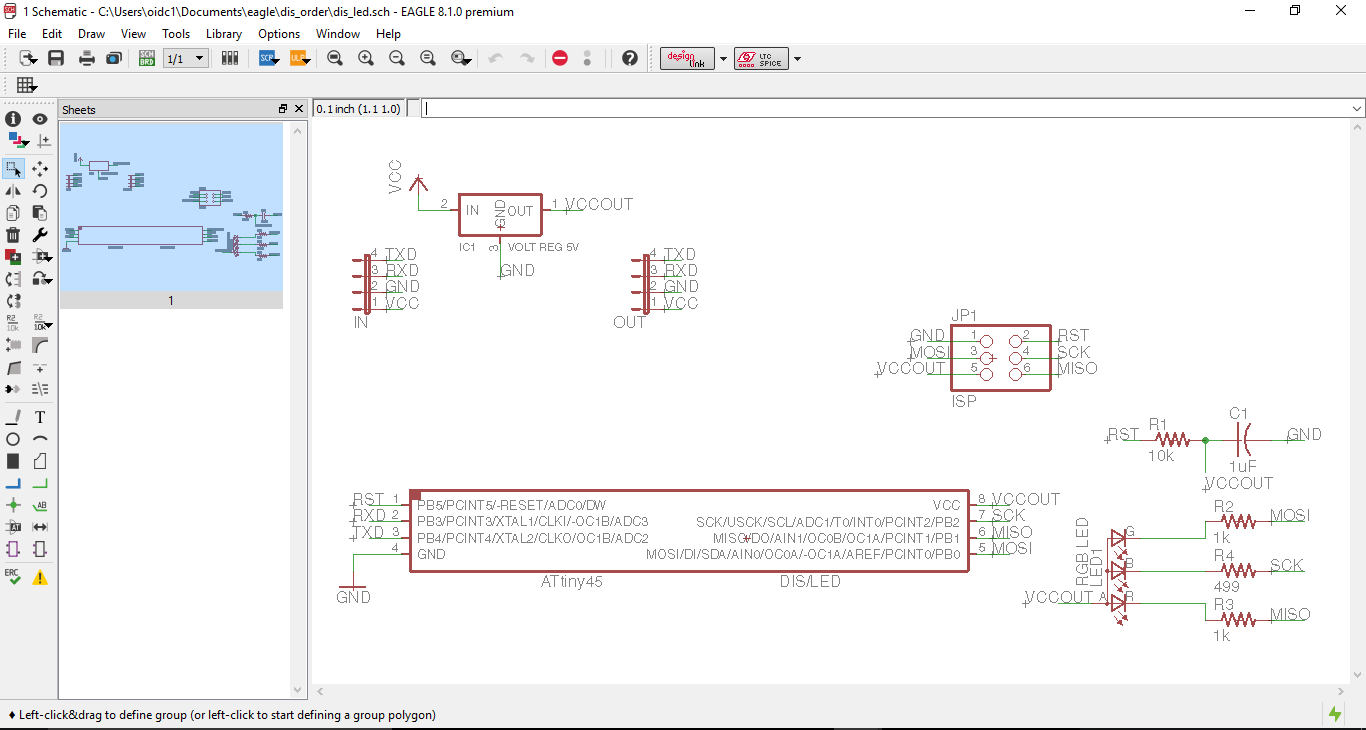

    DIS/LED (light module) is based on hello.RGB.45 board which contains the following components:

  • 1 x SMD RGB LED
  • 1 x ATtiny 45
  • 1 x 5V Voltage Regulator
  • 1 x 10k Resistor
  • 2 x 1k Resistor
  • 1 x 499 Ohms Resistor
  • 1 x 1uF Capacitor Ceramic
  • 1 x 2x3 Header
  • I add two jumpers on each side of the board for making the serial communication with the others boards who will be connected. Each cathode of the LED is connected with one pin of the ATtiny for controlling each color, the common anode is to GND. This logic will be in all the boards.
  • PIN 7 (PB2) for the blue cathode.
  • PIN 6 (PB1) for the red cathode.
  • PIN 5 (PB0) for the green cathode.

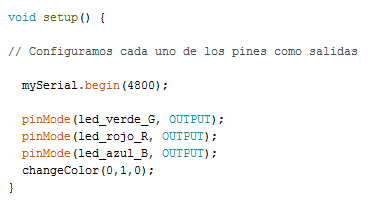

  • The outline have 1mm of width and the traces 0.35mm in the boardview. For programming DIS/LED using the SoftwareSerial library I have to define PIN 3 and 4 as RX/TX and PIN 0 to green, PIN 1 to red and PIN 2 to blue as the design follows. Then I put the baudspeed at 4800 (as it follows for the other boards and the WIFI speed flash for having the communication) and define each pin as an output. Finally I made the variable for changing the color sending commands to the serial port through the FTDI cable defining g as Green, r as Red and b as Blue. This later will be usefull for the web interface.

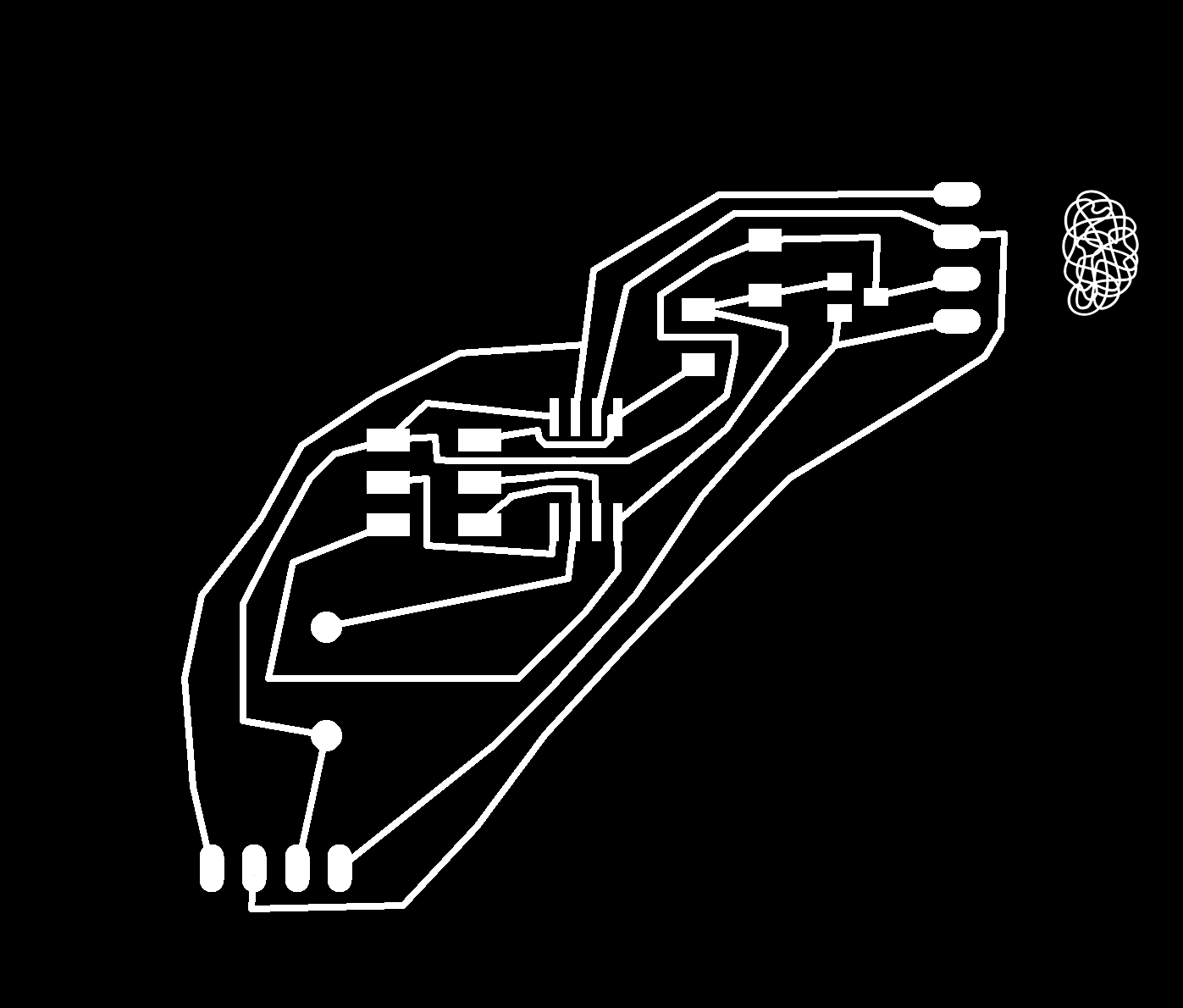

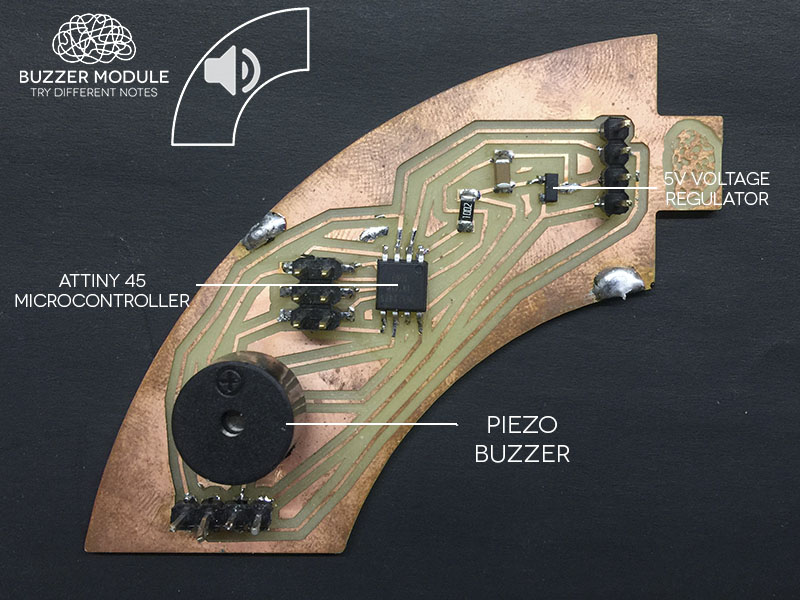

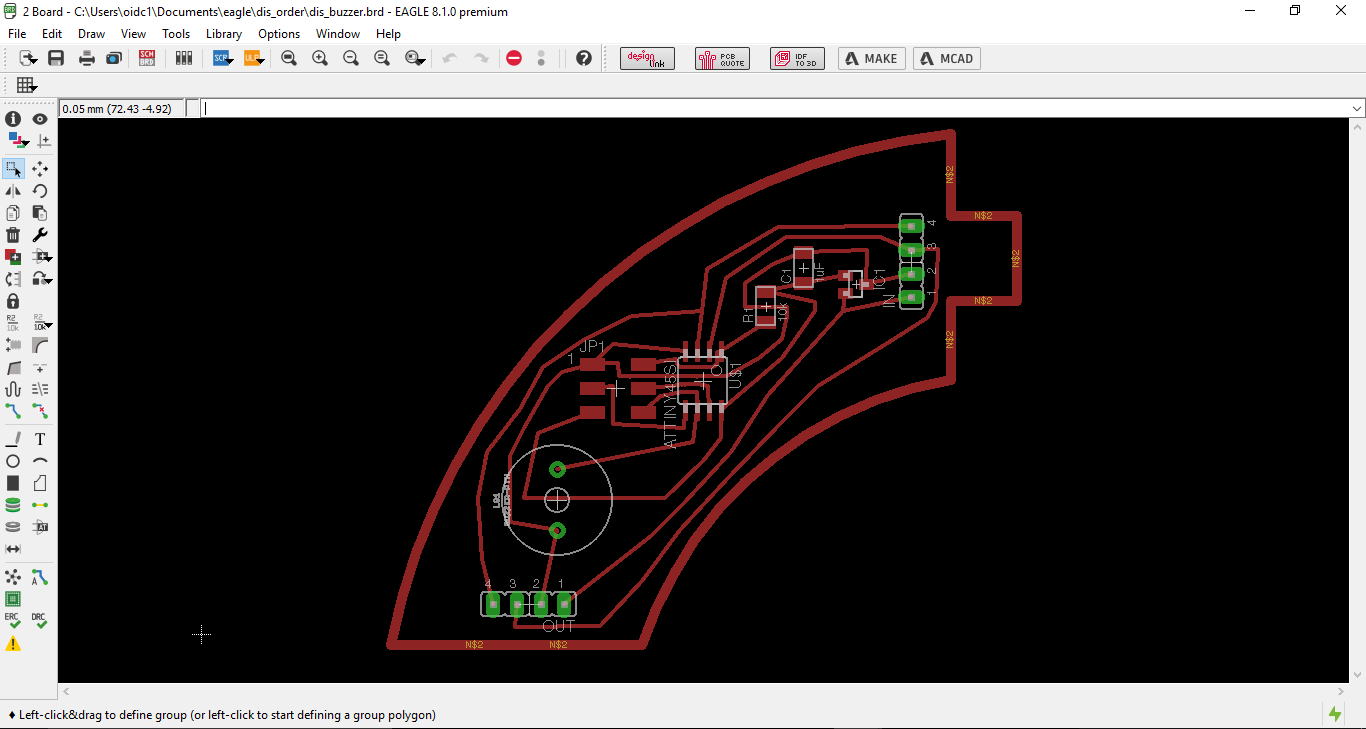

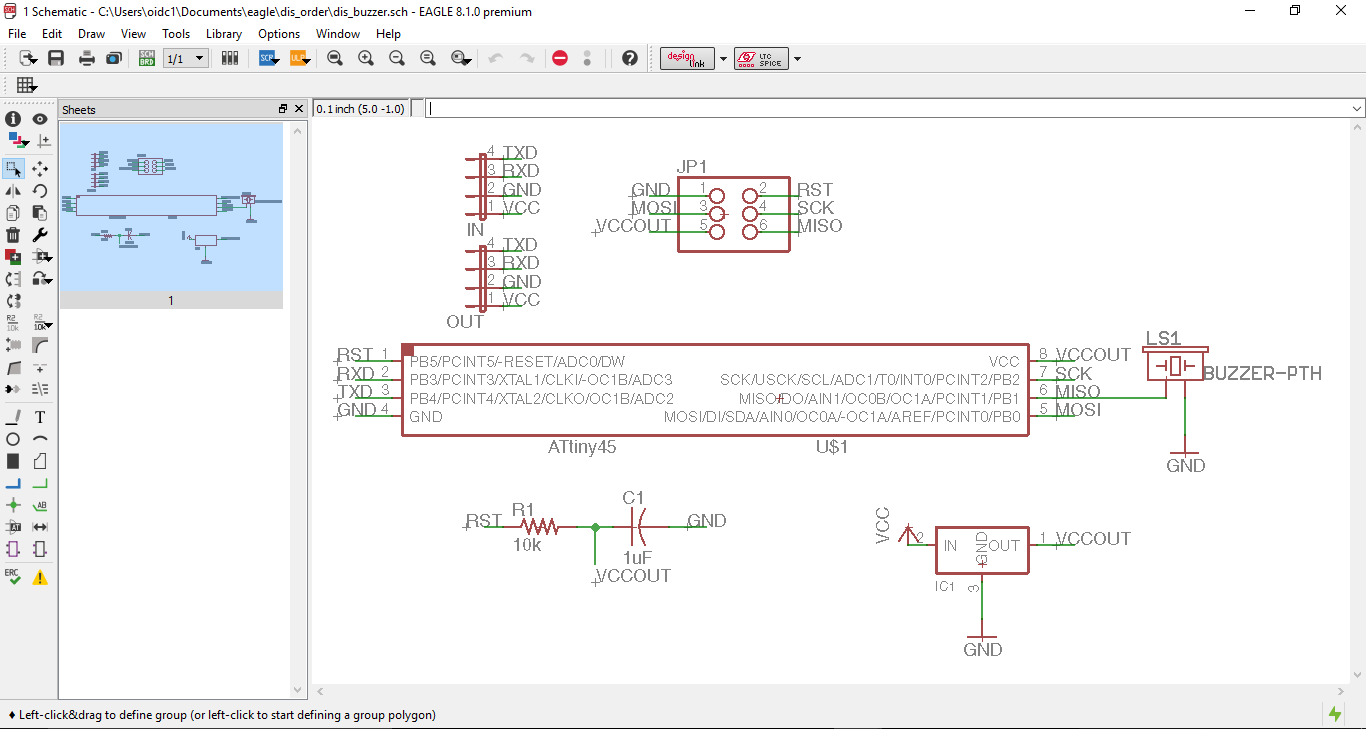

    DIS/BUZZER (sound module) which contains a piezo buzzer as an output and contains the following components:
  • 1 x Piezobuzzer
  • 1 x ATtiny 45
  • 1 x 5V Voltage Regulator
  • 1 x 10k Resistor
  • 1 x 1uF Capacitor Ceramic
  • 1 x 2x3 Header
  • Following the same logic as the past board and just need to connect one pin of the ATtiny 45 to the positive pin of the buzzer and the negative to GND.
  • PIN 6 (PB1) for the positive pin of the buzzer.

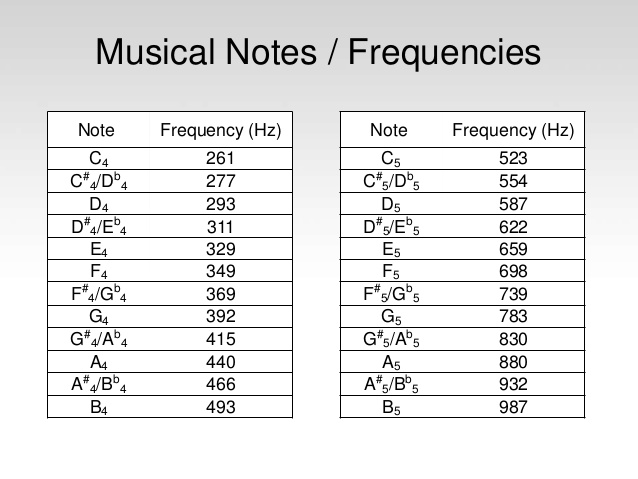

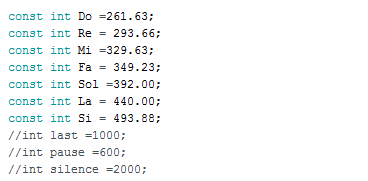

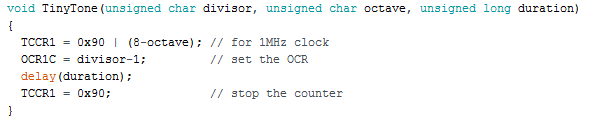

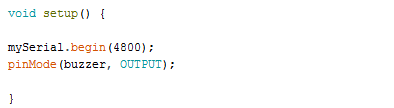

  • For programming DIS/BUZZER I use again SoftwareSerial defining PIN 3 and 4 as RX/TX again and define PIN 1 to the buzzer. For controlling a buzzer I wanted to make the musical notes like a piano so each note have a different frequency in Hz that I have to define in the code as it follows in the musical scale. Defining the baudspeed and the pin as and output. Making the variable for the serial communication with each case for different note. This work good but I had a problem that when I send more than 2 commands I got interference and sound more than one note at the time. So I checked for Tinytone that is a special library for managing frequency for buzzer for ATtiny's microcontrollers; the library controls the counter and define better the octave for musical scale.

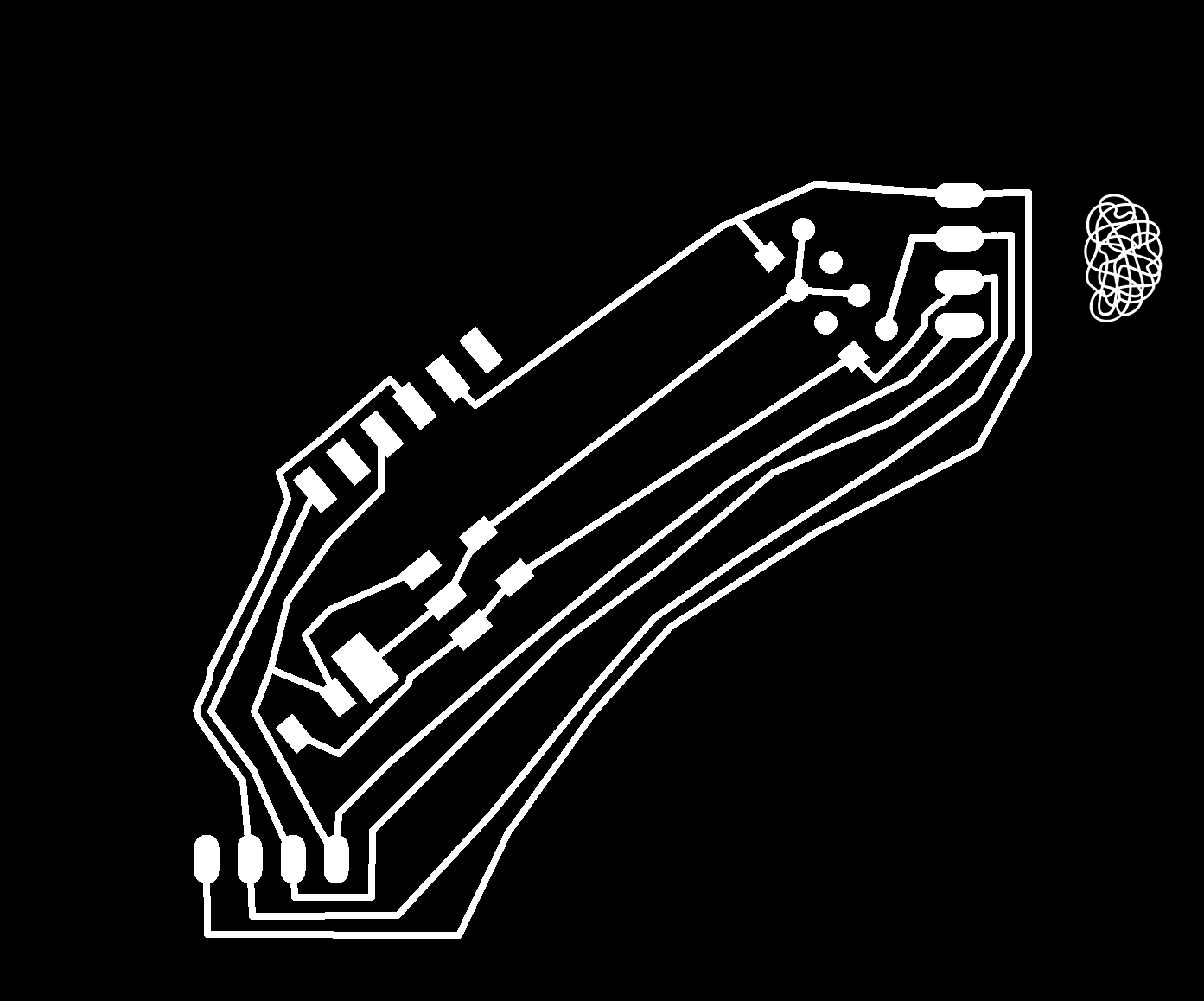

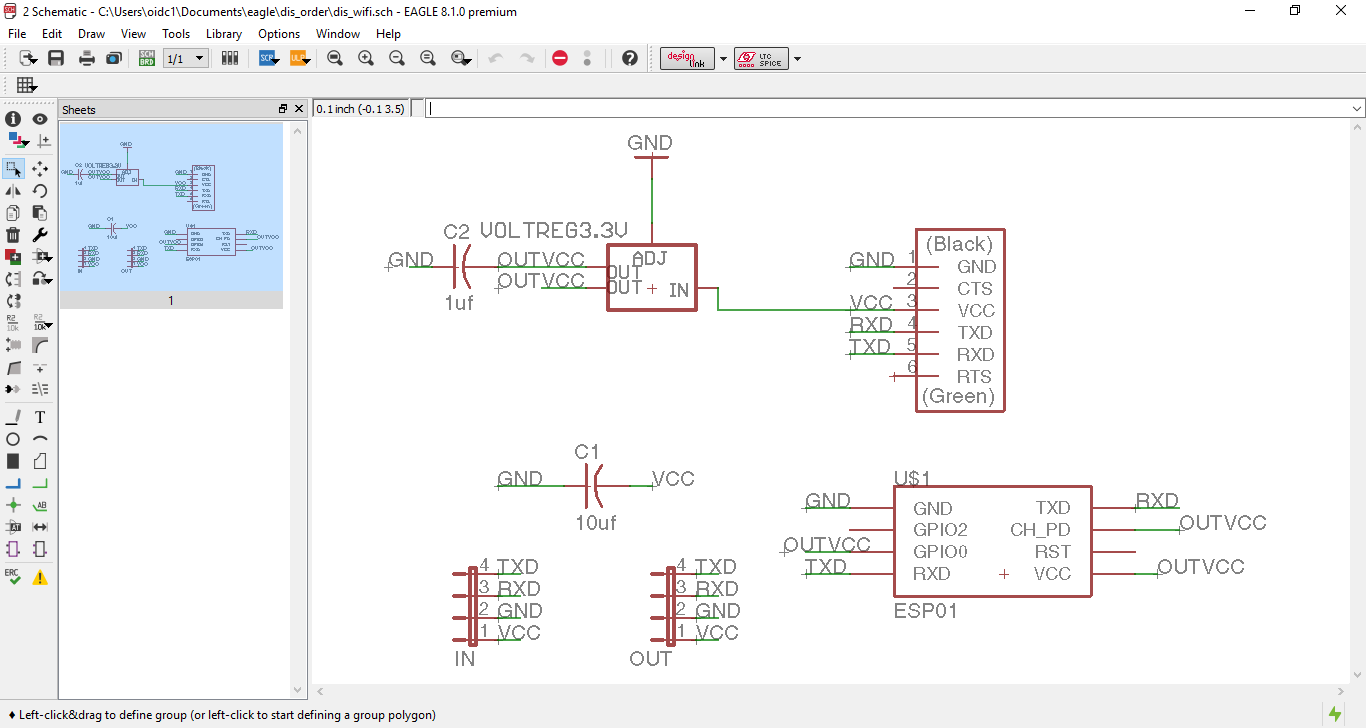

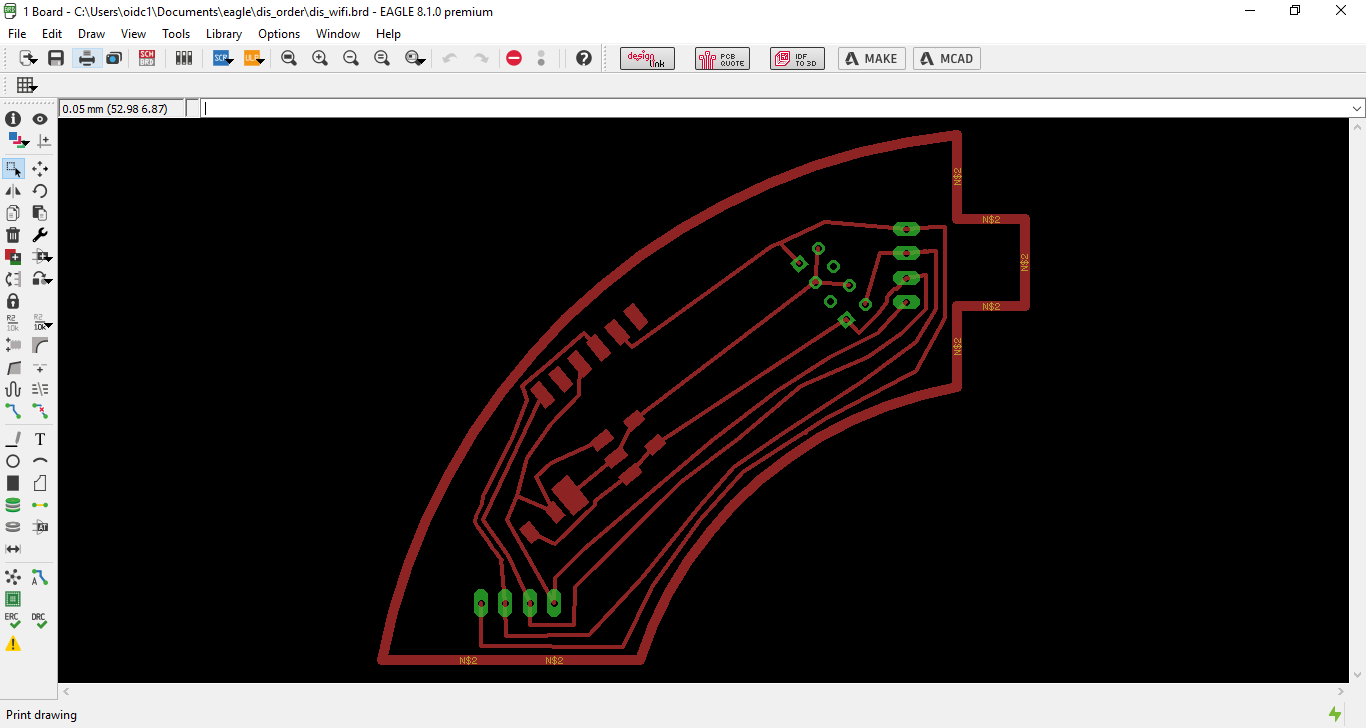

    DIS/WIFI (WIFI module) is based on hello.ESP8266-12E.ftdi board but in this case I use the ESP8266-01 instead of the ESP8266-12 because I already worked with this one. This board creates it's own network as a hotspot and interfaces the outputs of the circuit, contains the following components:

  • 1 x ESP8266-01 WIFI MODULE
  • 1 x ATtiny 45
  • 1 x 10uF Capacitor
  • 1 x 1uF Capacitor
  • In this case as I worked on week 16 with the ESP8266 module, I skip the voltaje regulator because the module was working perfectly with 6V without problem and when i put the voltage regulator do not work and the FTDI cable because before I put into the board the ESP8266 I upload the sketch and then just make it work in the board (also for fitting in the case of the module).

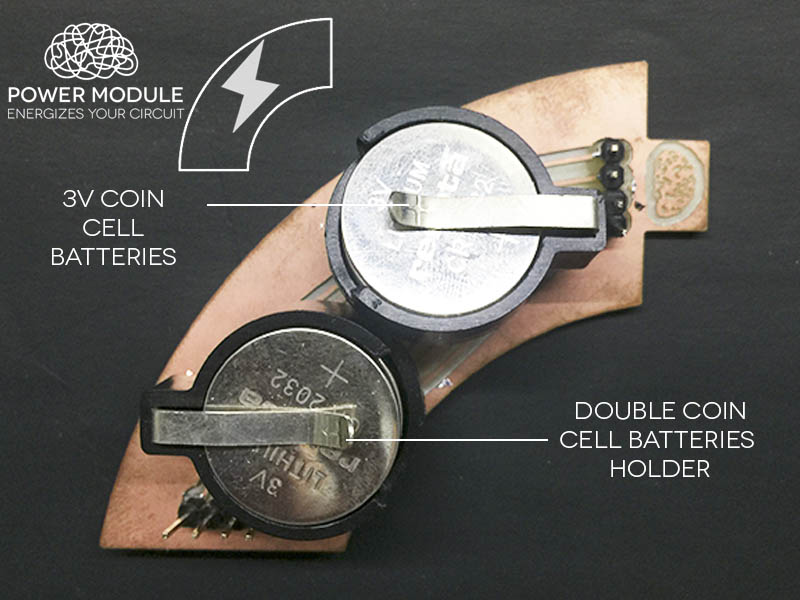

    DIS/POWER (power module) which contains the following components:

  • 4 x coin cell battery 3V C2032
  • 2 x double coin cell battery holder

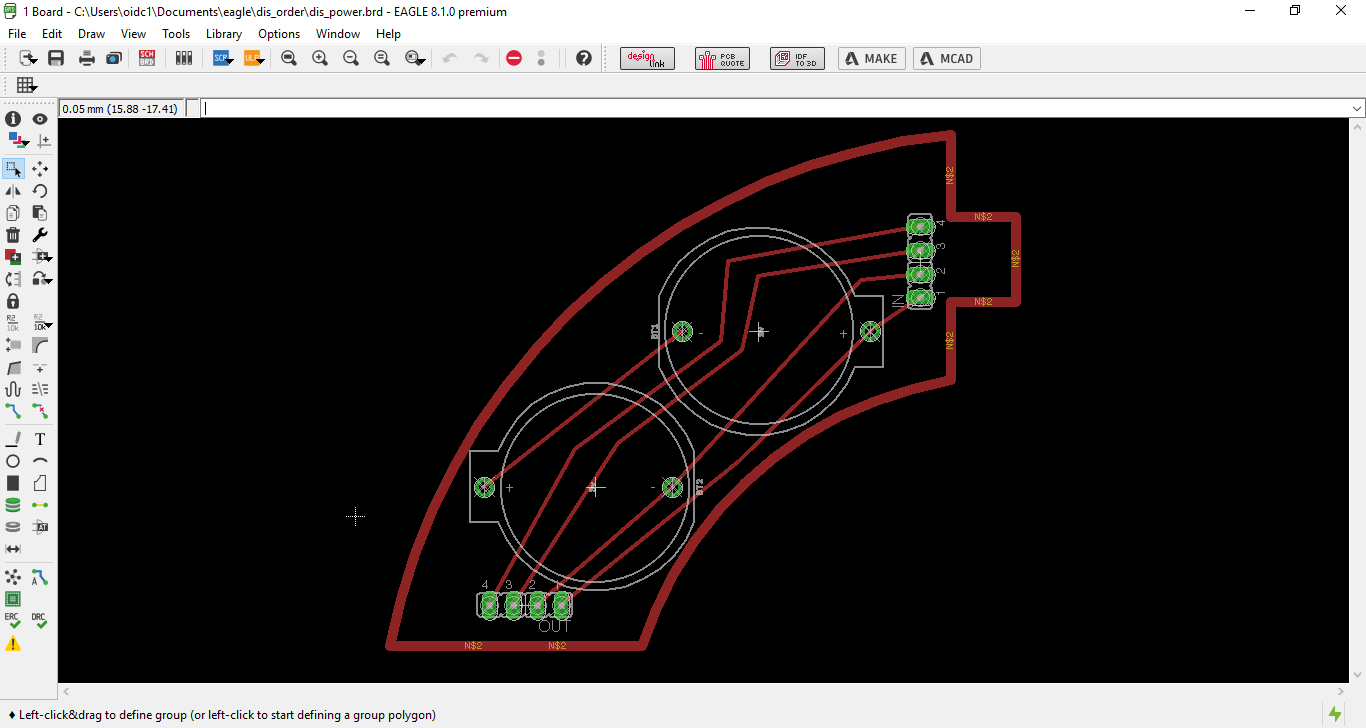

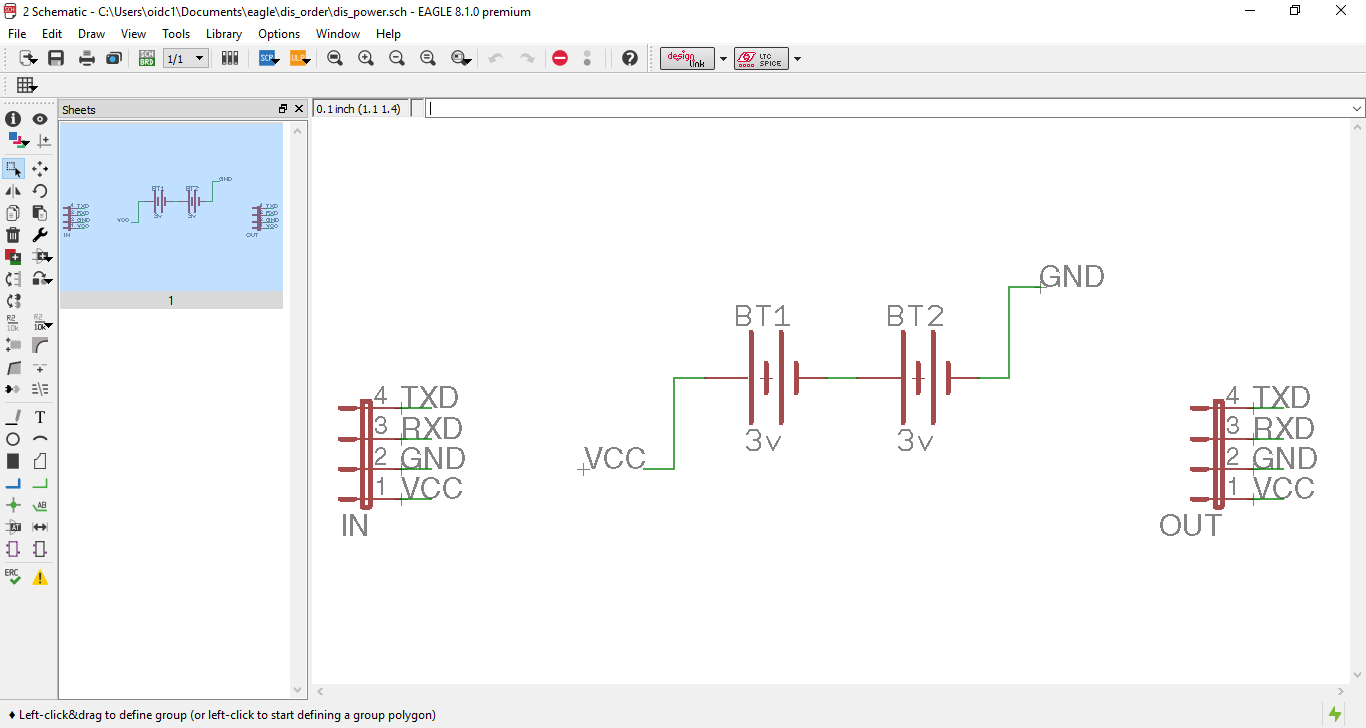

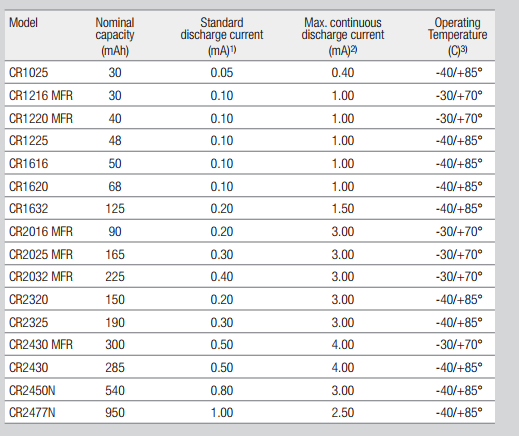

  • In this board the batteries are connected in serie for having 12V for all the boards for running all the components, the 4 batteries give in total 900mAh. For having in serie the batteries I connected one GND and one VCC of each battery together and then the other two to out GND and VCC as the image.

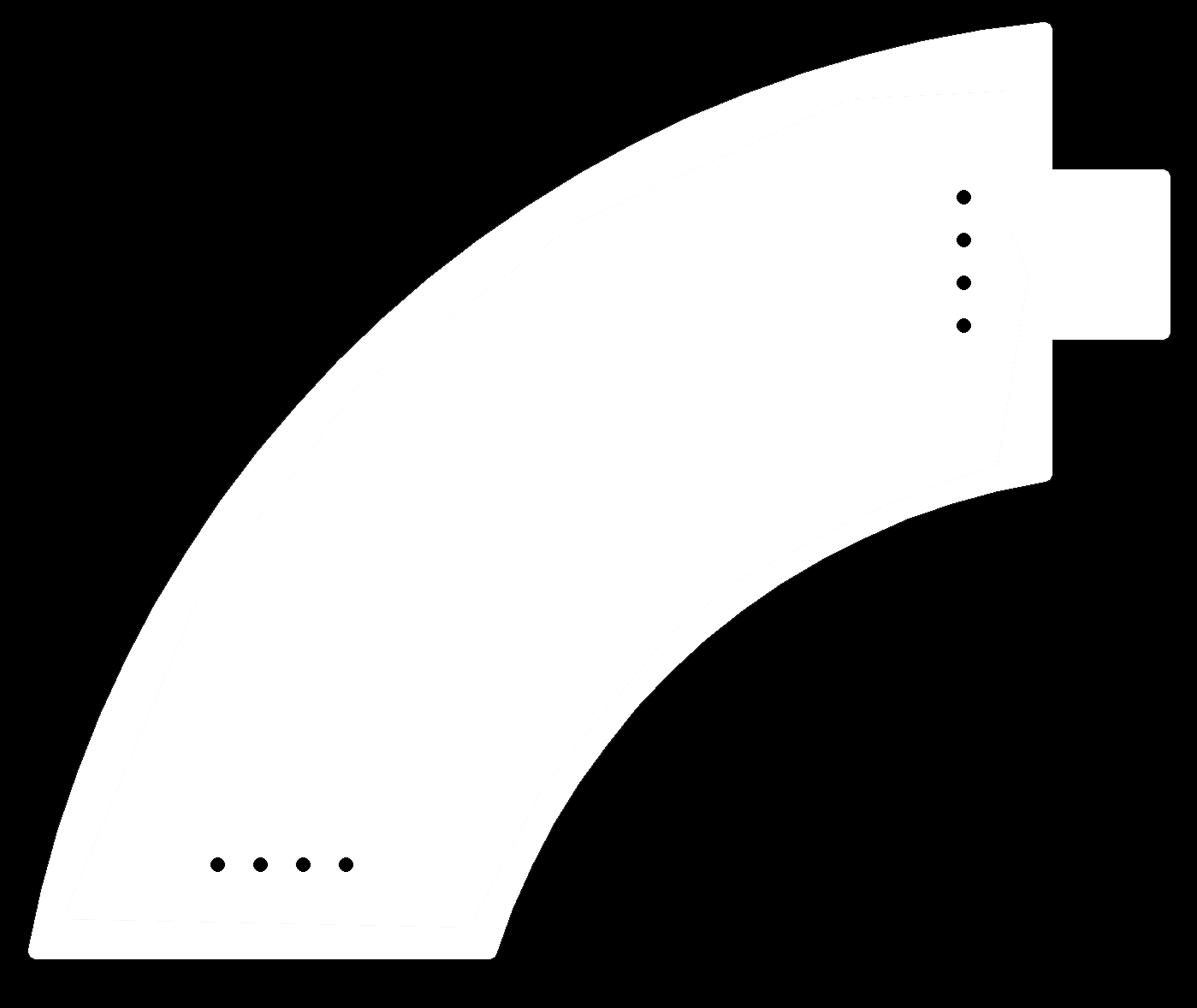

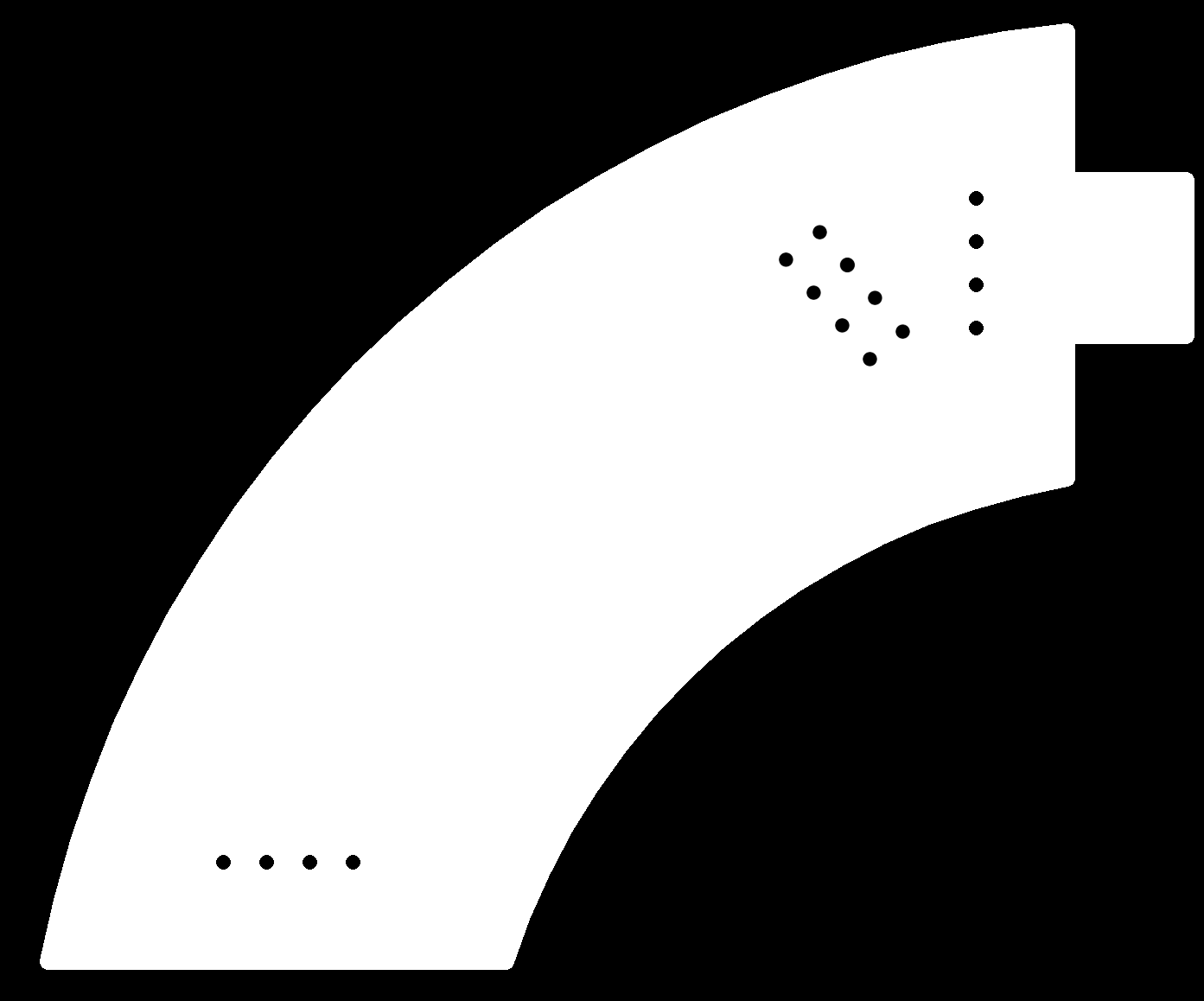

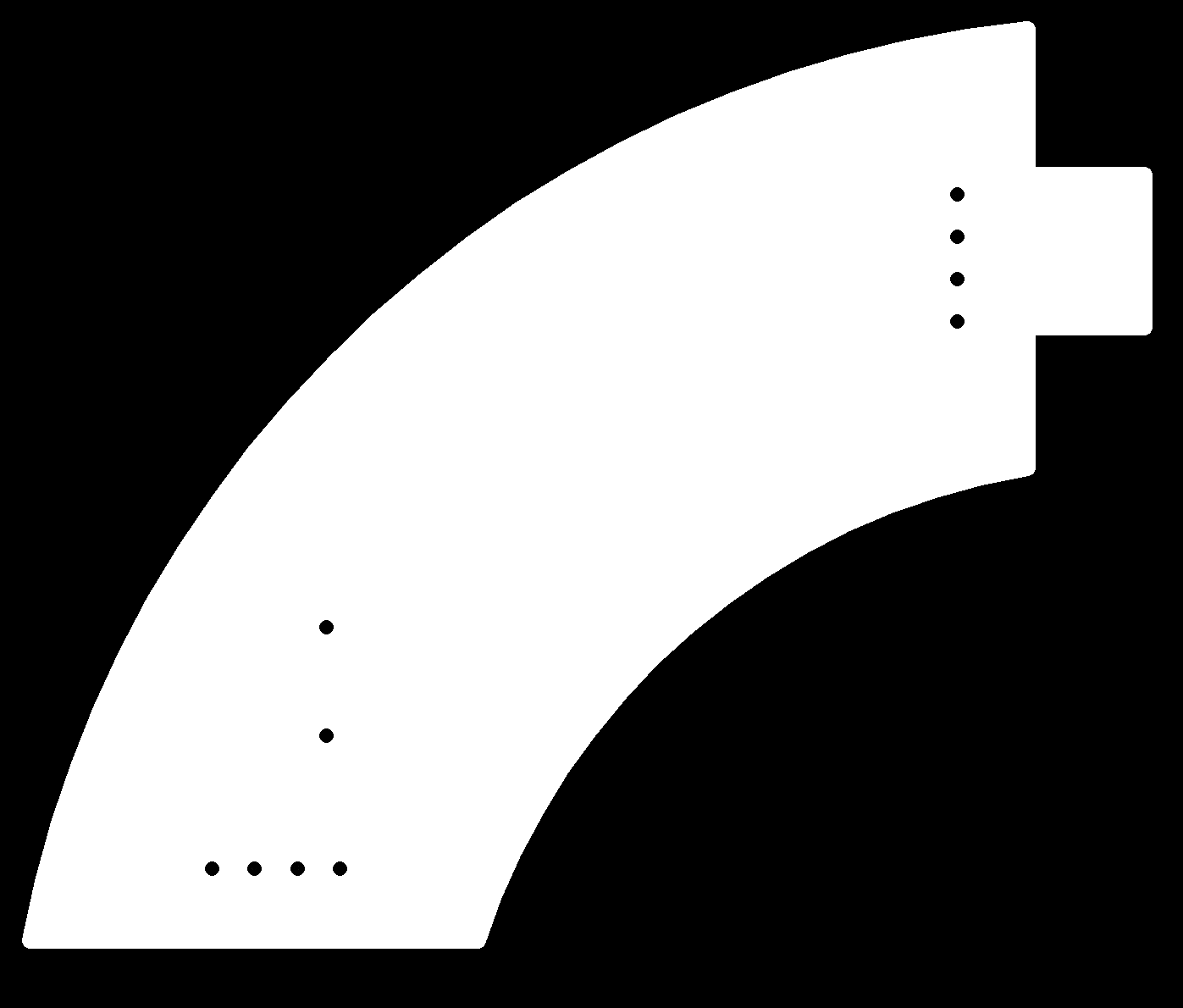

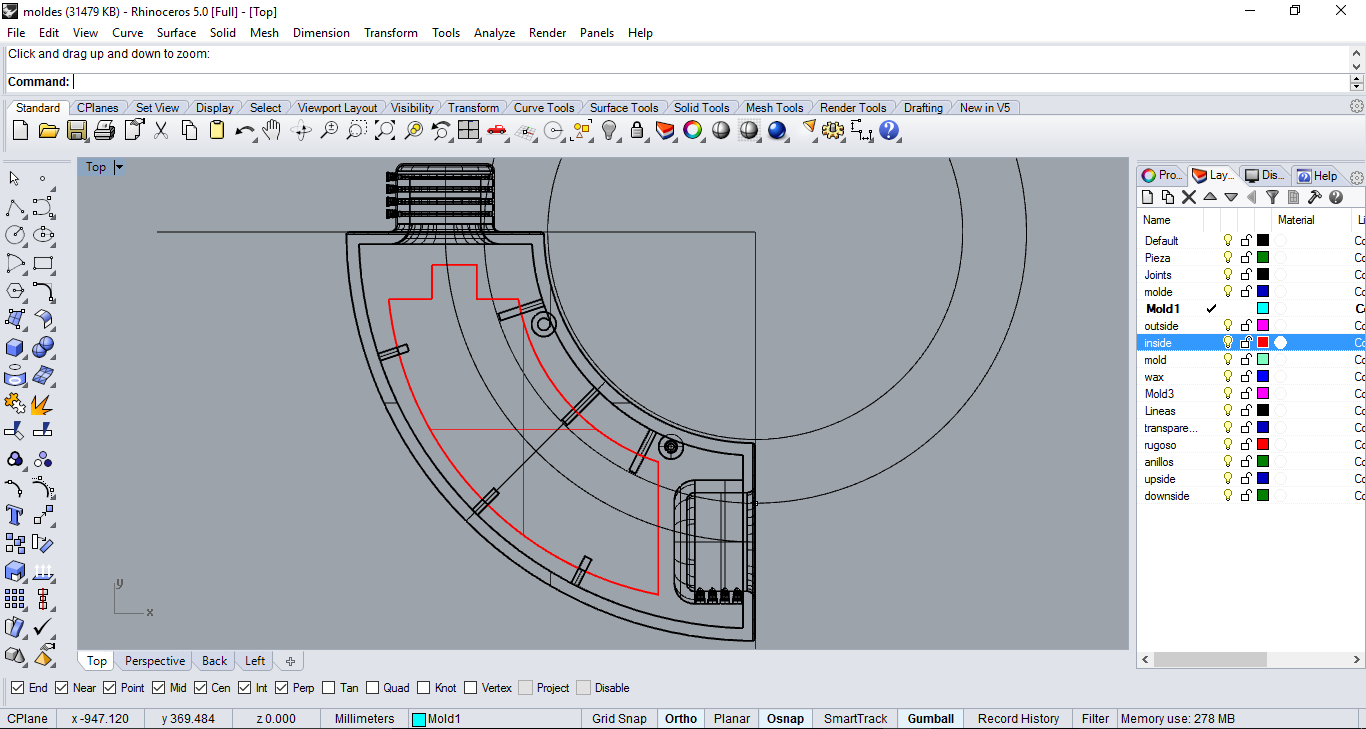

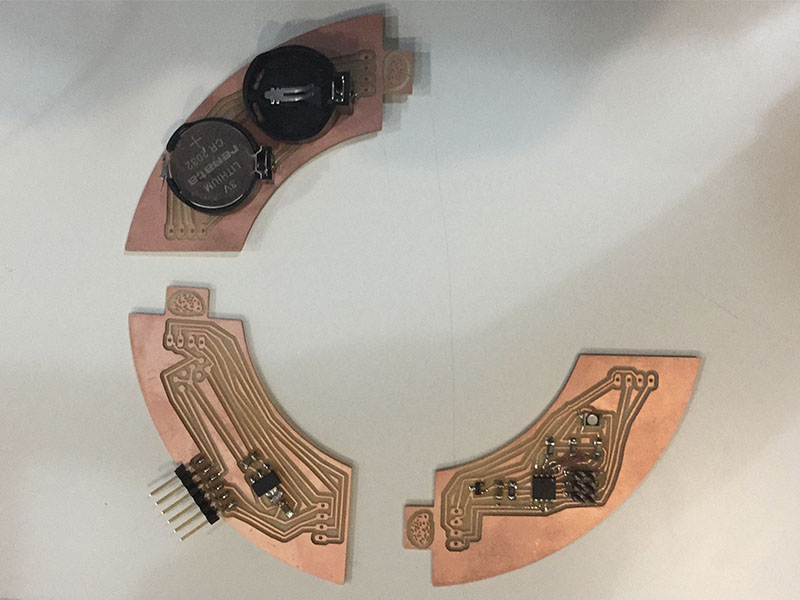

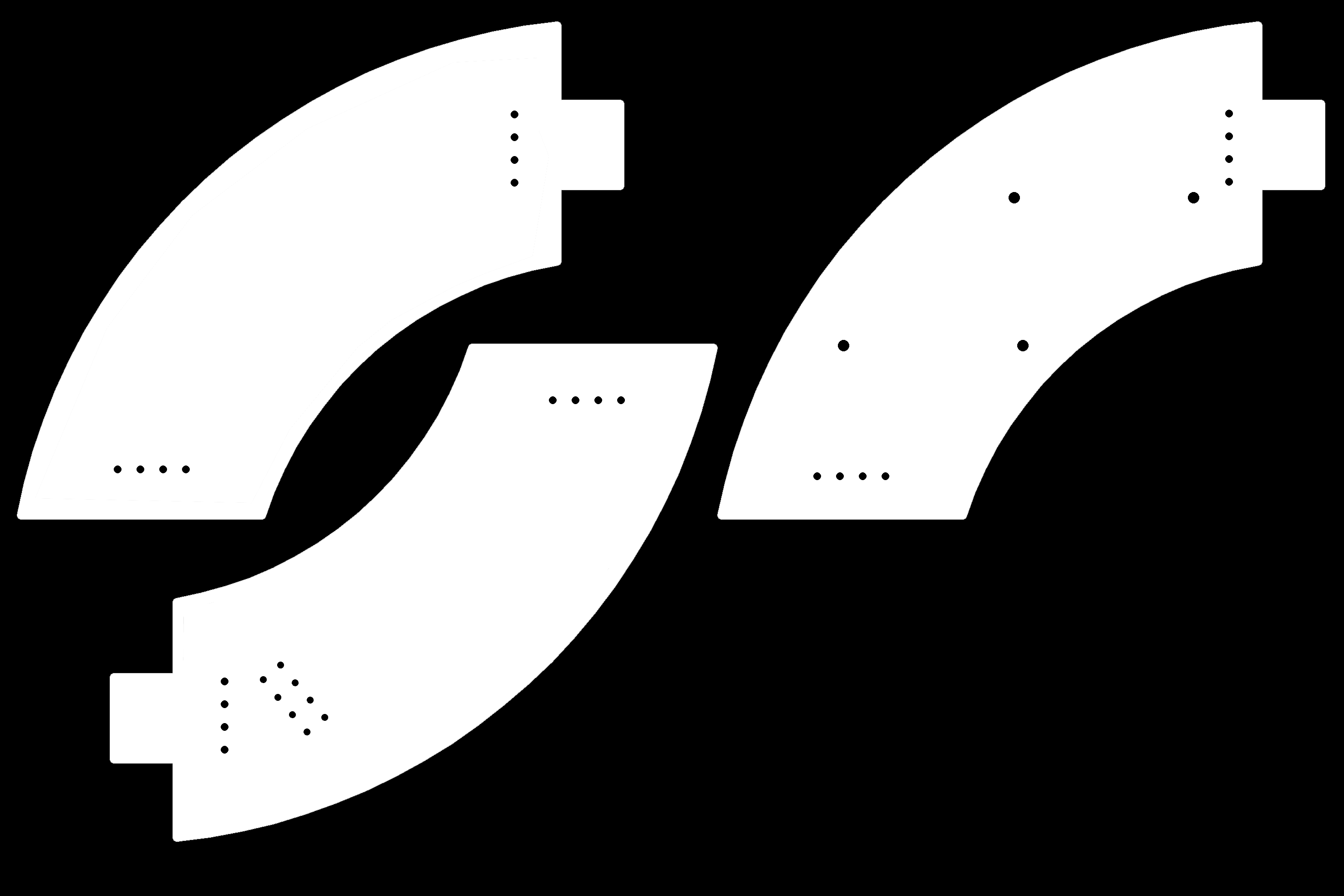

    The shape of the boards were imported to Eagle as DXF file exported from Rhino 3D model of the module that is in the inside of the case.

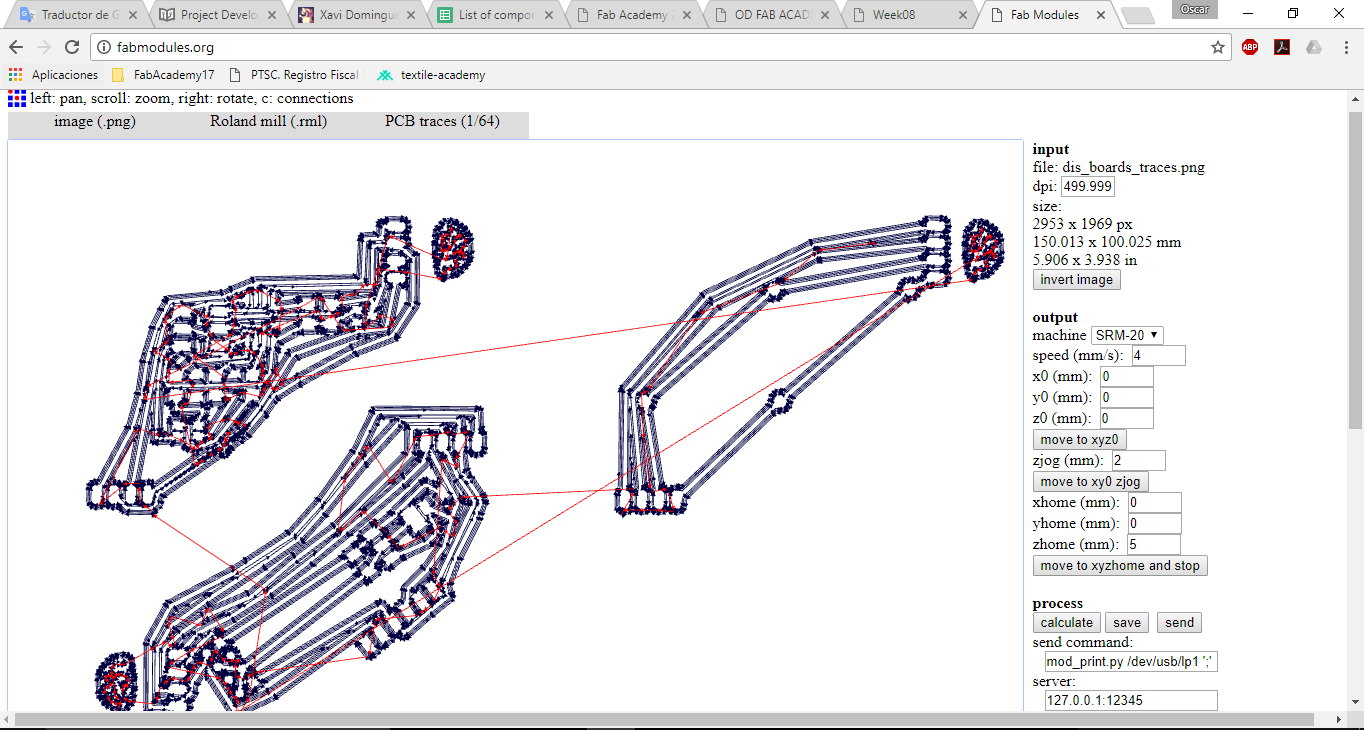

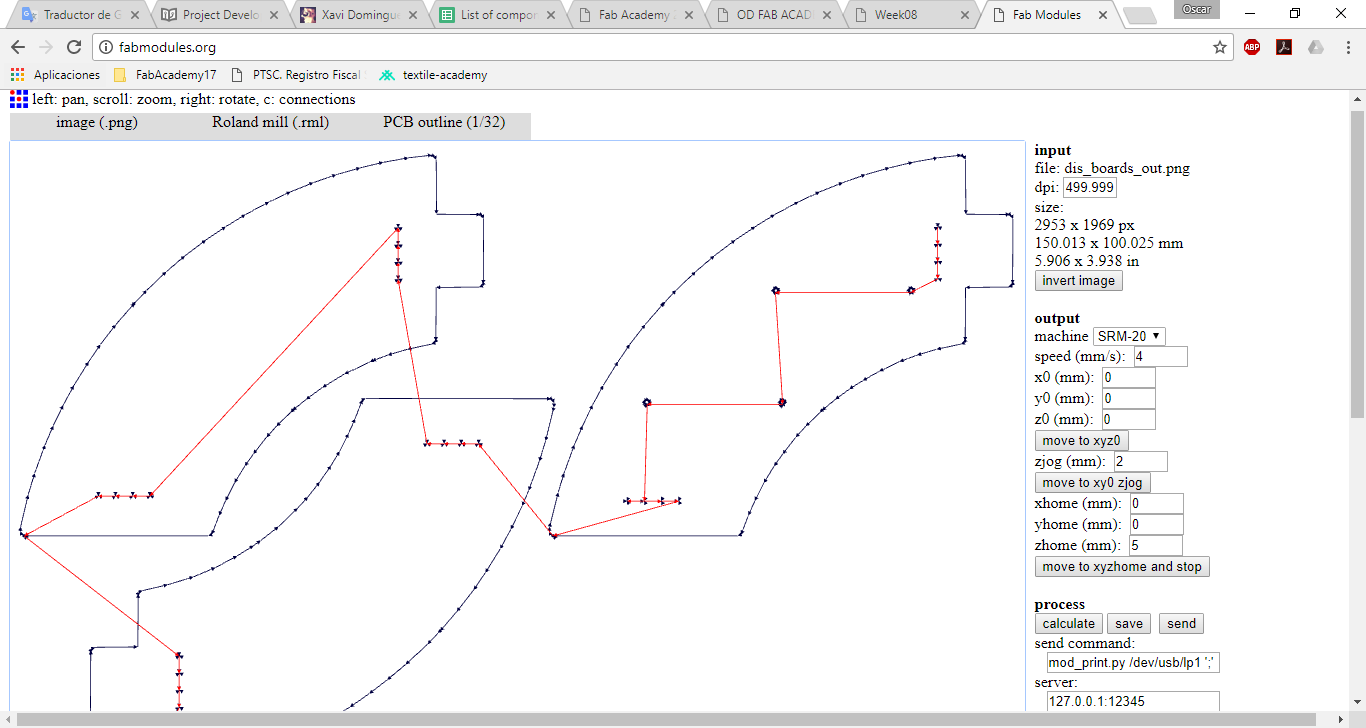

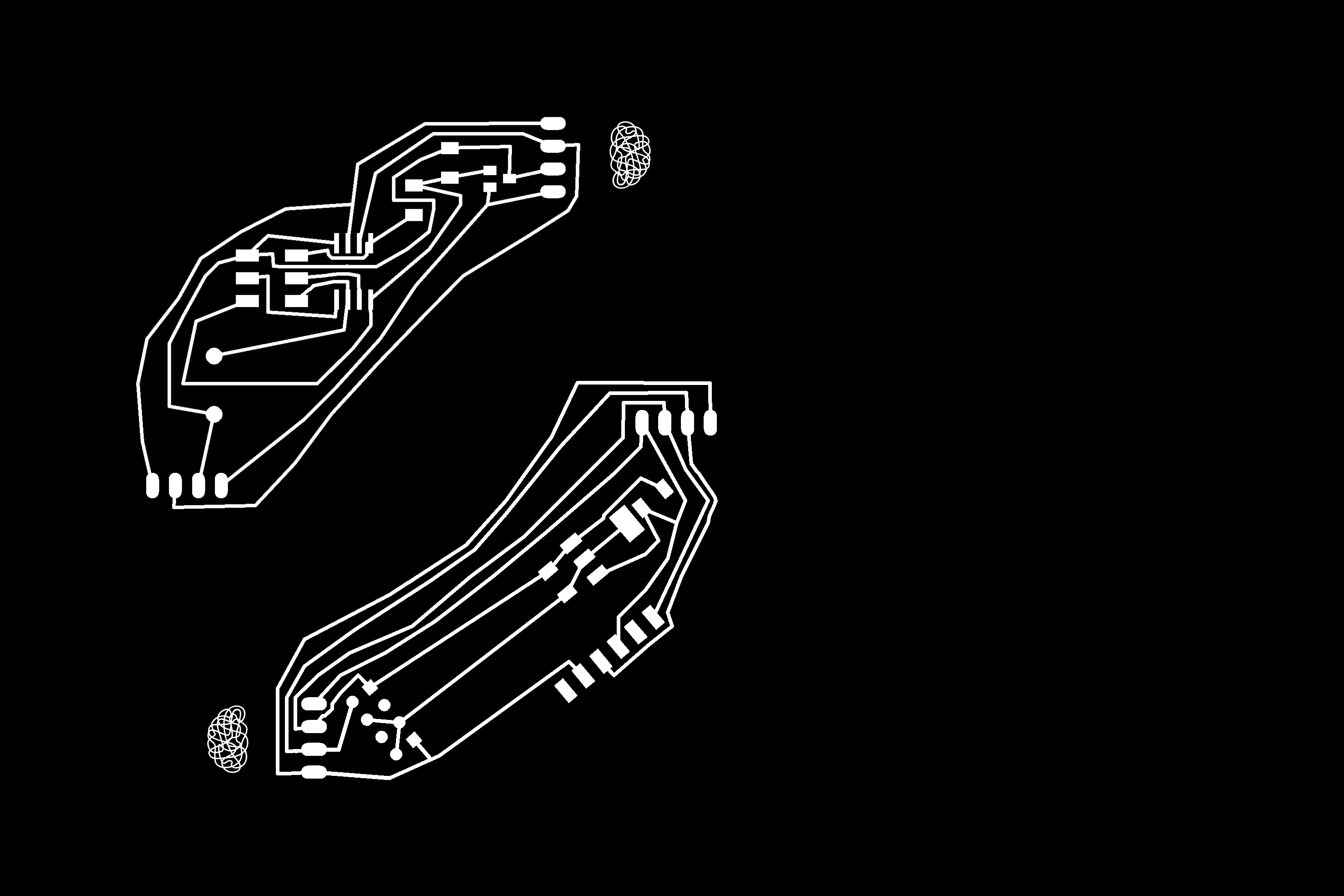

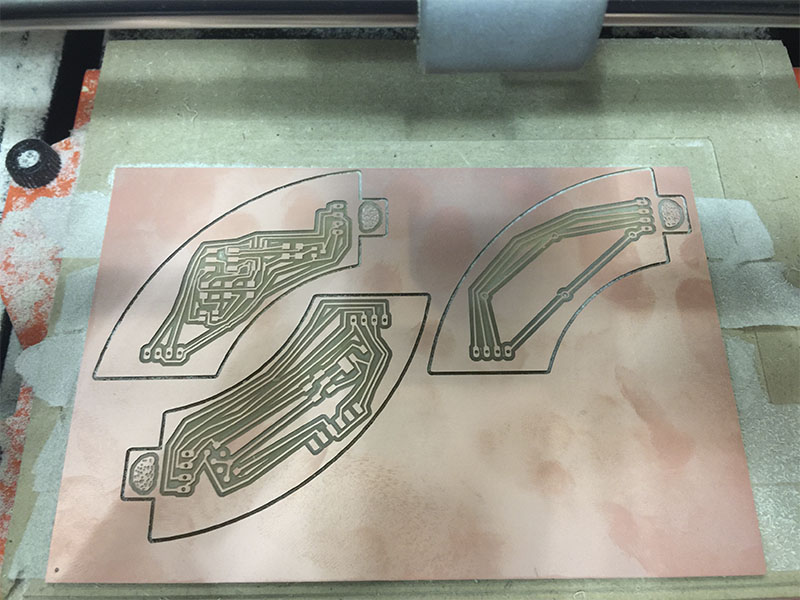

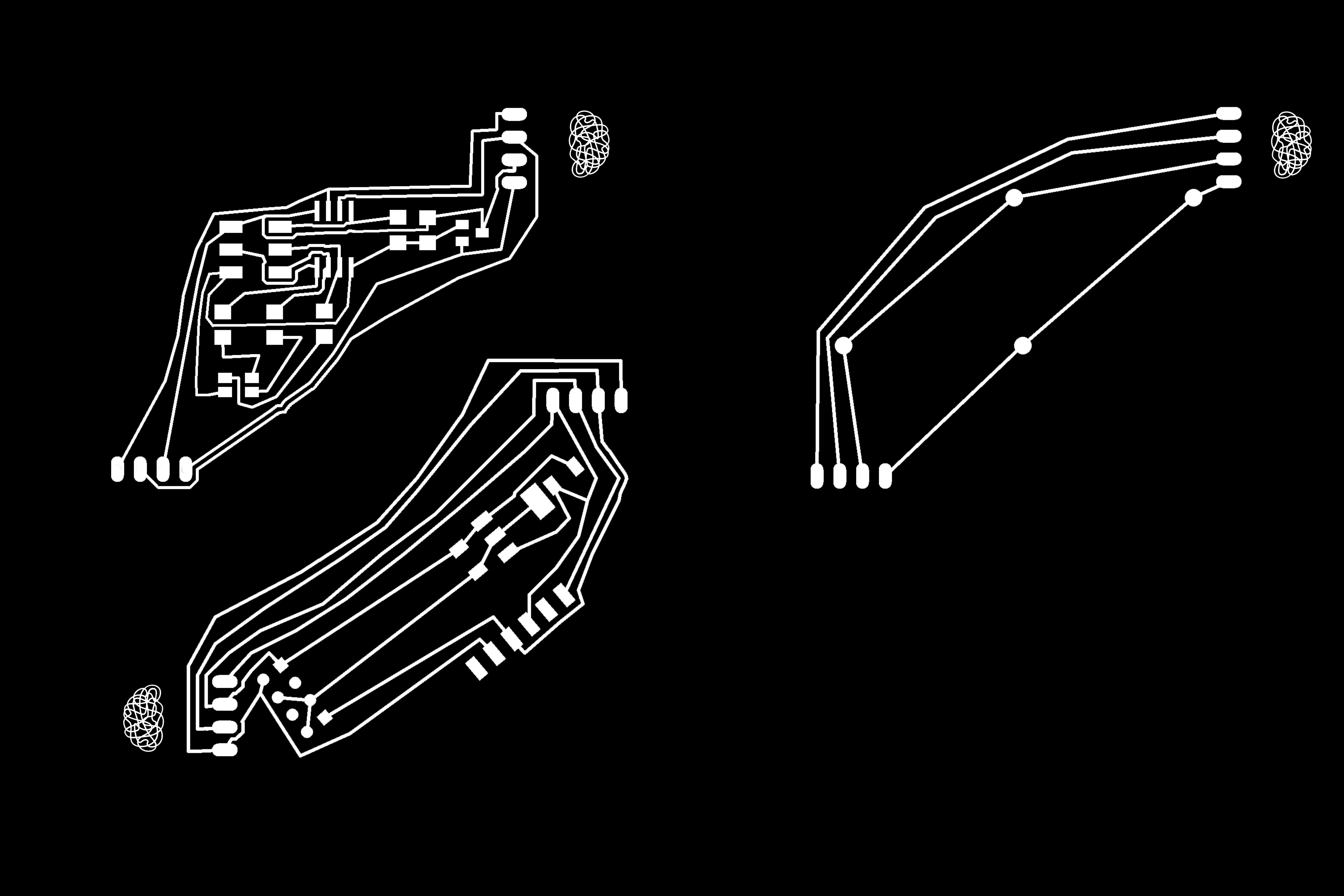

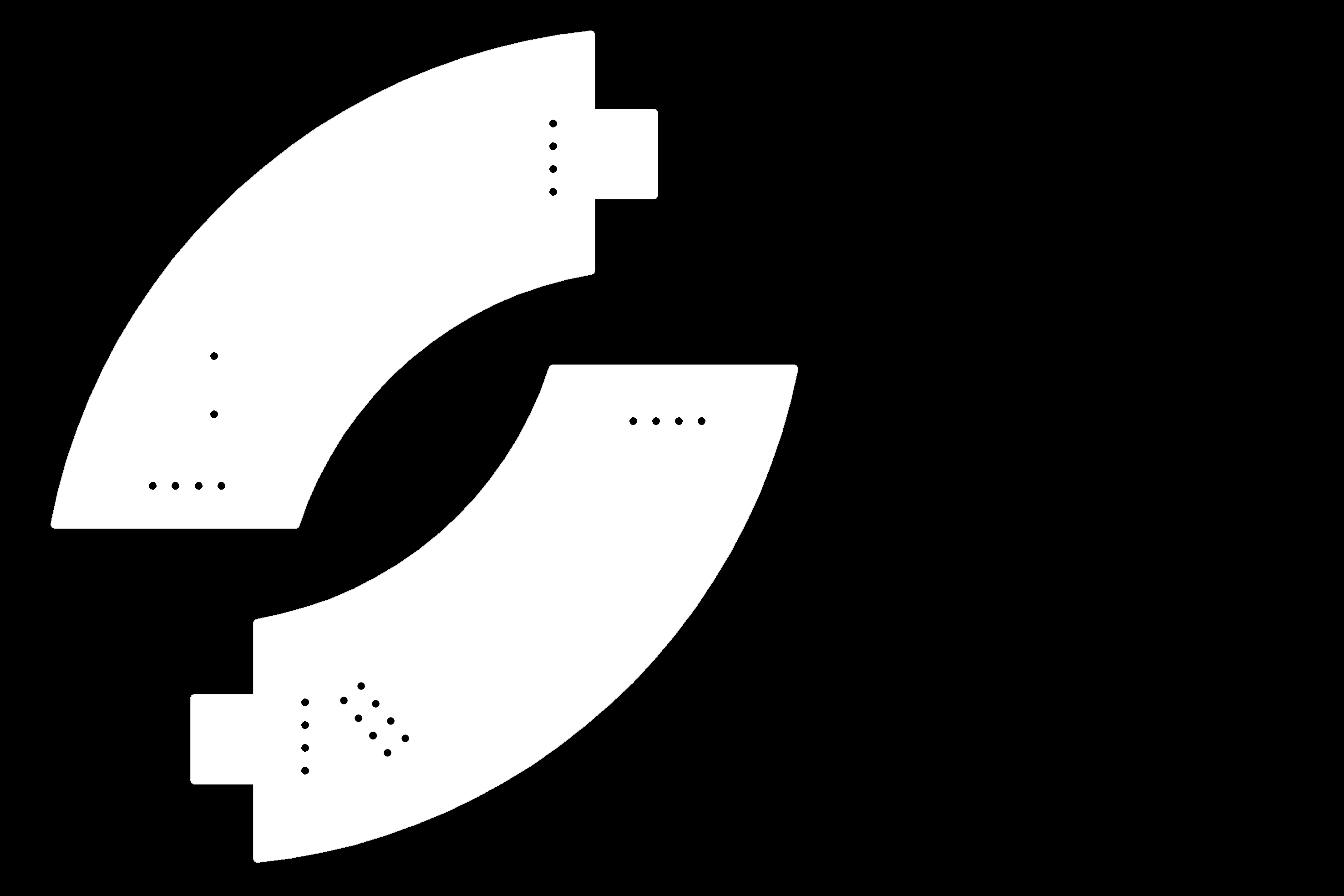

    This time for milling all the boards I put all the files in the same PNG file for sending at the same time all the boards to the Monofab and also making holes into the boards. And the buzzer board and the correction of the WIFI module.

    This work was based on the following processes learned:

  • Electronics production
  • Electronics design
  • Embedded programming
  • Output devices
  • _Digital plataform

    As I said in the electronics part, the WIFI module works like the master that send/receive data from the other slaves modules; between the modules the communication is serial and for the digital plataform is a wireless communication with the ESP8266-01 who creates its own hotspot with an IP.

    For programming the ESP01 I followed the same process as week 15 in order to flash and programm the module, but in this case I wanted to create my own hotspot because this type of wireless communication doesnt need to connect to another WIFI network around so it keeps open the communication in everywhere.

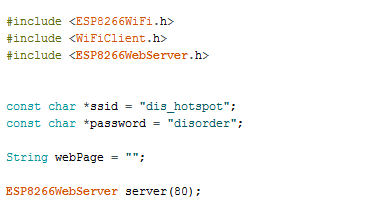

    First, include these three libraries of the ESP8266 and define the name of the network and the password; the webserver will always work on port 80.

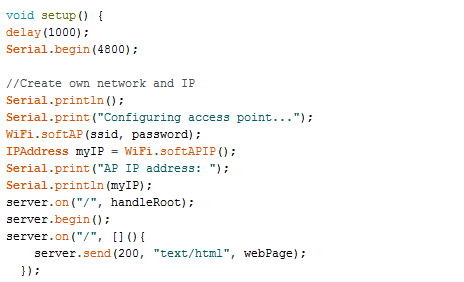

    Later I define the communication speed at 4800 (NOTE: this have to be the same as all the other boards) and the other variables of the serial.

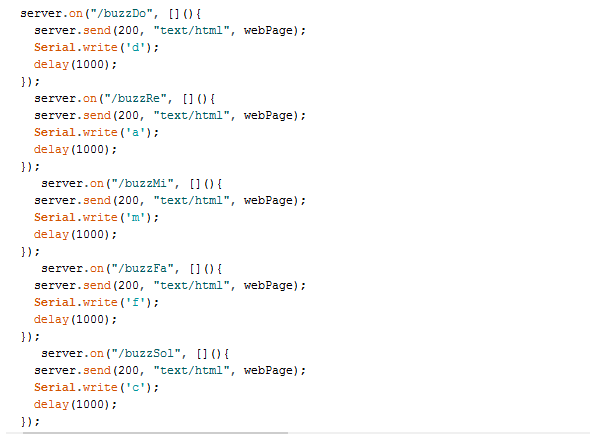

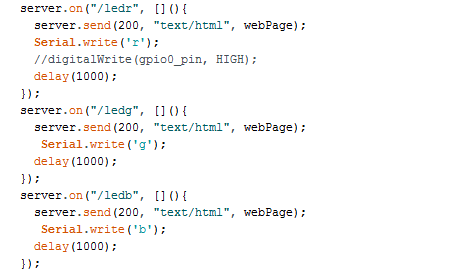

    Then I define the cases of each board in the WIFI module for sending the request for controlling the outputs (as remember in the programming of the LED and the buzzer I define cases for each reaction). With this the ESP01 will send these commands to the boards through the network and this orders will go to microcontrollers.

    The HTML web page is code also in the Arduino IDE in just one string. NOTE: As the module creates its own network and doesnt use other networks with internet connection work with different parameters for uploading images on the web and the fonts.s

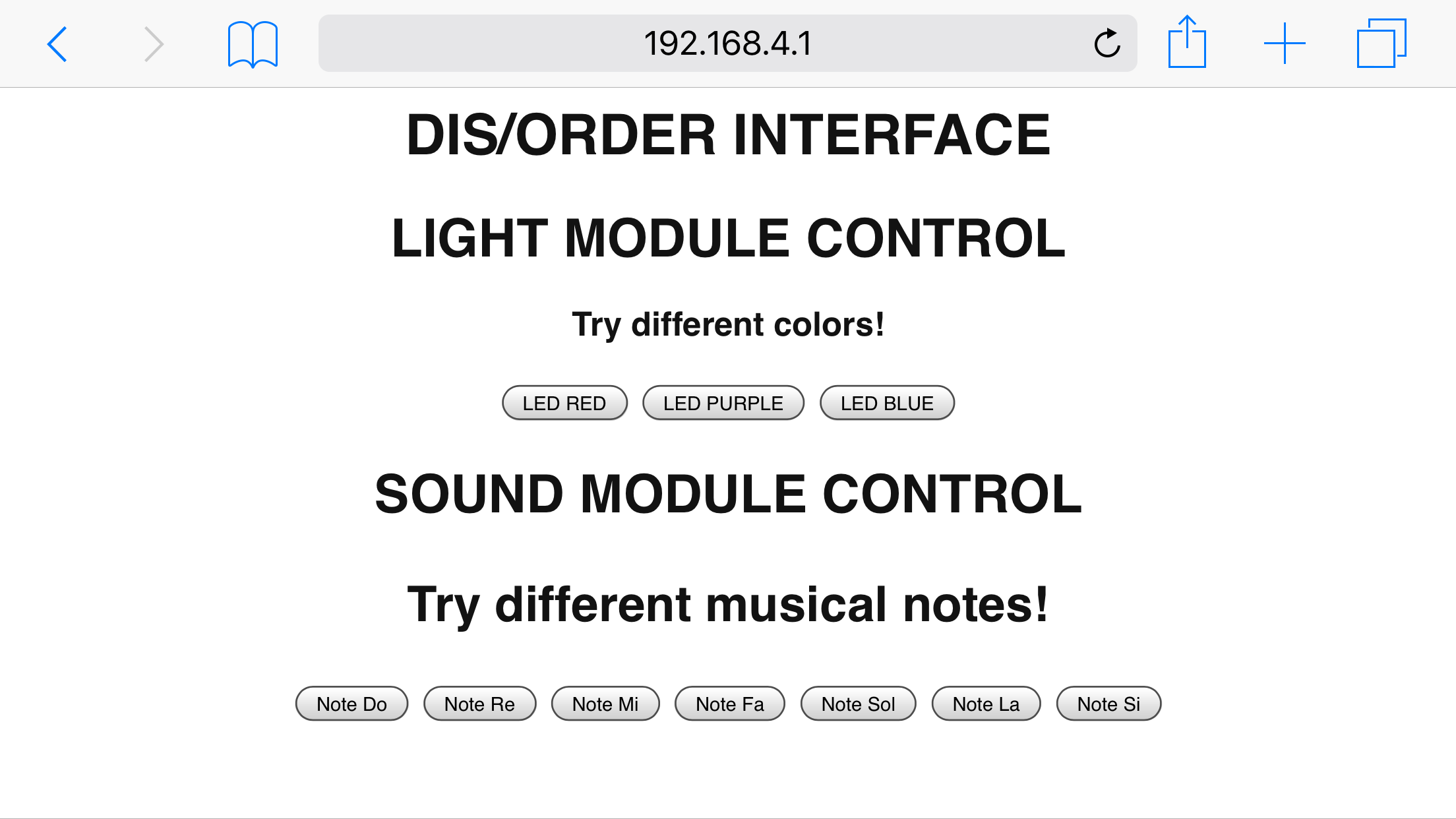

    After upload the sketch and make the module work I connected to the "dis_hotspot" network putting the "disorder" as the password and enter to the browser with the IP that is in the network. This IP will be the same always 192.168.4.1, the webpage code creates the buttons when those are click will send the request for the differents functions of the outputs.

    This work was based on the following processes learned:

  • Networking and communications.
  • Interface and application programming.
  • _Physical forms

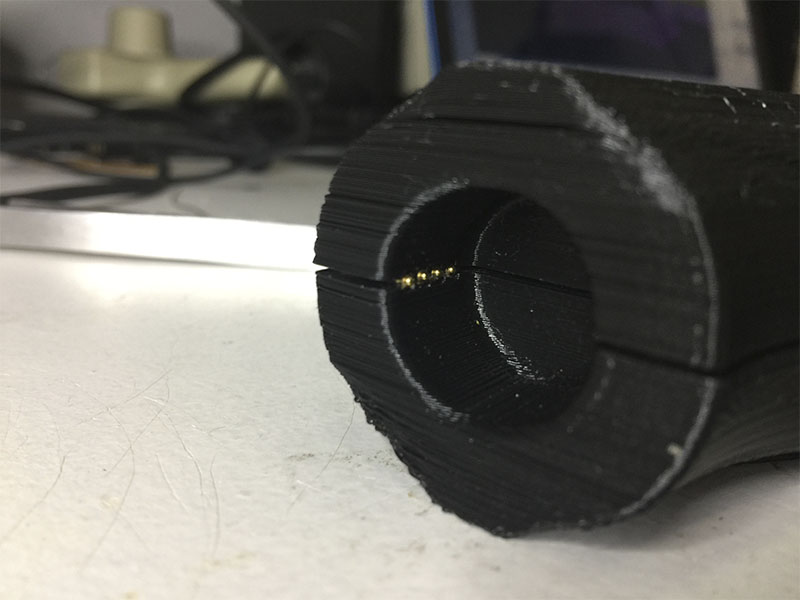

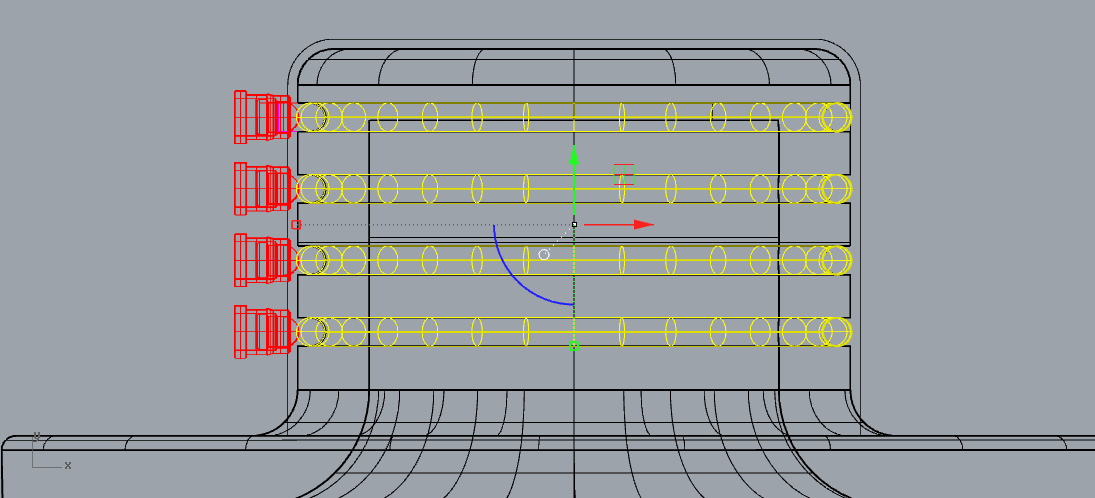

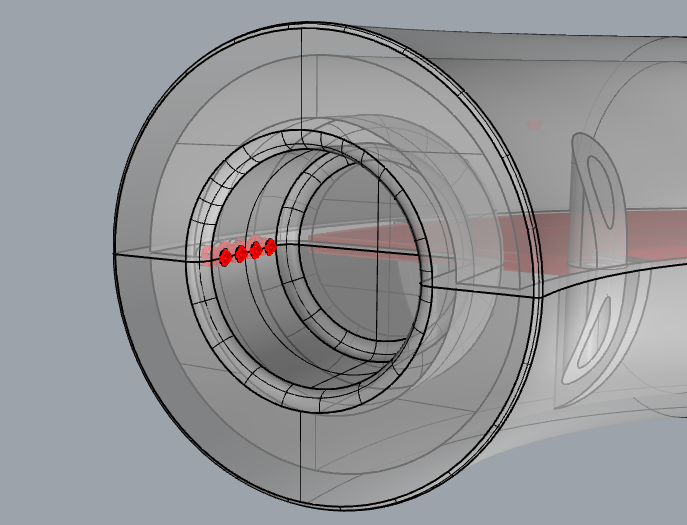

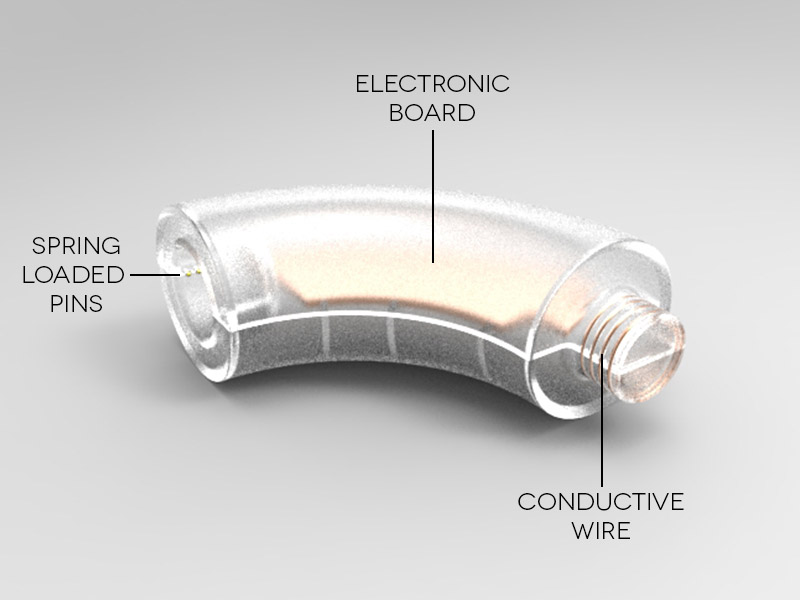

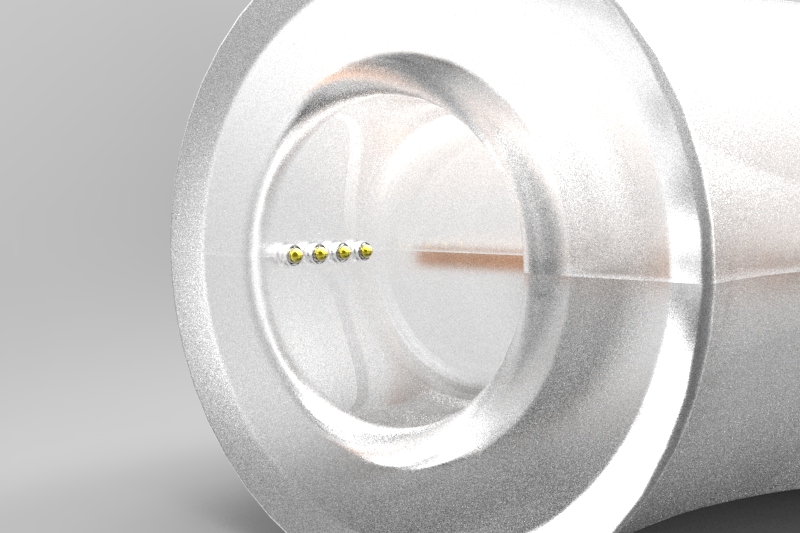

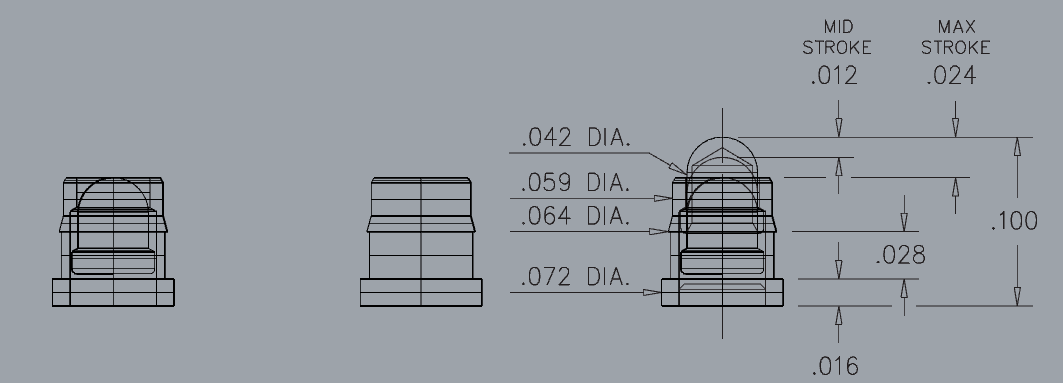

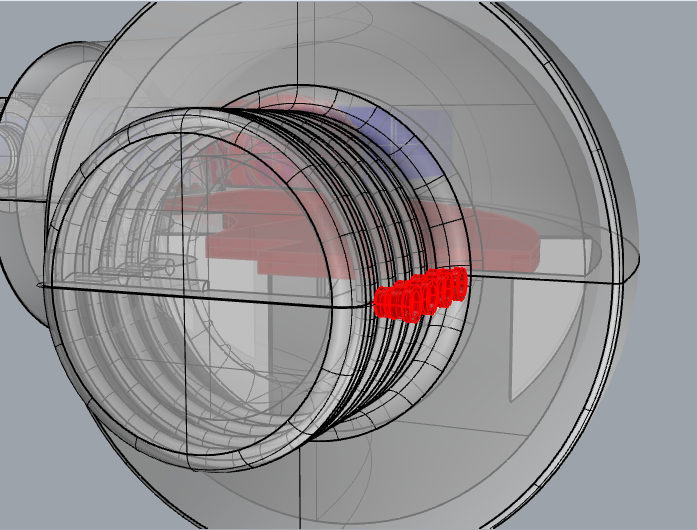

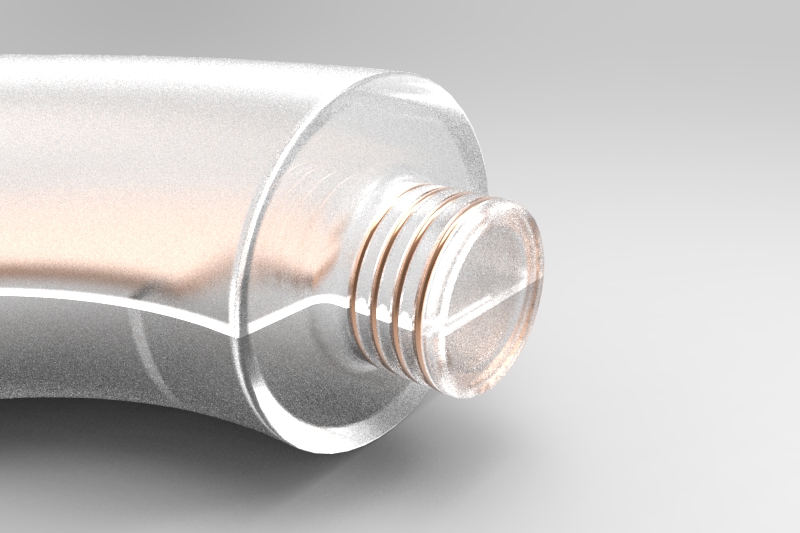

    For designing the cases of the modules as the first idea of the project based on week 2 but for this work of the final project I made some corrections in the dimensions of the cases (following the dimensions of the electronics to fit inside) as well the size of the male/female joints for using the spring loaded pins (pogos) for achieve the 360° movement of the circuit while been connected. The idea of using the pogos is that this will be into the female joint between the two cases of the module and those will touch in the other side the conductive wire that will be around the male joint. For the spaces for fitting the pogos I create the pogos 3D model and put it in the case, as well the spaces for the conductive wires were design with tubes around the male joint. Also I add some supporters and male/female joints inside the cases for put it together without glue.

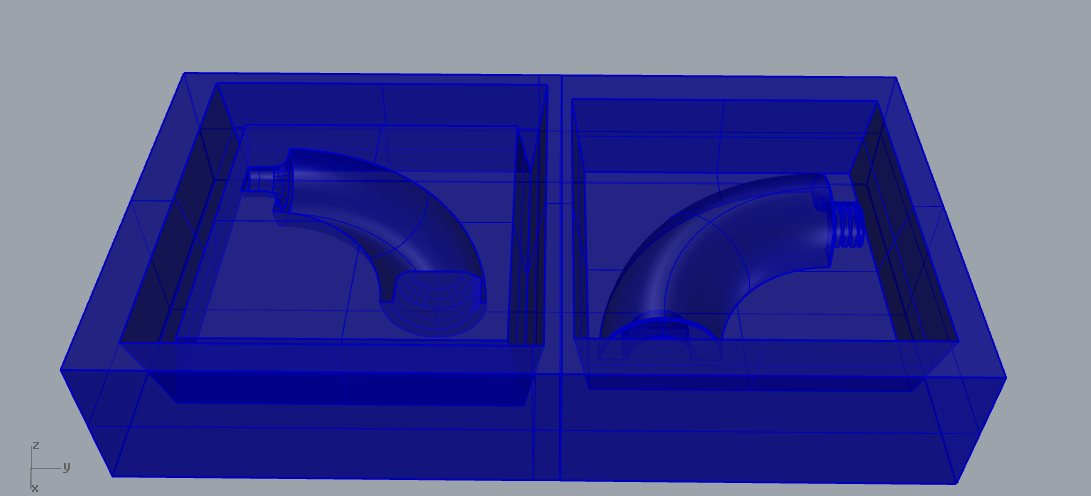

    Later I created the two sides molds for molding and casting the parts, following the same process for creating the molds as in week 12, but in this case I have a doubt about the definition of the pieces for the pogos and conductive wire so I decide to 3D print the molds. For matter of time I didnt follow the molding and casting so I decide to 3D print the cases.

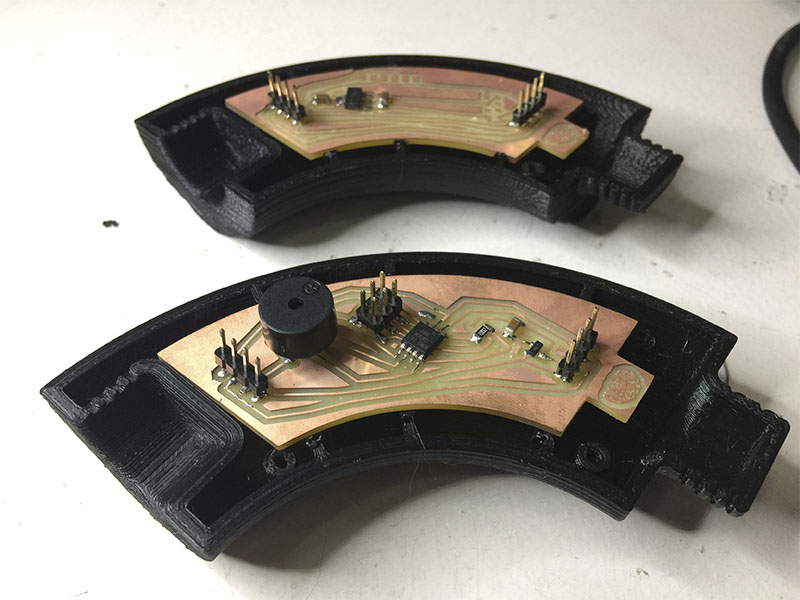

    I printed the cases on the Ultimaker with the following parameters:

  • 50% of infill
  • Without supports

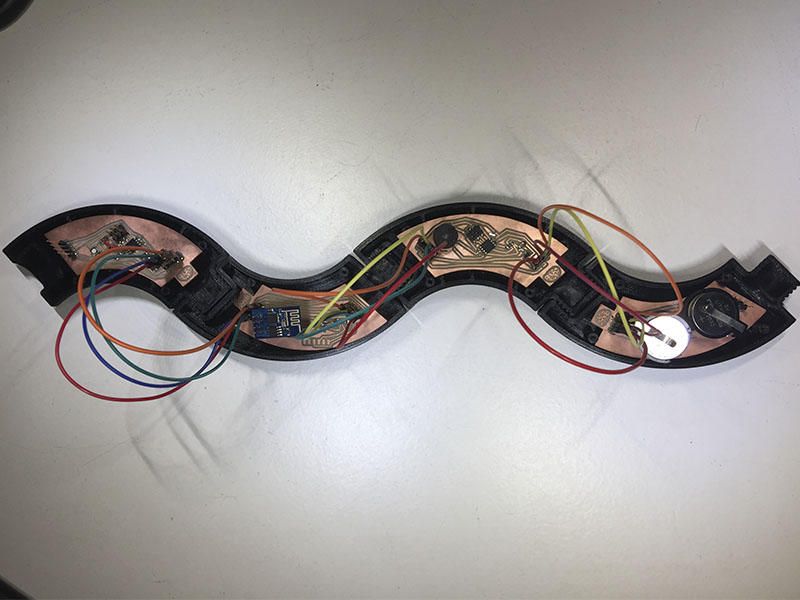

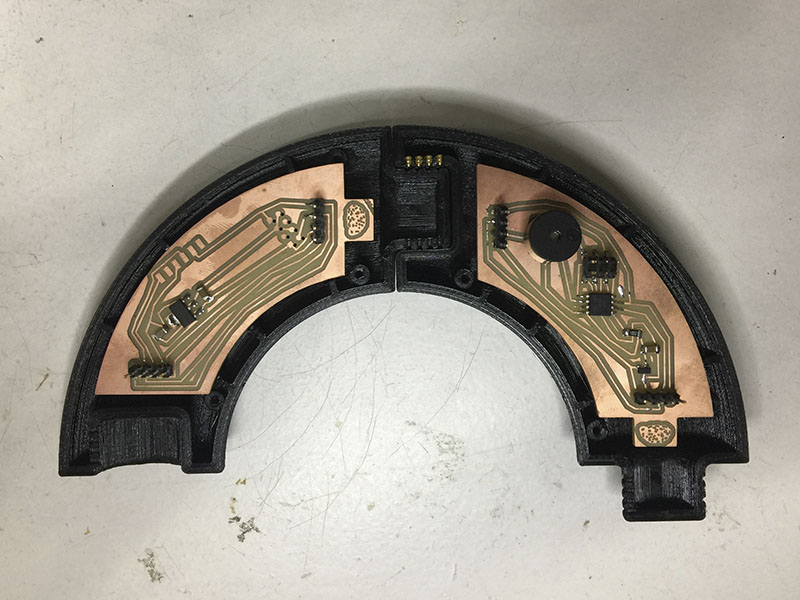

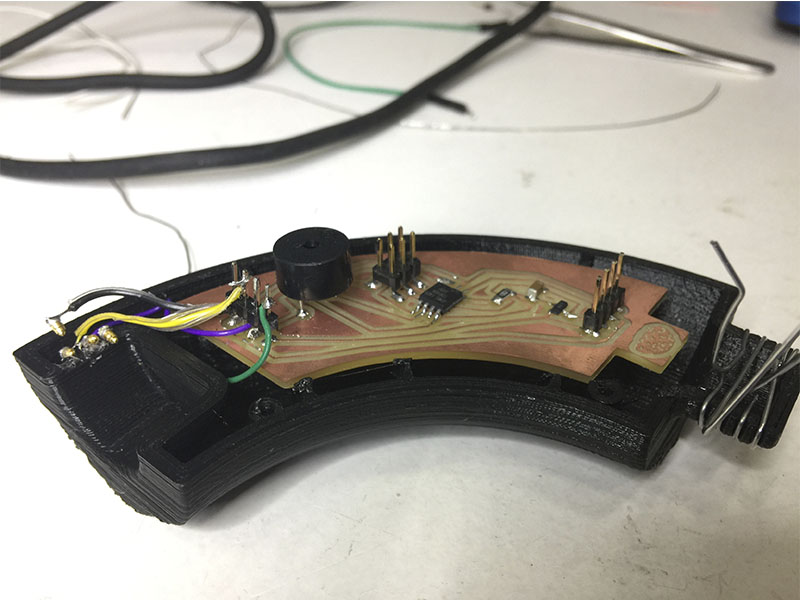

  • Putting together the boards and the cases and starting to manage how to put the pogos into and make everything working. For matter of time and the way that I have to manage to connect the pogos in each module I leave the pogos and make it work all the circuit with jumpers inside the cases.

    This work was based on the following processes learned:

  • Computer aided-design.
  • 3D scanning and printing.
  • Molding and casting.
  • _Next iteration

    _Incomplete tasks for solve

  • Finish pogos connections
  • Print the 3D molds for molding and casting the pieces.
  • Make another Power module because the WIFI module consumes more than the current that I have so the other boards have less current to function, right now everything works with one power module and connected to the FTDI cable having current from the computer.
  • _FILES

    All the files for the final project are available to download here
