09.- Mechanical design

Mar 22

Group assignment
-Design a machine, including the end effector
-Build the passive parts and operate it manually
-Document the group project and your individual contribution

week11

This week I was in charge of the extruder and hotend

Tomas Marin Agudo_______________________________Endefector
Sohail Ahmed Soomro_____________________________Z-axis
Muhammad Asim Ali______________________________XY-axis
Fida Hussain Memon _____________________________Frame
Nisar Ahmed Siddiqui_____________________________XY-axis

In this window is the page of the group assignment

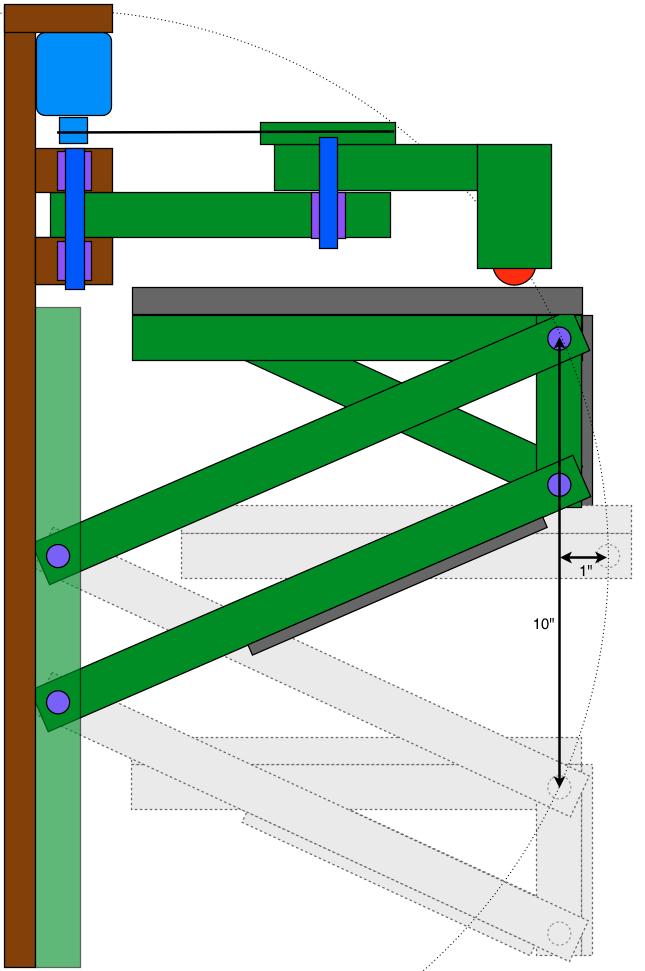

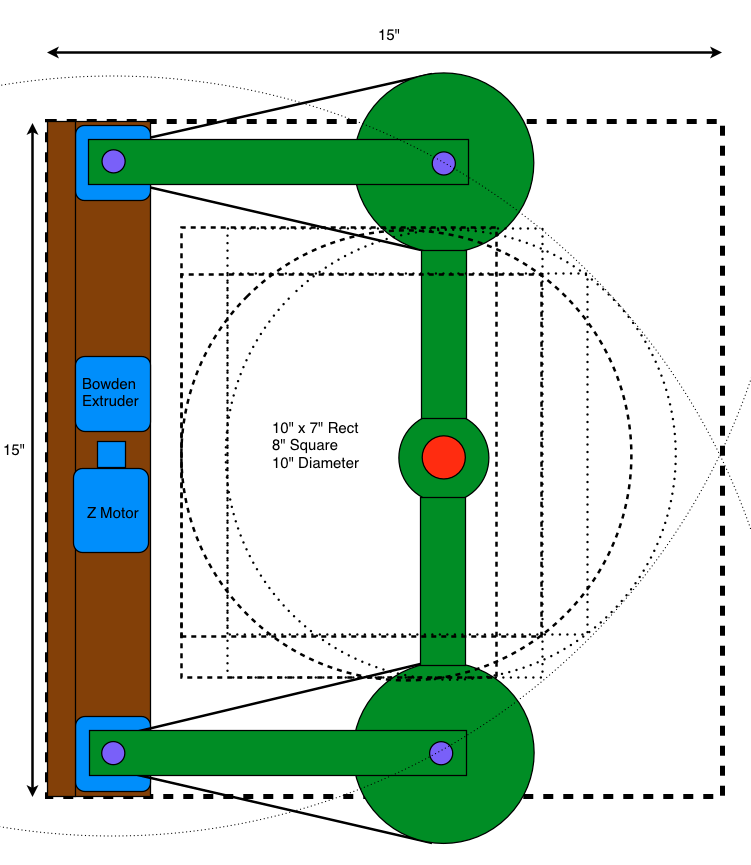

wally reprap
wally foro
wally github

Extuder holder and Xy forearm1

extuderholder.SLDPRT| extuderholder.STL| xy forearm.SLDPRT| xy forearm.STL

xy ubis mount arm2

xy ubismountarm.SLDPRT | xy ubismountarm.STL| locker.stl

xy z pulley

xypulley.stl| zpulley.stl| xyzpulley.3dm
