Yoshihiro Asano

FabAcademy2016 from Fablab Kamakura

3D Scanner and 3D Printing


◆Try to 3D scan

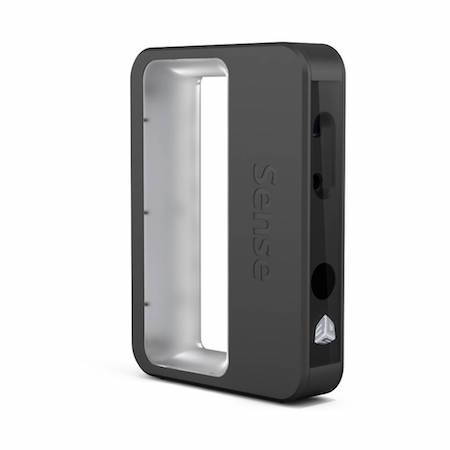

I use Sense for scannning the torso of Yukichi Fukuzawa,
who is founder of our university.
We can hold sense by hand and scan things with moving around it.

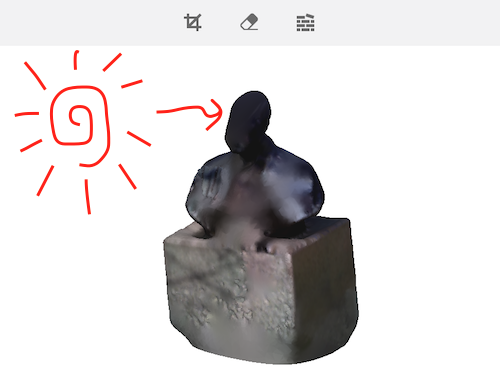

But the result is not perfect.
I can scan backside of him, but cannnot around face.

Maybe it caused by light enviroment.
The sun illuminate his face directly, and its surface is so shiny.
We need to scan things when the sunlight is not strong.
→If possible, use baby poder and whiten it(Jason, Asia region review).

◆Try to use 3D Printer


I use this machine [Cubis] with Repetier HOST, slic3r.
For the use Rep-Rap machine, I try to change slicer settings.
Now I document at fabble with japanese language.
http://fabble.cc/asanoqm/slicer

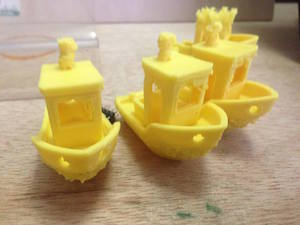

This time, to print the tip beautifully,
I need to down speed when printing small perimeters.

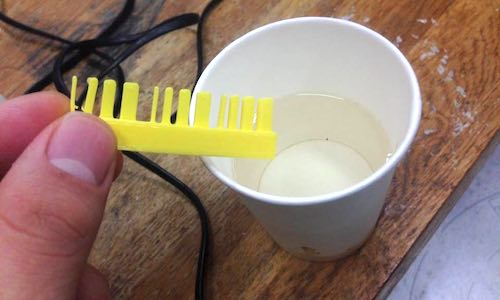

◆Bending PLA with hot water

We can soften PLA with heat.
I think this material property is so intersting and want to control it.

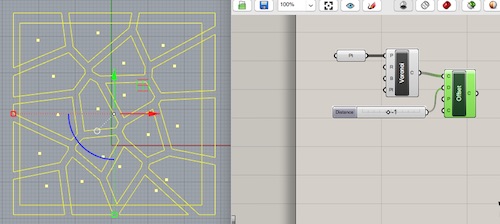

Now I can create Voronoi patterns with grasshopper,
so I will print them and connect to create complicated shapes.

◆ Data

Yukichi^sensei.stl

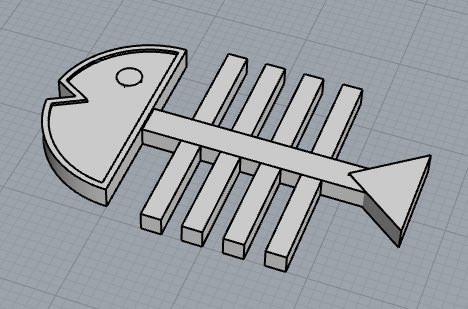

fish.stl
voronoi.stl
