make something big

I made world map-shaped photo board. The overall size is about 200cm, the size of most big parts is about 90cm.

Cut data making

I made data for cuts. At first I designed the form of the world map by illustrator.
I had a deformed linear design to reduce cut time. Then, I made 3D data of every map parts by Fusion360.

I used Fusion360 as CAM.

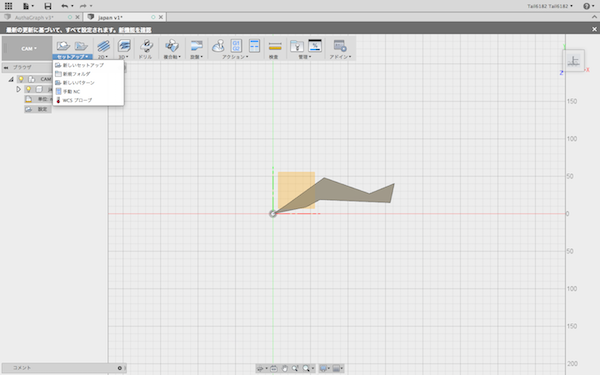

I confirmed that a model is placed in the xyz original direction. CAM > New setup .

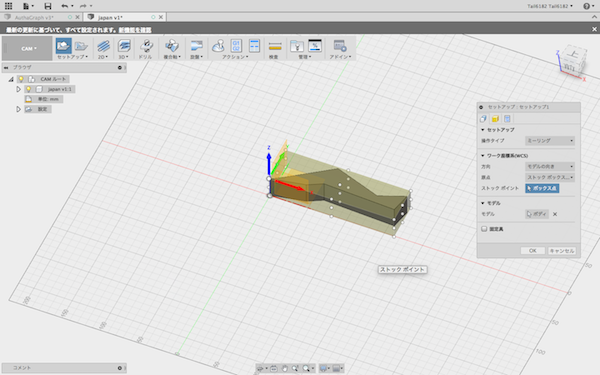

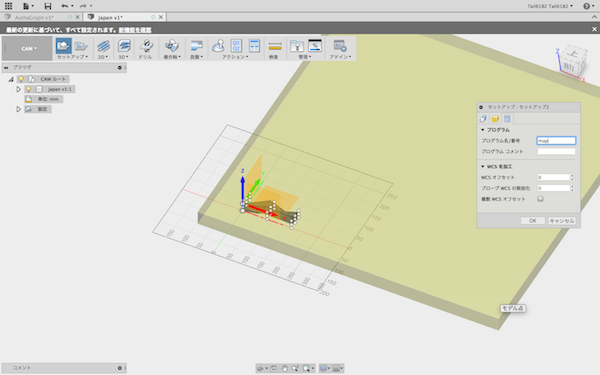

I set it up. I set the position of the origin.
If I make the corner of the model the origin , it is easy to use the materials without waste .
If I want to make the position of plural models, using "edge of stock"is good.

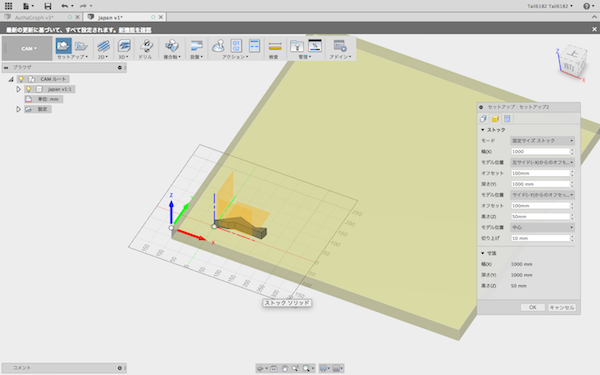

I set the stock. I select fixed size stock and input size of the material I use.


I inputed the name and clicked OK.


I choose the 2D outline because this time I just cut a board with 2D line.

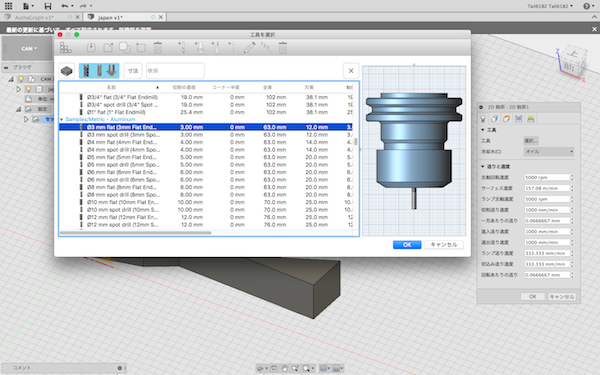

I choose the tool. I choose the kind of the mill. I use flat this time.


Because there was a thick line, I chose 3mm. "cooling" I choose nothing .


Virtual mill appears


I choose the outline to cut

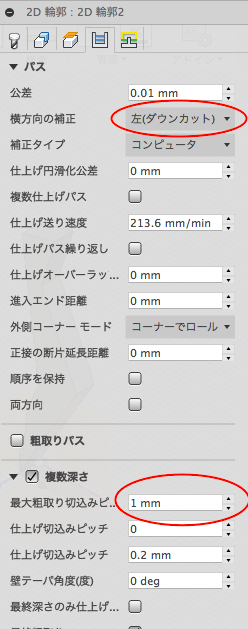

With a pass, I choose a down cut or the upcut.This time I use upcut.
Wild very much; take it for good, and have a short pace including it at the age of soft material a little than the length of the blade, and choose the 1/2 degree of the diameter at time except it

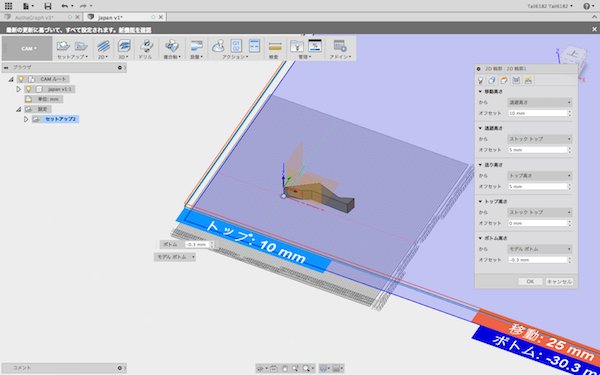

I choose the heights. In the case I use weights to fix and material has projecting, It is good to set the height of the evacuation having margin. In addition, you should offset the height of the bottom - 0.5-0.3mm to cutting over bottom.


When setting was over, I export it. Action > Post-processing.

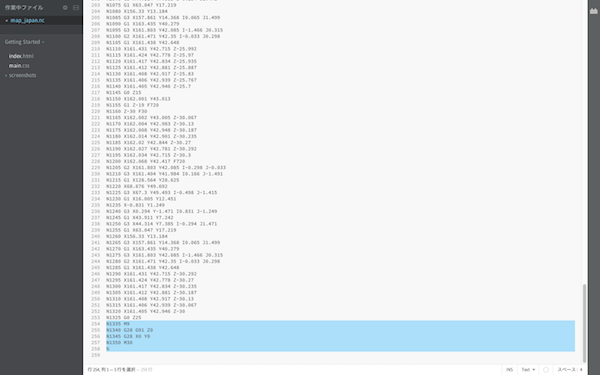

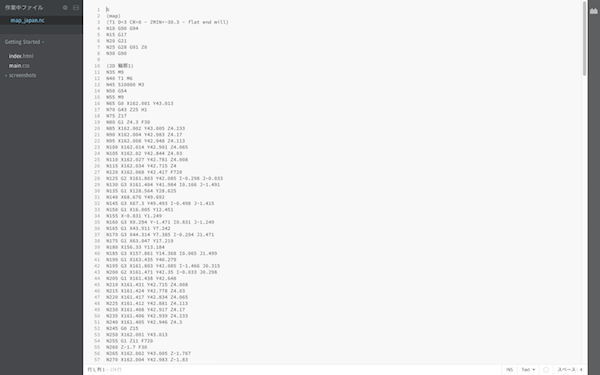

I search G0 of the beginning in an output text , and delete the line before it.


I delete the line behind the last G0.


I saved it in UEB and inputted to a milling machine.

machine cutting

I finally cut it.

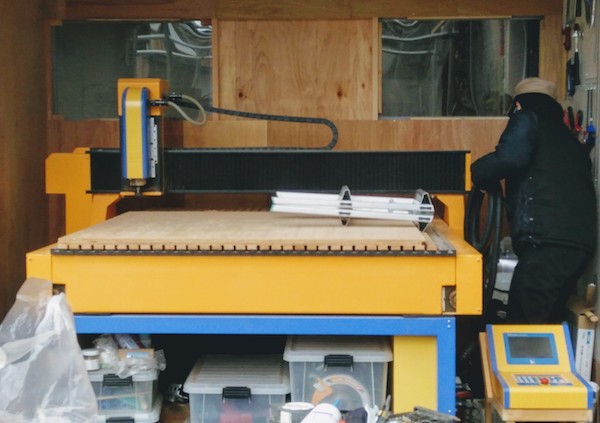

The machine of our laboratory is woodpecker AP1212Y.

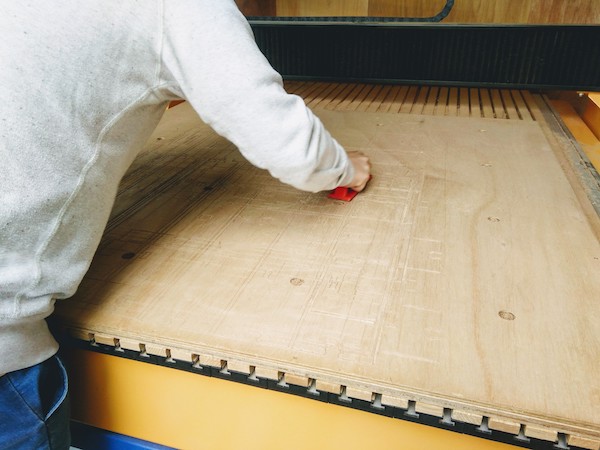

At first I cleaned over its table. I moved the thing on the table and rasp the table and clean wood powder to secure level.

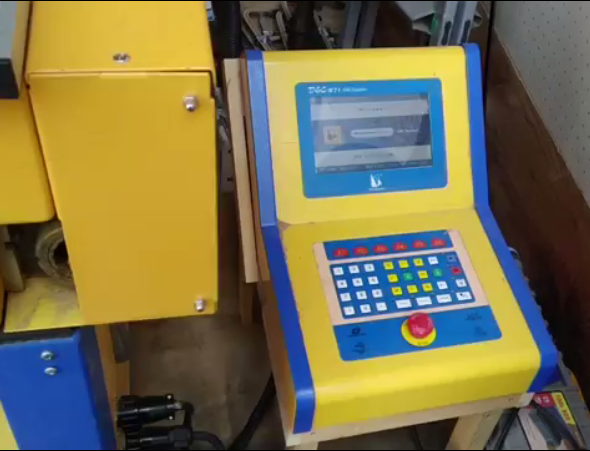

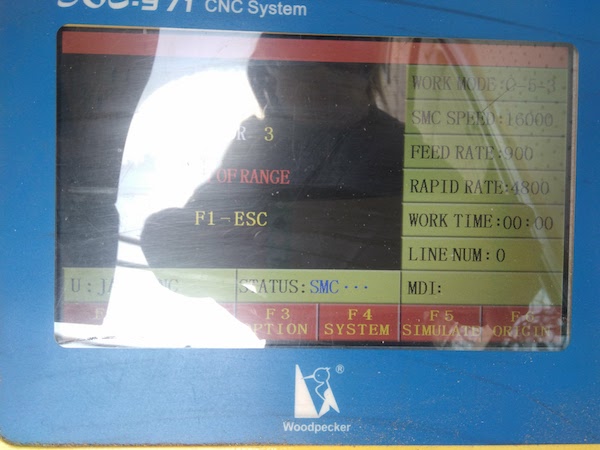

I switched on the controller and I pushed F1 then it moved to initial position.


I move its spindle to this side (Y direction) with arrow key. When I work, I must push the red emergency stop button.

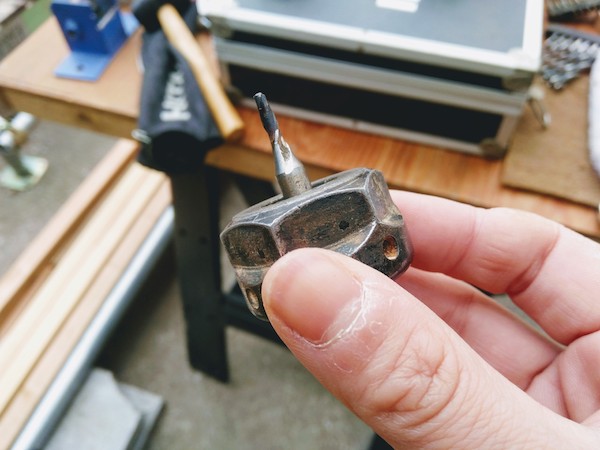

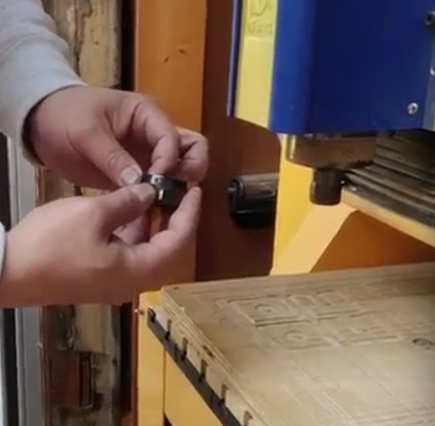

I took its collett and set mill.

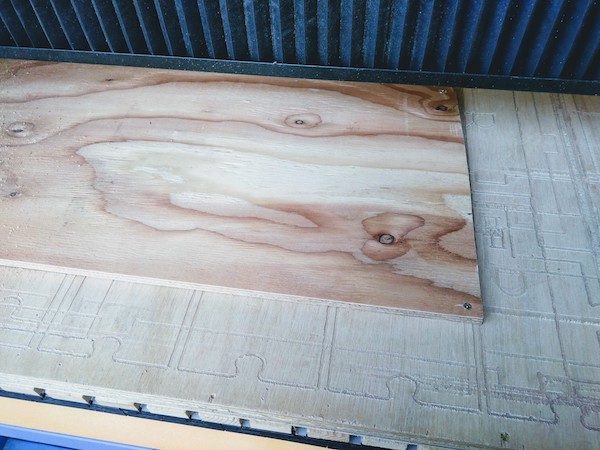

I fixed materials. I stopped 4 corners with a screw. Then I set the XY origin.
I set the Z origin higher than the hight that materials and depth to reduce , then I run for test (air cut).


There seems to be no problem, so I set the Z origin.

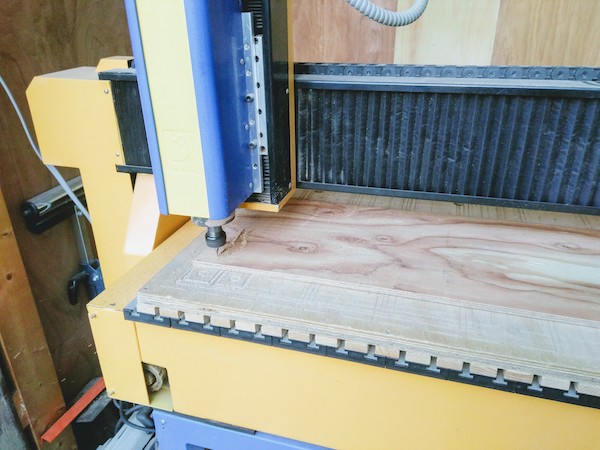

I turned the spindle and gradually took it down. When a sound changes I set the Z origin .

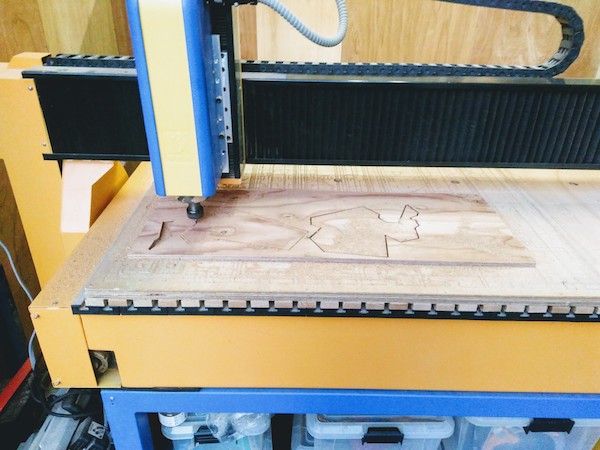

I select my cut data and really cut it.

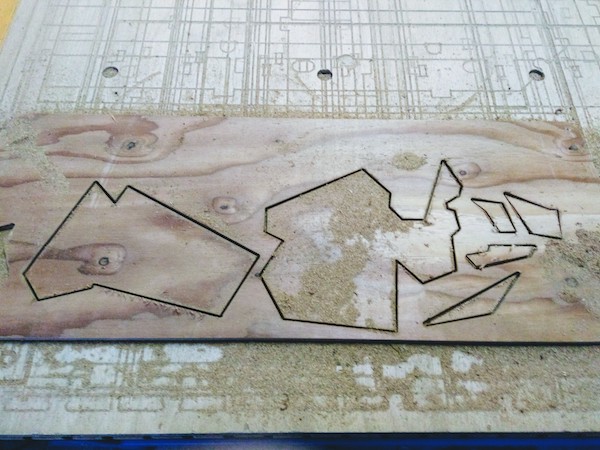

Because fixation was only 4 corners, parts loosened in the place when cutting finished , so an edge was missing.
I should use a double-stick tape.

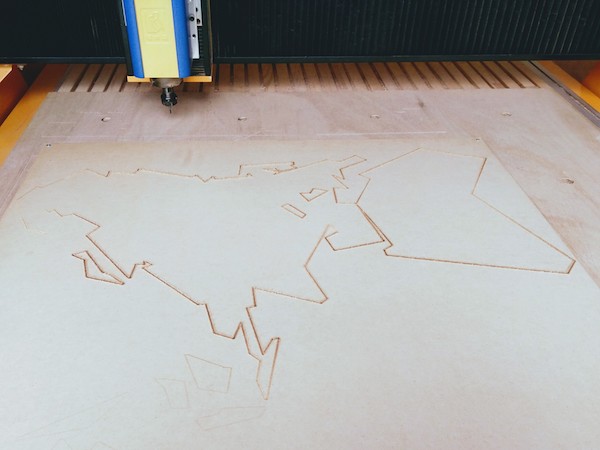

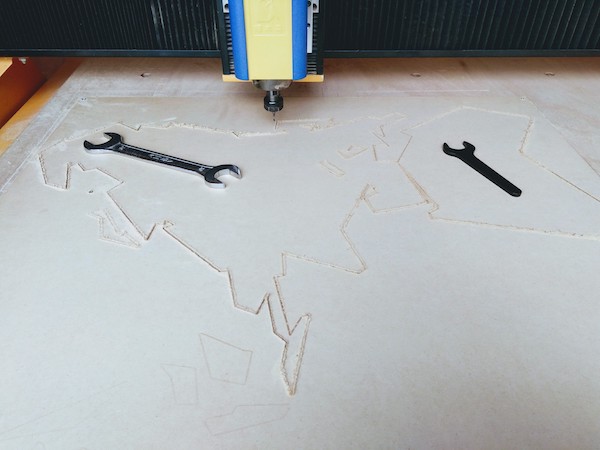

I cut big parts next in 3mm MDF. But the surface burnt without being cuted.


This was because the tooth of the mil was worn.
I will warn a case that smell being hard and the change of the sound at the time of the setting of the Z-axis can not hear.


I added a weight in addition to the screw of 4 corners.

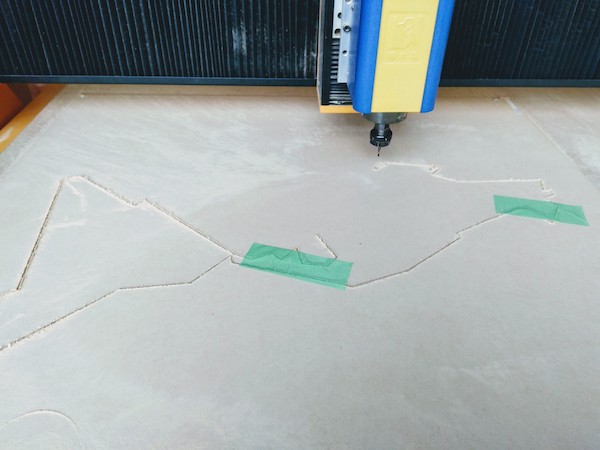

I added tape in addition to the screw of 4 corners.

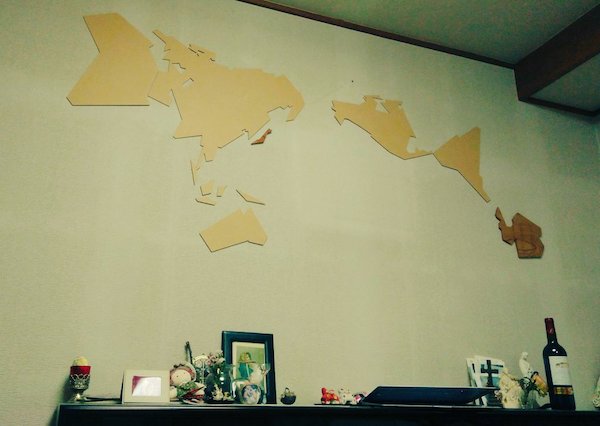

I pinned each part on the wall with a thumbtack.
