It finally works! I can't tell you how much pleasure you get from the completed project.
Probably everyone that is associated with project activities will understand me.

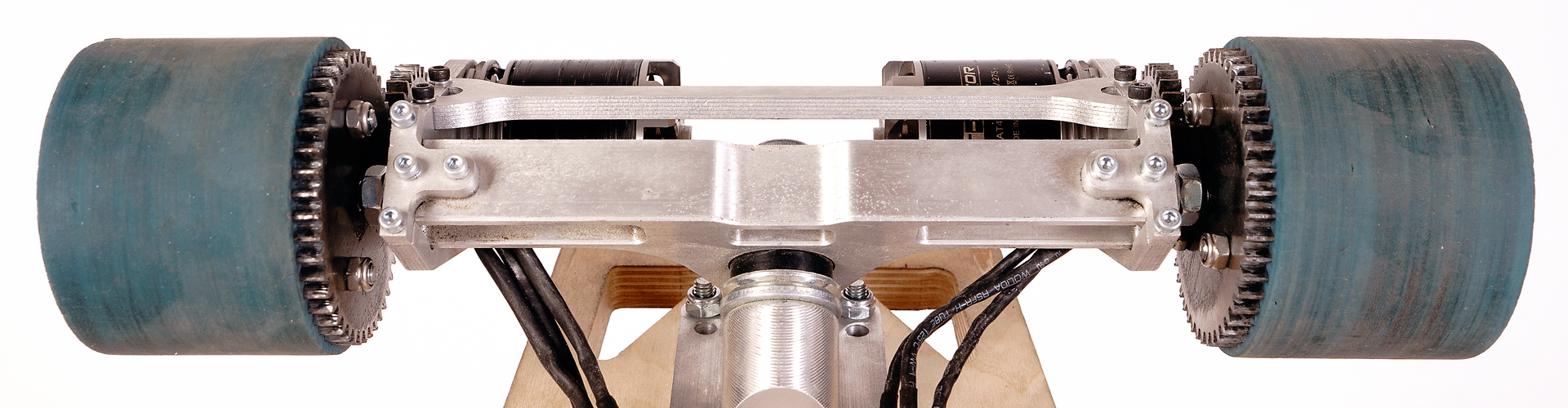

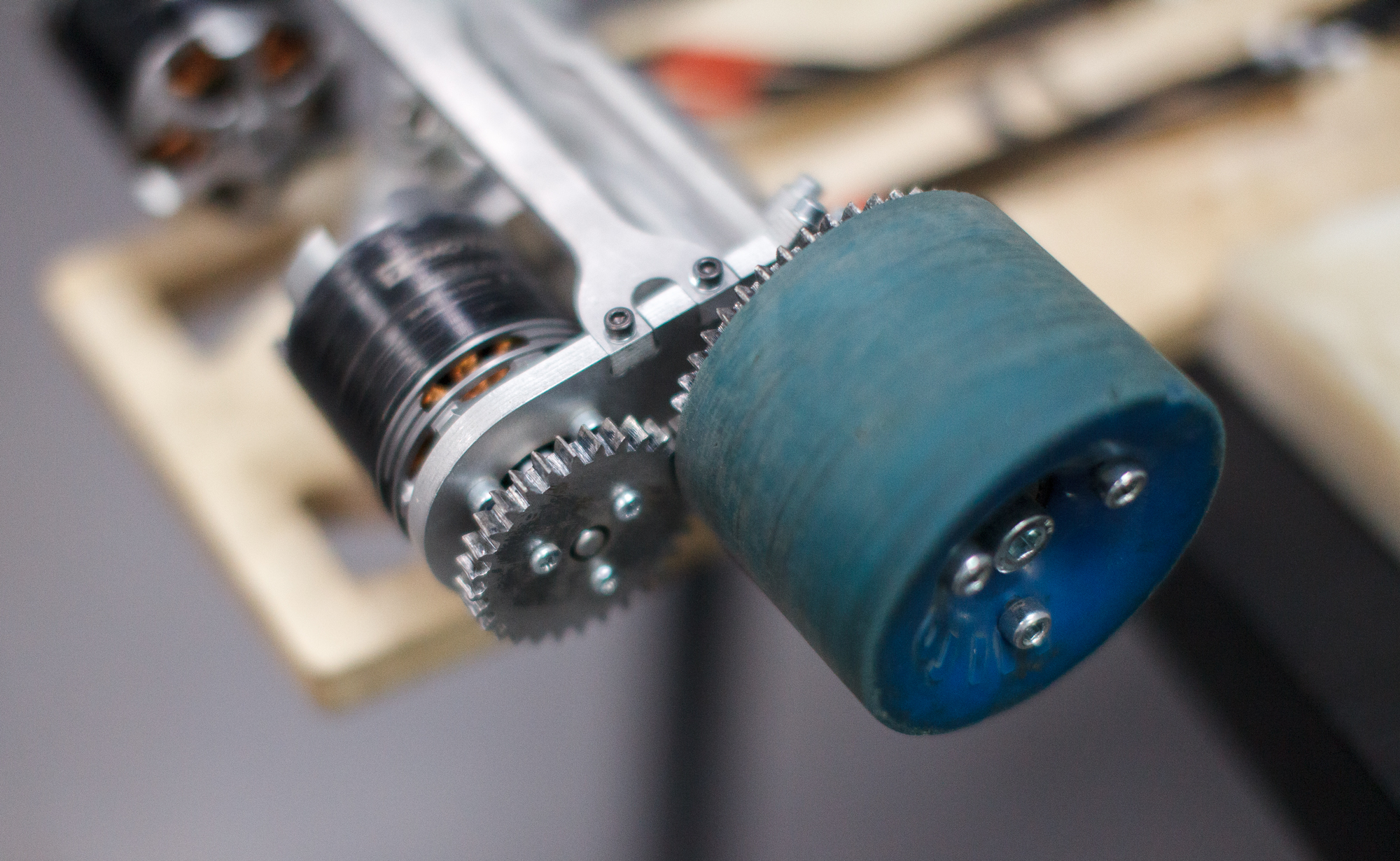

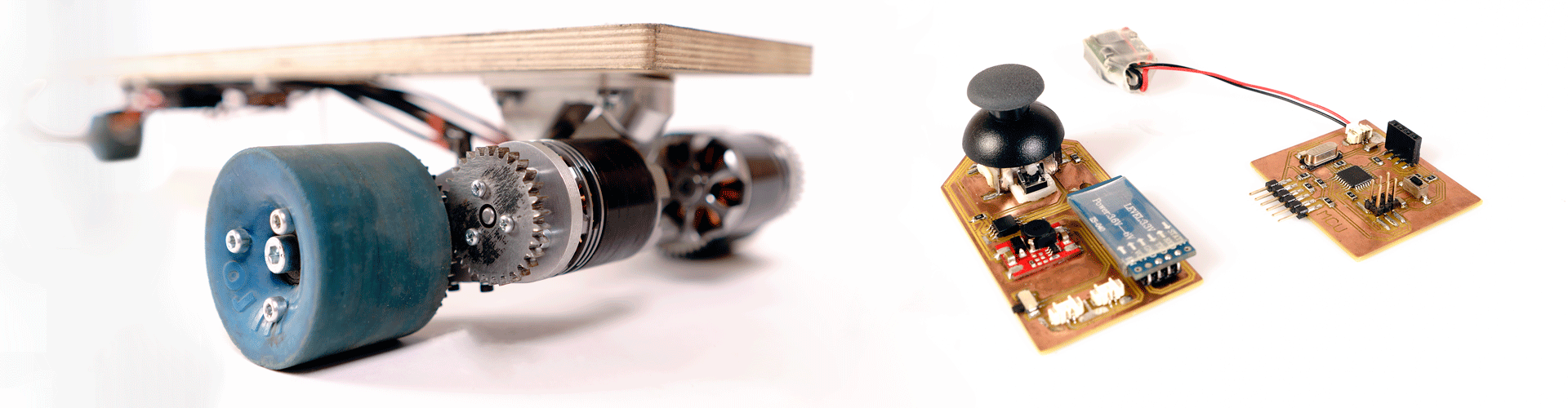

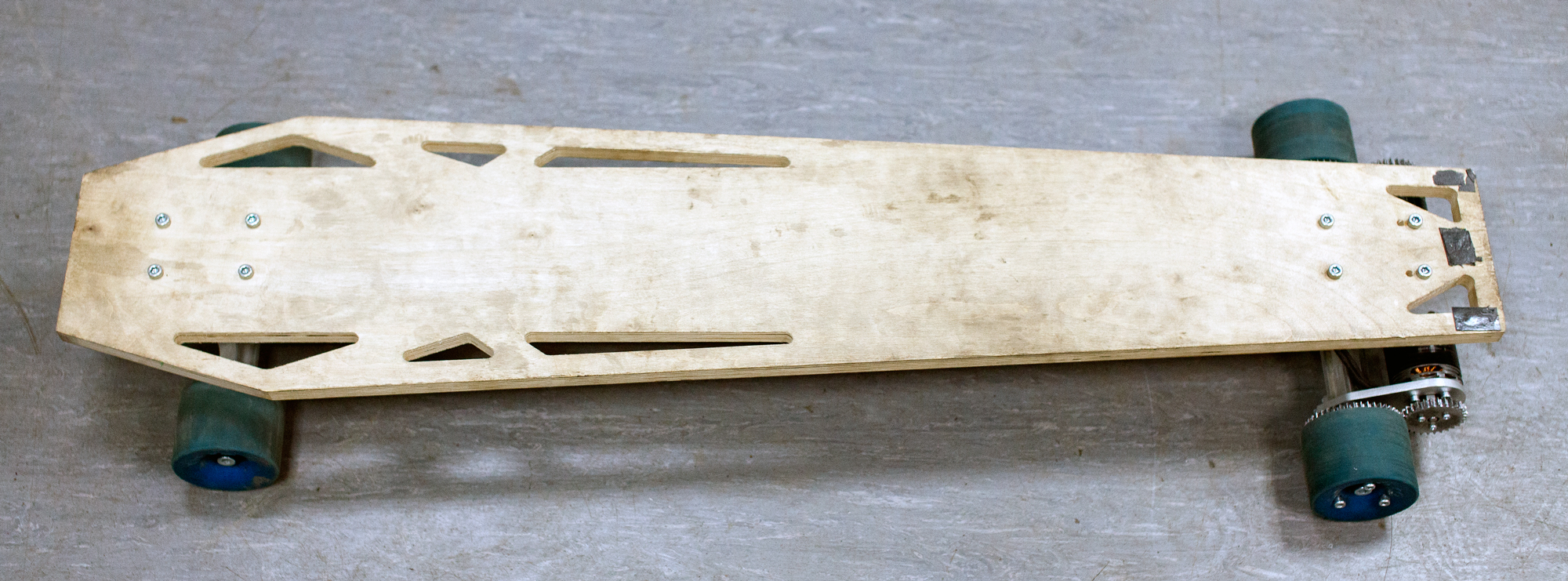

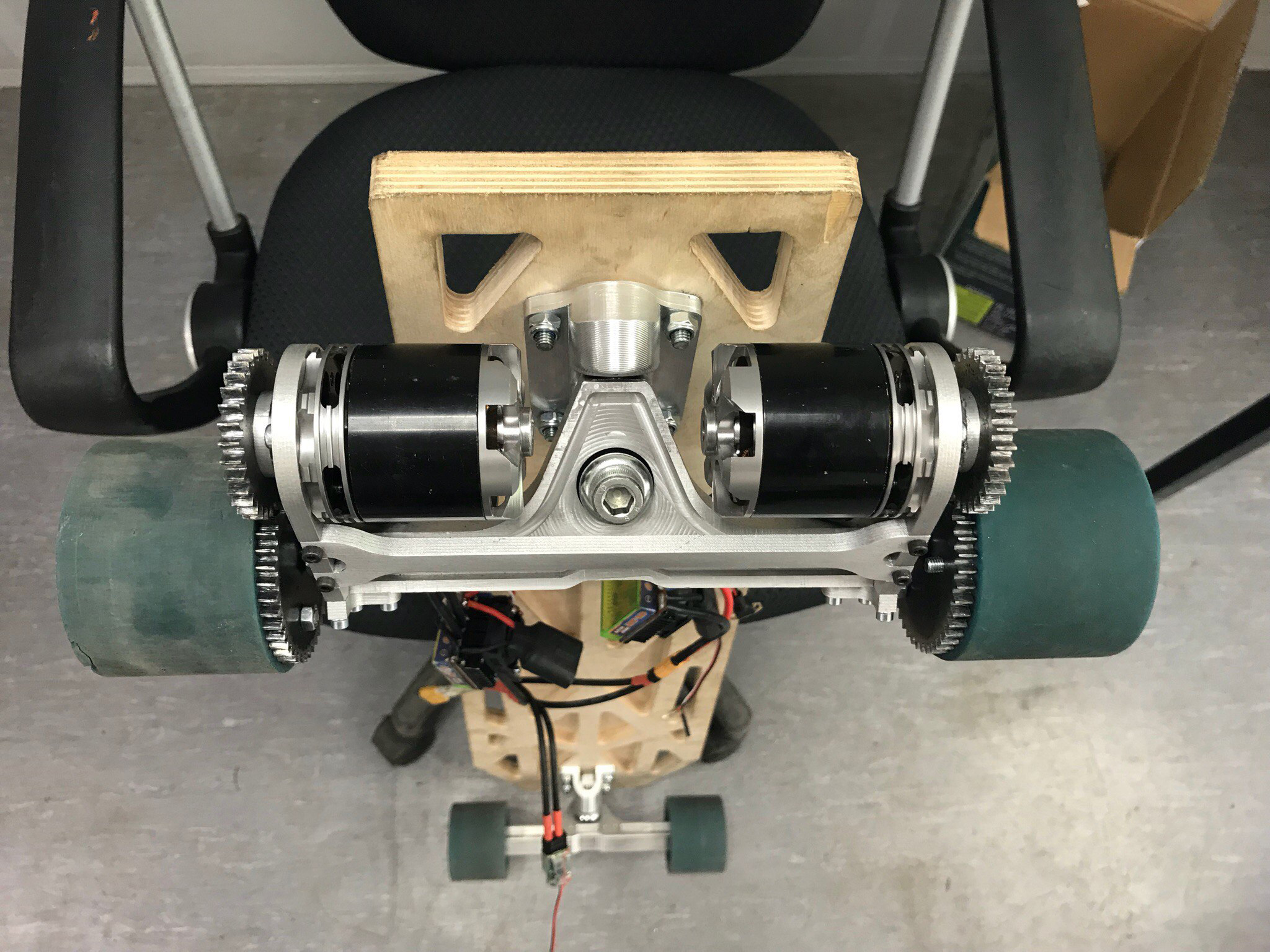

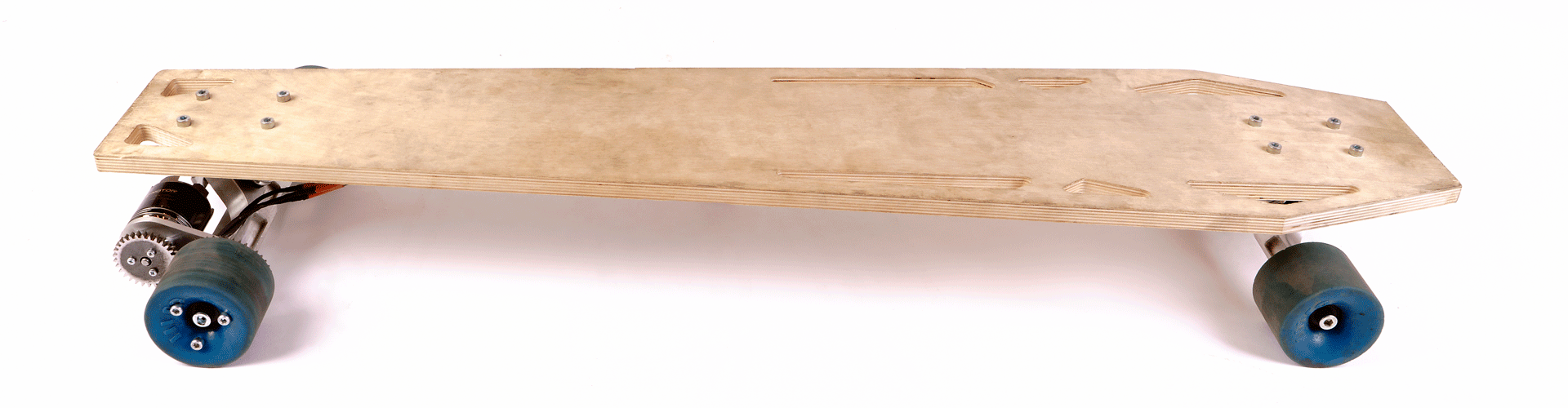

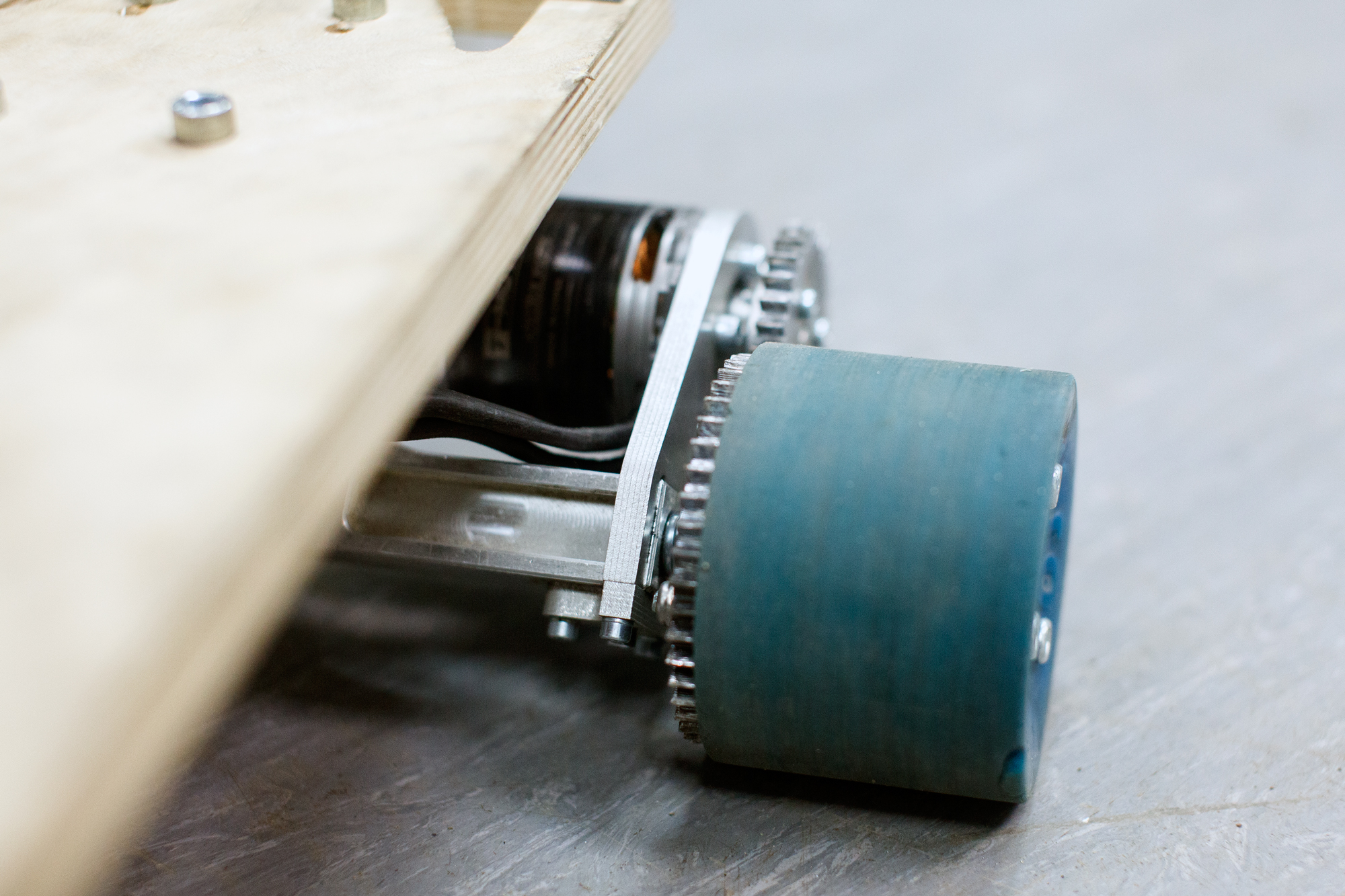

below you can see the gallery.
About licensing you can read the information here. My chose - CC-BY-NC-SA.
For more information about the final project - click to the next panel.











Here is the link to my final Slide.
Here is the link to my final Video.



CAD
Altough I prefer Solidworks, it's much easier to make a .dxf with a lot of contours in a 2D editor as Corel draw if you don't want to make assemblies. So, it's 50% Solidworks (table, stand, letter Pi) and 50% Corel draw (digits, plexiglass cover) in my project. You can look through my CAD assignment to look for details.

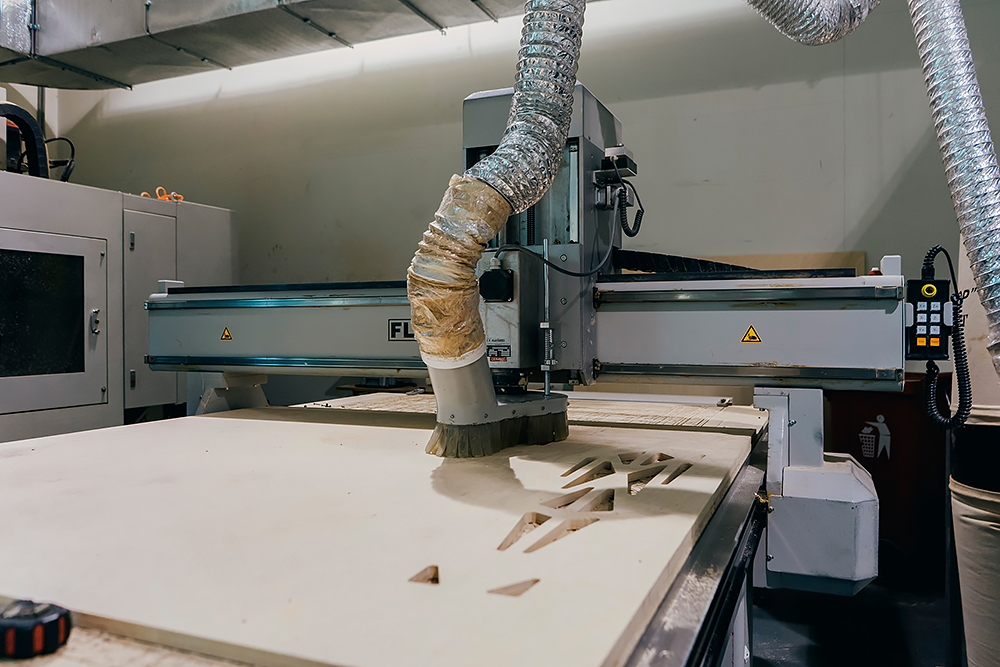

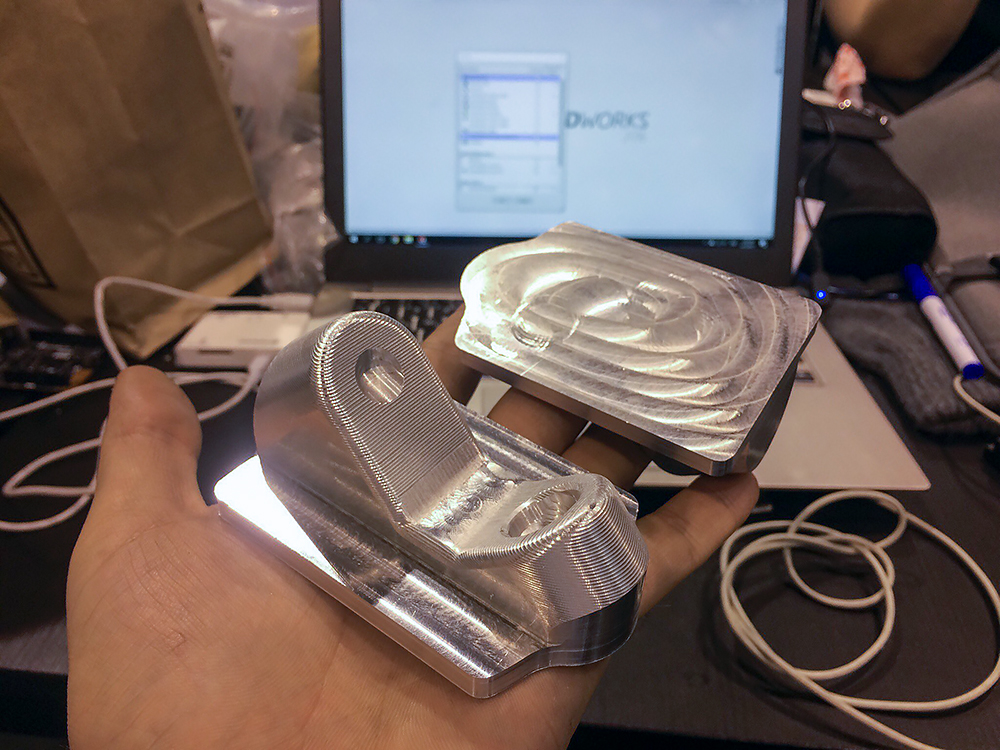

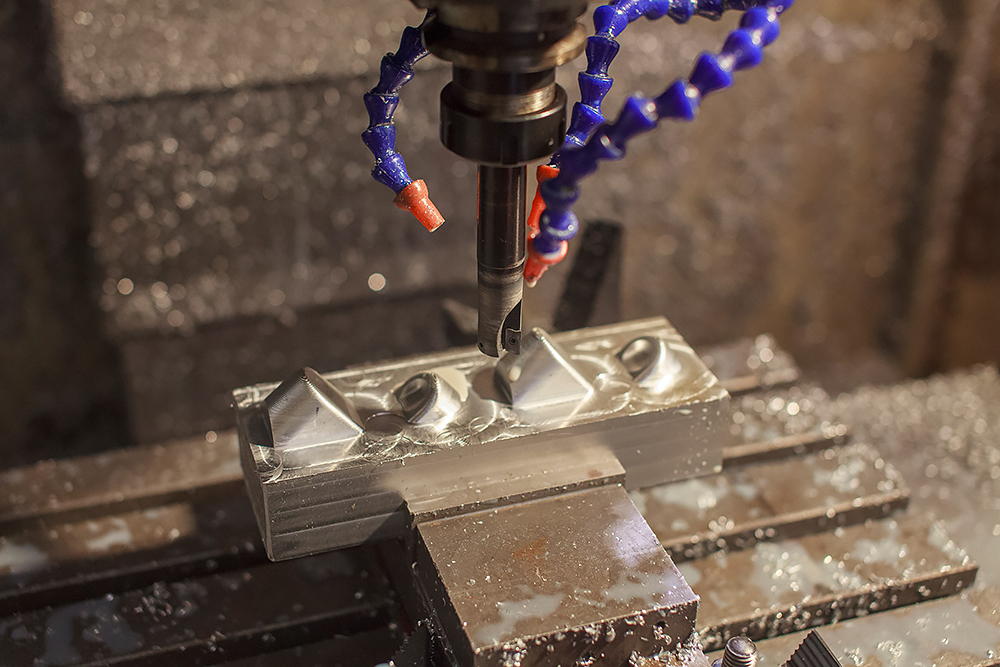

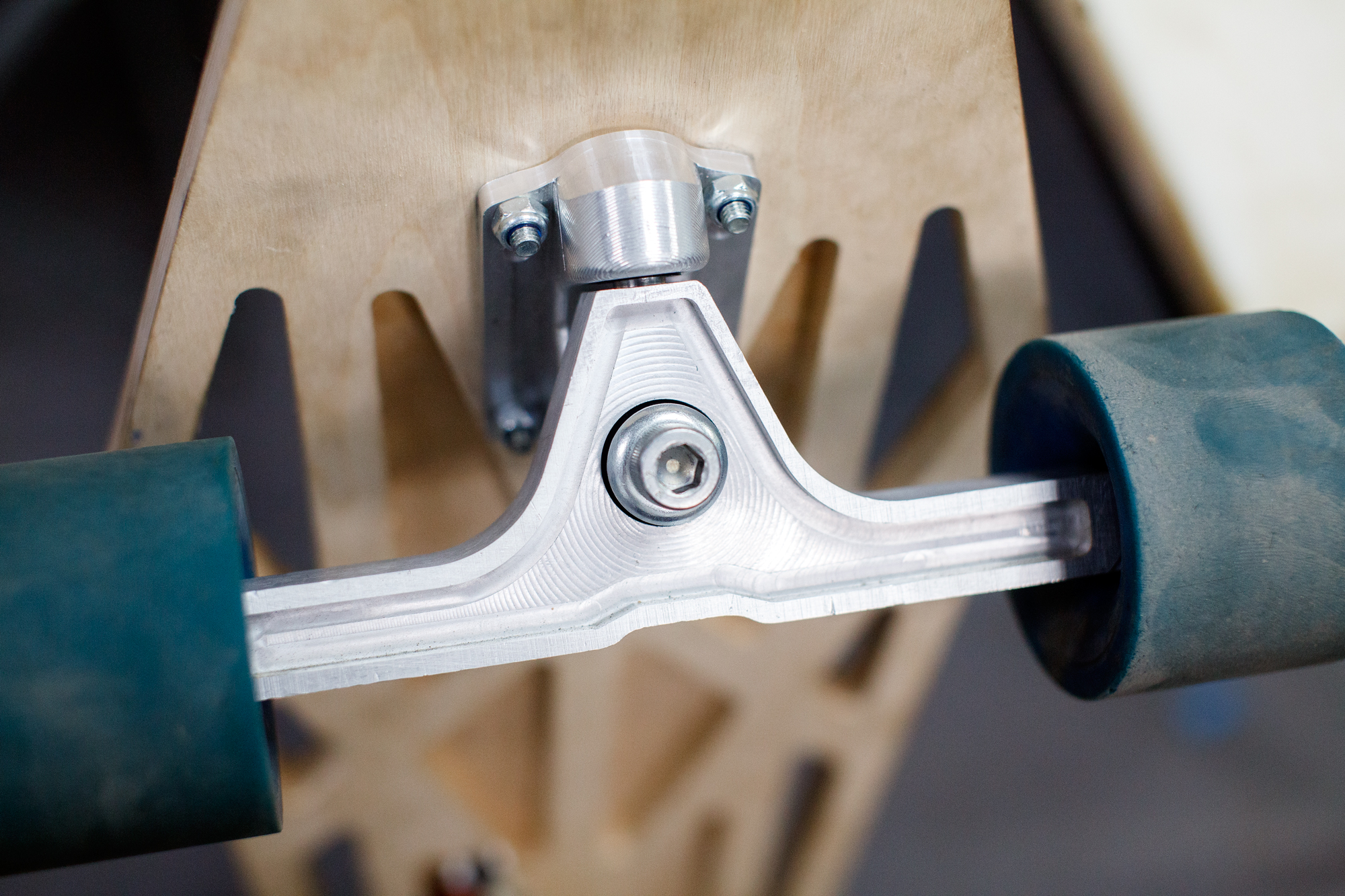

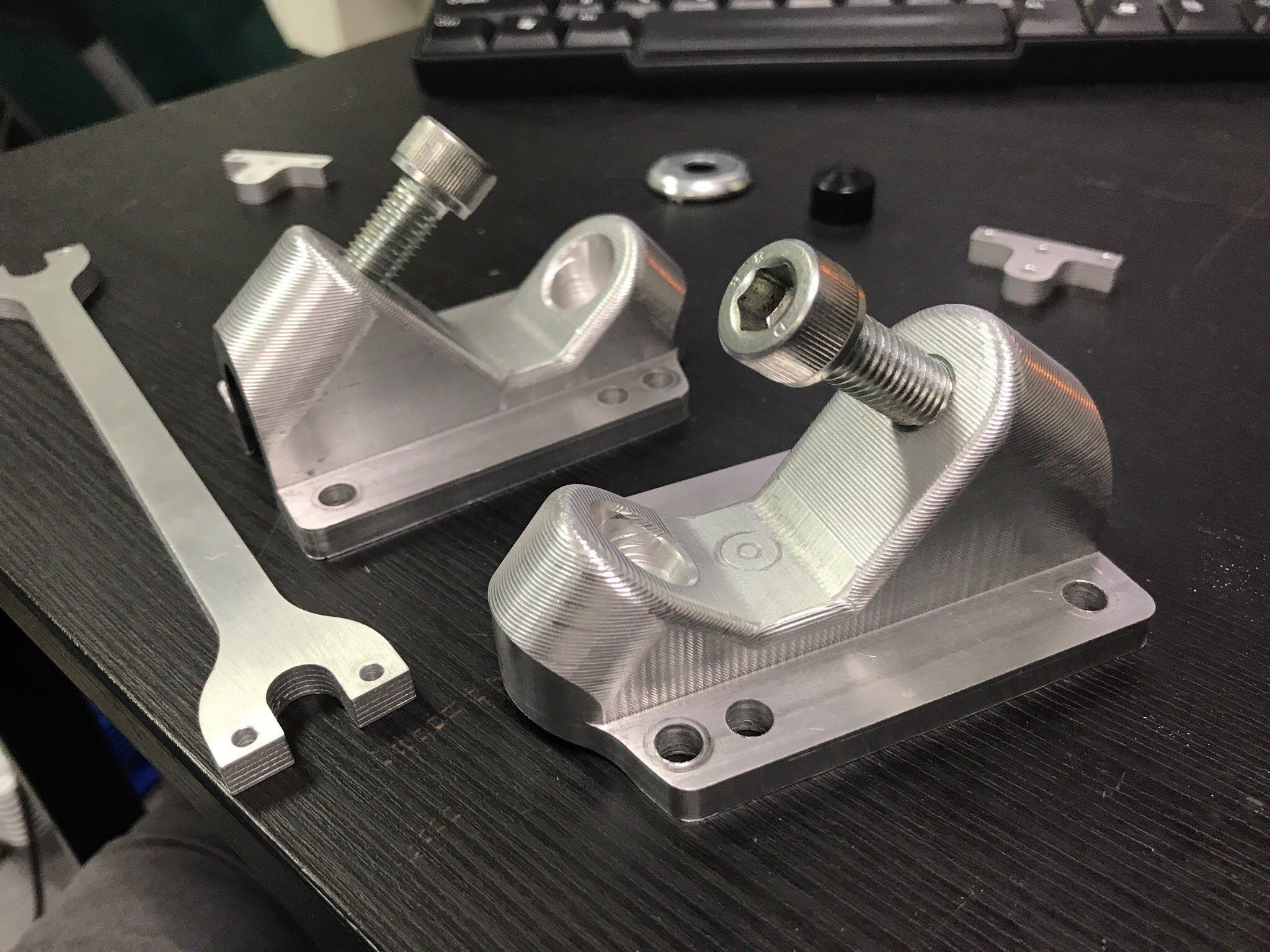

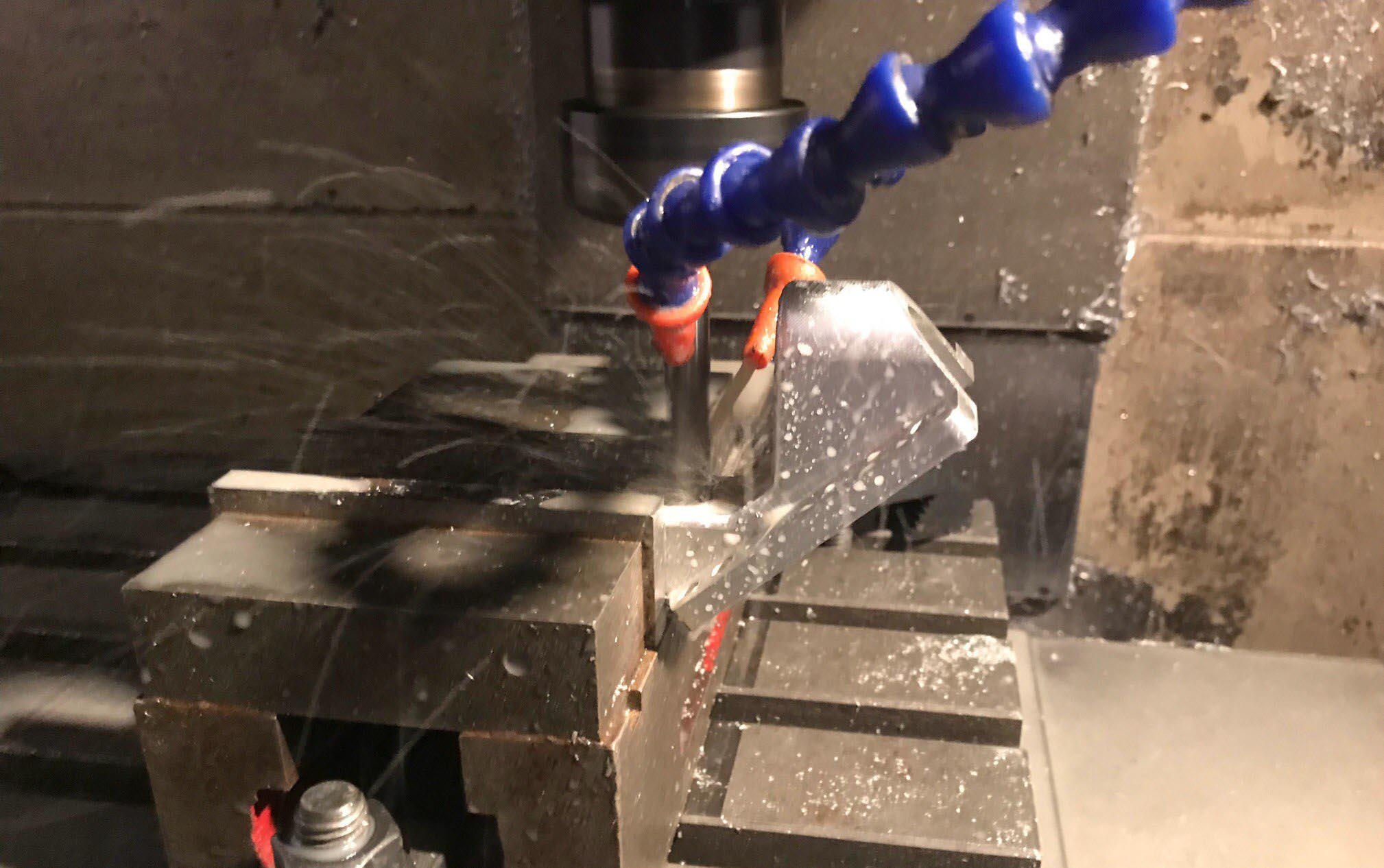

CAM

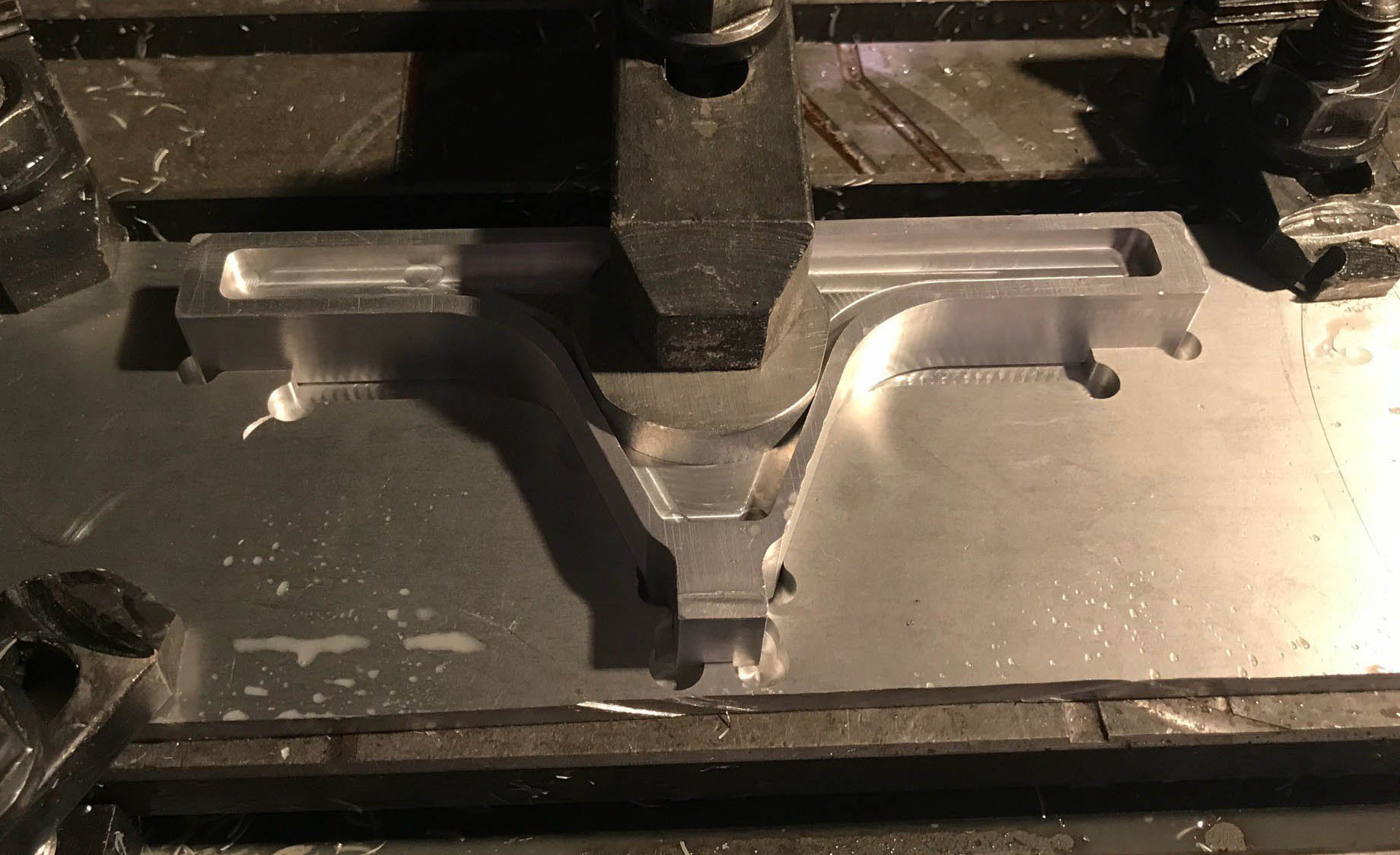

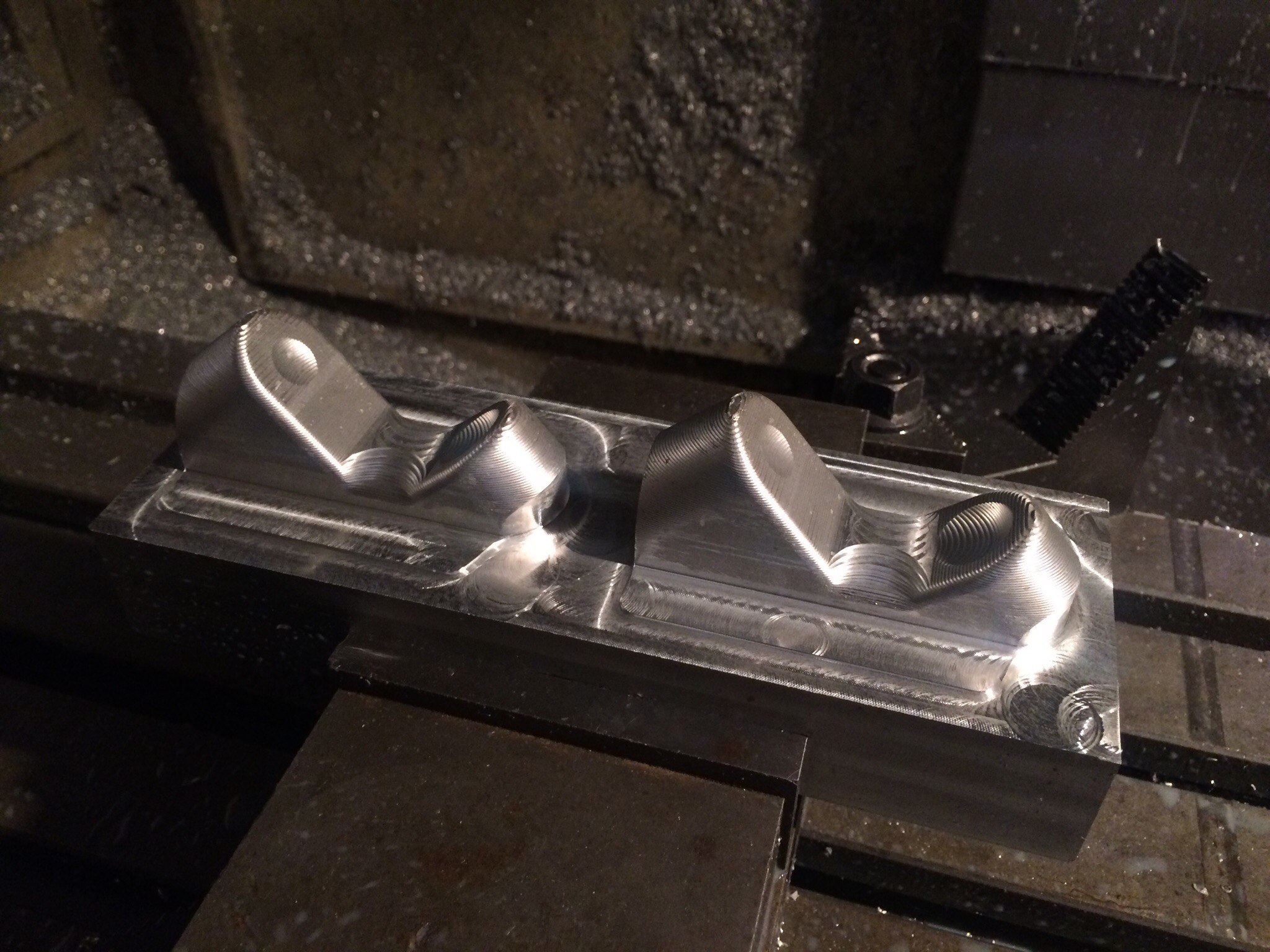

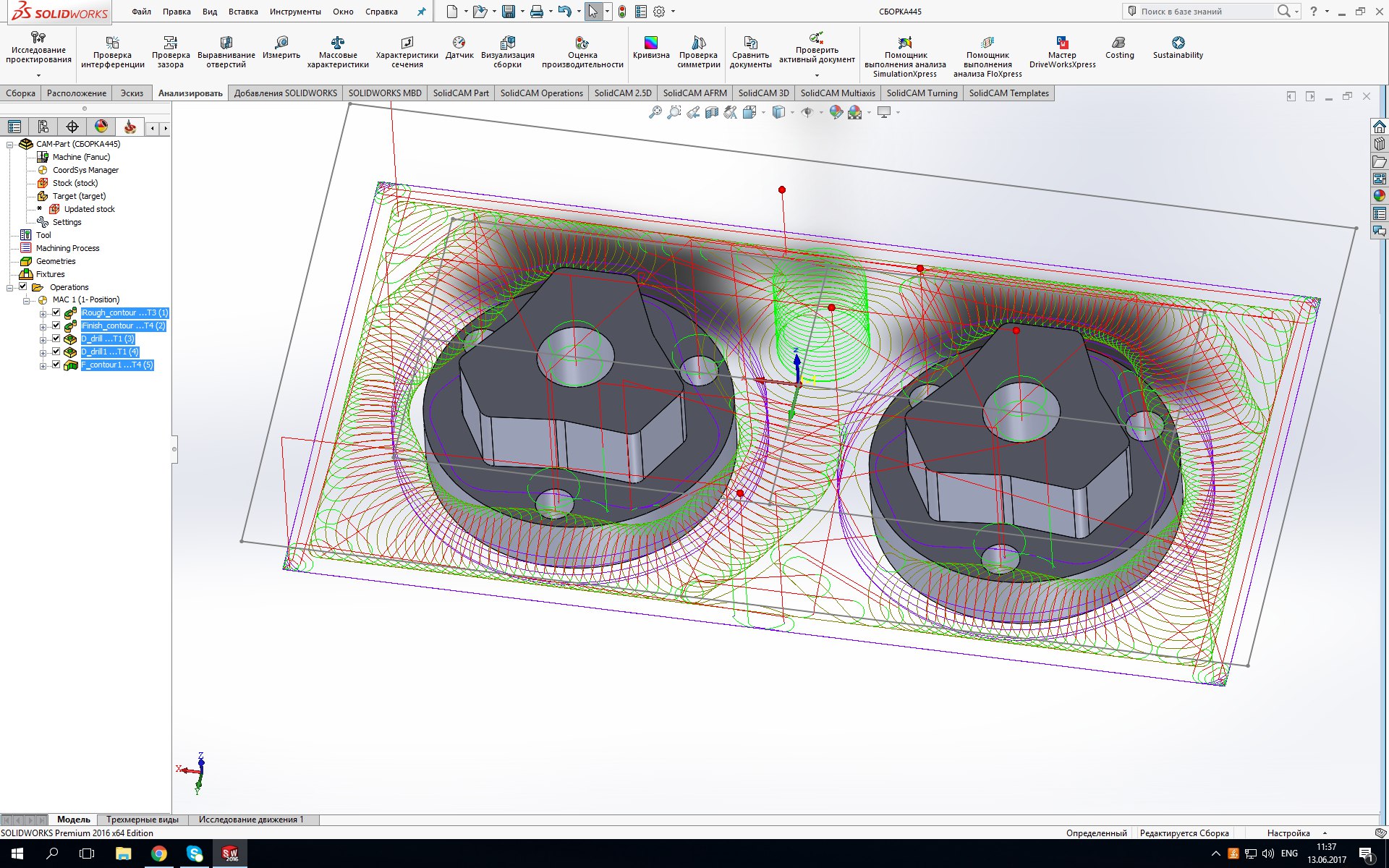

I love SolidCAM. It's embedded in SolidWorks. It has a lot of strategies and features of milling. I found Zen in metal machining.
You can look through my CAM assignment to look for details.

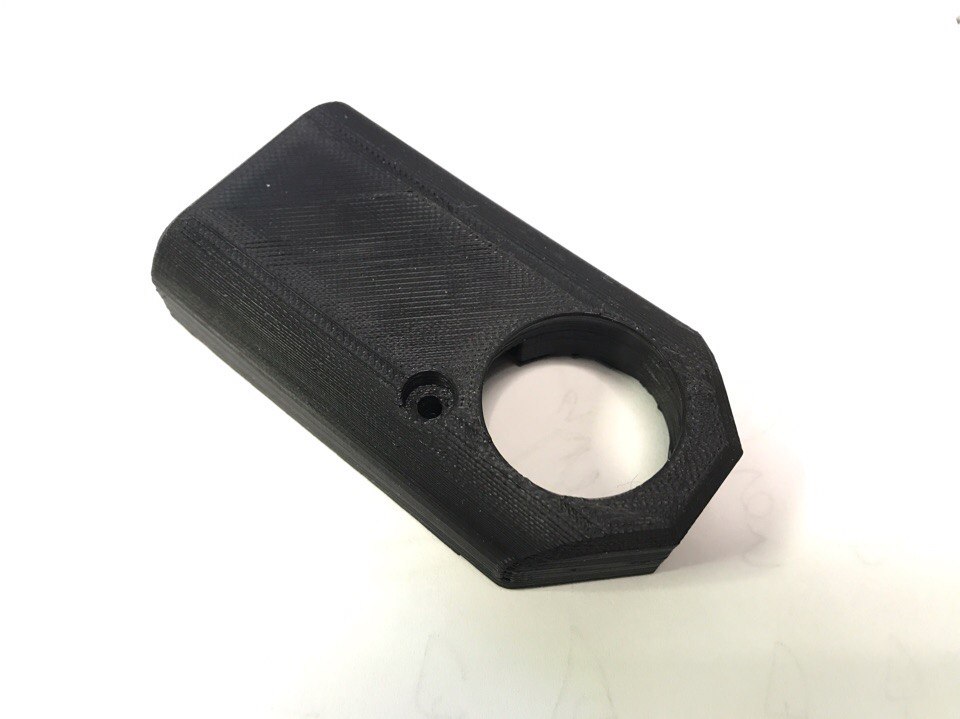

3d-printing.
New version of CURA has a very powerfull strategy to internal padding.
You can look through my 3d-printing assignment to look for details.

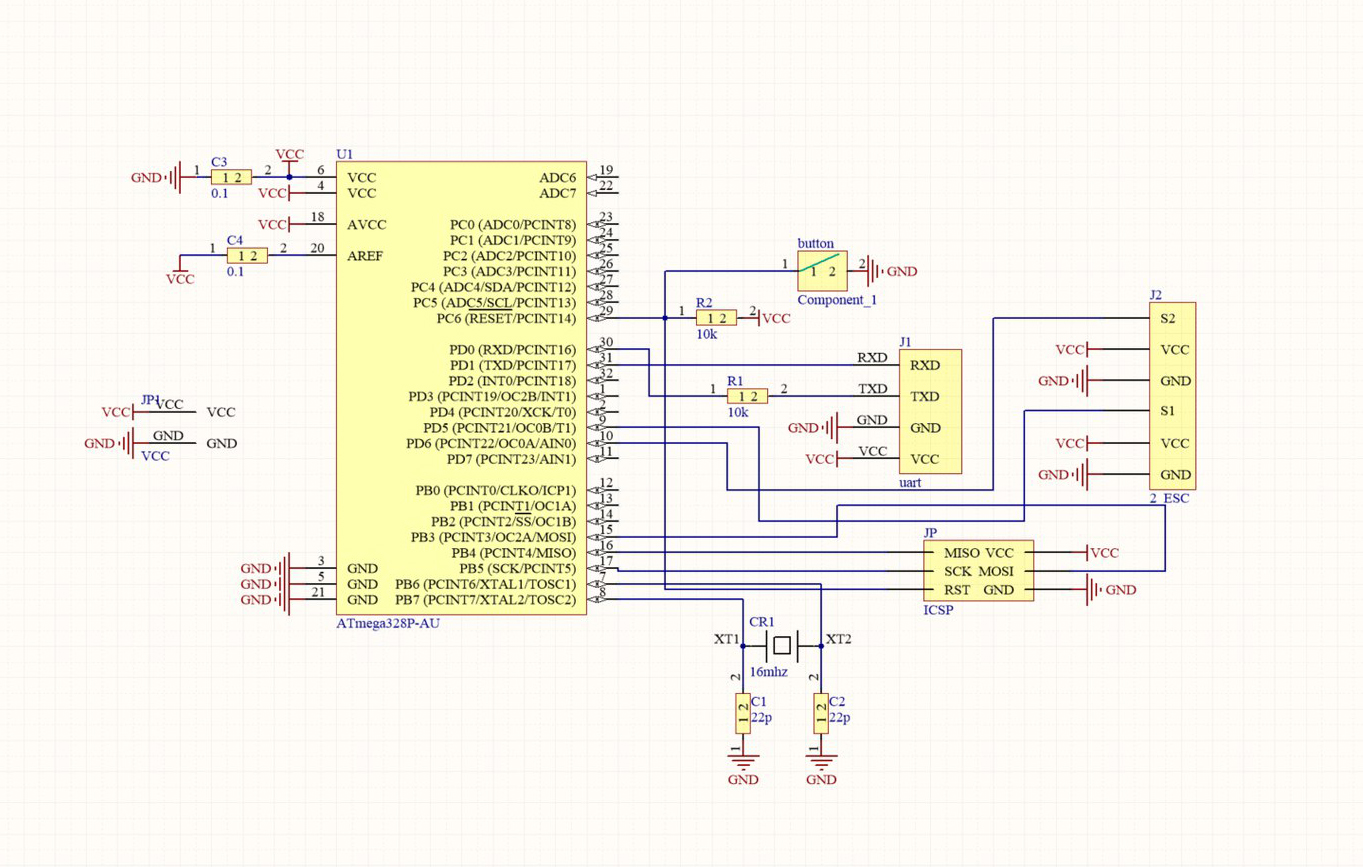

Electronics development.

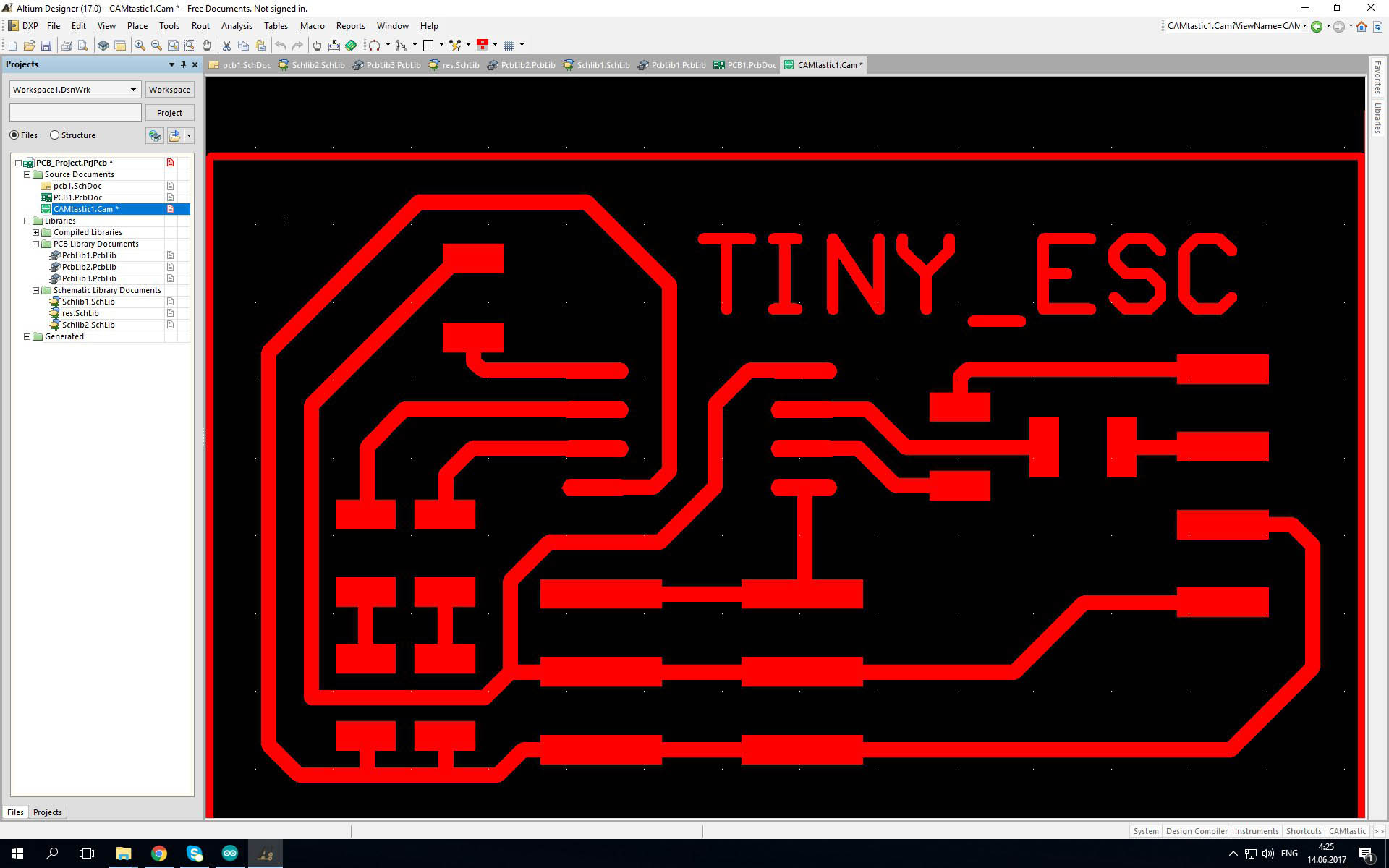

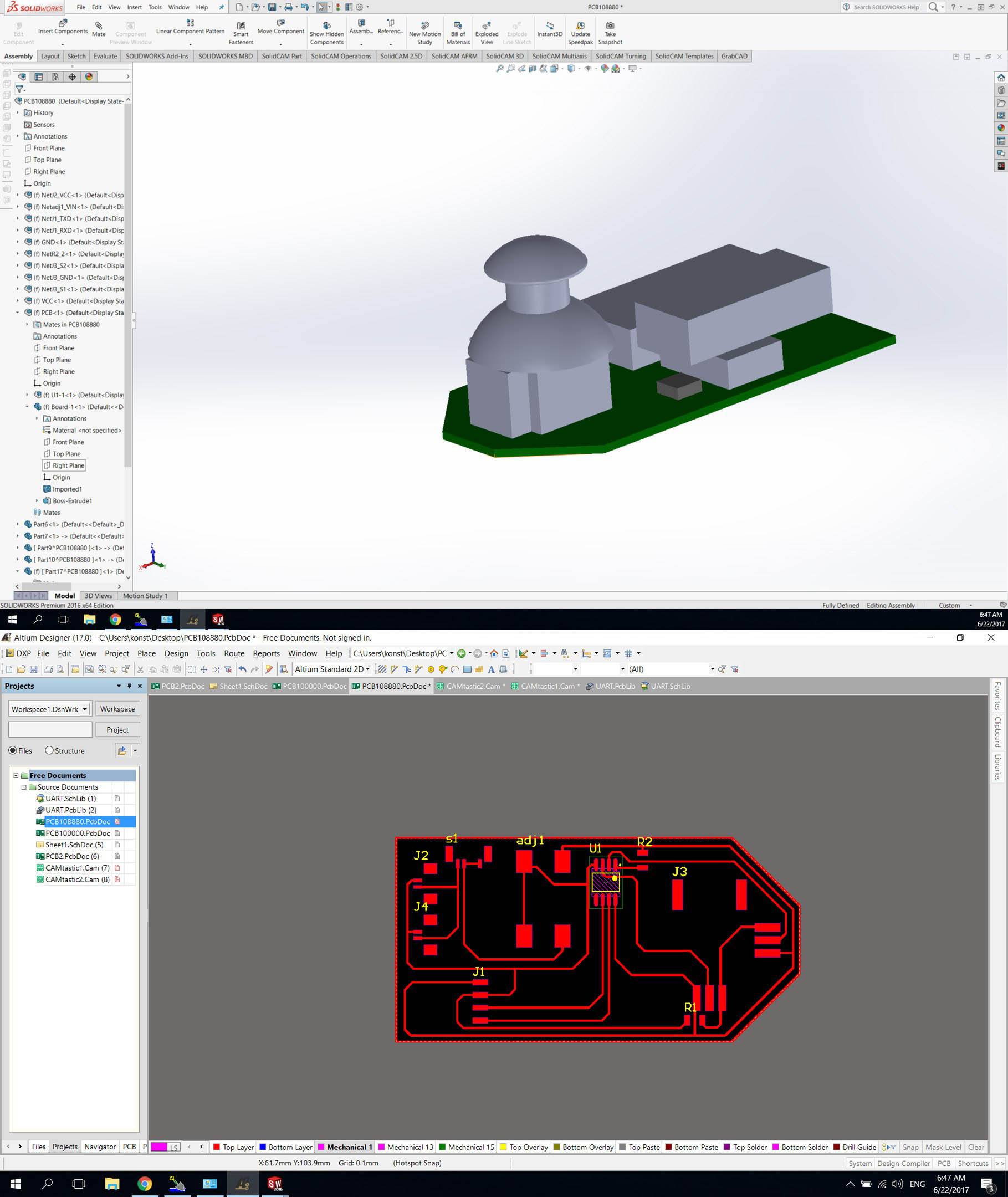

I discovered an amazing tool for this. Altium Designer is Great! Perfect relationships and transitions between schematic and traces! I really love it.
You can look through my Electronics design assignment to look for details.

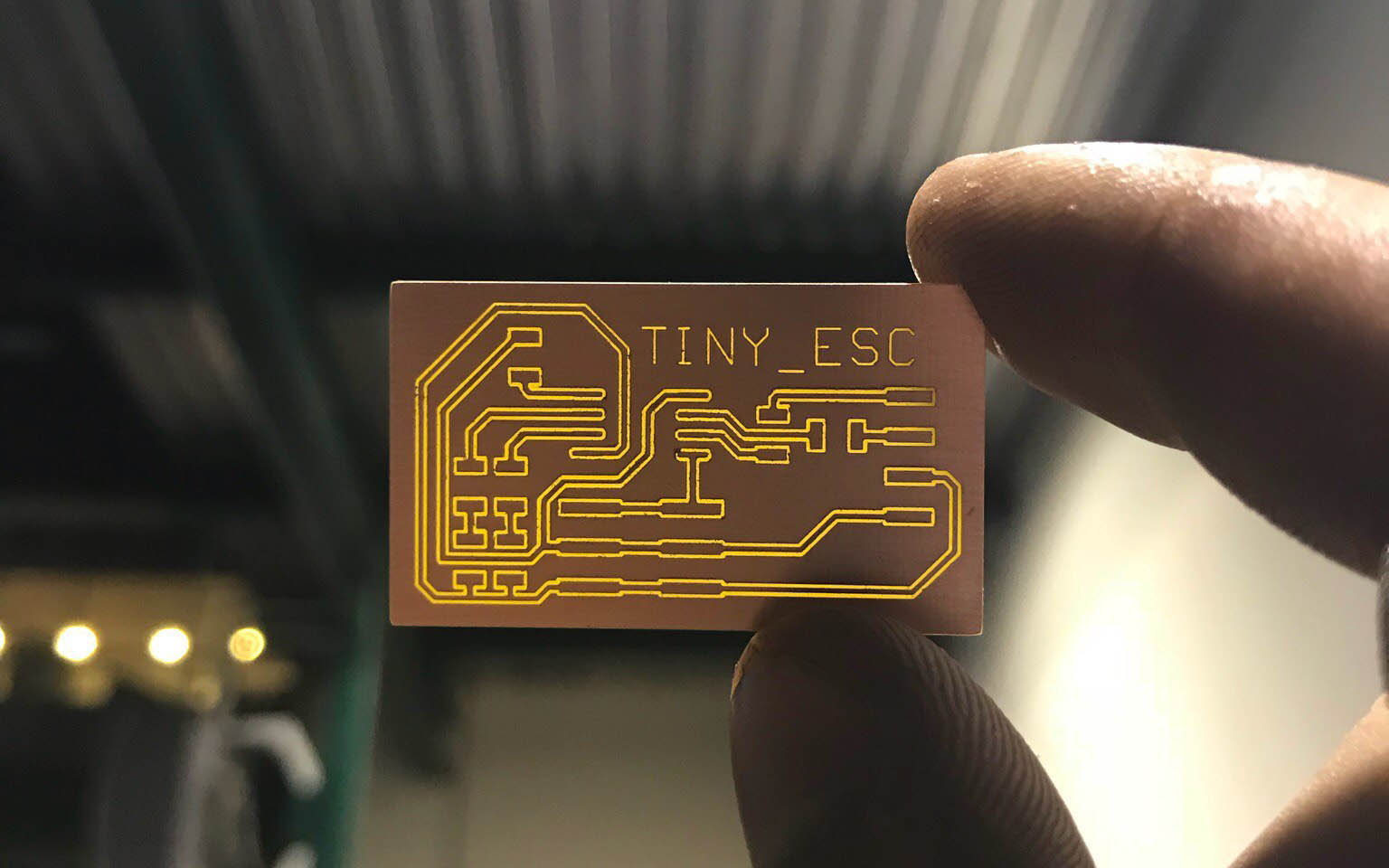

Electronics manufacturing.

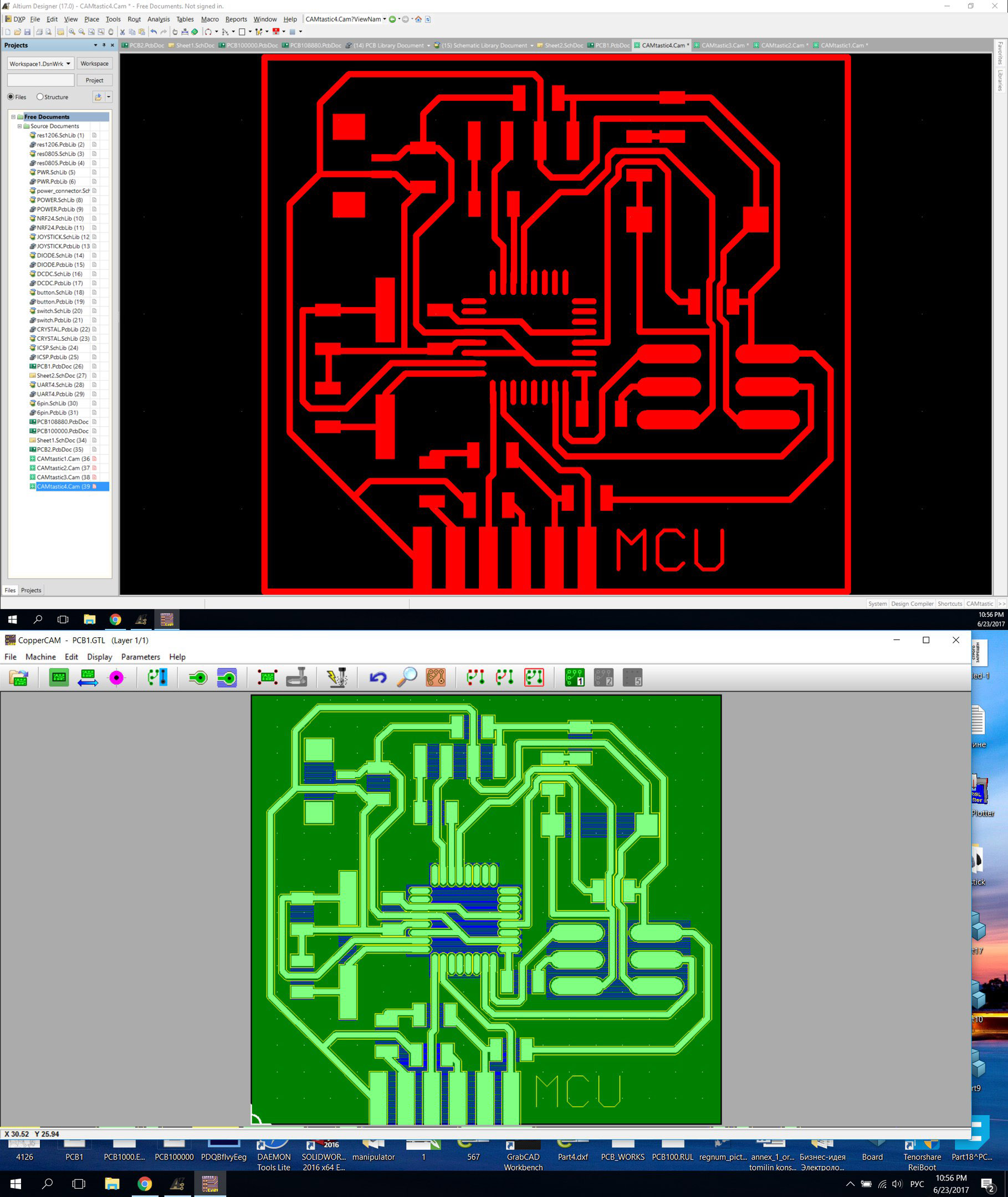

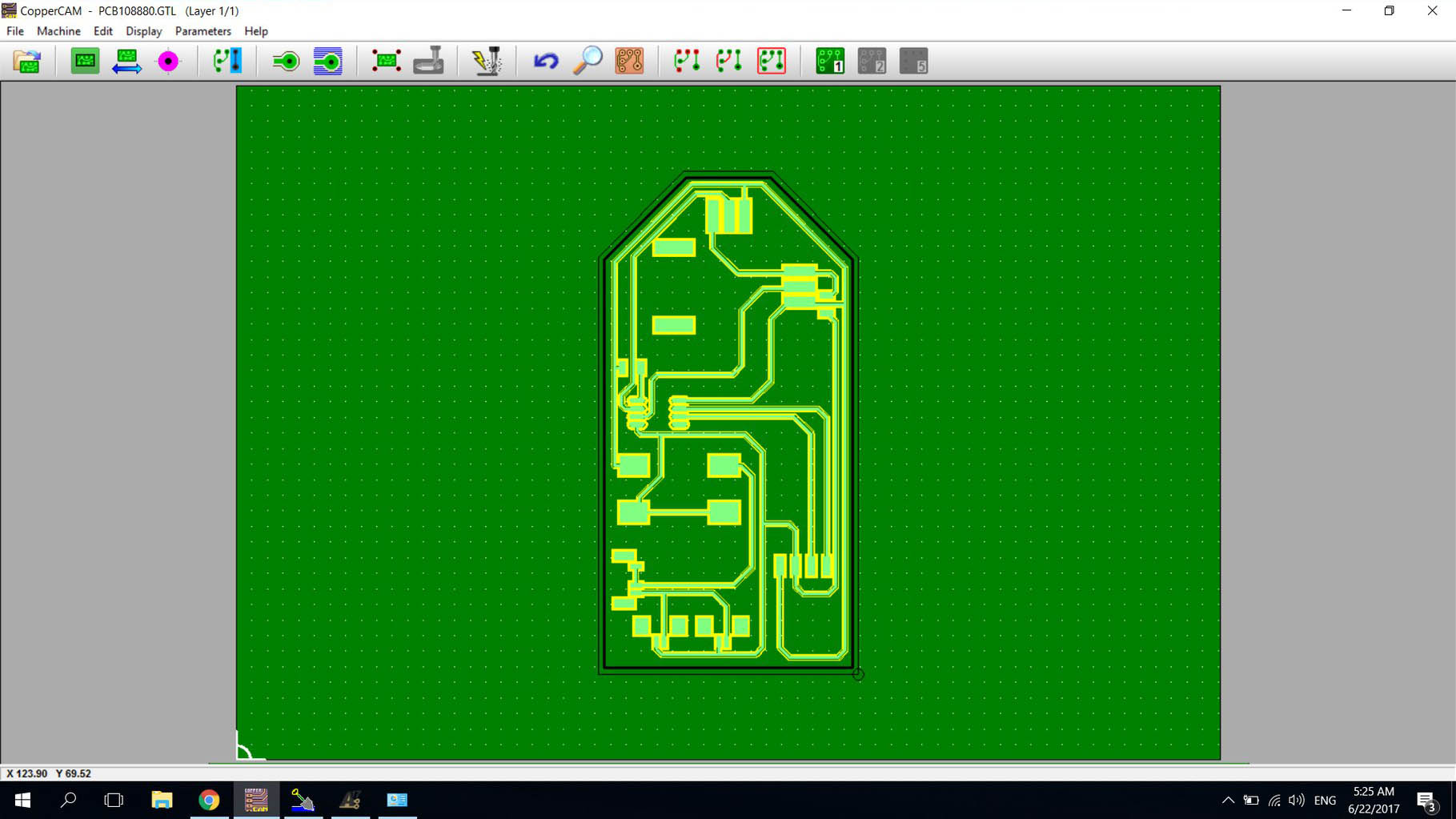

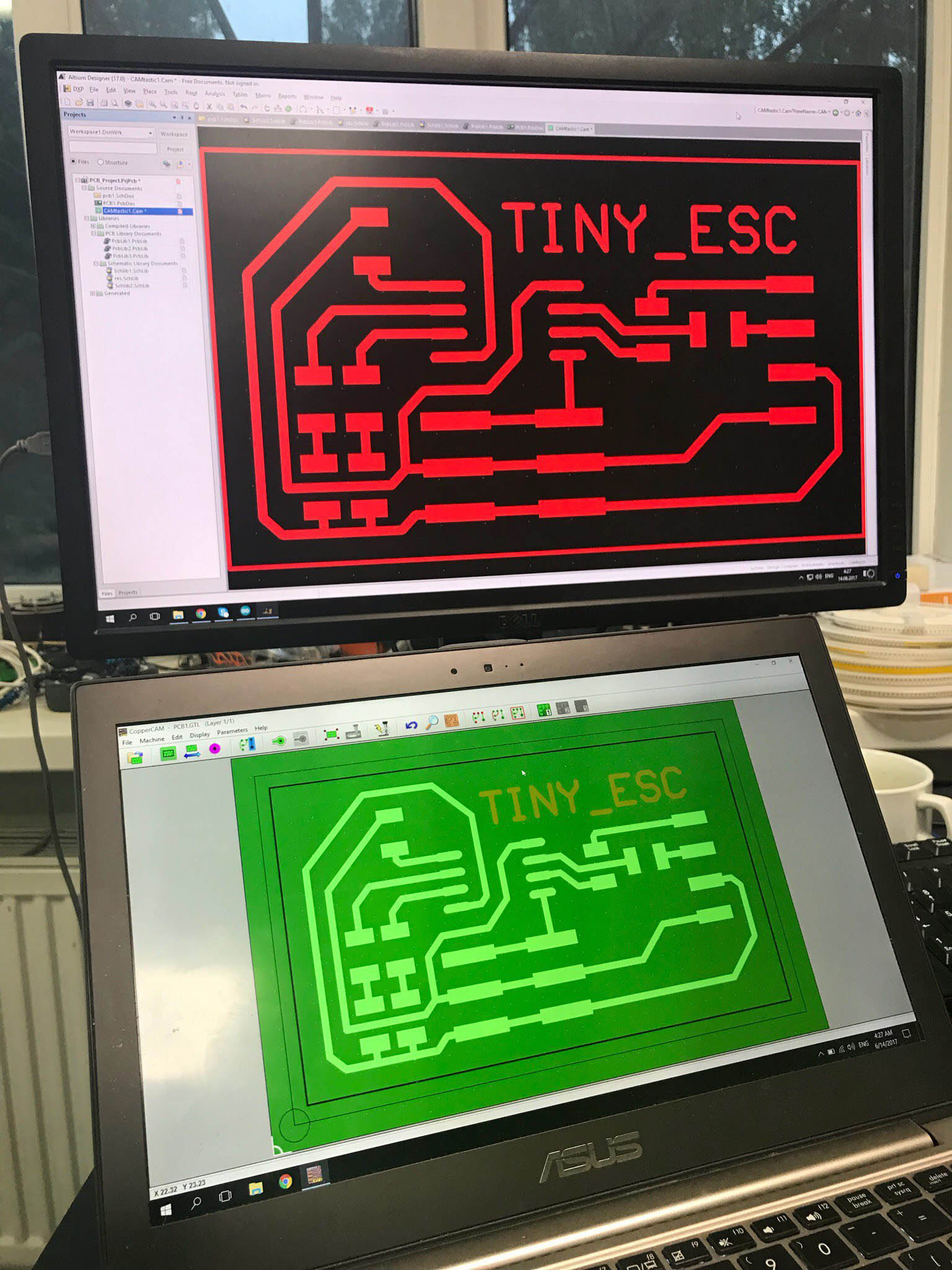

For working with windows on Roland Modela MDX-20 I have chose CopperCAM. It has a very good import PCBs from GERBER-format. It's make my pcb more professional. And it is more precise than png-tracing.
You can look through my Electronics production assignment to look for details.

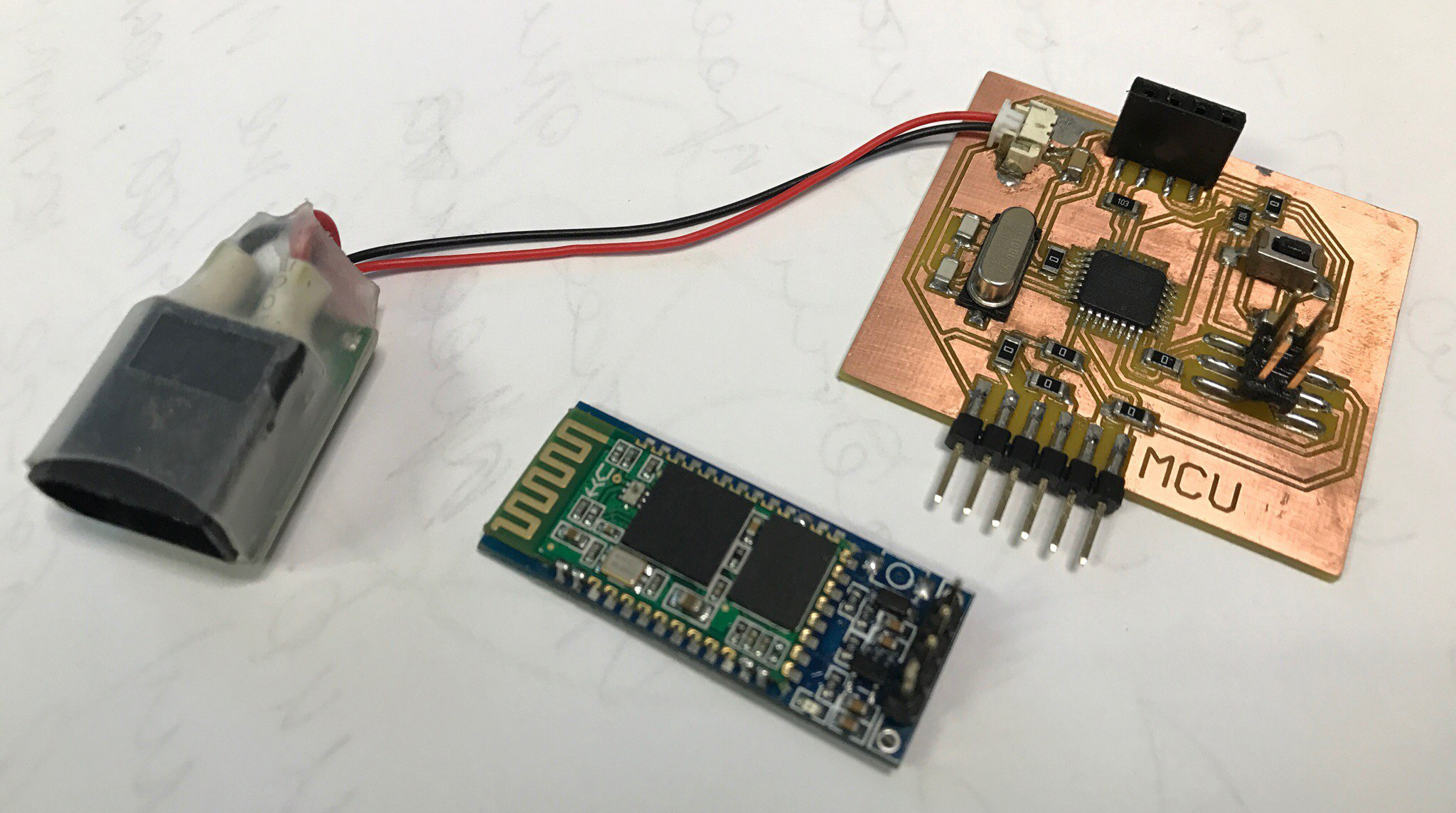

To download the Altium project of MCU click here.

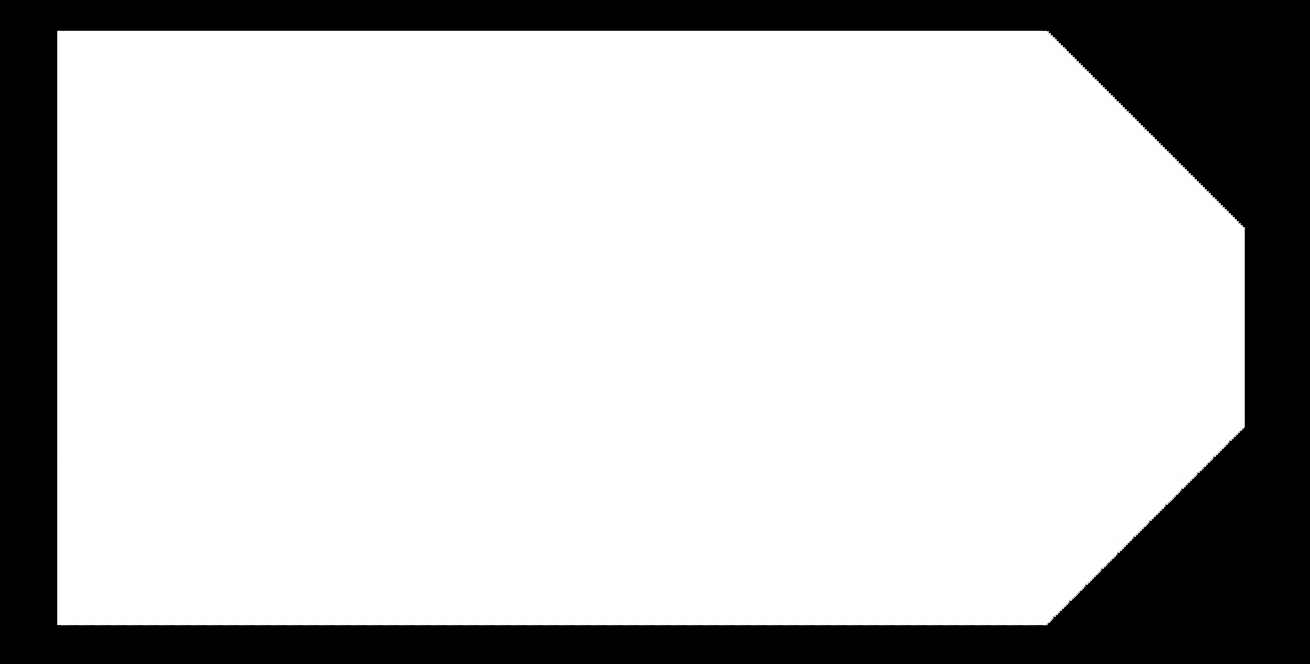

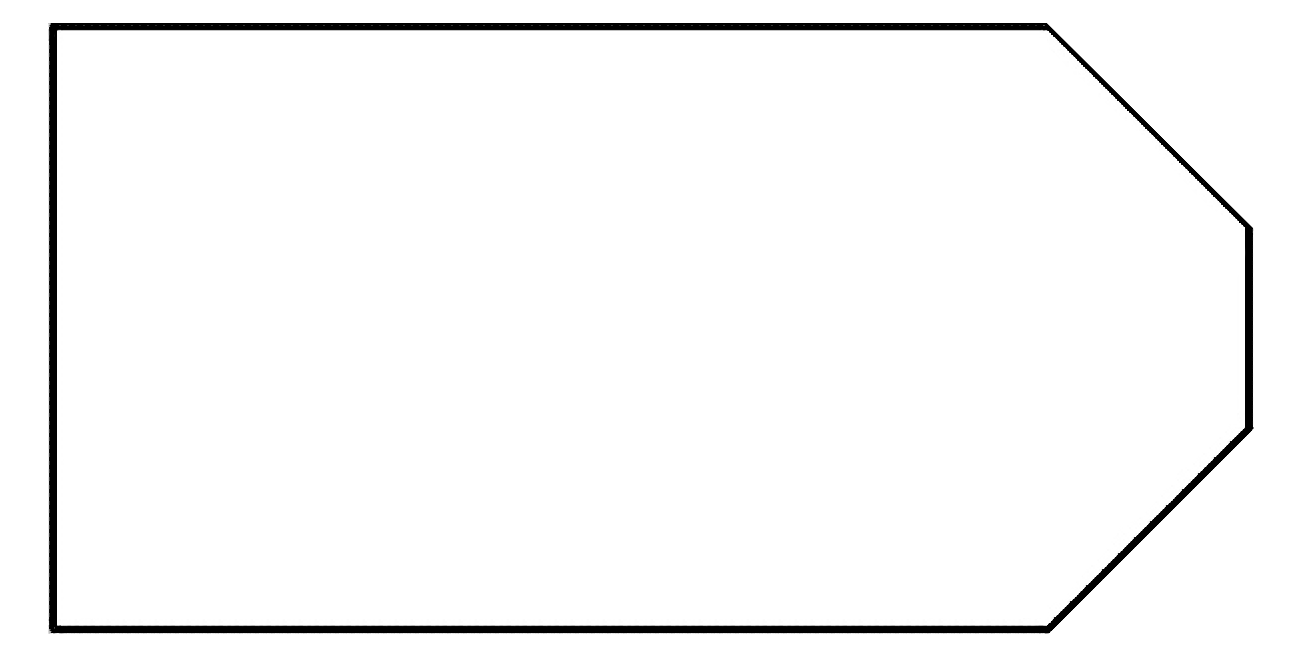

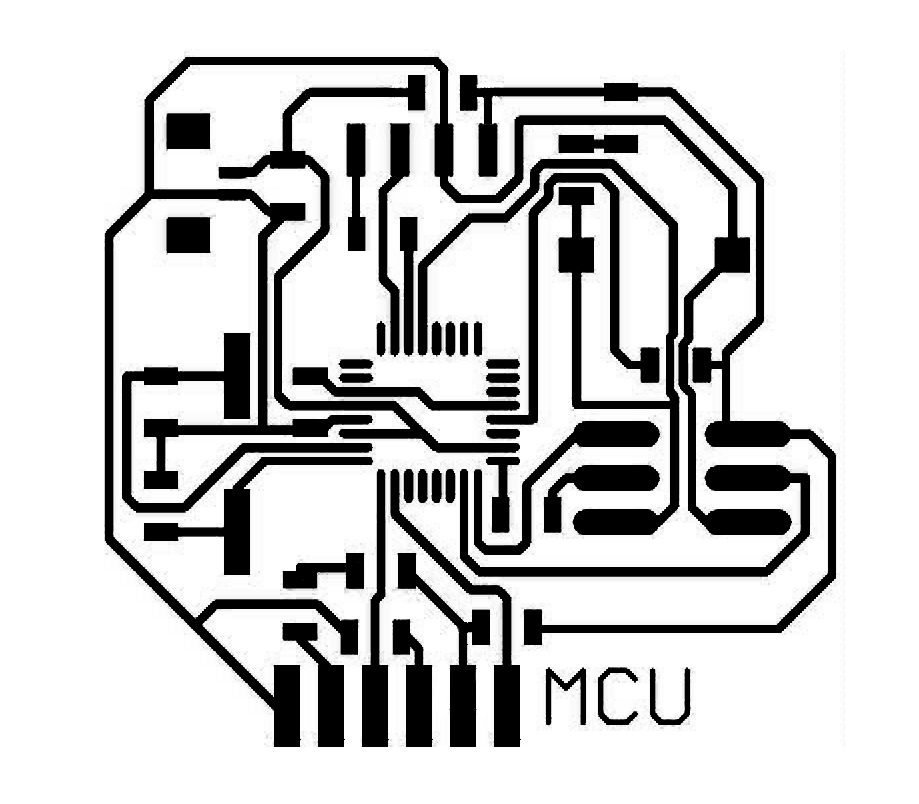

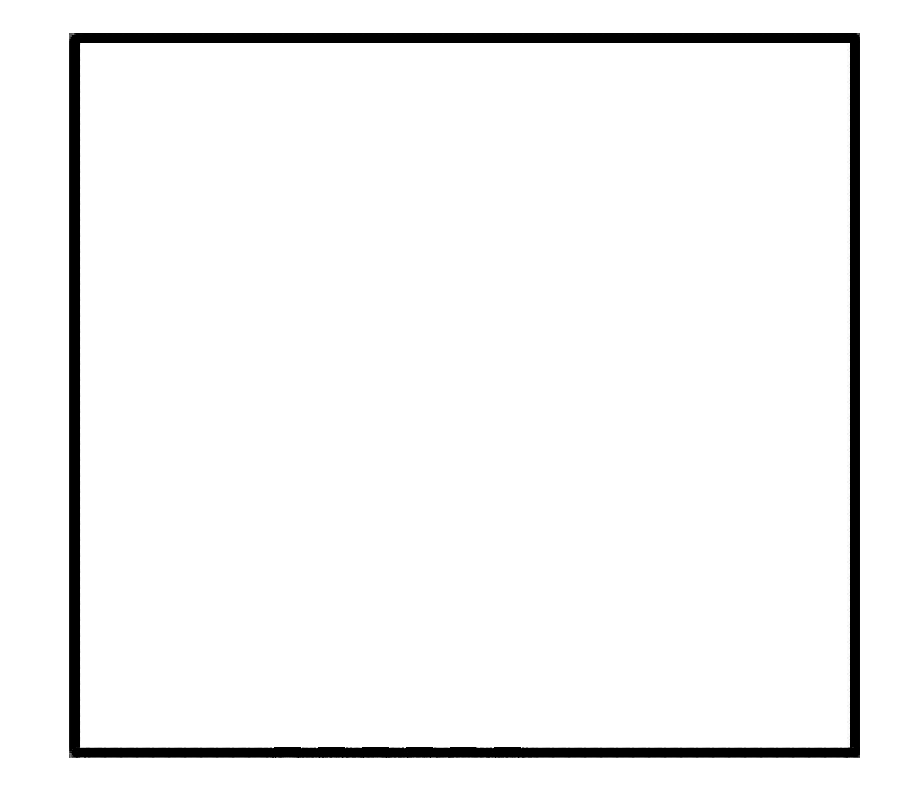

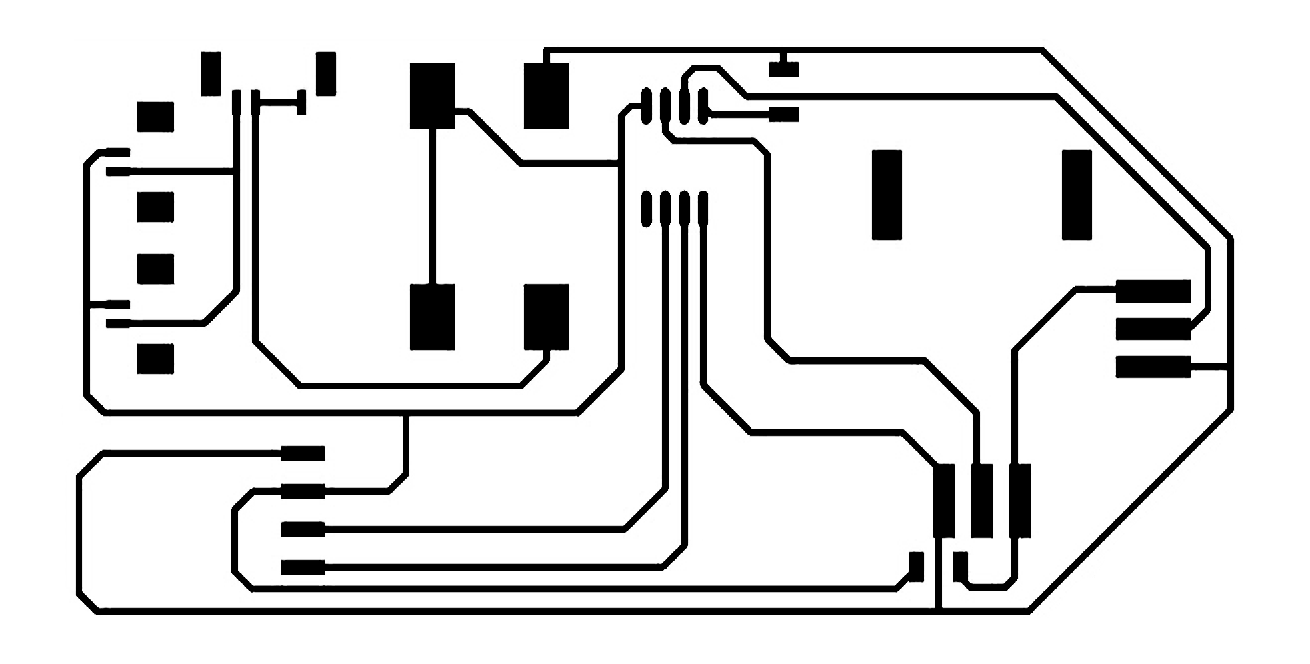

To download the MCU .png click outline, outline filled, trace.

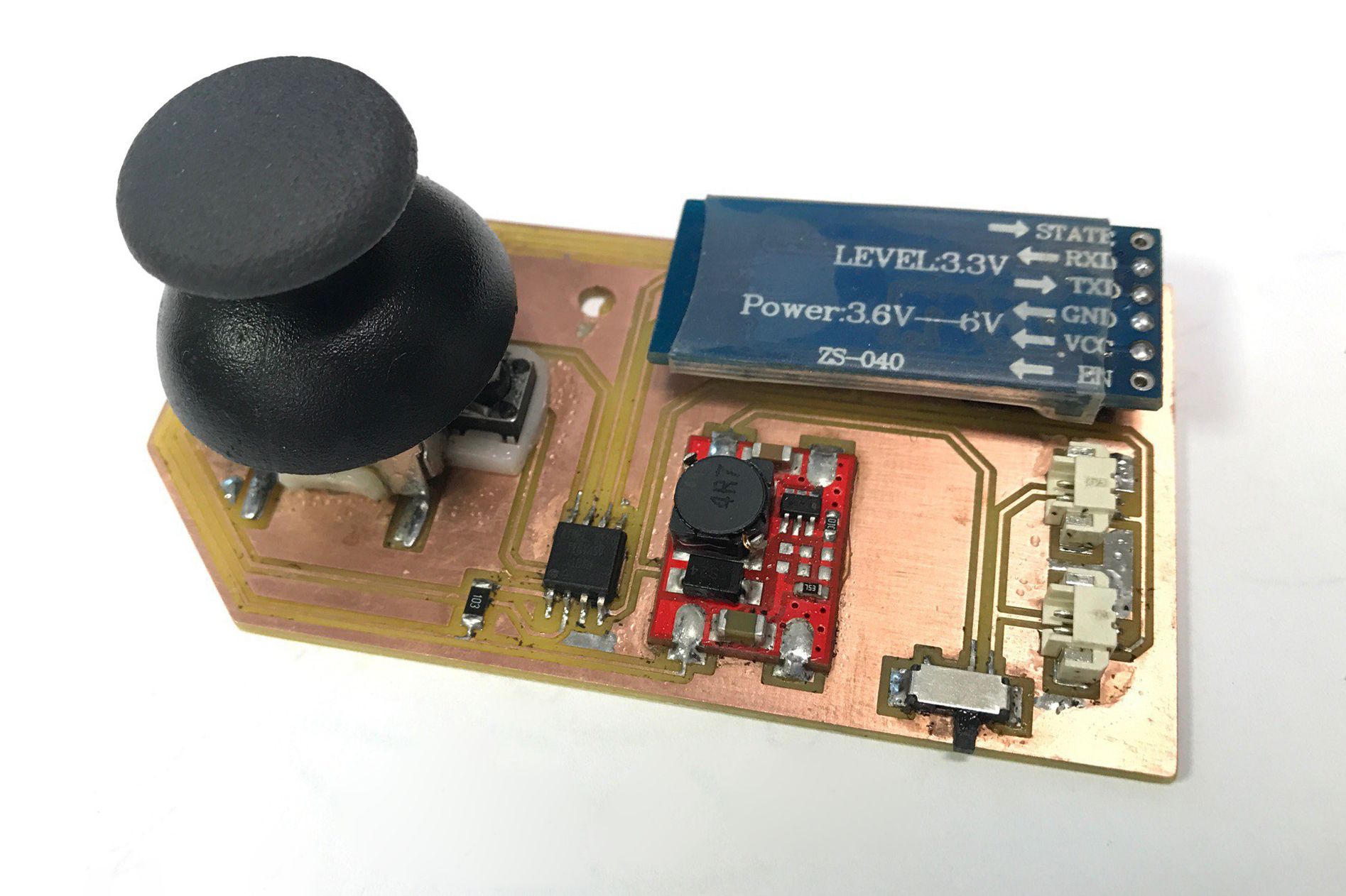

To download the Altium project of Joystick click here.


To download the Joystick .png click outline, outline filled, trace.


To download the Arduino code of MCU click here.


To download the Arduino code of Joystick click here.

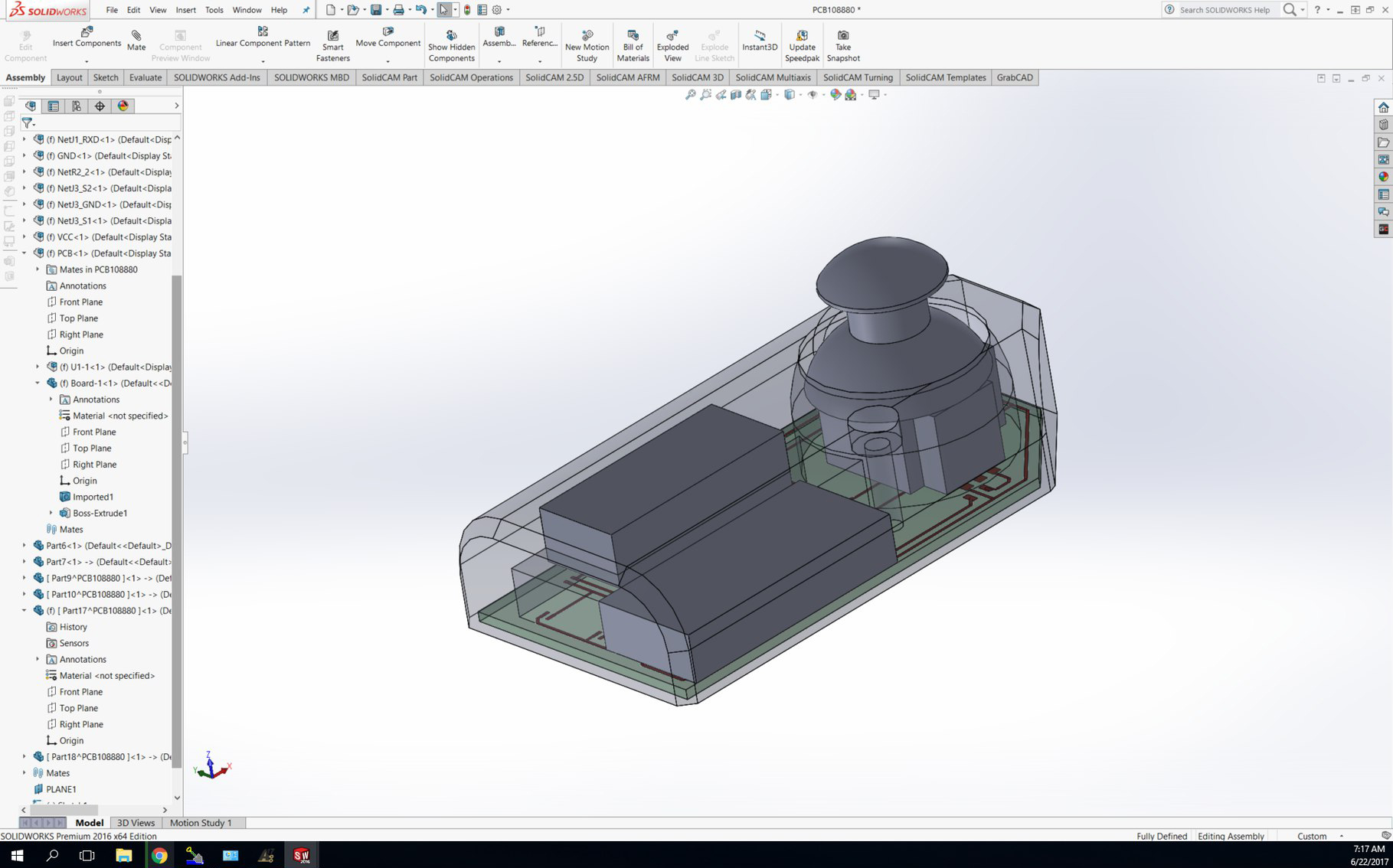

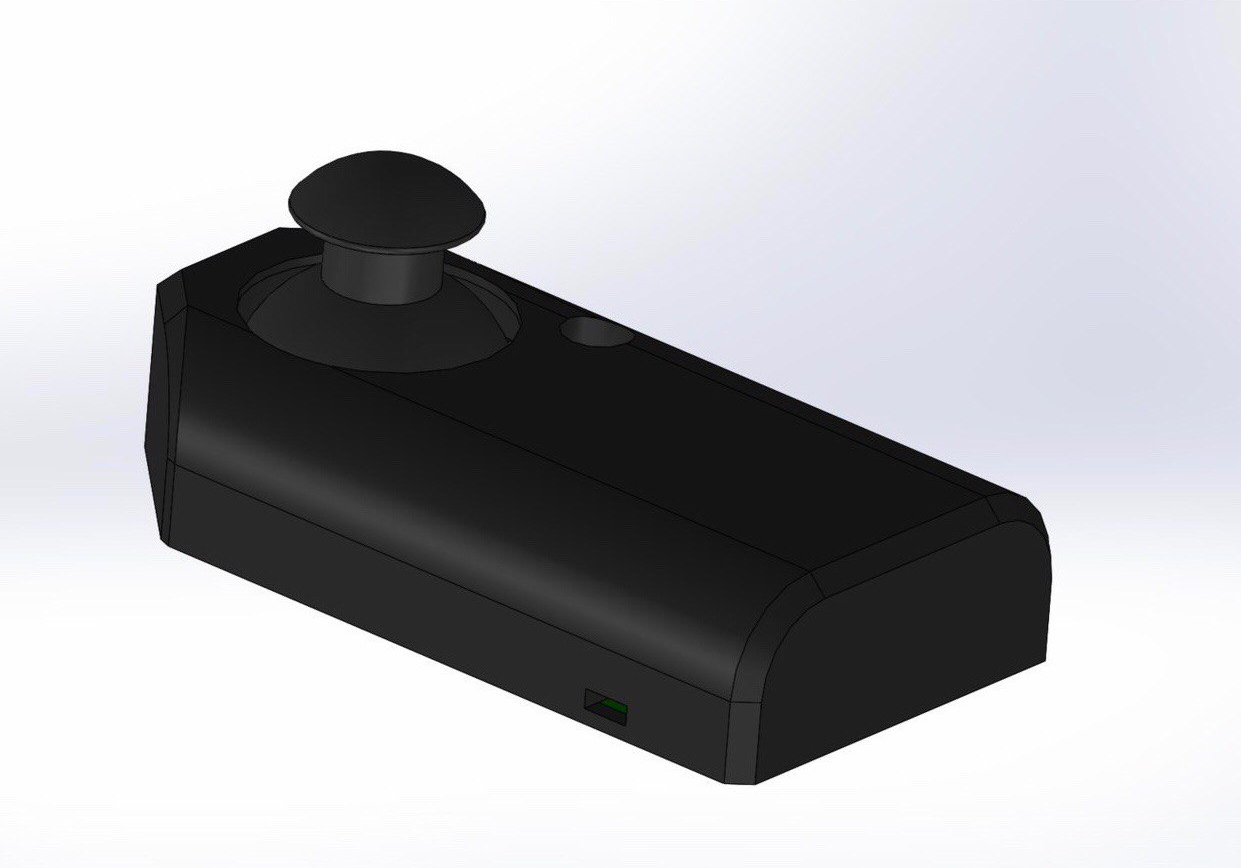

To download the Joystick SolidWorks assembly click here.


To download the Llongboard SolidWorks assembly click here.

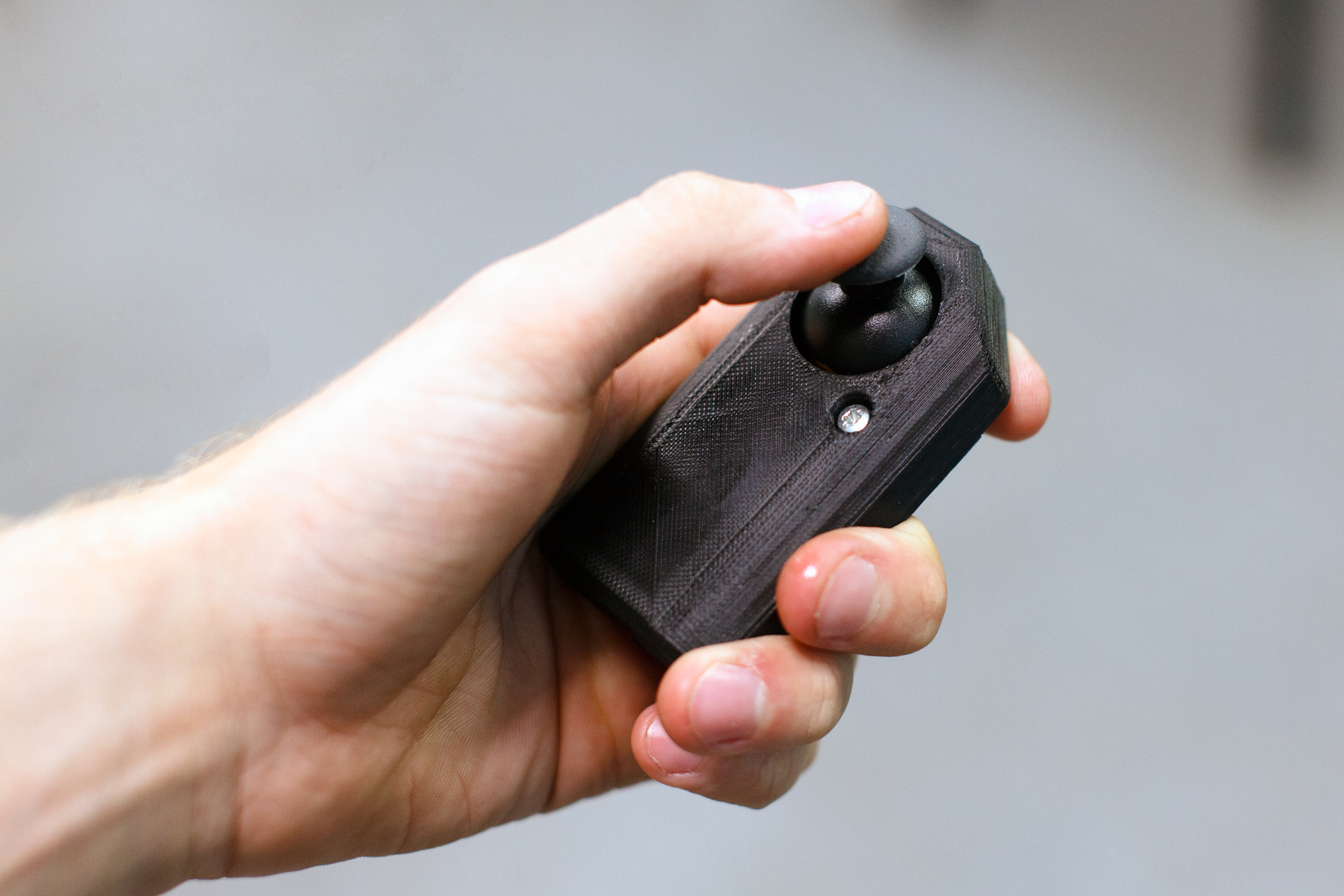

List of components (Joystick).

Name Count Price per one item (1 USD = 60 RUB) Used in project
ABS 0,05 1500 75
Joystick module 1 150 150
Bluetooth HC-05 1 300 300
DC-DC Step-Down 1 350 350
smd Switch 1 50 50
Power connector 2 50 100
ATtiny45 1 140 140
2.54 headers 10 15 150
10k OHM 10 3 30
1k OHM 10 3 30
220 OHM 10 3 30
0 OHM 10 3 30
0.1mF cap 10 3 30
FR1 100mm*100mm 1 140 140
SUM 1605

List of components (Longboard).

Name Count Price per one item (1 USD = 60 RUB) Used in project
Plywood 15mm 0,6 1300 780
AVG-12 3 400 120
Bluetooth HC-06 1 300 300
BEC 1 500 500
Aluminium (6mm) 1 500 500
Aluminium (10mm) 1 800 800
Aluminium (20mm) 1 1200 1200
Aluminium (50mm) 1 1400 1400
FR1 150*100 1 340 340
10k OHM 10 3 30
1k OHM 10 3 30
220 OHM 10 3 30
0 OHM 10 3 30
0.1mF cap 10 3 30
22pF cap 10 3 30
T-Motor AT-4130 2 12000 24000
ESC 120A 2 4500 9000
Buttopn SMD 1 30 30
T-Motor AT-4130 2 12000 24000
ATmega328a-au 1 250 250
crystal 16mhz 1 100 100
SUM 40580

If we consider that the regulators and motors I have already been bought, then the project cost in the region of $ 150.

Thank you.
