First, about something big.

The task is to use only one sheet of plywood. But I thought "if we could do something big", we would have done it all on a huge scale"! And made the biggest object I have ever done.

From the project "solar yacht" we have 4 large solar panels. And the task was to attach them. Hence the "Solar gazebo" was born.

Below you can see about creating it!

First, about the equipment.

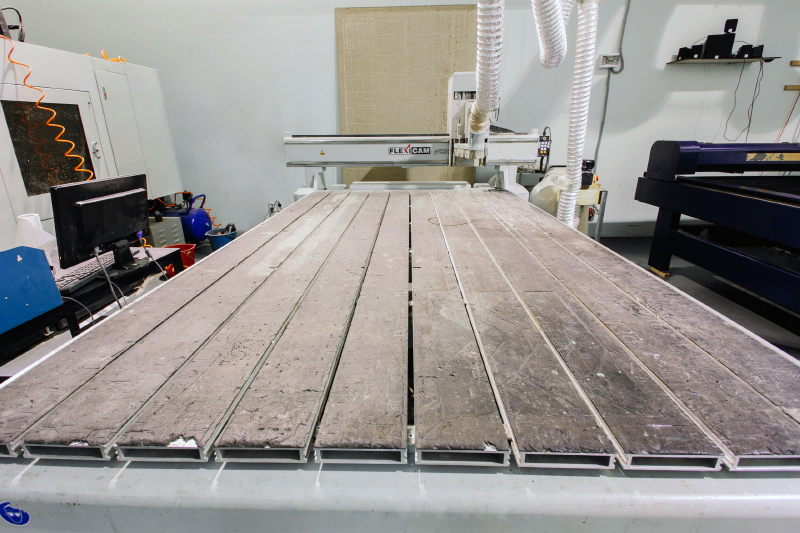

There is a FlexiCAM S2 in Fab Lab:

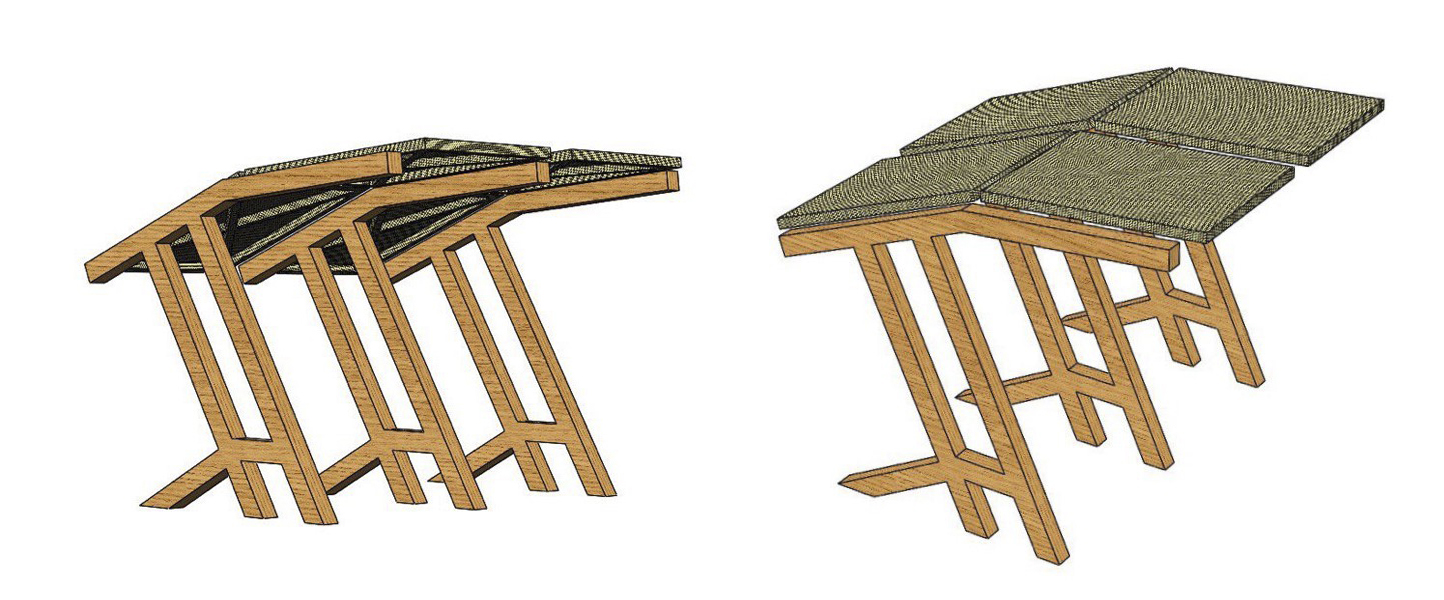

It was decided to make an asymmetrical design with an offset center of gravity.

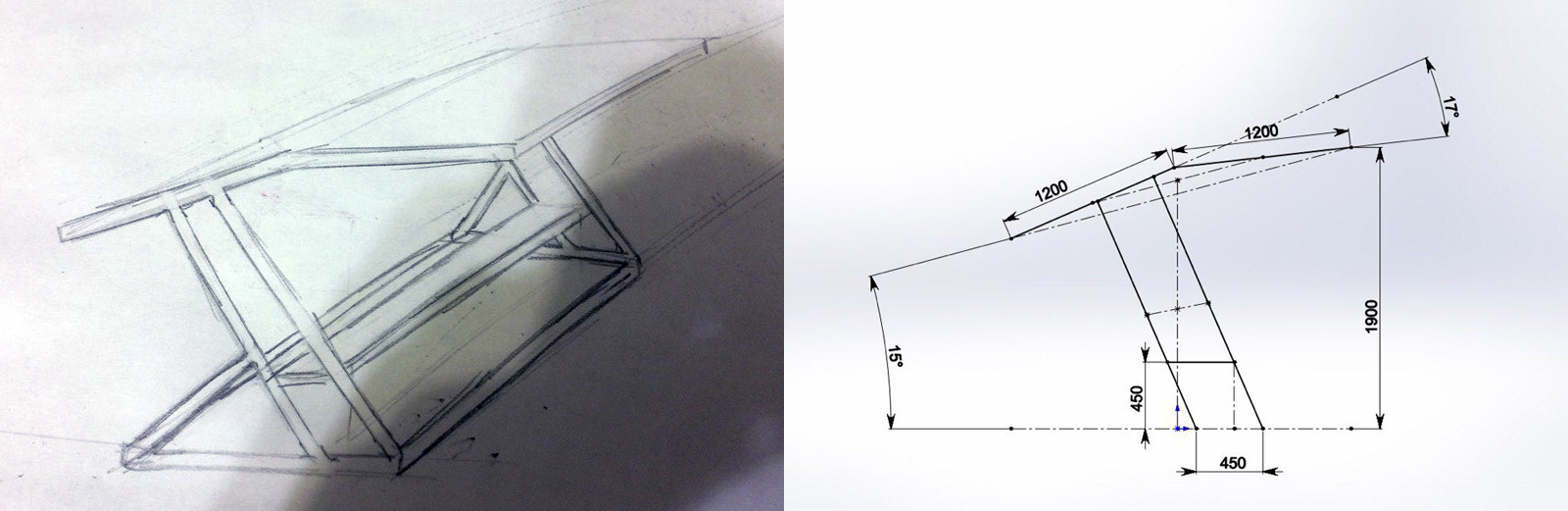

The outline and the first drawing.:

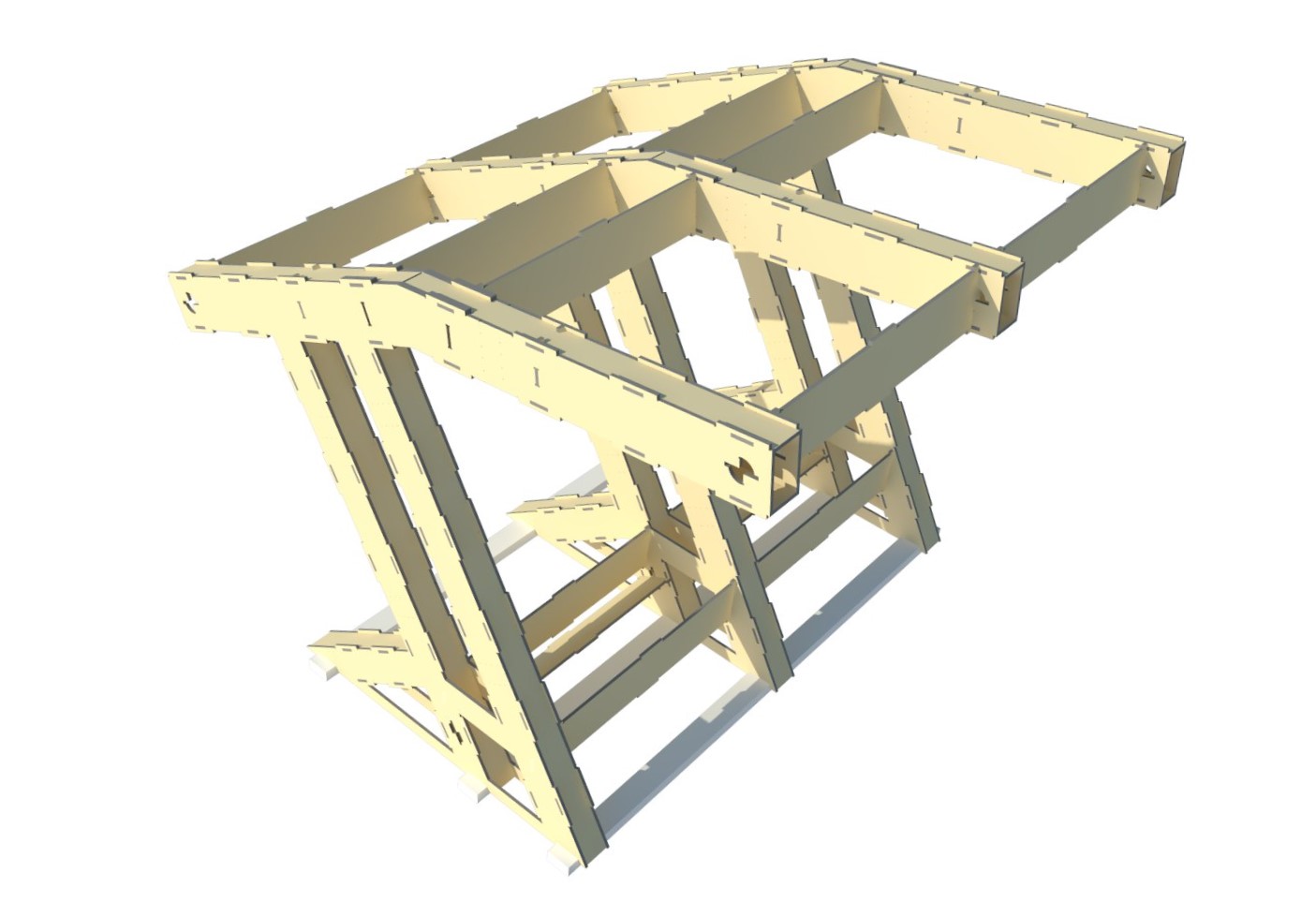

First Model:

Andrew Zavjalov helped me with the connection method! He is a unique Housemaker (unfortunately only russian-language website).

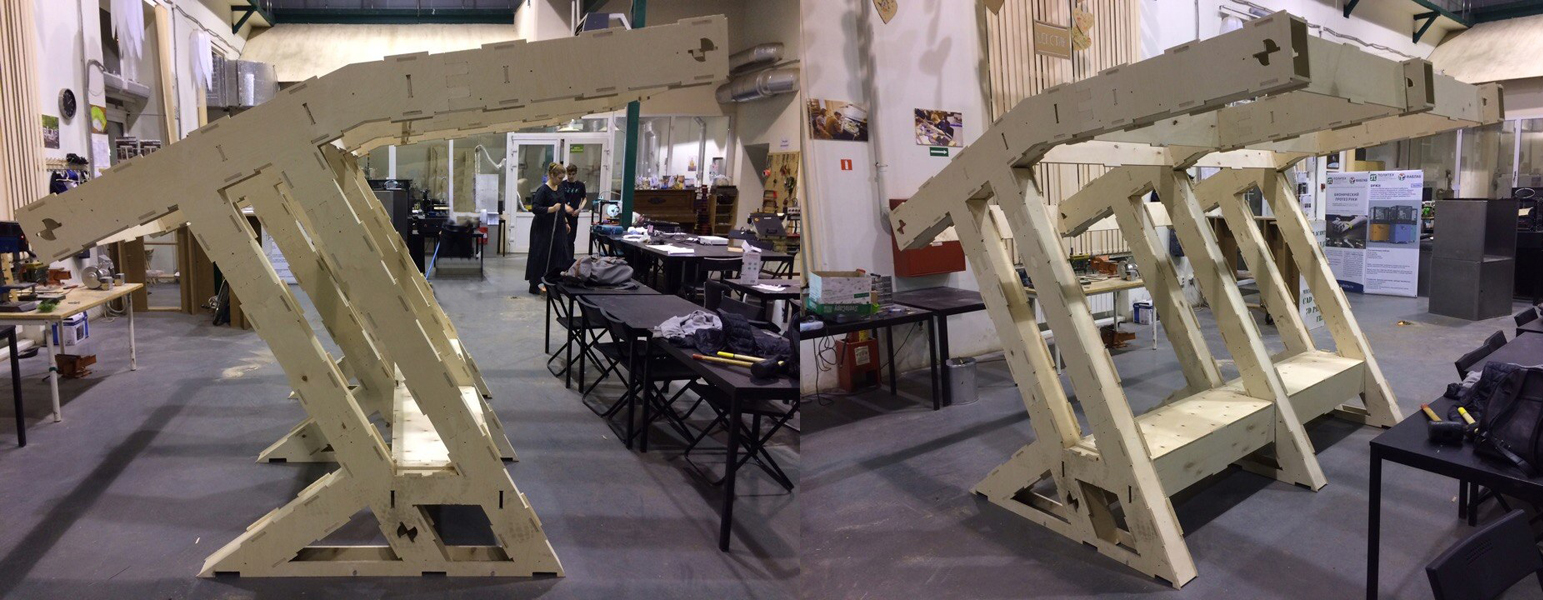

Final Assembly:

For milling I've used ArtCAM. But Photo of but photos of this process and milling isn't saved, so then comes the Assembly process:

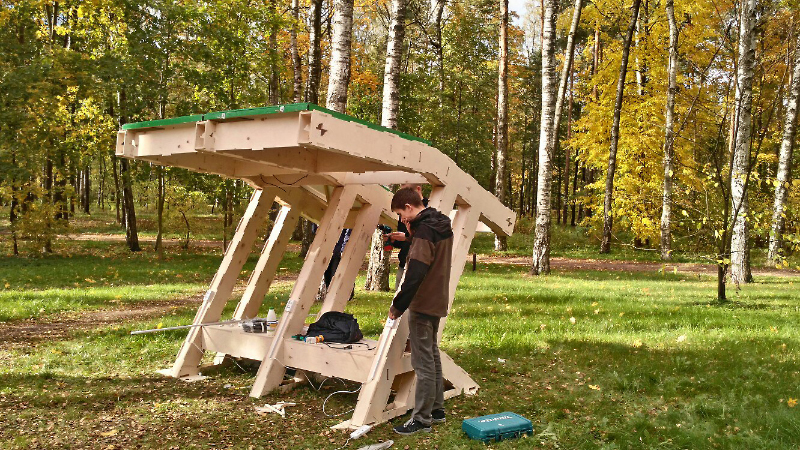

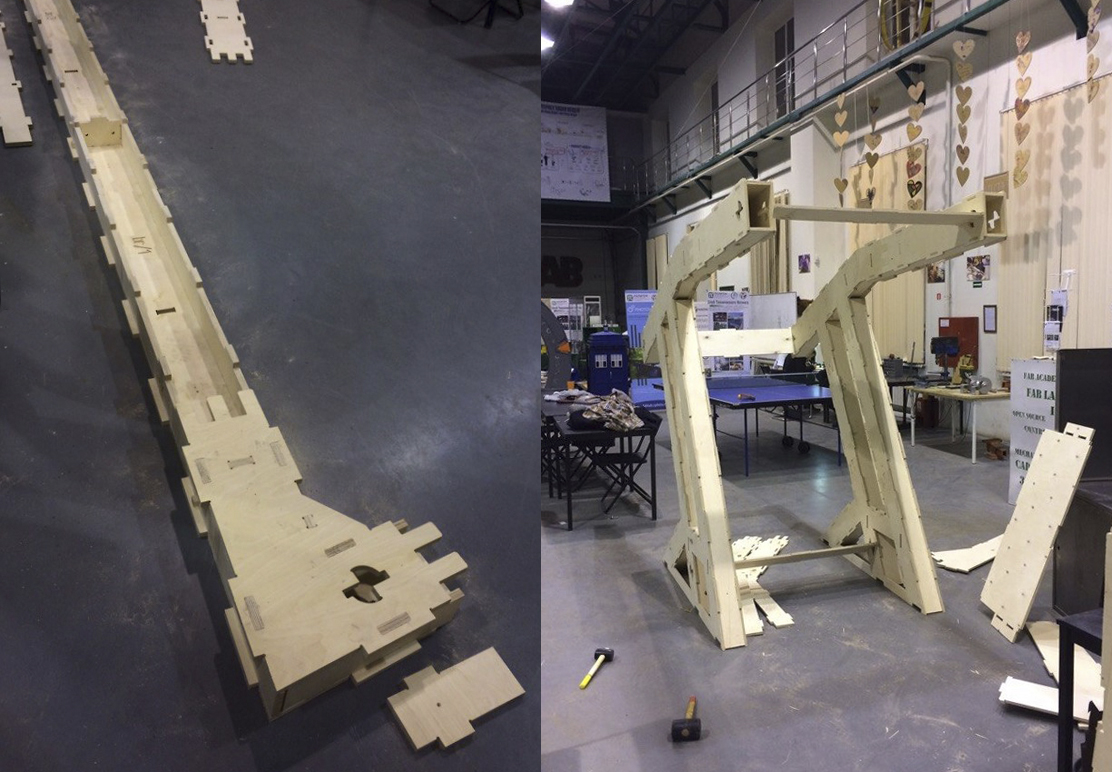

With the help of several rubber hammers and profanity, we put together all her slots! Look! it!

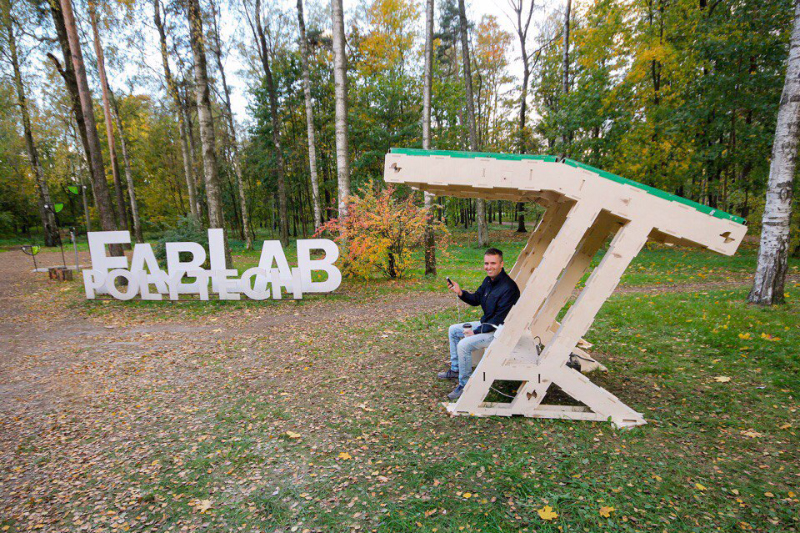

I personally loaded my phone from those batteries!

(Pictured here is not me.)

To download the DXF files of gazebo click here.
