Hello, everyone!



Let's start this assignmet!



In this assignment, I have:

  1. to make toolpath for the milling machine;
  2. to mill pcb;
  3. to solder it;
  4. to program it.

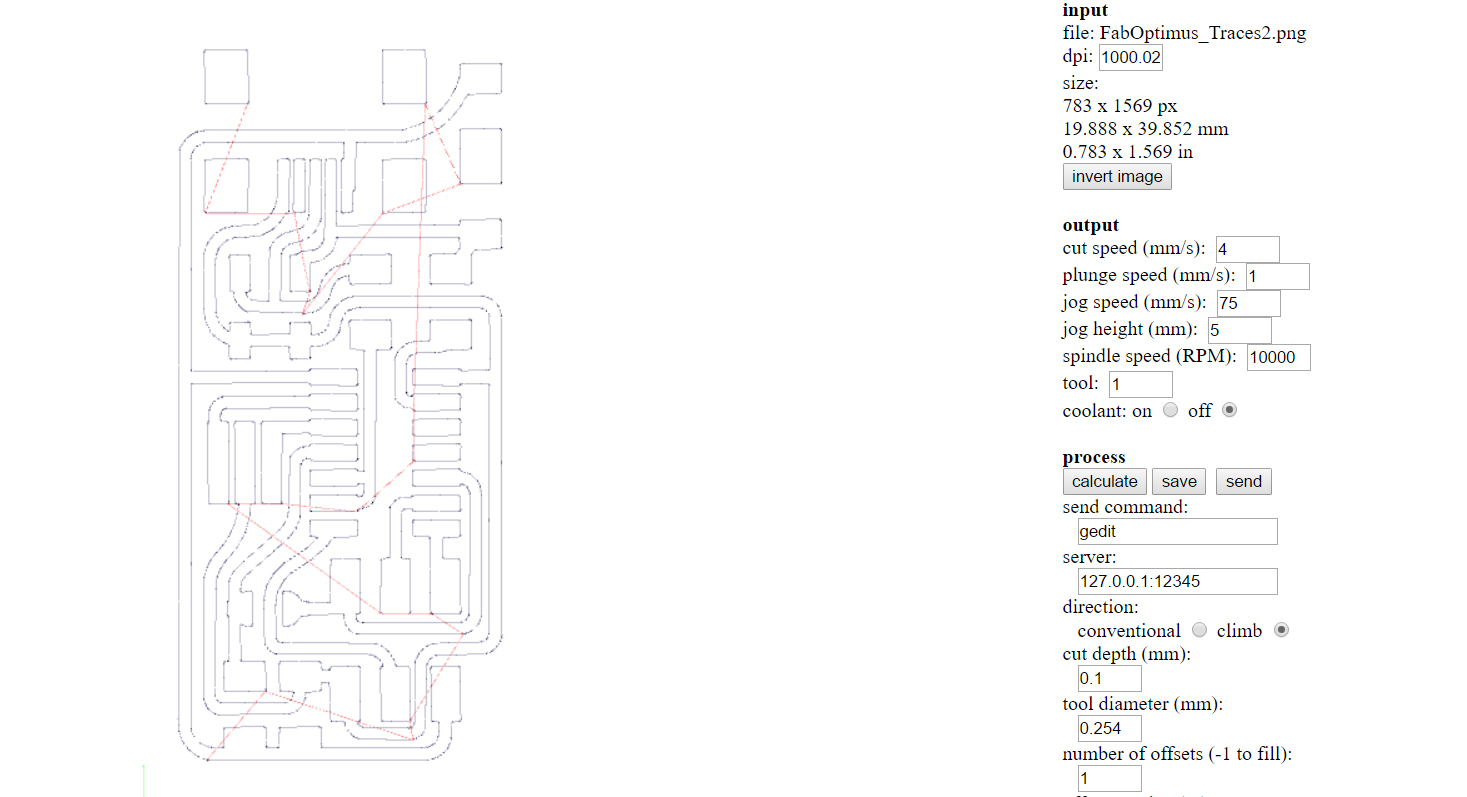

I've used Fabmodules and K2 CNC milling machine with 0.2mm endpoint-raduis engrave-mill.

The PCB designed by Ali Shtarbanov .

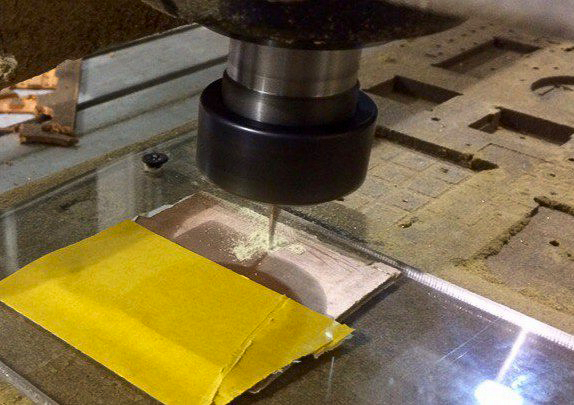

K2 during milling.

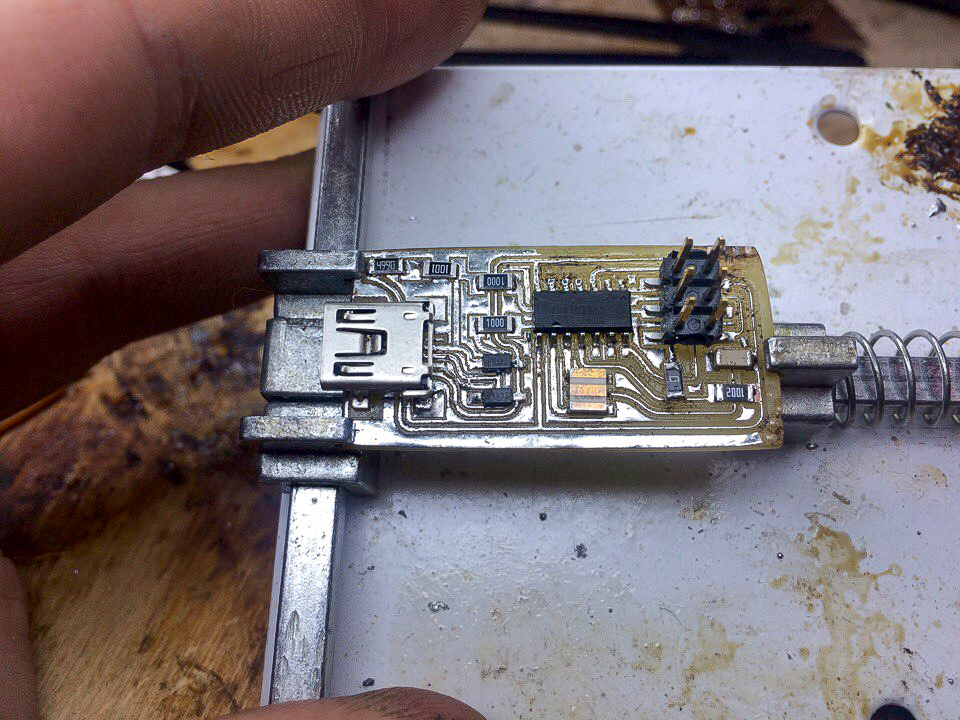

After work is finished:

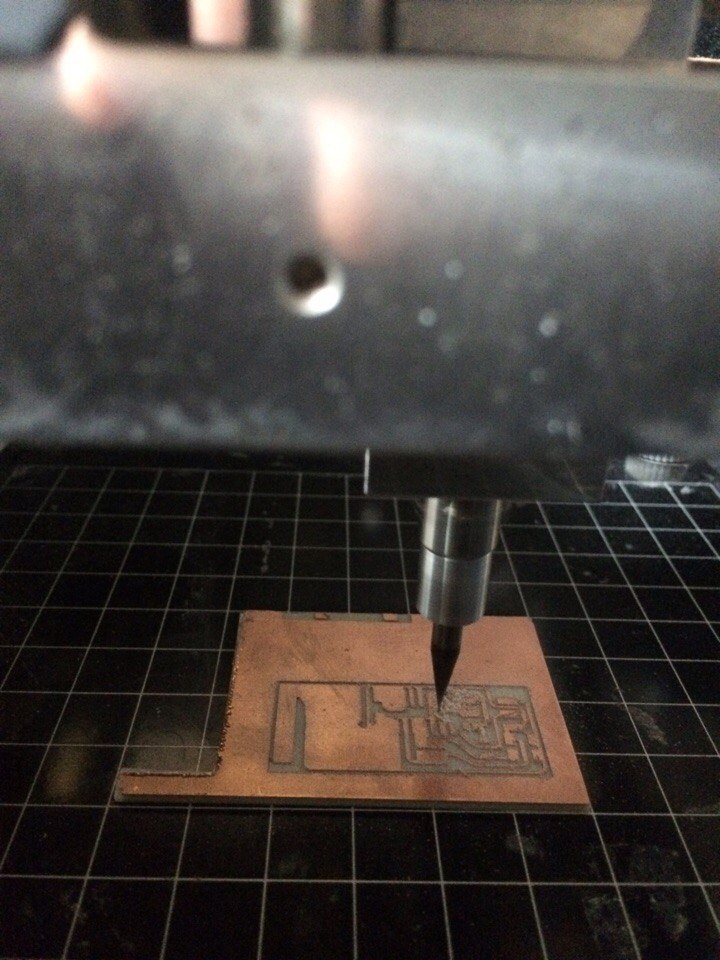

The second version I did on MDX-20.

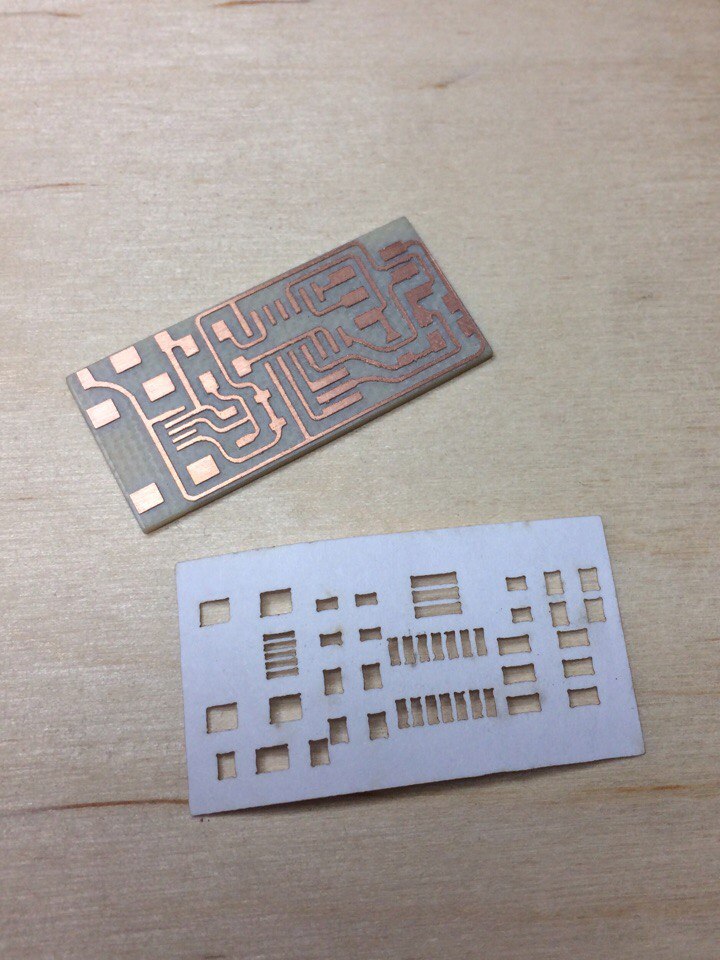

After milling is finished I got Board and made for this a paper stencil:


I put solder paste through a stencil:

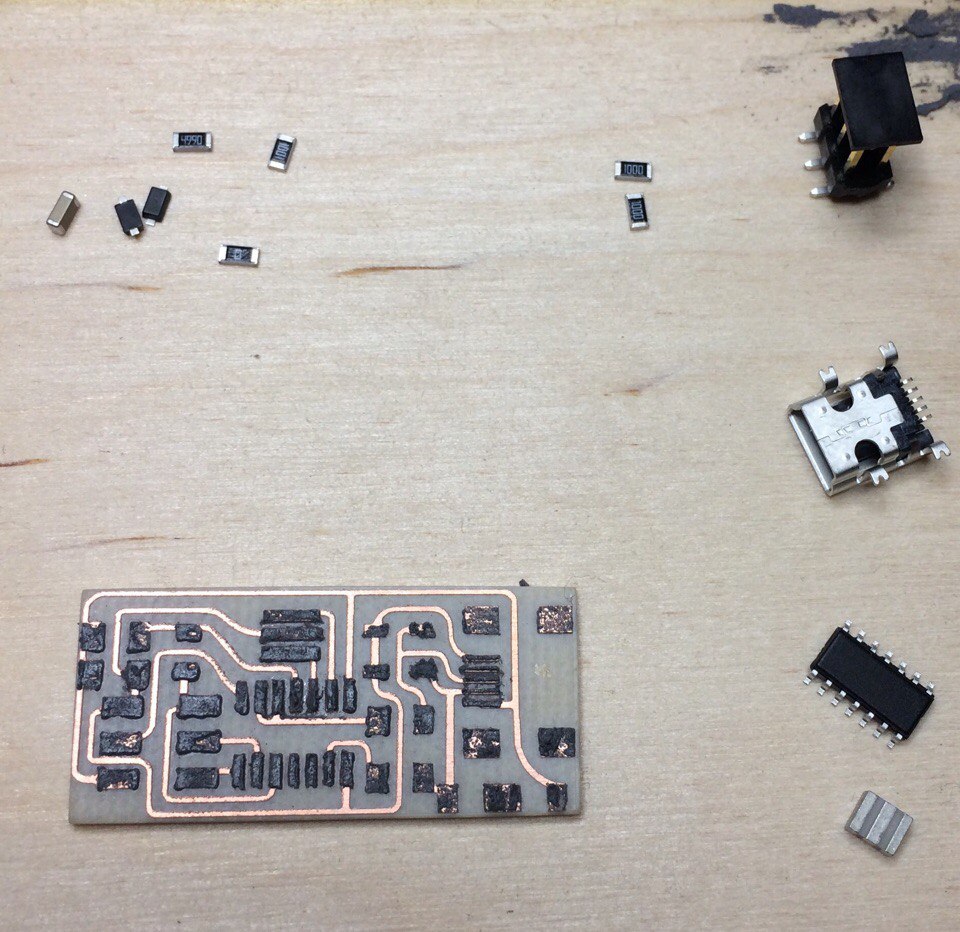

And placed components:

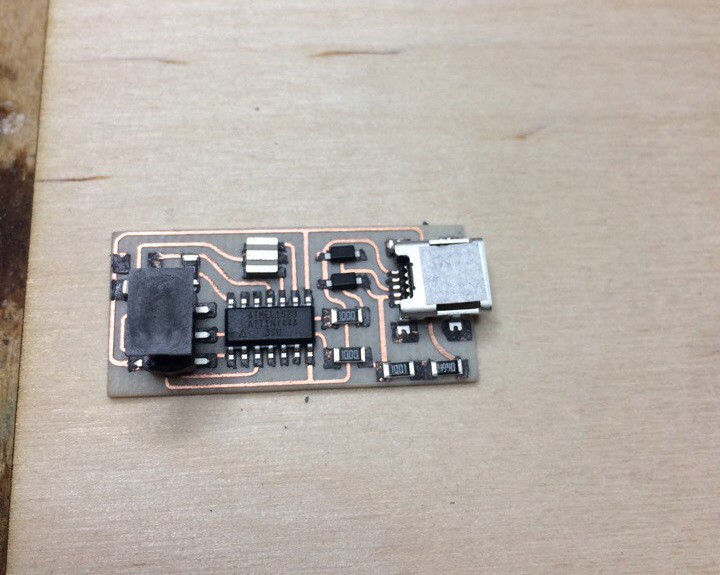

Then solder them with hot air. And got the best PCB by the milling process.

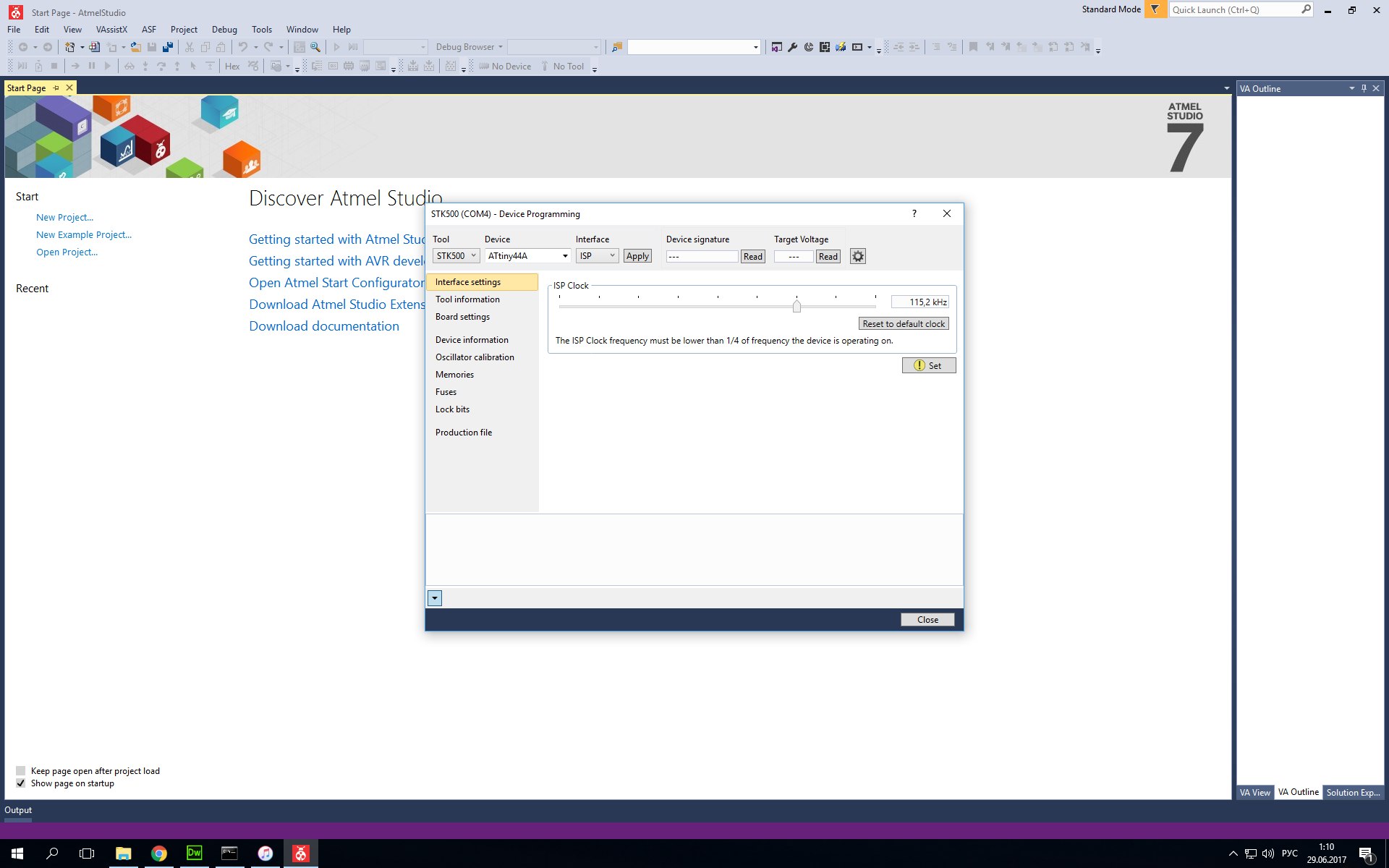

For programming i've used this guide. But I did it in Atmel Stedio. Most preferable package for MC-programming (Atmel).



Thank you.
