Week 3: COMPUTER-CONTROLLED CUTTING

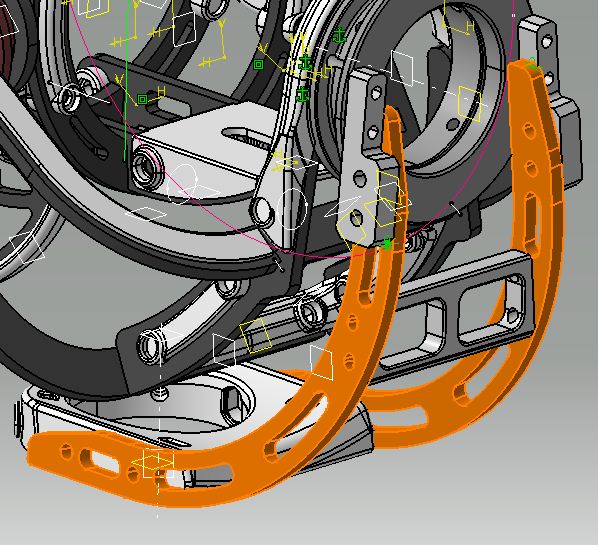

These beams have to support both the rig and the camera...
... hence, I decided to cut them out of aluminum 6061.

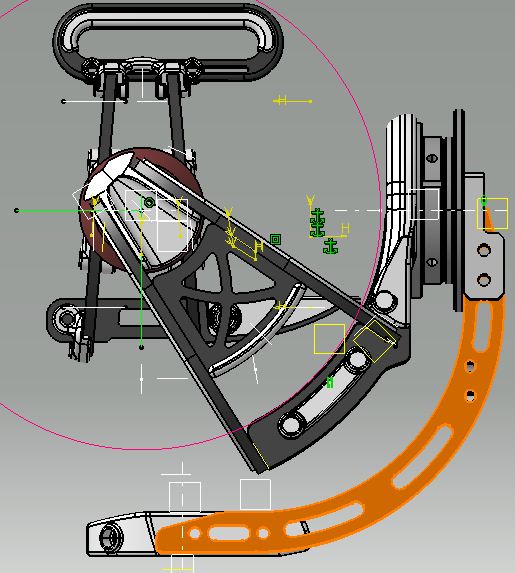

This view shows the amount of stress the beams receive.

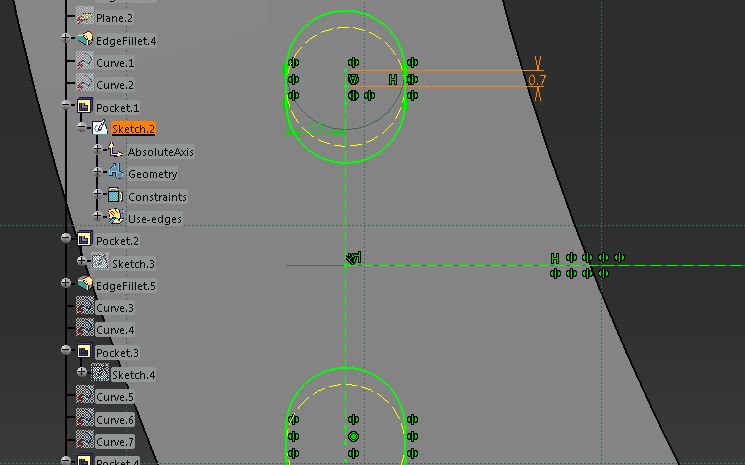

I didn't know the thickness I was to use, so I left the parameter open.

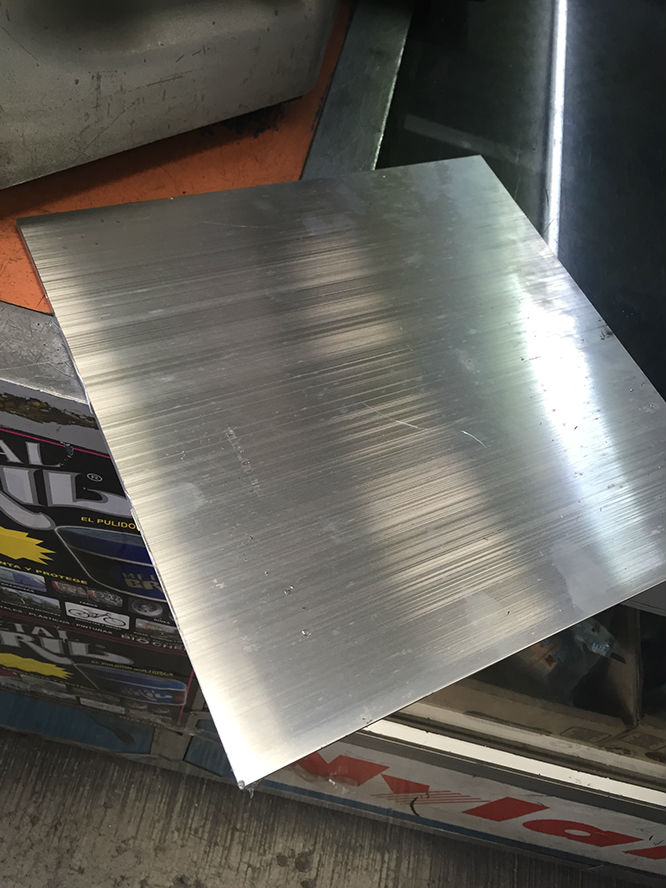

A MXN$180 (USD$ 10) 1/4" 1 square foot Aluminum plate was used.

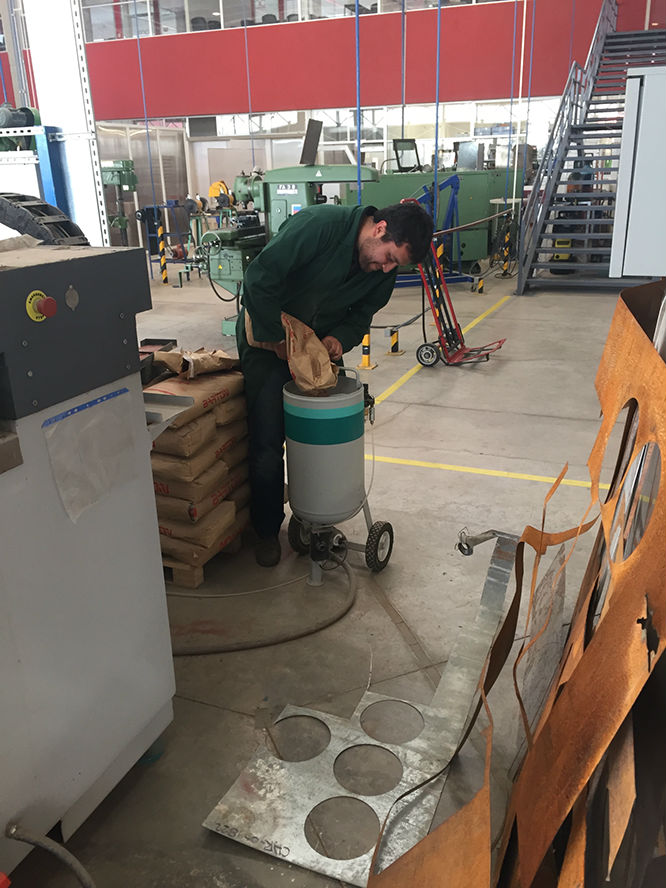

My colleague & JetCutting Guru Elias adding abrasive mix to the Water cutter .

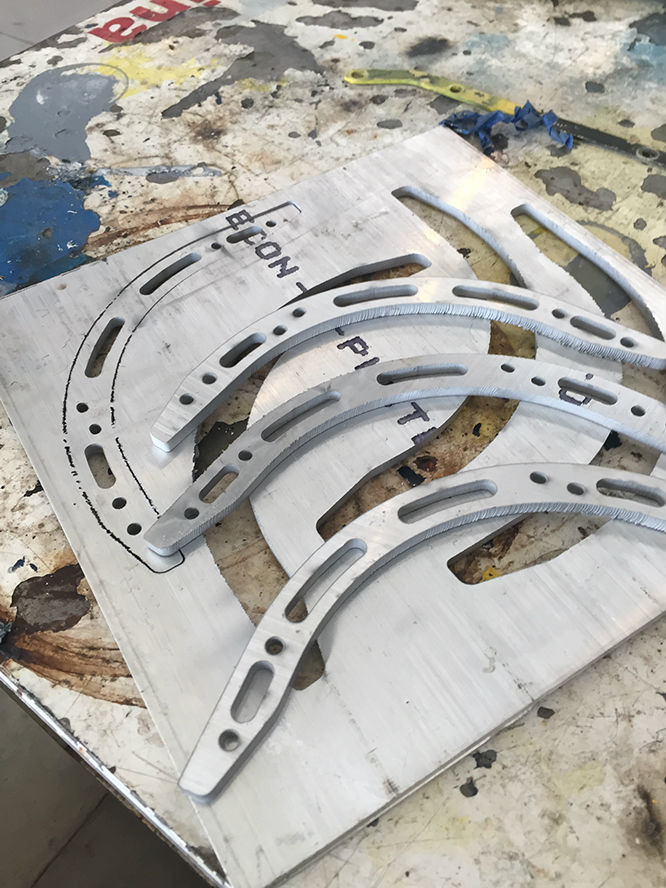

The finished controlled destruction...

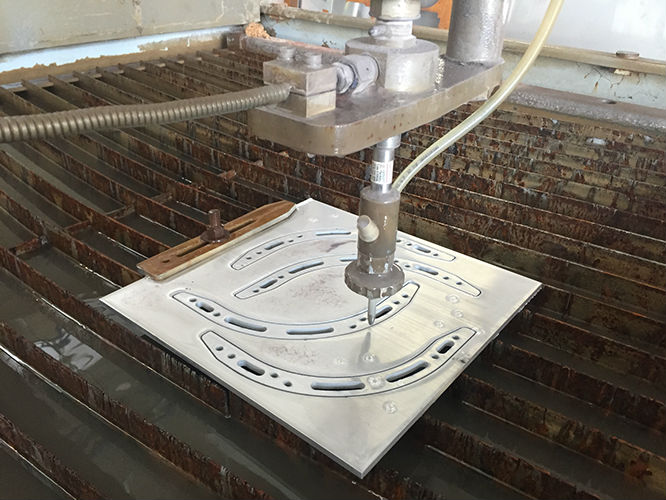

The vibration, along with the high speed didn't cut through in one case.
8 - 8
Check out a timelapse video of the waterJet cutting process in my YouTube channel here. We removed the splash shields and it got a bit messy!
