Assignment 2 - Week2 - Computer-Aided Design

My projects consists of many parts ....

I started by designing the water jet which will be responsable for the submarine(ROV) movement and steering.

Then designing the body of the submarine(ROV).

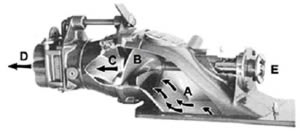

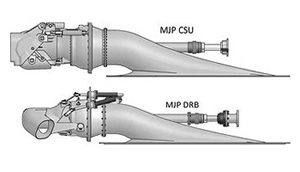

I searched google for the water jet engine designs and i found that images that illustrate the theory of work , so i found it easy to design and get the concept.

First: water jet designing - Second

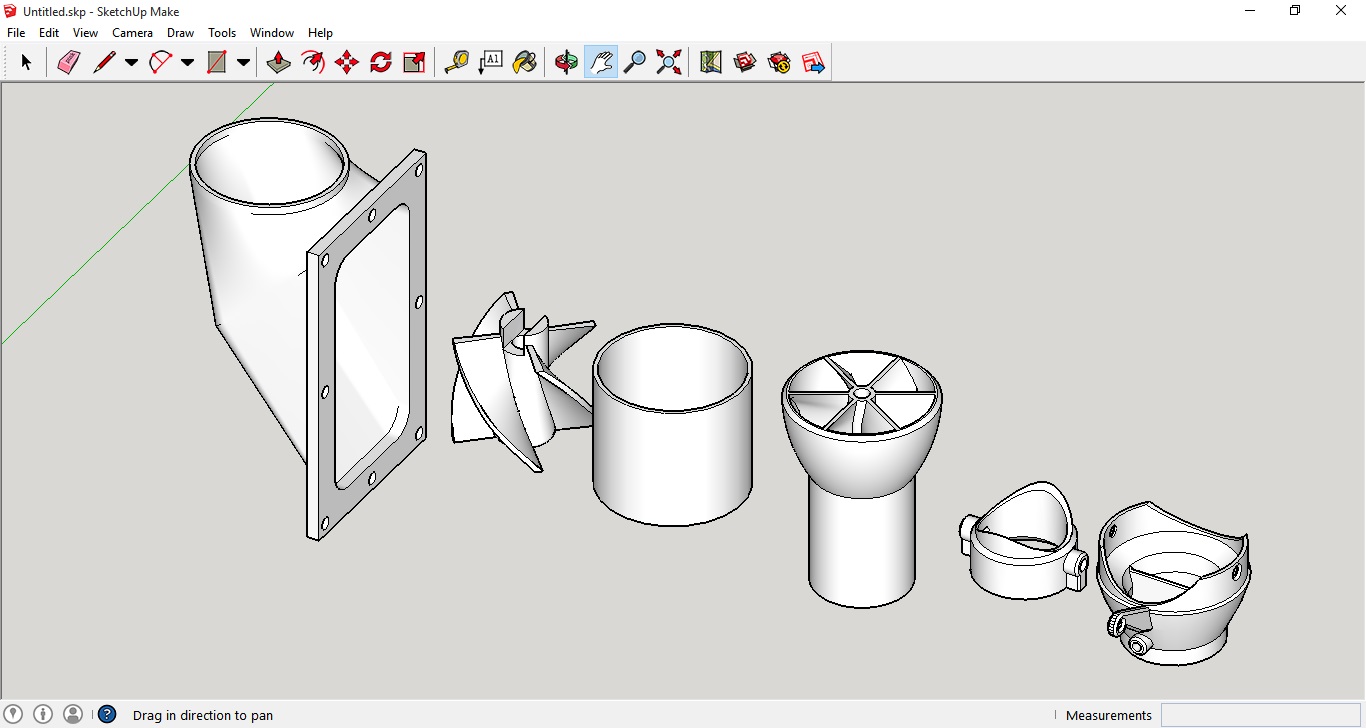

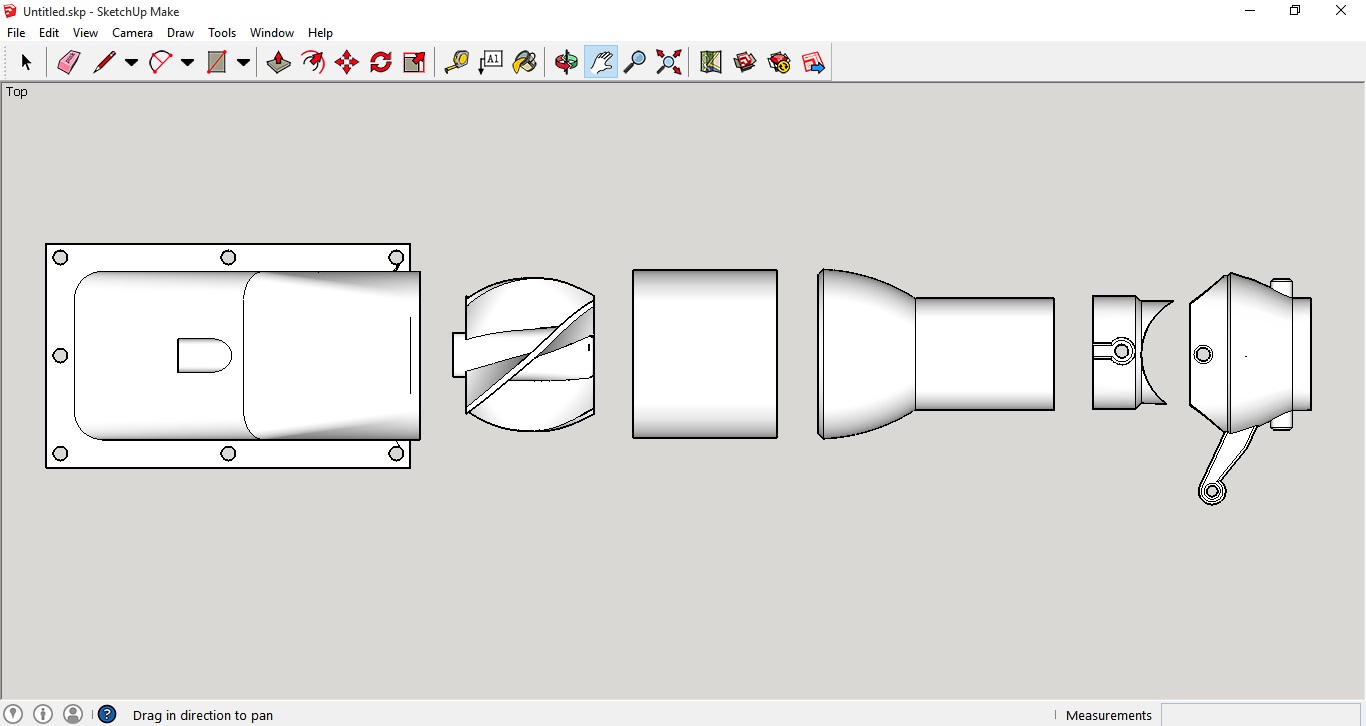

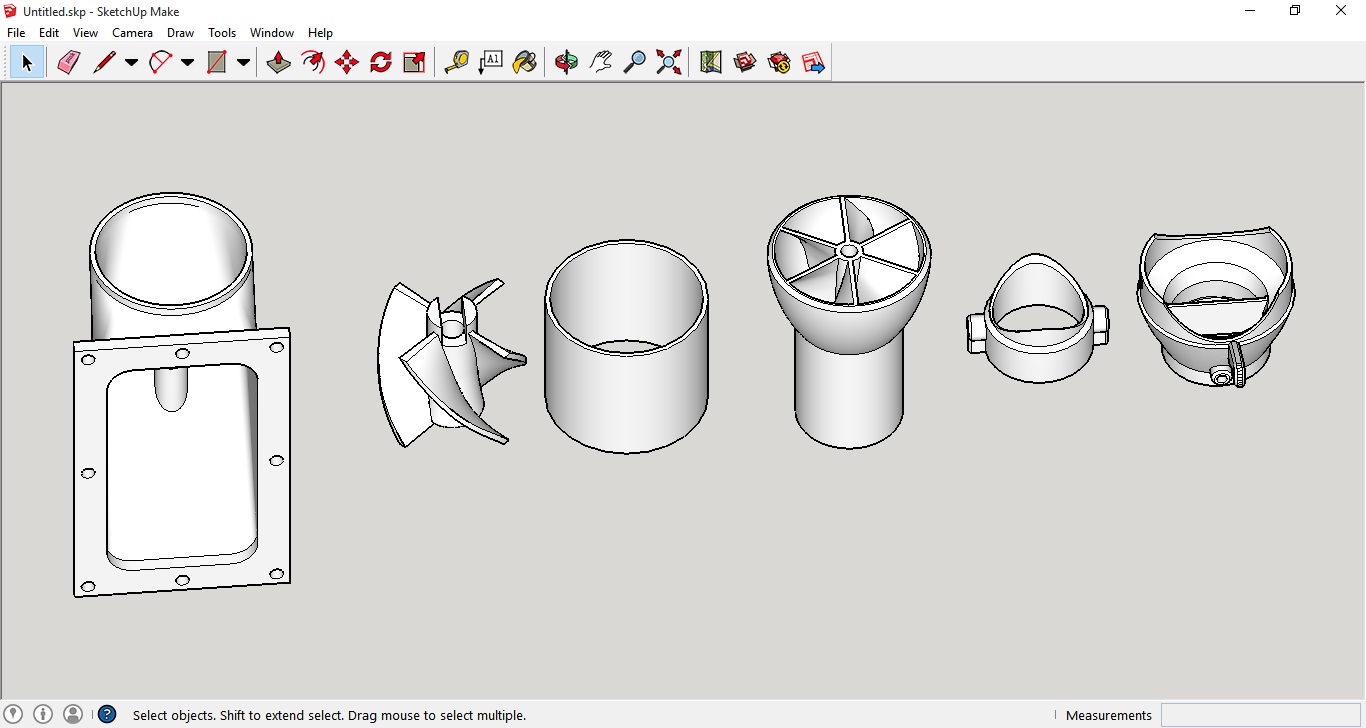

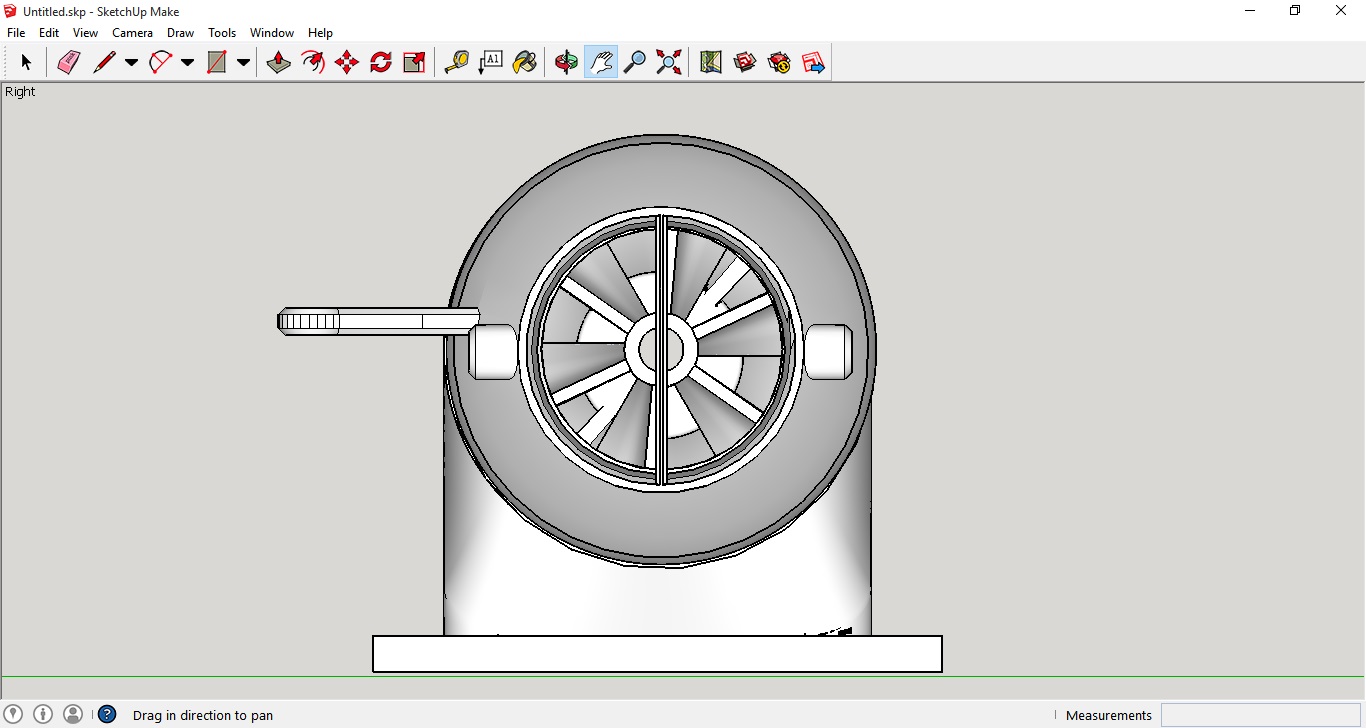

• I used SKETCH UP for designing in 3D and here is some screen shots for the design.

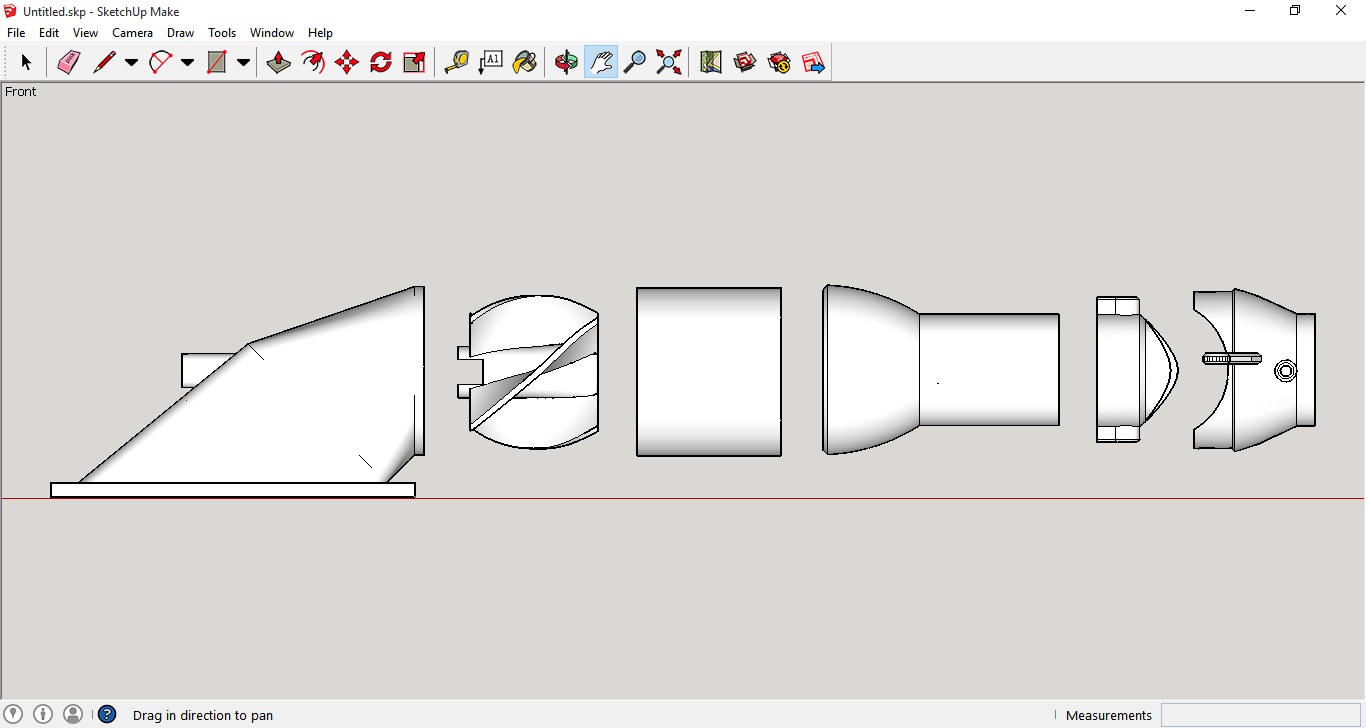

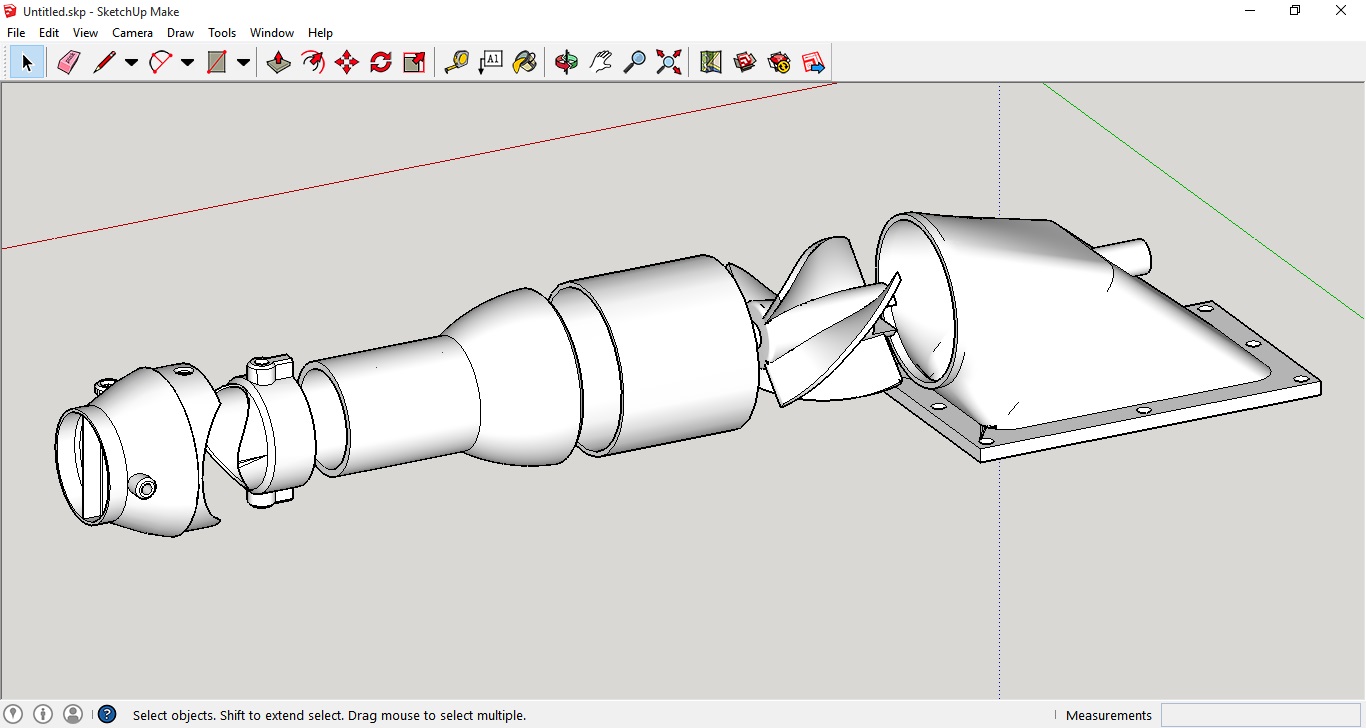

• Here is a 3D view for my design.

• And here is the animated parts GIFs for the design.

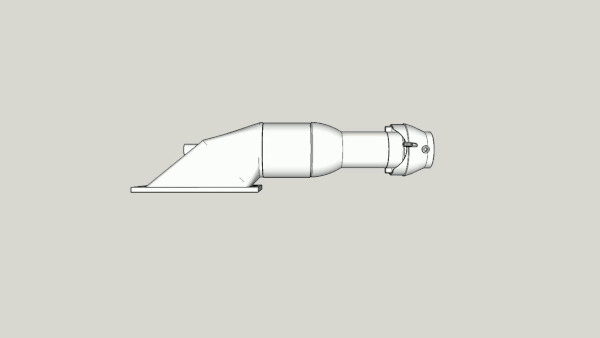

• The assembled waterjet design GIF.





Second: submarine (ROV) design - First

I searched for a design of a submarine in Thingiverse and i found this design.

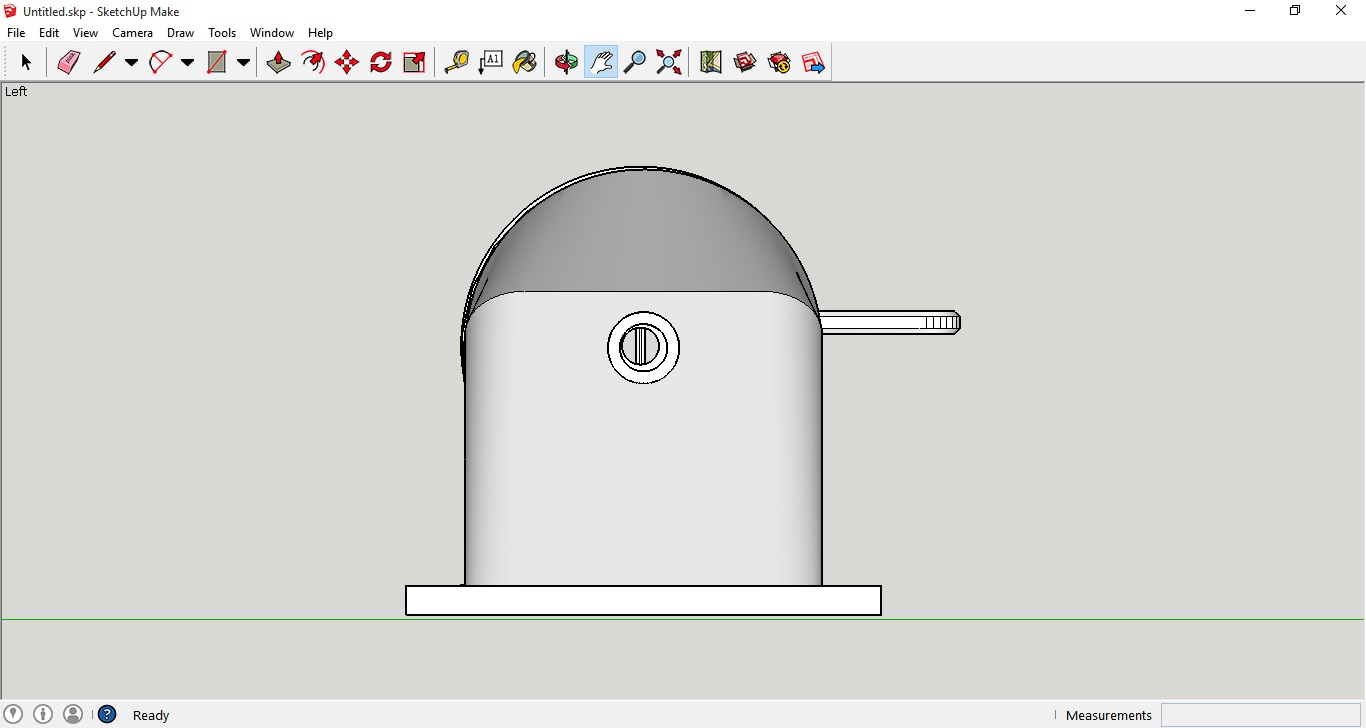

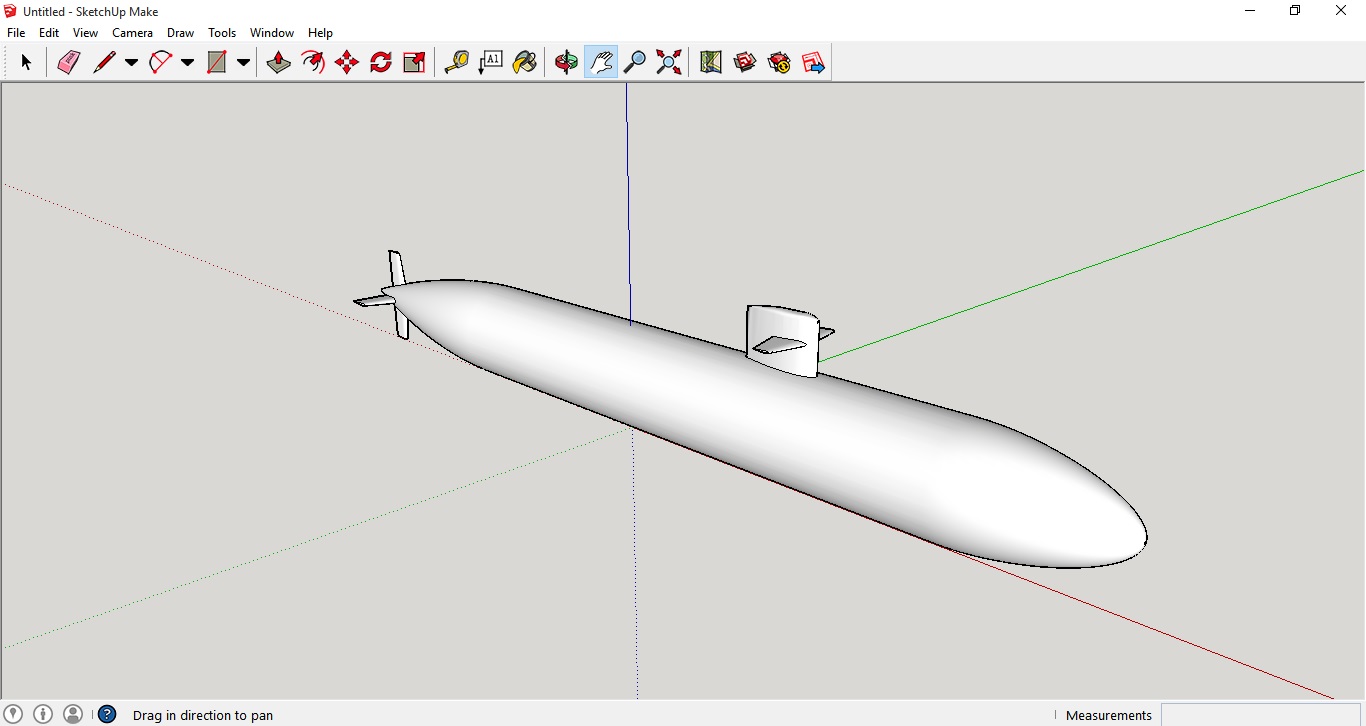

• And here is a screenshot in sketchup.



• Here is a 3D view for the design.





• The bad thing in that free design is that it's a solid part so i have to slice it to several parts and make it hollow from inside to get it ready for the internal parts.

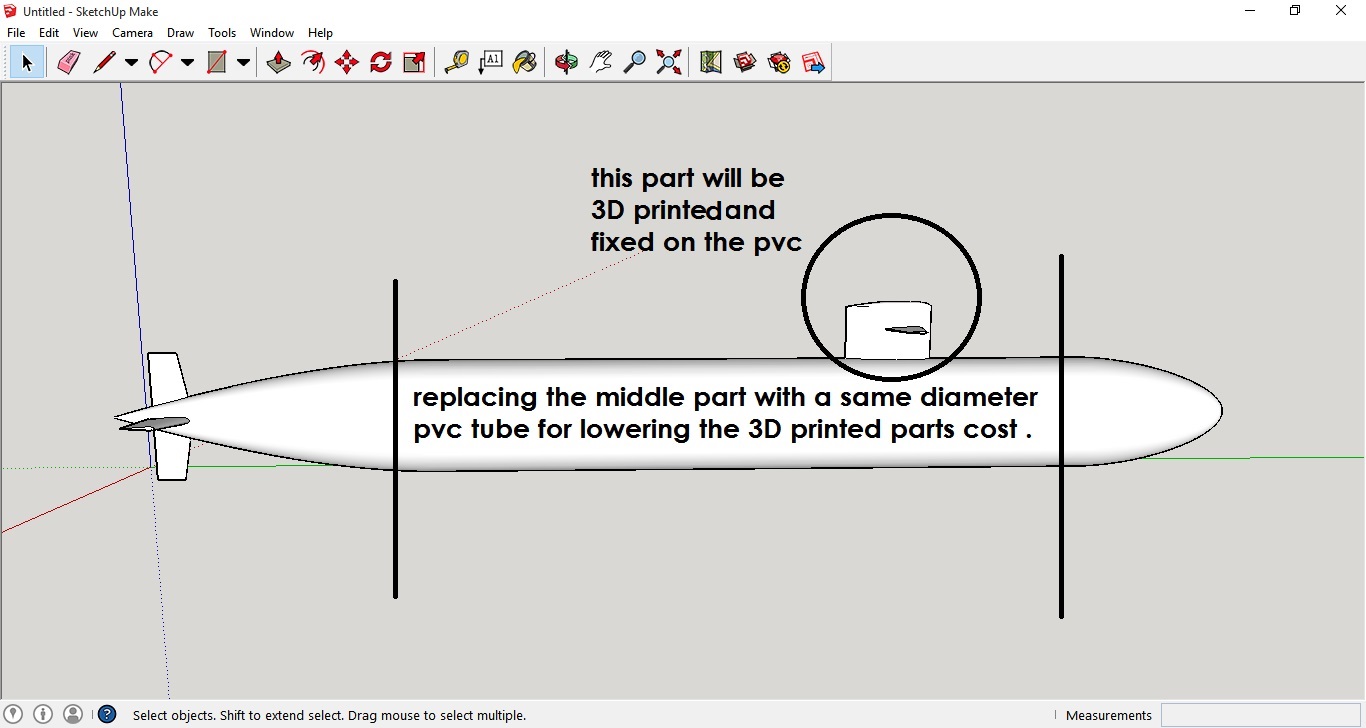

Also i have to make the part that will carry the electronics and the mechanical part with pvc tubes to make the submarine waterproof and able to sustain the pressure under water.

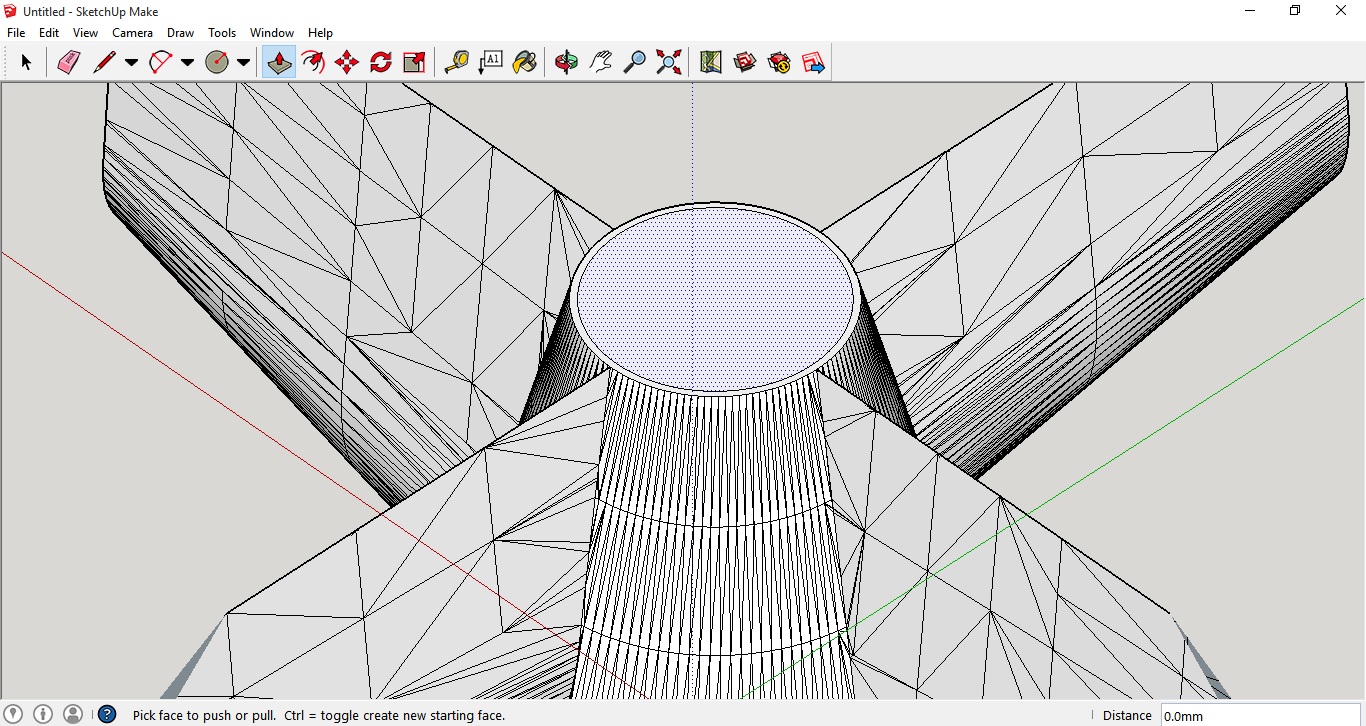

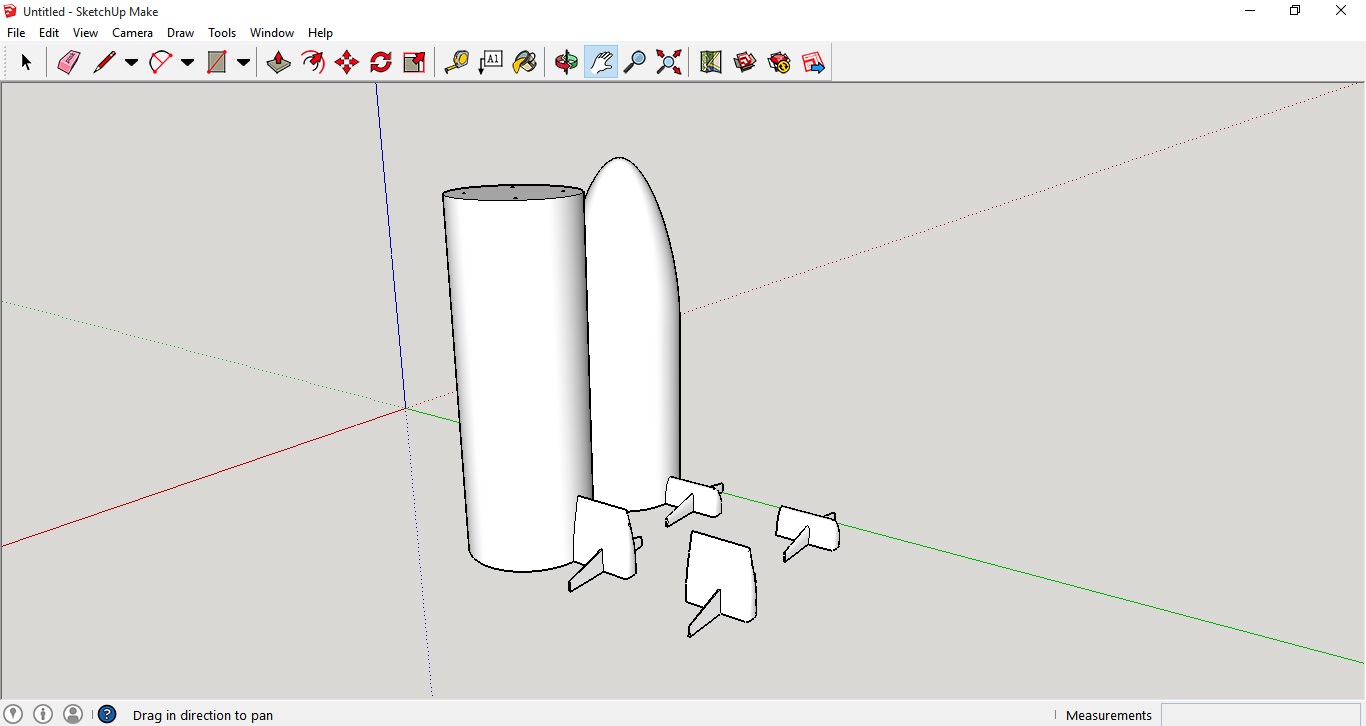

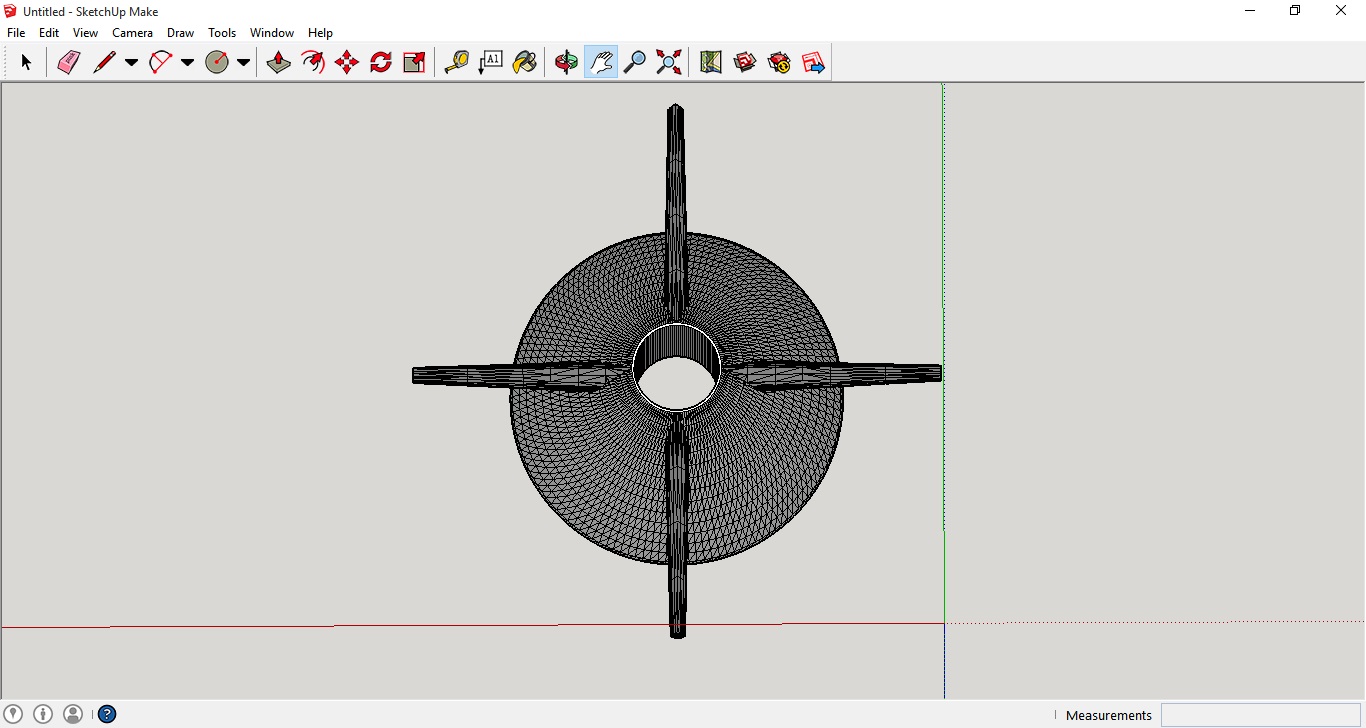

• Here is a screenshot while making the tail part hollow.

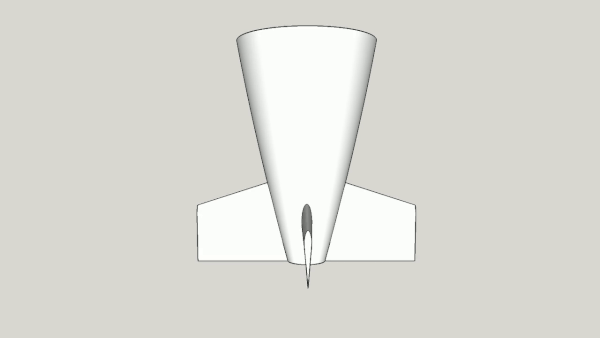

• And here the gif.

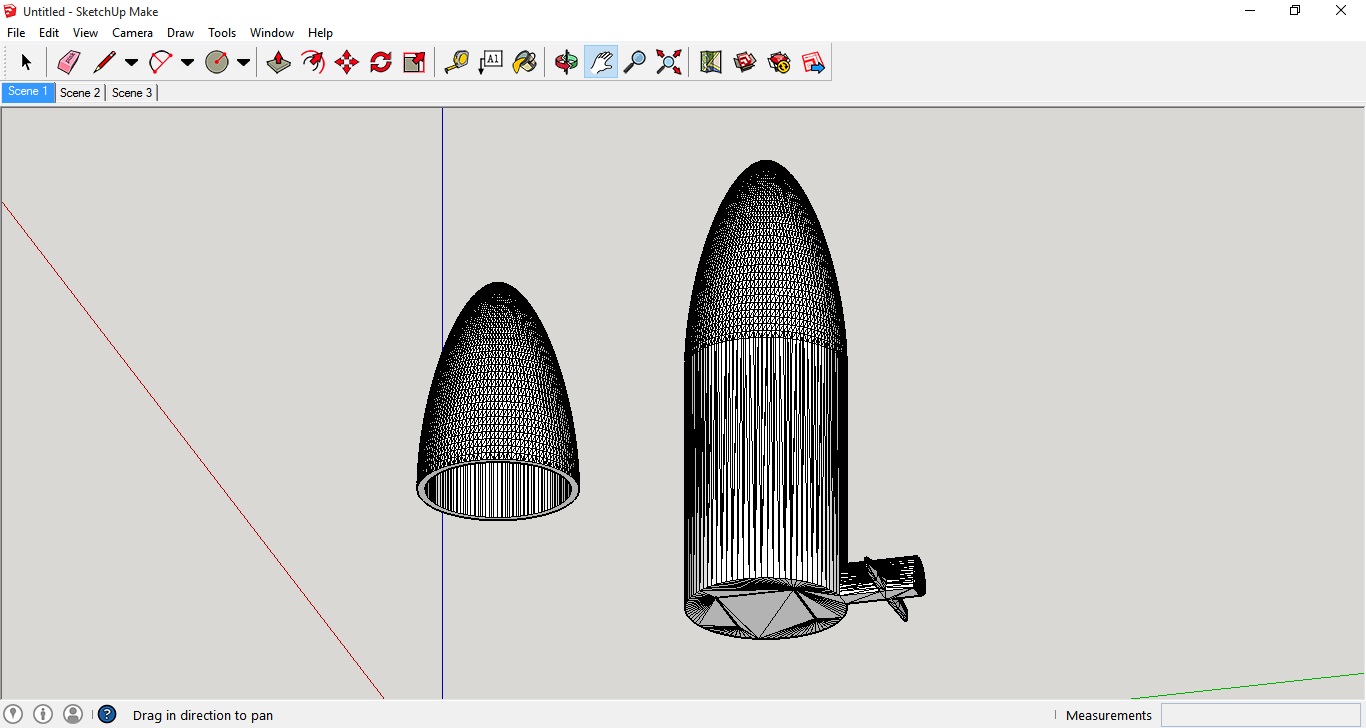

• Now i edited the front part

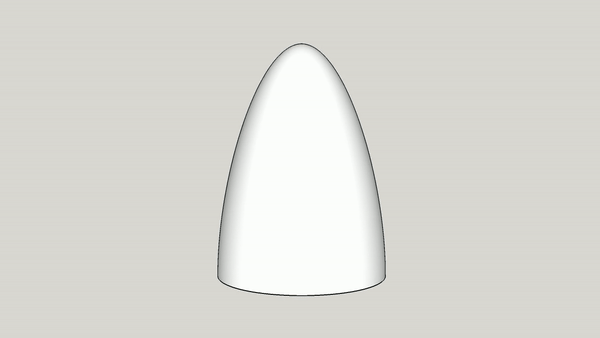

• Here is the gif.



• Now editing the fins part.

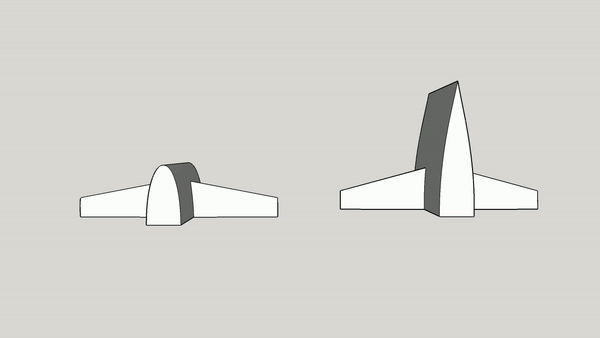

• Here is the gif for the fins.

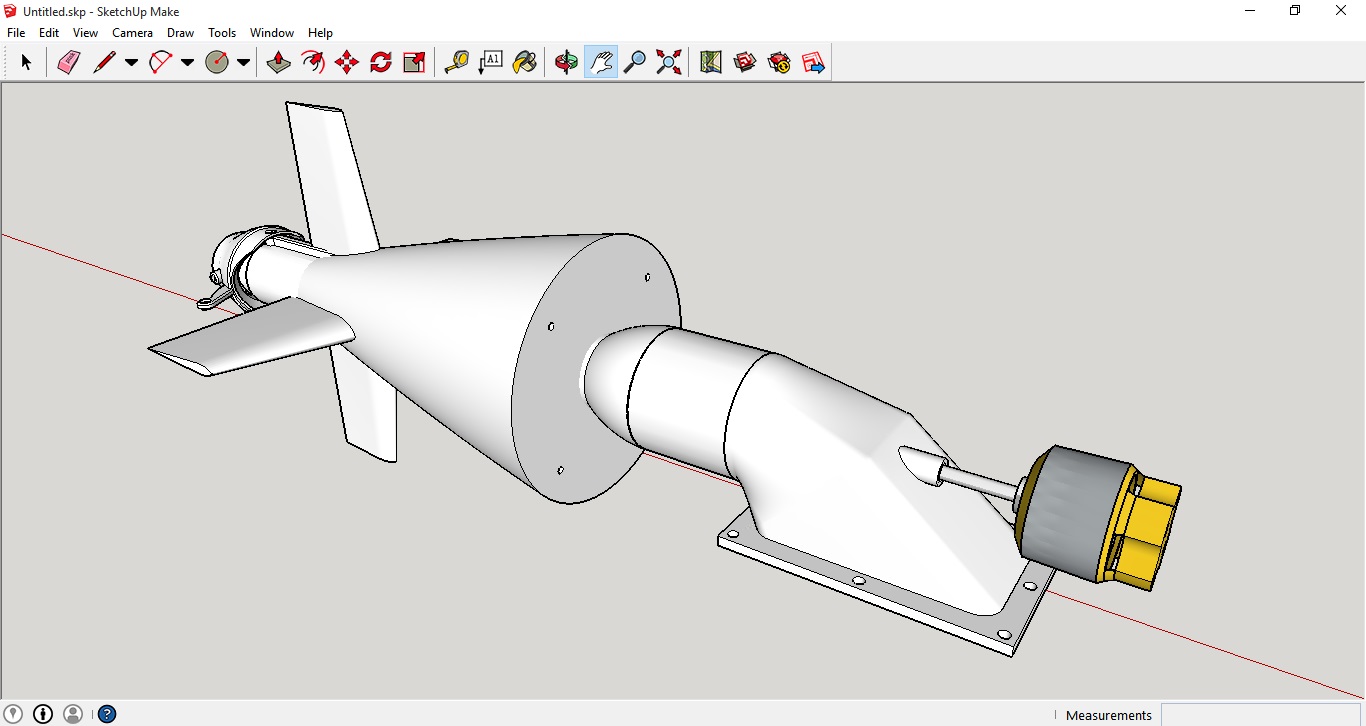

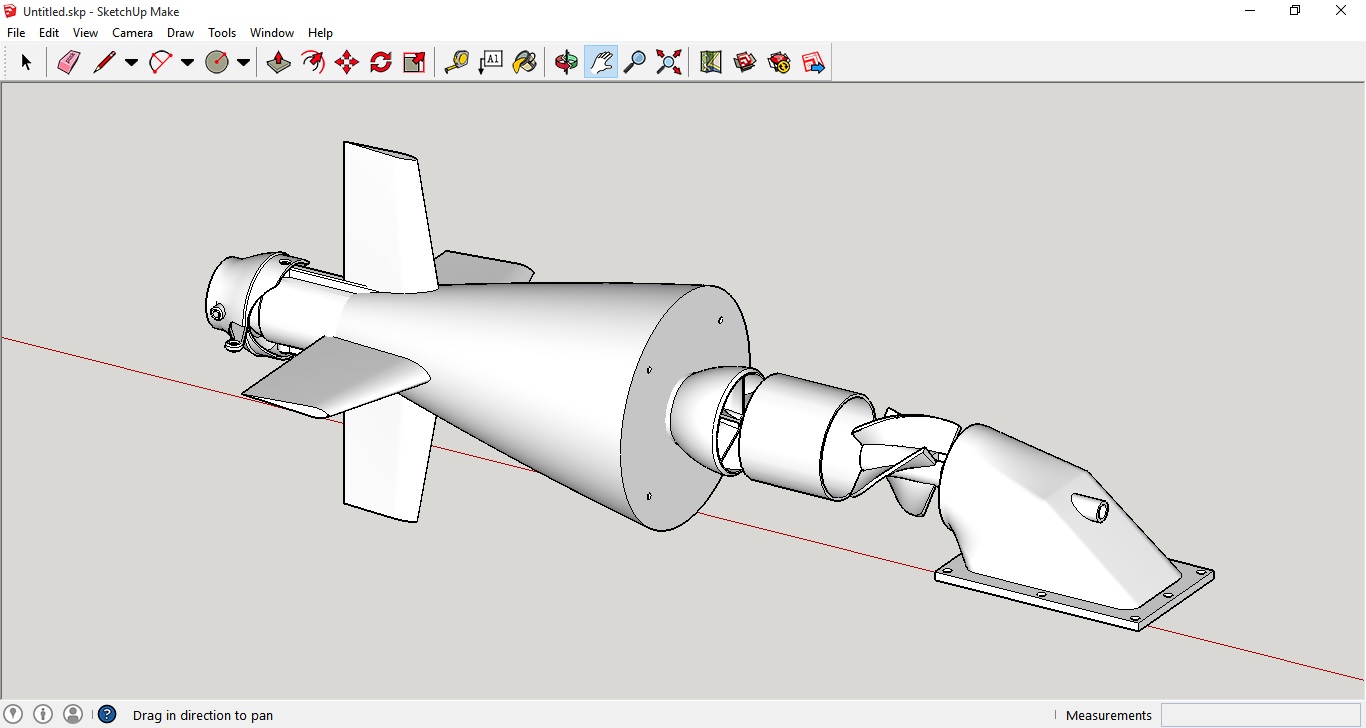

• And now here is the final tail with the waterjet engine and the steering part.

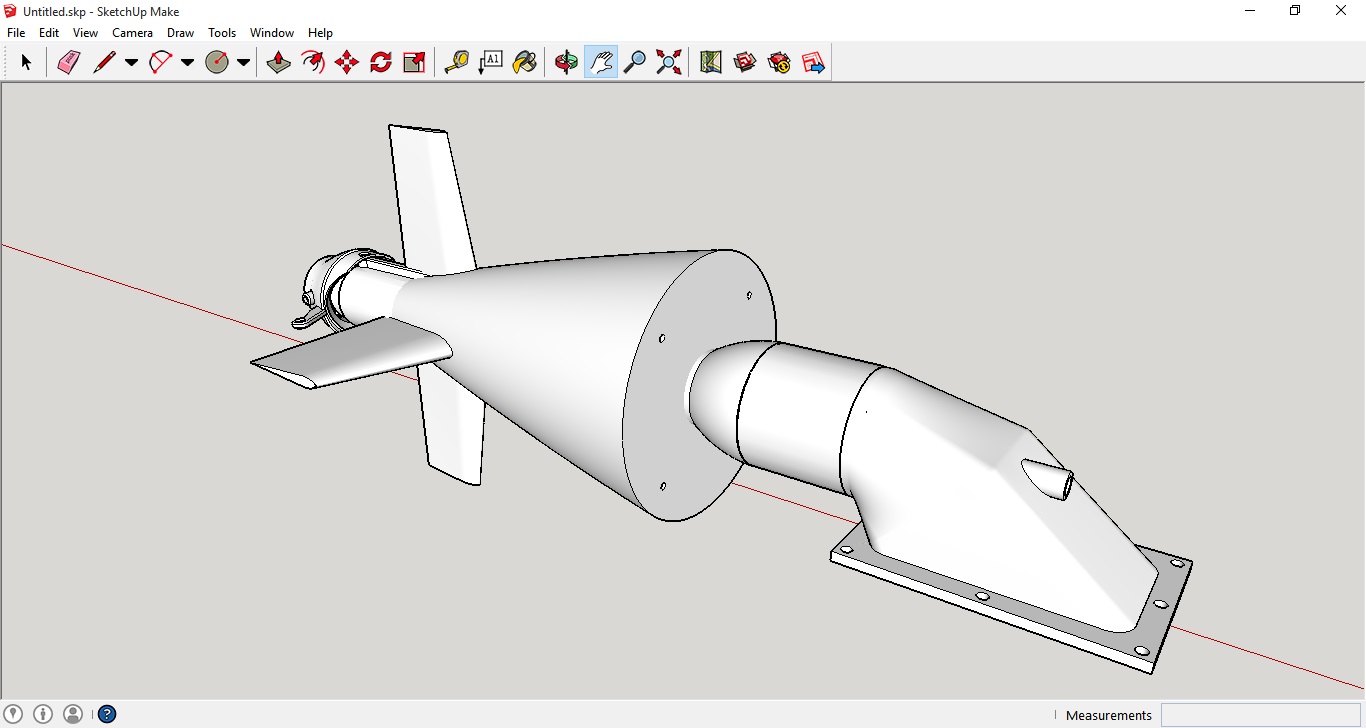

• Here is the final tail part with the brushless motor .

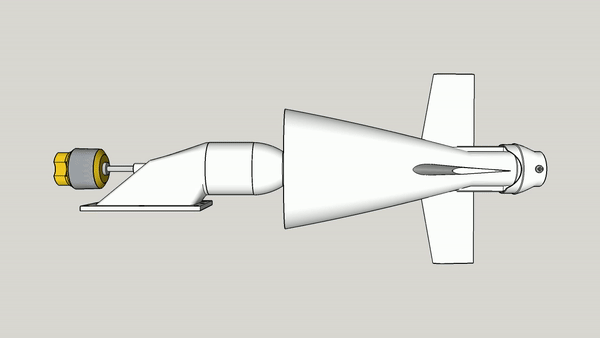

• And the best part when GIF comes :).





After designing the necessary parts i'm waiting for 3D printing them .

N.B: maybe in the future i will need to print another parts and i will need to design them , so i will update this page in the future as the project need .
