Output Device

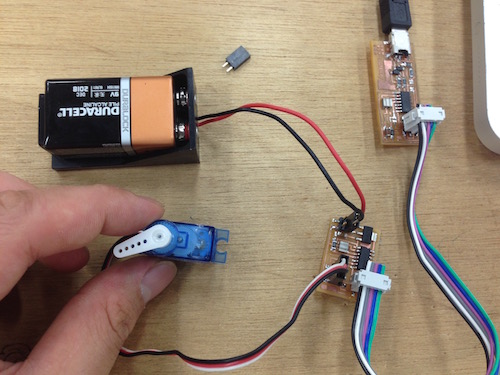

I made sample servo board.
Milling and Soldering is finished,
but programming dosen't work.
Revenge
I retry making wiht Mio-san(FabMaster of kamakura).Using sample servo borad again, but some parts doesn't remain.
So Mio-san suggest me I should use other parts instead.

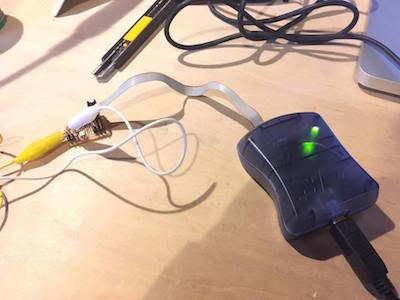

- Broken FabISP → AVR Writer
- 22uF Capacitor → 10uF Parallel
- 5V Regulator → Power supply by AC adapter
load double 10uF capacitor.

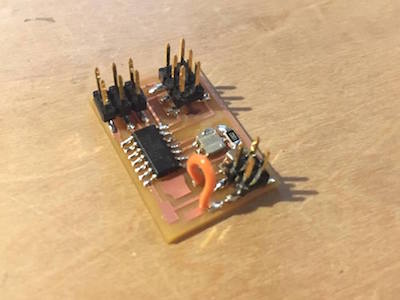

Jump In to Out, and power supply from AC adaptor.
When you use AVR writer, programming process changes.
With FabISP, I type "make -f XXX.make program-usbtiny".

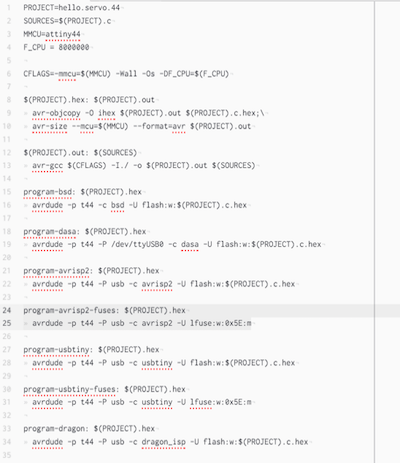

But this time, I don't use usb-tiny, so let's look make file.
You can see "program-avrisp2" and

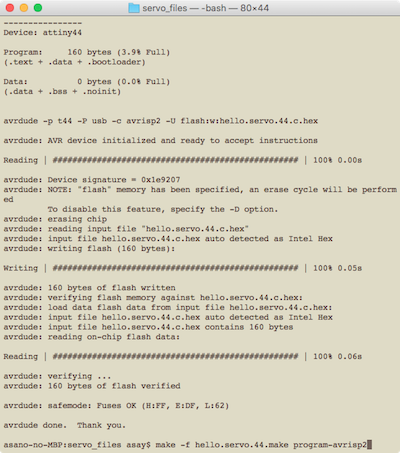

"avrdude -p t44 -P usb -c avrisp2 -U flash:w:hello.servo.44.c.hex".
Let's type it and run in terminal.
I got it! thanks for Mio-san!
Program files are here.
