Electronics design

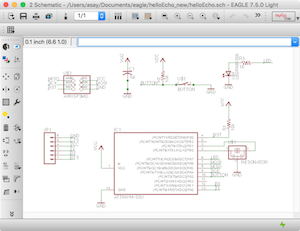

This week, I use EAGLE to design circuit board.Schematic
At first, I have to set electric parts into schematic mode.
You can choose them from existing or installed parts list.
This time I use ng.lbr included in hello.echo.zip and fablabkamakura.lbr.

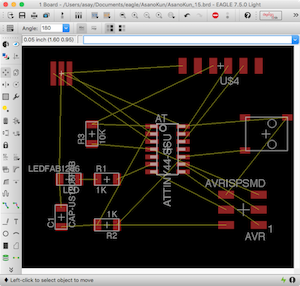

Board

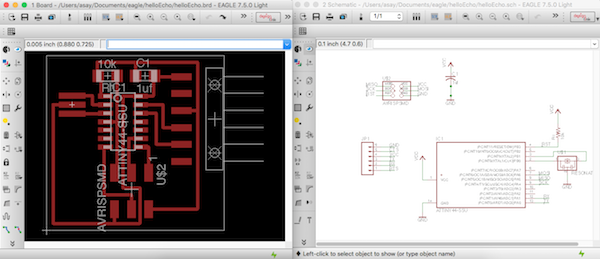

EAGLE has two windows, Schematic and Board.
When you set parts in schematic, real scale parts are appeared in Board.
And then, I need to draw a line for whole circuit board,

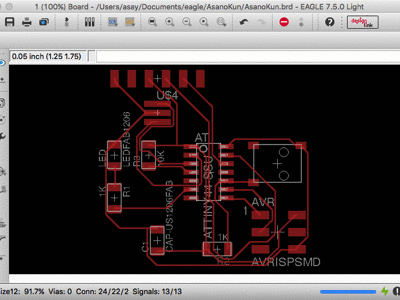

but it's so difficult and there is "auto routing" menu.

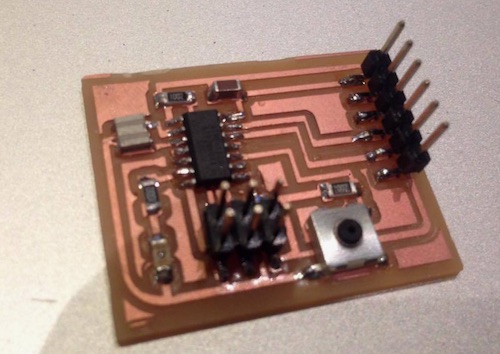

Result | Data

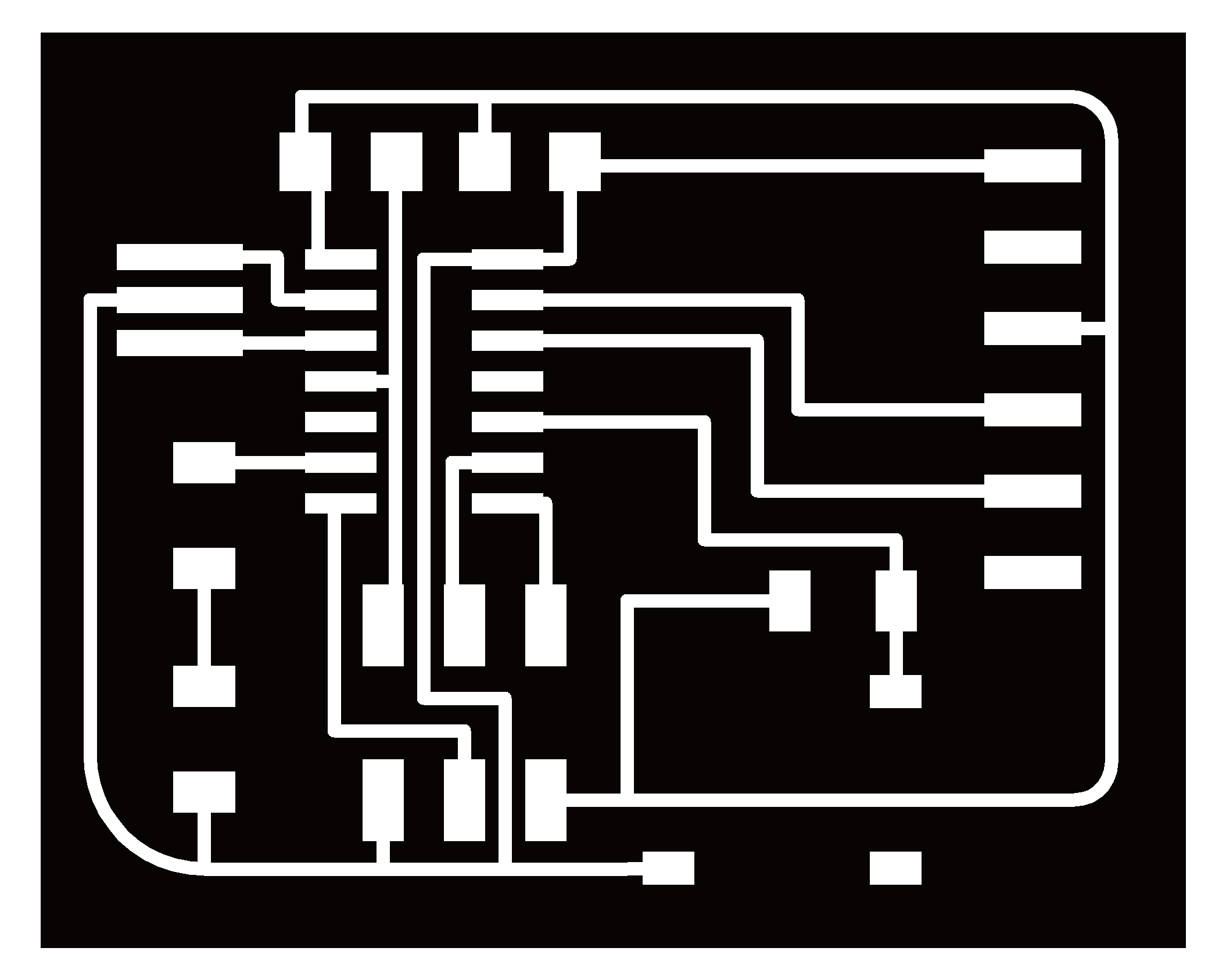

I use 1/64mm flat endmill for trace, and 1/32 for interior.The settings is same of fab modules default.
