Week- 7 Computer-controlled machining

Let's start with taking a look on the bits used for different operation and materials.

Refer link given below:

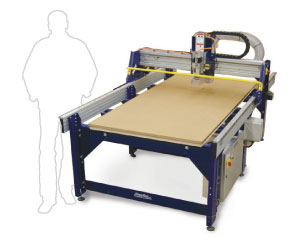

Let's Start with milling then

You will need something in .dwg format for 2d cutting and .stl or .obj format files for 3D milling.

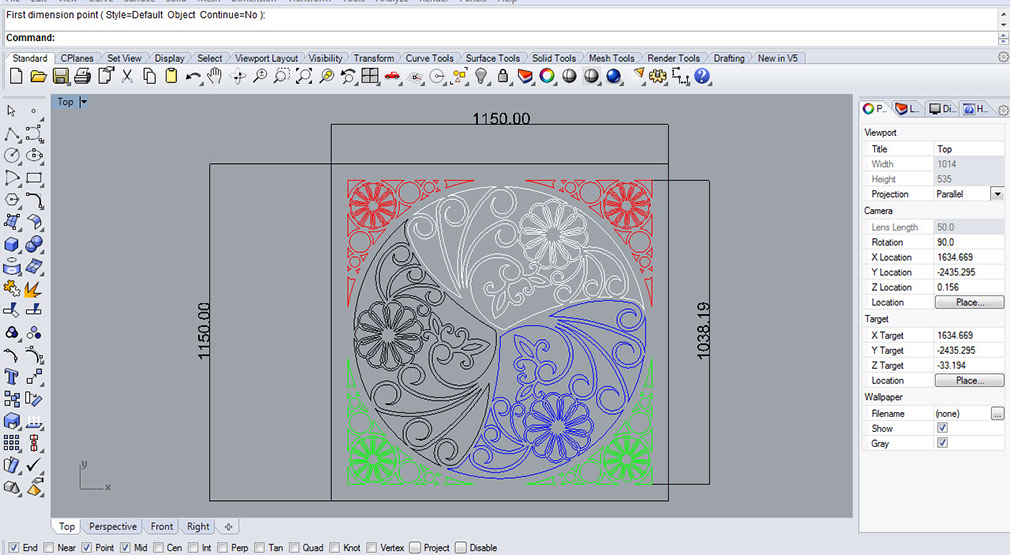

In the following picture you can see the design made in rhino

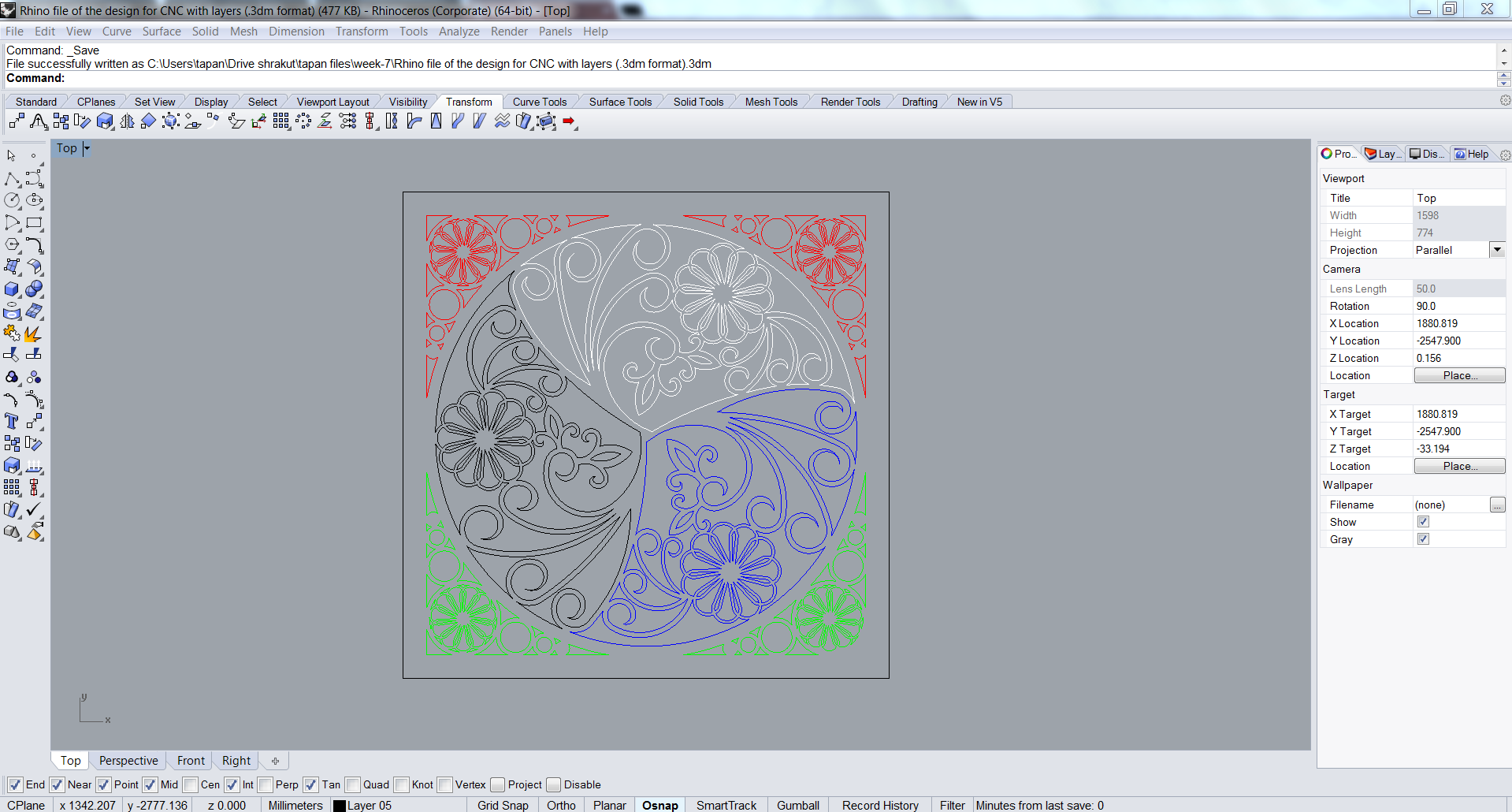

Here we have isolated the objects in different layers because this job is of almost 1 meter * 1 meter  and it is going to take few hours to cut the whole piece hence as shown in the figure we will cut all the layers separately.

If you can get sheet bigger than that and if you want to scale or resize it then you can.

you can find the file from file tab on the top of the webpage and edit it according to your requirement

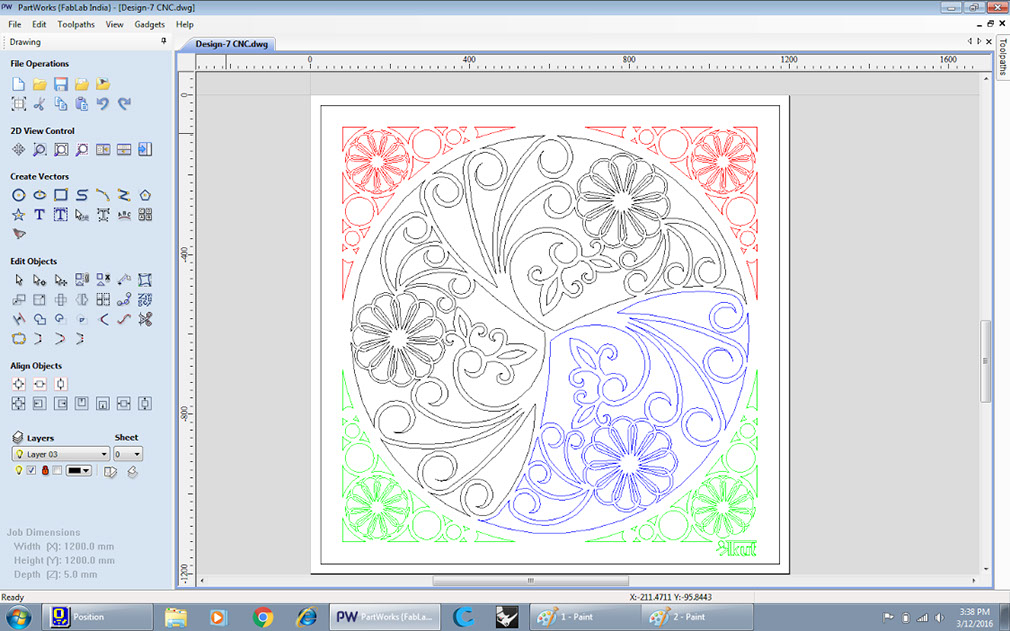

Step- 1 Starting with Partworks software for making G-code of the file.

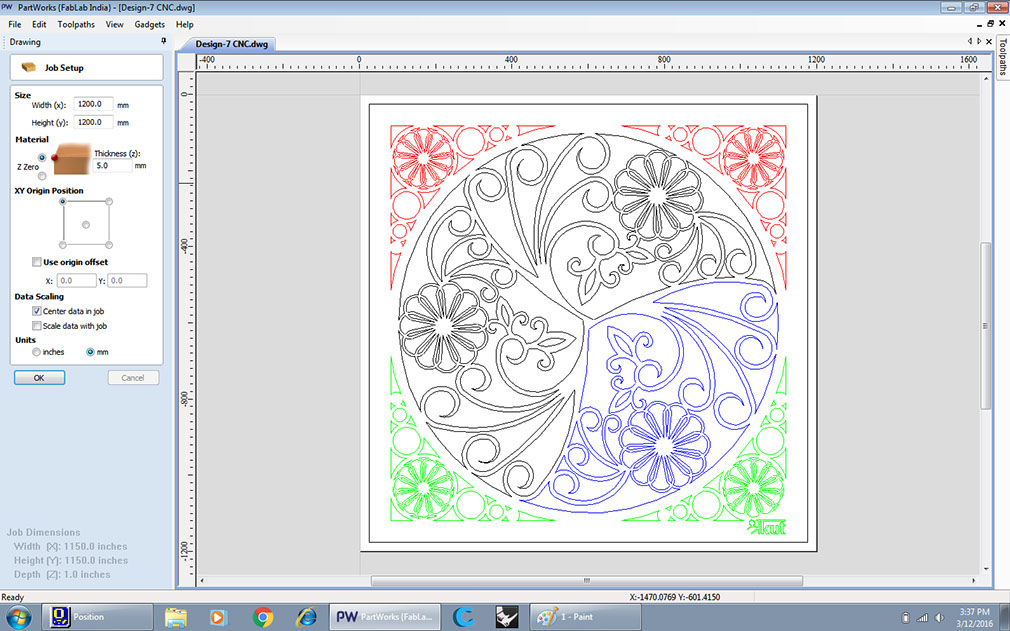

• When you open your file, you will need to set-up the dimensional parameters of the workpiece such as, length, width, thickness and zero of the machine, centering the job or setting zero at some co-ordinate.
• Here in the window the drawing is divided in different layers to avoid continuous long time cutting and to prevent from any uncertain situations like bit breakages or electricity breakdown, etc.

Step-2 setting up the basic things before making the g-code.

• You will need to delete the duplicate objects from the drawing and join all the closed path objects as one object, because for the closed objects machine will make a single path and it is not joined then machine will not be able to differentiate the path for on the line, outside or inside cutting.
• we can do cutting operations, drilling operations or pocket operations with this software. Here, for our drawing i made a cutting toolpath.
• Depending upon the material thickness and hardness we choose drill-bit size and shape, speed and feed rate.
• I am here using 7 mm MDF;
• bit: 1/8 up-cut bit because of very small objects and small radius
• speed: 7500 rpm
• feed rate: 1.5
• plunge rate: 1.5

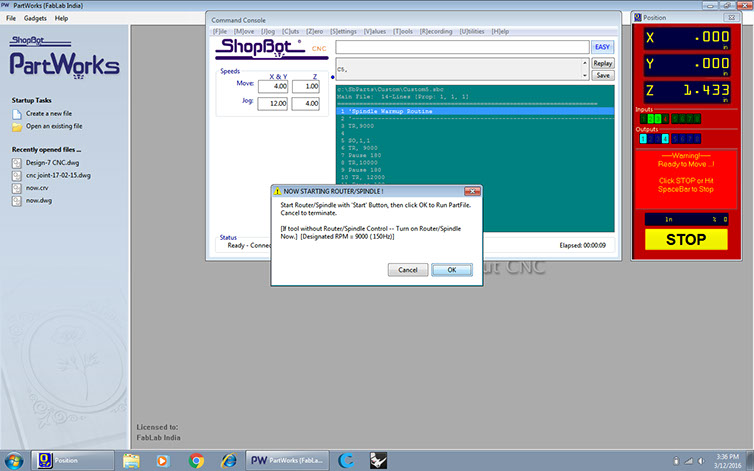

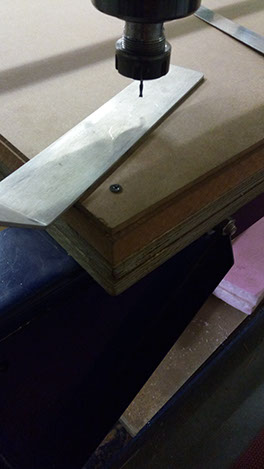

Step-3 Setting Z-zero and doing spindle warm-up routing

• spindle warm-up routine is done before starting it first time in the day
• check motion in all the direction before starting the milling.
• workpiece can be mounted with the clamps or screws, we can use any of them in our milling.we are using screws.

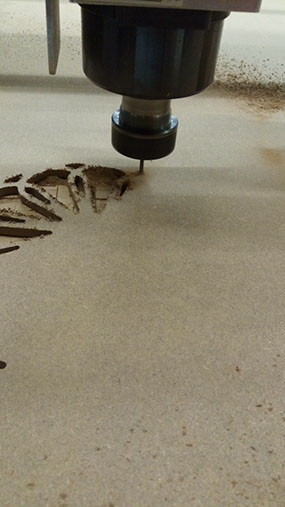

Step-4 Starting the cutting

• Start cutting by pressing start button on shop-bot screen and browsing the file.

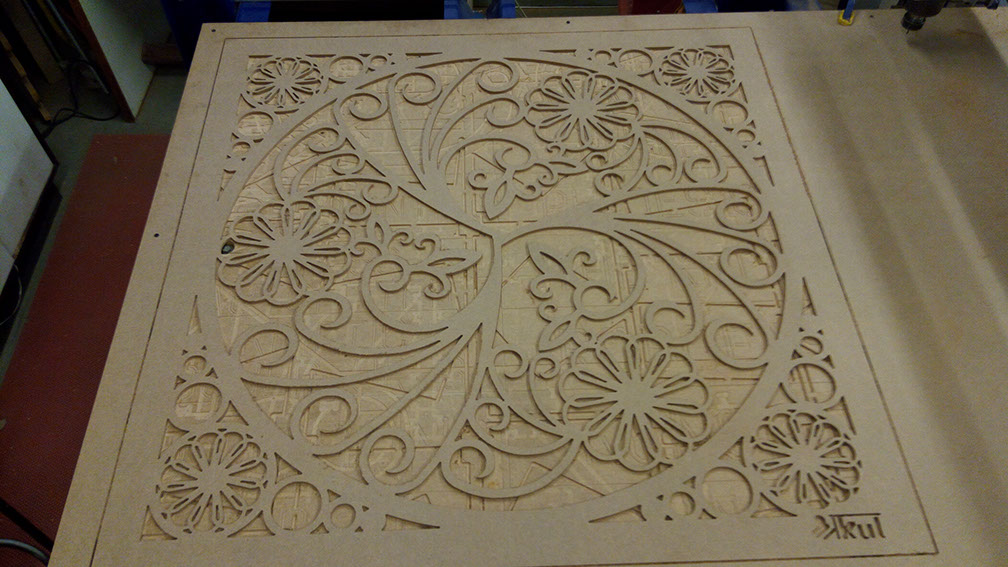

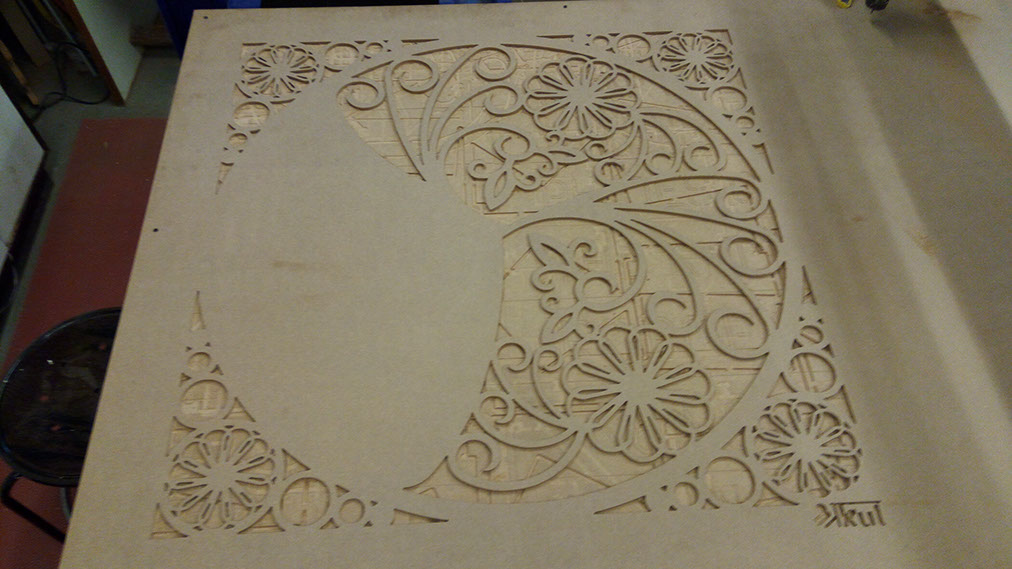

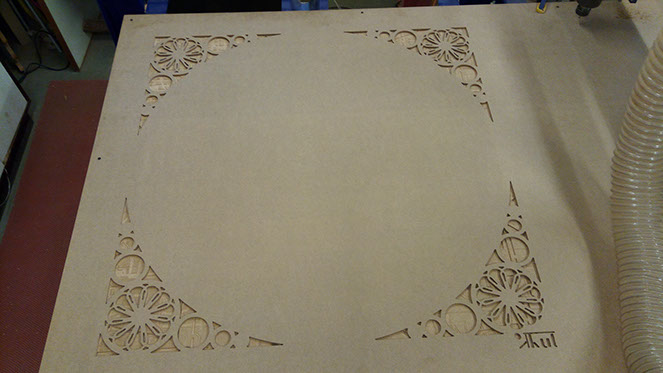

Completion of next layer

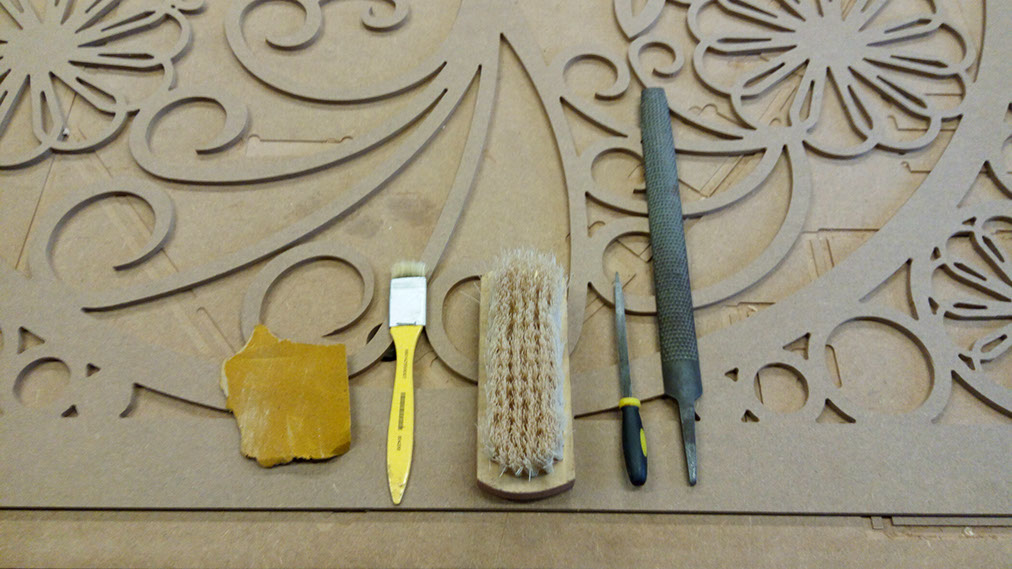

Almost there to finish

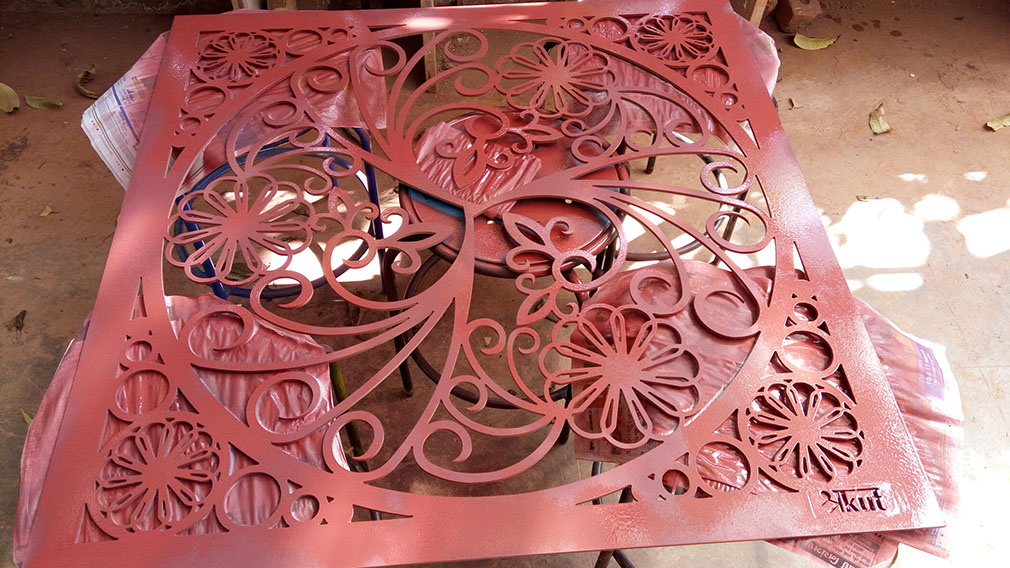

Painting!!!

• Most fun Part of the process.
• It has been painted with plastic paint to give a protective layer.
• We can use different types of paints such as plastic paint, oil paints, etc on different materials after cutting.

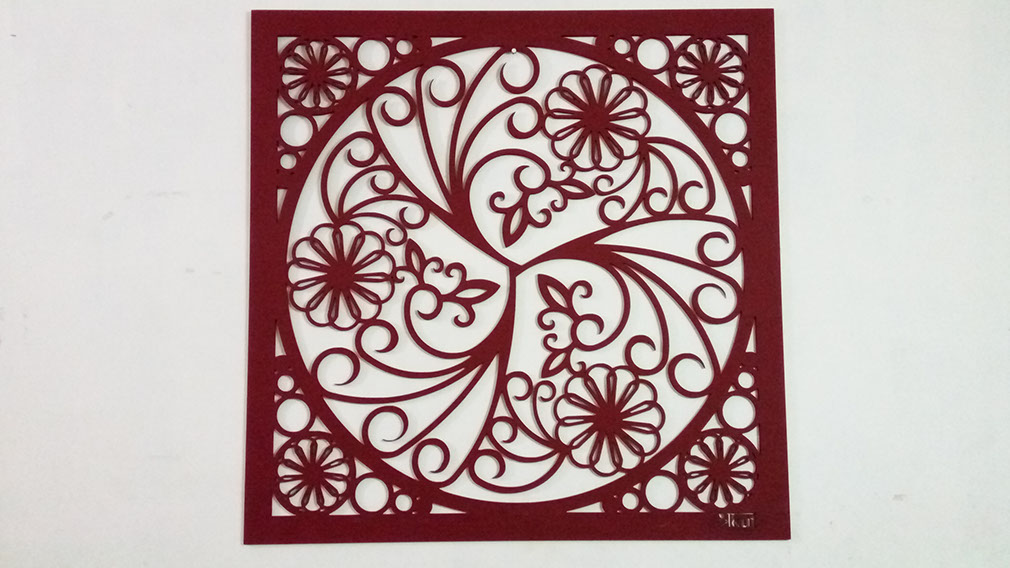

Finally On the wall
