week 9

Introduction

This week's assignment was on mechanical design and the objective was to design a machine and operate it manually. The machine we chose to design was a desktop cnc router. the group members included:

• Felicity Mecha
• Ernest Kimani
• Derrik Mugasia

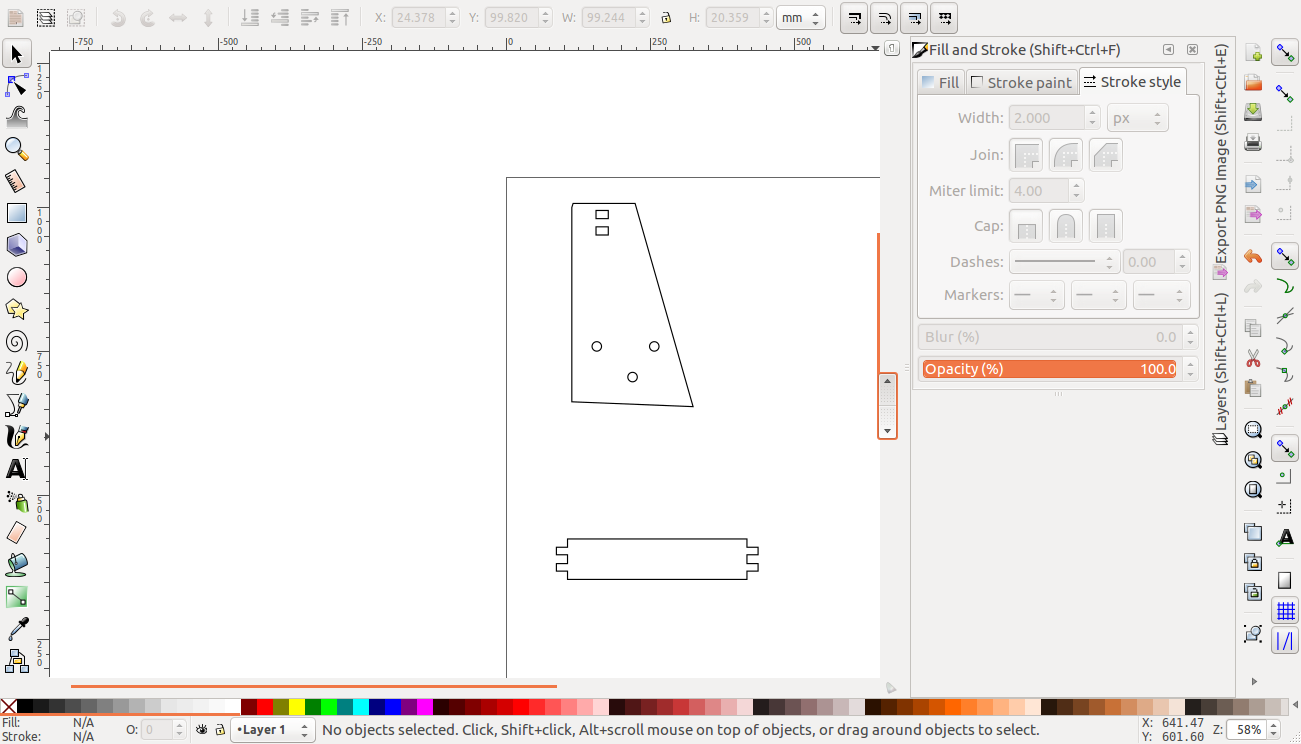

My role in the team was to design the gantry. below is a design i made on inkscape software.

Below is a video of the machine working manually

More information on the machine is found on the group page. Follow the link below
