13.- Input Devices

Apr 26

Assignments:
-measure something: add a sensor to a microcontroller board that you have designed and read it

- Choice
- Attempt
- Doubts
- Final

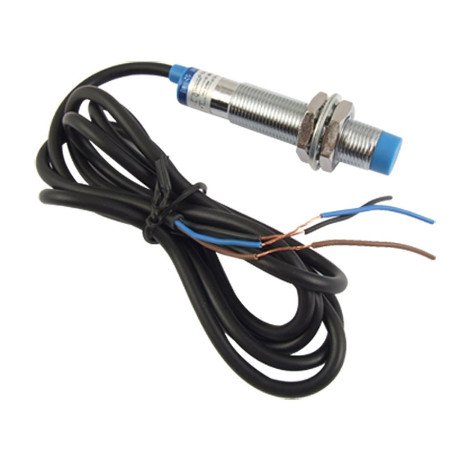

For the week of input devices hesitated between a 100k thermistor or Inductive Proximity Sensor because both are used in 3d printers.

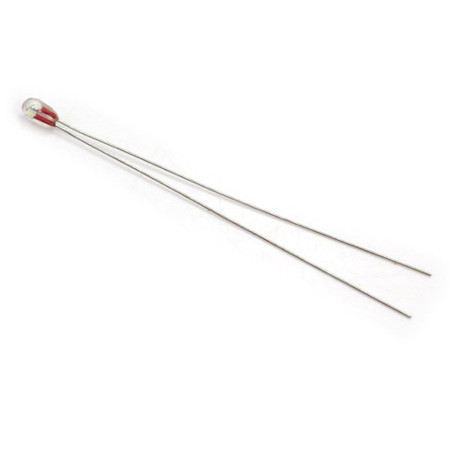

I have decided on the thermistor because I would like to implement it in a PID system.

datasheet thermistor 100k

I took as a reference Niel board. Changing the resistances that go to the imput pins from 10k to 100k

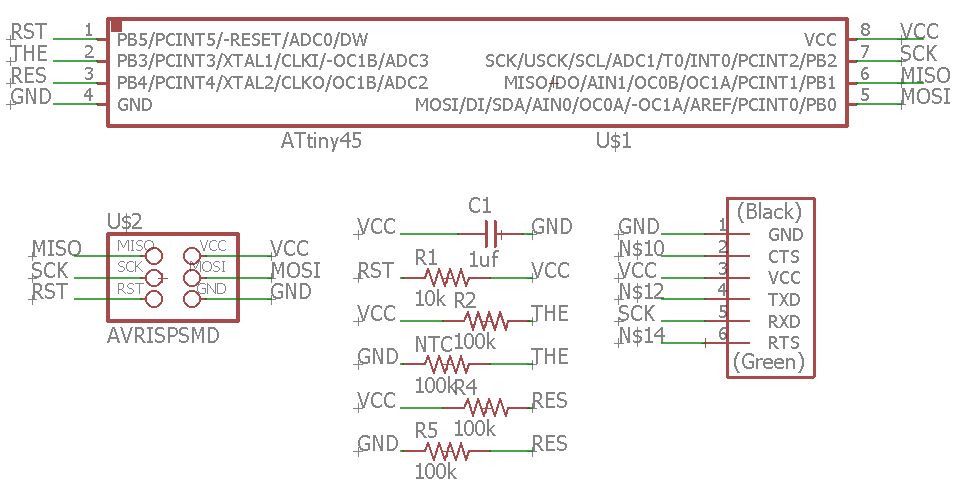

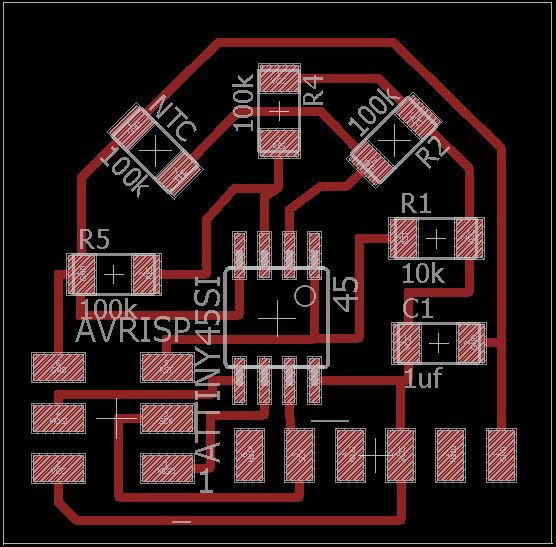

Here are my schematic and my board

Download the files of this section here : Eagle files

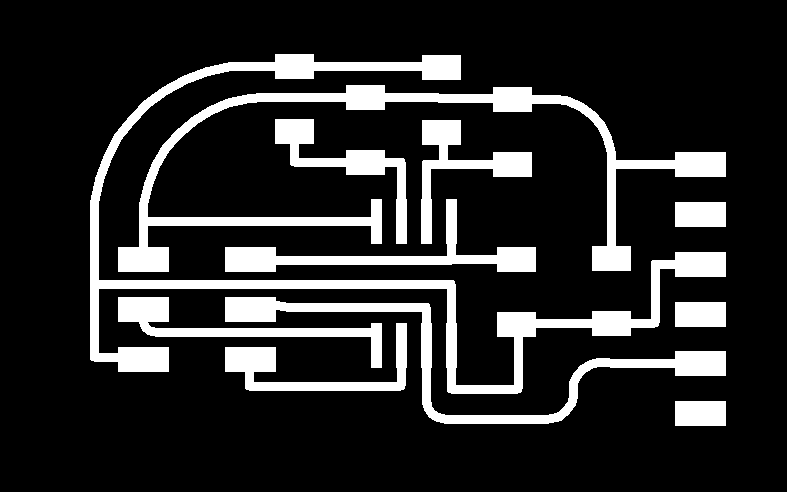

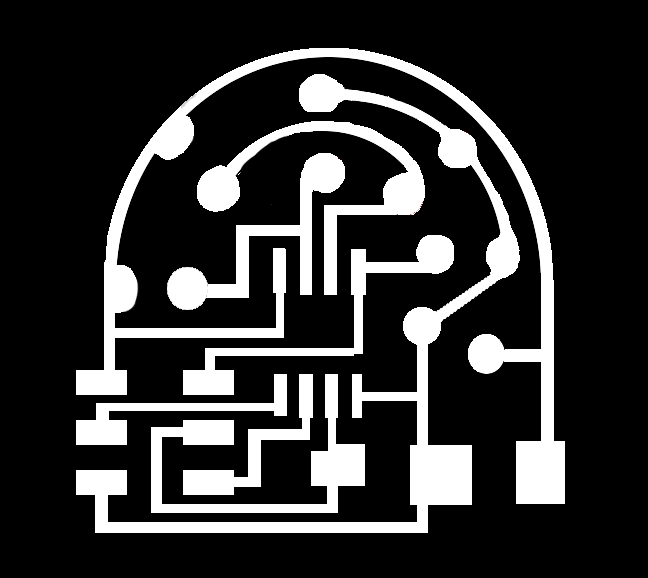

I modify the PNG with gimp

Download the files of this section here : Gimp files

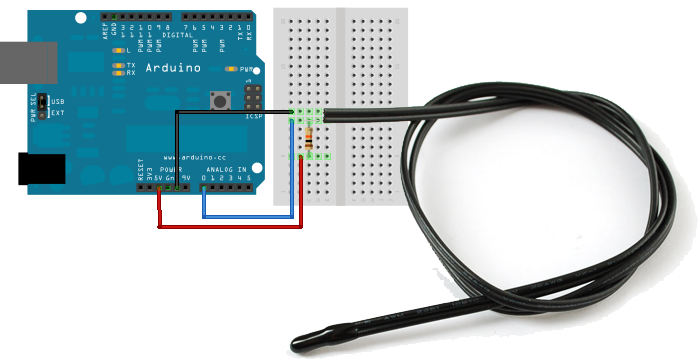

I was confused when in an adafruid tutorial they only used a single pin to measure the thermistor adafruid

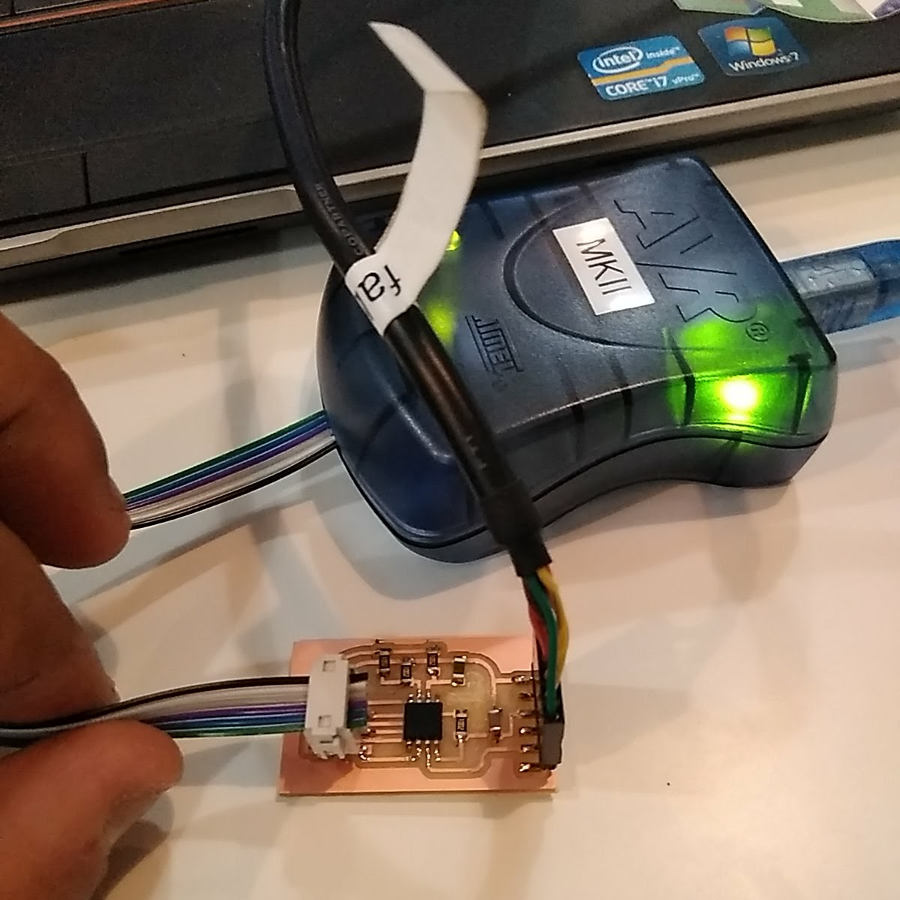

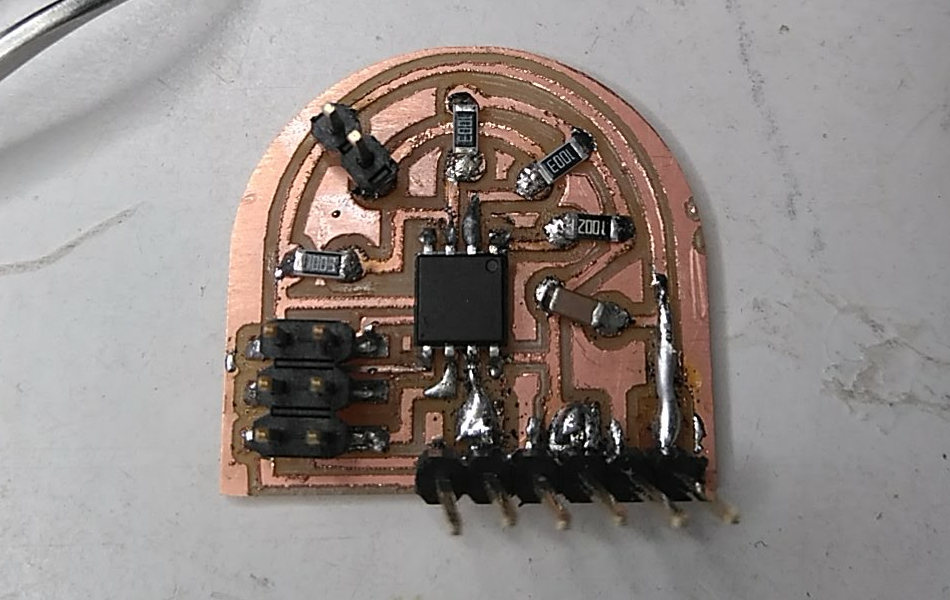

I try to program but it can not burn the bootloader. That's why I made another board simpler. And I managed to programm this

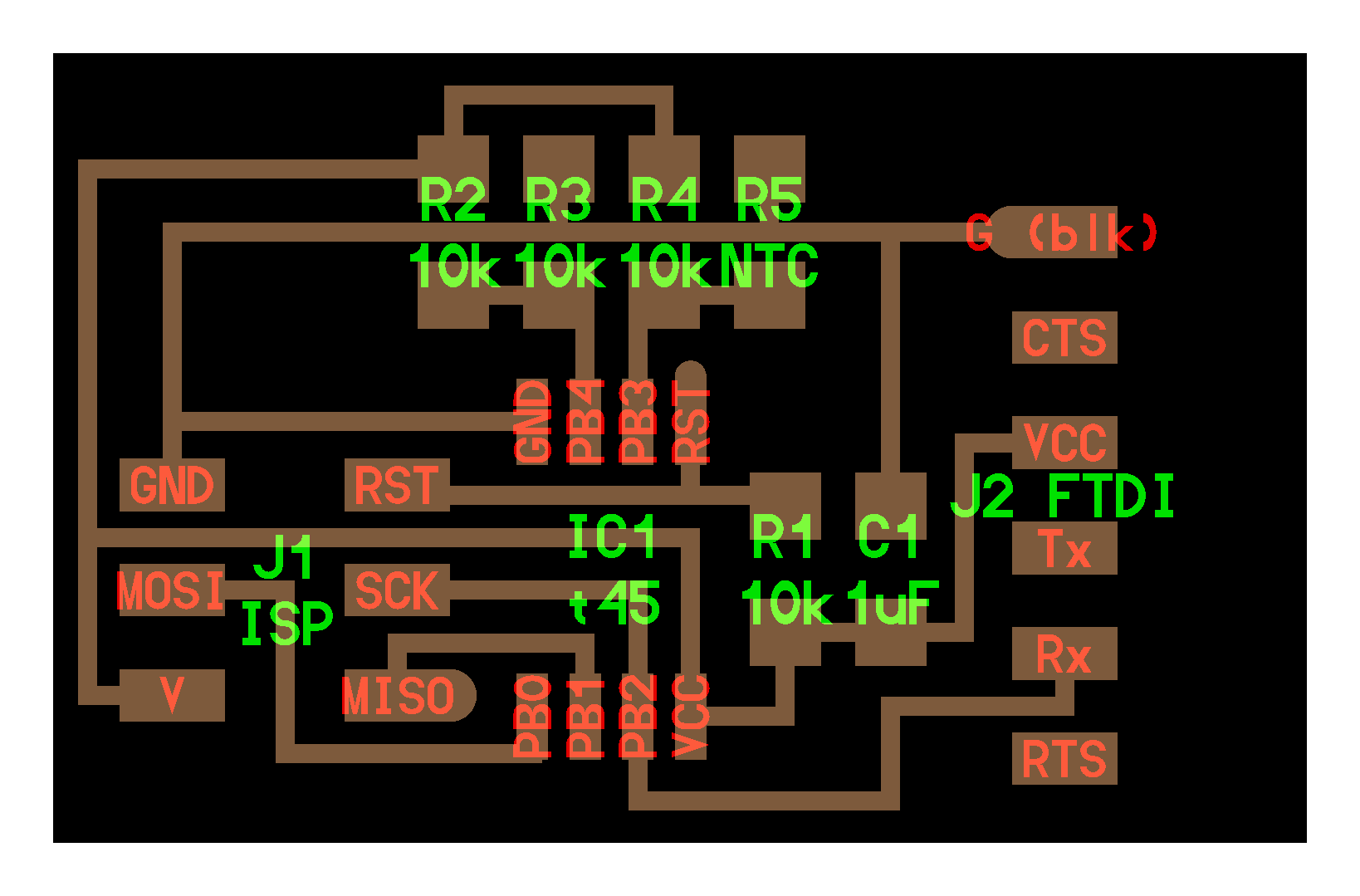

This week in my attempts failed and I decided to create a replicate of Neil's thermistor exercise. This last board is for 10k thermistor.
Also in my final project try again with better results.

Download the files of this section here : Temperature_sensore.ino
