Final

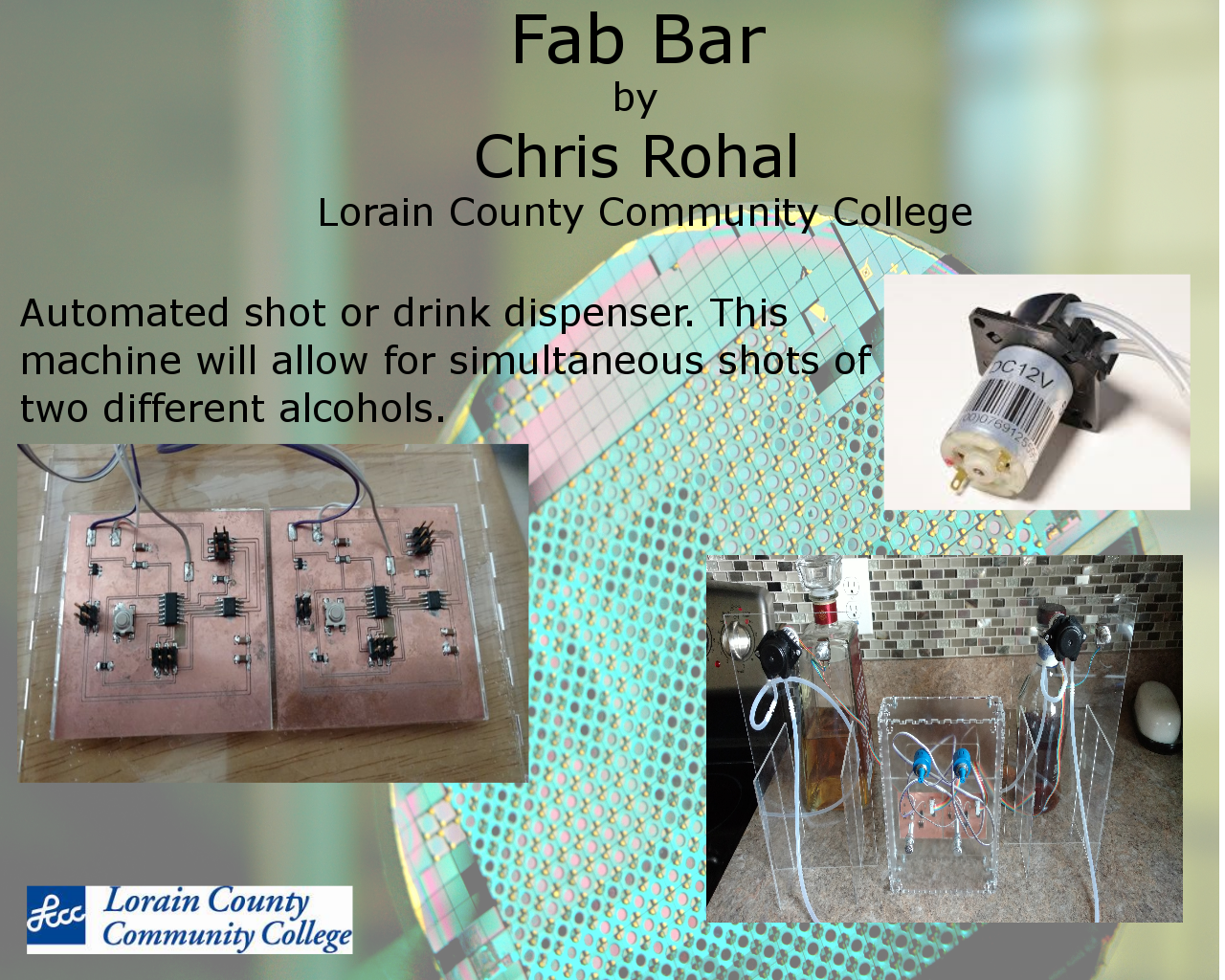

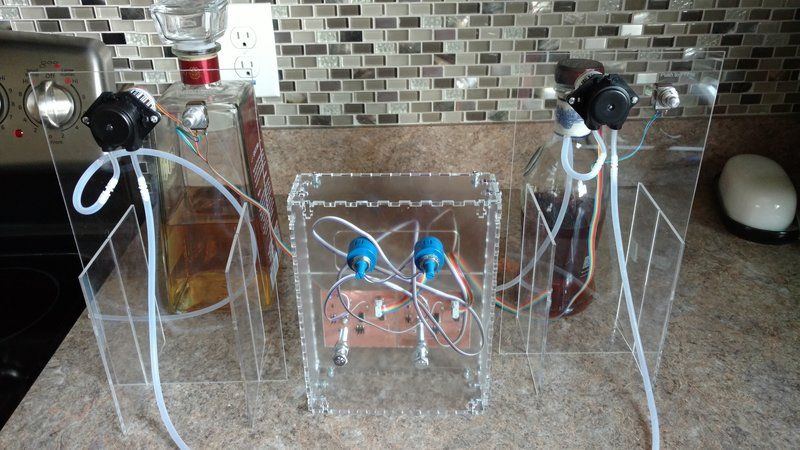

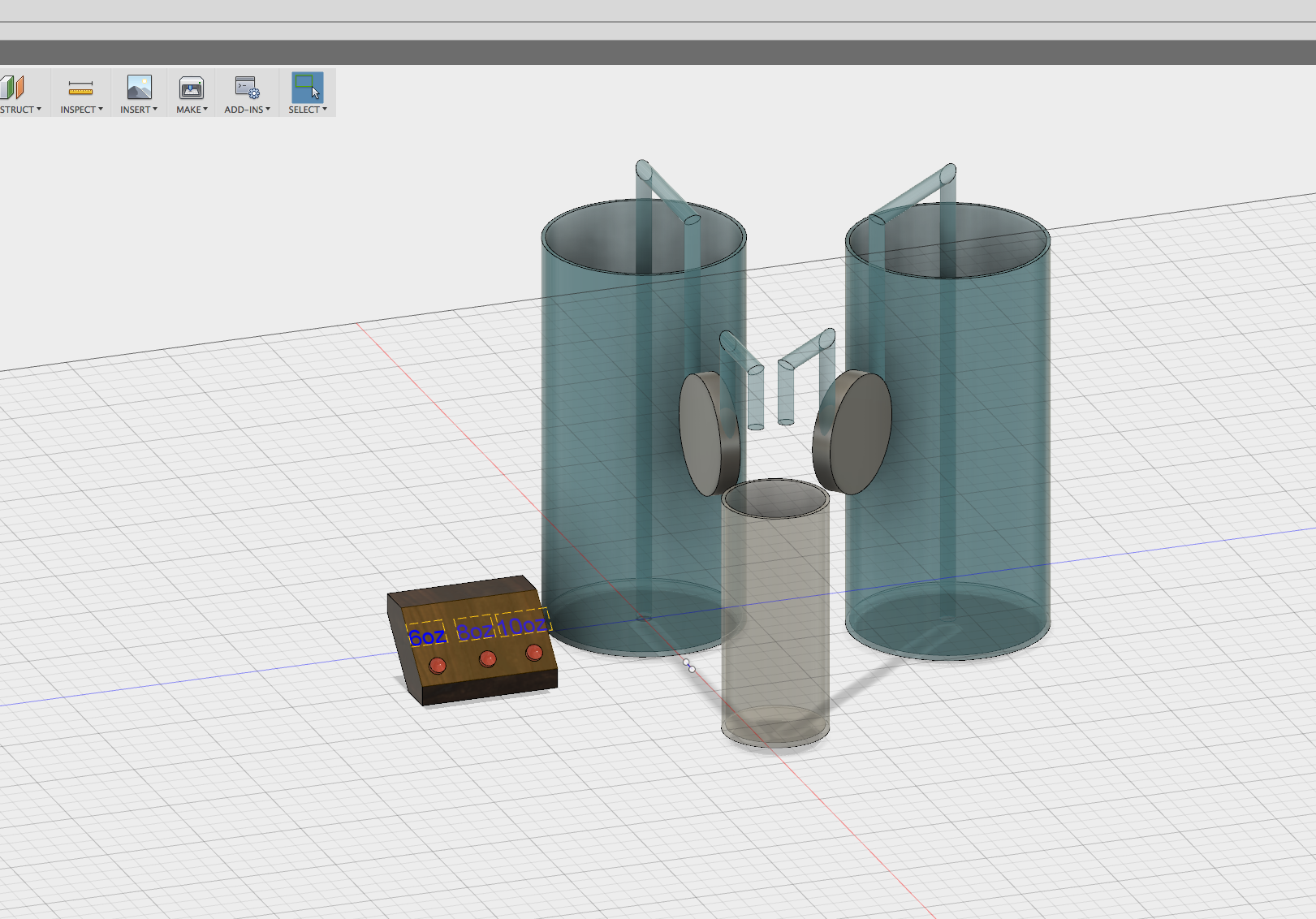

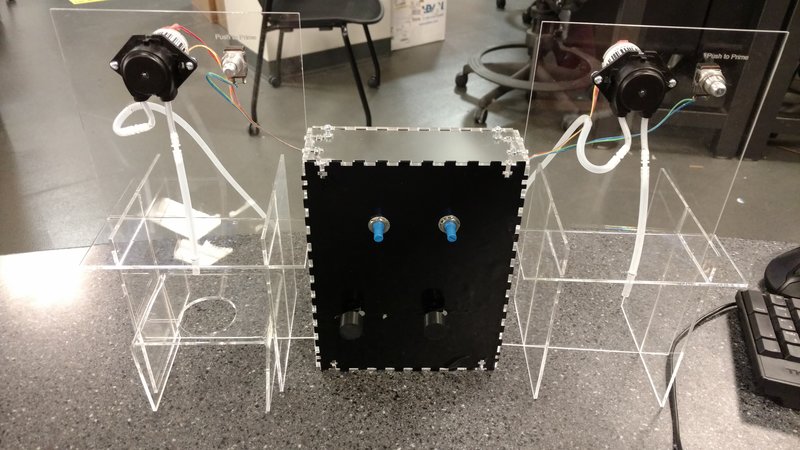

For my final project I wanted to create a drink dispensing machine. While doing research to see what has been done before I did find a lot of designs that varied in construction and how it worked. There is also some commercial products for bars and home use but have extremely high cost. For this design project the most important part of the system is the when to dispense the liquid. My ideal project is to create a drink dispensing system that is expandable and have the ability to have a menu based on what types of liquids are in the system. After a lot of research for the pump I choose to use a peristaltic pump to dispense the liquid because the liquid does not touch any of the moving parts and can keep items sterile.
Bill of Material
|
Part |
Qty |
Ref Number |
Cost
|
Total
|
|
|
Attiny 44 |
1 |
IC1 |
$ 1.60
|
$ 1.60
|
|
|
5V regulator |
1 |
IC2 |
$ 0.92
|
$ 0.92
|
|
|
a4953 H-Bridge Moter Driver |
1 |
U3 |
$ 1.85
|
$ 1.85
|
|
|
1206 SMD Resistor 10k Ohm |
2 |
R1,R2 |
$ 0.10
|
$ 0.20
|
|
|
1206 SMD Resistor 0 Ohm |
1 |
R3 |
$ 0.10
|
$ 0.10
|
|
|
1206 SMD Capacitor 1uF |
1 |
C1 |
$ 0.25
|
$ 0.25
|
|
|
1206 SMD Capacitor .1uF |
1 |
C3 |
$ 0.25
|
$ 0.25
|
|
|
1206 SMD Capacitor 10uF |
1 |
C2 |
$ 0.25
|
$ 0.25
|
|
|
SWITCH TACTILE SPST-NO 0.05A 24V |
1 |
S1 |
$ 1.24
|
$ 1.24
|
|
|
2x3 Header |
2 |
JP1,U1 |
$ 1.50
|
$ 3.00
|
|
|
2x2 Header |
1 |
U2 |
$ 1.50
|
$ 1.50
|
|
|
SWITCH PUSH SPST-NO 3A 125V |
1 |
|
$ 1.30
|
$ 1.30
|
|
|
POT 20K OHM 2W WIREWOUND LINEAR |
1 |
|
$ 15.00 |
$ 15.00 |
|
|
Adafruit peristaltic pump |
1 |
|
$ 25.00 |
$ 25.00 |
|
|
Power supply |
1 |
|
$ 18.00 |
$ 18.00 |
|
|
Flat Ribbon Cable Multiple 10
Conductors per foot |
5 |
|
$ 0.31
|
$ 1.55
|
|
|
2x3 female header cable connector |
2 |
|
$ 1.25
|
$ 2.50
|
|
|
2x2 female header cable connector |
2 |
|
$ 1.25
|
$ 2.50
|
|
|
Acrylic sheet |
1 |
|
$ 3.00
|
$ 3.00
|
|
|
4-40 bolts and nuts |
30 |
|
$ 0.20
|
$ 6.00
|
|
|
$ 86.01 |
Total Per Bottle |
||||
|
times 2 for both boards |
|||||
|
$
172.02 |
Total project Cost |
For the Output
week i made a H-Bridge board
The main page were my work was done is in project development page
