Exercise 18 - Applications & implications(Project Notes)

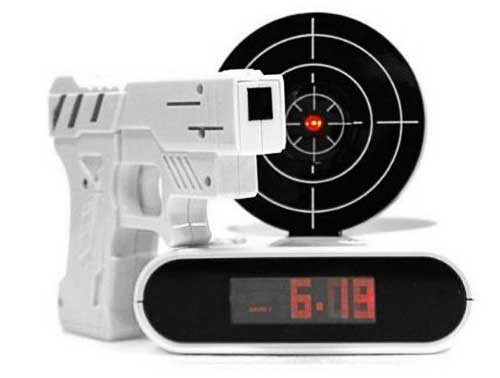

This project is inspired by this alarm gun.
1. What will it do?
My project is about a target and laser gun. When the shooter accurately aims and fire at the target, the target will fall.Who's done what beforehand?
- Some of the project uses photo resistors as sensors and some using ir receivers.- Some articles on this are available in Instructables
- http://www.instructables.com/id/DIY-Laser-tag-system-from-simple-to-complex/ This project is inspired by the laser gun alarm.
- http://www.instructables.com/id/Laser-Shooting-Game/
What materials & components will be required?
| No | Qty | Material/component | Cost | Made/Bought | Processed used |
|---|---|---|---|---|---|
| 1 | 1 | Servo Motor | 2 | Bought | |
| 2 | 1 | Target | 1 | Made | 3d print |
| 3 | 1 | Chasis | 10 | Made | Laser cut |
| 4 | 1 | Gun | 10 | Made | Laser cut |
| 5 | 1 | Phototransistor & buzzer | 2 | Bought | Soldering |
| 6 | 1 | DC power supply & battery | 7 | Bought | Soldering |
| 7 | 1 | Trigger circuit | 4 | Made | PCB milling |
| 8 | 1 | Receiver circuit & microprocessor | 4 | Made | PCB milling |
| 9 | 1 | laser pointer 5mW | 3 | Bought | Soldering |
| 10 | 2 | toggle switch | 1 | Bought | Soldering |
| 11 | 1 | mono jack & socket | 2 | Bought | Soldering |
| 12 | 3 | 3mm plywood 200mmx300mm | 18 | Bought | Laser cut |
| Estimated cost | S$57 |
What tasks needs to be completed?
- Understanding and testing of Phototransistor
- Servo motor control
- Design and construct microcontroller boards
- 3D design of target board and mounting for servo
- 2D design of chasis of house microcontroller
What questions need to be answered ?
- What is the codes to trigger the target?- How much power is needed to operate this project?
- Will the chasis topple when the servo moves?
What is the schedule ?
- 29 May - test circuit on Arduino- 30 May - Design target board with Inventor
- 31 May - Design microcontroller board
- 1 June to 14 June - Fabricate PCB, laser cut and 3d print
- 15 June to 21 June - troubleshoot, testing, document
- 22 June - Presentation
How will it be evaluated?
- Success trigger of servo when user shoot at the middle of the target.
References
