Quick Making with Large and Light materials
Model
Initially I wanted to make ergonomically designed' back part of the chair'. but I ended up modeling

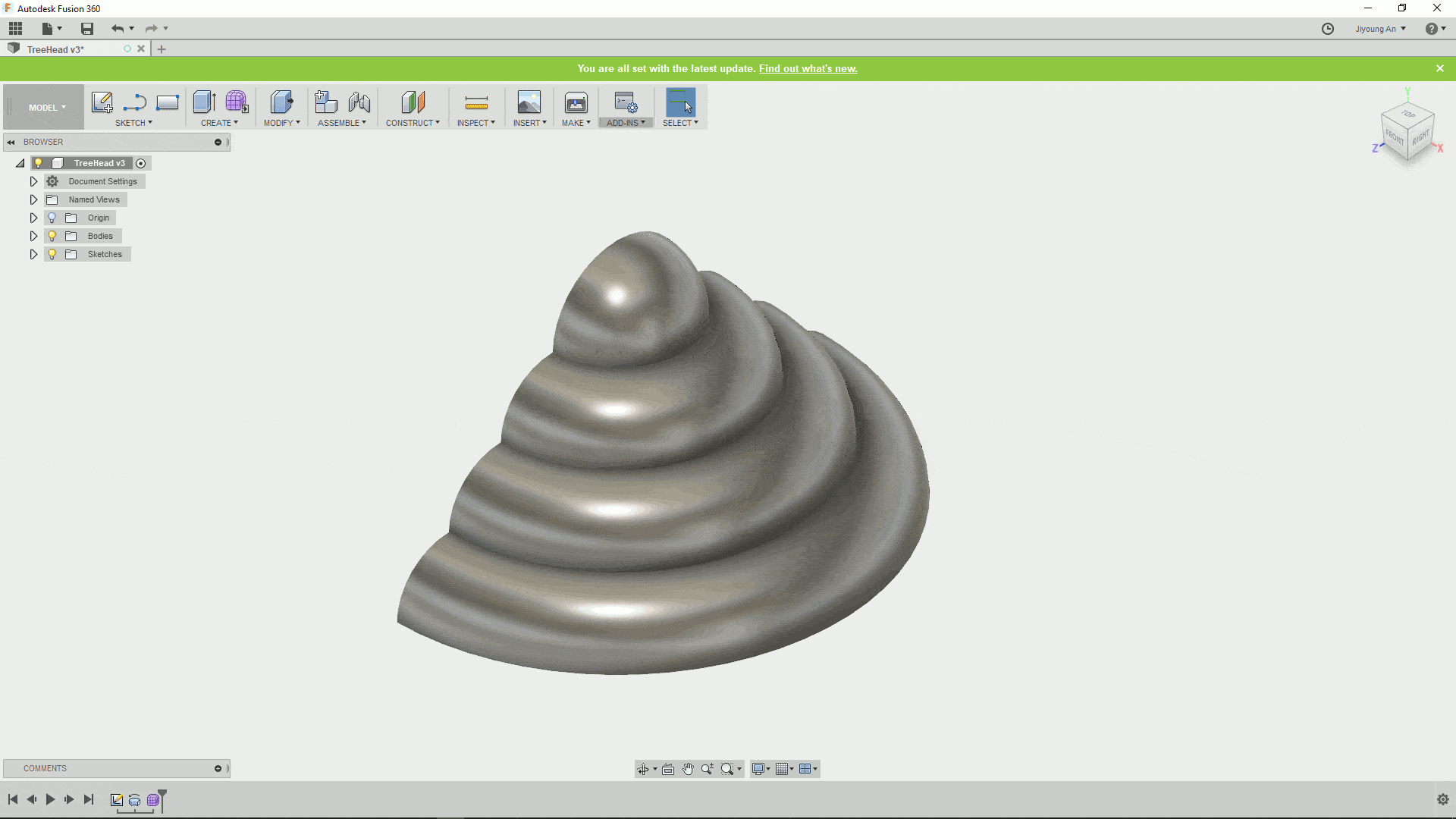

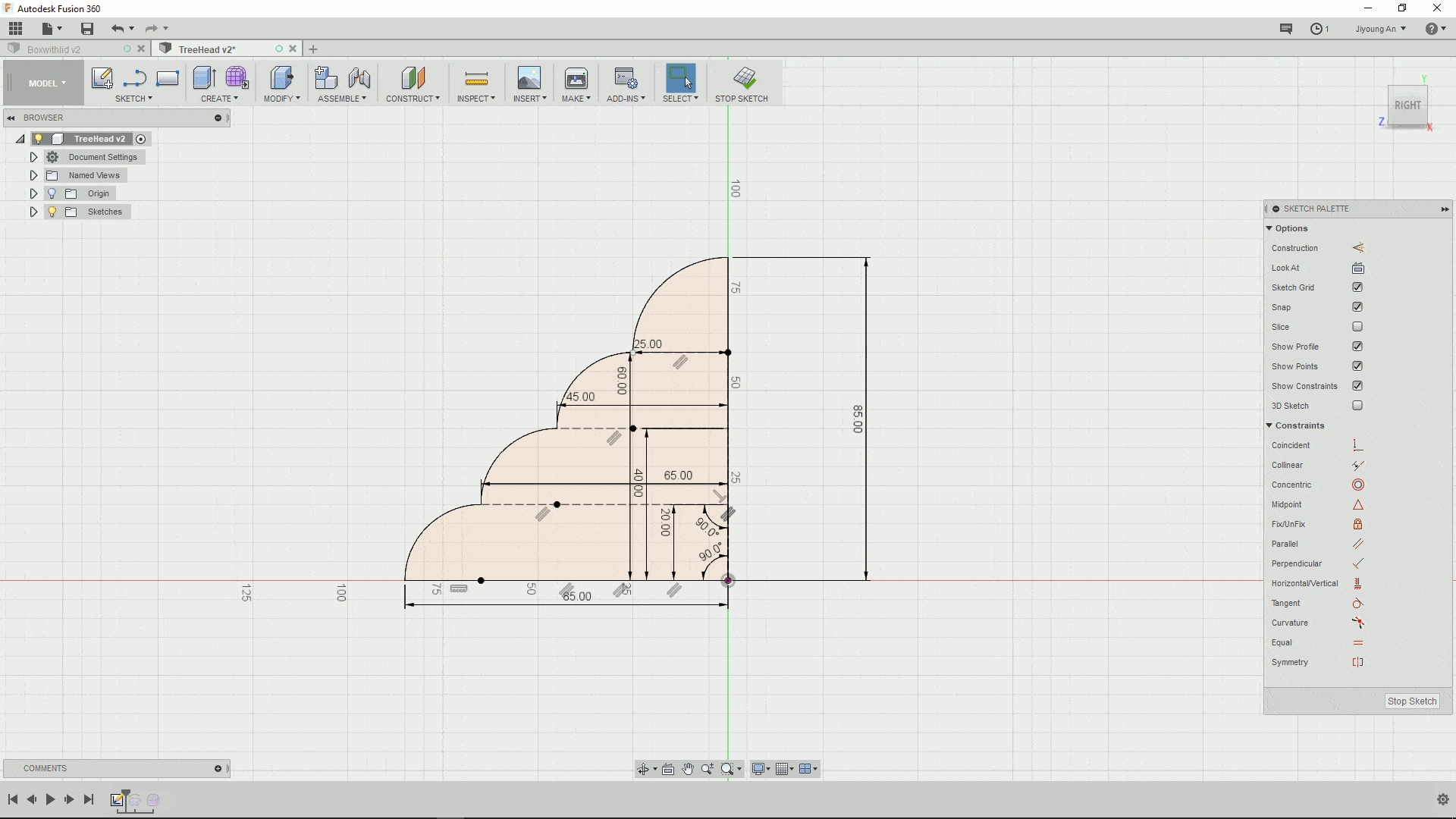

white-cubed container, and shape of a tree head for a second try.
I tried out this session with 2 different combinations of model and fabrics:

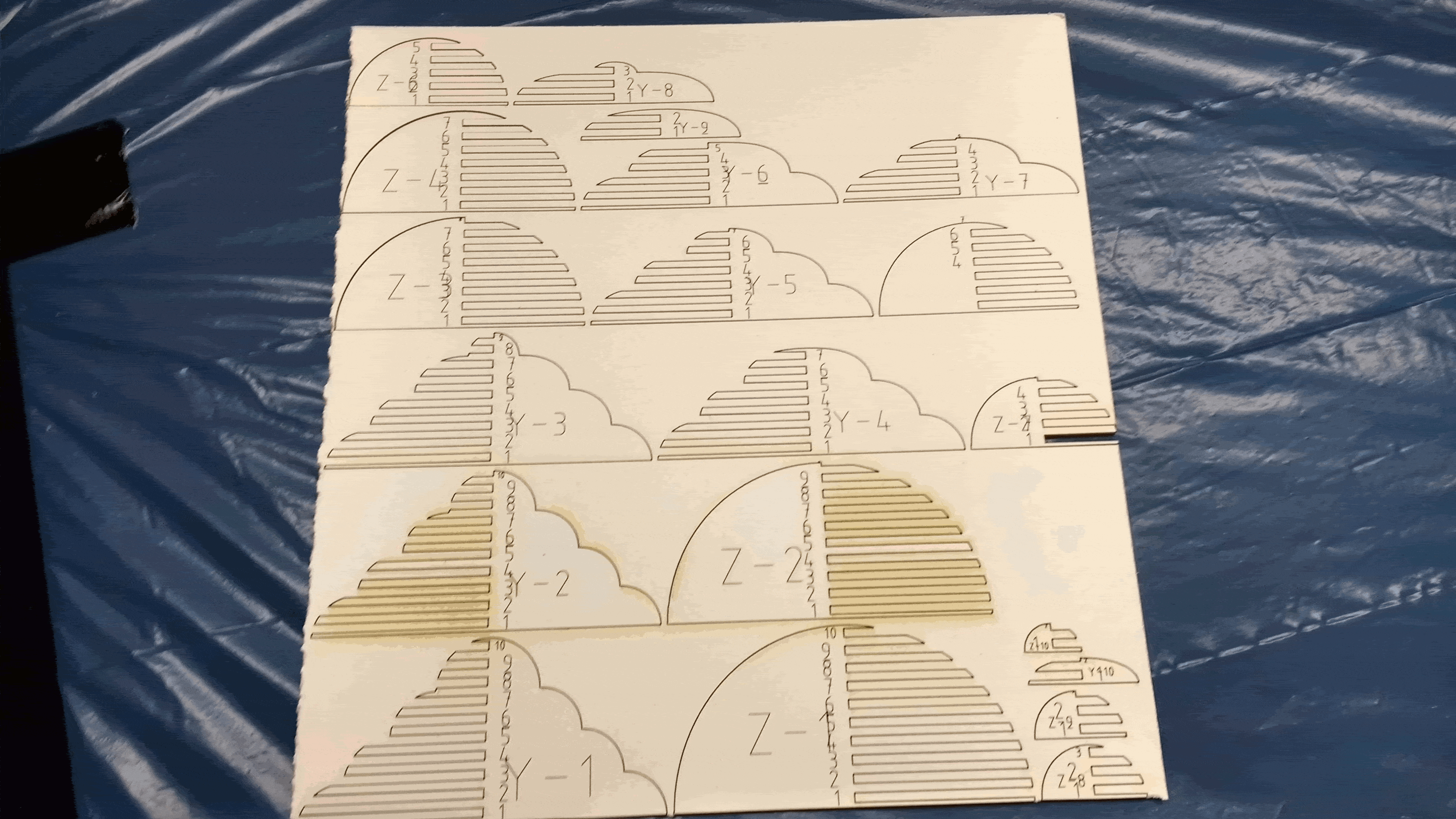

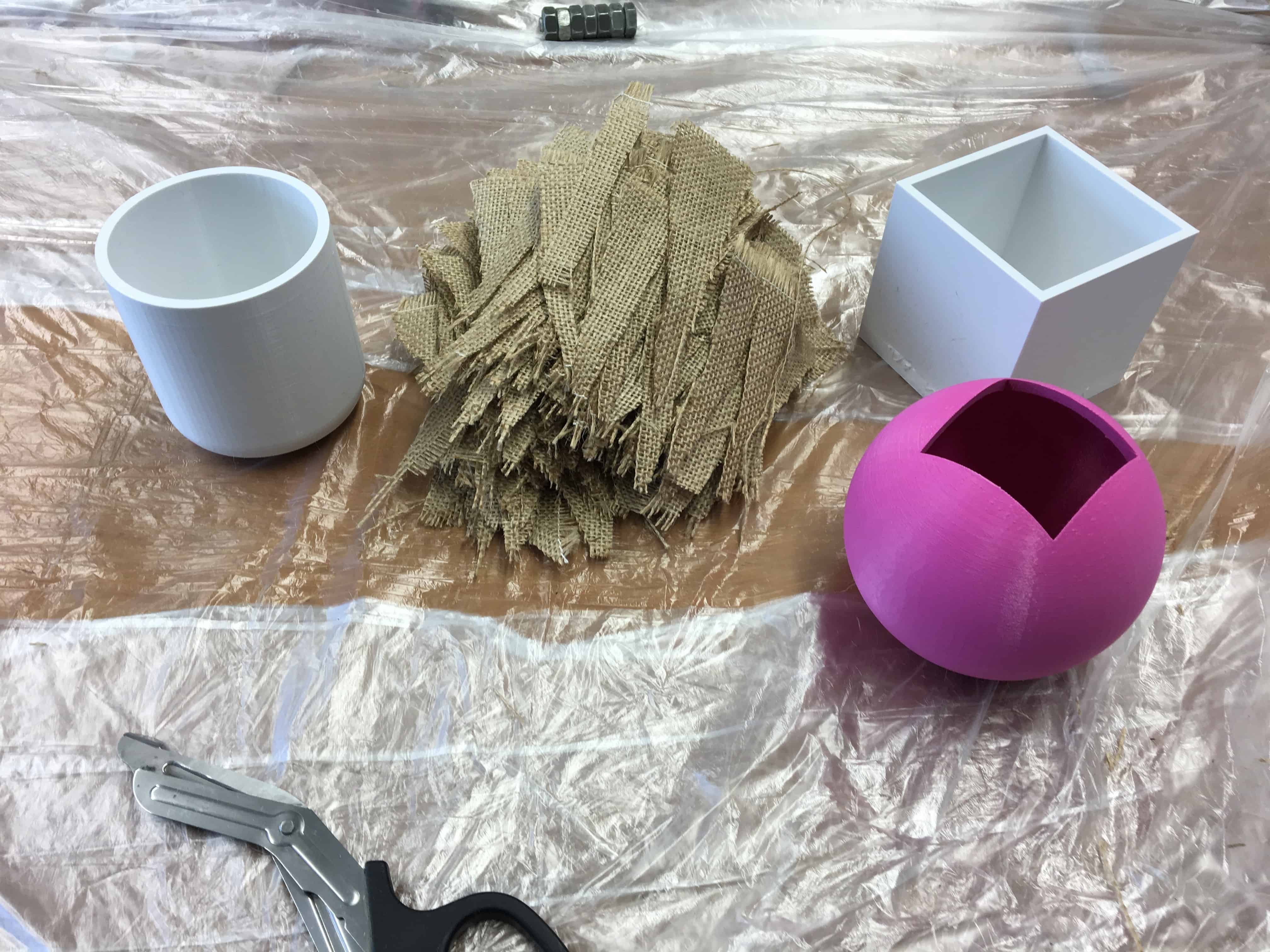

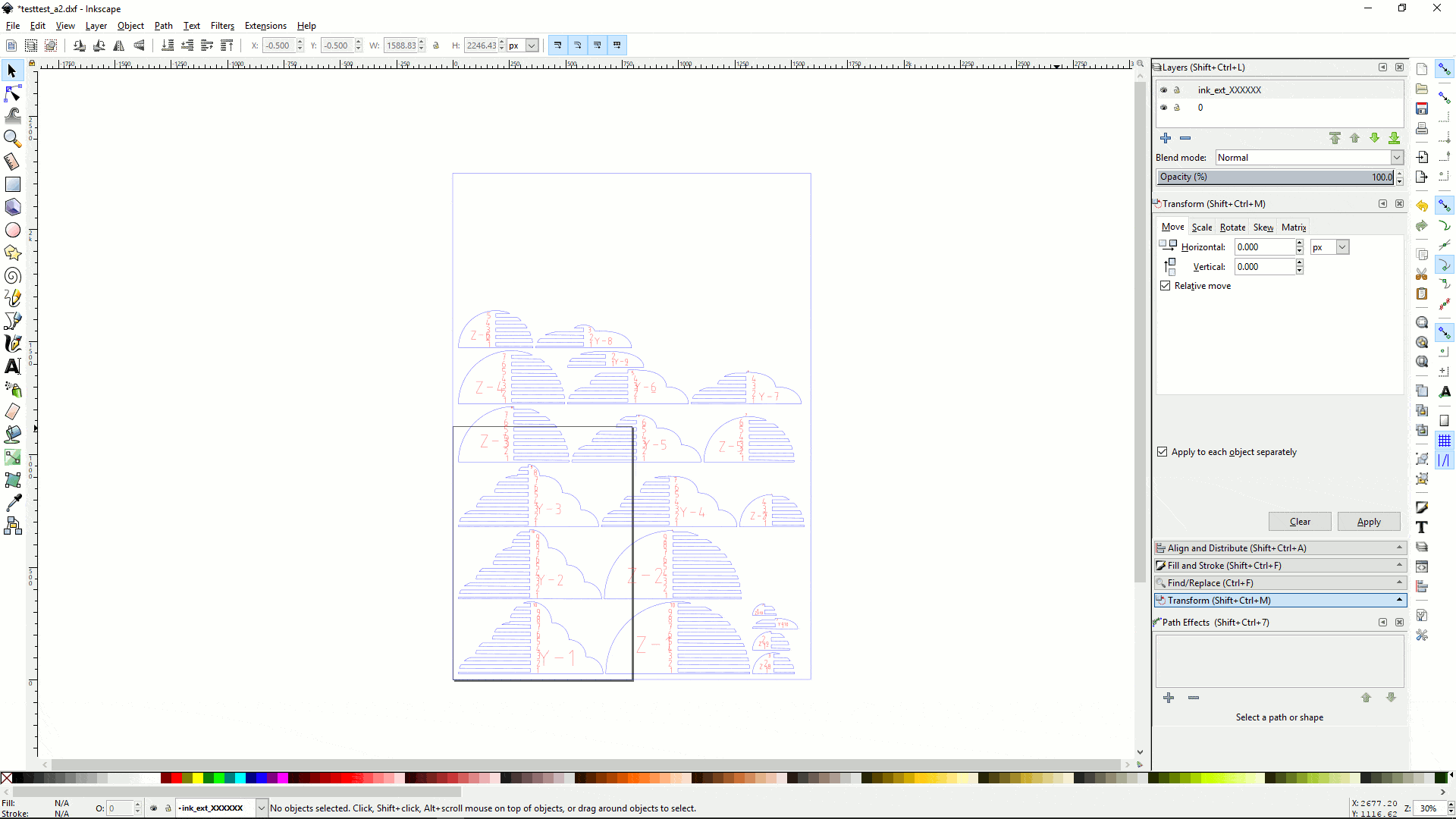

First I started with 3D printed model with jute fabrics, and later I did interlocked model cut and

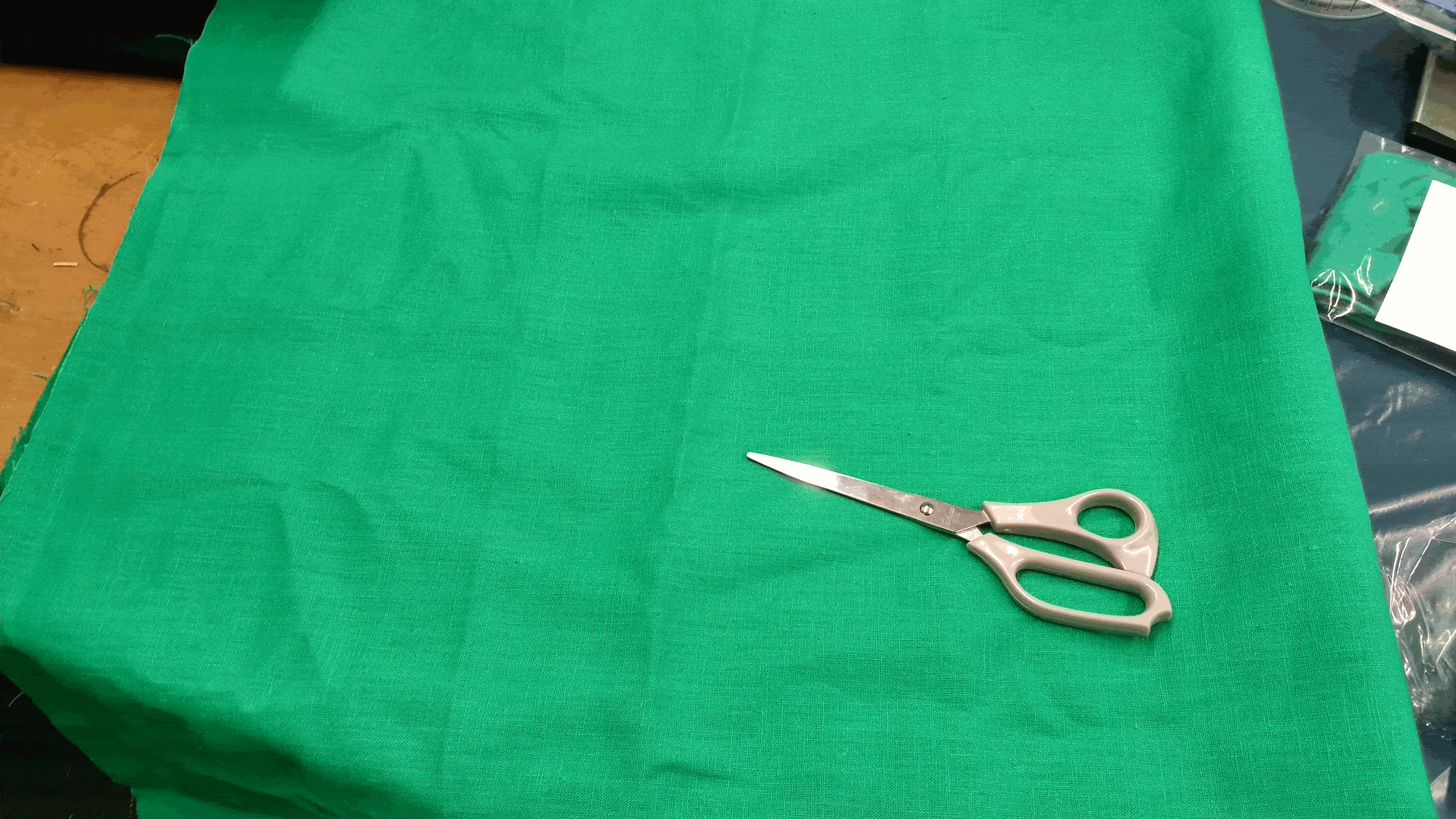

built out of 3mm of cardboard with linen.
Materials that I work with & Safety Issues

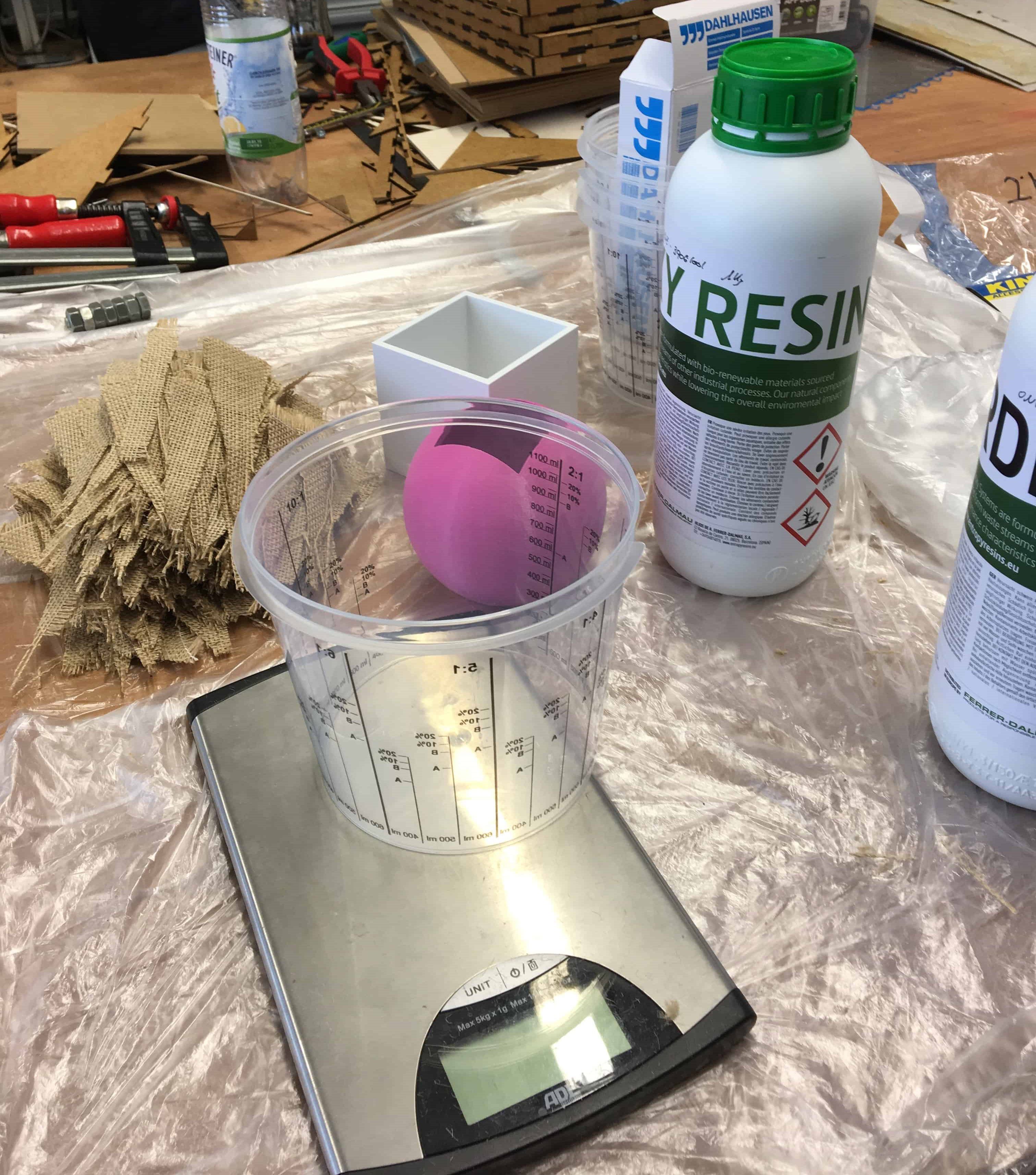

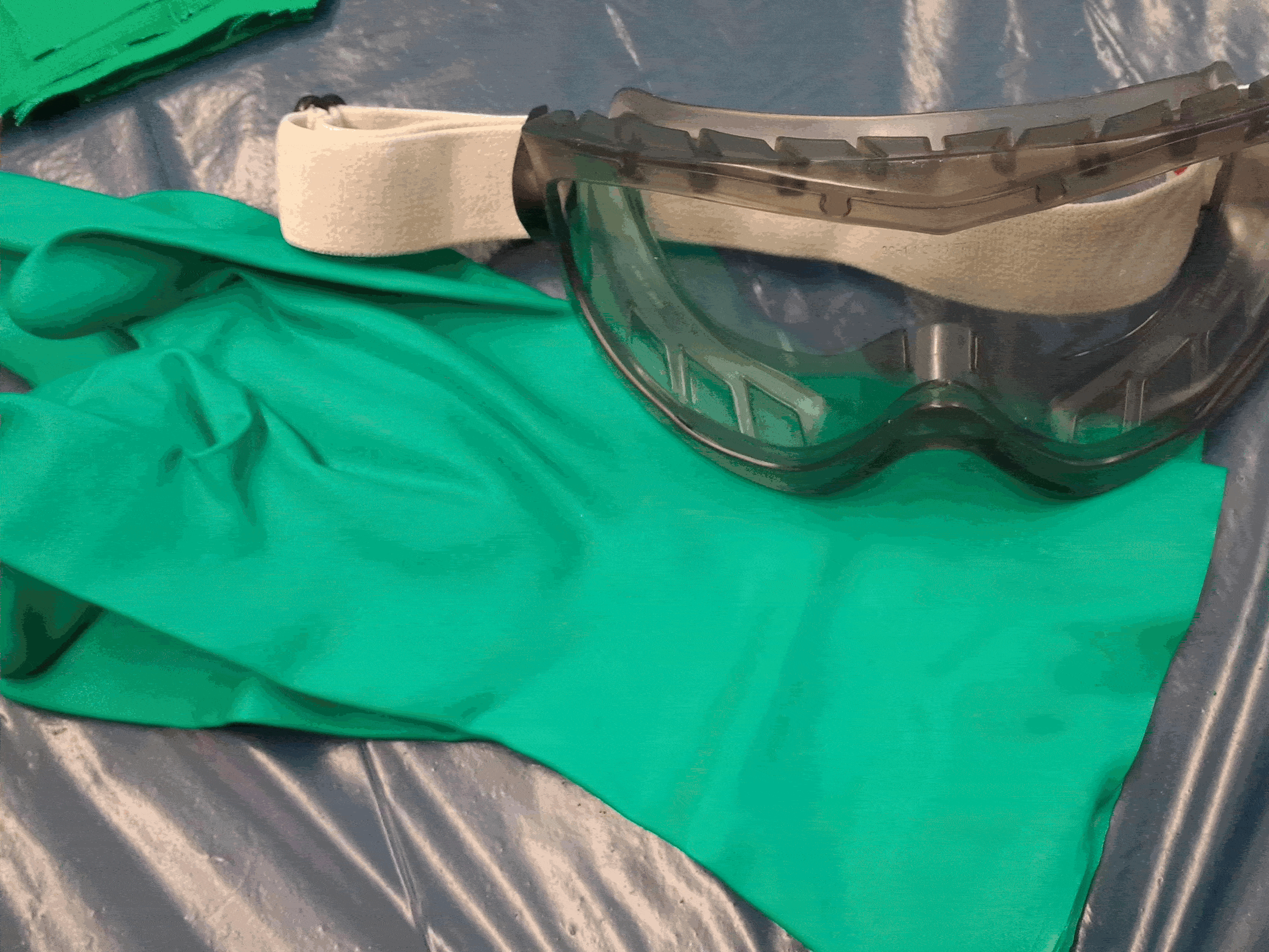

I got several warnings regarding the safety issue when working with Resin and Hardener . I wore glasses
and filtered mask Respirator,
Filters for organic gases) and Gloves
in order to avoid possible irritation.
For detailed datasheet for Resin and Hardner you can find here:
Technical Data Sheet of the
Resin + Hardener
Safety Data Sheet of the the
Resin, and
Safety Data Sheet of the the
Hardener.
Procedure
Below are results from the assignment.

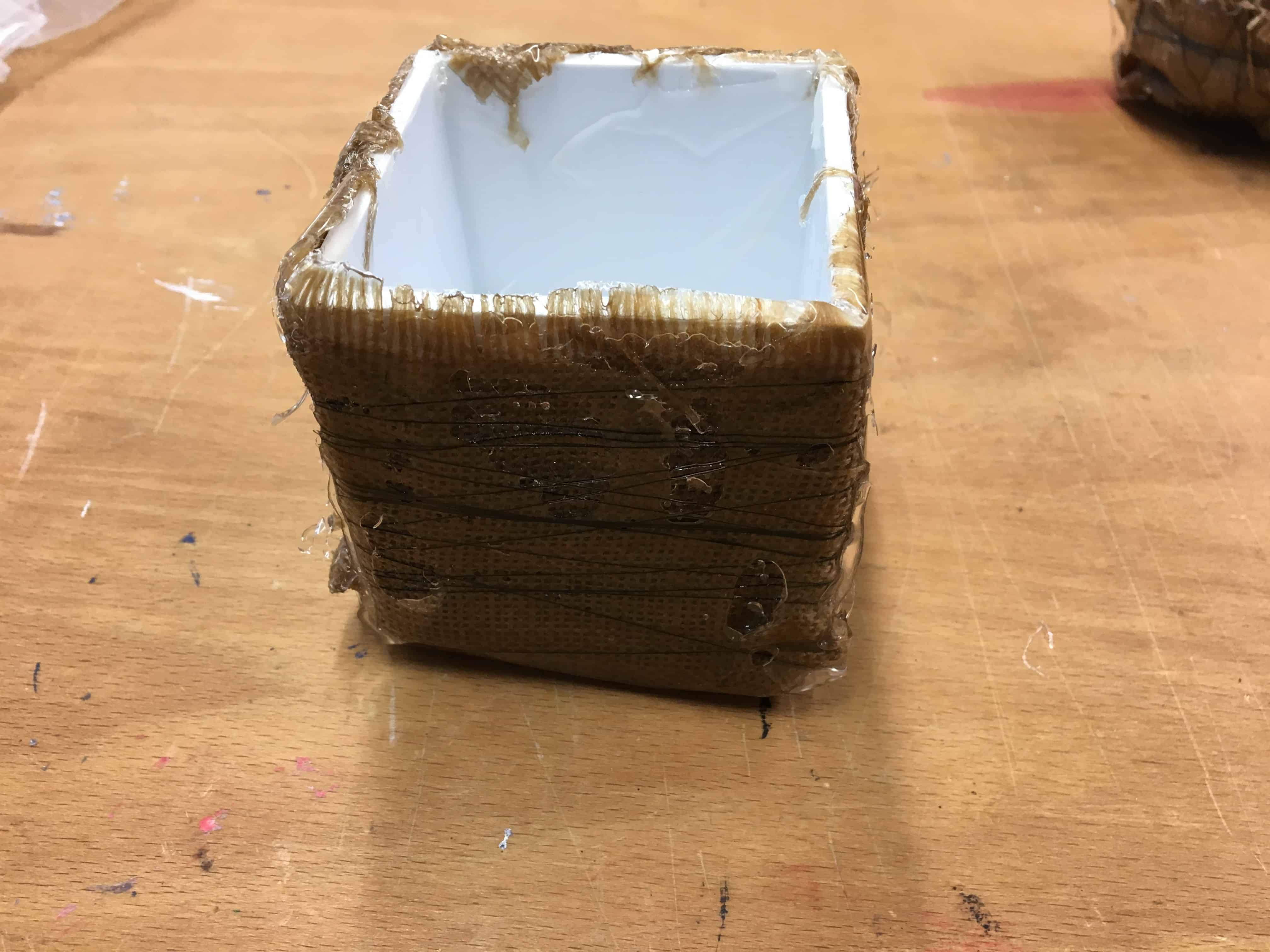

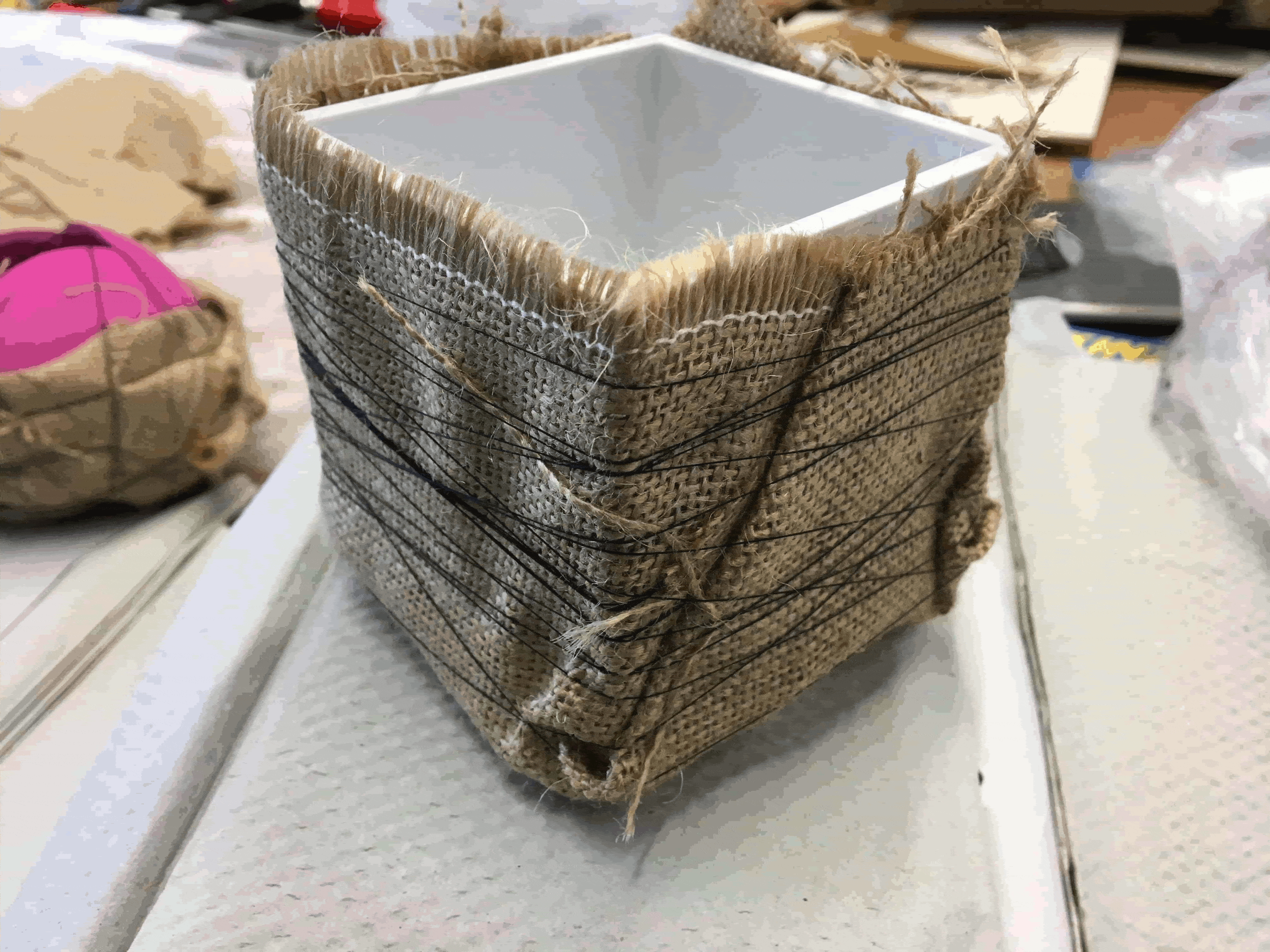

Although the material is always hard and light the material was not shaped good enough like the used model. The vacuum bag did suck away the resin which was too much but it did not press the material correctly onto the shape.In the future I would use more simple models or make them bigger.
