1. Group project: test the design rules for our 3D printer
2. project development
3. My contribution to the group
4. Selft evaluation
5. File download

1. Autocad
2. Rhinoceros
3. vernier
4. cardboard
5. Raspberry pi 2
6. 7" touch screen
7. Gestalt Kit

For this group assignment is necessary design the machine and operate it manually

1. Design a four axis CNC milling machine

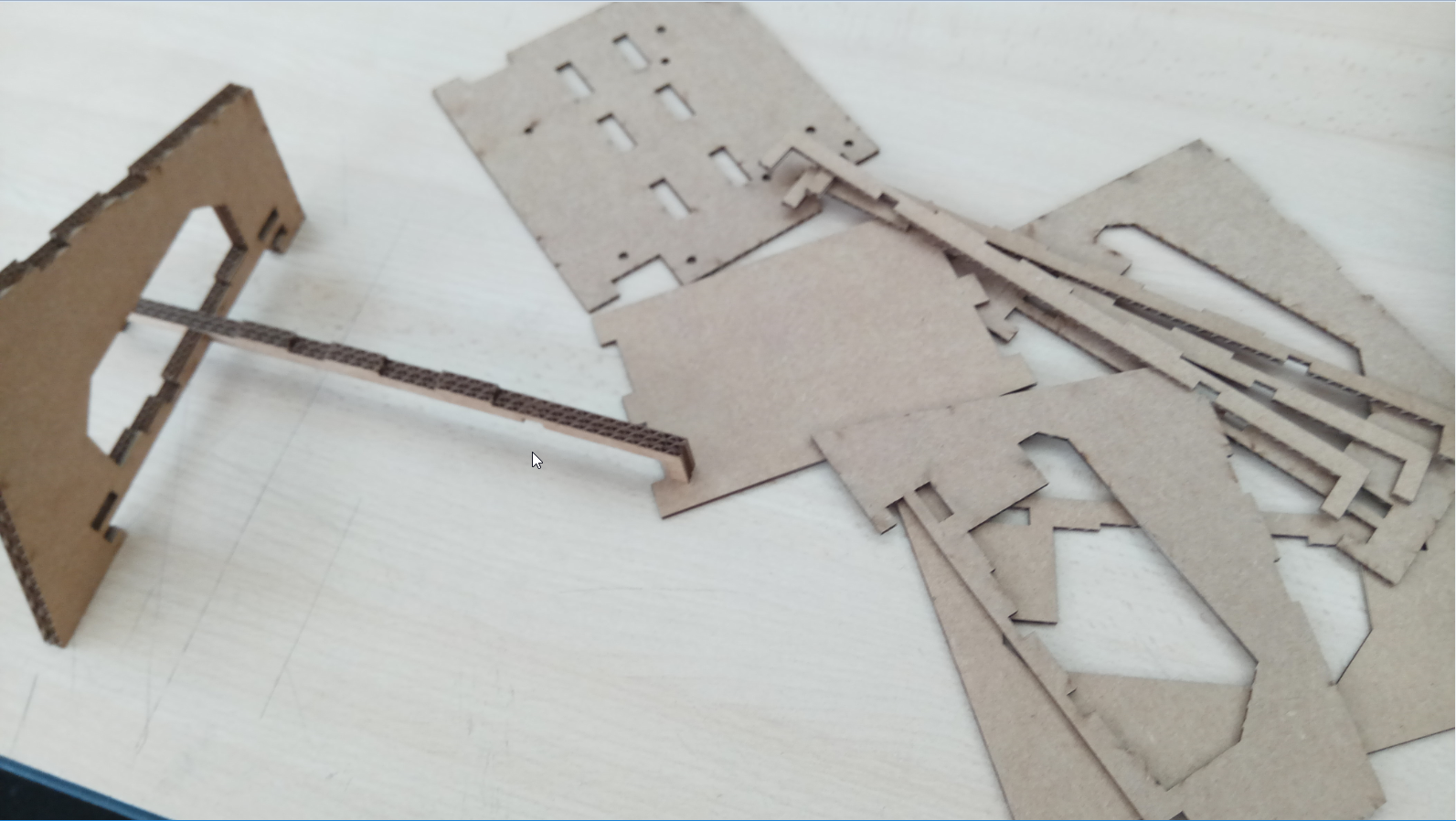

2. Implement our machine in cardboard

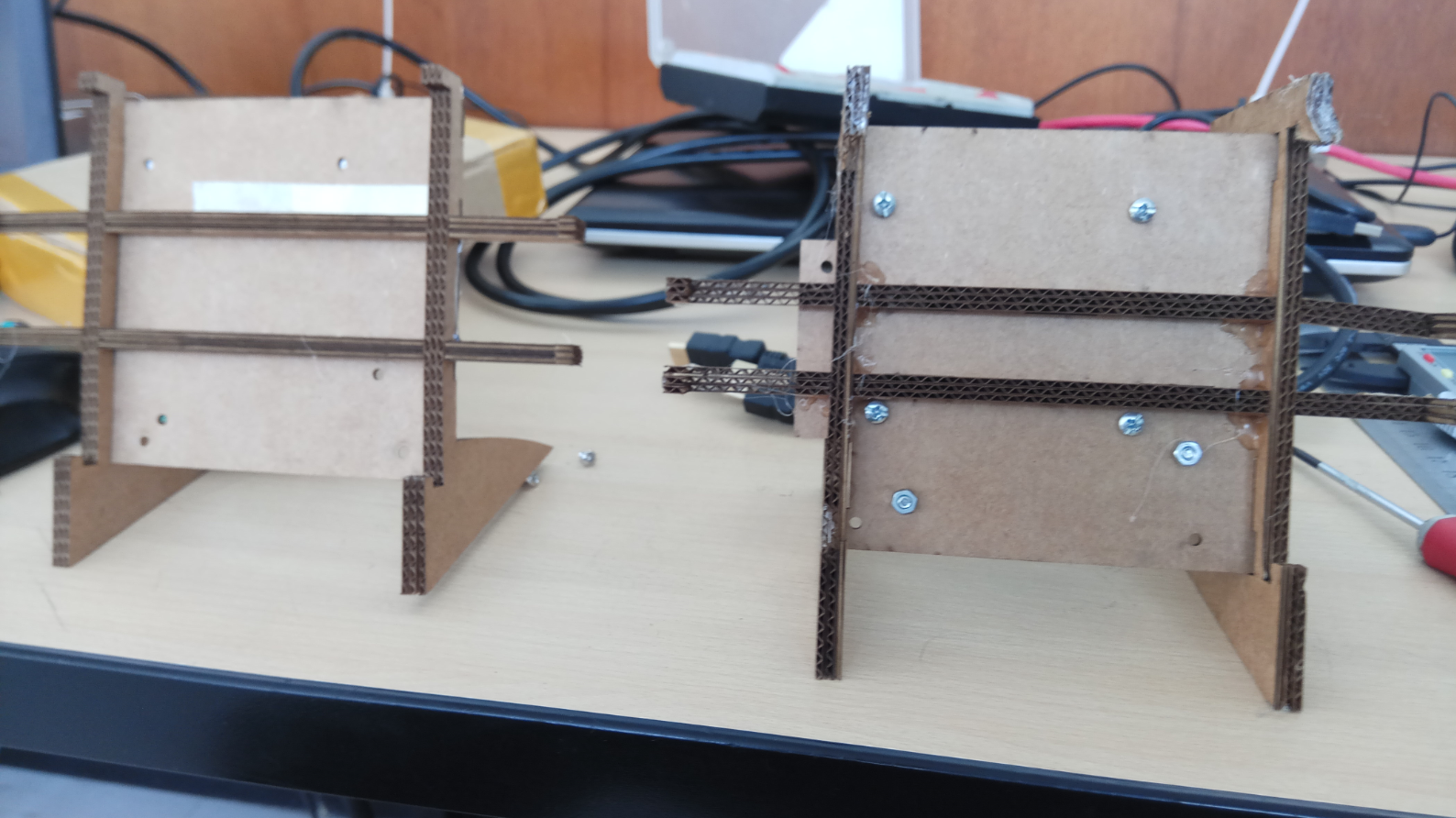

3. Assembling and try the prototype

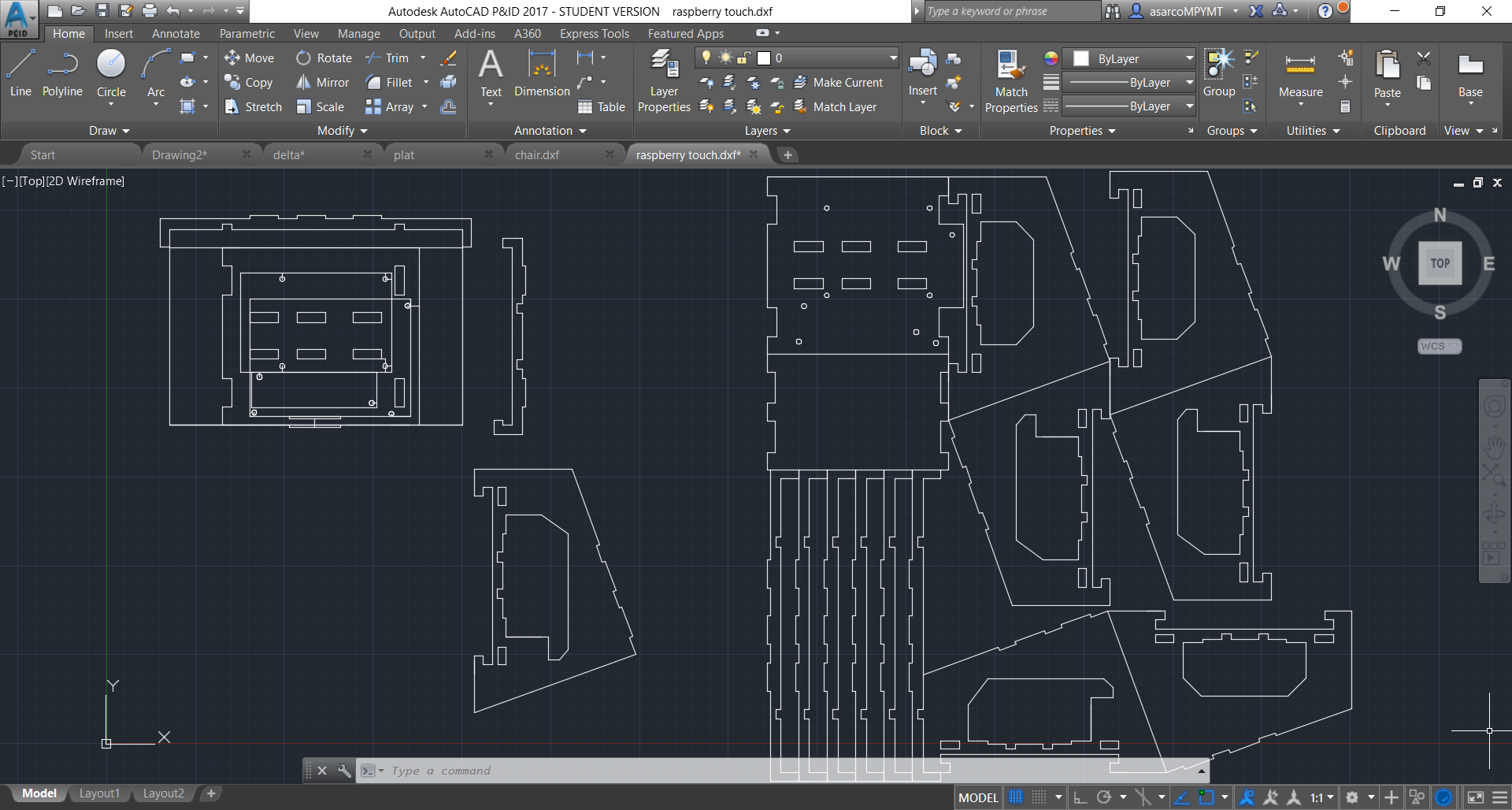

4. Design and implement a base for the touch screen and Raspberry pi

1. Armando Sarco
2. David Maita
3. Midori Nuñez
4. John Lozano
5. Diego Cerrón
6. Monica Copaja

For this assignment we did an amazing work group

You can check the development of our machine in our group page

For this group assignment, I designed and implemented the hardware for our GUI over raspberry pi.

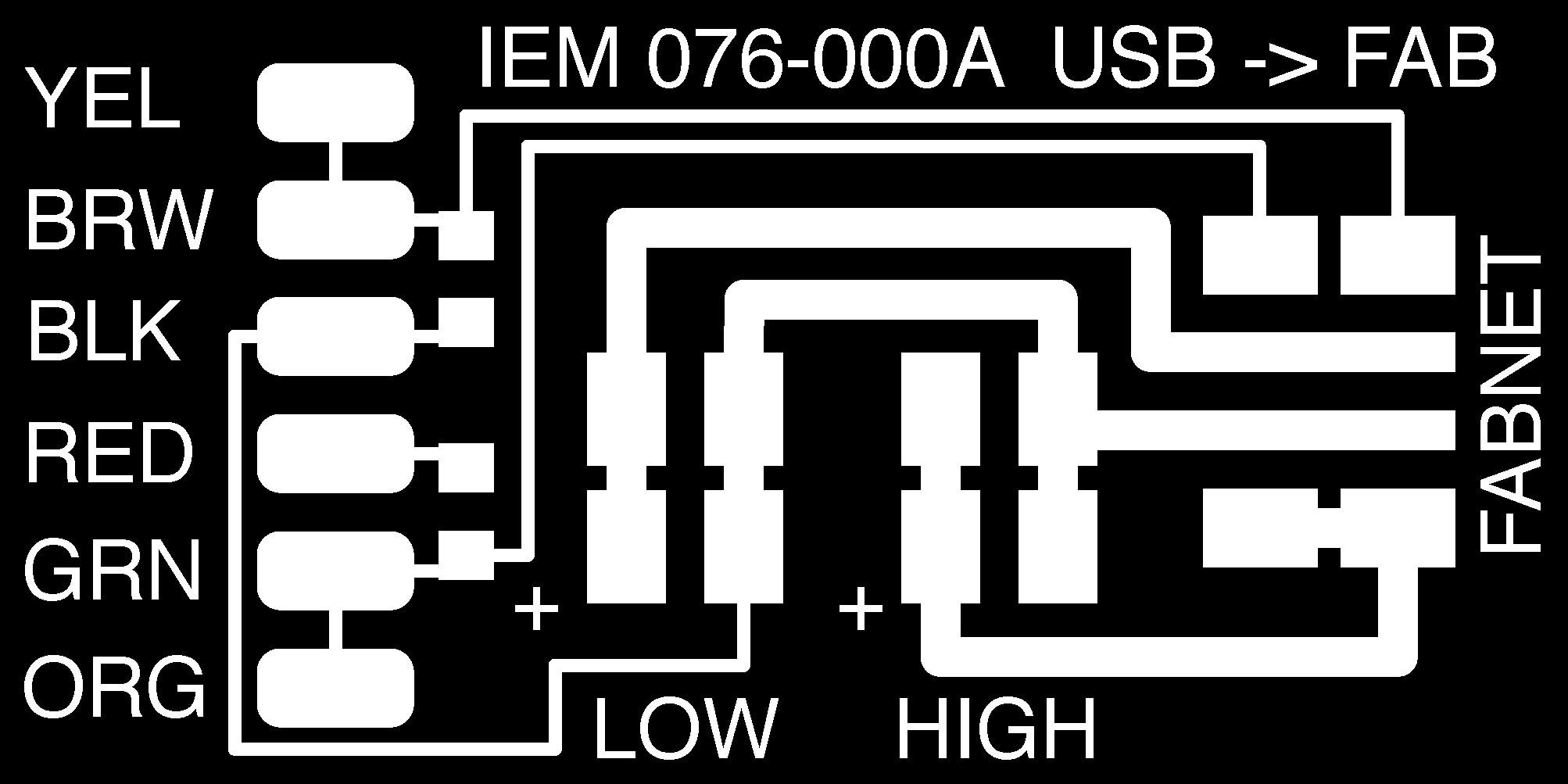

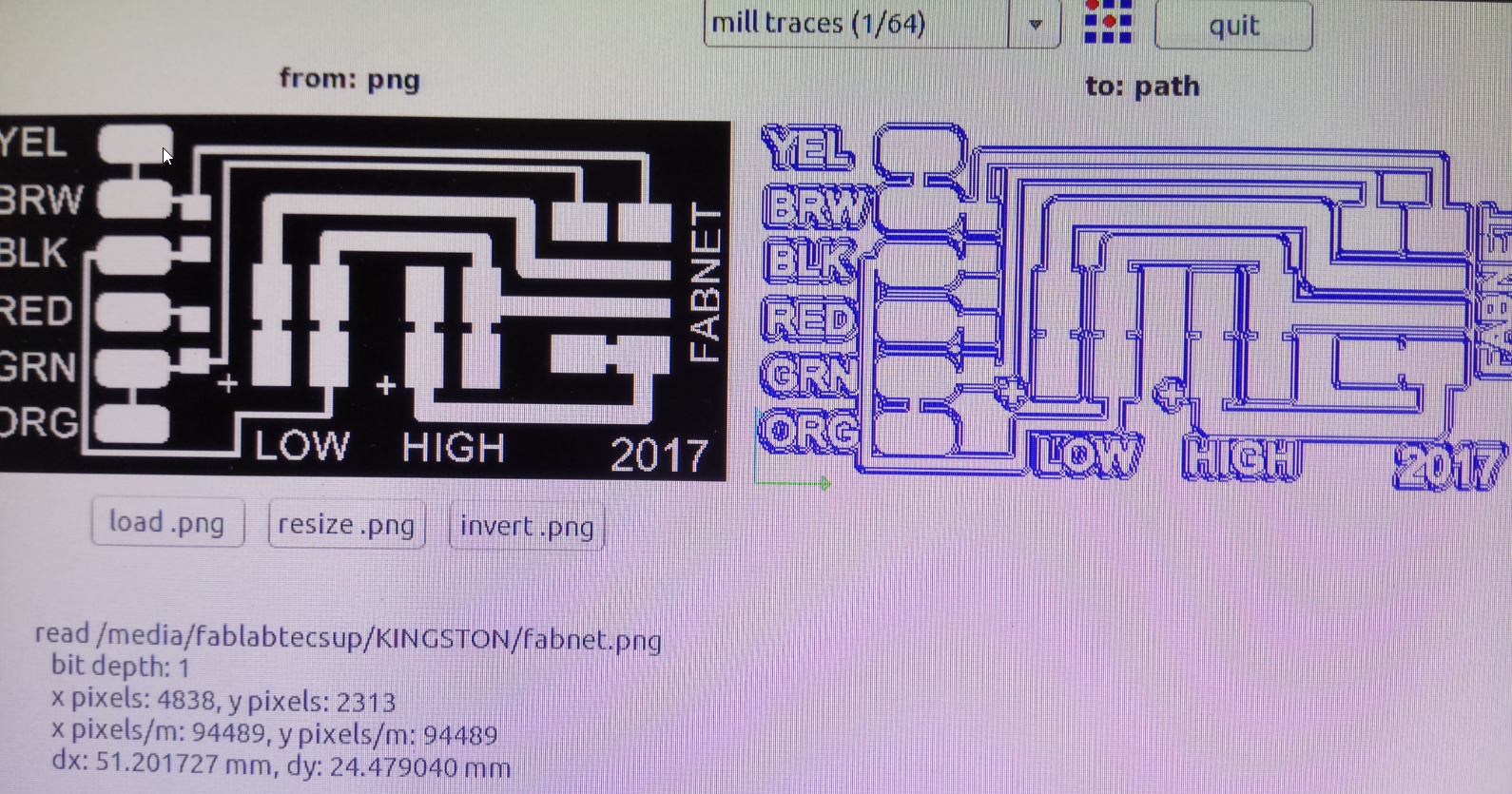

Also I implemented the communication rs485 with the gestalt Fabnet from the page http://mtm.cba.mit.edu/fabinabox/dev/fabnet/files.html

1. What worked:

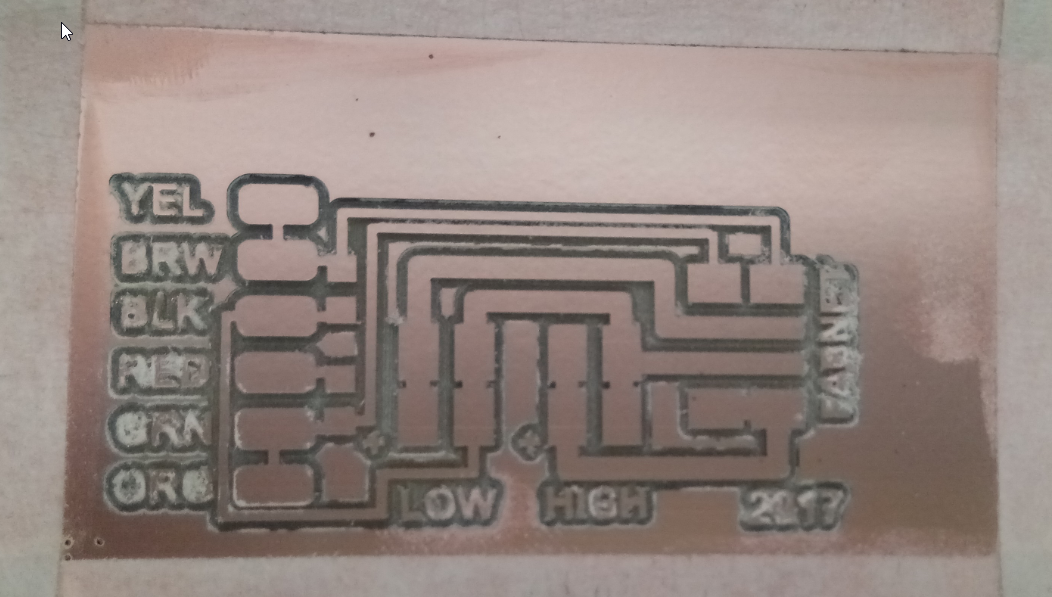

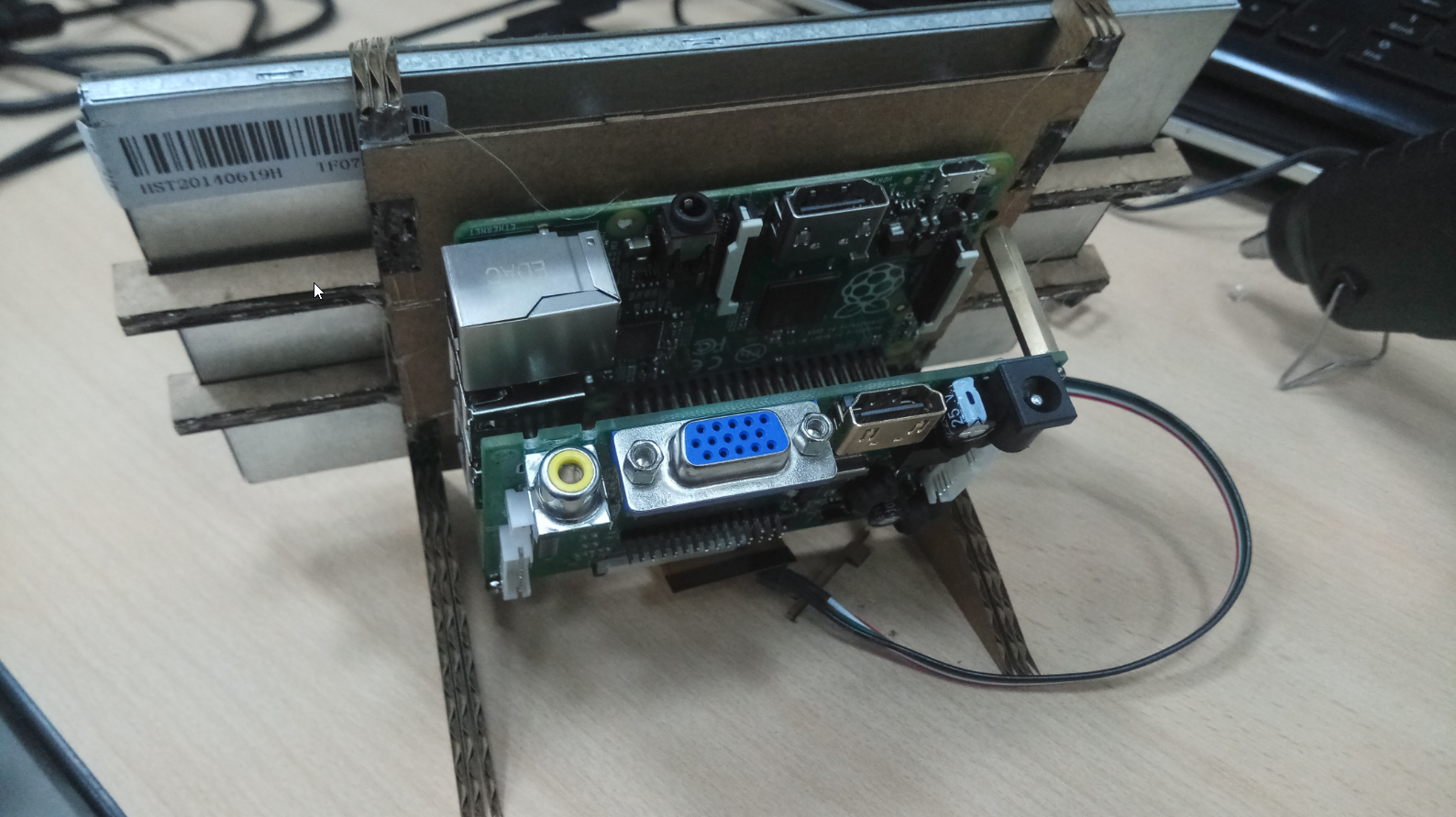

   • I designed and implemented, a base for our touch screen and I builded the RS485 Interface for gestalt


2. What did not work:
   • I had many problems to design the base, because i needed very exact measurements.


3. Things to improve:
   • I would like to have implement the base over the CNC machine, like a photocopier.



File download
