FINAL PROJECT

In the first step, I decided to build a robot that can be remote controlled by cell phone just like the 3D modle I made in second week.



After considering the problems of materials and time, the first plan were gave up to make an armor which likes IRON MAN or BATMAN.





It's difficult to complete a whole set of armor in one month by myself in that  I decided to make an arm, do the other parts will be done if the time still enough.



I'll use the 3d scanner to scan my arm first and  make a  Acrylic frame. After being printed out, the outer armor with 3d printer could be combined with LED and circuit board to get a better lighting-effect.



2016.03.16 Concept design first plan
Second plan

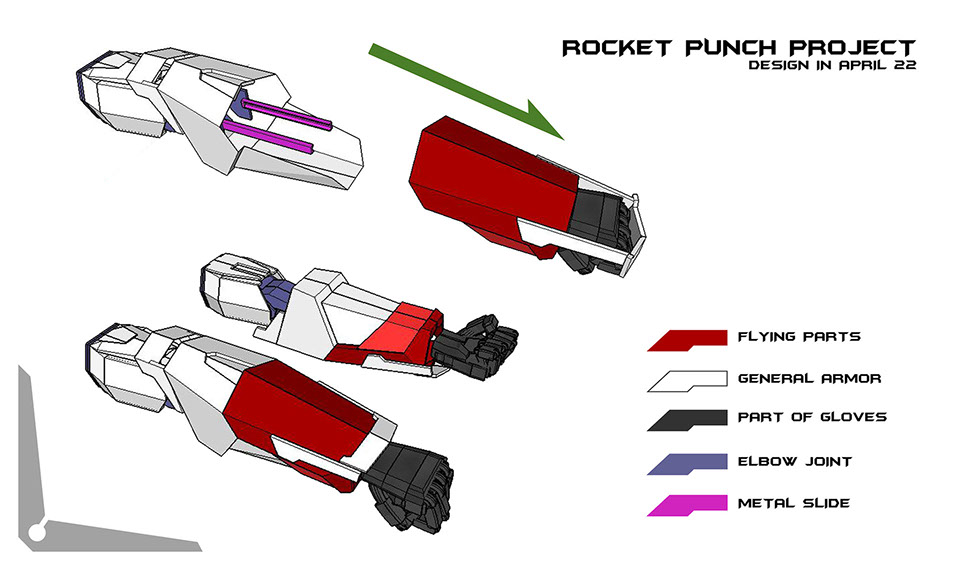

I want to additional rocket punch function to my arm armor so than it will be more interesting.

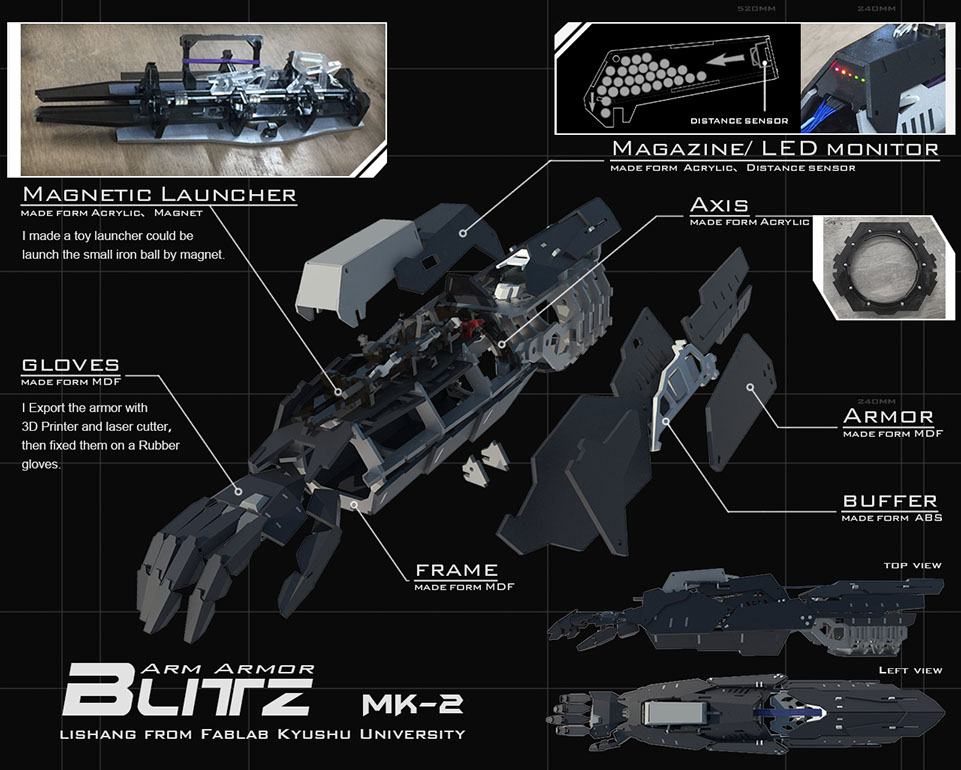

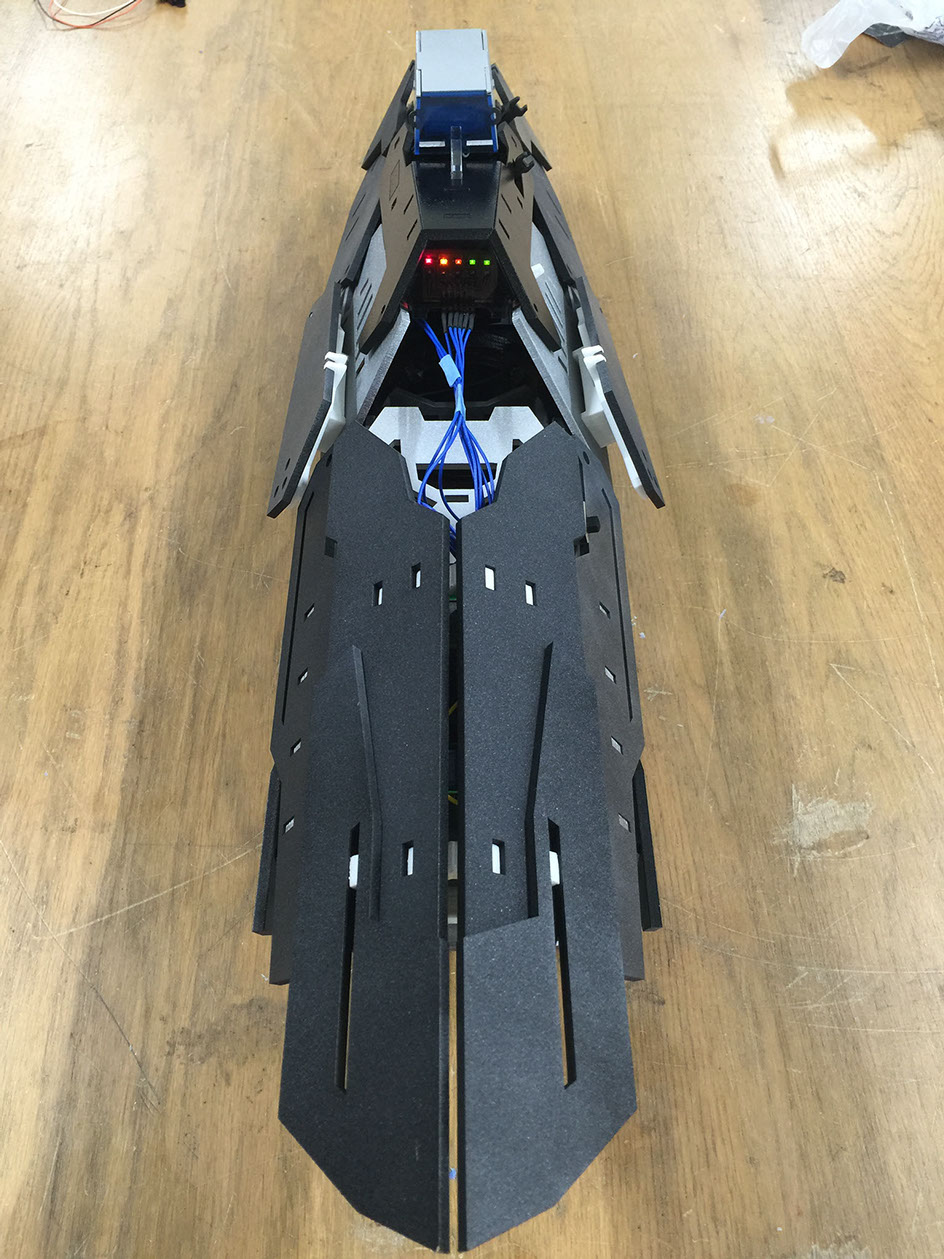

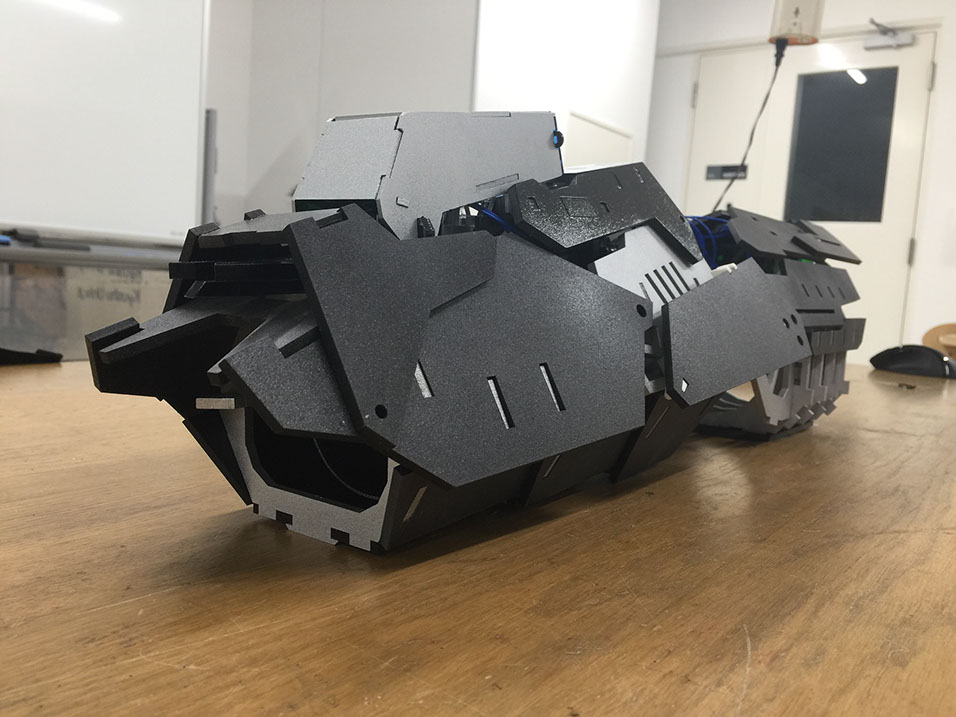

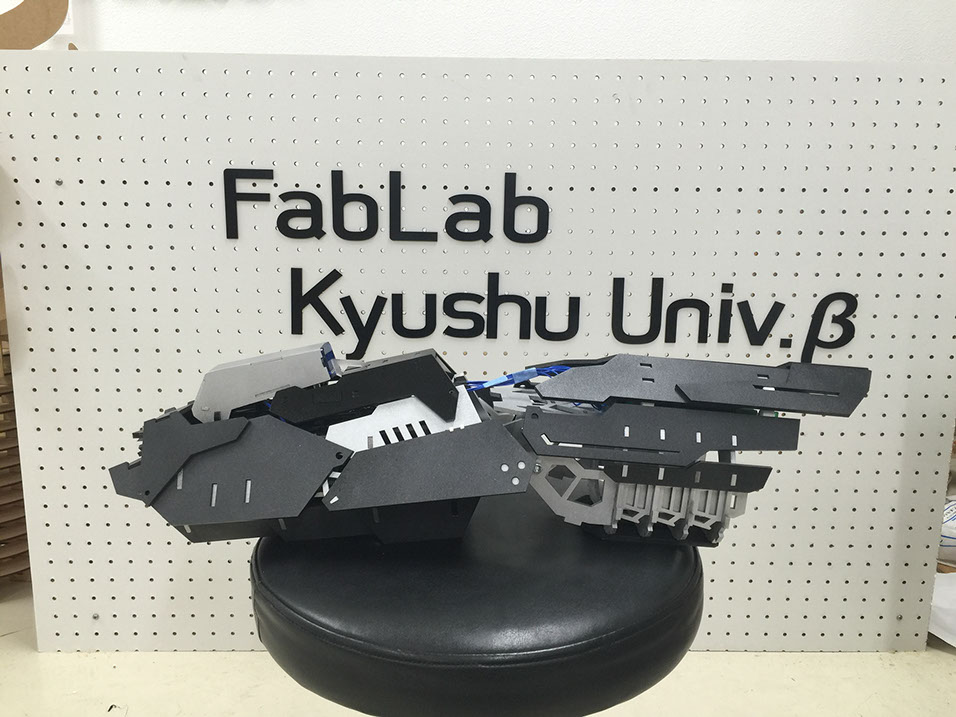

final plan

                      Bill of Materials



  1. 600mm×300  4mm  MDF
  2. 400mm×300  5mm  Translucent acrylic
  3. 600mm×300  2mm  Translucent acrylic
  4. Diameter 10mm       Iron ball
  5. Diameter   5mm       Iron ball
  6. Black spray    400ml
  7. Silvery spray   400ml
  8. Distance sensor    2Y0A SHARP
  9. A main board with Attiny44
  10. A small board with 5LED
  11. A small board with resistance
  12. Some PLA ABS HIPS 1.75mm
  13. Some wire

× 8

× 3

× 2

× 30

× 10

× 1

× 1

× 1
