This week we have to redesign the "Echo Hello-World" board and add a LED and a push button to the circuit, i decided to use Eagle for that as I used it before so it would be easer for me to do so
Well it turns out that I forget completely how to use eagle :D so i went back to Eagle Tutorial at the Fab Academy Archive to revise it.

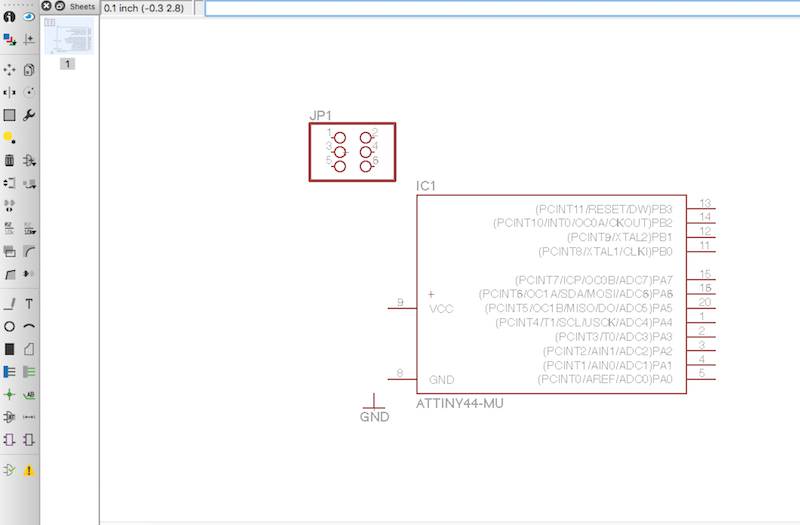

After I added the Fab Library to Eagle, I started to add the components I need in the schematic window

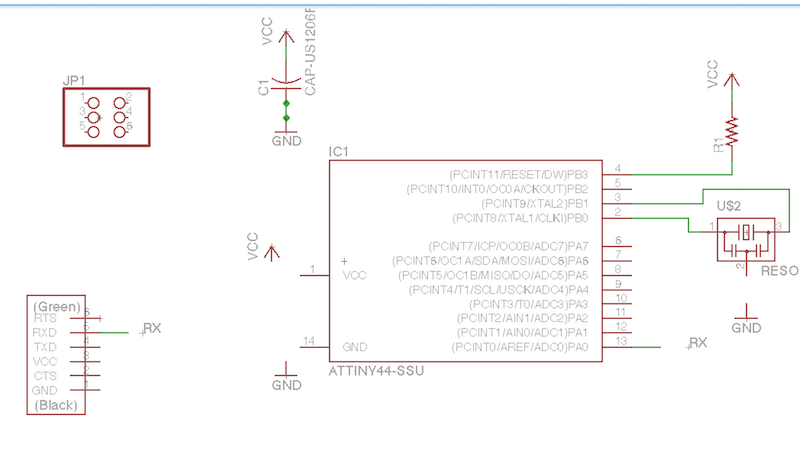

I finished adding the basic components for the board, I mean without the led and the button.
I connected them after that using direct connecting and labeling also for some of them.

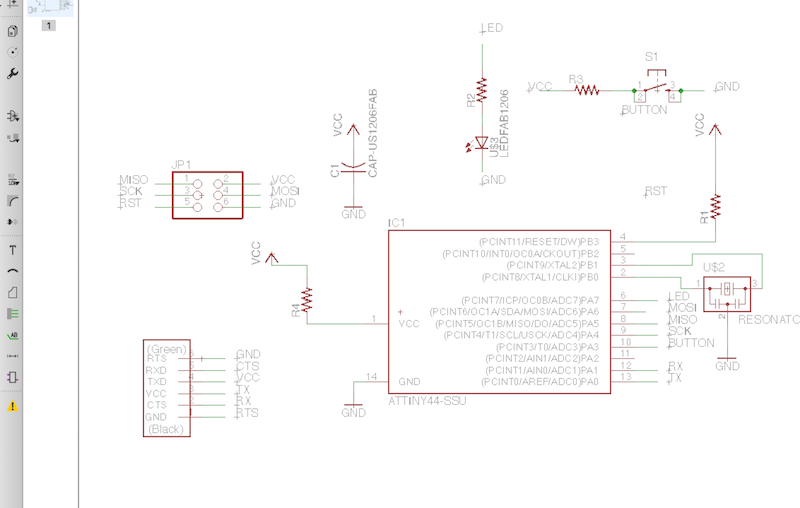

Adding the LED and the Button
.

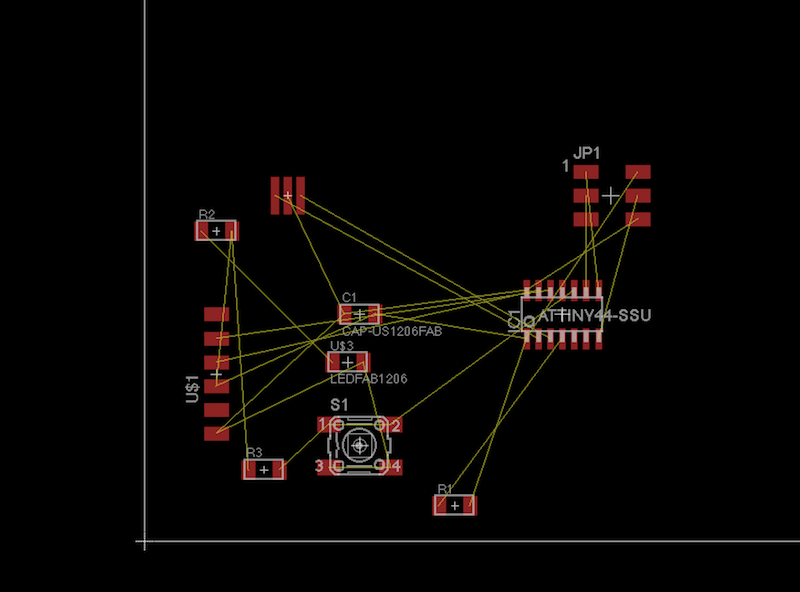

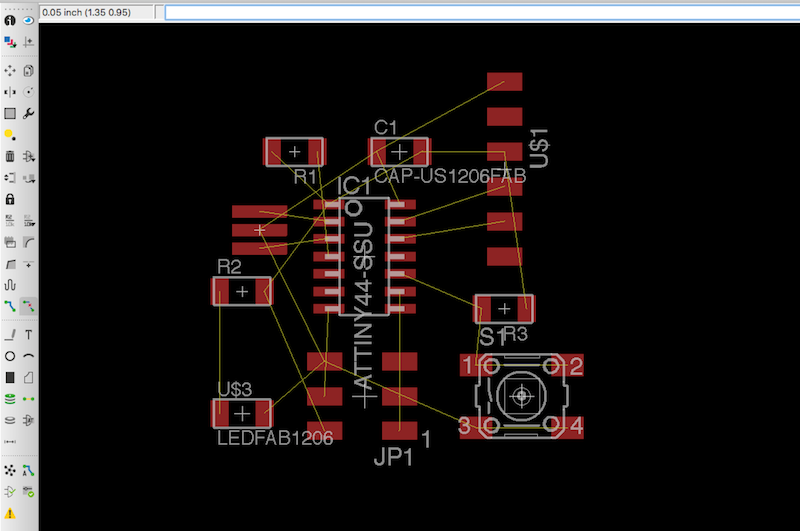

Switching to the Board editing

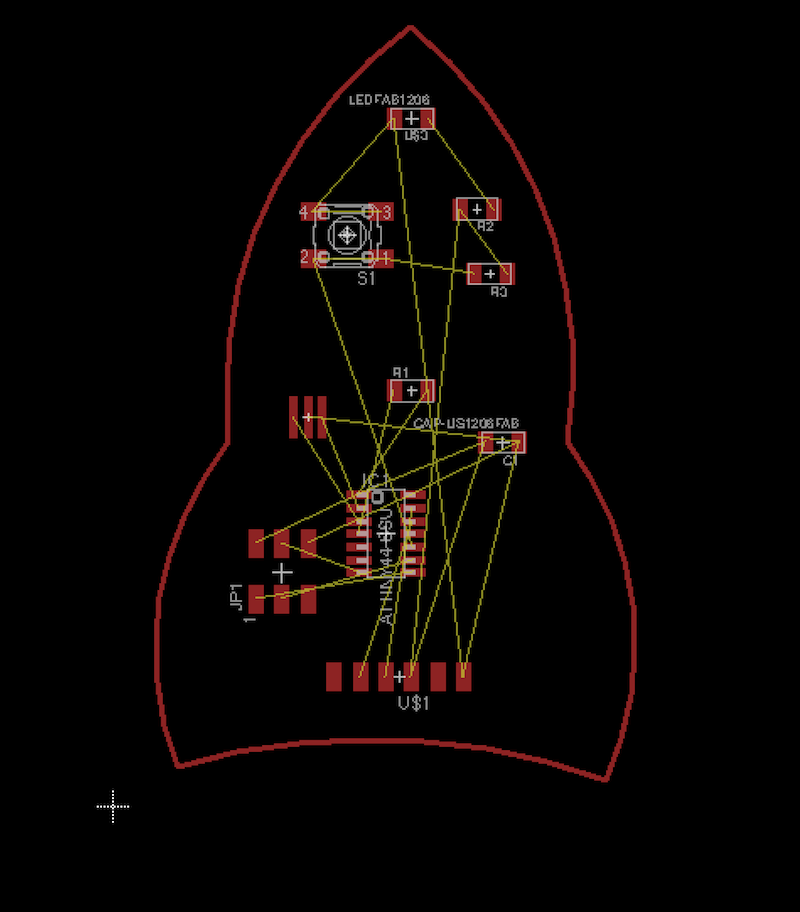

I don't know why I wanted to make my board like a rocket but I changed my mind and get back to a normal square one

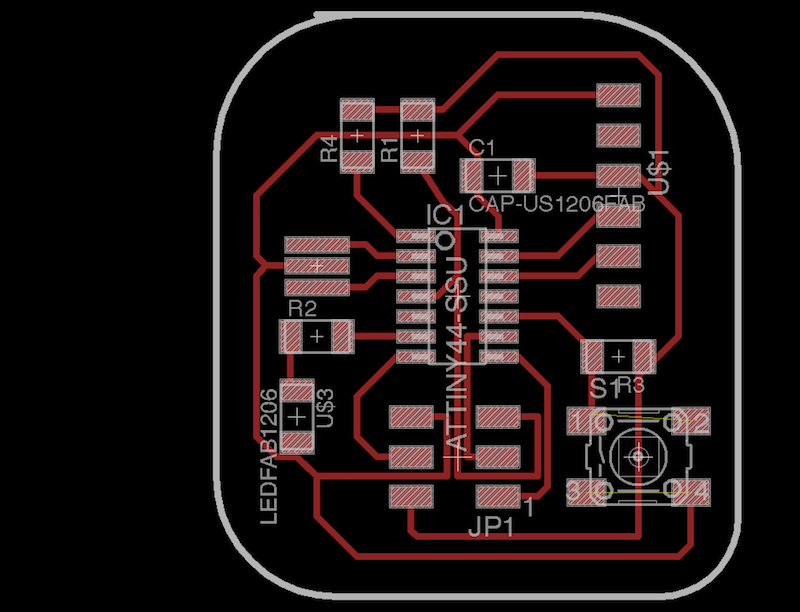

It took me a very long time to draw the traces correctly, and o had to re order the components many times, but finally i did it :D
I tried to use the Autorouter but it didn't work good

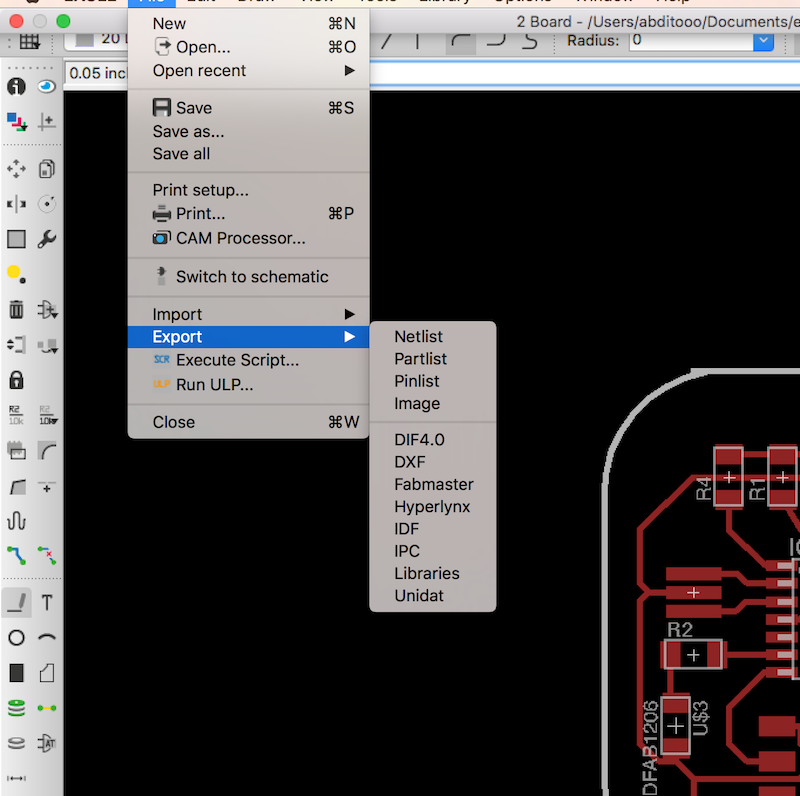

After rechecking the board, traces and the right connection, export your file as image from exporting menu

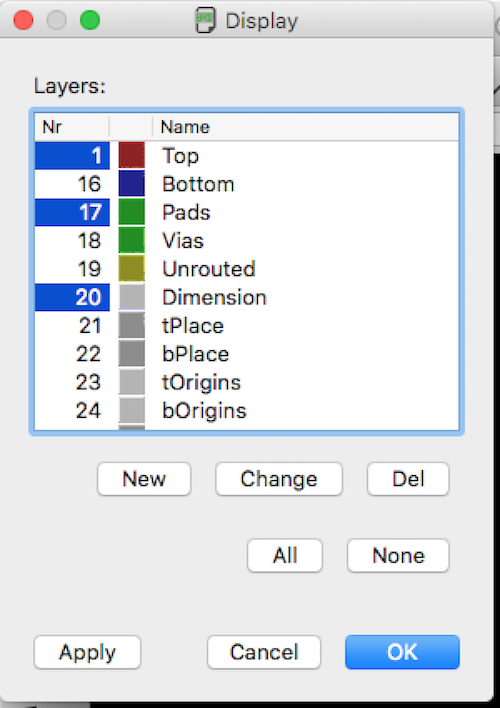

Don't forget to remove the components layer and all the accessory layers

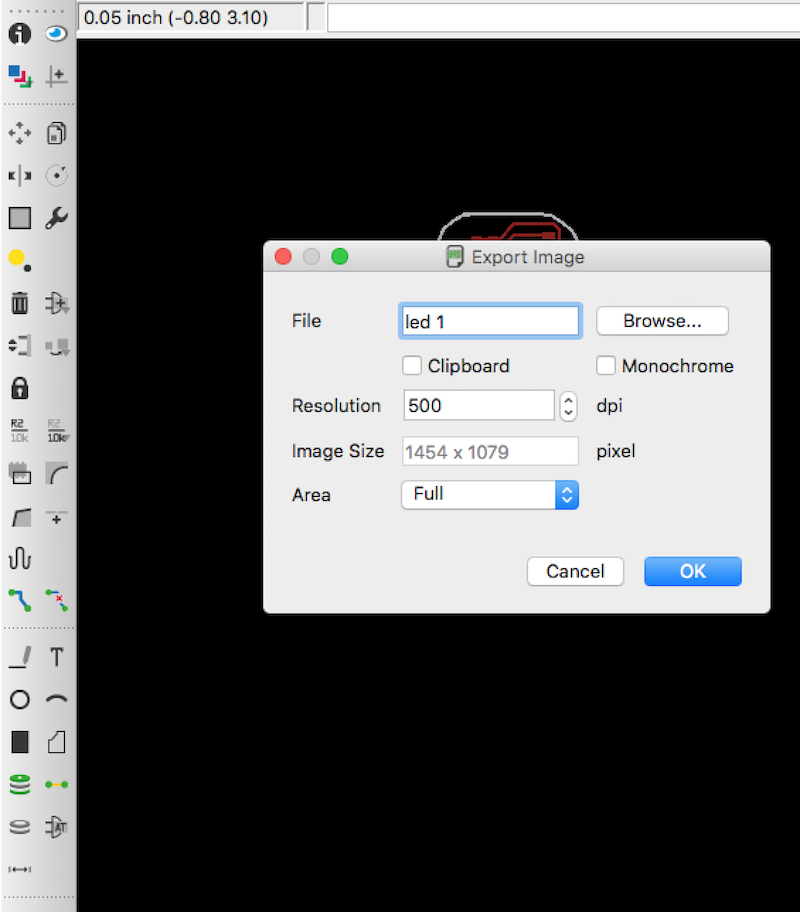

Set the option to 500 dpi and monochrome

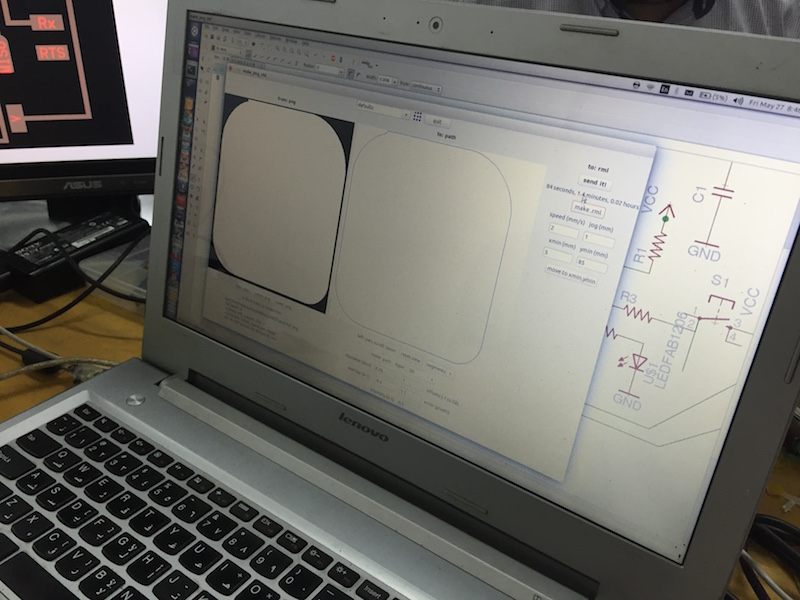

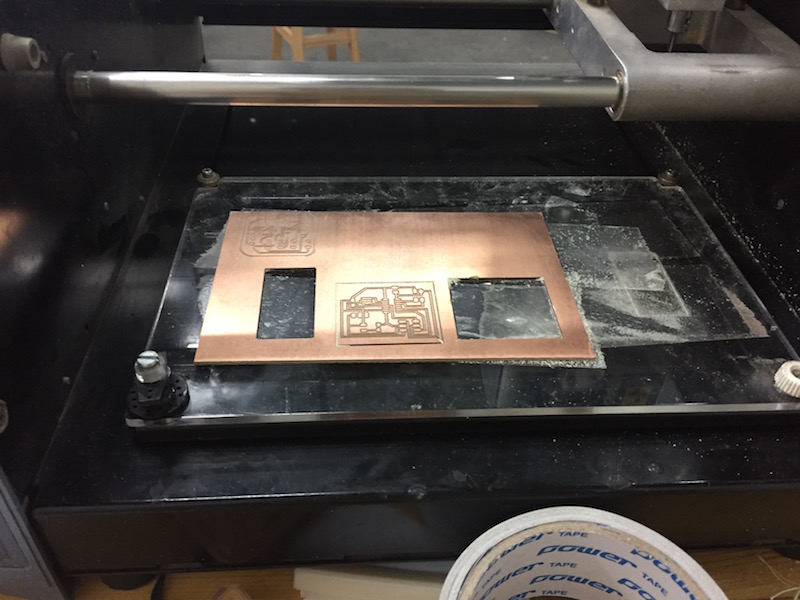

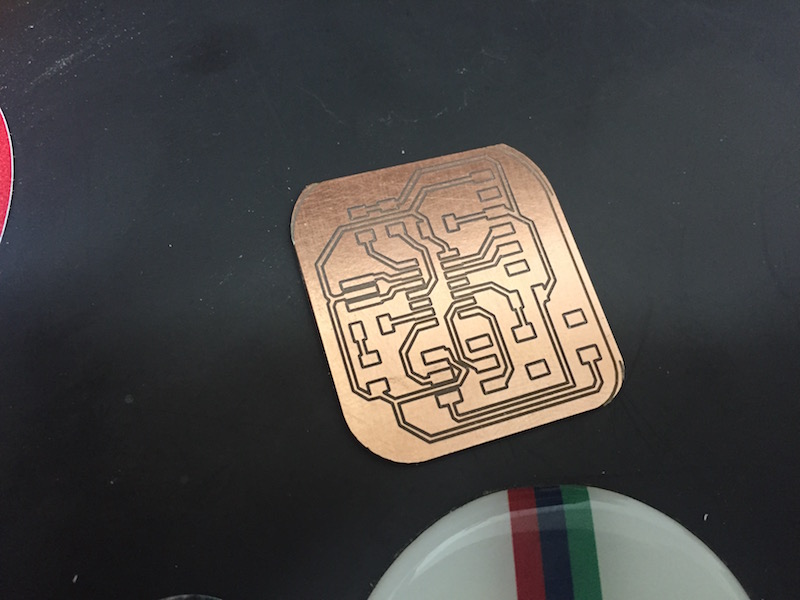

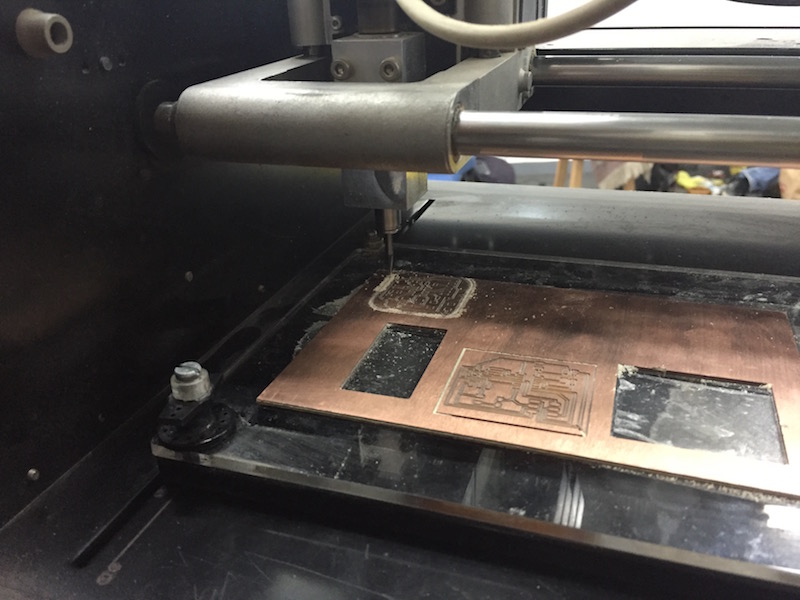

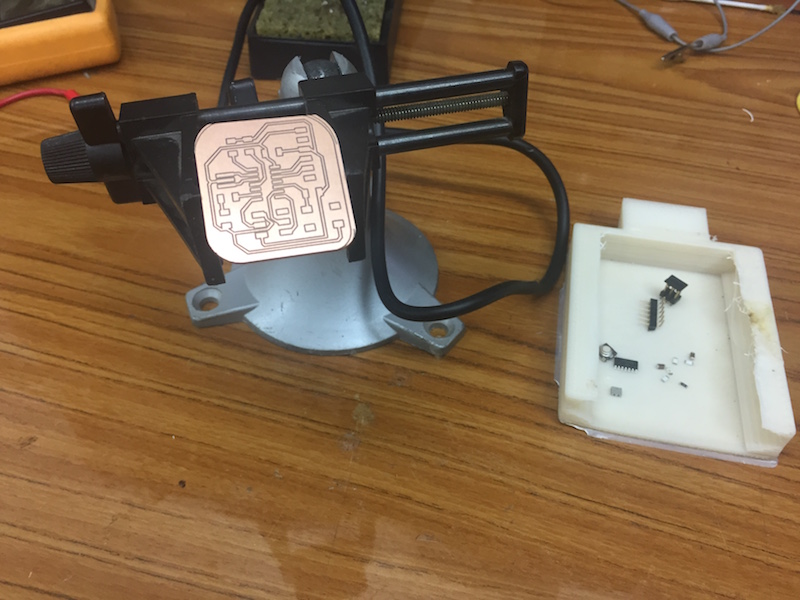

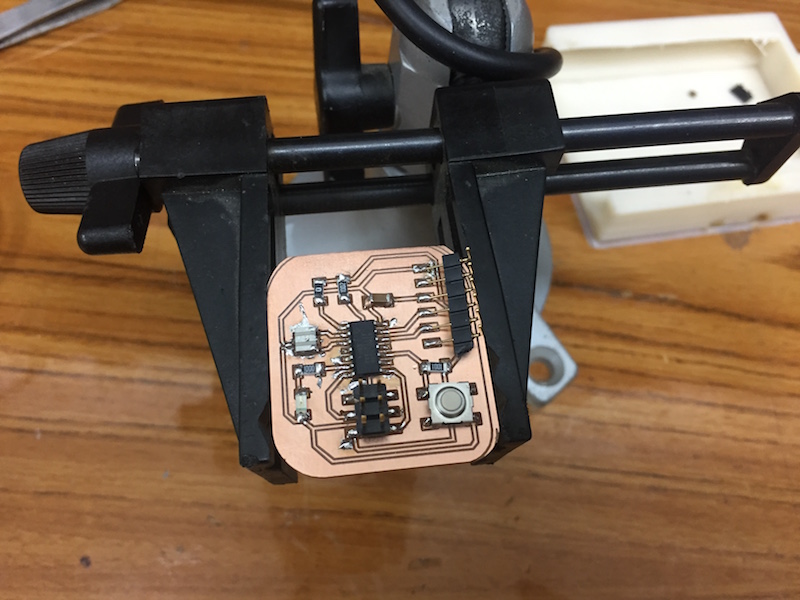

You can read more about working with milling machine for Assignment 4
