This week was the busiest week at working, it really was hard for me to finish the this task with all the duty that i have to do, so please excuse my poor documentation, but I will update and re-edit it with the next assignment.
Milling Phase

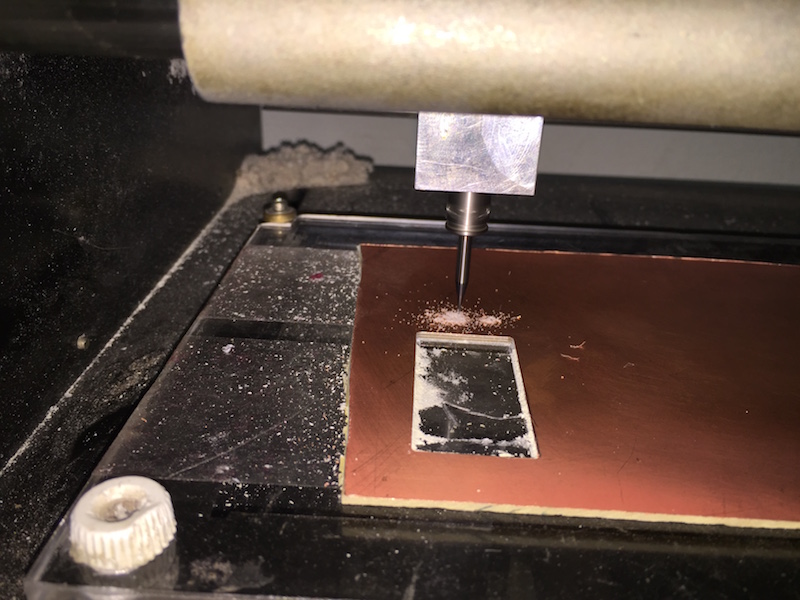

I started by making the PCB with our Modela mdx-20

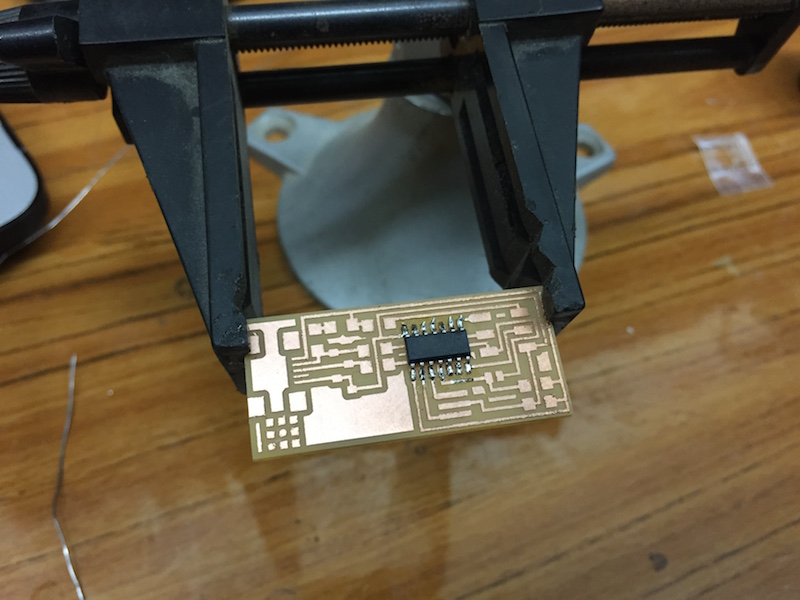

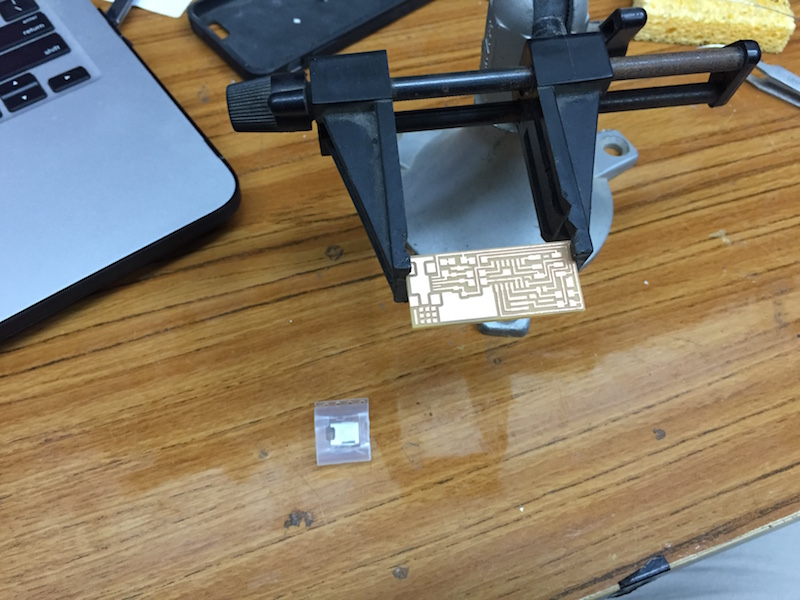

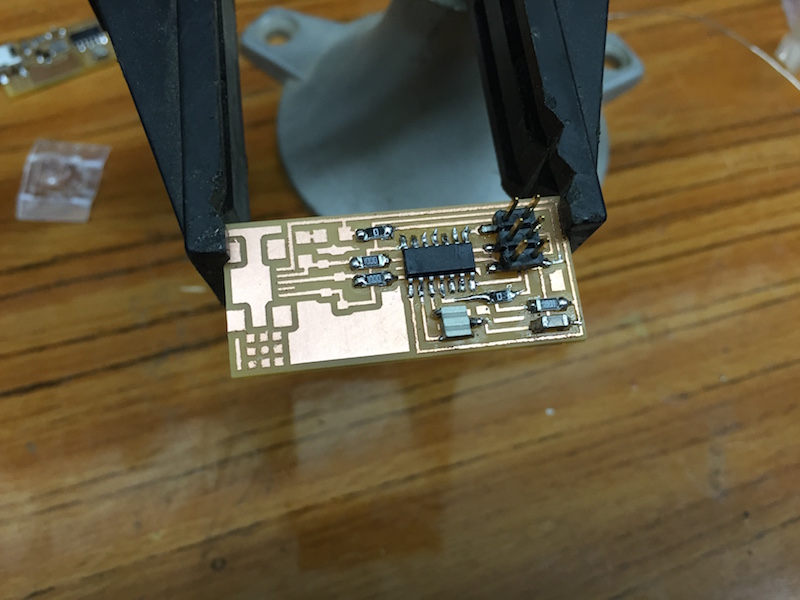

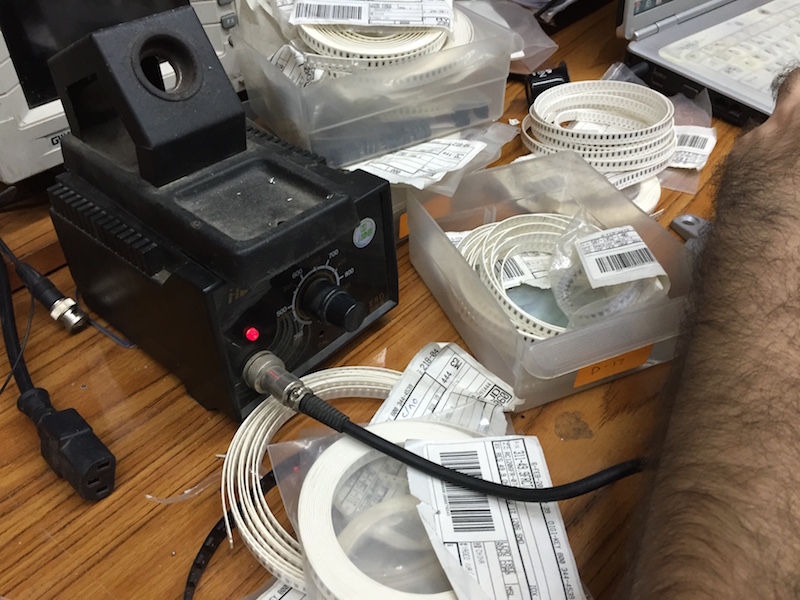

Components Soldering Phase
It was the first time I solder this much of SMD components, Some of them was really hard but you get used to it, hopefully my final project will solve this problem :D
.

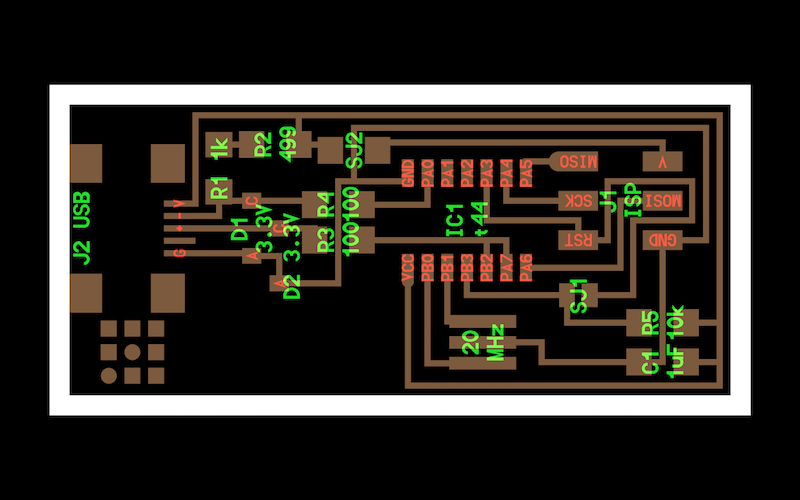

This is a Standard Fab ISP resonator

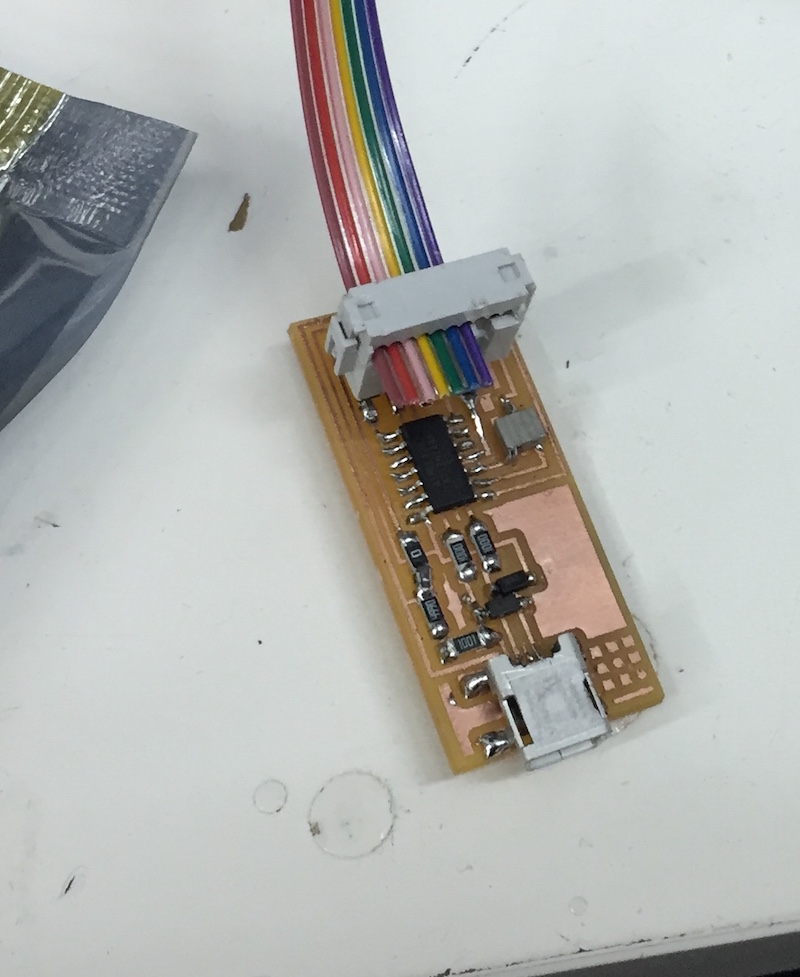

I mistakenly used a 7 wires ISP cable instead of 6 wires

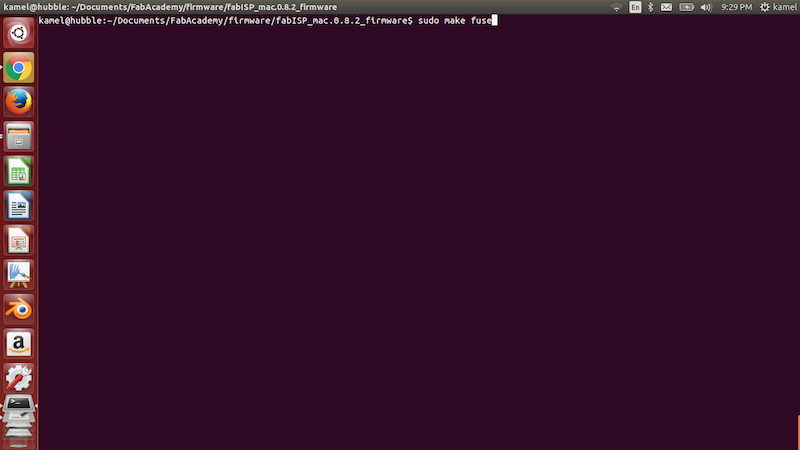

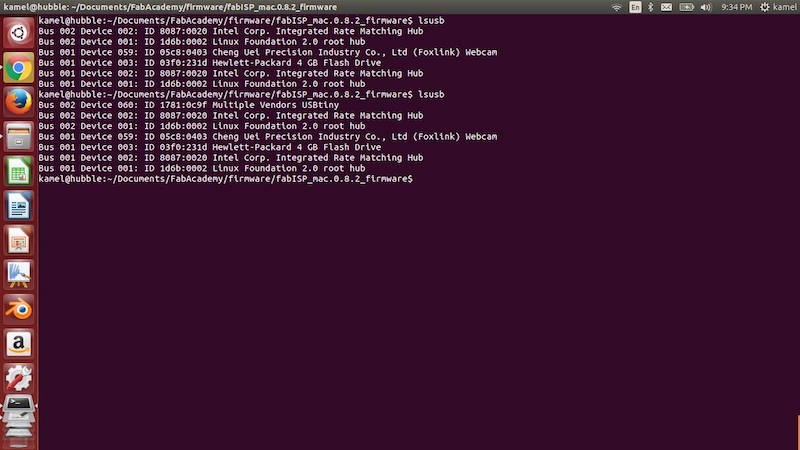

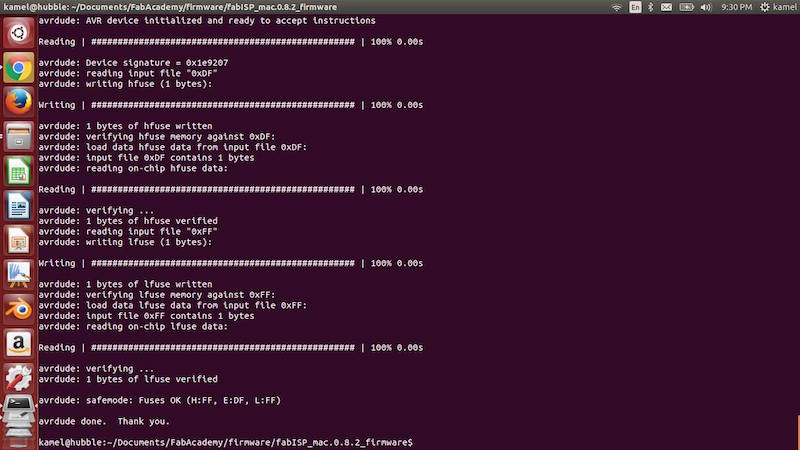

Programing Phase

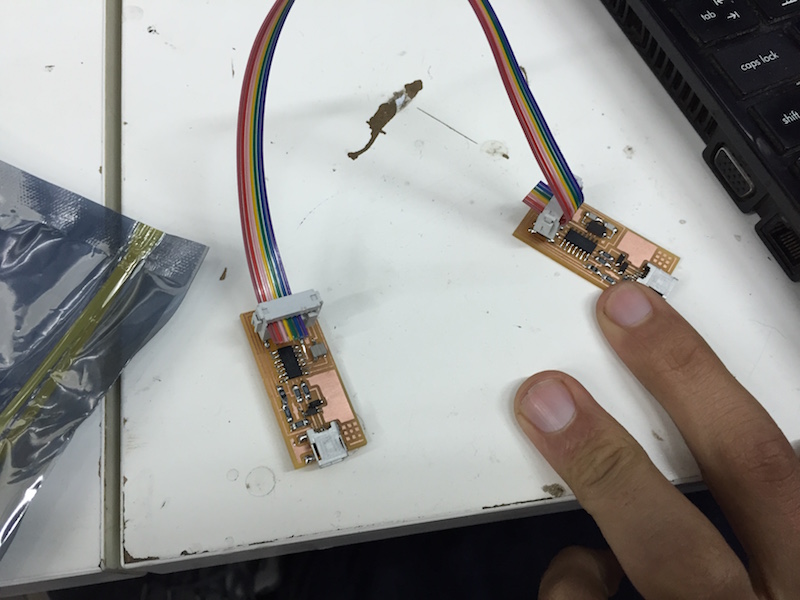

As I said my time was tight so i had to use my friend laptop to program my programmer, the funny thing that i used his PCB to program mine and my other colleague used mine to program his :D
