Mechanical Desing

Materials, tools and software

Zing(Tools)
MDF 3mm (Materials)
Solidworks (Software)
Illustrator (Software)

Individual Contribution

Solidworks + Illustrator

In this part to make a faster prototype, I export the file in SolidWorks to Illustrator and join different views to make a plane 2D for laser cutting. To export the file is very easy you open a sketch file with the piece selected in SolidWorks, in this part you select the views do you need and save to illustrator format (*.ai).

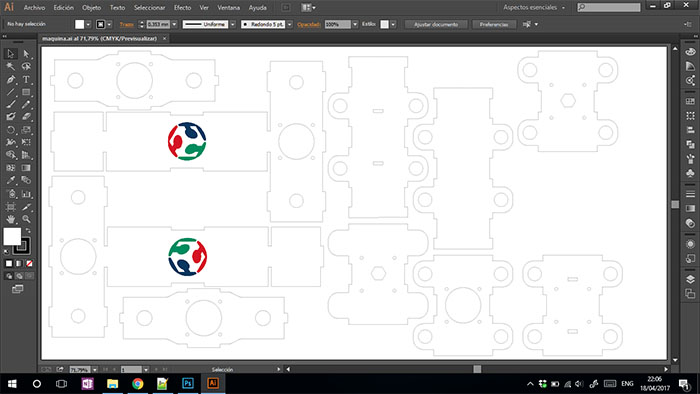

In Illustrator, you join different pieces or views that making one piece and save in format do you need.

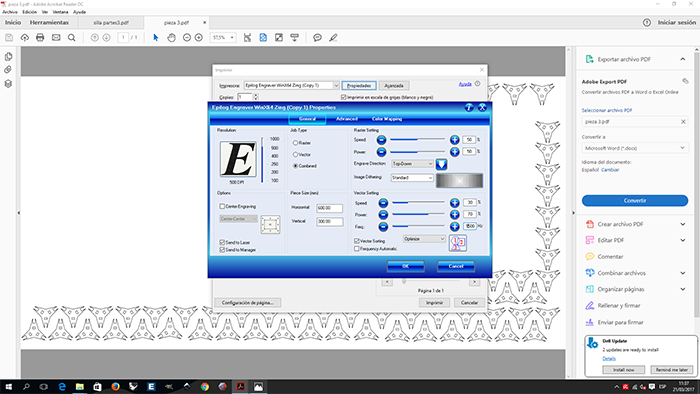

Cutting

Zing

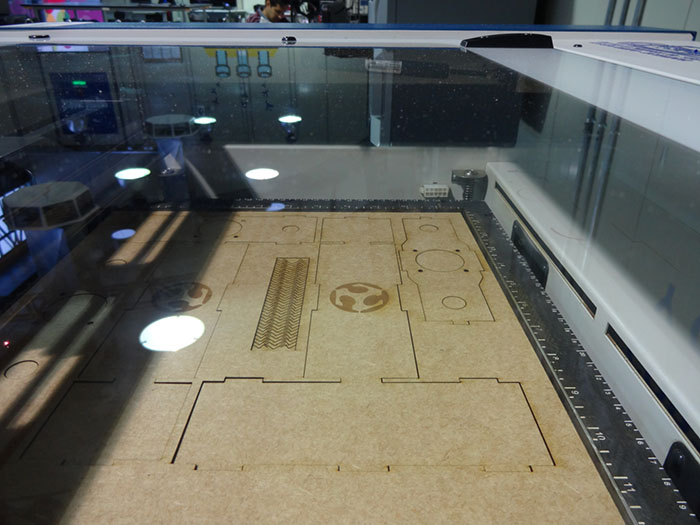

To make the cutting we need three wooden planks to MDF of 3mm and make the pressfit system in the pieces.

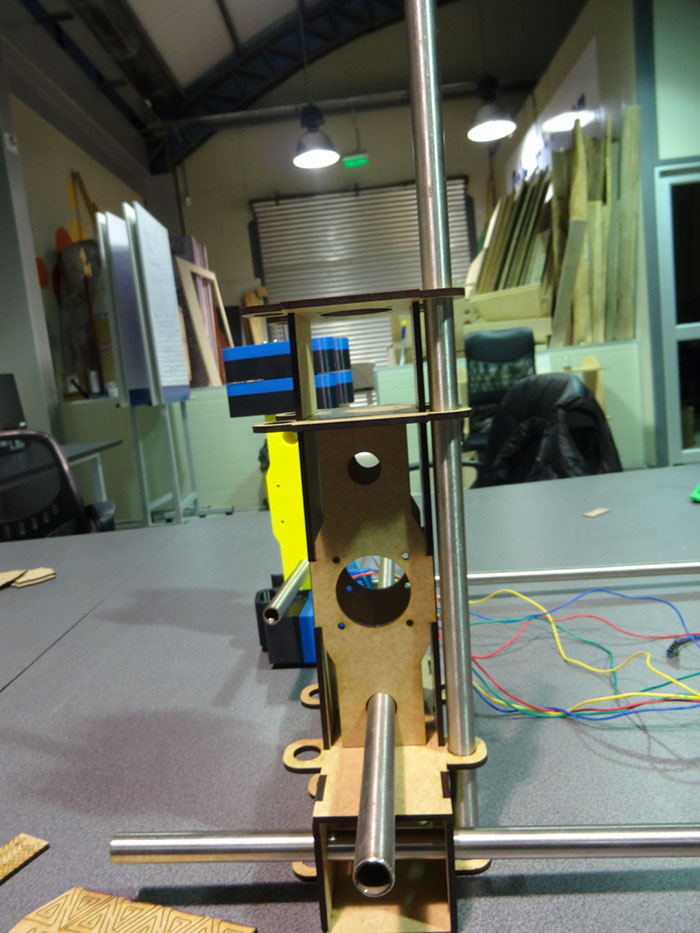

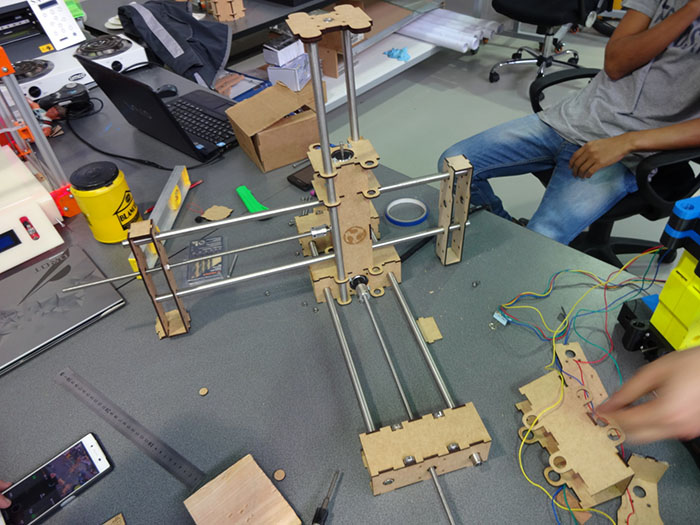

Ensemble

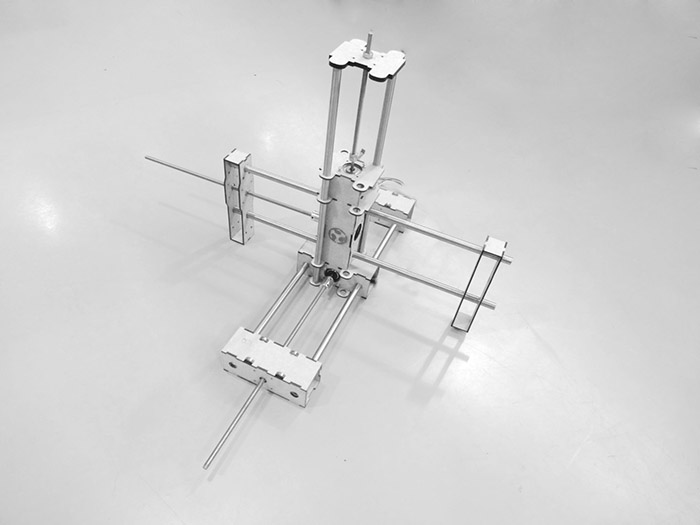

For this part It's intuitive and you can see in the next image.

And you can download the file in the link of the final.

Learning outcomes

Work and communicate effectively in a team and independently

To see the group project go to this link:

CNC link

Design, plan and build a system

In this week, I make the first model to study the different problems with the machine design

week 9

Analyze and solve technical problems

this week use to change the problems of the design in the week 9.

Recognize opportunities for improvement in the design

I can improvement the design for my final project in the link go to my final project:

Final Project

DOWNLOAD FILES

NewDesign.rar
