OBJECTIVES
- Demonstrate workflows used in circuit board design and fabrication.
- Implement and interpret programming protocols.
Thinking of my final Project, I decided to make a board that works with piezo electrics as a input device.
The idea of the final Project is having acrilic pieces, inspired in domino chips and having them fall down. With that movement the piezo electric must be activated and send a sign though the satsha kit loaded with an arduino file to send the menssage to an other board with an RGB Led strip.
Because it works with the boards I did on the Output week this is a simple board.

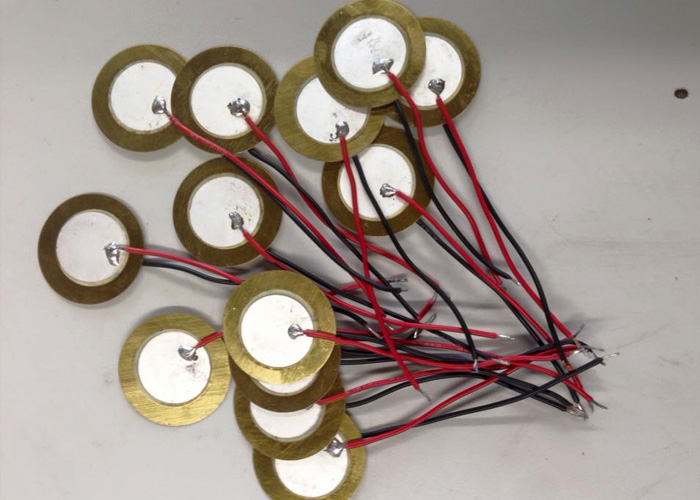

Components:
Before doing the actual board I tryied it with a proto board and satsha:

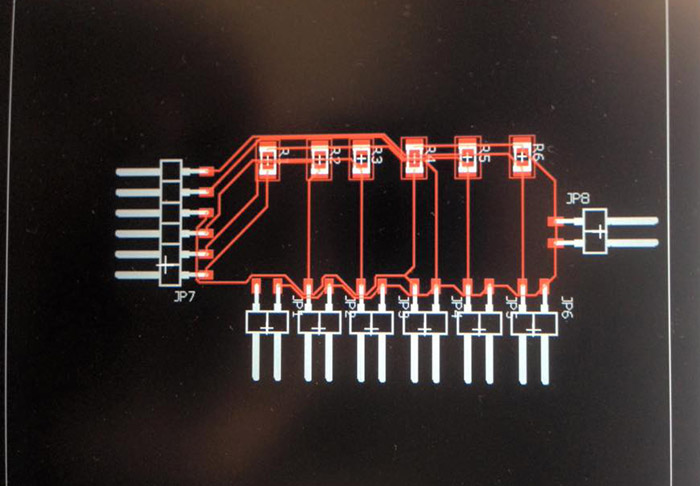

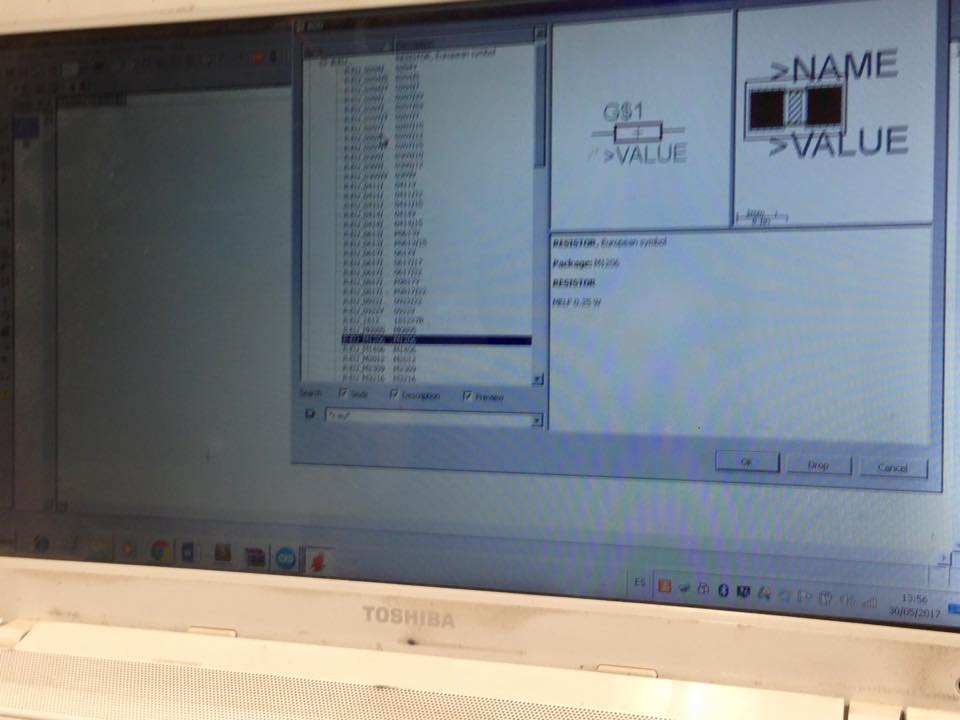

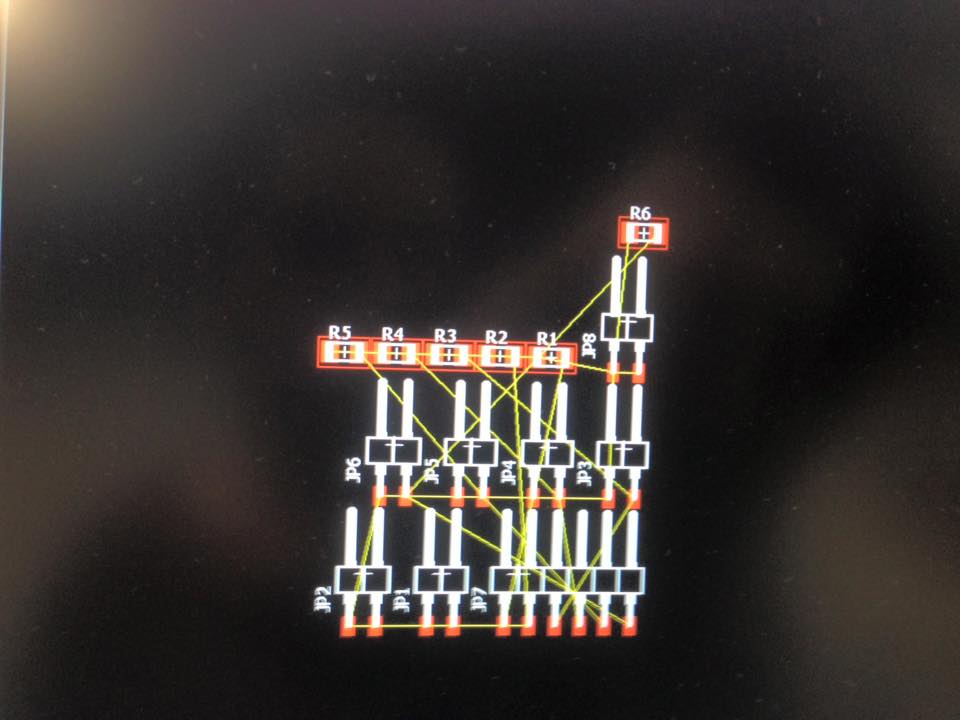

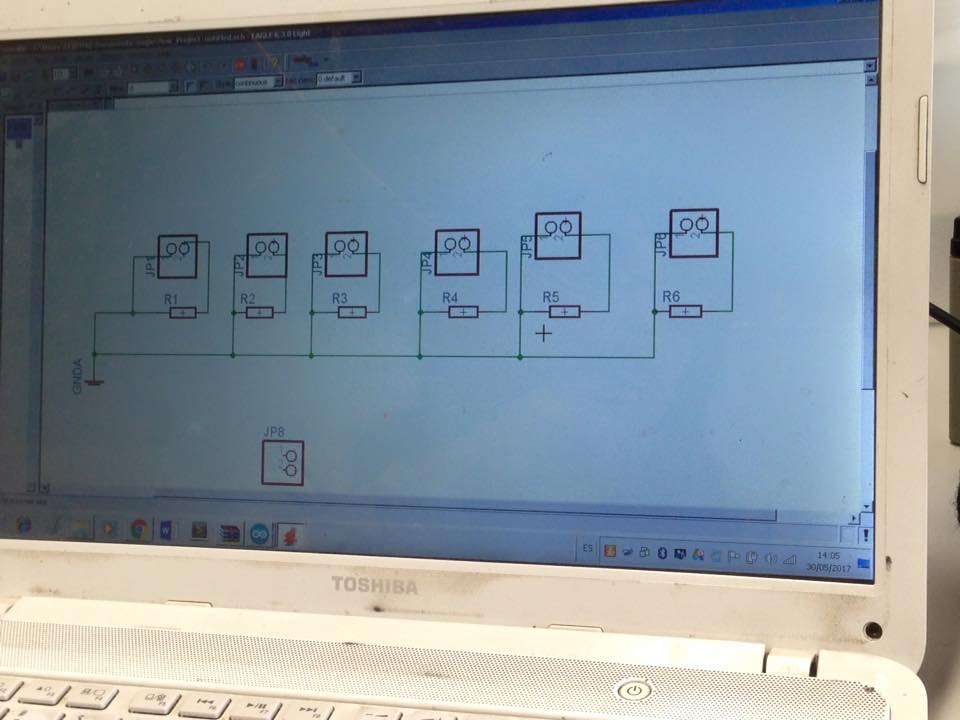

After that I went to Eagle to start working on the board.

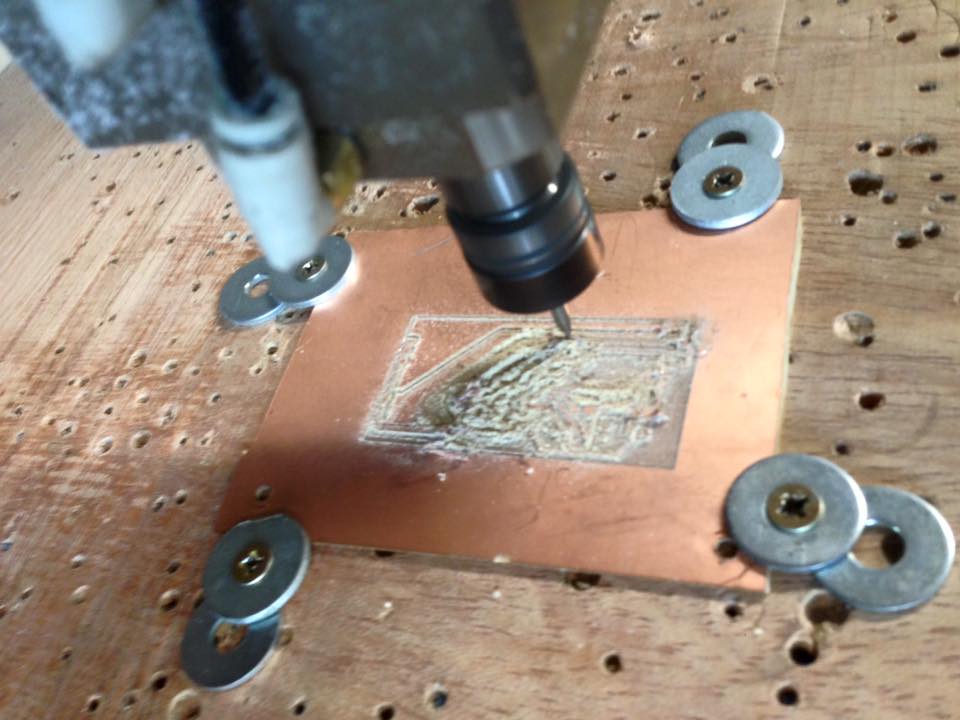

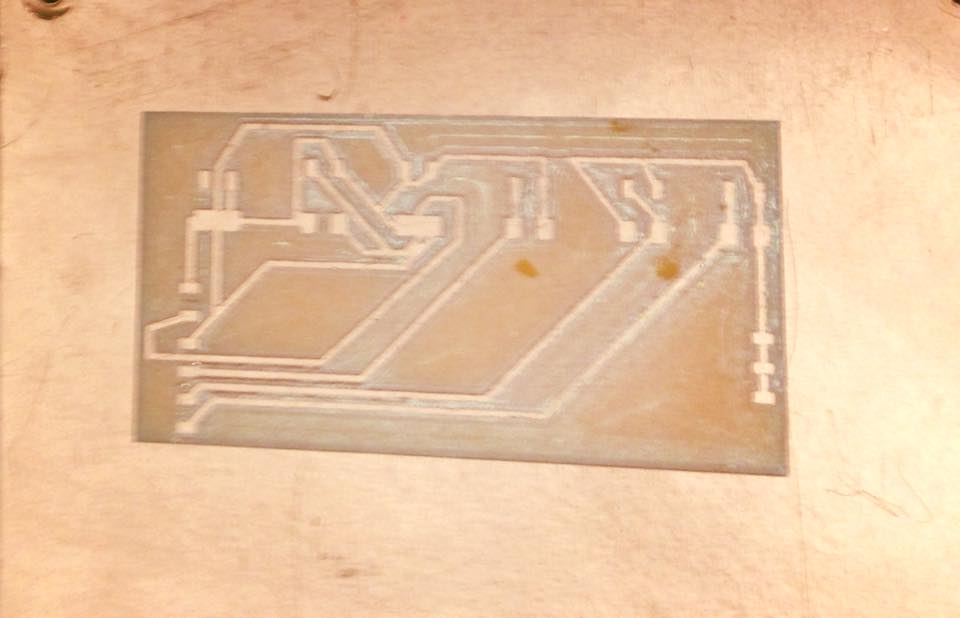

Then I worked on the Modela to mill it. With the 1/64 ยจ endmill
With this board done I could try the electronics for my final proyect.

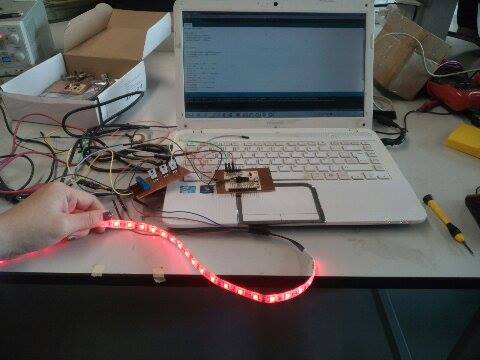

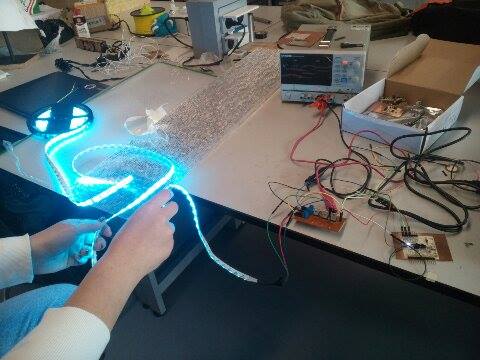

Here are some pics:
On week 10, the Output assignment, I modified a Hello board and used a piezo electric as an Input. It can be seen here:
http://archive.fabacademy.org/archives/2017/fablabutec/students/208/w10.html
