Networking and Communications

This week we're looking at producing a few boards, and then networking these together through serial communication. After that, the boards will be programmed so that they can be addressed from a computer through the main Bus board. I started out by loading up the traces into the Fab Modules and send them off to the Modela. After the board was milled, I soldered the parts onto it.

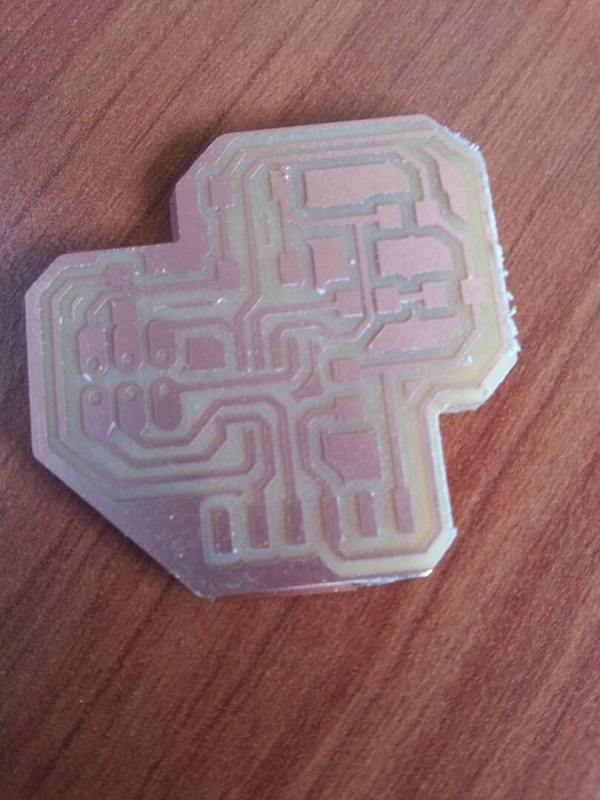

The Board

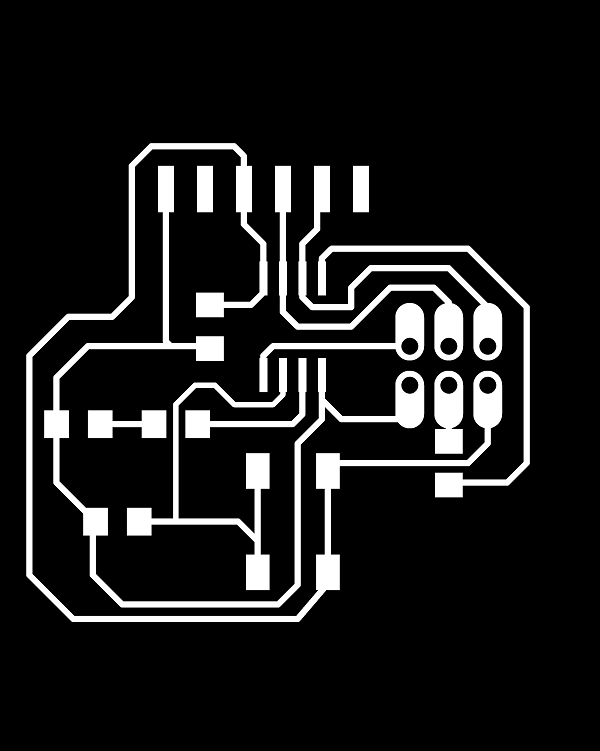

A trace of an electronic board designed in eagle

.

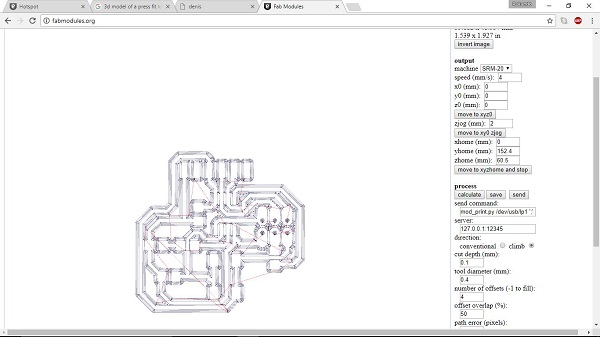

Setting the Roland parameters

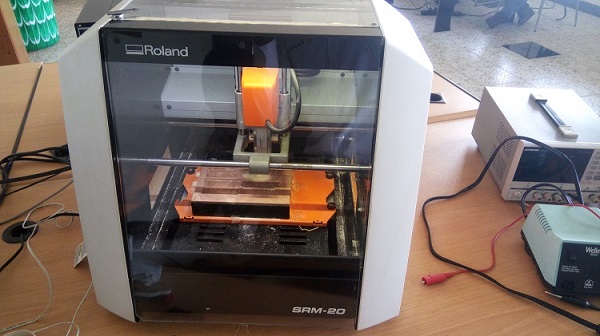

The Milling process

from printing

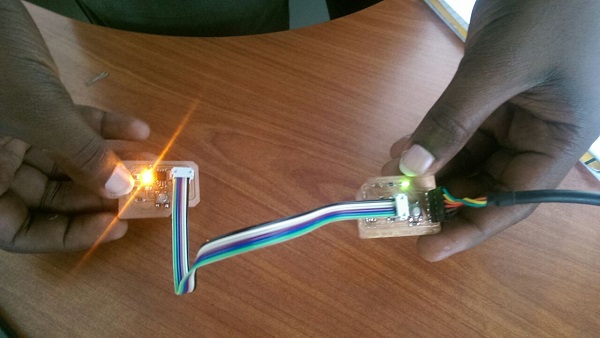

My serial networking communication

Networking and Communications used files

Codes Used

           #include

int Rx = 1;
int Tx = 2;

SoftwareSerial serial(Rx, Tx);

const int buttonPin = 3;
const int pin= 4;

int ledState = LOW;
int buttonState;
int lastButtonState = LOW;

unsigned long lastDebounceTime = 0;
unsigned long debounceDelay = 50;

void setup() {
  serial.begin(4800);

  pinMode(buttonPin, INPUT);
  pinMode(pin, OUTPUT);

  digitalWrite(pin, ledState);
}

void loop() {
  int reading = digitalRead(buttonPin);

  if (reading != lastButtonState) {
    lastDebounceTime = millis();
  }

  if ((millis() - lastDebounceTime) > debounceDelay) {
    if (reading != buttonState) {
      buttonState = reading;

      if (buttonState == HIGH) {
        ledState = !ledState;
      }
    }
    digitalWrite(pin, ledState);
    lastButtonState = reading;
  }

  if (serial.available()){
    if (serial.readString() == "gas linking"){
      digitalWrite(pin, LOW);
      serial.println("gas closed");
    }
  }
}
