Designing the mold

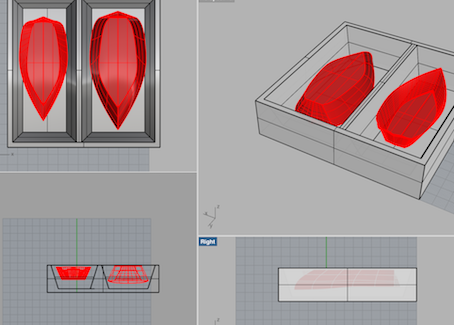

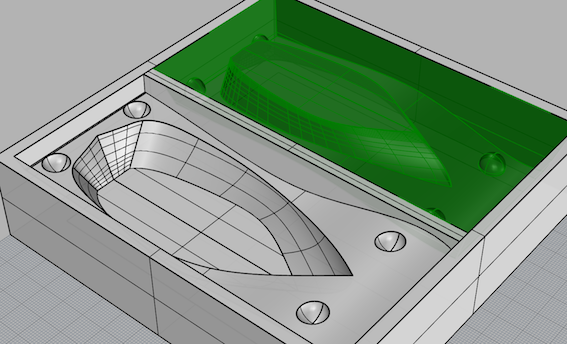

I began designing a Boat in Rhinoceros

git

git

git




git

git

git

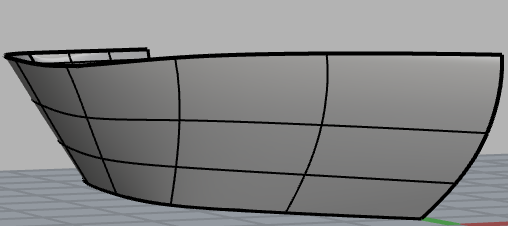

BOAT 3D Model







ATTEMPTS

The first attempt was in a 3D printer.

BOAT 3D Model.Stl

git

git

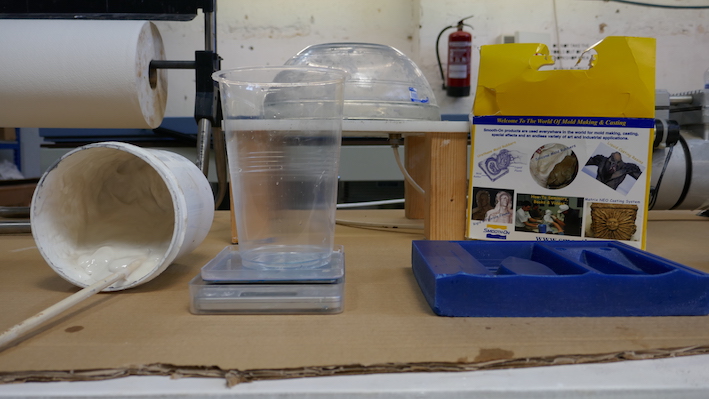

To know thw volume I put water in the mold and then read the data of the silicone.

git

That to understand the proportion between silicon and catalyst.

git



git

git

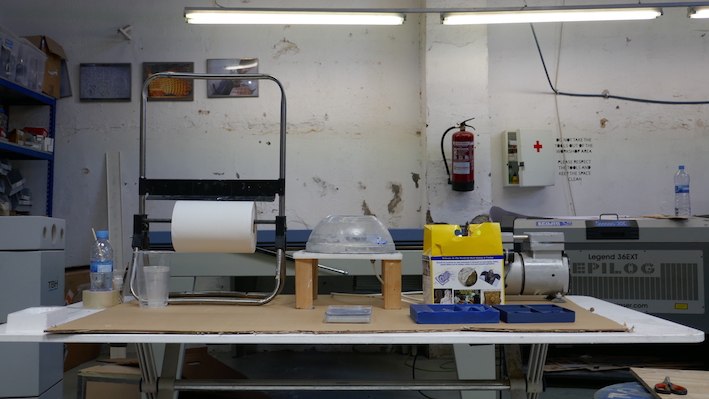

This is de vacuum pump and is very useful to remove the bubbles.

git

git

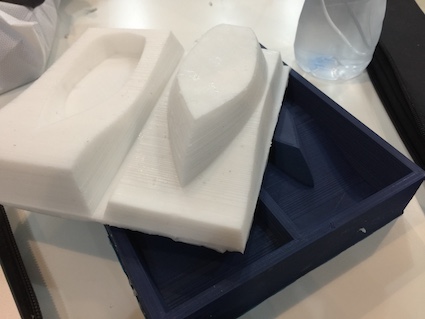

In this attempt I Just made the mold from silicon.






CASTING WAX

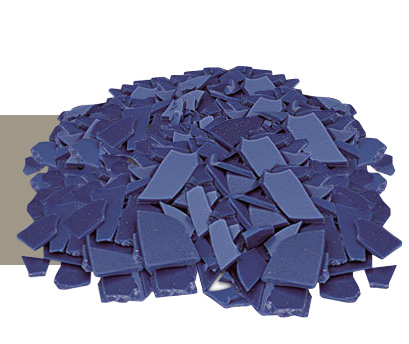

Before to mill the mold, we made the bricks of wax.


git

git

The fusion point of the wax is 100ºC and to cool it, we preheat the oven in that temperature and let it gradually lose temperature, This is the way to no break it.

git

git

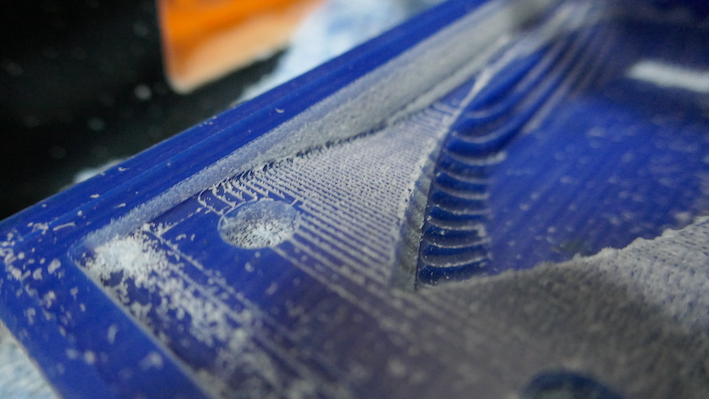

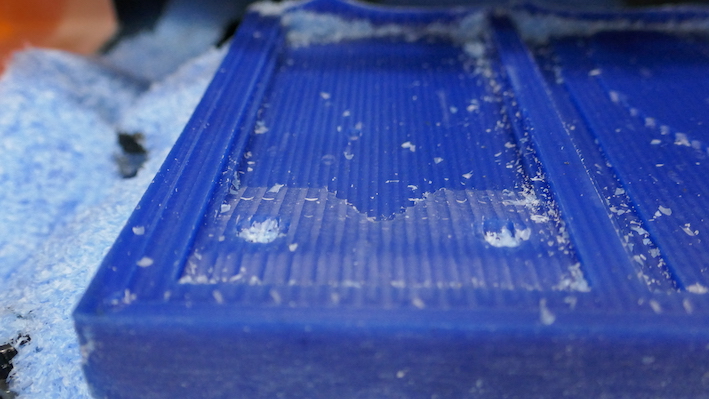

THE MILL

This is the way to made the Gcode.
Here is the tutorial and the Gcode file.
Gcode



git

git

git

git




CASTING

git

git

git

git

git

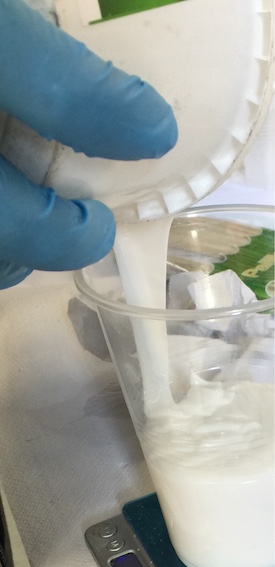

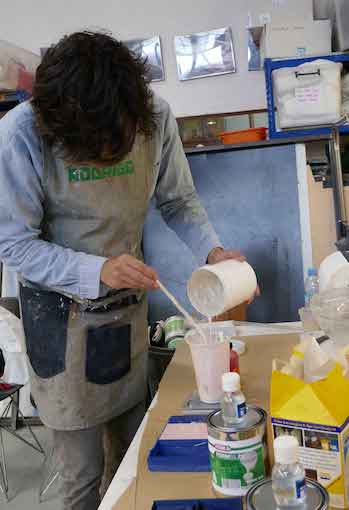

I made the mold with silicon available to made food, for that reason is pink. The proportion of this material is 100 by 10 of catalyz. Then I made the silicon to cats the Model.
