My Assignments :) 24 Assigments
Project management
work through a git tutorial build a personal site in the class archive describing you and your final project

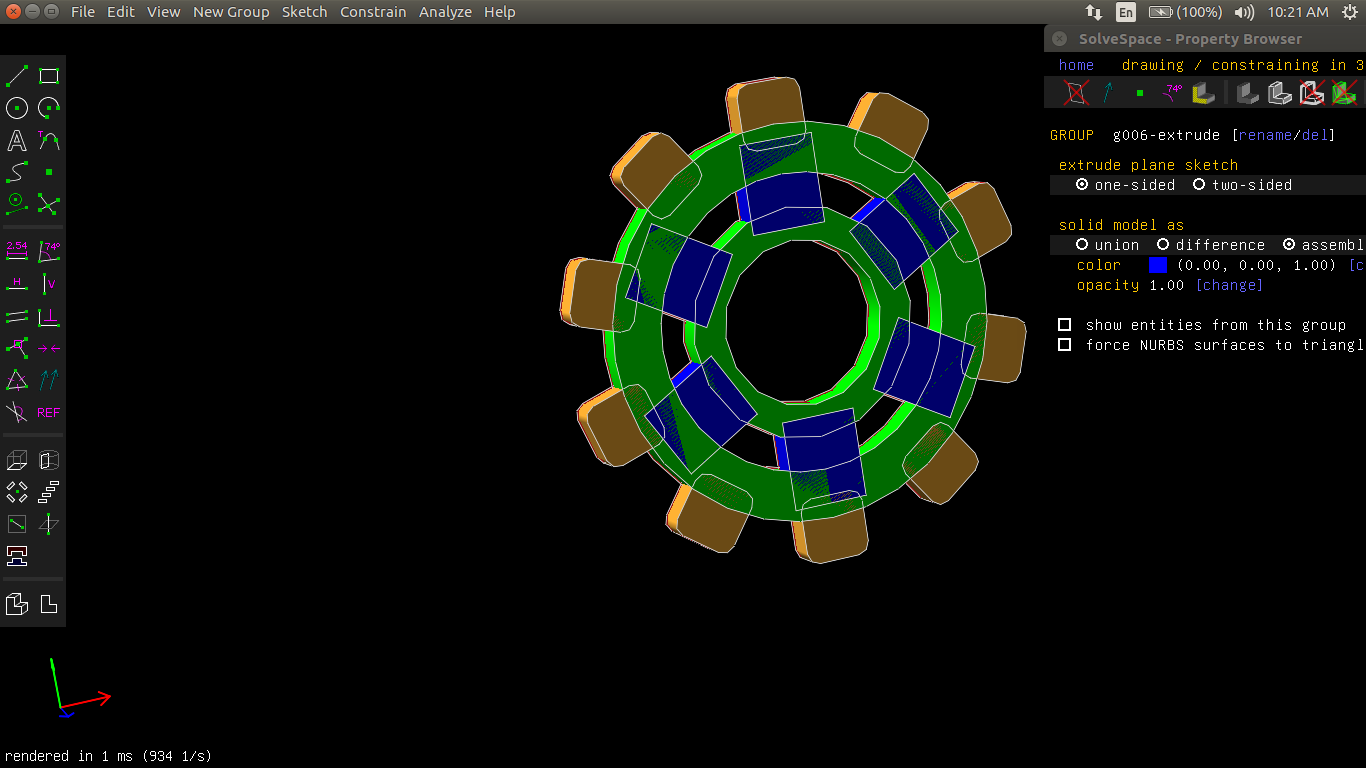

Coputer Added Design
assignment
model (raster, vector, 2D, 3D, render, animate, simulate, ...) a possible final project, and post it on your class page

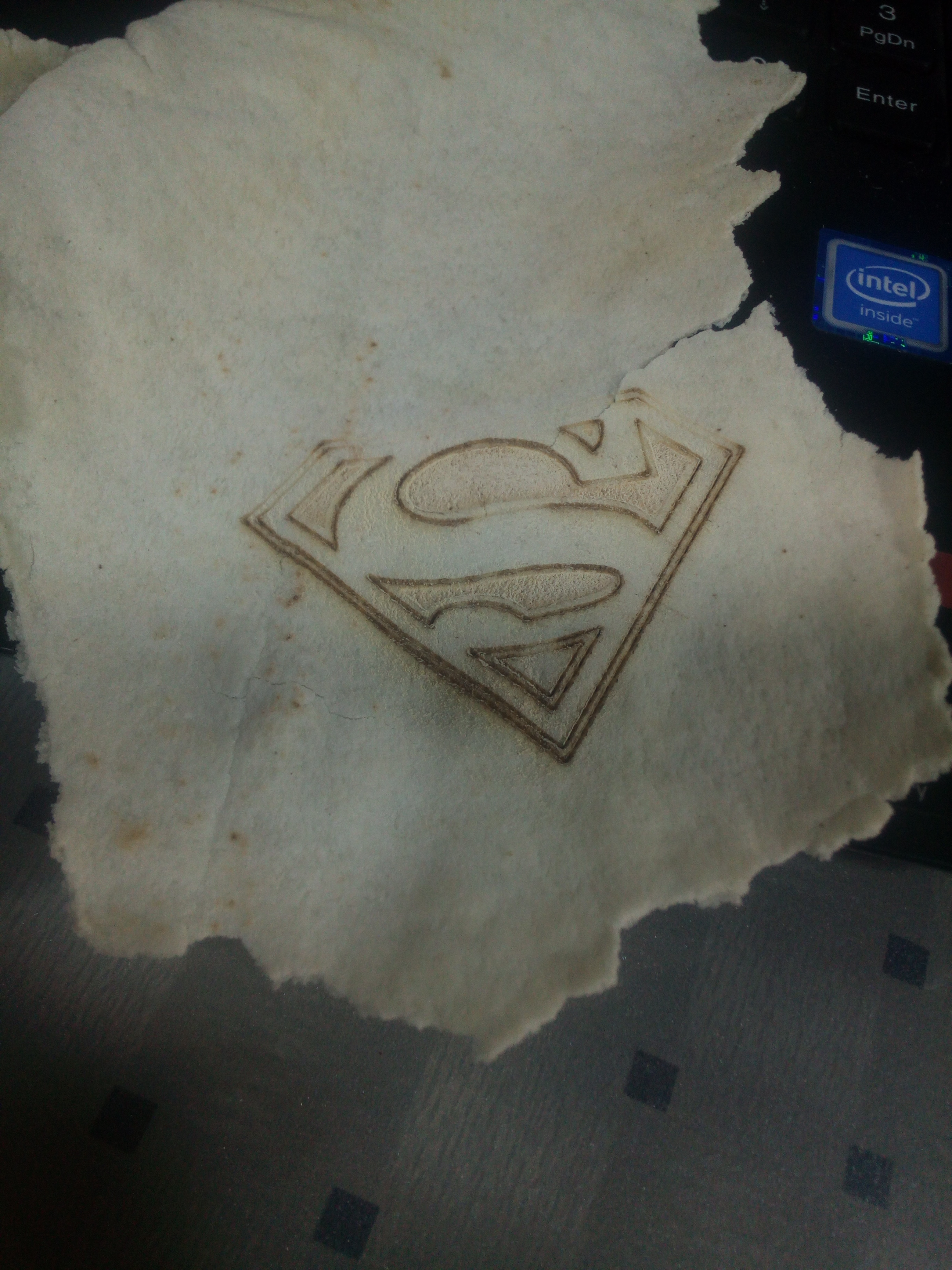

Computer-Controlled Cutting
group assignment:
characterize your lasercutter, making test part(s)
that vary cutting settings and dimensions
individual assignment:
cut something on the vinylcutter
design, lasercut, and document a parametric press-fit construction kit,
accounting for the lasercutter kerf,
which can be assembled in multiple ways

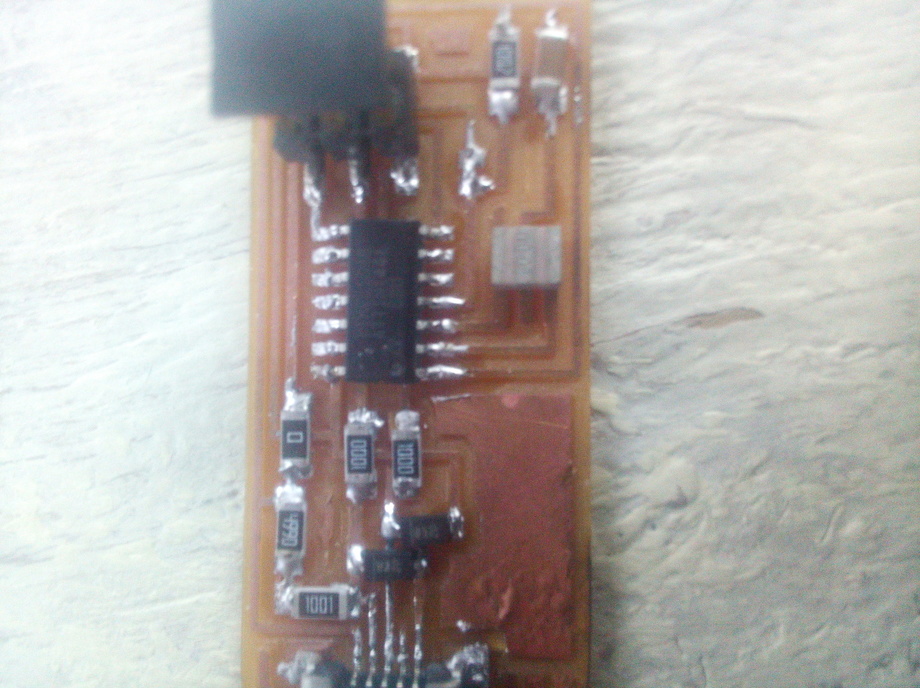

Electronics Productions
assignment
group assignment:
characterize the specifications of your PCB production process
individual assignment:
make an in-circuit programmer by milling the PCB,
then optionally trying other processes
ATtiny45
Tomás Jonathan Brian Zaerc
ATtiny44
Ali Valentin Andy David
hello.ISP.44.cad board components traces interior
hello.ISP.44.res.cad board traces interior
inventory microcontroller crystal USB connector ribbon connector Zener diode jumper
firmware.zip programming

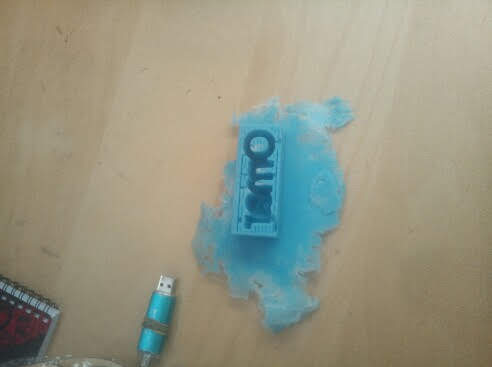

3D printing
assignment
group assignment:
- test the design rules for your 3D printer(s)
individual assignment:
- design and 3D print an object (small, few cm)
that could not be made subtractively
- 3D scan an object (and optionally print it)
Electronics design
assignment
group project:
use the test equipment in your lab to observe the operation
of a microcontroller circuit board
individual project:
redraw the echo hello-world board,
add (at least) a button and LED (with current-limiting resistor)
check the design rules, make it, and test it
extra credit: simulate its operation
extra credit: render it
Computer Controlled Machining
group assignment
test runout, alignment, speeds, feeds, and toolpaths for your machine
individual assignment
make something big
Embedded Programming
individual assignment:

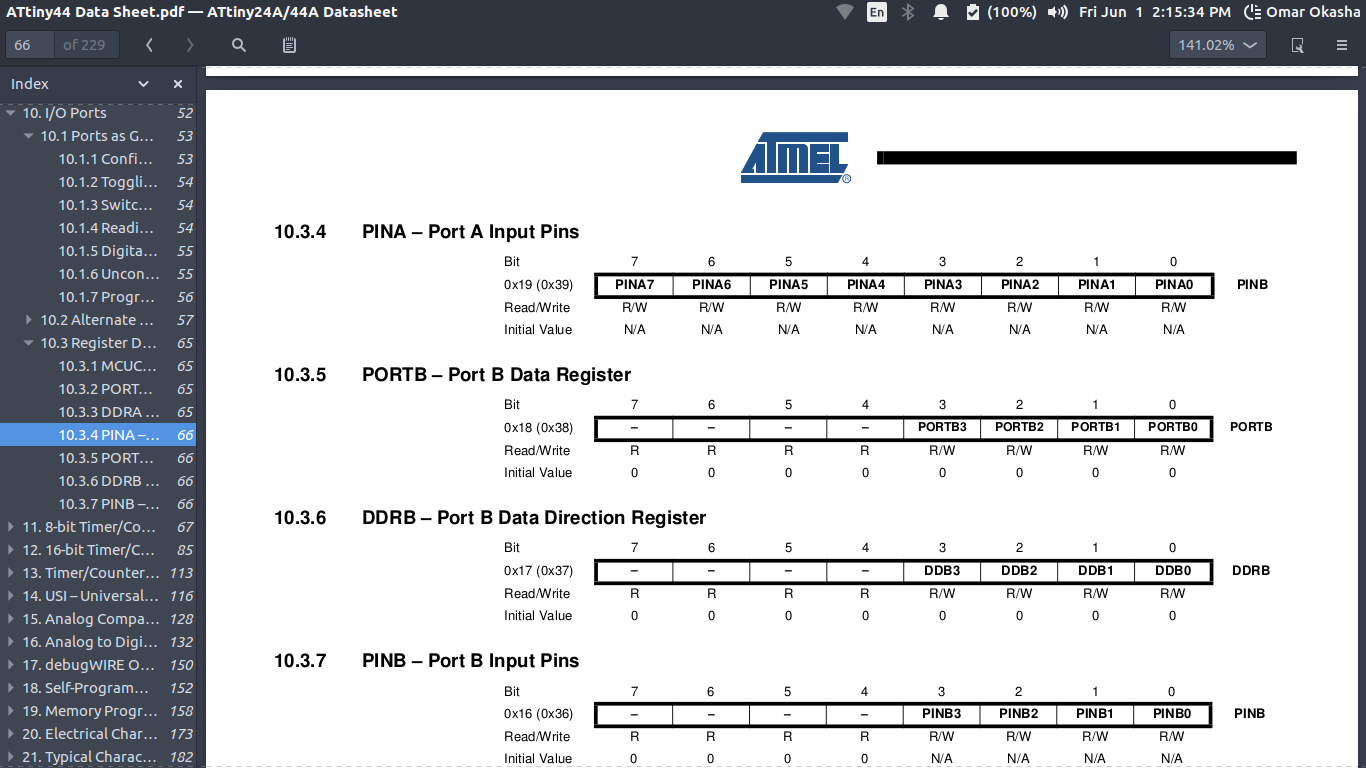

read a microcontroller data sheet
program your board to do something,
with as many different programming languages
and programming environments as possible
group assignment:
compare the performance and development workflows
for other architectures

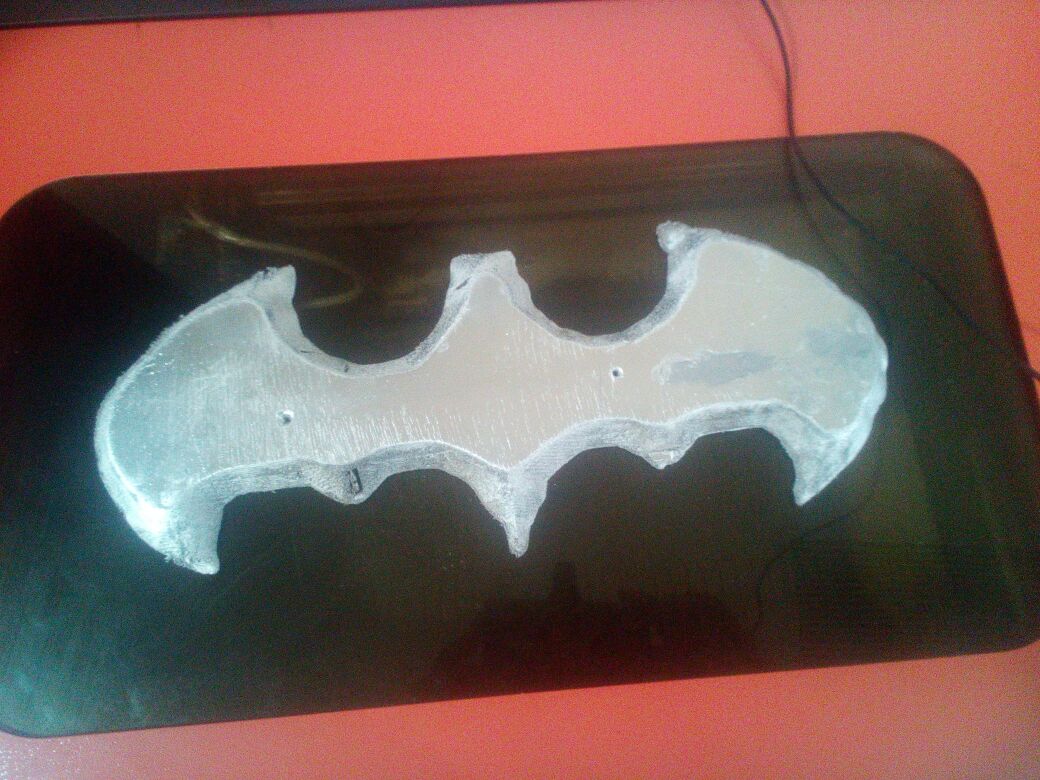

Moulding and Casting
Group assignment:
Review the safety data sheets for each of your molding and casting materials, then make and compare tests with each of them.
Individual assignment:
Design a 3D mold around the stock and tooling that you’ll be using, machine it, and use it to cast parts.
Input Programming
assignment individual assignment: measure something: add a sensor to a microcontroller board that you have designed and read it group assignment: measure the analog levels and digital signals in an input device
Output Device
assignment individual assignment: add an output device to a microcontroller board you've designed, and program it to do something group assignment: measure the power consumption of an output device

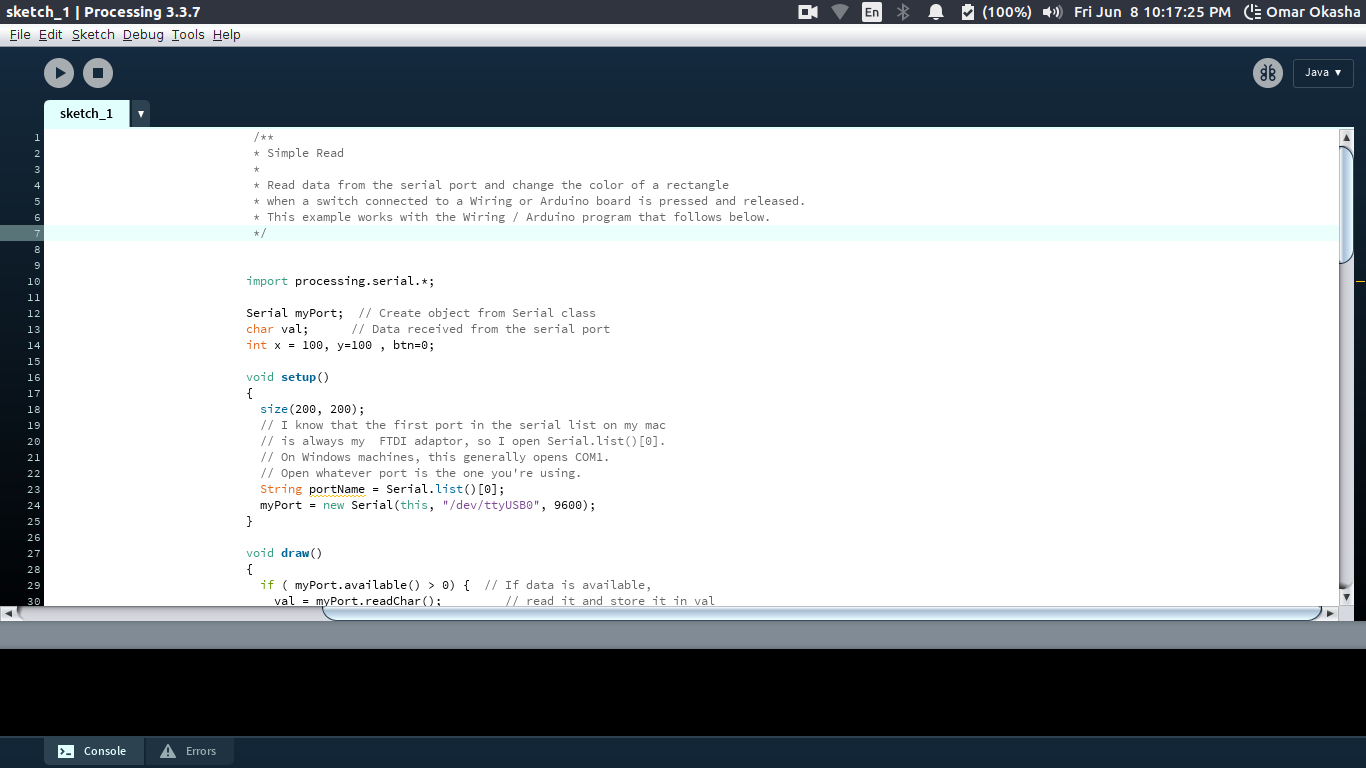

Interface and Application Programming
assignment individual assignment: write an application that interfaces with an input &/or output device that you made group assignment: compare as many tool options as possible

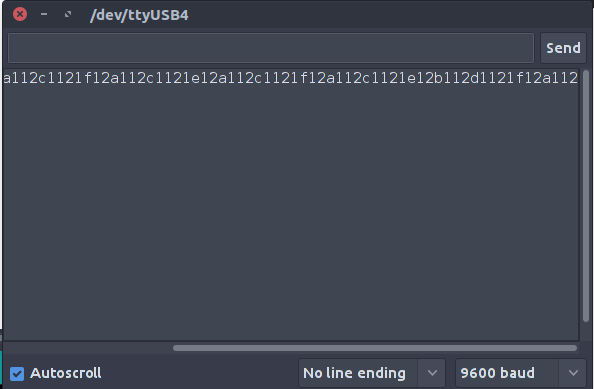

Networking and Communication
assignment individual assignment: design and build a wired &/or wireless network connecting at least two processorsfpre group assignment: send a message between two projects
