CAD CAD in OpenSource World

Assignment 3

• Glossary of Common CAD terms - Virginia
• Glossary of AutoCAD Terms

• Attribute CAD Applications: Information or data about a drawing object which can be hidden or appear in the drawing as text. Often this information can be extracted from the drawing and used in a spreadsheet or other program.. Vectorworks: Color, Pattern, or Marker Style of an object.
• Center point The defining point at the exact center of a circle, arc, regular polygon or ellipse.
• Chamfer A diagonal line which connects points on two intersecting objects such as an angled corner. The chamfer tool is an editing tool.
• Constraint A drawing tool which limits drawing to a particular point, line or angle. Some common constraints are snap to grid and ortho.
• Coordinates A sytem of numbers used to locate a point or object in a drawing. In the Cartesian coordinate system 2 numbers x and y are used to describe the location of a point in the horizontal and vertical dimensions respectively. 3D CAD programs add the z coordinate which describes distance in the third dimension. In the Polar coordinate system a point is described by a distance and an angle where 0° exends horizontally to the right.
• Cursor The screen symbol or icon which represents the current mouse location relative to the drawing window or viewport. The cursor may appear as crosshairs or another symbol based on which command is active.
• DXF Drawing exchange format created by Autodesk. An ascii text file format describing drawing data and settings to translate drawings between programs and formats. Note: DXF is not a standardized format and different programs convert or ignore different entities found in a DXF file.
• Ellipse A CAD drawing object defined by a major axis, minor axis and centerpoint. An ellipse may also be constructed out of arcs and line segments. An ellipse created in this way is not mathematically a true ellipse but is an easier object to edit.
• Fillet (Rhymes with skillet). An arc connecting endpoints of two intersecting lines or objects, often a rounded corner.
• Grid A drawing tool which is usually a pattern of regularly spaced dots or lines which make the alignment and drawing of objects easier. A snap to grid tool constrains or locks all drawing to grid points only.
• Layer A property of any drawing object. Usually objects are organized onto different layers for organazational purposes and ease of drawing, viewing and editing. Layers often can be named and can have default colors or other properties associated with them. Vectorworks Layers have the added ability to have associated properties of scale, view, and projection. These added properties of Vectorworks layers are similar in function to AutoCAD paperspace.
• Line A CAD object defined by two endpoints.
• Offset The distance between two objects. Offsets are often used to draw parallel lines or determine the location of a dimension. In AutoCAD a command which creates a duplicate of an object at a specified distance.
• Origin The point in a drawing with the x,y coordinates of 0,0.
• Polygon A complex object composed of three or more straight lines in a closed figure. Polygons are treated differently by diffent CAD programs. Often a polygon is simply a closed polyline entity.
• Polyline A complex object composed of two or more lines, curves, or arcs which have contiguous endpoints. A closed polyline or polygon has its endpoints joined into a closed form. Polylines are more difficult to edit than a form drawn with individual line segments, but offers some advantages when editing or building surfaces and 3 dimensional objects.
• Resolution The clarity or degree to which individual elements can be discerned on a monitor or print/plot. Common monitor resolutions include 600x800 and 1280x1024 measured in pixels. Common laser printer and plotter resolutions range from 300x300 to 600x600 dots per inch. Resolution of these devices determines how accurate a printout will be or how accurate an object will appear on the screen. The actual resolution of objects saved in the drawing database is usually much higher to insure a high degree of accuracy. When drawing objects are viewed on screen or plotted their size and position is rounded to the nearest dot at the resolution of a given device.
• Circle To Draw a Circle and it can be defined with Origin and radius or Diameter .
• Square To draw a Square and can be defined with two diagonal points .
• Arc to draw an Arc and can be defined with two points and raduis .
• Rotate A drawing editing tool which rotates objects or groups of objects based on a center of rotation and an angle.
• Scale An editing tool which changes the size of an object relative to percentage. Some objects can be rescaled to different percentages in the x and y directions.
• Trim A drawing editing command which causes one object to end exactly at another. Trim points are calculated mathmatically so they are exact. Some complex objects such as curves cannot be trimmed to.
• Tangent A line which intersects a circle, ellipse or arc at only one point. Tangent lines to Bezier curves define the shape of the curve.

sudo apt-add-repository ppa:freecad-maintainers/freecad-stable
sudo apt-get update
sudo apt-get freecad

• Design File fcstd file
• LEG DXF
• Circle DXF

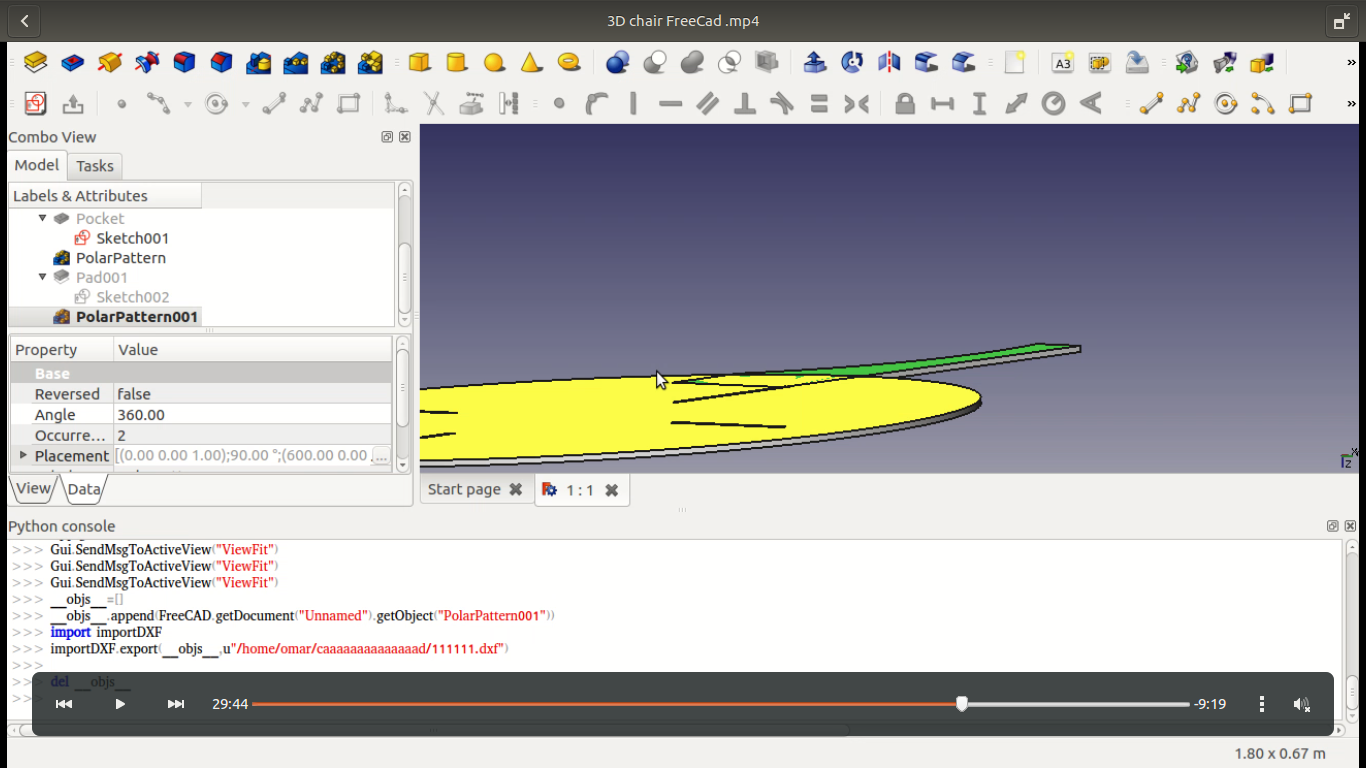

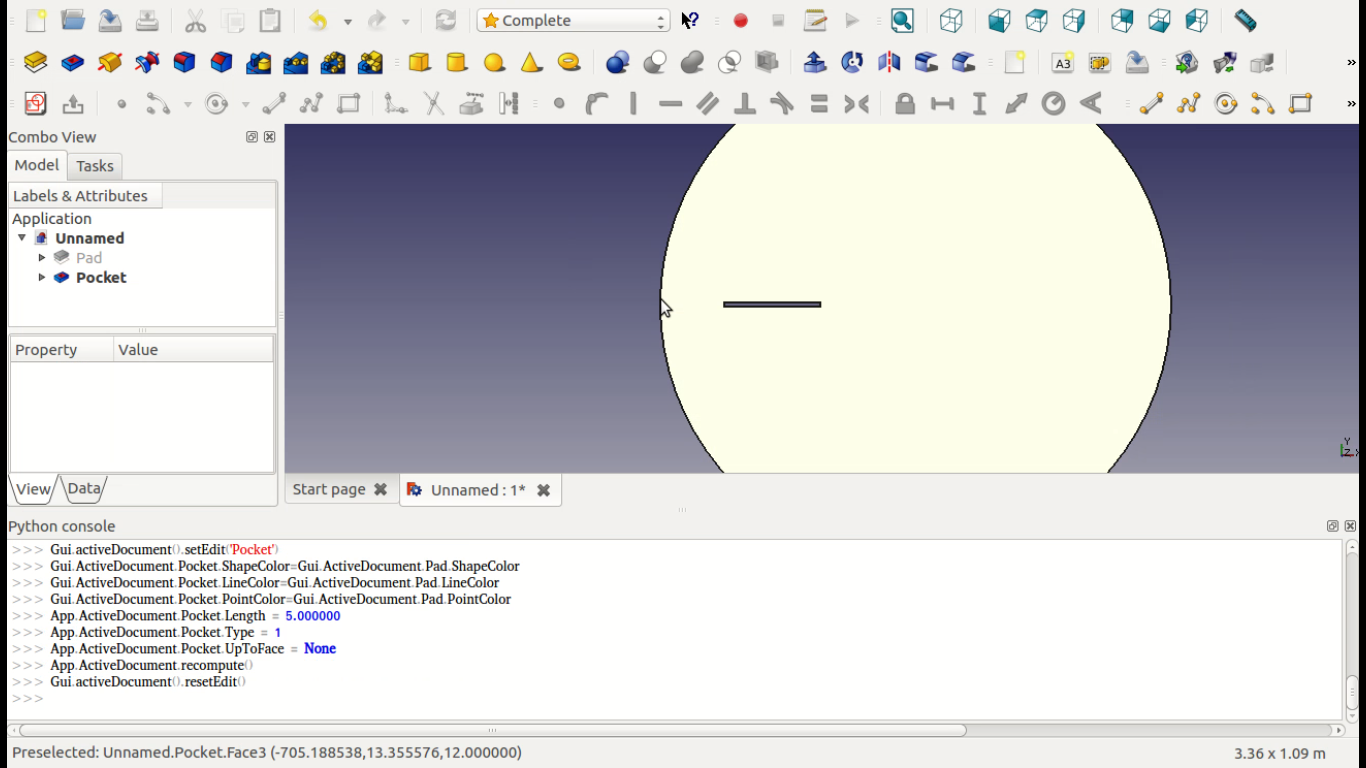

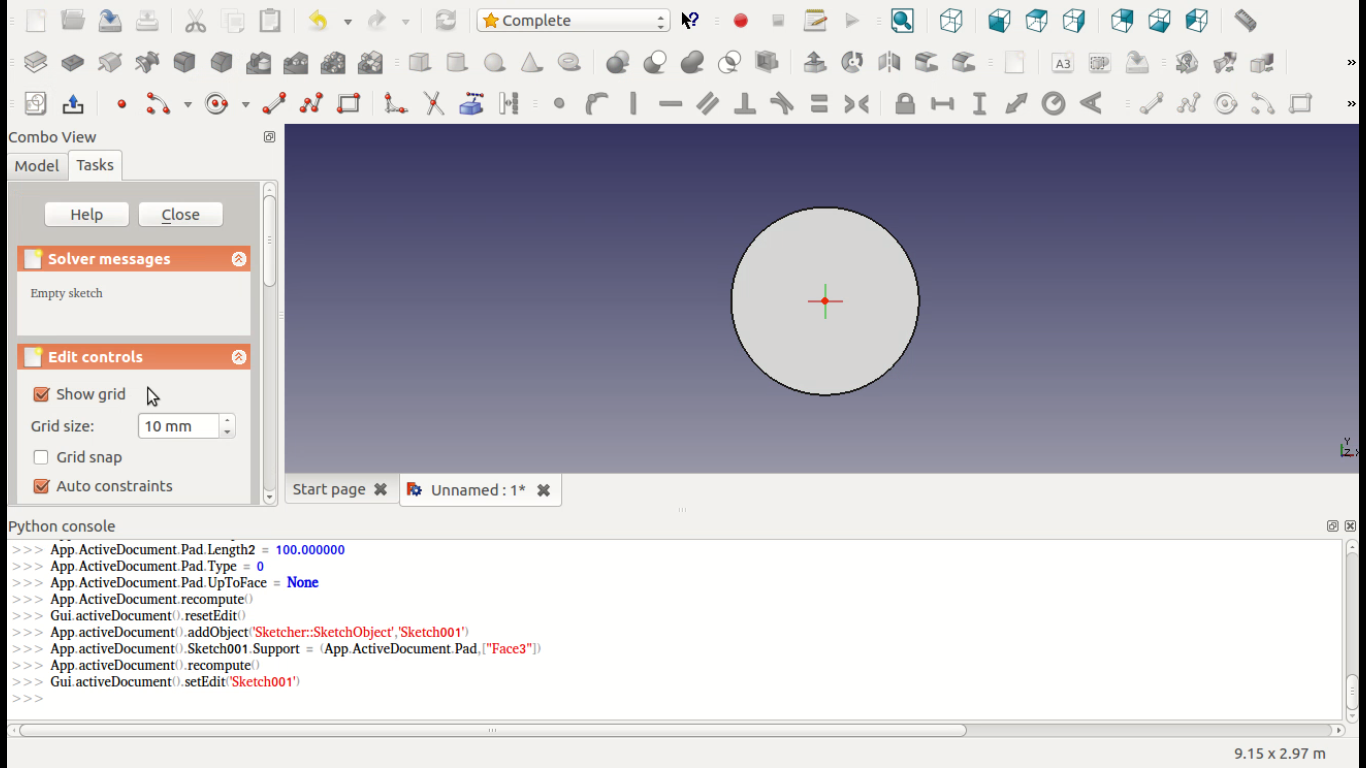

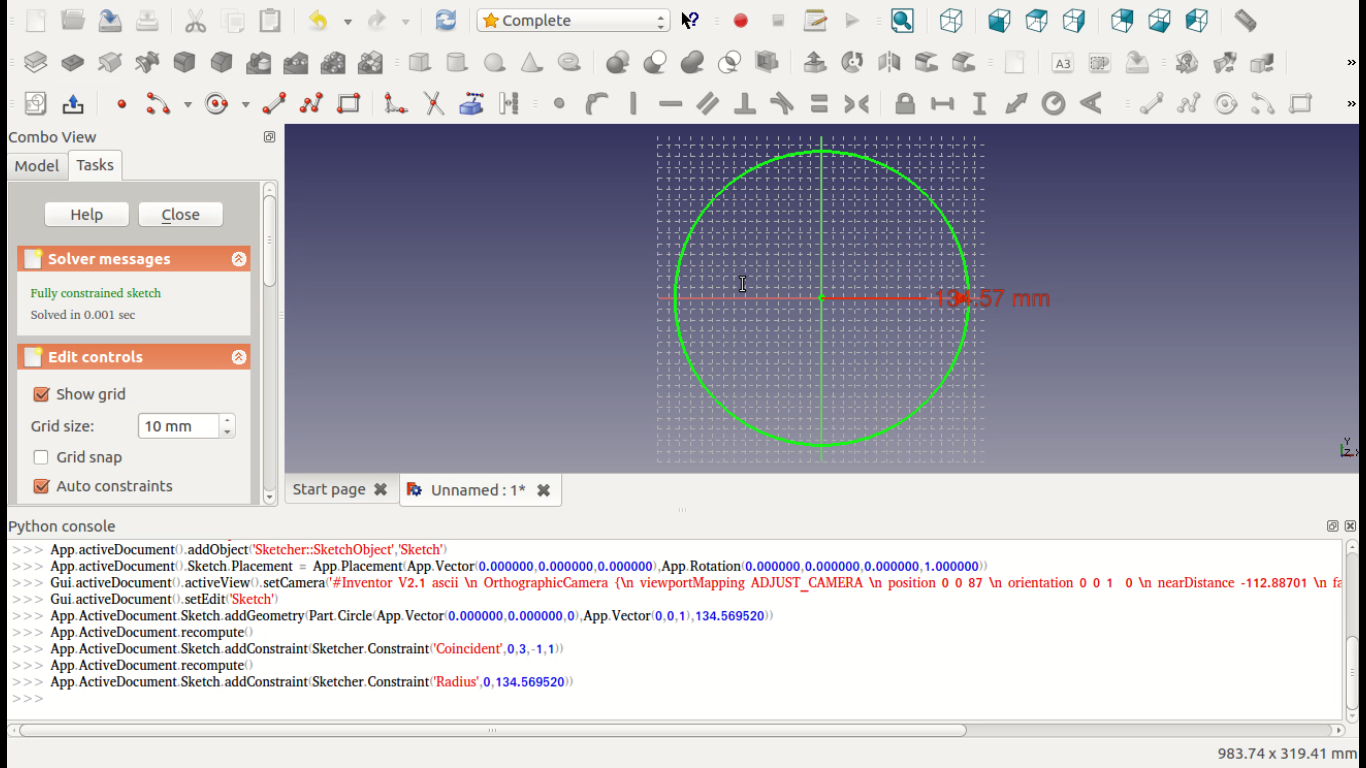

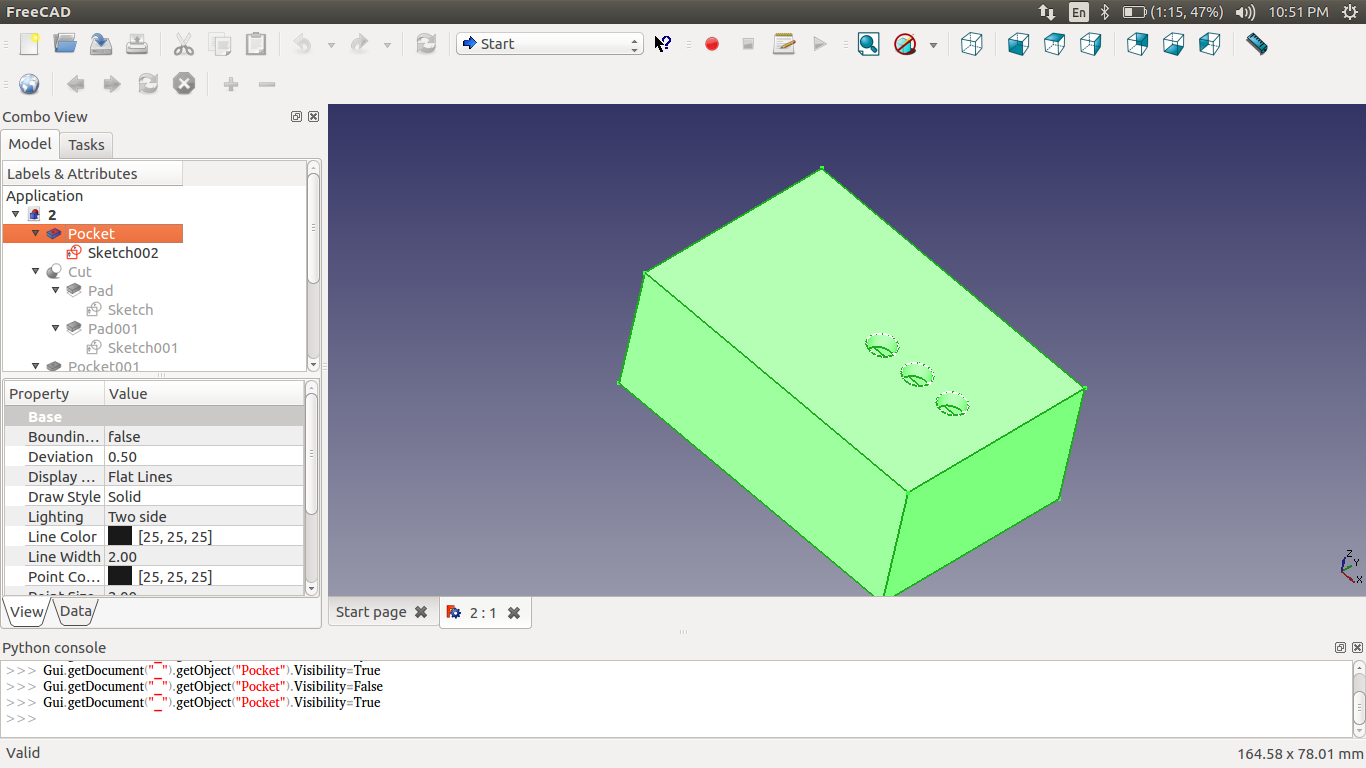

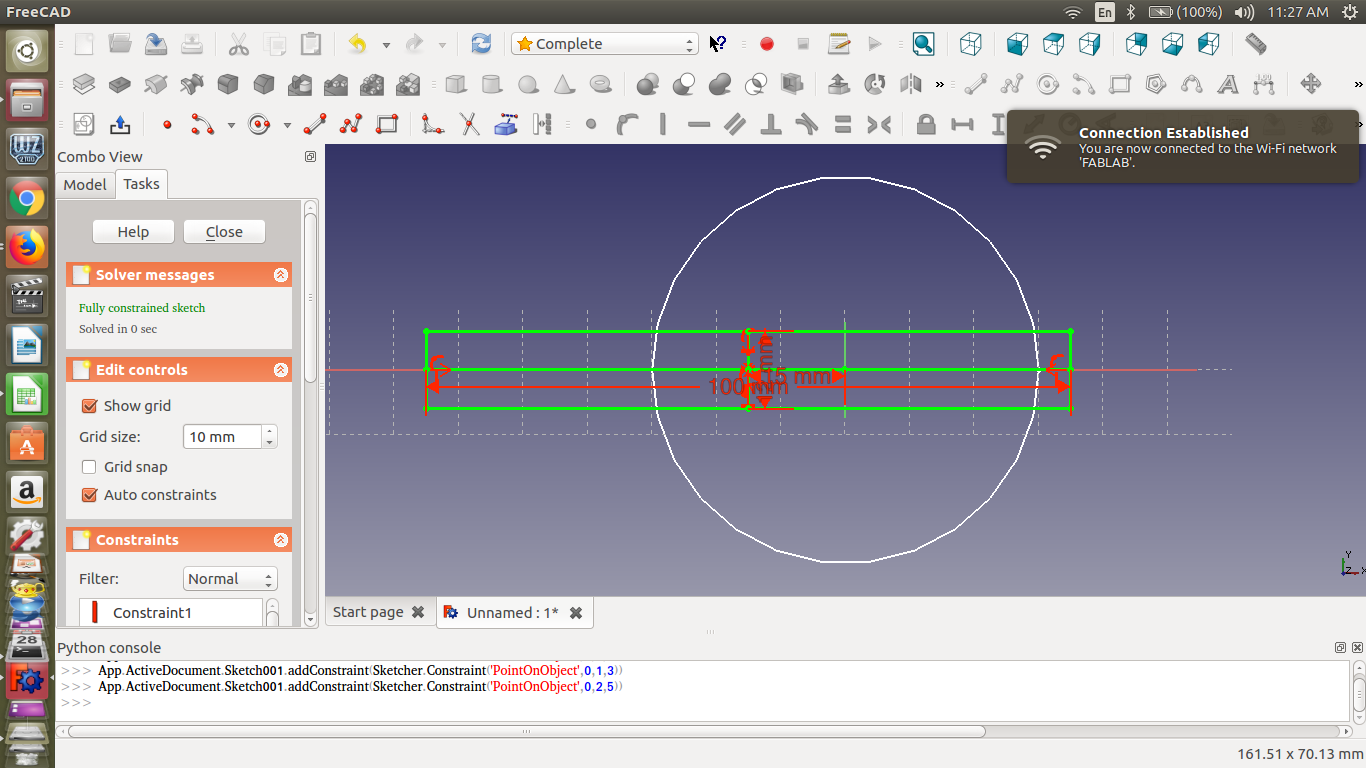

Then I start designing a draft for the final project as a usb device with 3 LEDs that will enter inside the device to show type of connection with PC and an open for the analog joystic this is the series of pics to what I made

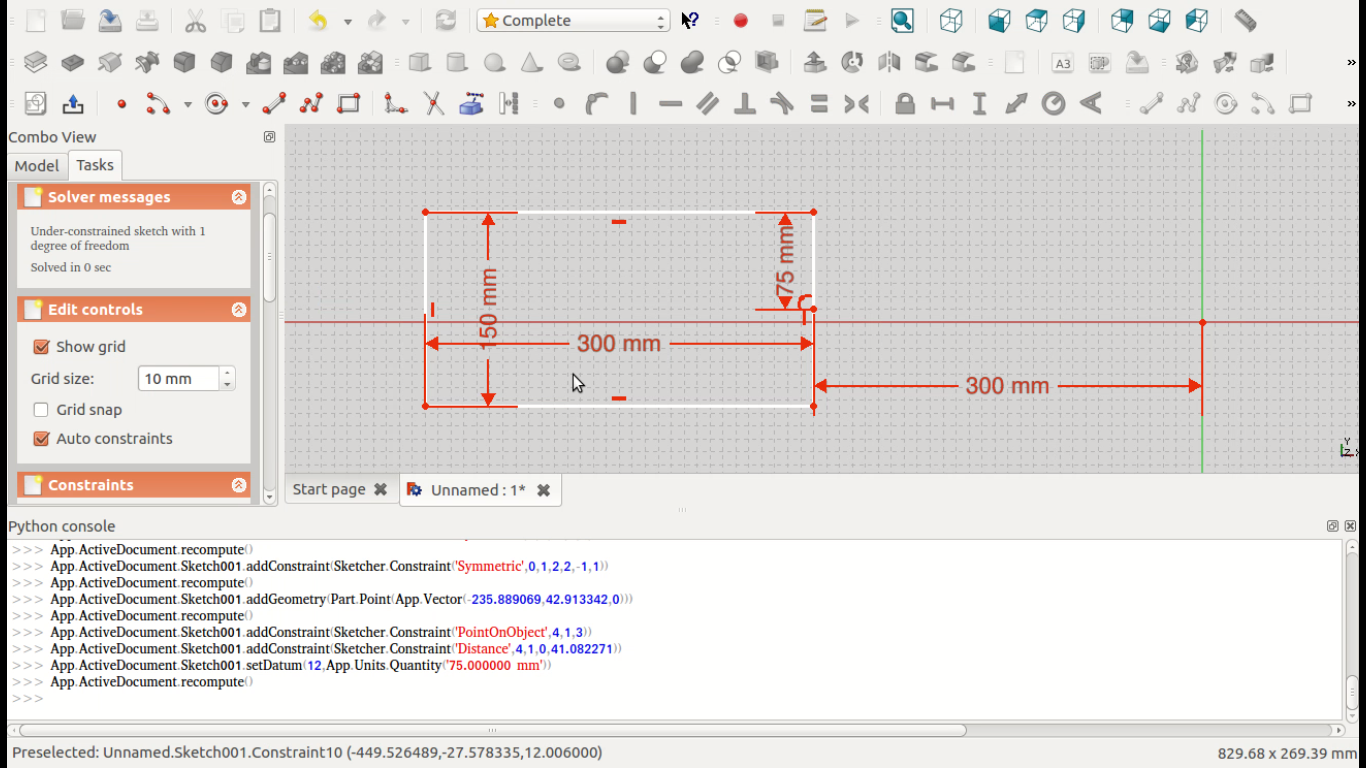

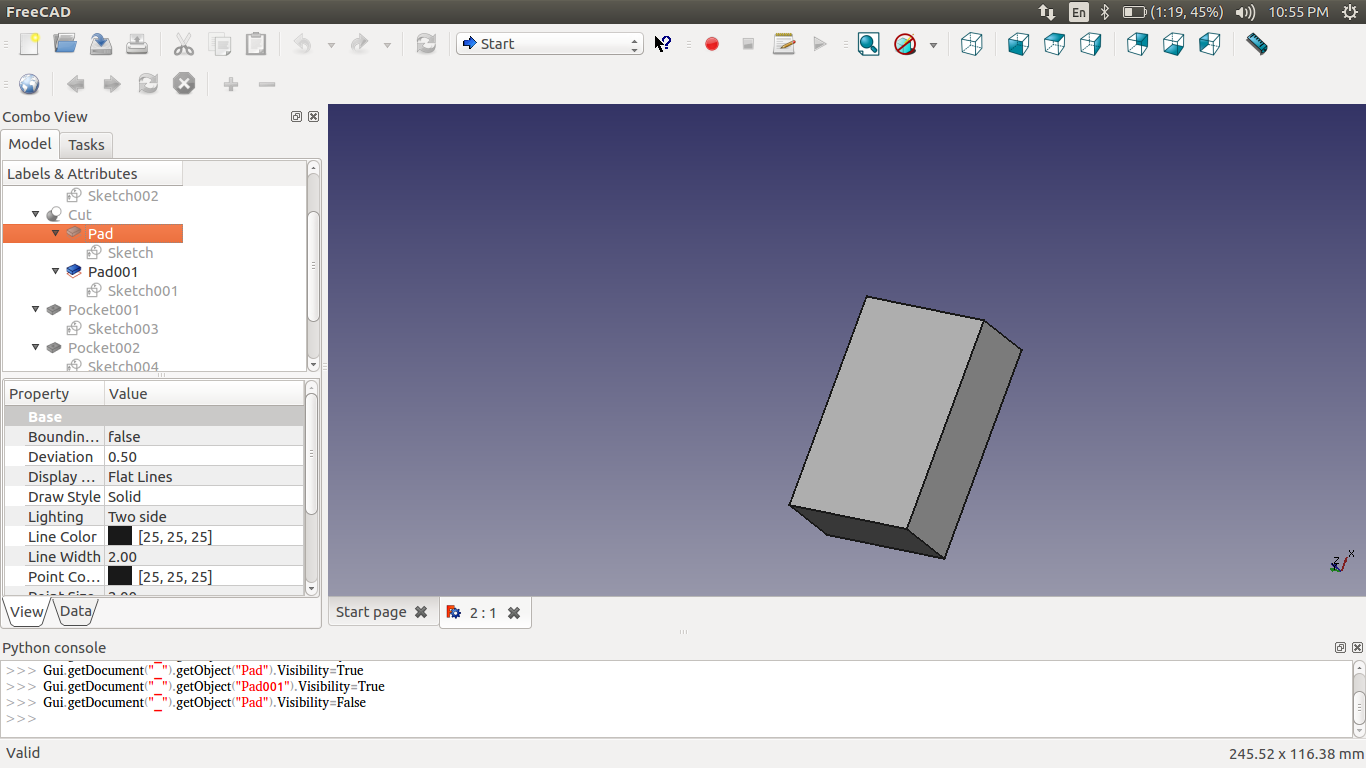

I make 2 boxes 1 inside the other and Cut the small from the big one to make it hollow ..

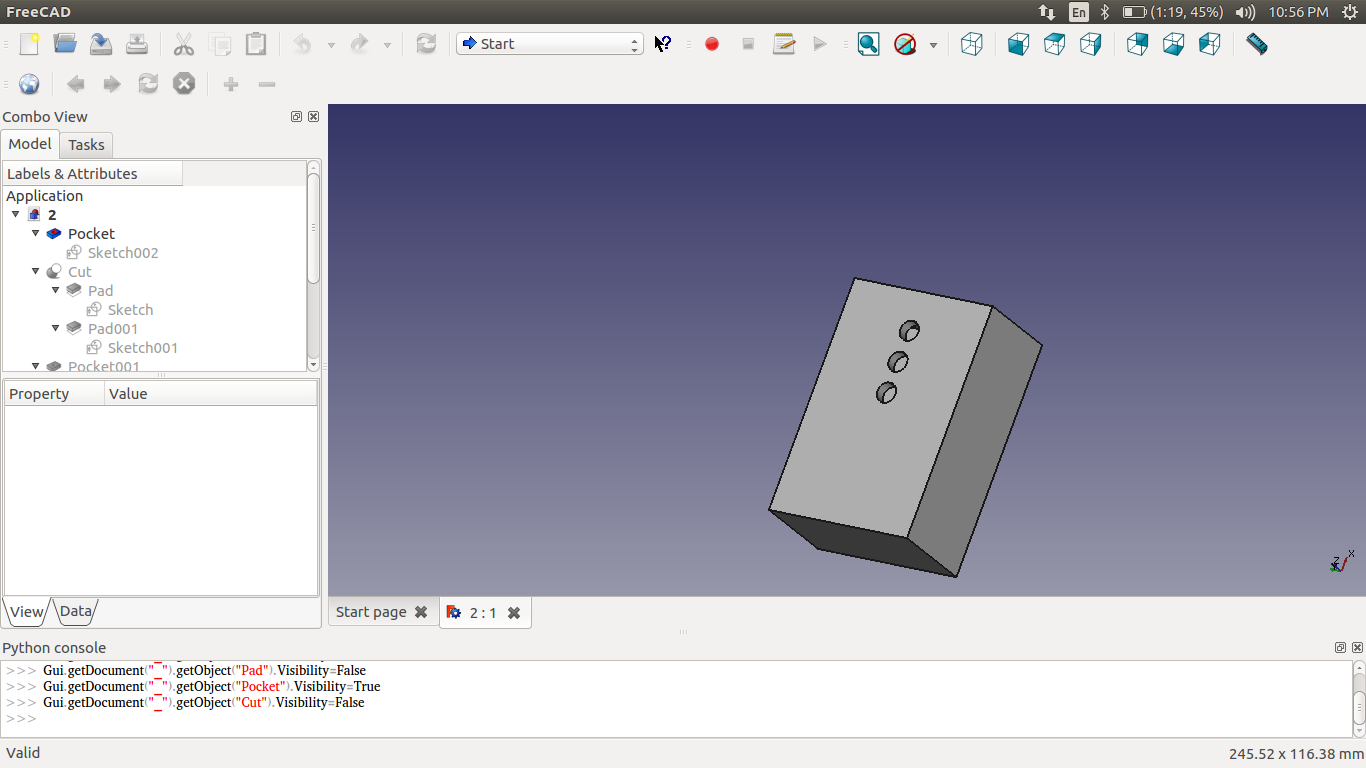

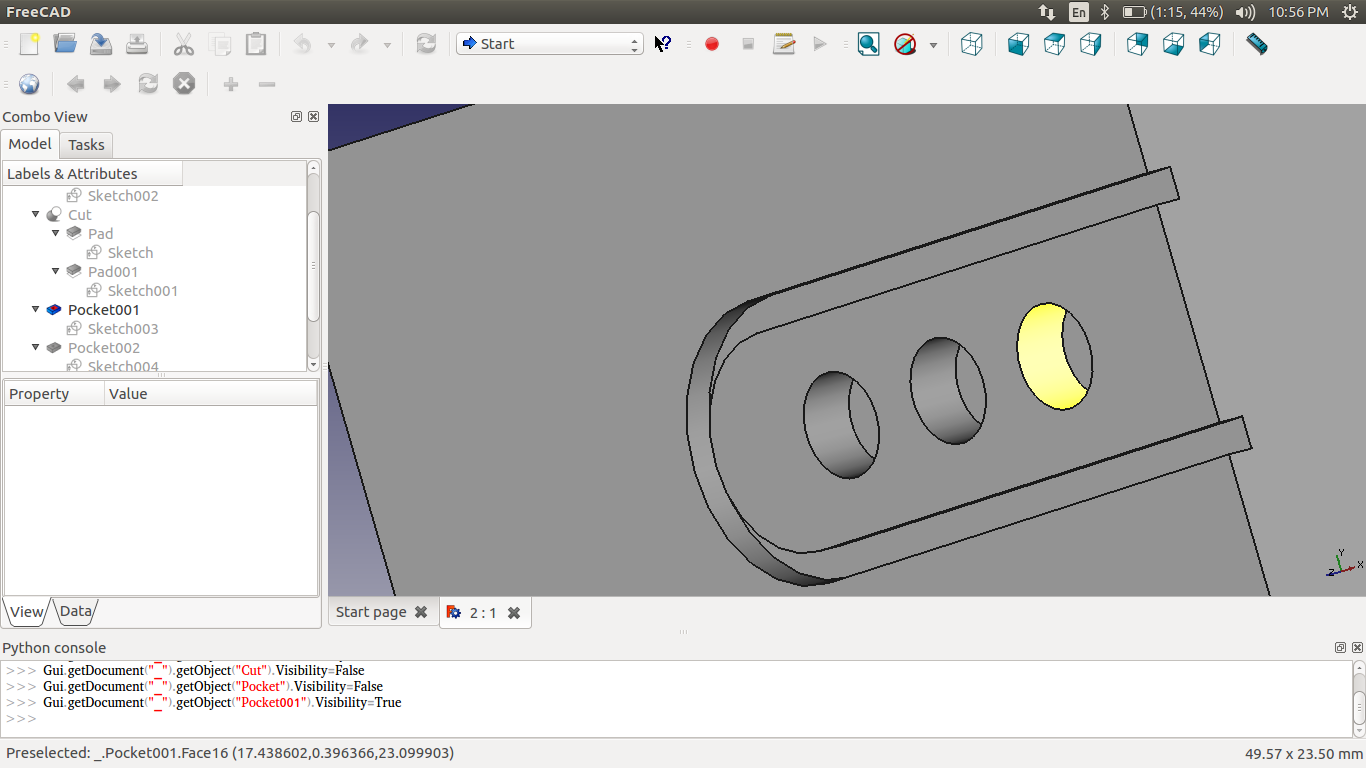

I start making holes for the LEDs

I start making just a beautiful cut :D :D around the LEDs

I start making an open for the joystic Update : I changed it is Dimensions to fit the real analog when i get one and i measured it is dimensions .

This I added a branding Engraved Holes as a branding for the Products :D :D WHich looks like this O.O

This is the FIle of the design ..

• Design File Fcstd file

That is my Journey with freecad

Then Let's turn over to OpenScad

Informations about OpenScad :

What I found about OpenScad in my first search about it .. It is the weirdest and loved one for me because it is working with programming which makes me very happy ..

OpenScad Documentation

This is how to install it on Ubuntu ..

$ sudo add-apt-repository ppa:openscad/releases
$ sudo apt-get update
$ sudo apt-get install openscad

It is very Interesting Experience indeed the idea if using Programming and Boolean Operations to Start Design using Code .. what a Beautiful Idea

Before Going to the code .. To understand it even I think you can read it easily .. But Those 2 Links are a very great links for OpenScad

• OpenSCAD User Manual
• OpenSCAD CheatSheet

This is the code I made :)

difference(){
difference(){
    color("Magenta",0.5)

linear_extrude(height = 10, center = true, convexity = 100, twist = 0,$fn = 100)
{



translate([0,0, 0])
 square([10,10],true);

}
  color("DarkOrchid",0.5)
linear_extrude(height = 8, center = true, convexity = 100, twist = 0,$fn = 100)
{


    translate([0, 0 ,0])

 square([8,8],true);
}

}
translate([0, 3.5, 4])

linear_extrude(height = 3, center = true, convexity = 100, twist = 0,$fn = 100)
circle(r = 1);


translate([0, 1, 4])

linear_extrude(height = 3, center = true, convexity = 100, twist = 0,$fn = 100)
circle(r = 1);

translate([0, -1.5, 4])

linear_extrude(height = 3, center = true, convexity = 100, twist = 0,$fn = 100)
circle(r = 1);


x=8.4;
y=5;
translate([-2.6,5,5])
rotate(a=[0,0,270])
linear_extrude(height = 1, center = true, convexity = 100, twist = 0,$fn = 100)
polygon(points=[[0,0],[x,0],[x,y],[0,y],[0,y-.5],[x-.5,y-.5],[x-.5,.5],[0,.5]], paths=[[0,1,2,3,4,5,6,7,8]],convexity=10);
}

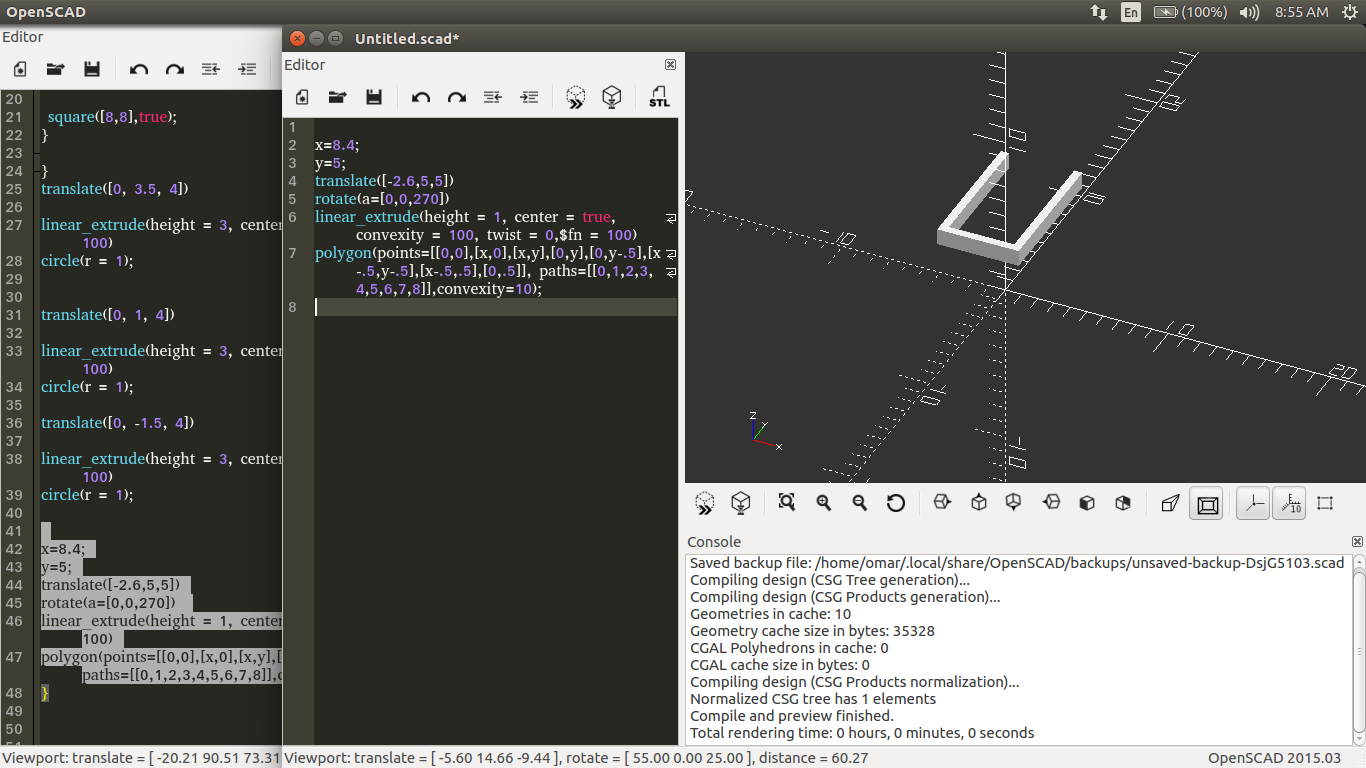

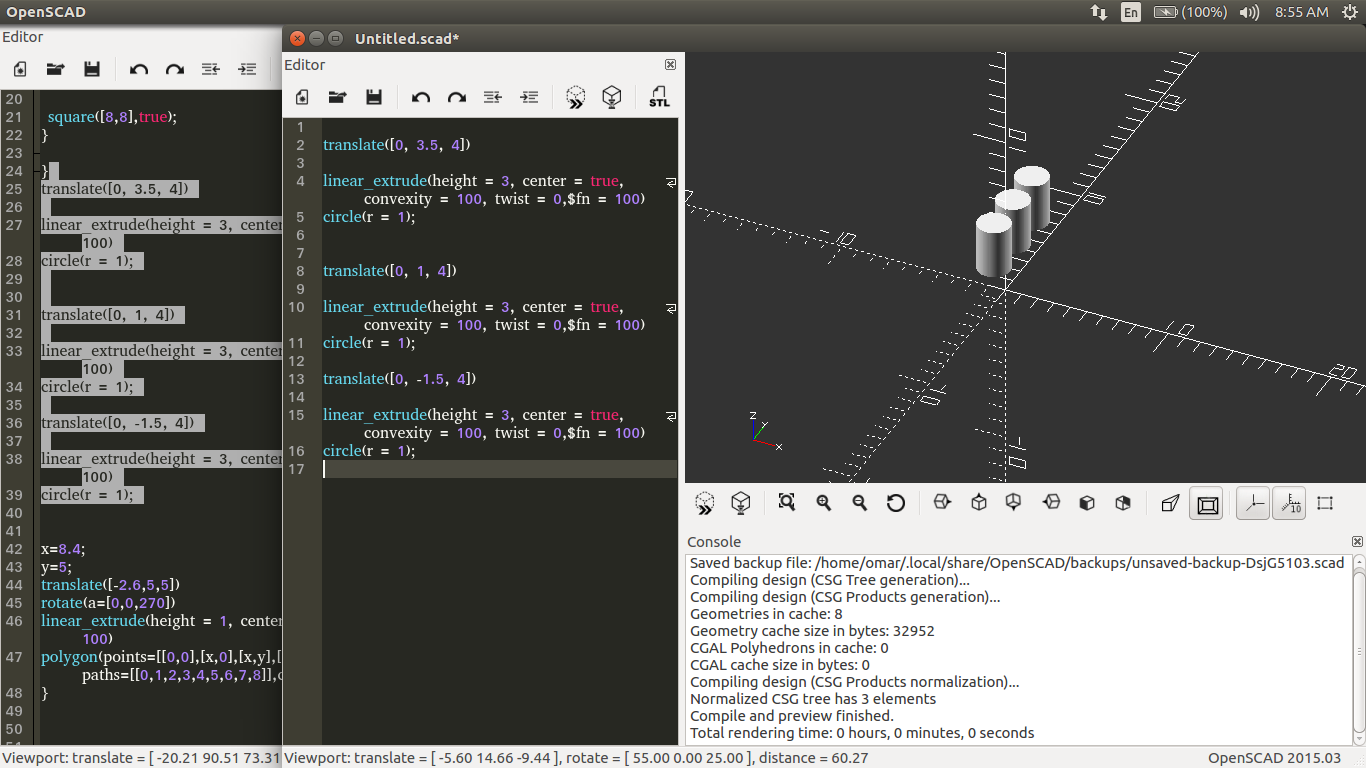

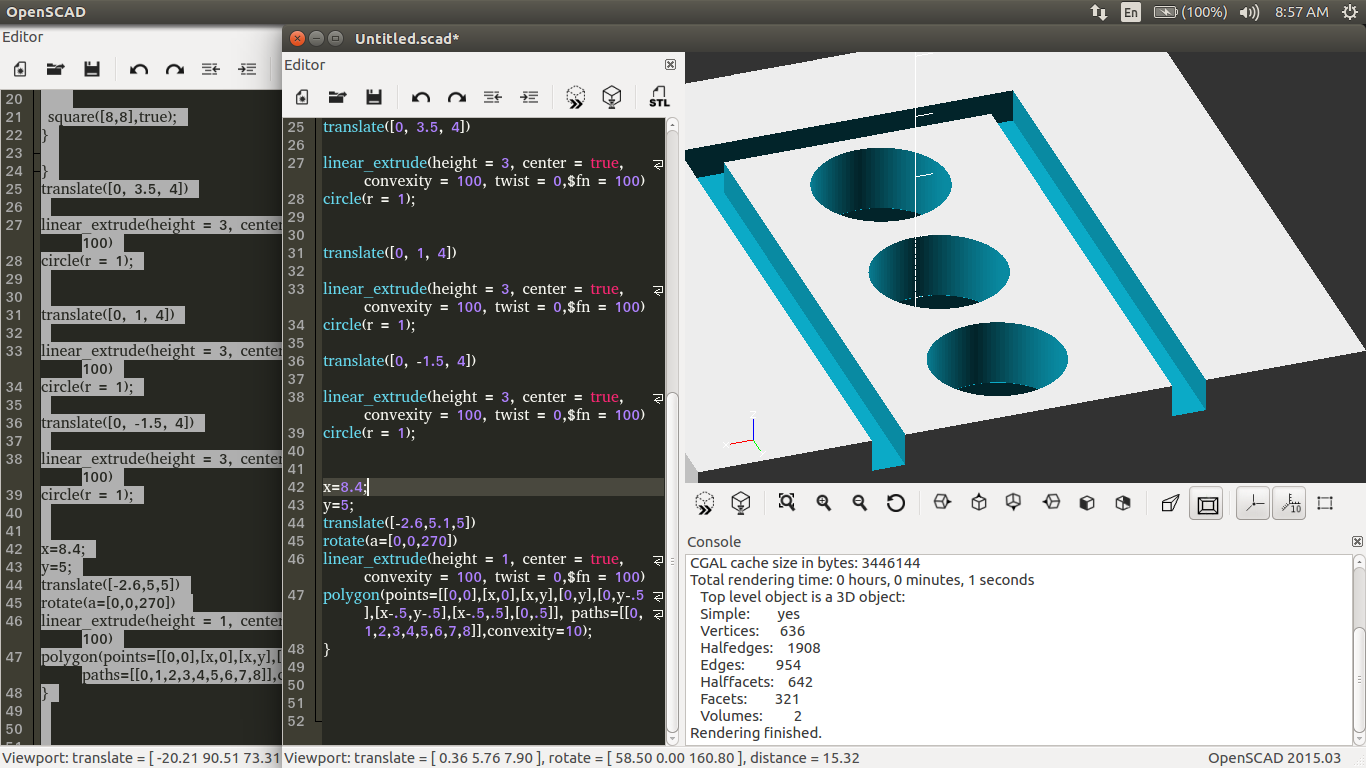

Understanding the Concept of openScad .. Let's Show you the Output and Discuss what I made

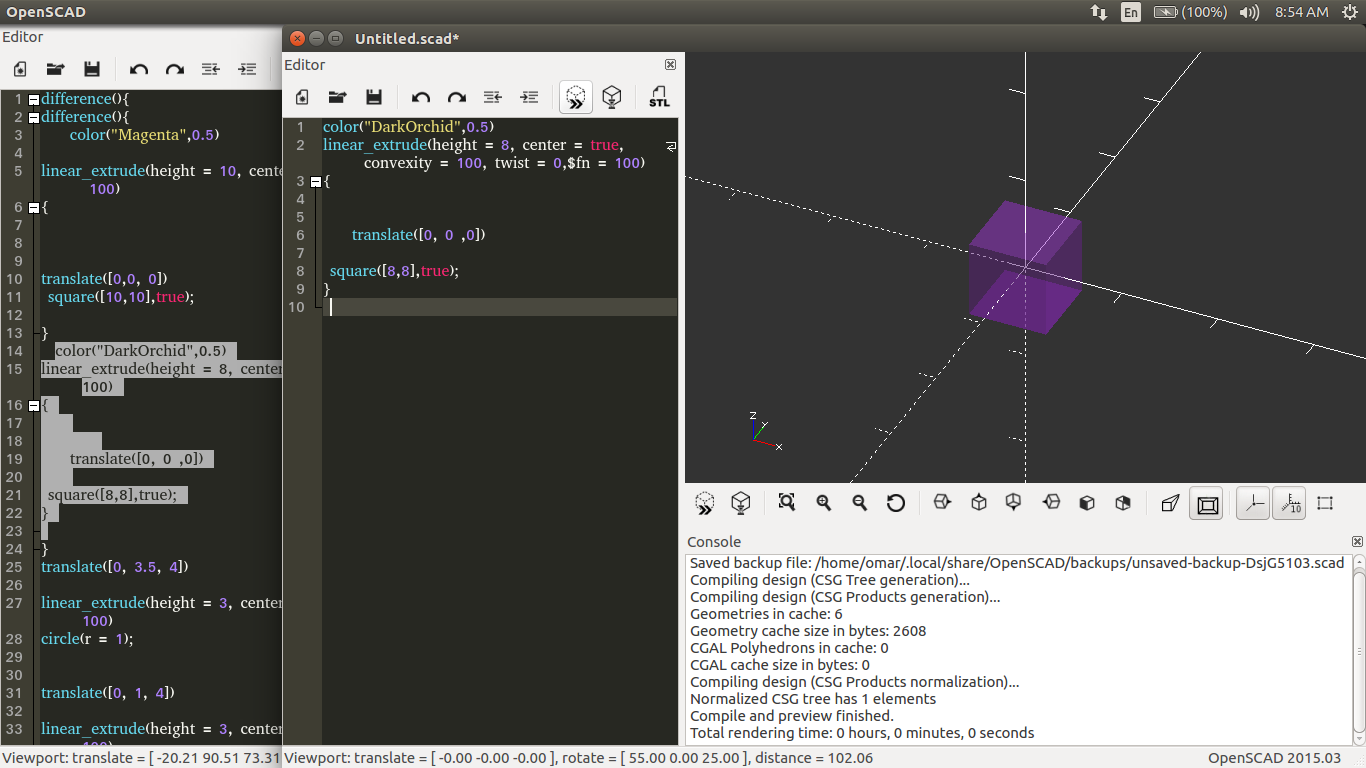

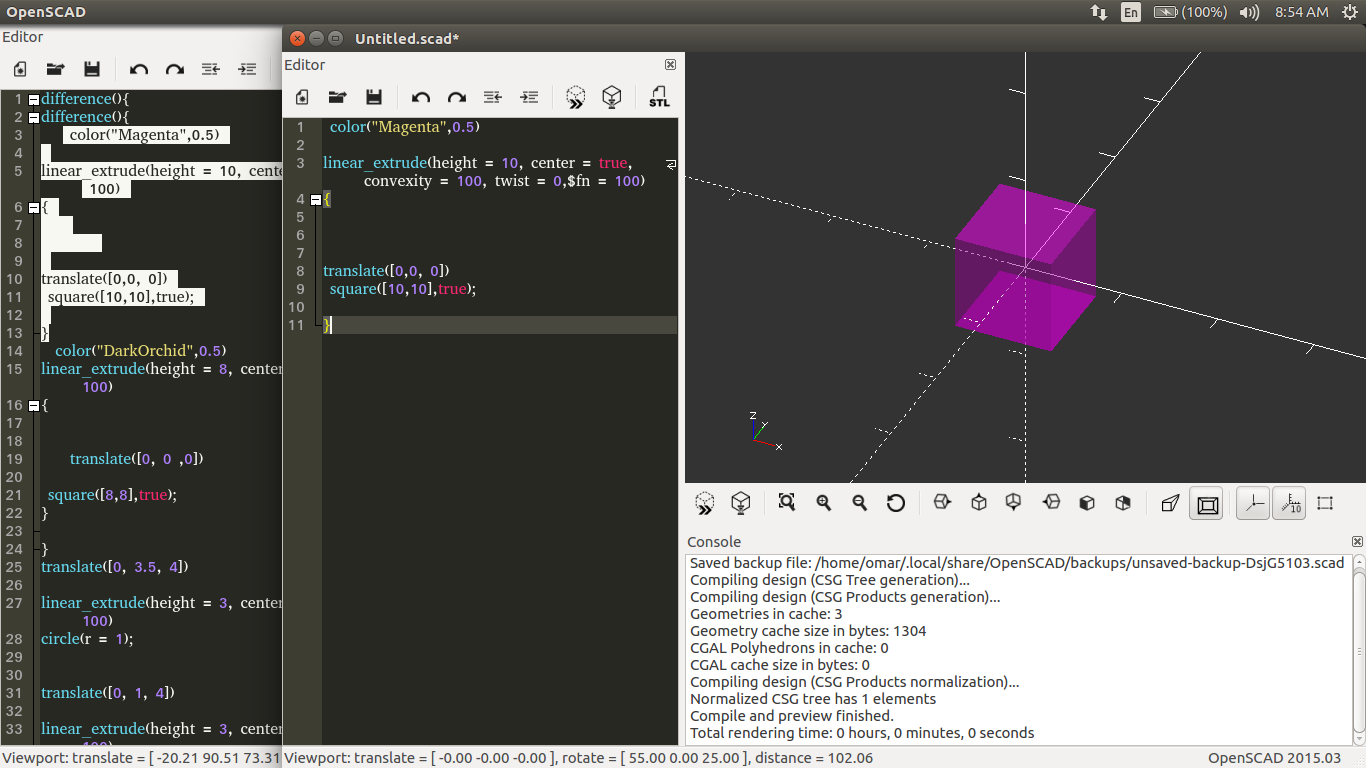

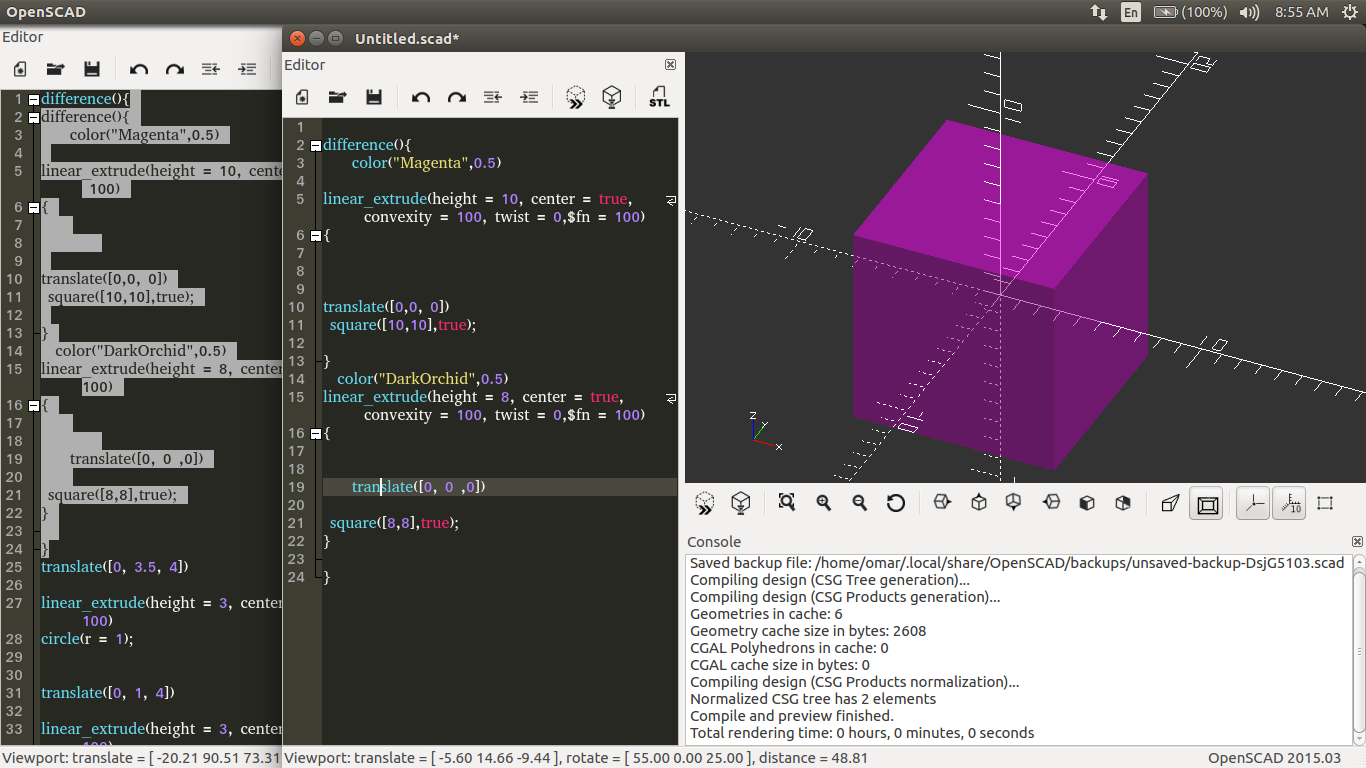

This one is Without Render

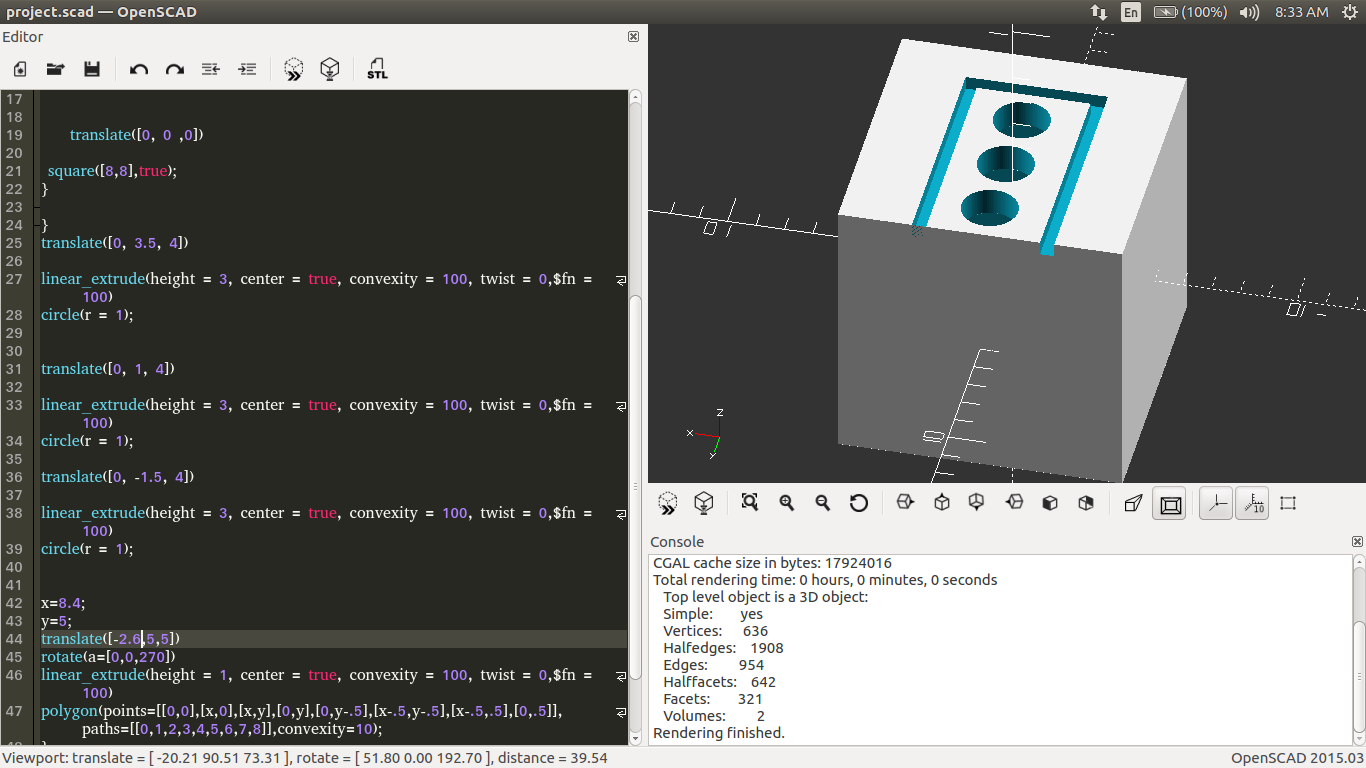

This one is With Render

color("Magenta",0.5)

linear_extrude(height = 10, center = true, convexity = 100, twist = 0,$fn = 100)
{
translate([0,0, 0])
 square([10,10],true);
}

This is to make a big box 10 cm * 10 cm
and here we use 2D to 3D

 color("DarkOrchid",0.5)
linear_extrude(height = 8, center = true, convexity = 100, twist = 0,$fn = 100)
{


    translate([0, 0 ,0])

 square([8,8],true);
}

This is to make a Small box inside the big box 8 cm * 8 cm

 difference(){
    color("Magenta",0.5)

linear_extrude(height = 10, center = true, convexity = 100, twist = 0,$fn = 100)
{



translate([0,0, 0])
 square([10,10],true);

}
  color("DarkOrchid",0.5)
linear_extrude(height = 8, center = true, convexity = 100, twist = 0,$fn = 100)
{


    translate([0, 0 ,0])

 square([8,8],true);
}

}

Here we cut the small box from the big box .. and this is called boolean Operations on 3D


translate([0, 3.5, 4])

linear_extrude(height = 3, center = true, convexity = 100, twist = 0,$fn = 100)
circle(r = 1);


translate([0, 1, 4])

linear_extrude(height = 3, center = true, convexity = 100, twist = 0,$fn = 100)
circle(r = 1);

translate([0, -1.5, 4])

linear_extrude(height = 3, center = true, convexity = 100, twist = 0,$fn = 100)
circle(r = 1);

Those are the 3 Holes that will be cut from the box


x=8.4;
y=5;
translate([-2.6,5,5])
rotate(a=[0,0,270])
linear_extrude(height = 1, center = true, convexity = 100, twist = 0,$fn = 100)
polygon(points=[[0,0],[x,0],[x,y],[0,y],[0,y-.5],[x-.5,y-.5],[x-.5,.5],[0,.5]], paths=[[0,1,2,3,4,5,6,7,8]],convexity=10);

This is a polygon in 2 parameters that are depeing on x and y ..

 difference(){
difference(){
    color("Magenta",0.5)

linear_extrude(height = 10, center = true, convexity = 100, twist = 0,$fn = 100)
{



translate([0,0, 0])
 square([10,10],true);

}
  color("DarkOrchid",0.5)
linear_extrude(height = 8, center = true, convexity = 100, twist = 0,$fn = 100)
{


    translate([0, 0 ,0])

 square([8,8],true);
}

}
translate([0, 3.5, 4])

linear_extrude(height = 3, center = true, convexity = 100, twist = 0,$fn = 100)
circle(r = 1);


translate([0, 1, 4])

linear_extrude(height = 3, center = true, convexity = 100, twist = 0,$fn = 100)
circle(r = 1);

translate([0, -1.5, 4])

linear_extrude(height = 3, center = true, convexity = 100, twist = 0,$fn = 100)
circle(r = 1);


x=8.4;
y=5;
translate([-2.6,5,5])
rotate(a=[0,0,270])
linear_extrude(height = 1, center = true, convexity = 100, twist = 0,$fn = 100)
polygon(points=[[0,0],[x,0],[x,y],[0,y],[0,y-.5],[x-.5,y-.5],[x-.5,.5],[0,.5]], paths=[[0,1,2,3,4,5,6,7,8]],convexity=10);
}

This is The fully Design

This is the FIle of the design ..

• Design File Scad file

The end of OpenScad :)



Then Let's Start with Solvespace

This is how to install it on Ubuntu ..

sudo add-apt-repository ppa:alex-p/solvespace
sudo apt-get update
$ sudo apt-get install Solvespace

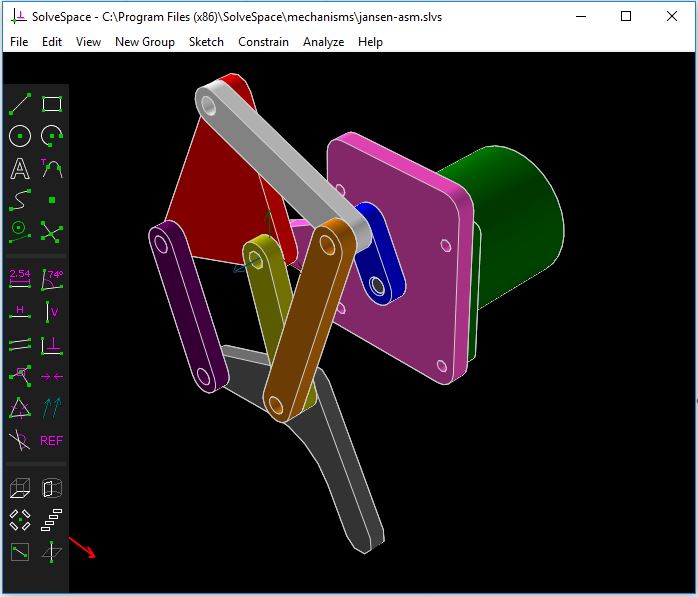

Solvespace is a very simple fancy interface for CADing parametric Design which is a great tool for Designing ..

I start learning it from this tutorial



This is What I did with it ..

and this is video for what i was doing with it

Let's start whit what i have done ..

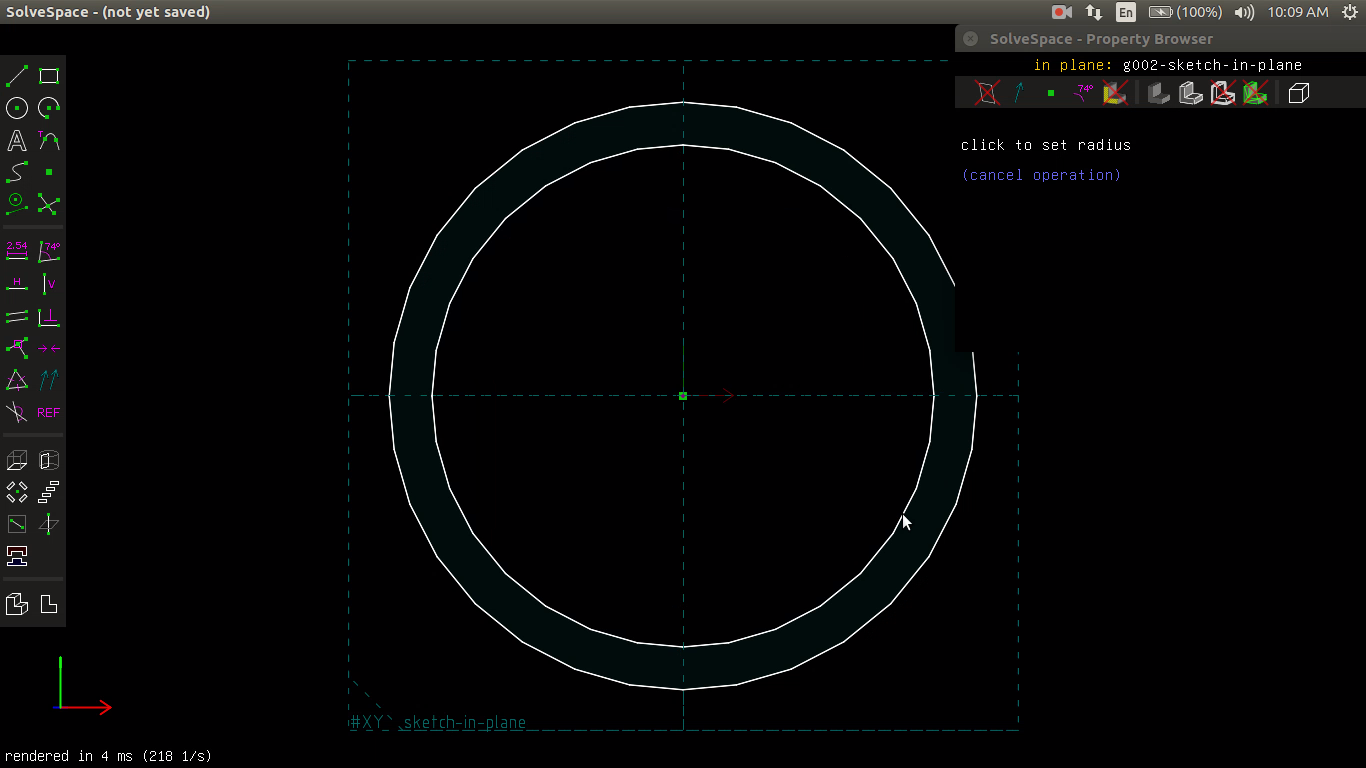

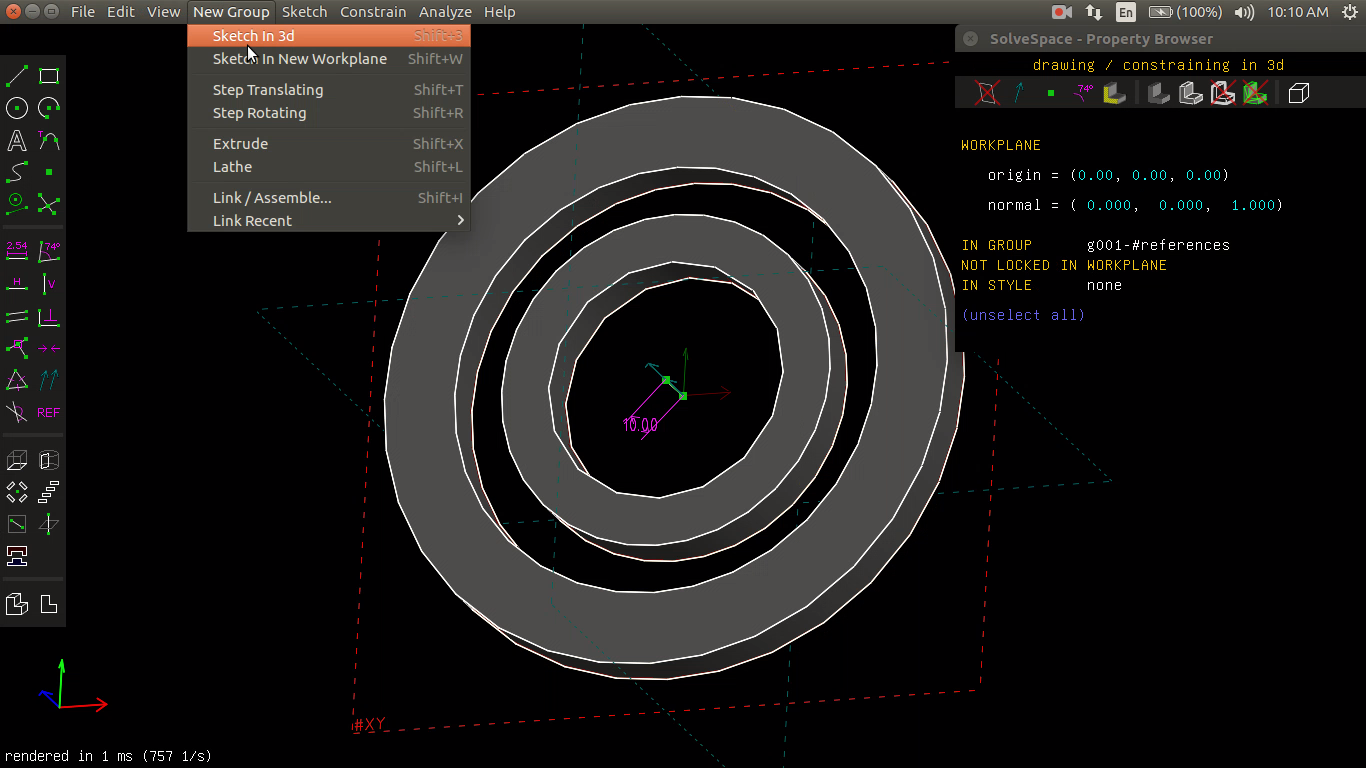

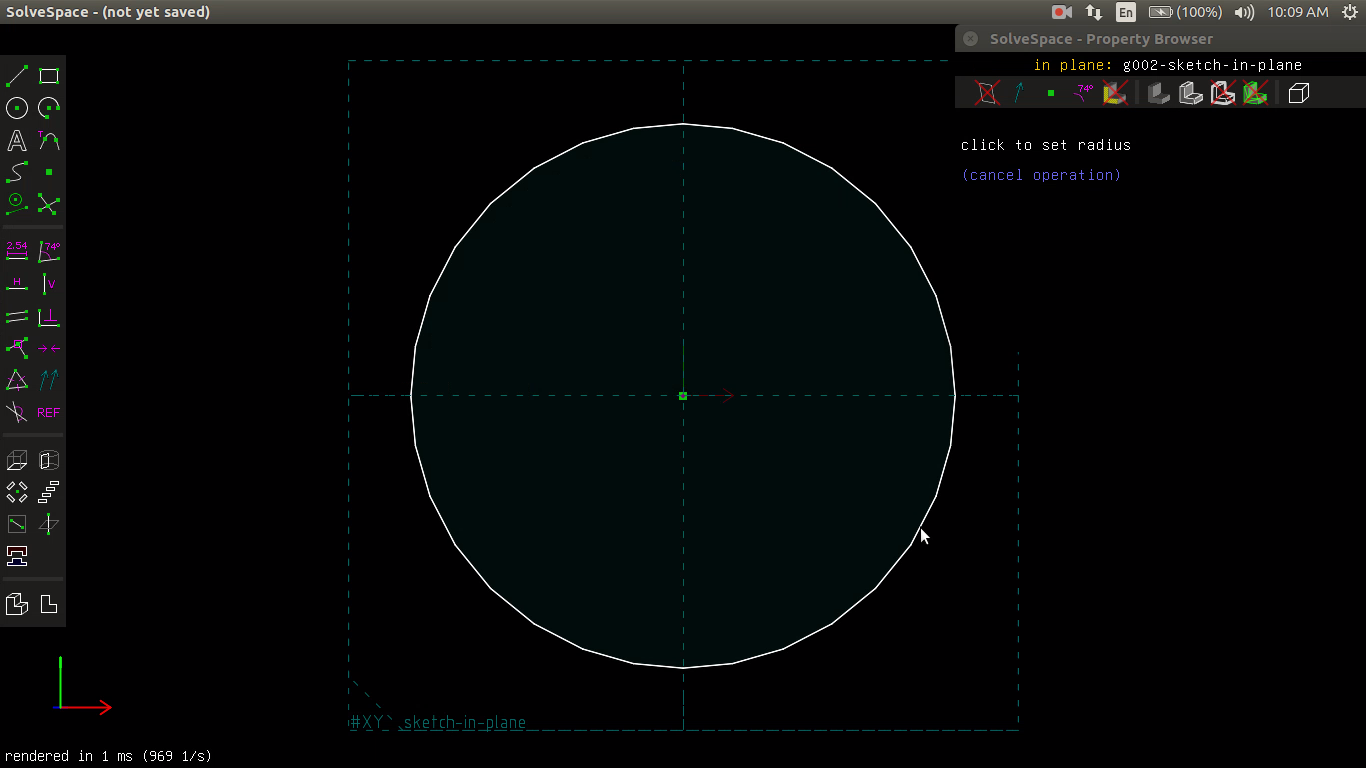

Draw a Circle

Draw a another Circle :)

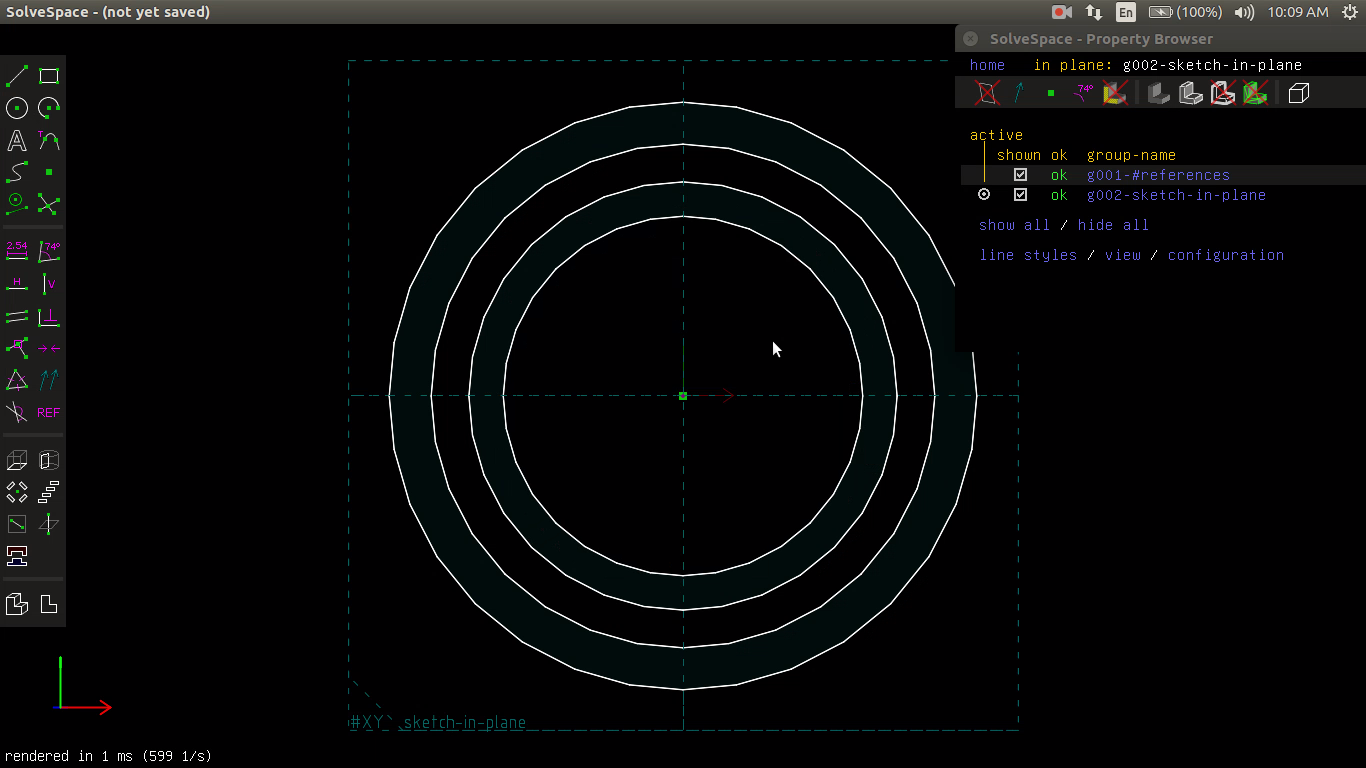

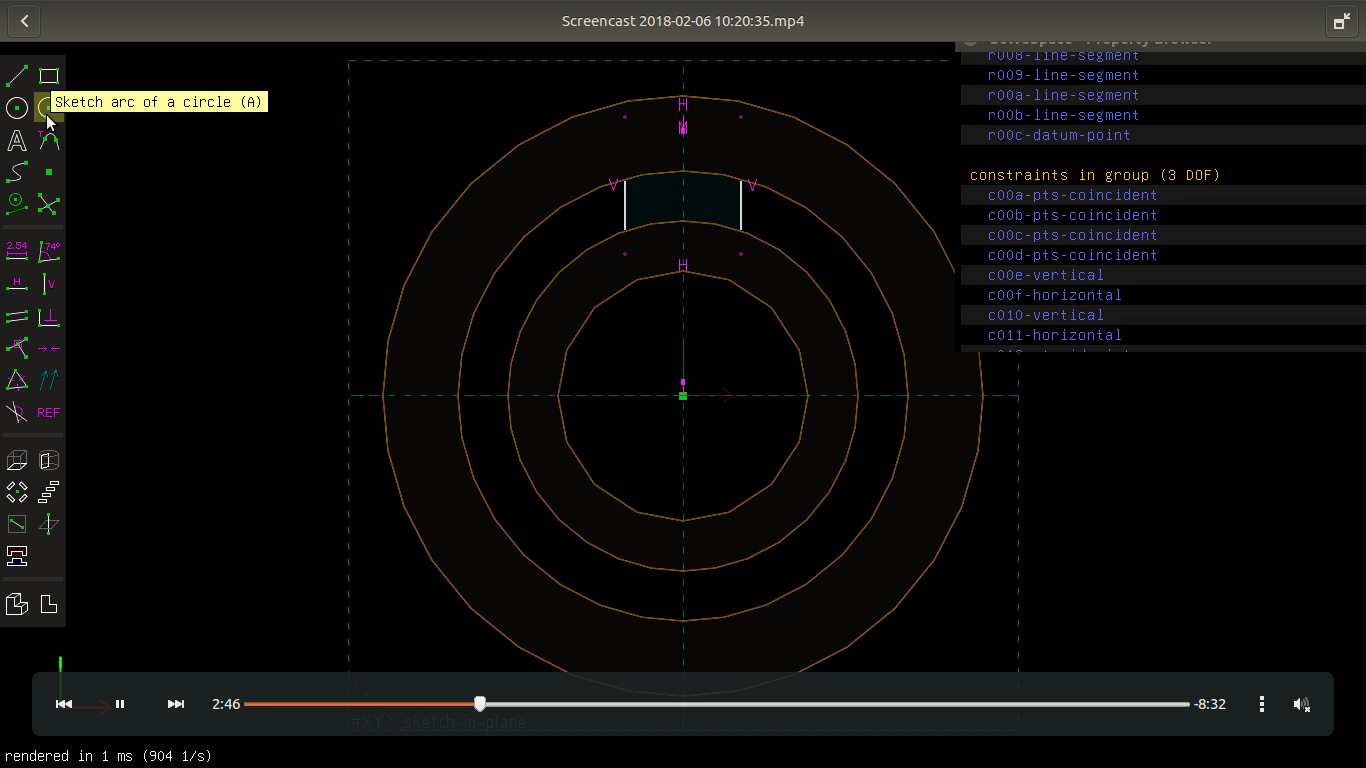

Draw a 4 Circles :D

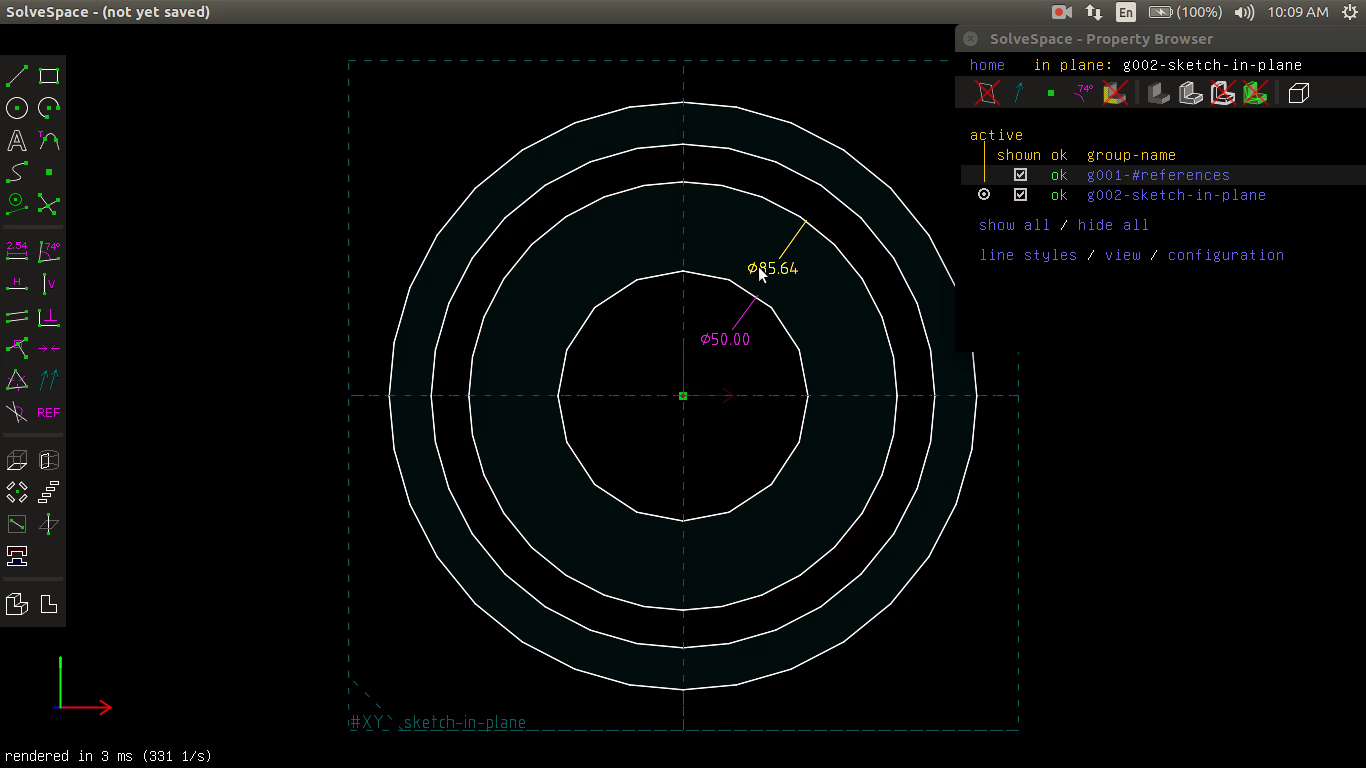

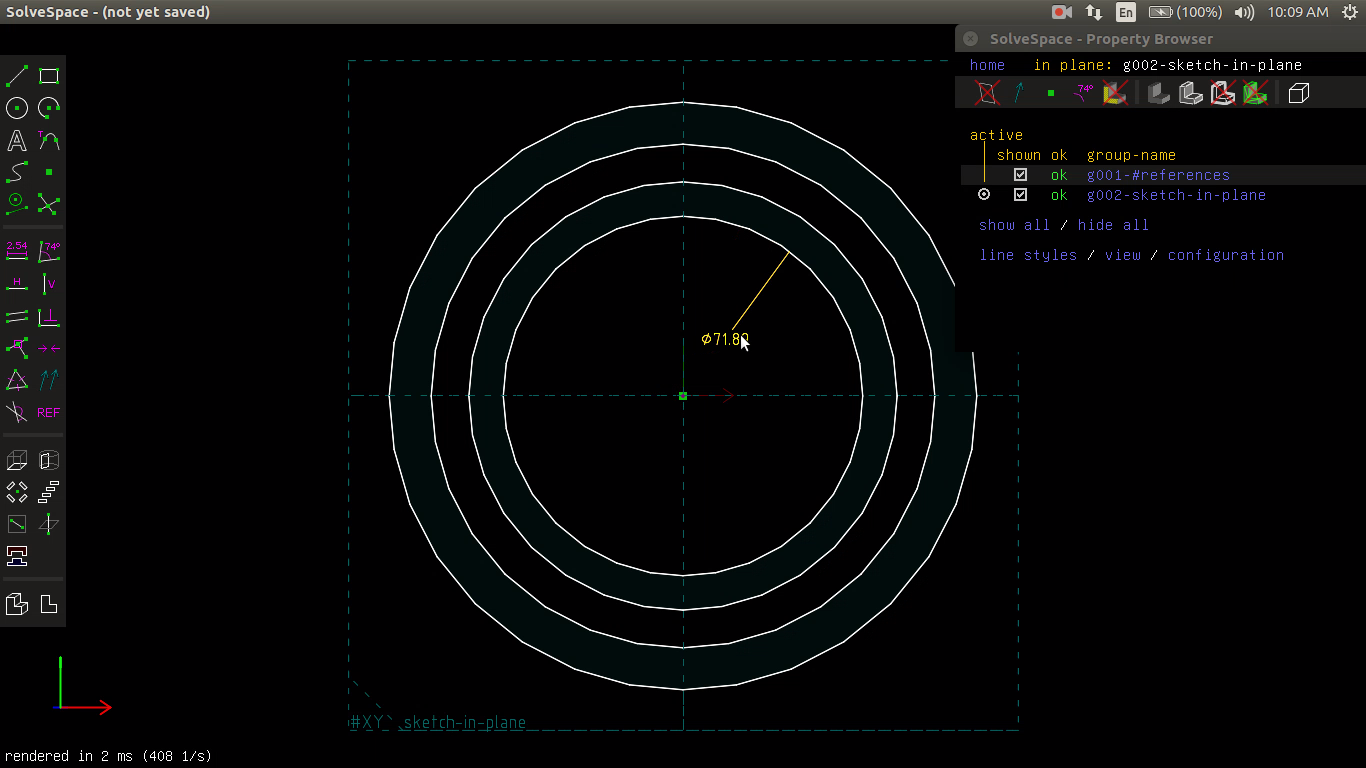

Set their diameter

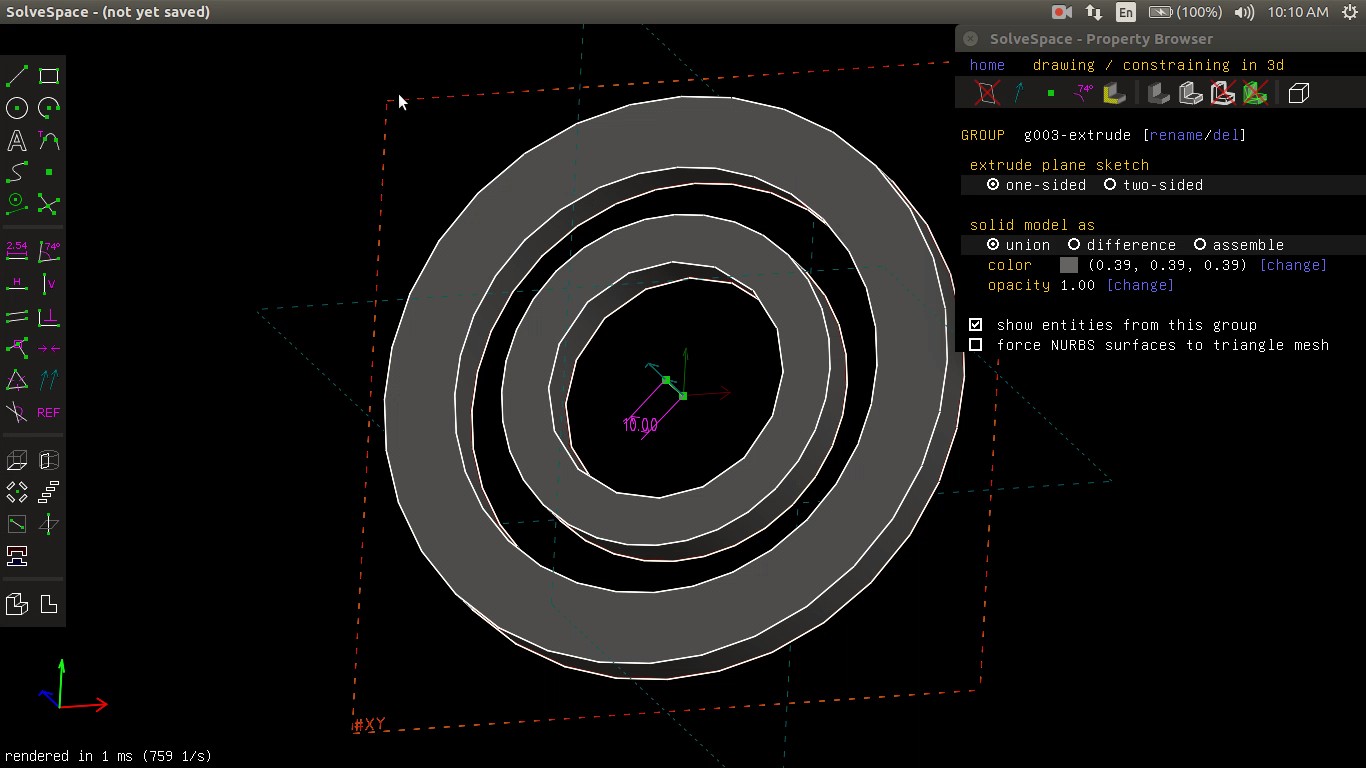

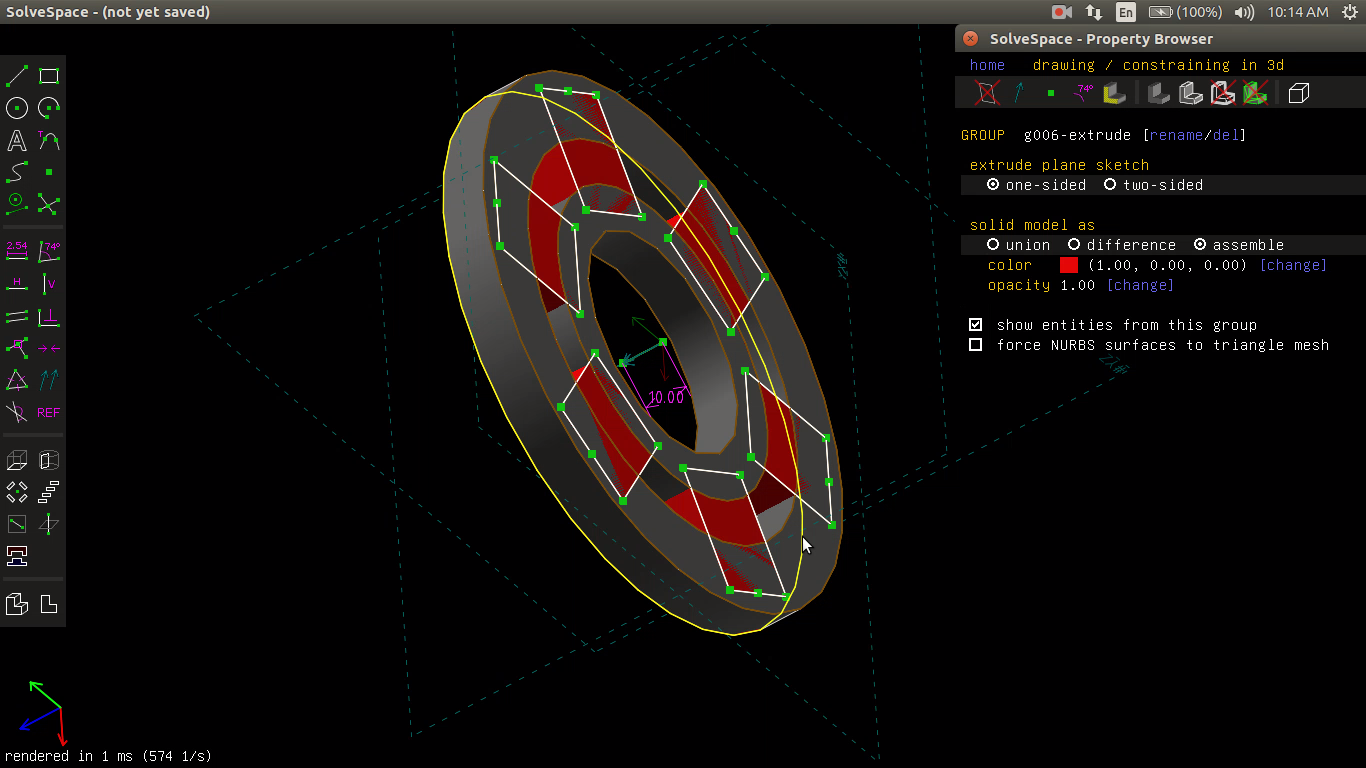

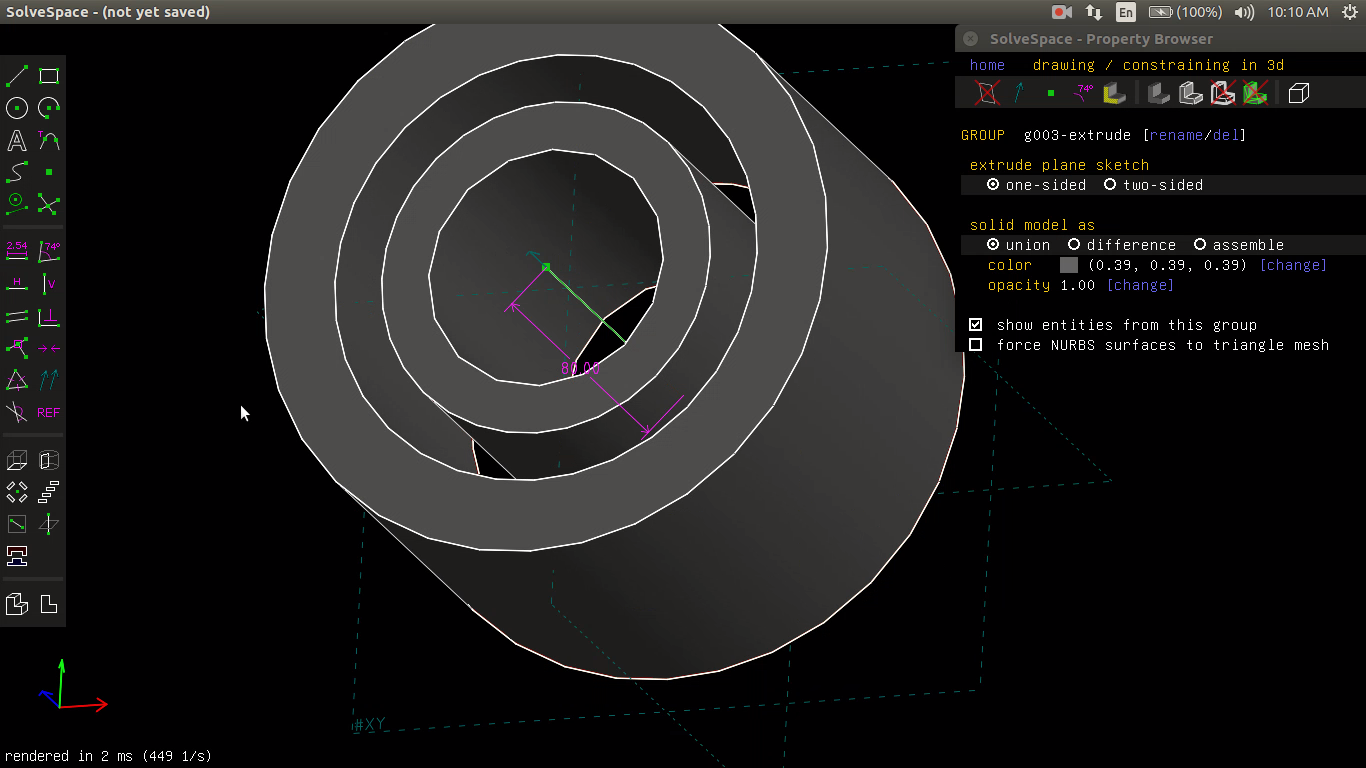

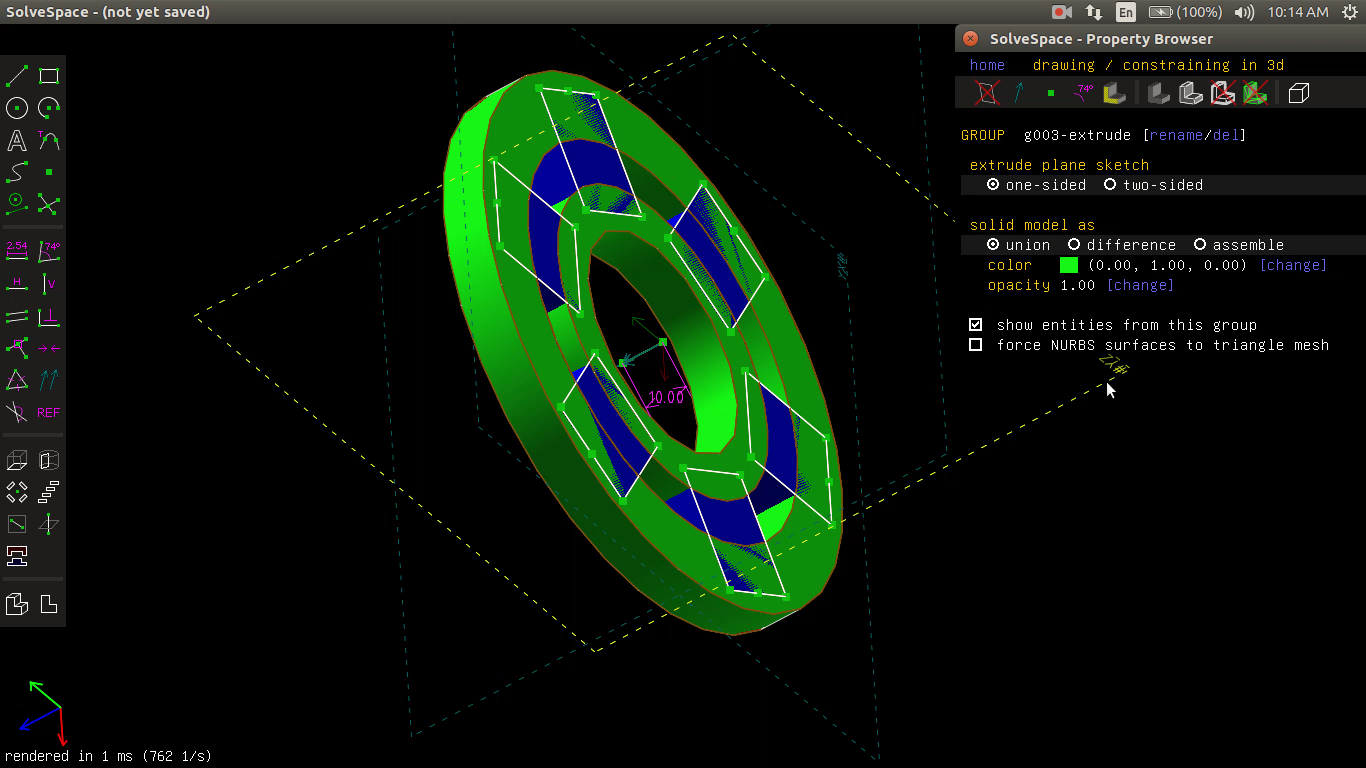

Extrude them

Selecting XY Plane

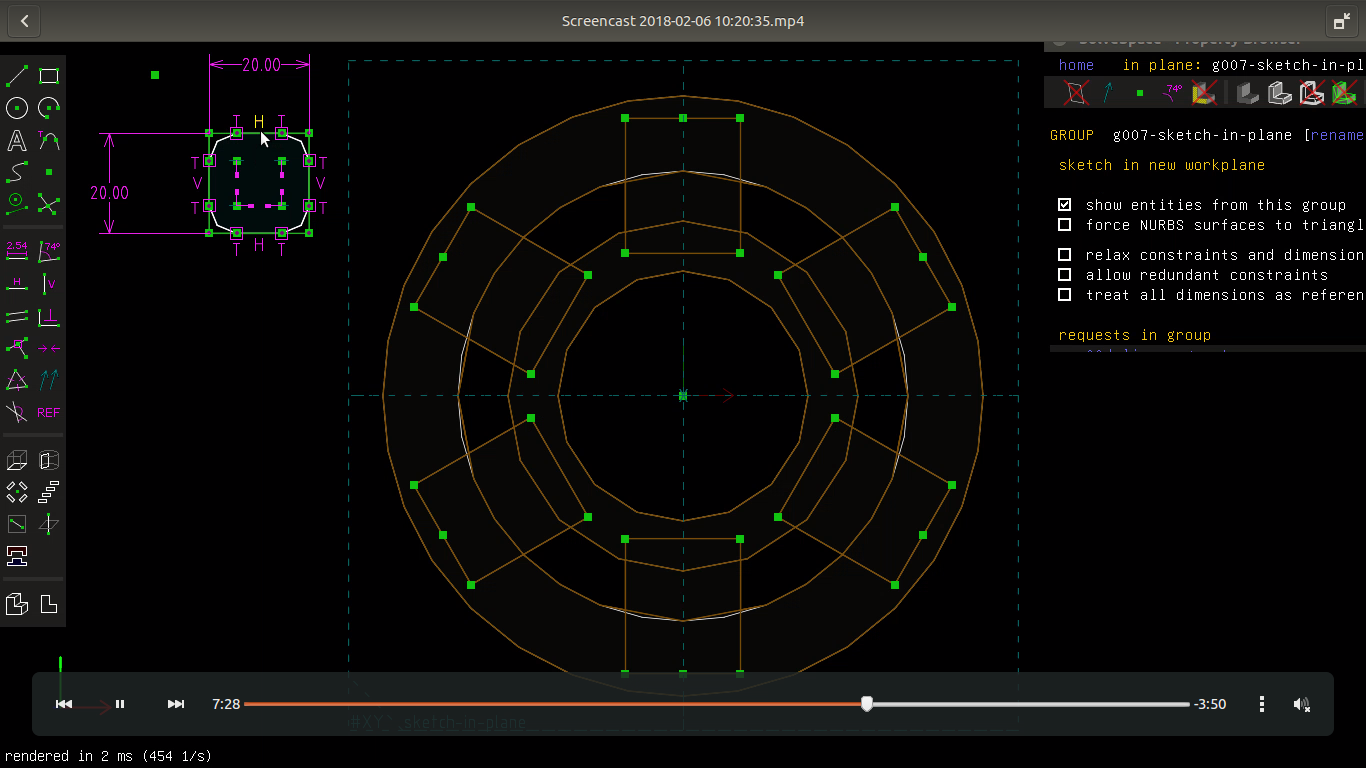

Set it as a new workplane

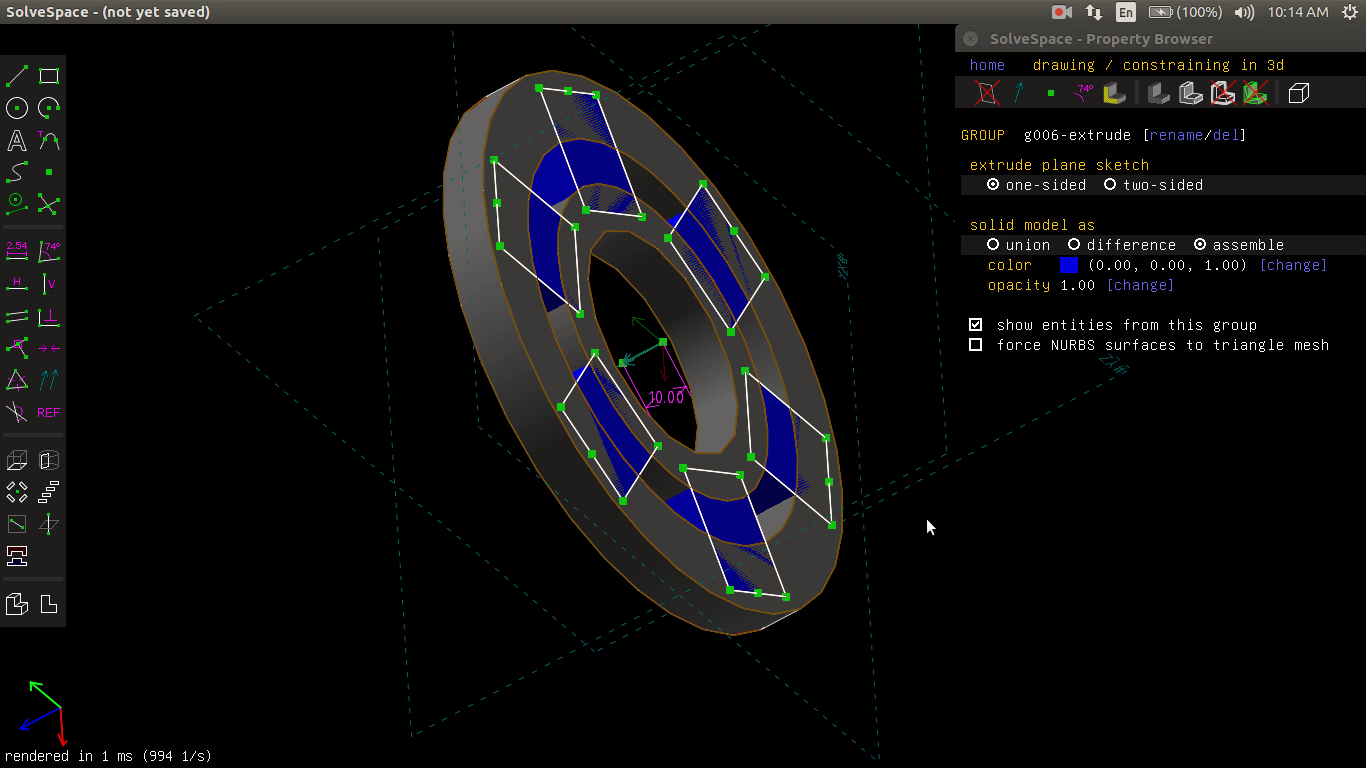

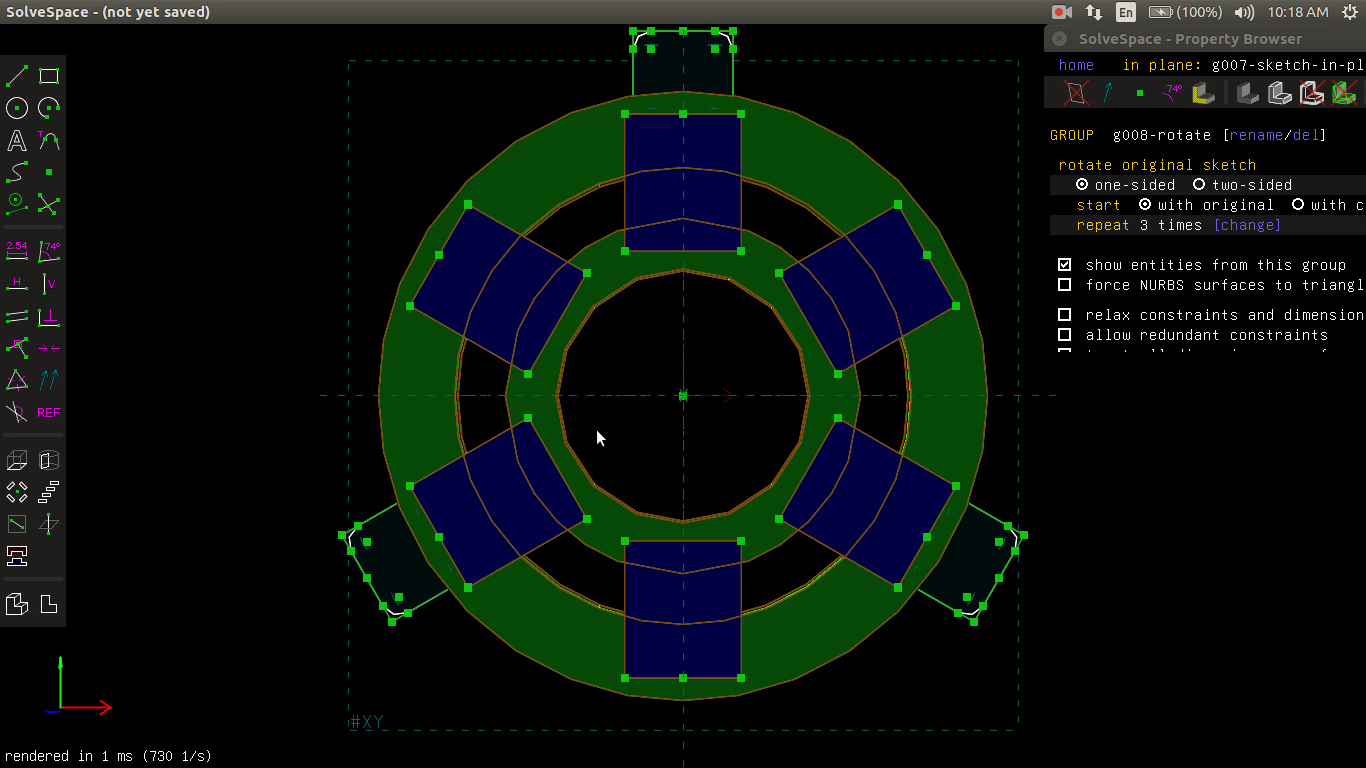

Start drawing supports

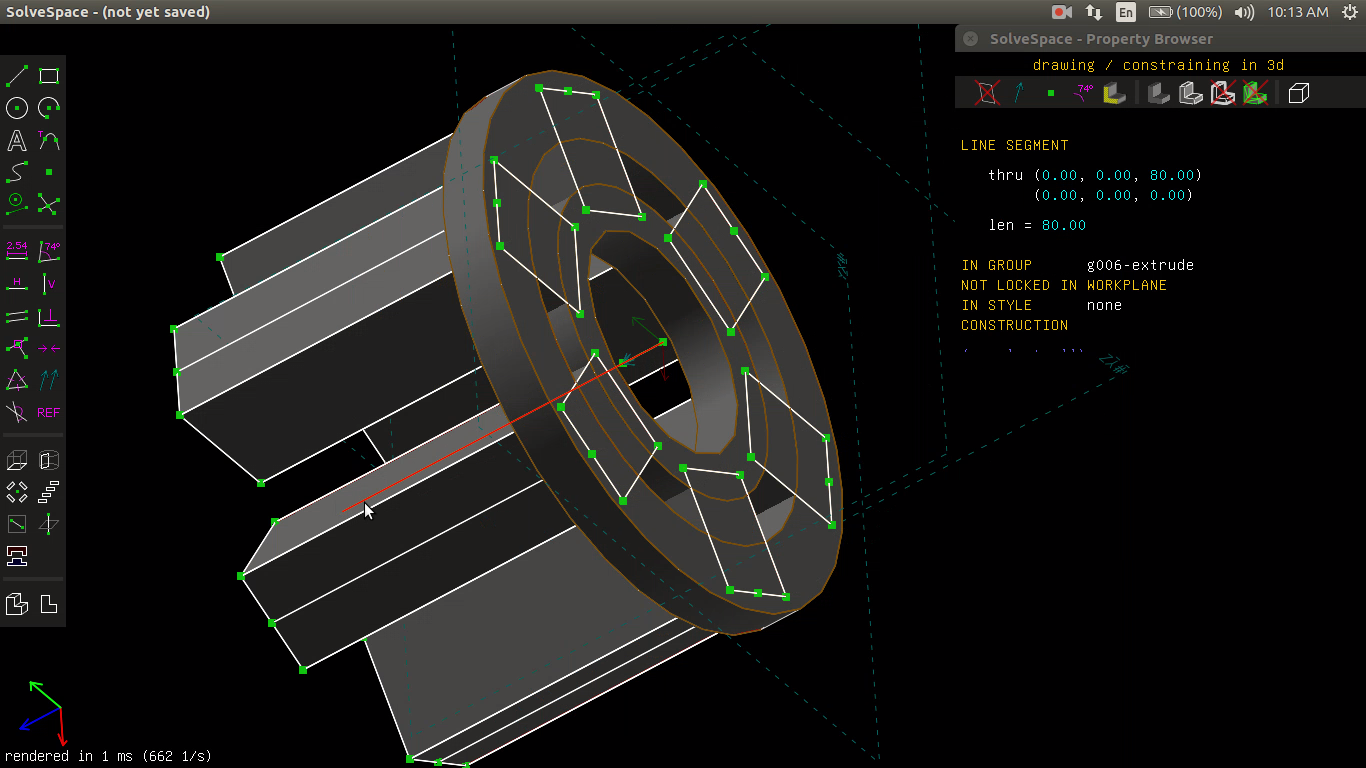

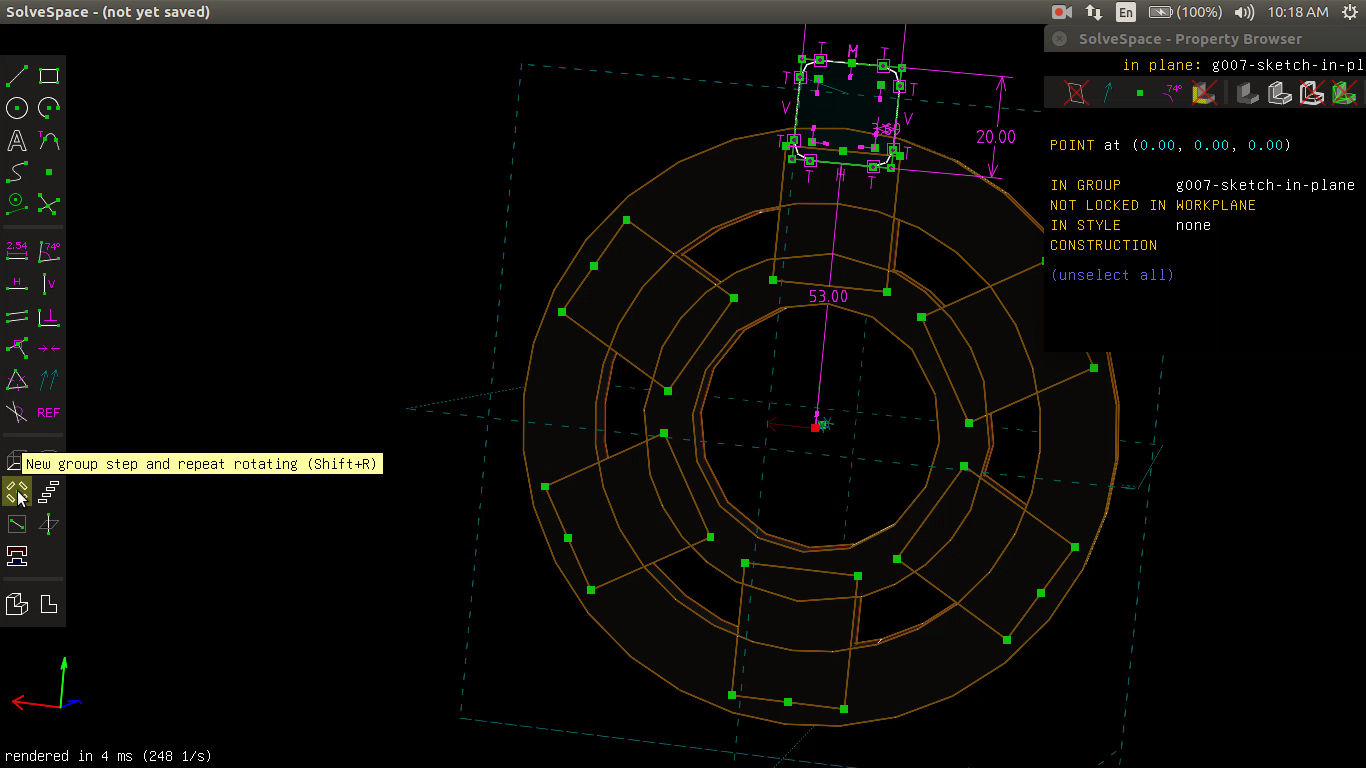

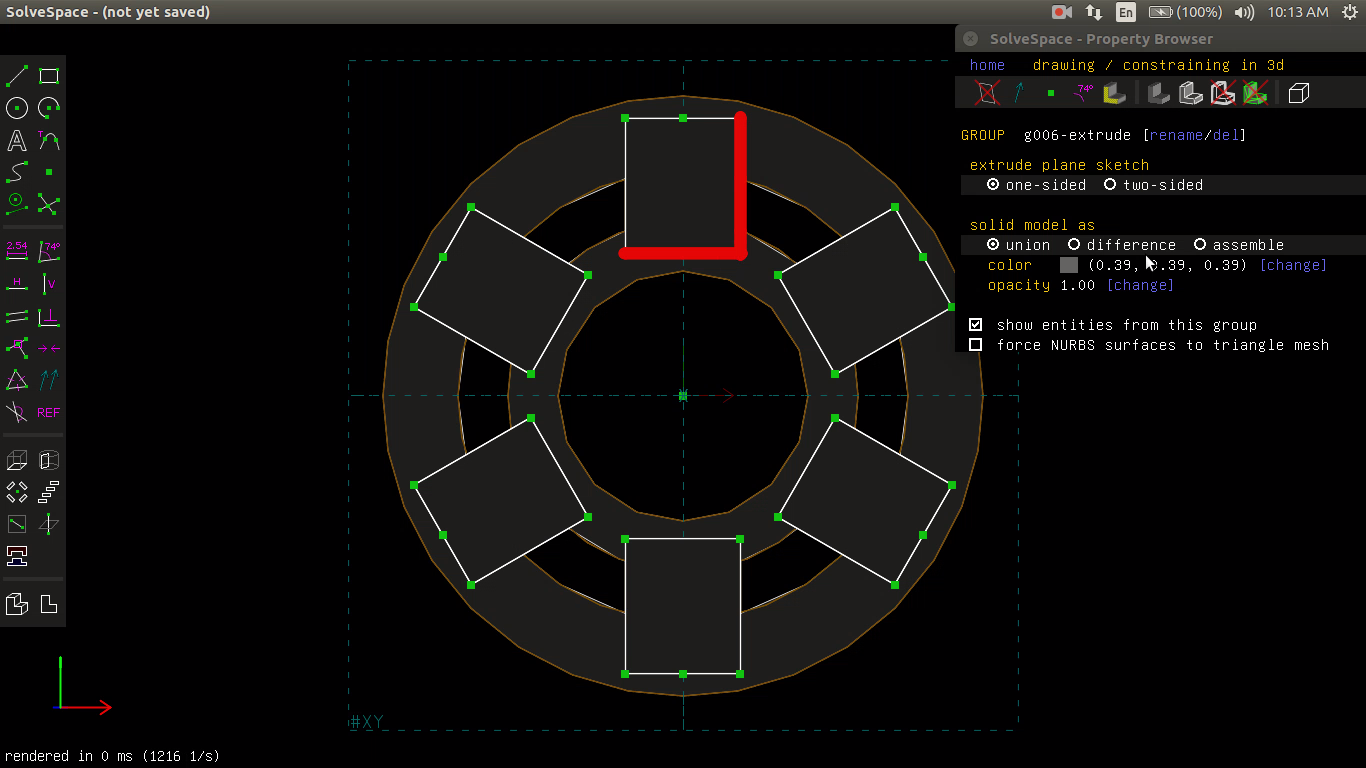

Start drawing Gear heads

This is the FIle of the design ..

• Design File step file

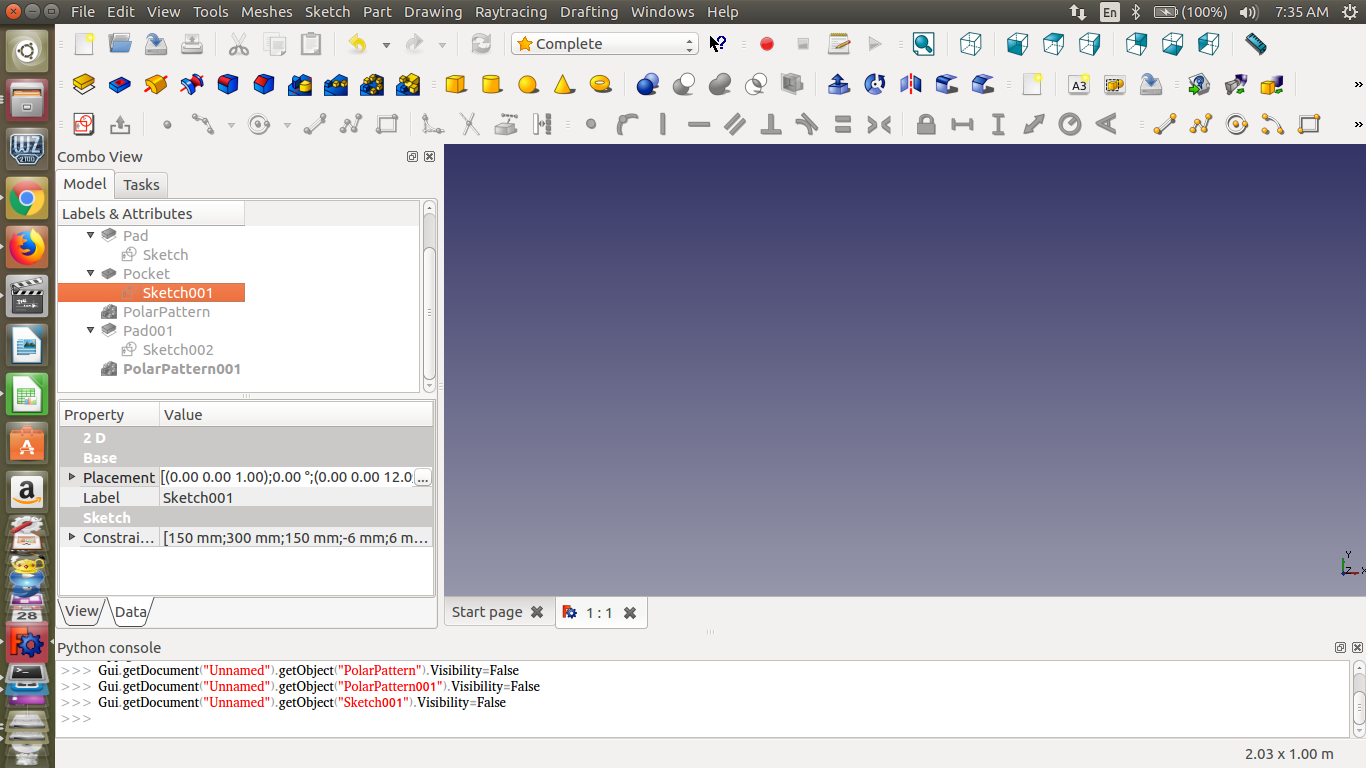

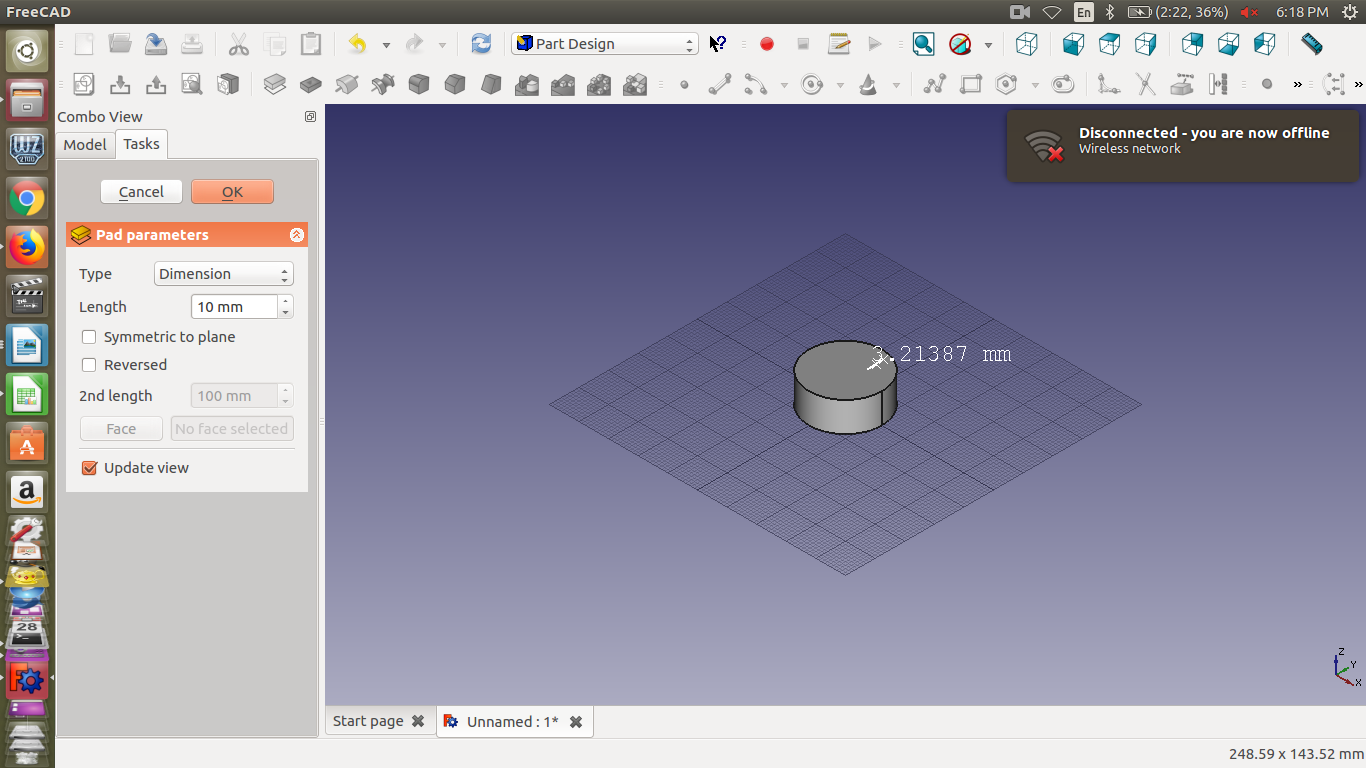

For te Final Project .. I Designed on Freecad a 3D printed part ..

and this is how it looks like ..

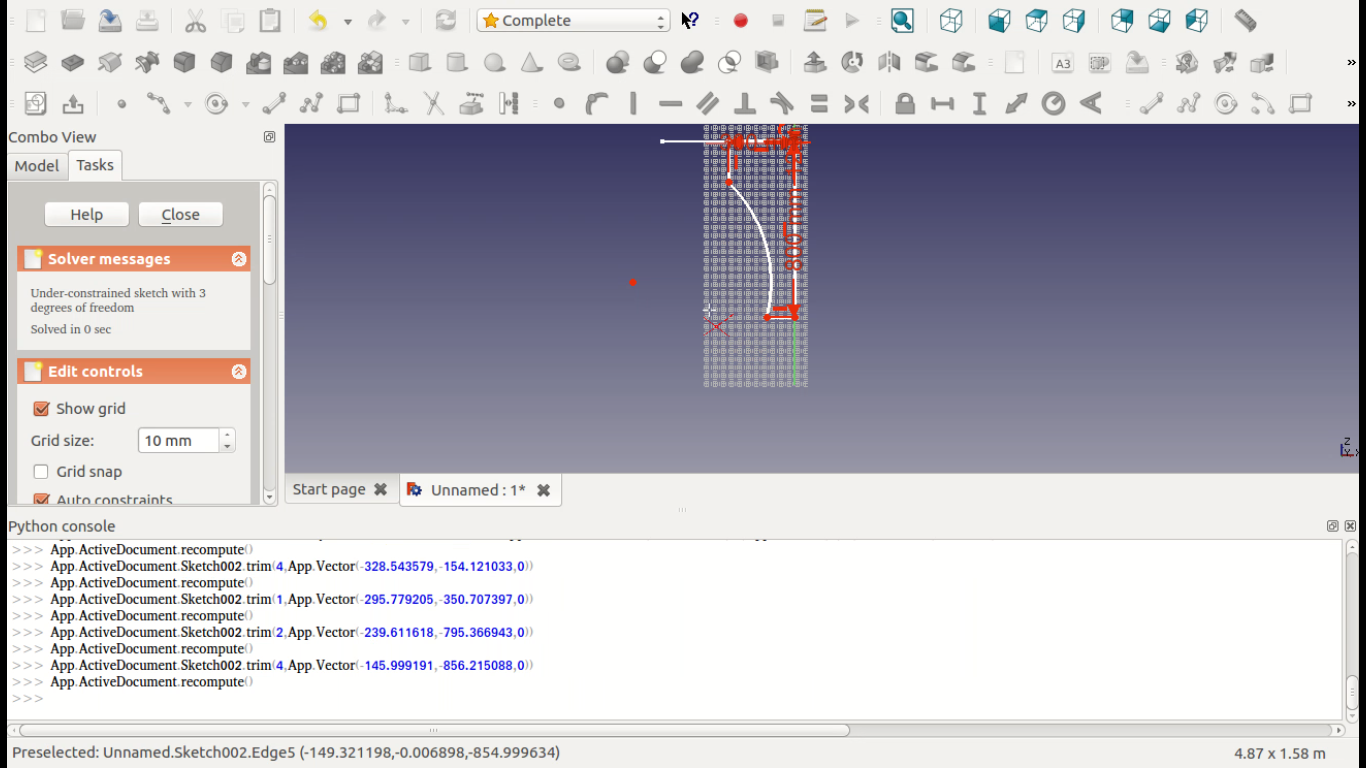

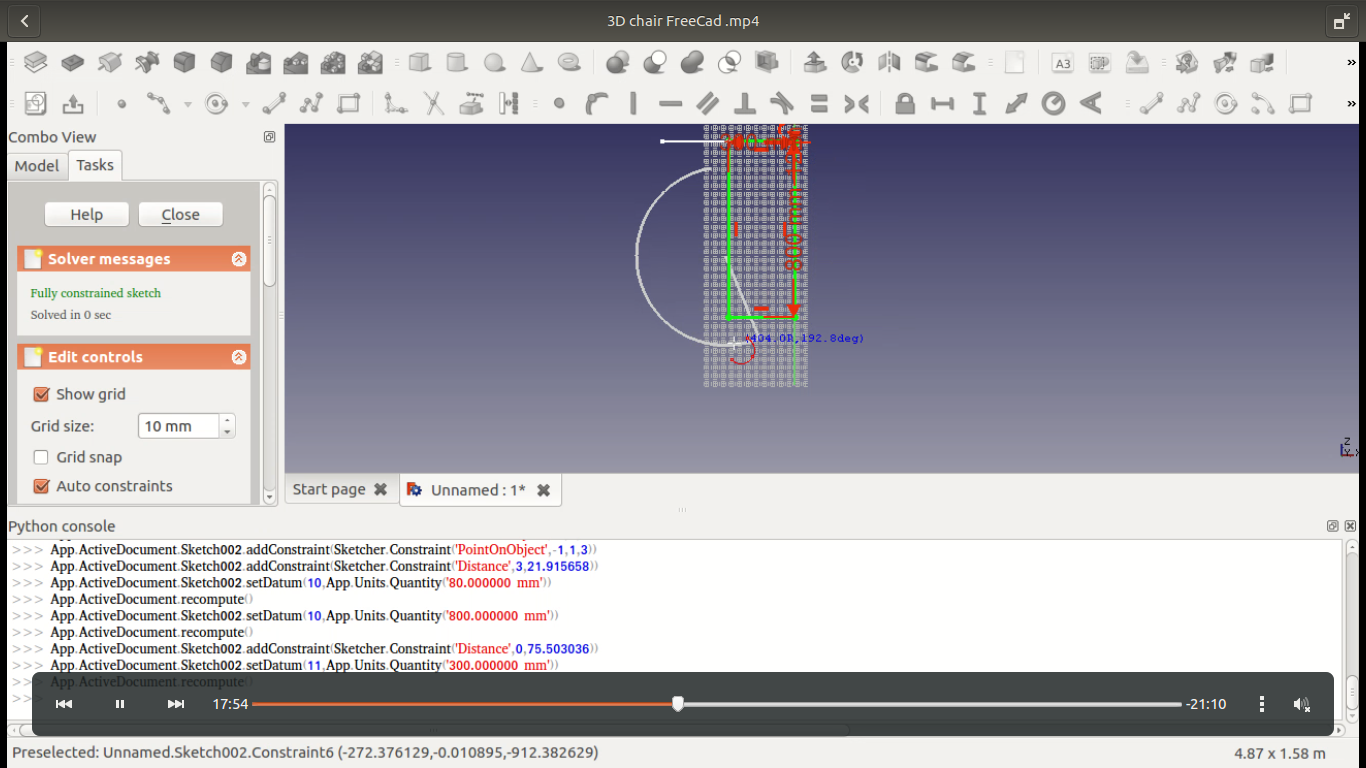

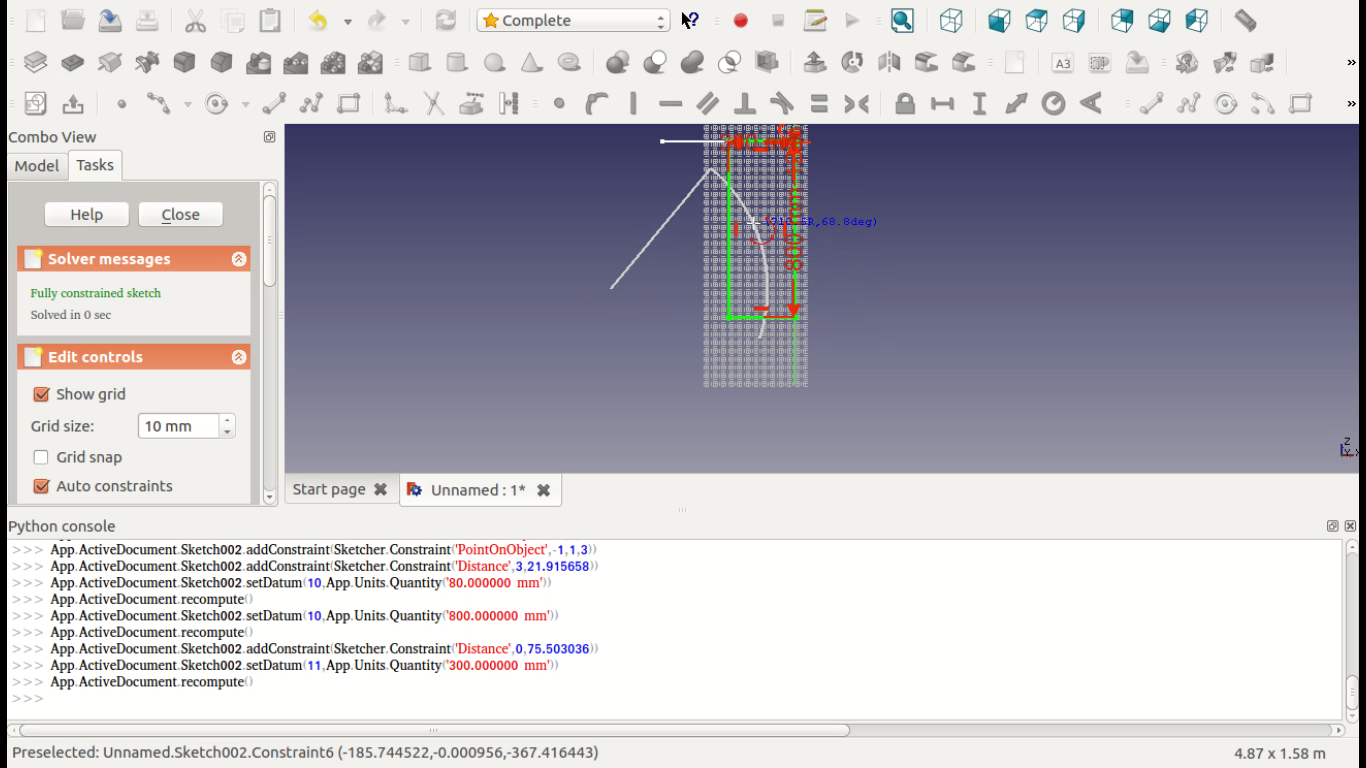

Here I started to sketch it

Those the Dimensions of my Objects

Here I tested the Dimensions

Then I succedded I designed the Full Design ..

That is it :)

• Design for Final project
