#Exercise_11

27/04/2016


Assignment

Output Devices

Add an output device to a microcontroller board you've designed and program it to do something.



Design the controller board for the final project

Source files

For the assignment I decided to design the first prototype of the controller board that I will use for my final project. So I organized the two exercise, input and output devices together.


To control the pellet extruder I will need a ceramic heater cartridge in order to heat the noozle, a thermocouple to control the temperature, a thermistor or a temperature sensor to mesure the ambient temperature, a DC geared motor for the extrusion and a solenoid valve to cool the extruded material.



BOM

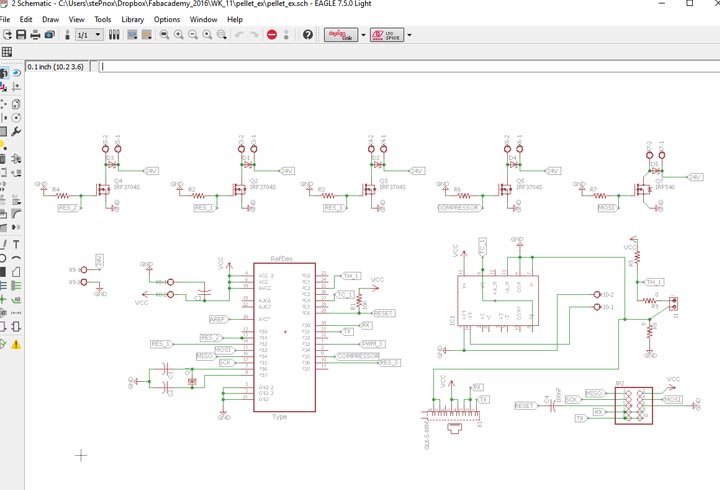

s_1

Board: I decided to usa an ATMEGA328P-AU insted of using the Attiny44, because I will need a lot of PWM ports and the hardware serial, in order to allow the comunication between the robot and the control board.

To control the nozzle temperature I will use a thermocouple to allow a very accurate measurement; so I have installed the AD594 in order to read the data from the thermocouple type J.

To heating the nozzle I use 3 Ceramic heater cartridge, so I will need 3 mosfet to allow the control of the heating and other two to control the DC geared motr and the Solenoid valve.

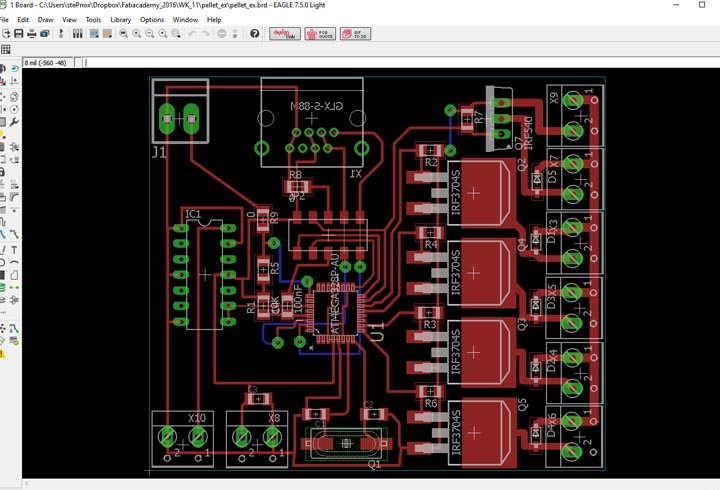

s_2

Board: on the board I have used a couple of through hole components, and soldered bending the feet.

The ISP connector have 10 pins becouse I have added the RX an TX in order to allow the serial communication, that will used to communicate with the robot, but to make easier the wiring I have installed an RJ45 connector too. The robot core and the extruder control board will be 7m distant.



s_3

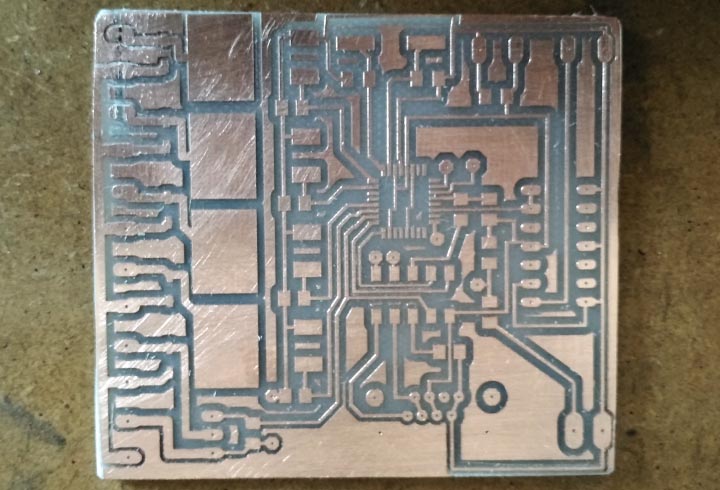

Milling: milling the board was pretty tricky, because the 328P-AU have a very tiny footprint, the pads are very close each oder (only 0,25mm). To mill the board I have used the same process described in the electronics production module.



s_4

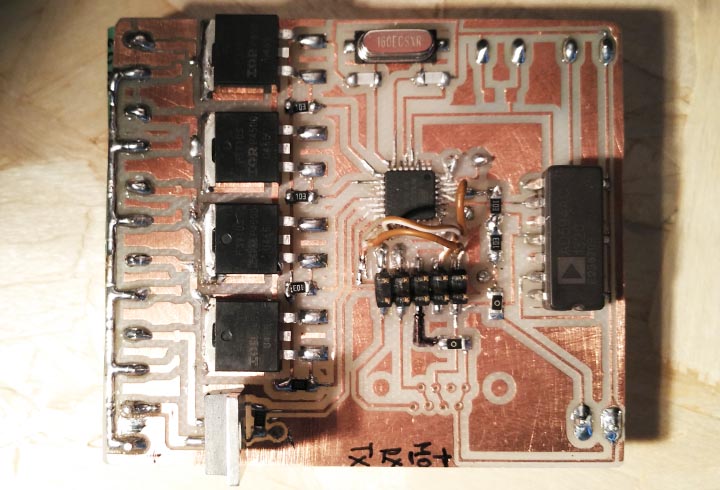

Soldering: the board have a couple of wires on the bottom layer in order to connect the via. I have soldered all the screw connectors on the bottom layer.

As I immagin solder the 328P-AU was tricky too and took some times.



s_5

Some Problems: the first connection to the computer has not been a success, because I'm not been able to program the board. After a debug with the multimeter I discovered a short under the ISP connector; So I fix it cutting some tracks and soldering a couple of wires.

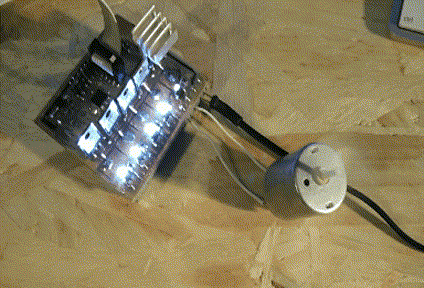

output_gif

Output testing, the motor increase the rpm and the oder output are turning on and off.



Arduino Output code


					//define all the output pins
					#define R1 10
					#define R2 9
					#define R3 6
					#define MOT 11
					#define COMP 5

					void setup() {
					  //initialize the serial port
					  Serial.begin(9600);
					  //set the pins as an output
					  pinMode(R1, OUTPUT);
					  pinMode(R2, OUTPUT);
					  pinMode(R3, OUTPUT);
					  pinMode(MOT, OUTPUT);
					  pinMode(COMP, OUTPUT);
					}

					void loop() {
					  //turn on the output
					  //and set up the motor speed
					  analogWrite(MOT, 160);
					  digitalWrite(R1, HIGH);
					  digitalWrite(R2, HIGH);
					  digitalWrite(R3, HIGH);
					  digitalWrite(COMP, HIGH);
					  //wait 5 second
					  delay(5000);
					  //turn off the output
					  //and slowdown the motor speed
					  analogWrite(MOT, 40);
					  digitalWrite(R1, LOW);
					  digitalWrite(R2, LOW);
					  digitalWrite(R3, LOW);
					  digitalWrite(COMP, LOW);
					  delay(5000);
					}



The code: this sketch will test all the output of the board, so will turn on and off the motor, all the trhee Ceramic heater cartridge and the air.



Upload the code: same process described above.

The code has worked well and concluding that I have tested all the components, that are working all. Anyway I'm going to implement some features in a second version of the board, that will installed on the final project.
